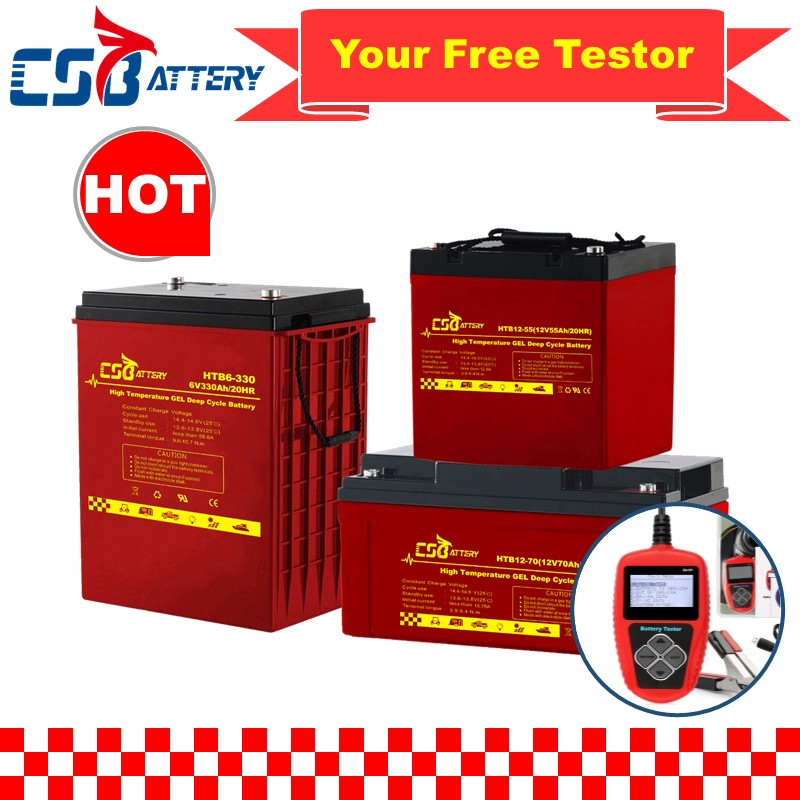

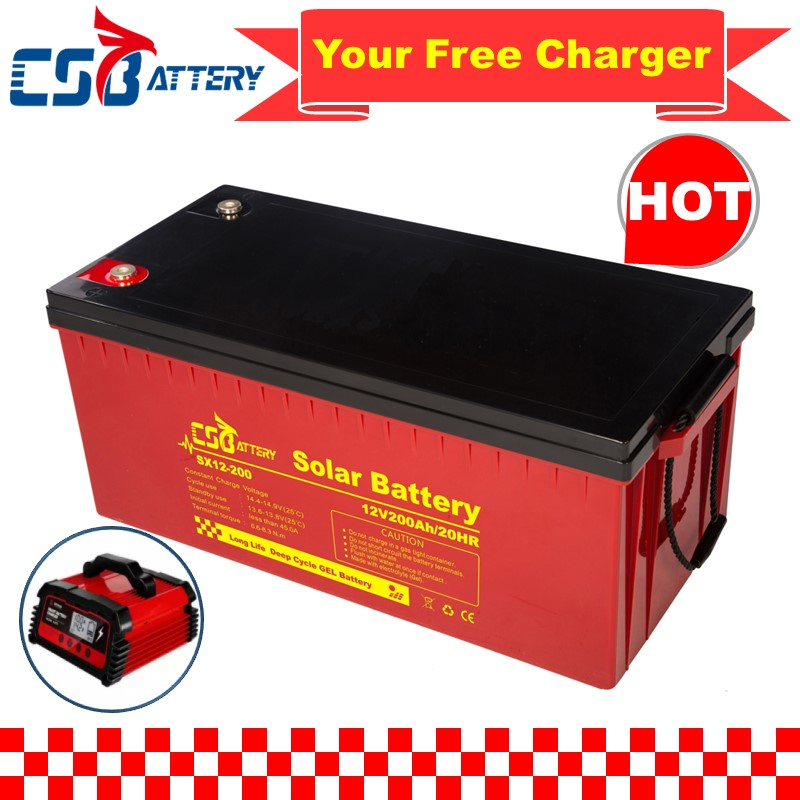

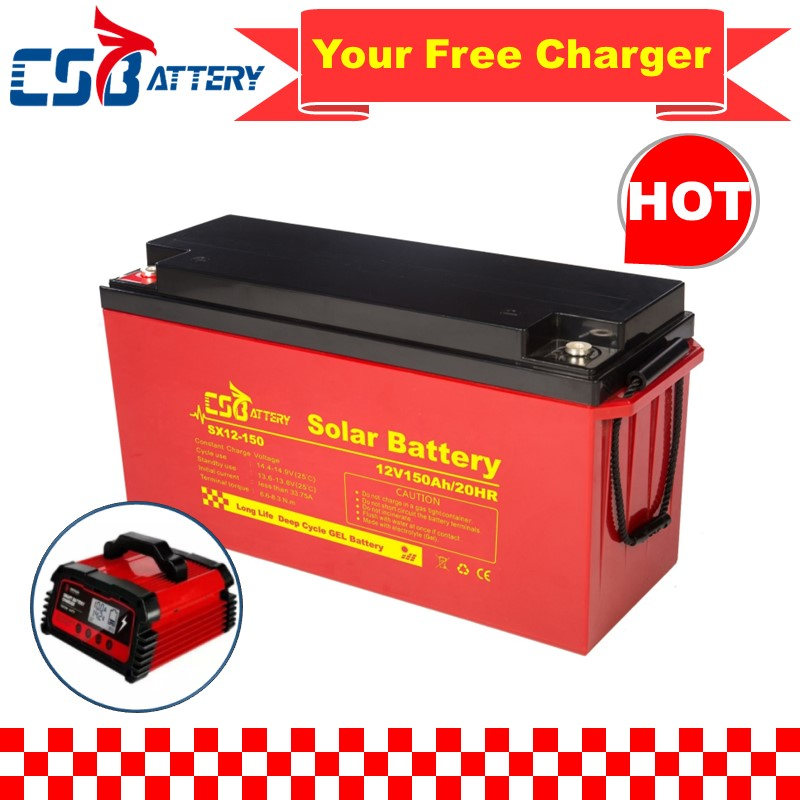

Csbattery 12V 100ah/150ah/200ah Deep-Cycle Gel Rechargeable Storage Battery for Solar Panel/Inverter/Power-Tool/UPS/Electric-Scooter/Bicycle/Vehicle/Pack/6V/Csb

Customization:	Available
Type:	Gel Battery
Usage:	off Grid Solar, UPS, Golf Car

Basic Specifications

Model NO.

HTB12V HTB6V HTB8V

Nominal Voltage

12V 6V 8V

Discharge Rate

0.2-0.5c

Electrolyte

Gel+Acid

Warranty

3 Years

Expected Life

20 Years

Cycle Life

50% DOD 1600 Cycles

Certificates

CE, IEC, ISO

Casing

ABS or UL94 Fire Resistance

Temperature

-20°C to +60°C

Product Description

Patented High-Temp Deep Cycle Solar GEL Battery is designed for long service life (15-20 years) and is the ideal partner for solar markets and high-temperature environments. Utilizing advanced patented GEL technology, these batteries comply with international standards including IEC60896-21/22, BS6290-4, and Eurobat Guide.

✓ Environmentally friendly & Maintenance-Free

✓ Non-Spillable construction & Explosion Proof

✓ Wide Operating Temperature Range (-20°C~+60°C)

✓ Low Self Discharge & No Memory Effect

✓ High Discharge Rate Capability

✓ Valve Regulated & Independent Position Installation

Key Applications

Communication & Telecommunication equipment, Emergency lighting systems, Electric power stations, Solar and wind powered systems, Marine equipment, Uninterruptible power supplies (UPS), Medical equipment, and Fire security systems.

Technical Specifications (12V Series)

Model	Voltage (V)	Capacity (Ah)	Length (mm)	Width (mm)	Height (mm)	Weight (kg)	Terminal
HTB12-100	12	100	307	169	211	30.2	M6
HTB12-120	12	120	407	173	210	39.2	M8
HTB12-150	12	150	484	171	241	45.5	M8
HTB12-200	12	200	532	206	216	58.6	M8
HTB12-250	12	250	520	269	203	71.0	M8
HTB12-300	12	300	520	269	220	77.0	M8

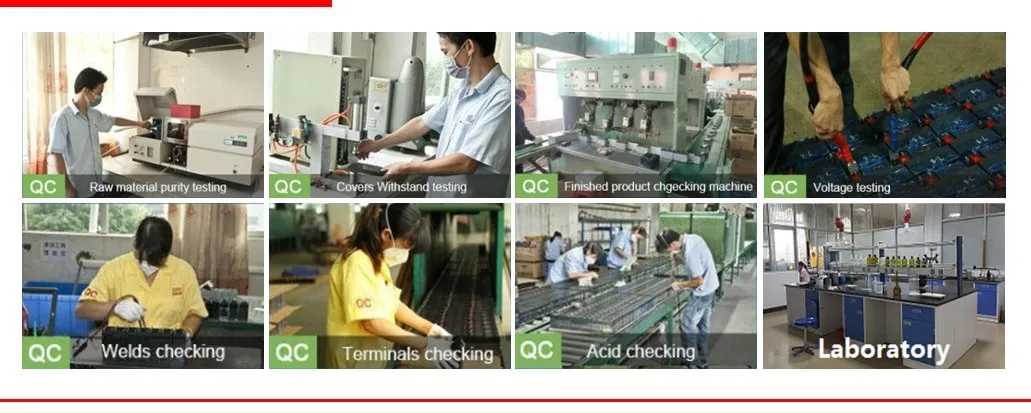

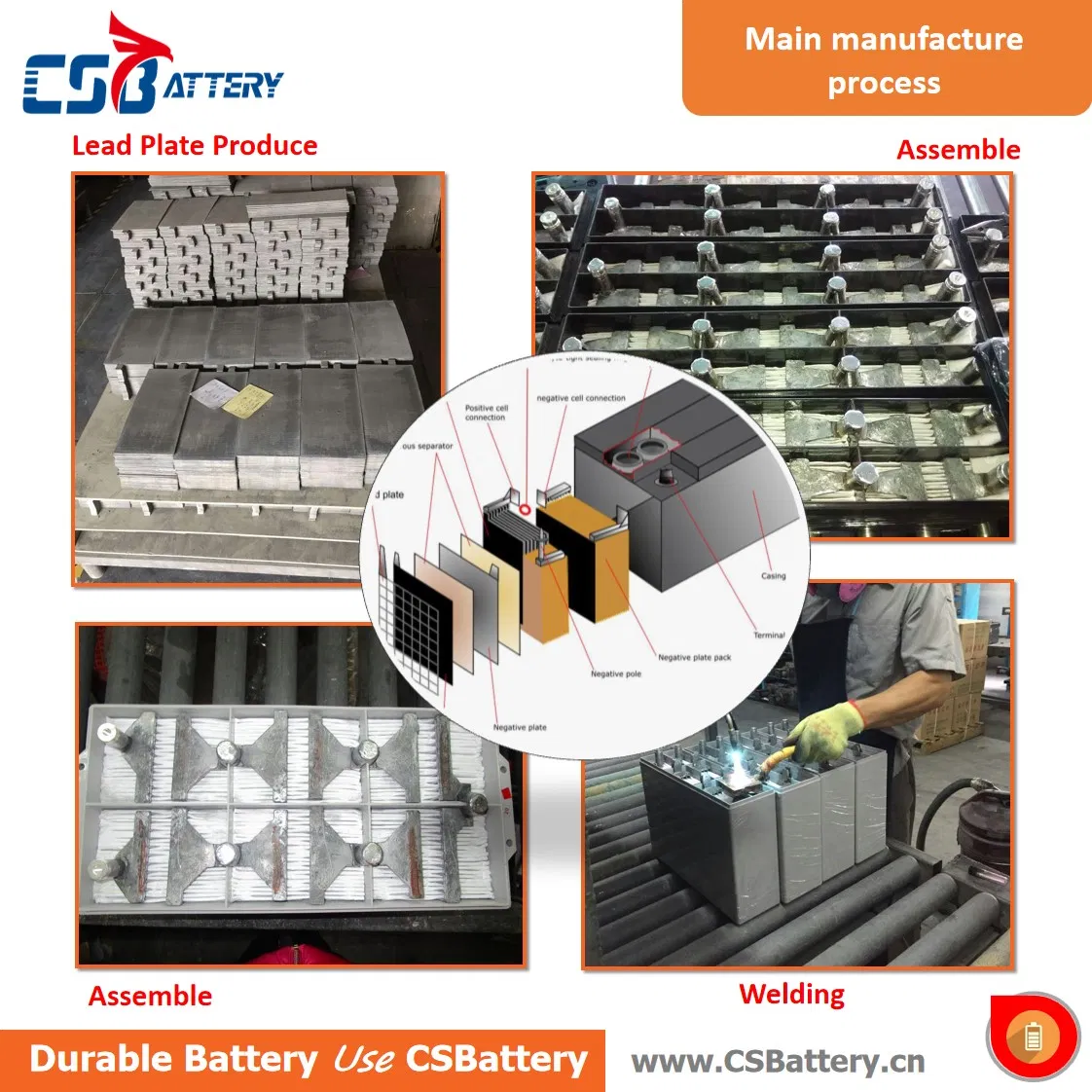

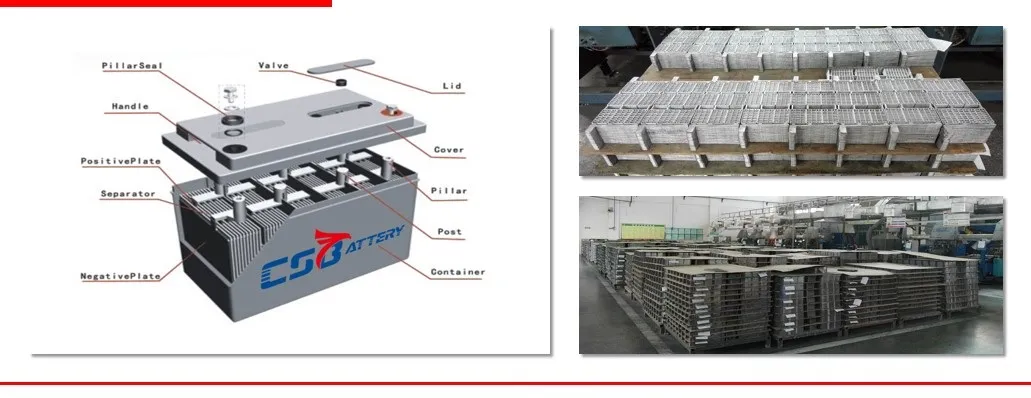

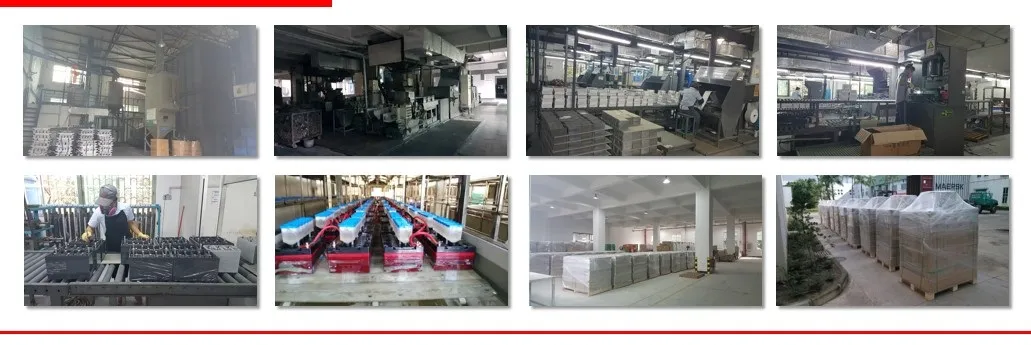

Internal Structure & Quality Control

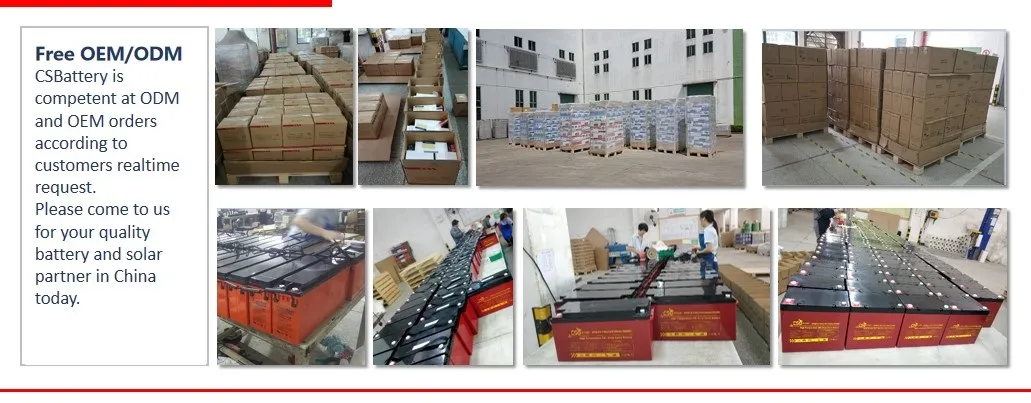

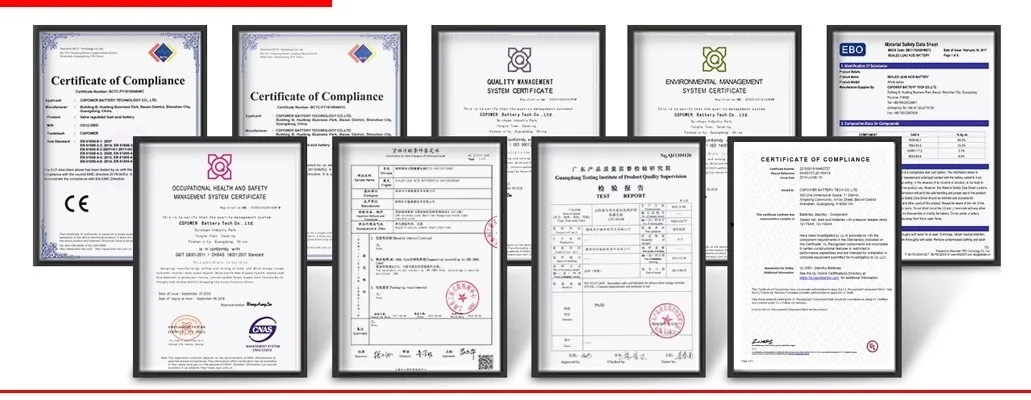

Certification & Logistics

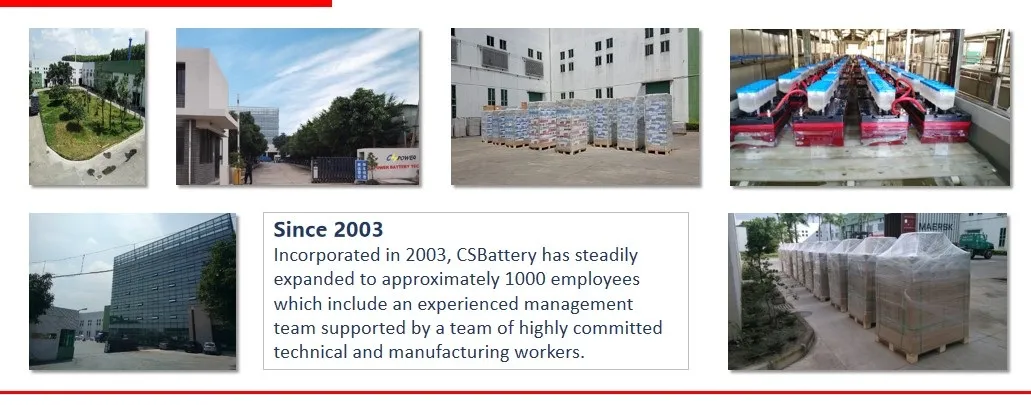

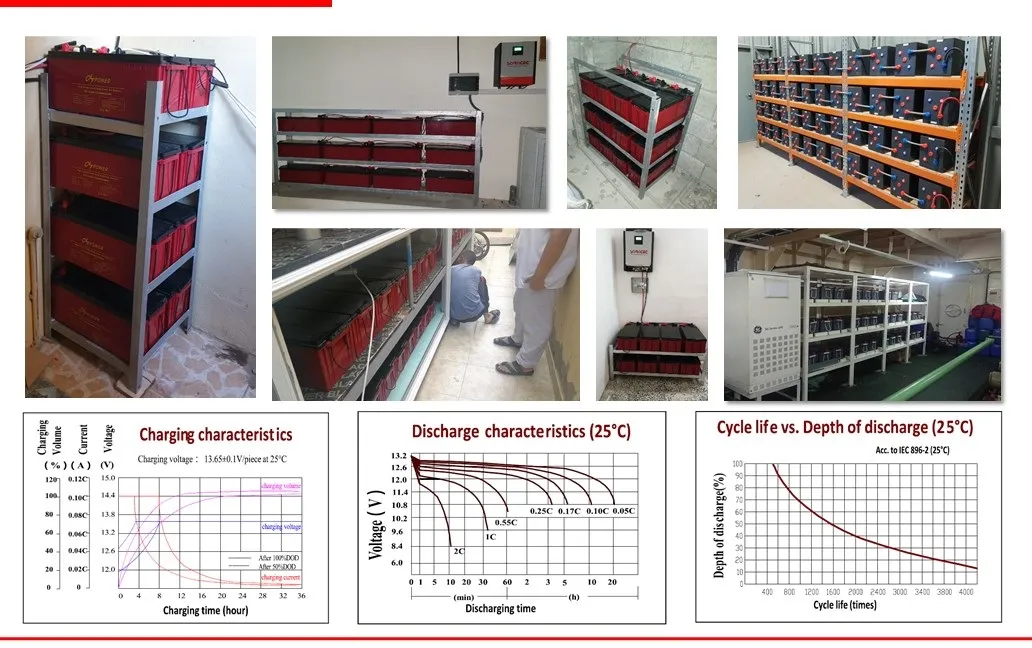

Global Projects & Factory

Frequently Asked Questions

Can the battery be delivered by sea and air?

Yes, our batteries can be delivered both by sea and by air. We provide MSDS and test reports for safe transport as non-dangerous products.

Is fast charging recommended?

Fast charging is not recommended as it can be harmful to the long-term health and stability of the battery.

Can I perform a partial replacement of battery banks?

Partial battery replacement of lead acid battery banks is not recommended for optimal performance and safety.

What is the typical delivery time?

Usually, it takes about 7 days for stock items, 20 days for half-container orders, and 30 days for full 20ft container products.

How is quality controlled during production?

We adopt the ISO 9001 system, including Incoming Quality Control (IQC), Production Quality Control (PQC), and Outgoing Quality Control (OQC) to ensure zero defects.

What determines the shelf life of a VRLA battery?

Shelf life depends on the self-discharge rate and temperature. At 25°C, self-discharge is less than 3% per month. Batteries should be recharged every 6 months (or 3 months in hot climates).
