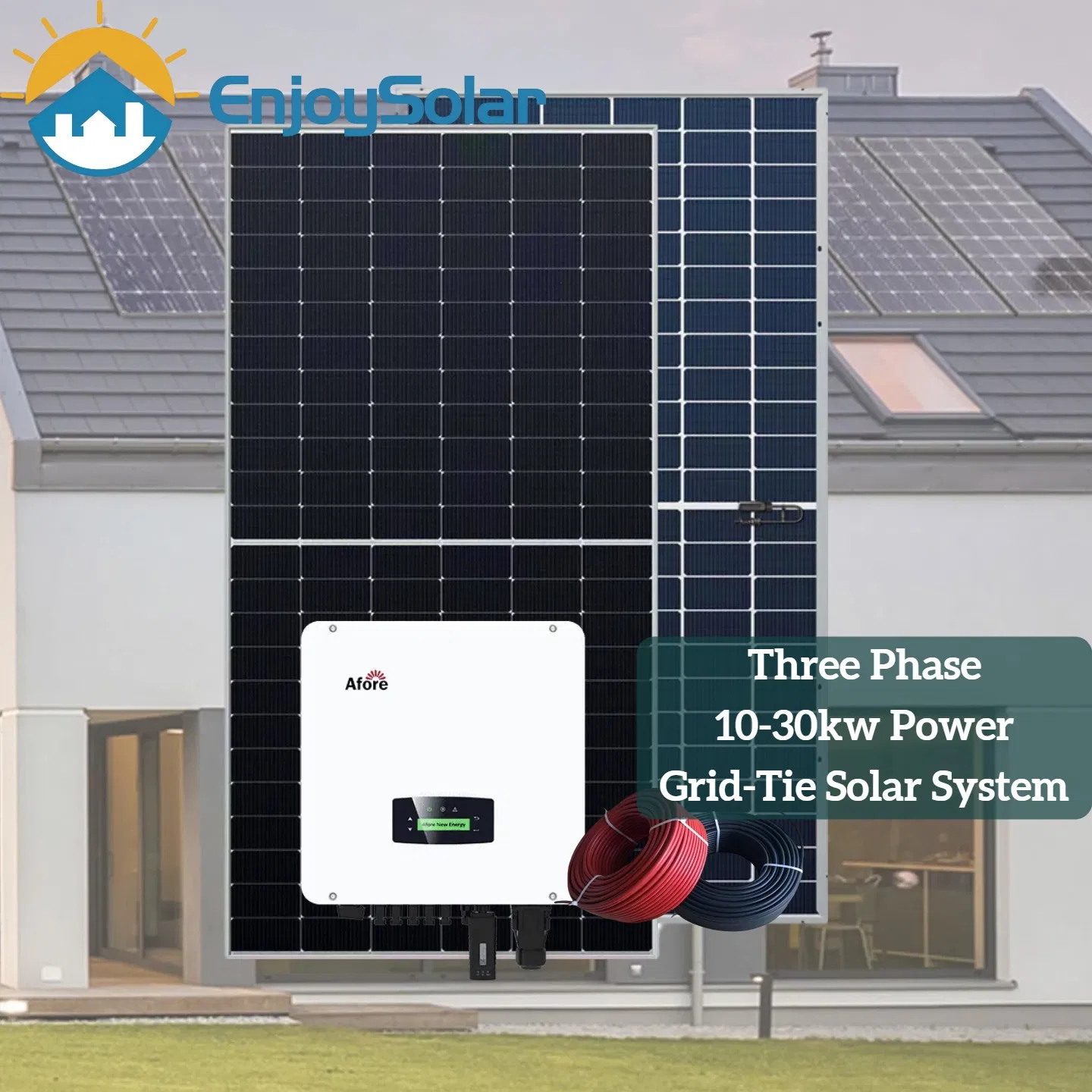

Wall Mounted 5kw 10kw 15kw 20kw 3 Fase Solar Energy System Without Lithium Ion Battery Storage

1 / 5

Wall Mounted 5kw 10kw 15kw 20kw 3 Fase Solar Energy System Without Lithium Ion Battery Storage

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📋

Basic Product Information

Model NO.

ES20K-ON

Condition

New

Certification

ISO, CE, TUV

Application

Home, Industrial, Commercial

Product Name

Grid-Tie Solar System

Output Power

30kw

Output Voltage

220V/280V; 230V/300V; 240V/415V

Solar Panel Type

Mono Perc, Topcon, HJT

Inverter Brand

Growatt, Solis, Deye, SMA, Sungrow, Huawei

Mounting Structure

Customized for Roof/Ground

Capacity

1,000,000 Watt Per Day

HS Code

850132000

☀️

Product Description

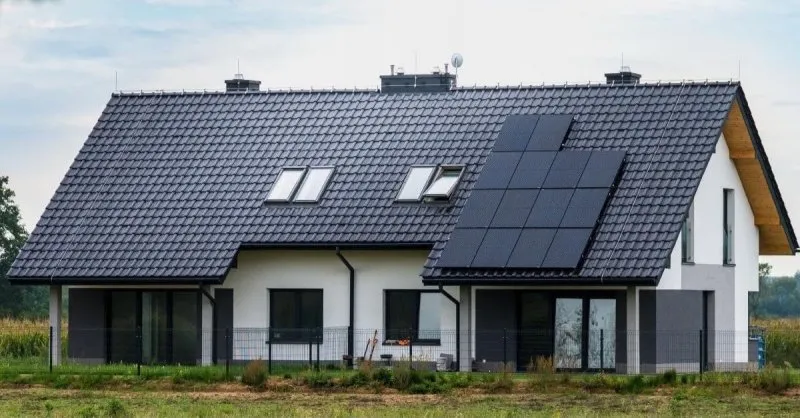

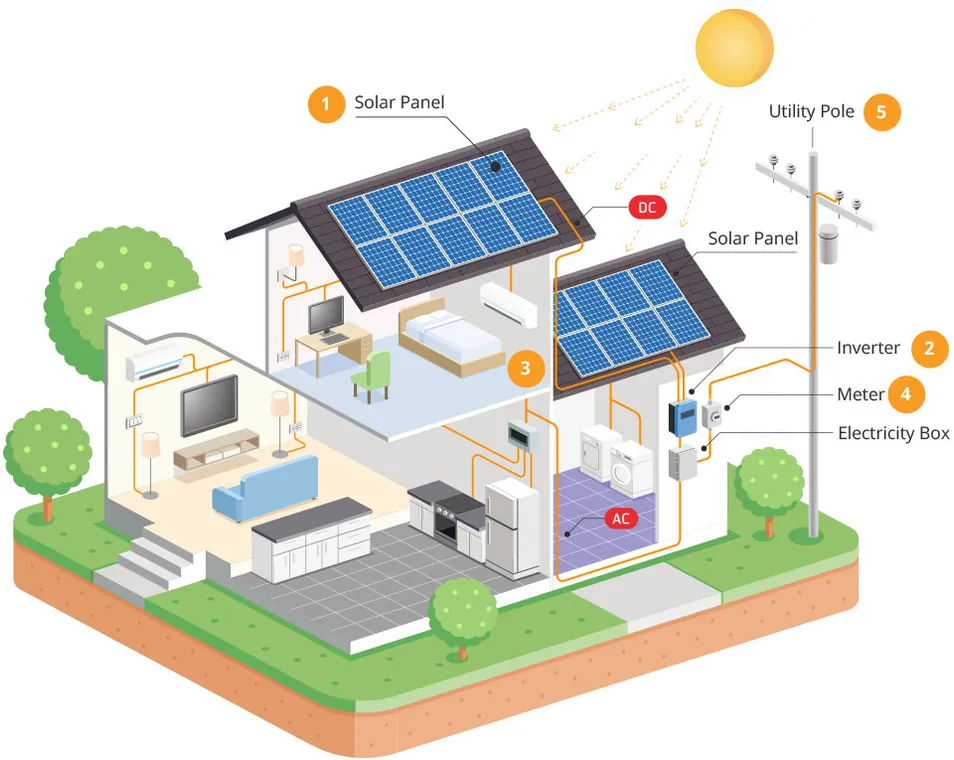

How an On-Grid Solar System Works

Solar Panel Generation: Solar panels convert sunlight into direct current (DC) electricity.

Inverter Conversion: An inverter converts DC electricity into alternating current (AC) for home and business use.

Grid Connection: AC electricity feeds into the home system; excess power is sent back to the utility grid.

Net Metering: A net meter tracks energy usage and credits homeowners for excess energy generated.

📊

System Specifications

System Model	ES10KW-ON	ES20KW-ON	ES30KW-ON
AC Output Power	10KW	20KW	30KW
Solar Panels	610W Panel * 18 Units	610W Panel * 34 Units	610W Panel * 50 Units
Grid-Tie Inverter	10KW 3P	20KW 3P	30KW 3P
PV Cables (4mm2)	100M * 2 Units	100M * 4 Units	100M * 6 Units

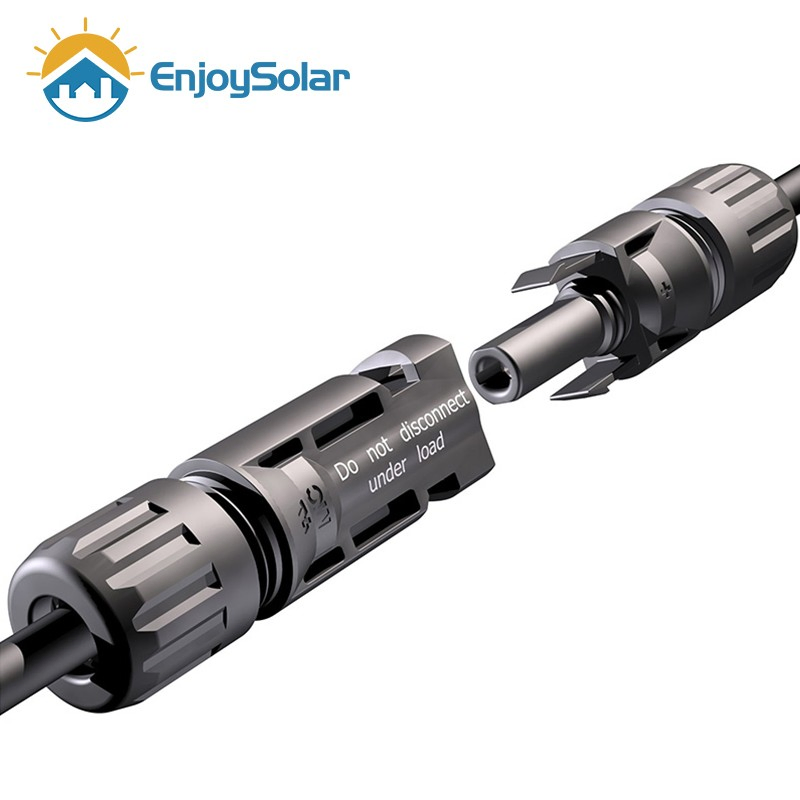

PV Connectors	4 Pairs	8 Pairs	12 Pairs
Mounting Kits	Customized based on installation site

* Remarks: These are typical configurations. Custom solutions are available upon request.

🛠️

Key Components

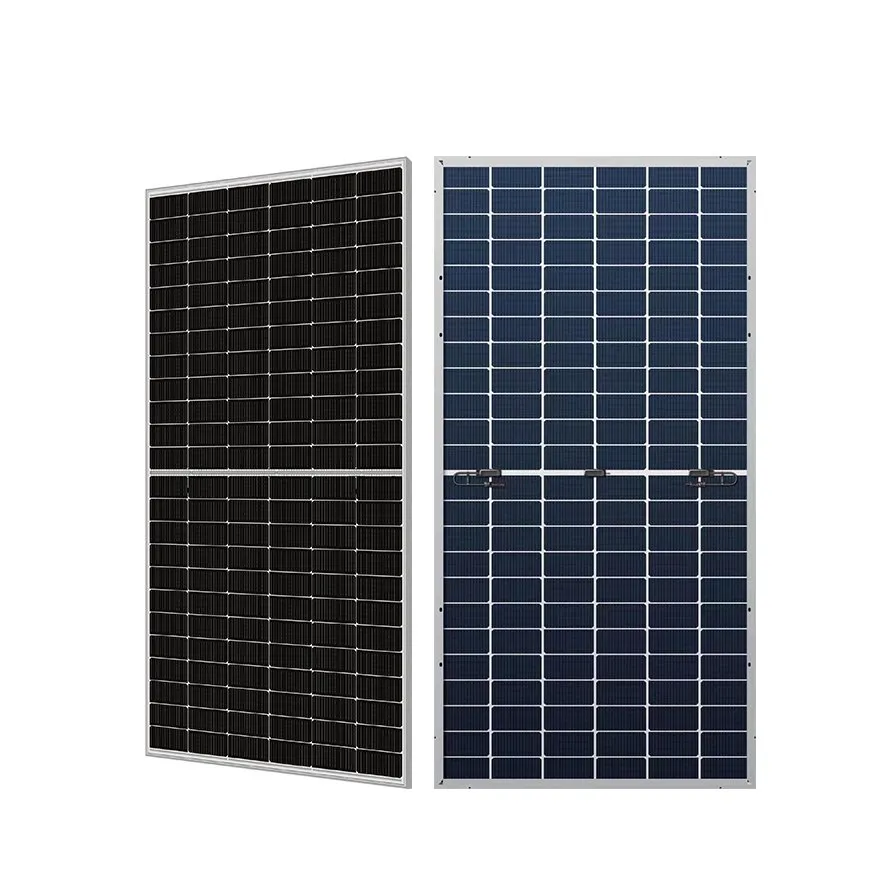

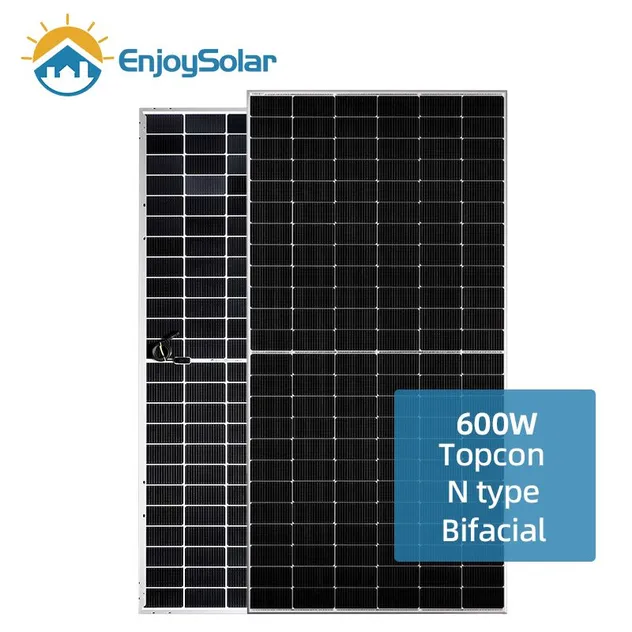

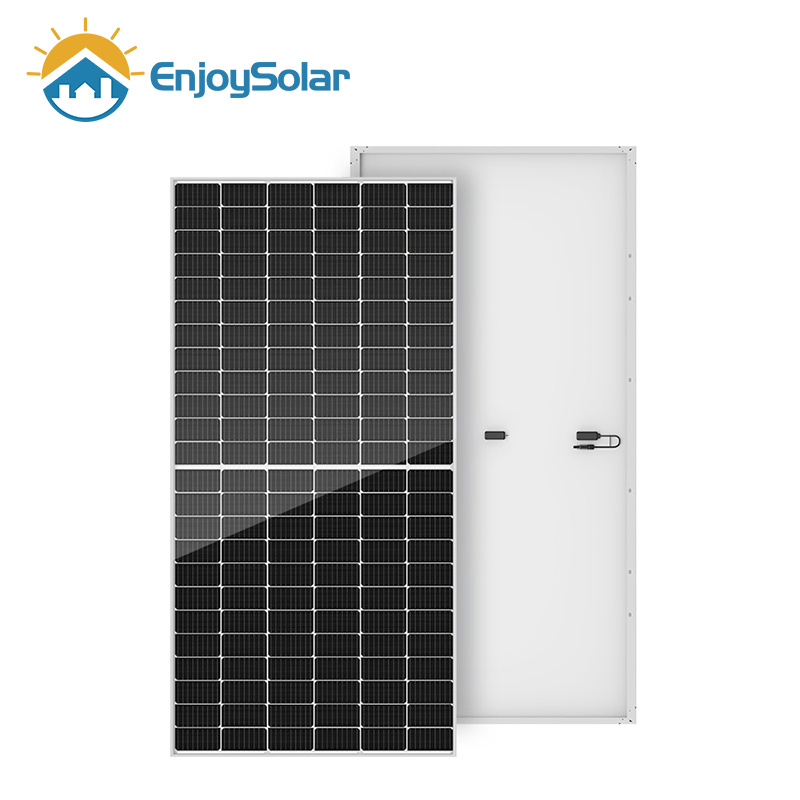

High-Efficiency Topcon Solar Panel

Model: ES610M-72PH
Peak Power: 610Wp
Voc: 51.32V | Vmp: 42.78V
Isc: 15.86A | Imp: 14.26A
Dimensions: 2278*1134*30mm | Weight: 31.5kg

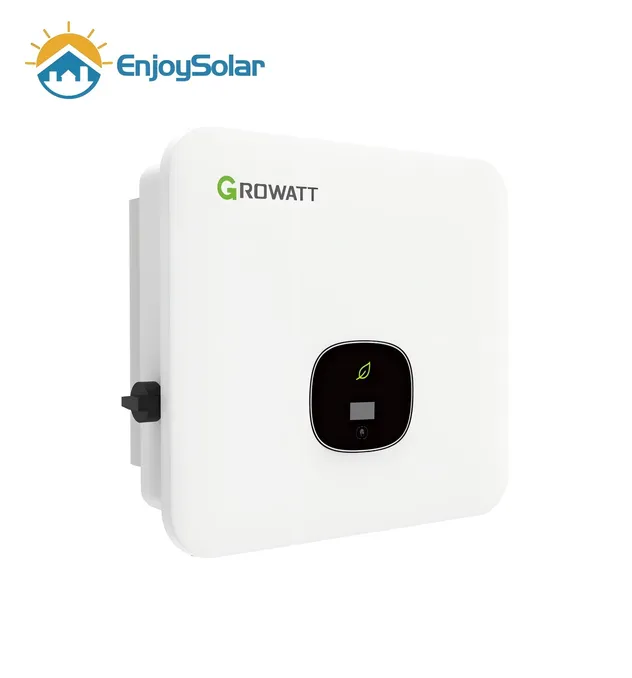

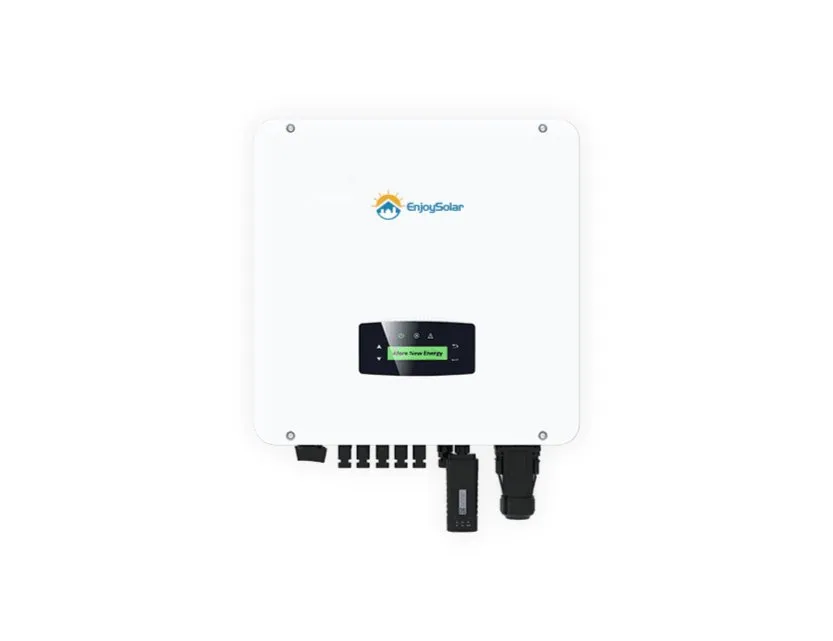

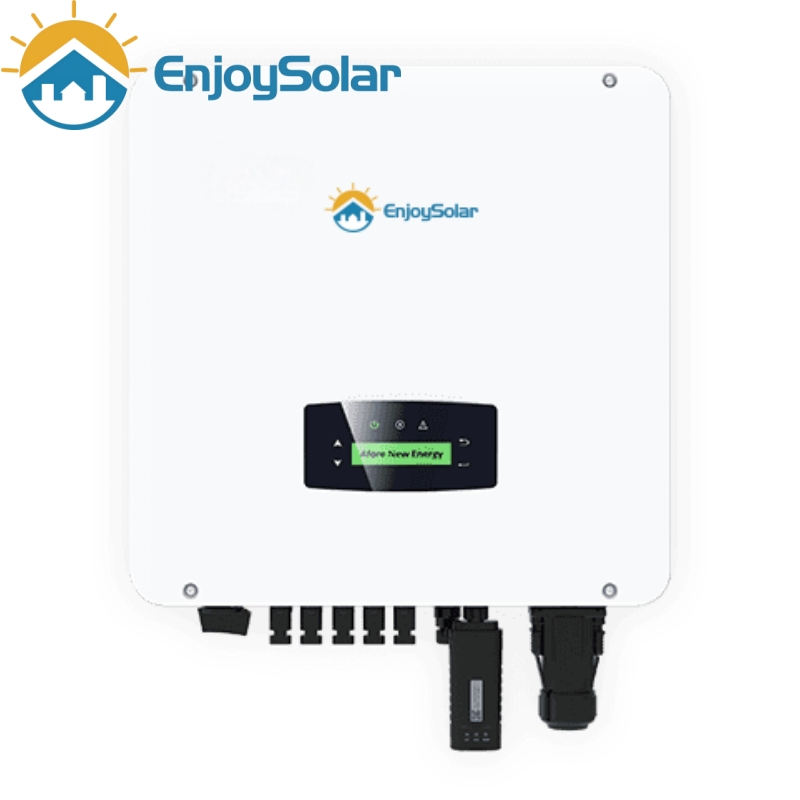

Advanced Grid-Tie Solar Inverter

Maximum Efficiency: 99.75%
Up to 10 MPPTs for optimized harvesting
Wide voltage range & low startup voltage
Remote firmware upgrades & easy operation
Low failure rate with leakage current suppression

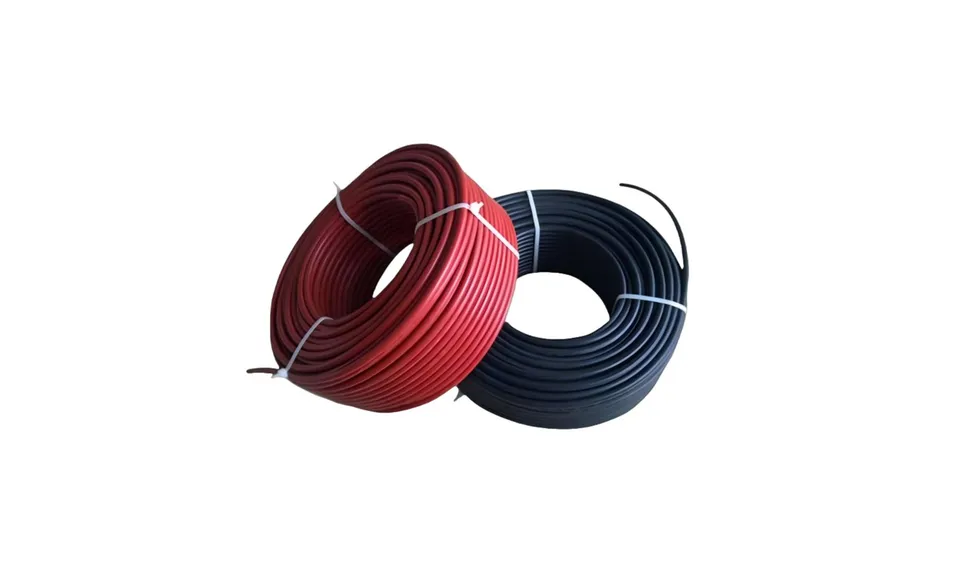

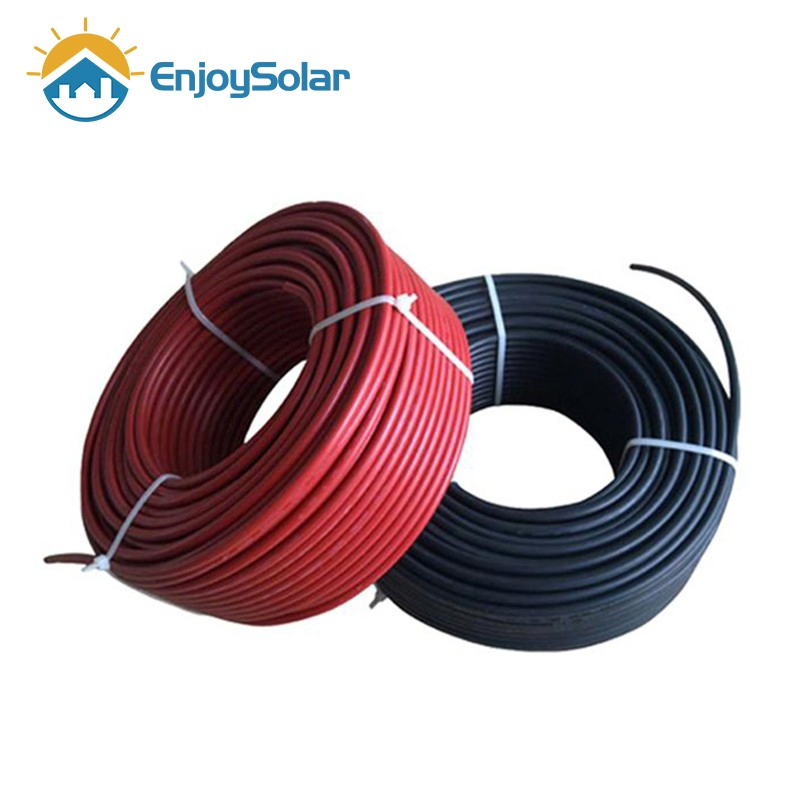

Professional PV Cables

Cross Section: 4mm2 / 6mm2 optional
Rated Voltage: 600VDC / 1000VDC (TUV)
Rated Current: 55A - 70A
Service Life: ≥ 25 Years

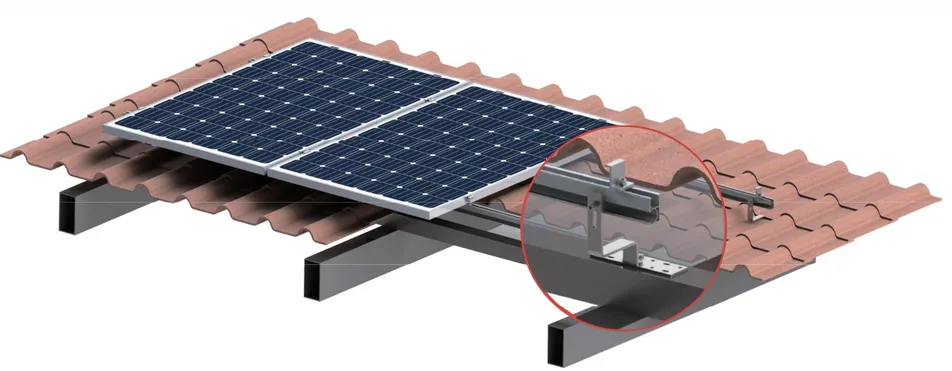

Durable Mounting Kits

Materials: AI6005 & SUS304 Bolts
Clamps: 30, 35, 40mm Mid & End Clamps
Versatility: Asphalt Shingle Mount & Hanger Bolt options
Safety: Grounding Clips & Lugs included

📦

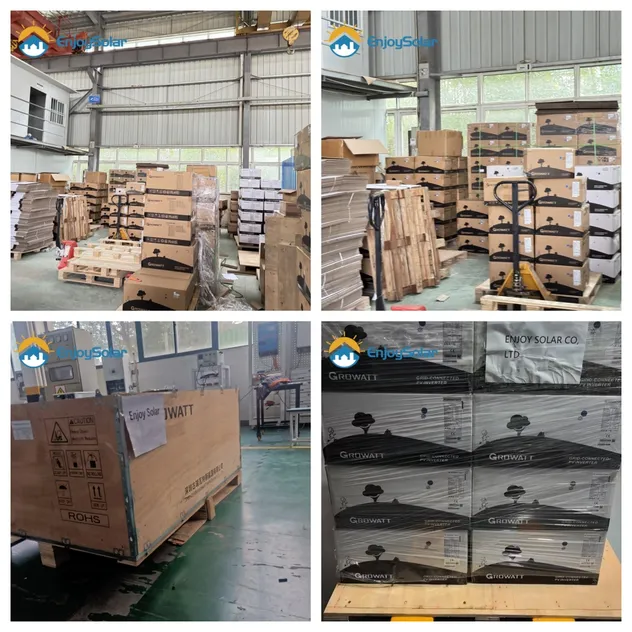

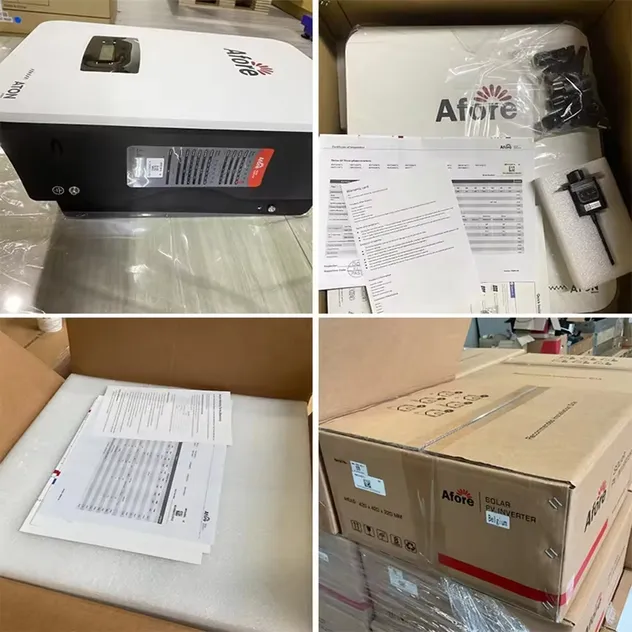

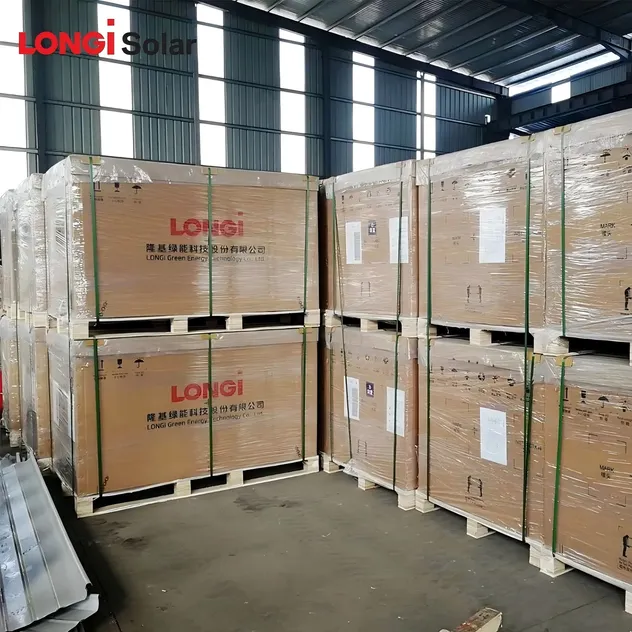

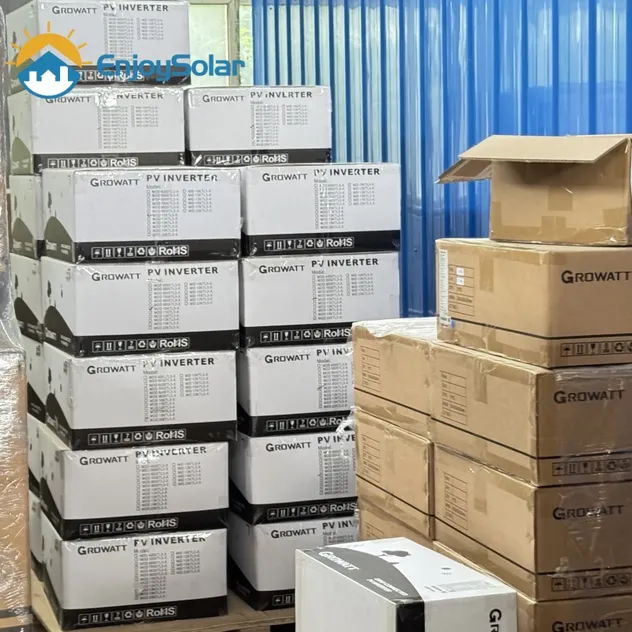

Packaging & Shipping

🏗️

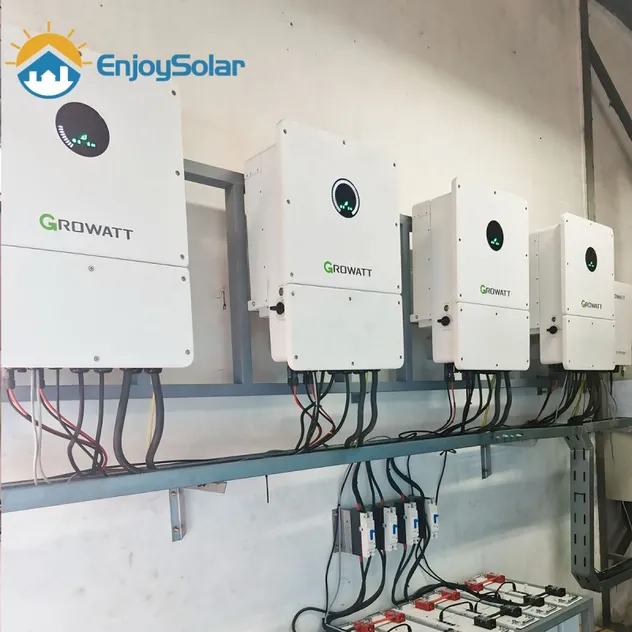

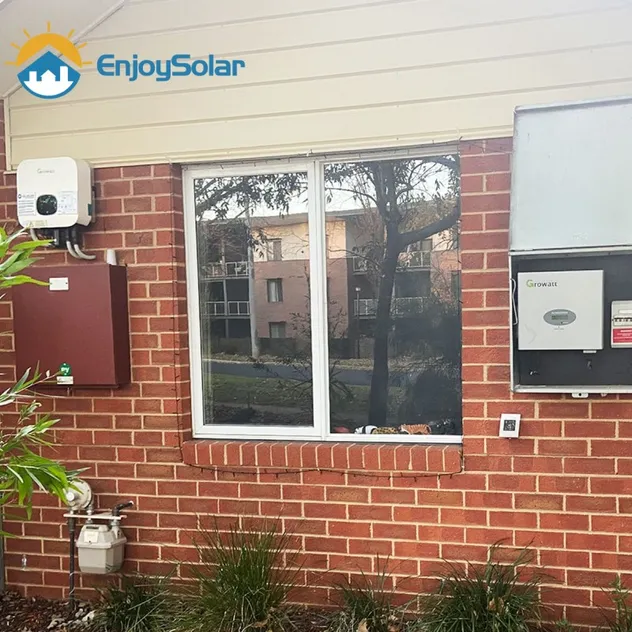

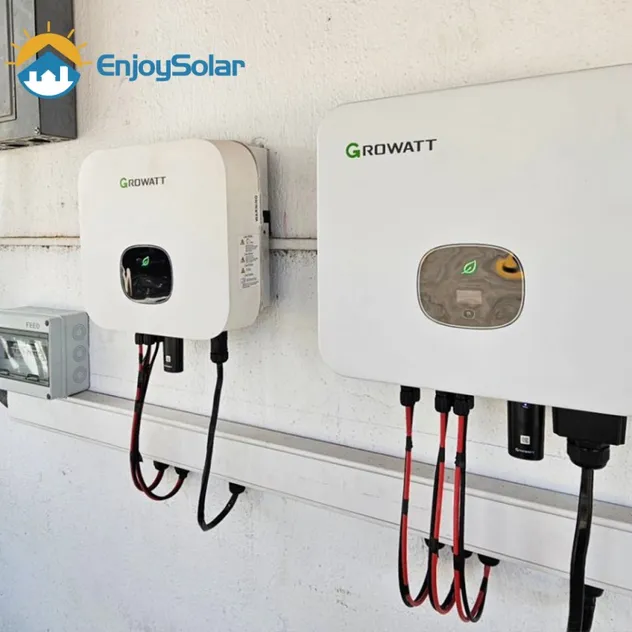

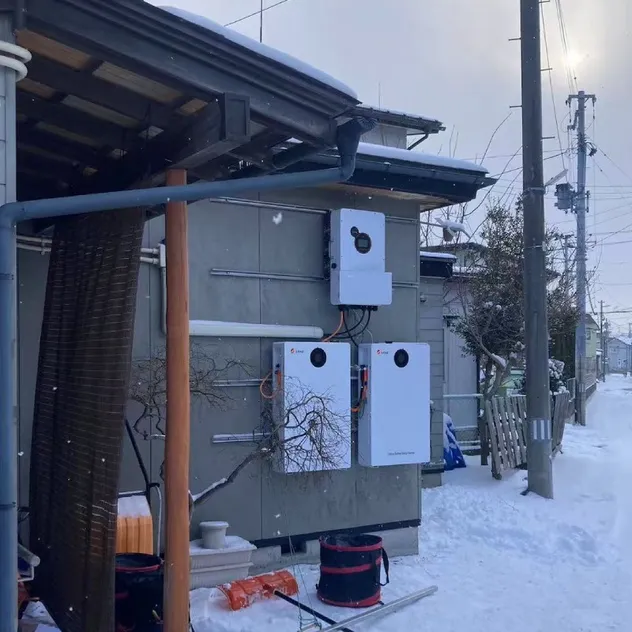

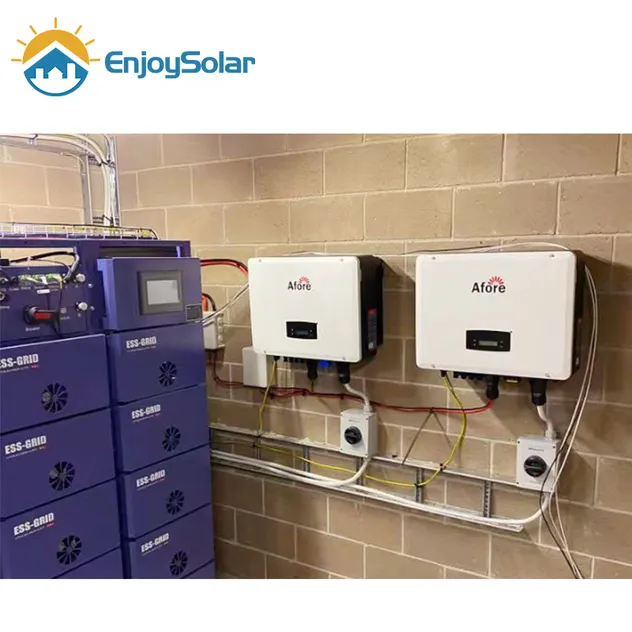

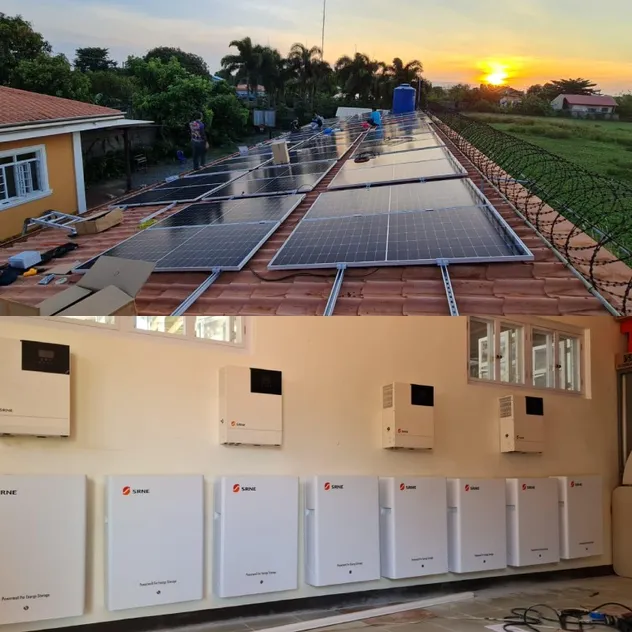

Global Projects

🔥

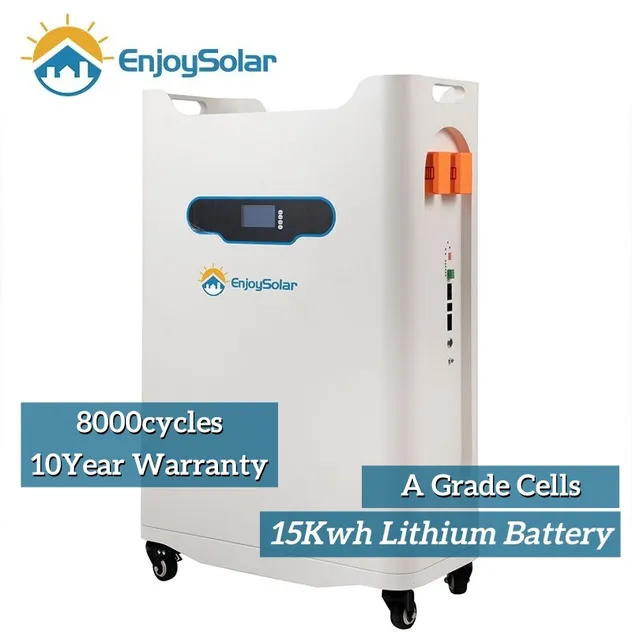

Recommended Products

Frequently Asked Questions

Q1: What is an On-Grid (Grid-Tie) Solar System?

It is a solar power system that is connected to the local utility grid. It uses sunlight to generate power for your home, and any excess energy is sent back to the grid, often earning you credits through net metering.

Q2: Does this system include battery storage?

No, this specific system is designed to work without a lithium-ion battery. It relies on the grid as a virtual battery through net metering policies.

Q3: What happens during a power outage?

For safety reasons, standard grid-tie inverters automatically shut down during a power outage to prevent sending electricity back to the grid while workers are fixing the lines.

Q4: Can I customize the mounting structure for my roof type?

Yes, our mounting kits are fully customized. Whether you have a flat roof, pitched tile roof, or ground-mount requirement, we provide the appropriate rails and clamps.

Q5: How much power can the 30kW system generate?

Production depends on location and sunlight hours, but the system is designed with a capacity of approximately 1,000,000 watts per day under optimal conditions.

Q6: Are the components certified for international use?

Yes, all core components including solar panels and inverters carry ISO, CE, and TUV certifications, ensuring they meet global safety and performance standards.
