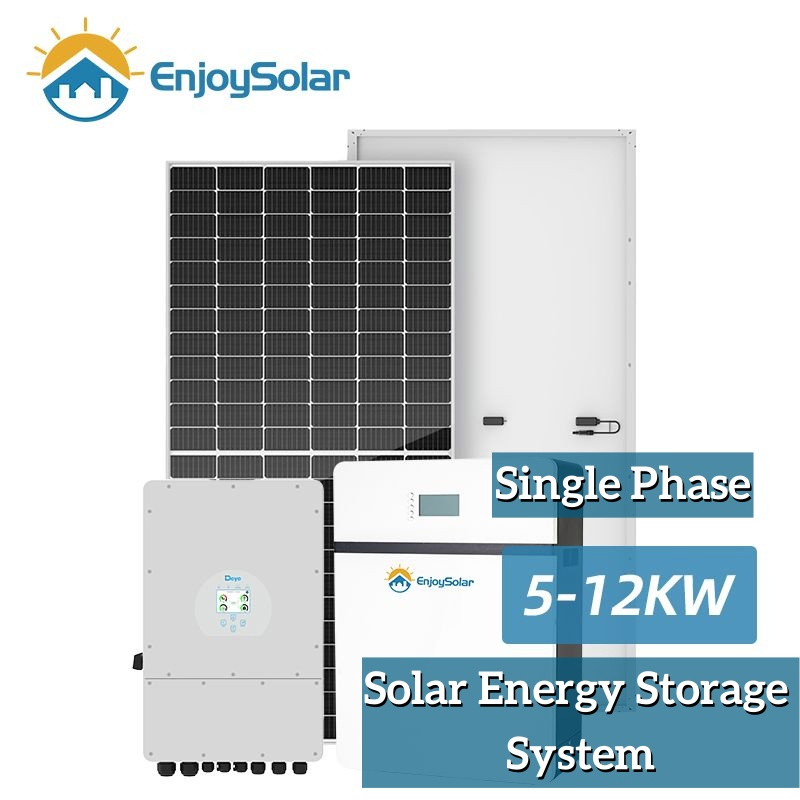

5kVA 8kVA 10kVA 12kVA Deye Hybrid Solar Inverter System with Wall Mounted 48V Lithium Ion Battery Storage for Solar Home Energy Storage System

1 / 5

5kVA 8kVA 10kVA 12kVA Deye Hybrid Solar Inverter System with Wall Mounted 48V Lithium Ion Battery Storage for Solar Home Energy Storage System

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📋

Basic Specifications

Model NO.	ES10KW-HY-EU
Condition	New
Certification	ISO, CB, CE
Application	Home, Industrial, Commercial
Product Name	10kw Hybrid Home Solar Power System
Output Voltage	220V Single Phase 50Hz / 400V 3phase
Online Monitoring	WiFi/LAN/GPRS
Solar Panel Type	Topcon, Hjt Solar Panel
Solar Panel Power	550W, 620W or 720W
Inverter Type	Hybrid Inverter
Inverter Brand	Deye, Growatt, Solax, SMA
Battery Type	Lead Acid, Lithium Ion, LiFePO4 Battery
System Voltage	1500V(IEC)

⚙️

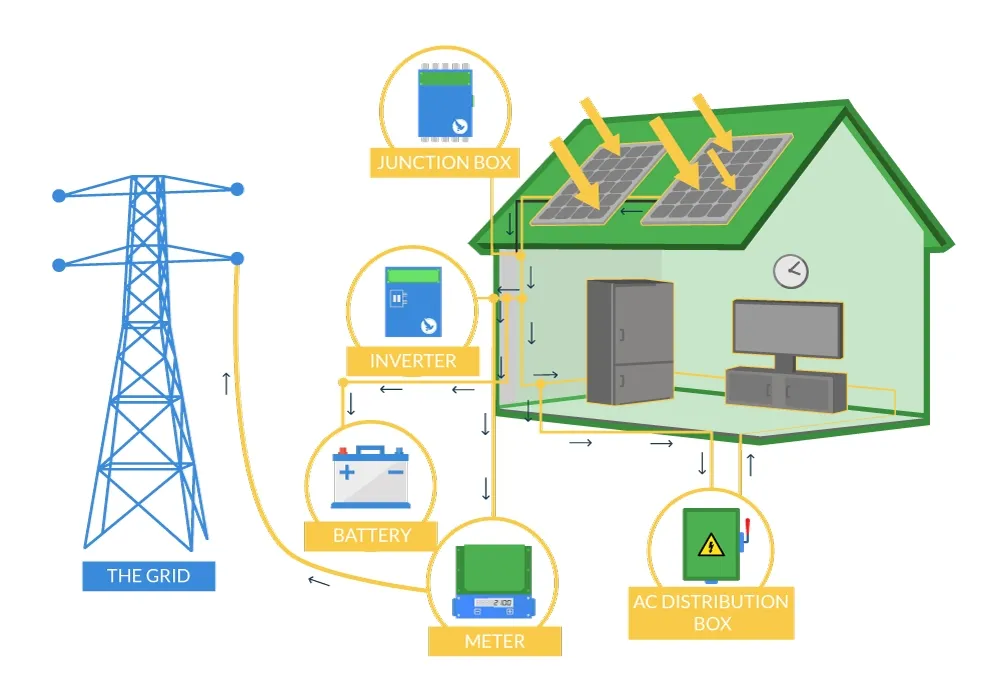

How It Works?

📐

Solutions Design

Model	5KW	10KW	15KW	20KW
Mono Solar Panel 570W	9PCS	18PCS	26PCS	36PCS
Hybrid Inverter	5KVA 1PC	10KVA 1PC	15KVA 1PC	20KVA 1PC
LiFePO4 Battery	10.24KWH	14.336KWH	20.48KWH	37.99KWH

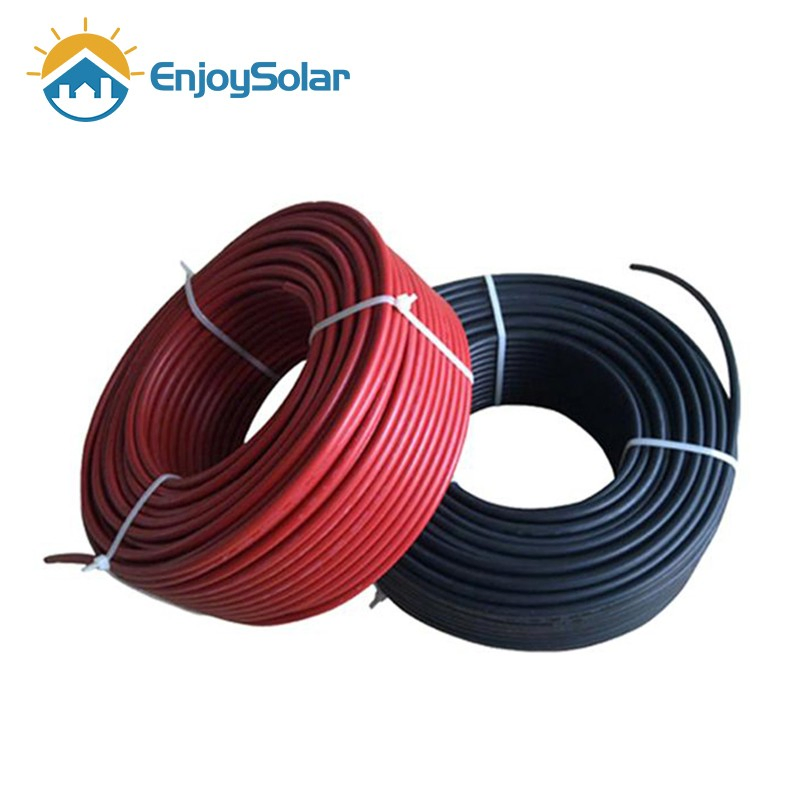

DC Cable 1*4MM2	200 Meters	400 Meters	400 Meters	600 Meters
MC4 Connector	4 Pairs	6 Pairs	10 Pairs	15 Pairs

📦

System Components

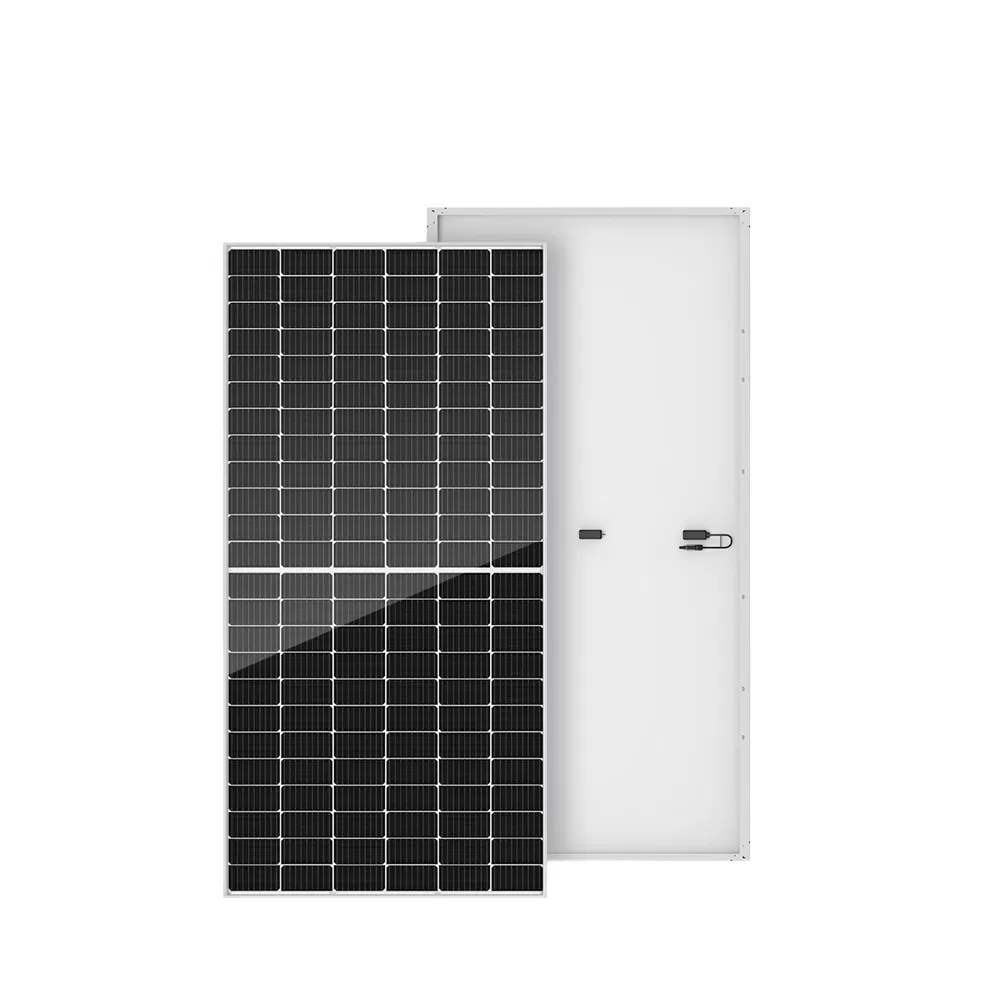

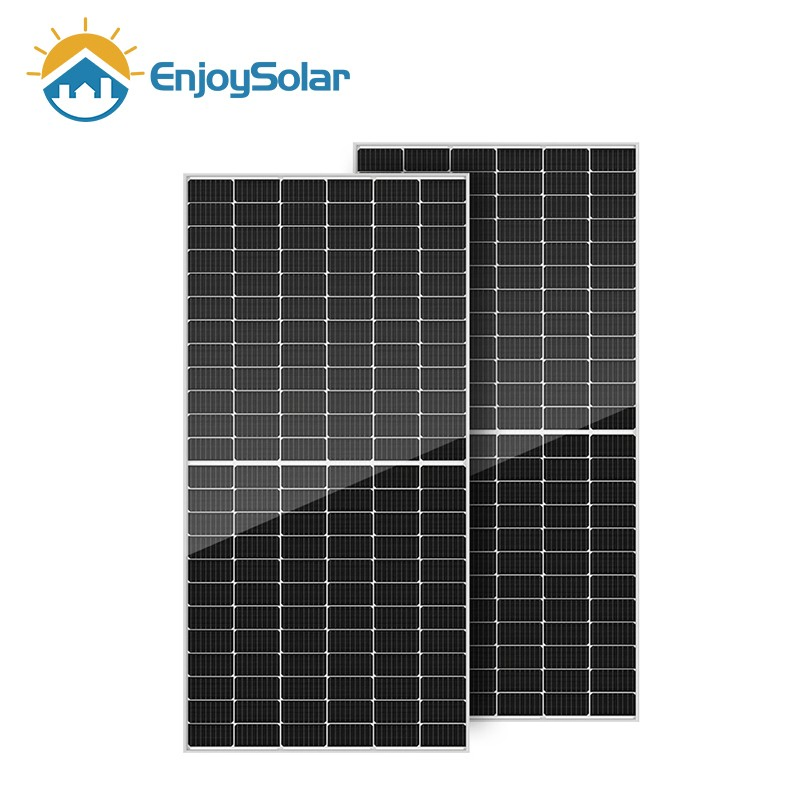

Mono Solar Panel

Model: ES570M-PH
Peak Power Watt: 570Wp
Efficiency: 22.07%
Dimensions: 2278*1134*35mm
Weight: 28.6 kg

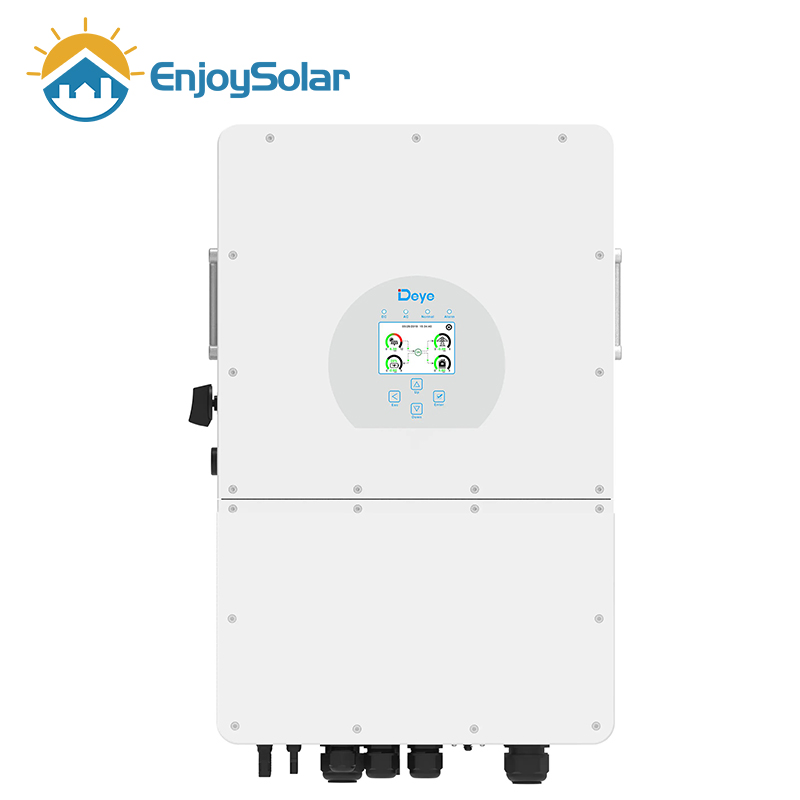

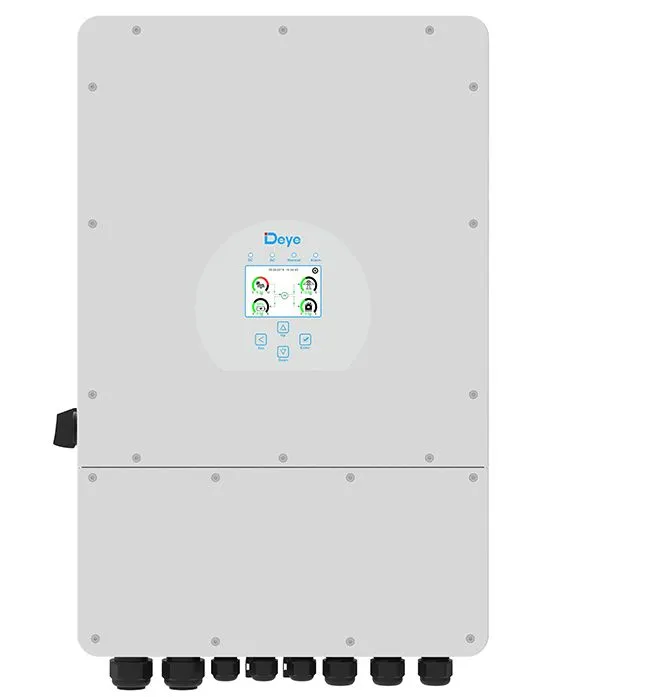

All-in-one Hybrid Solar Inverter

• Smart Monitoring & Remote Firmware Upgrade
• Built-in Anti-feed-in Function
• AFCI (Optional) & Rapid Shutdown Ready
• Support for Time-of-use Optimization

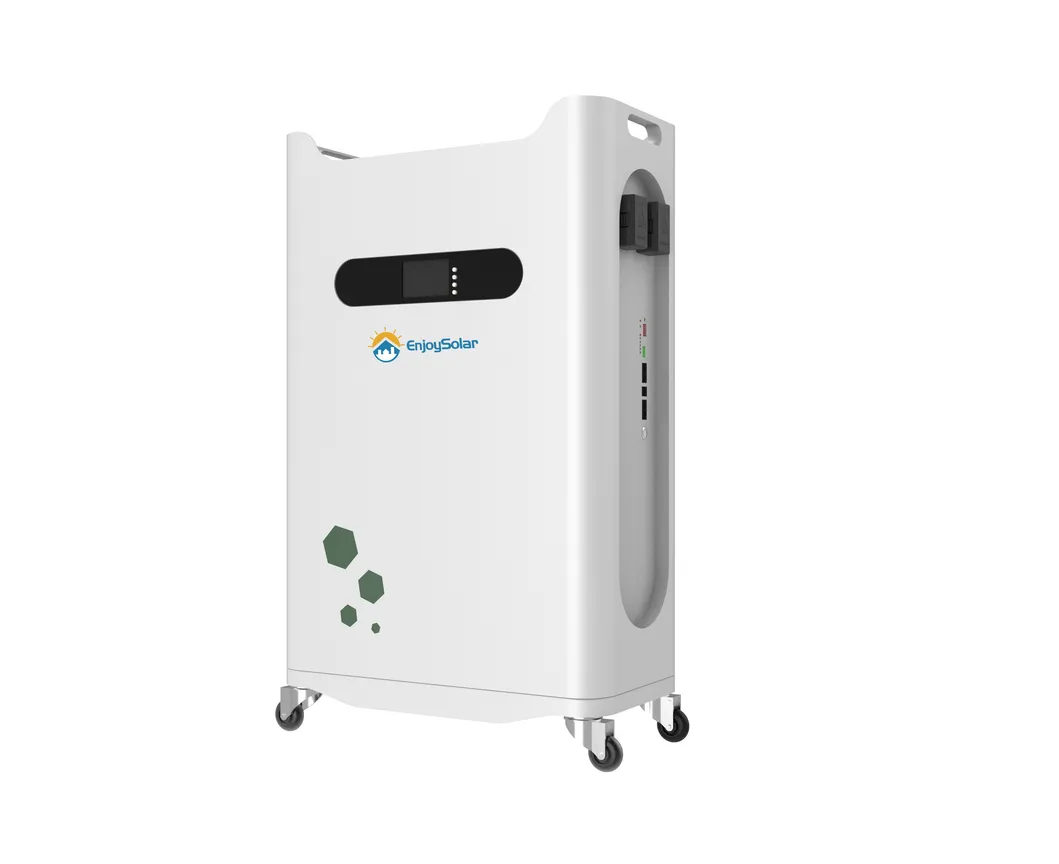

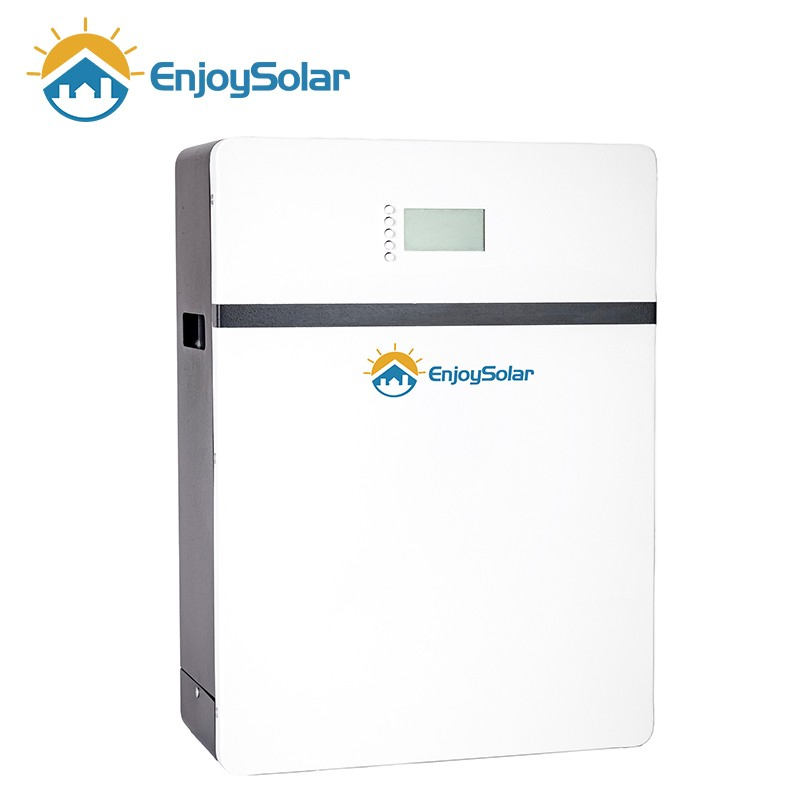

Battery Storage Bank

• Deep Cycle long lifespan (6000+ times)
• Up to 90% DOD
• Easy installation and Maintenance-free
• AGM/GEL/Lithium Ion Options

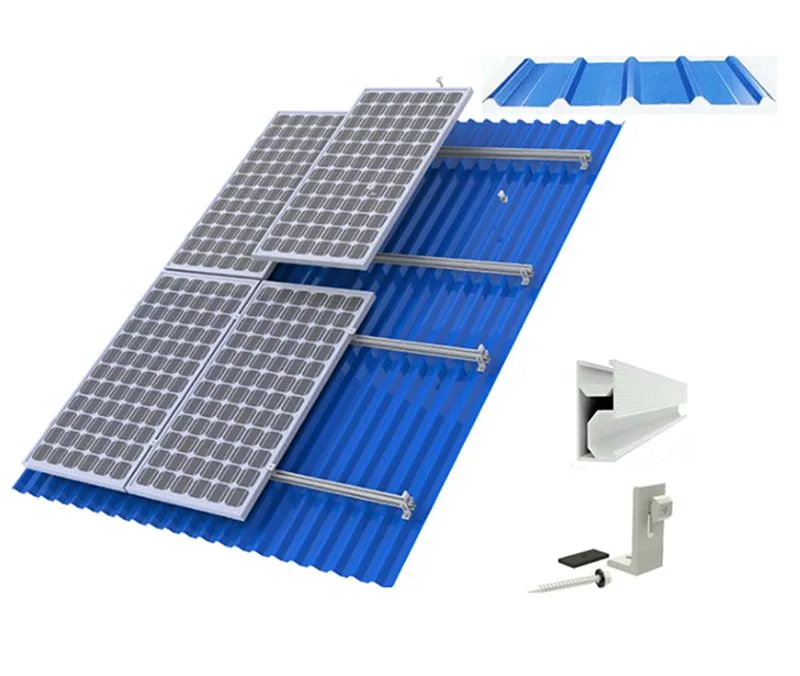

PV Mounting System

• Material: AI6005 & SUS304 Bolt
• Clamps: 30, 35, 40mm
• Design: Roof, Ground, or Carport options based on installation area.

🚚

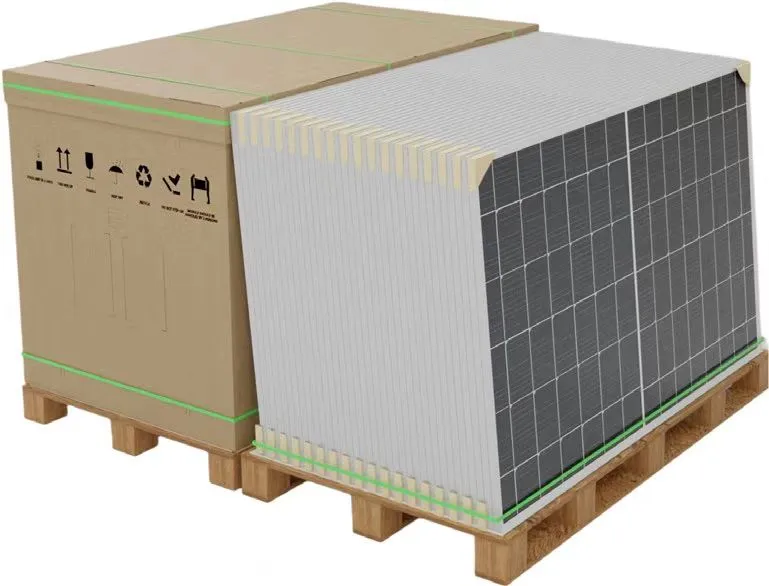

Packaging & Shipping

🏠

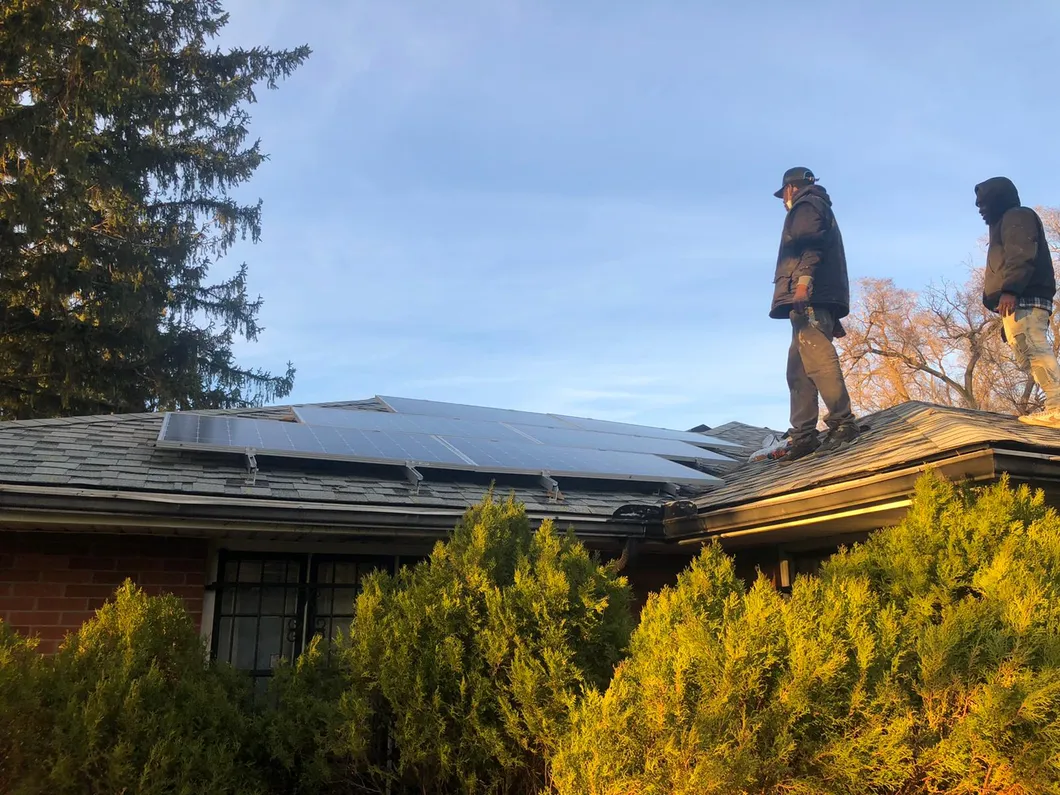

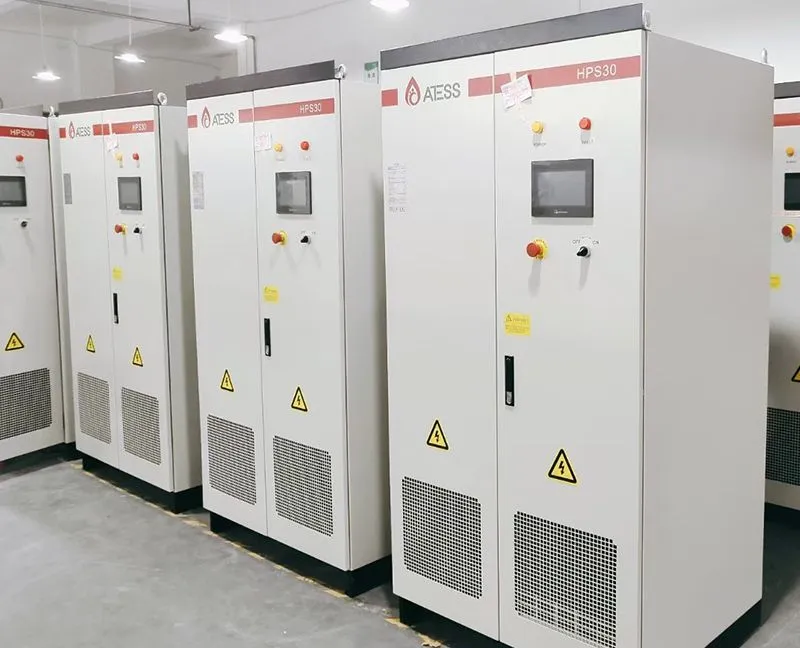

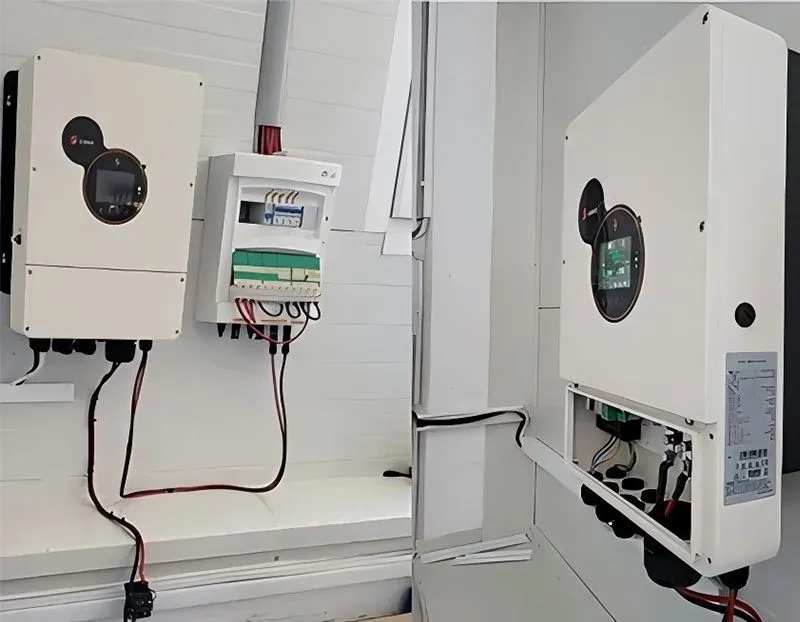

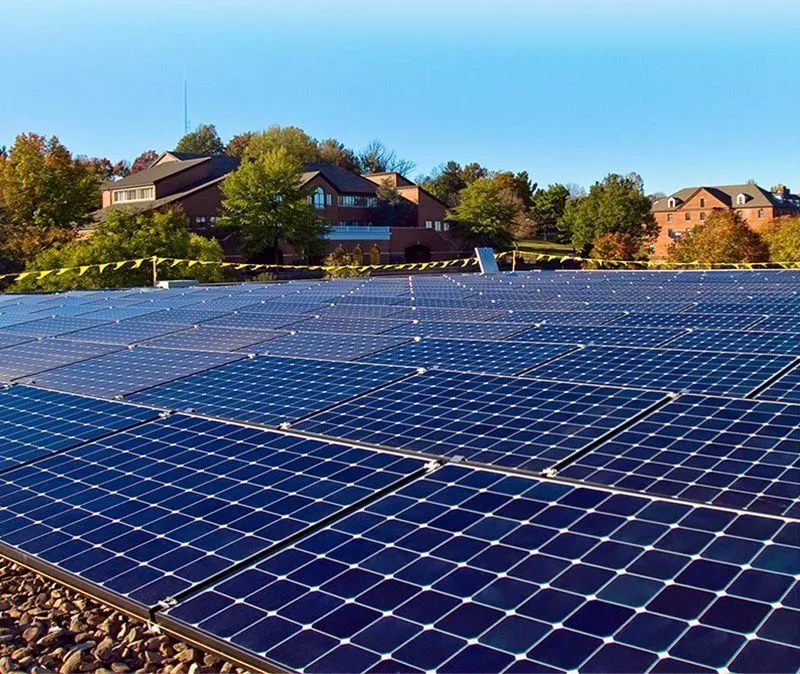

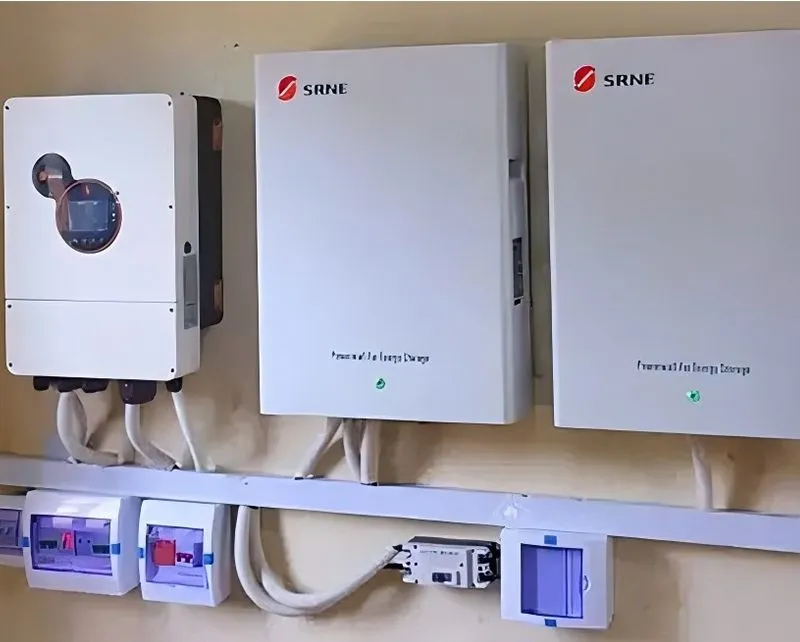

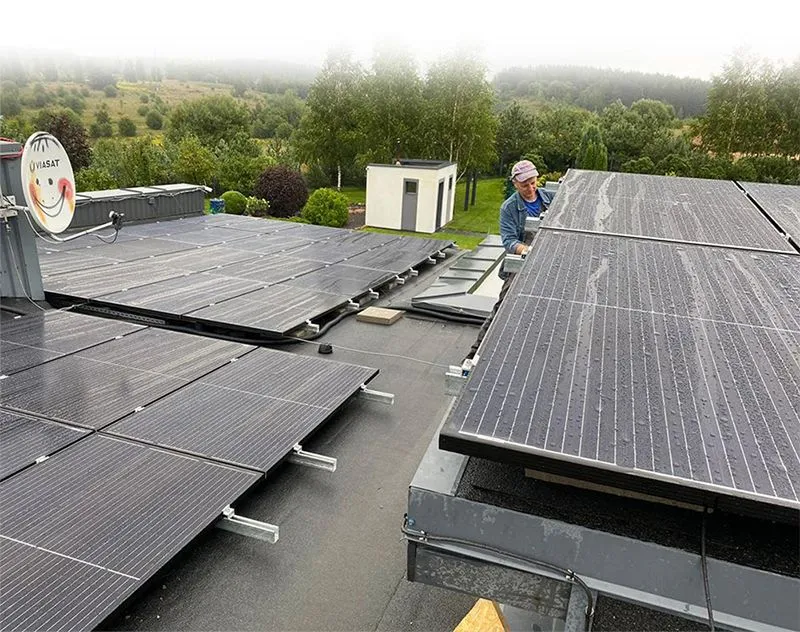

Global Projects

🔥

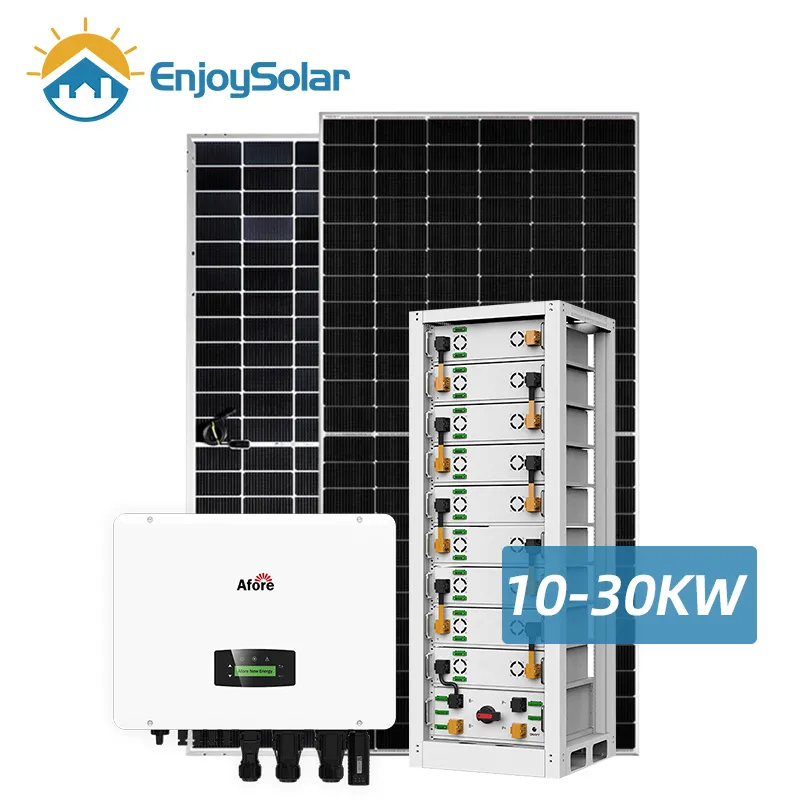

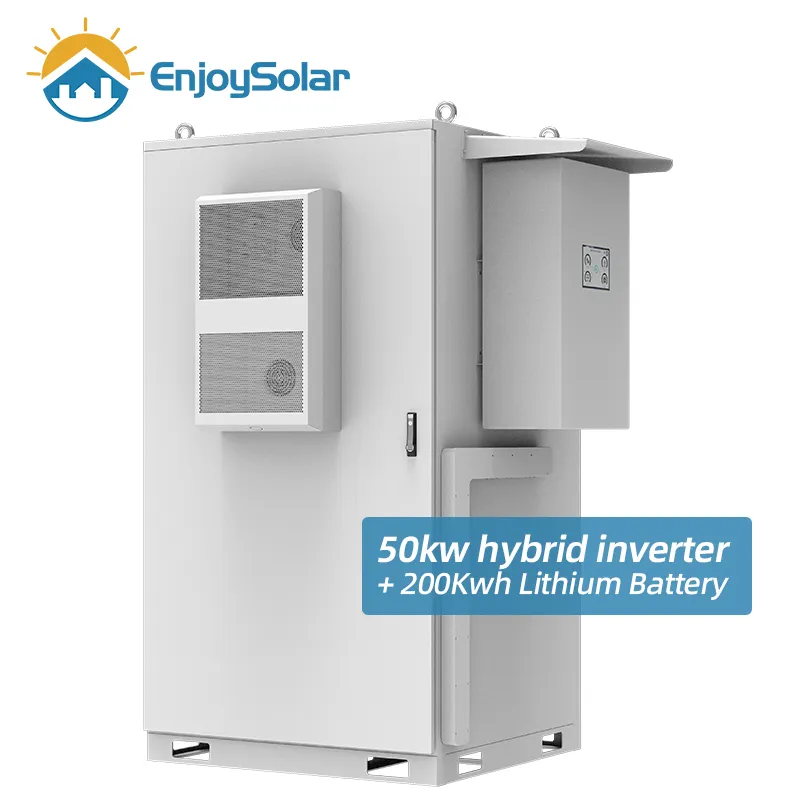

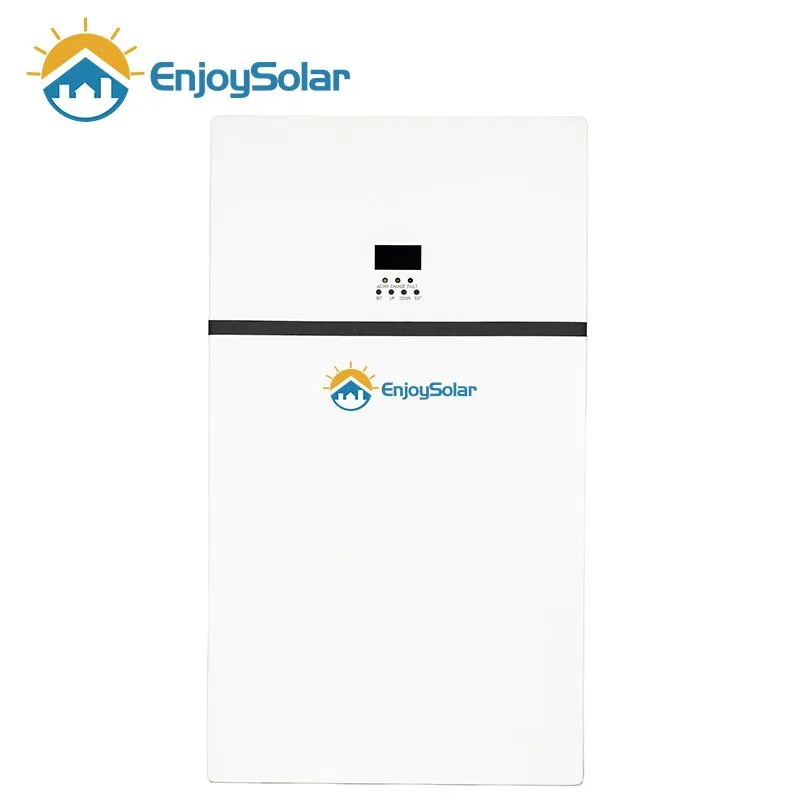

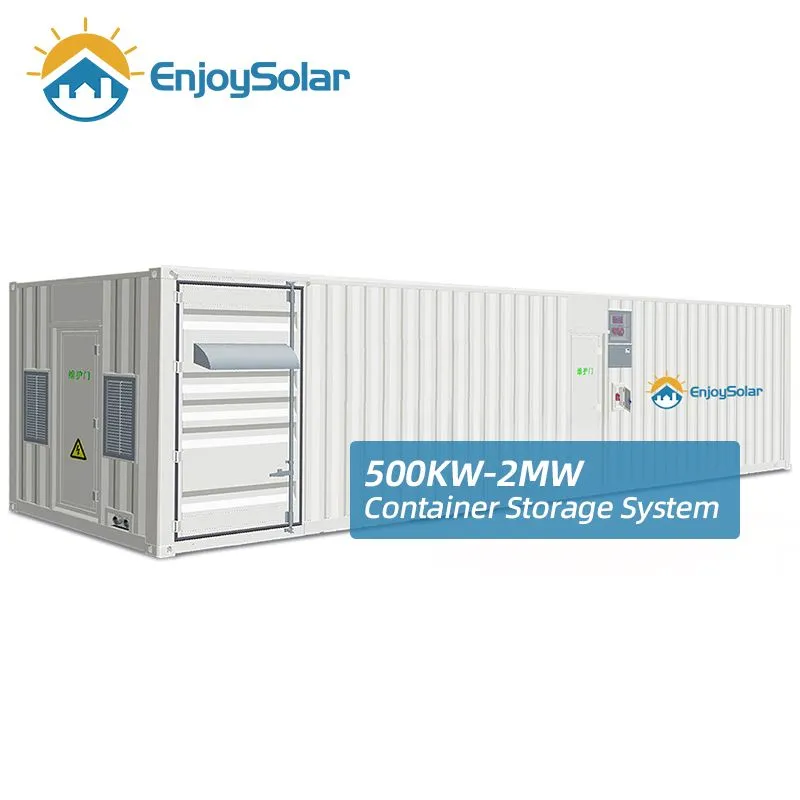

Hotsale Products

❓

Frequently Asked Questions

What are the main components of the 10kw Hybrid Solar System?

The system includes high-efficiency Mono solar panels, a 10KVA hybrid inverter, a LiFePO4 battery storage bank, mounting structures, and necessary DC cables/connectors.

What types of batteries are compatible with this system?

The system is highly flexible and supports Lead Acid, Lithium Ion, and LiFePO4 battery types.

Can the inverter be monitored remotely?

Yes, the hybrid inverter supports smart monitoring via WiFi, LAN, or GPRS, allowing for remote firmware upgrades and system checks.

What is the expected lifespan of the system components?

Solar panels typically last over 25 years, while the LiFePO4 batteries are designed for more than 6,000 cycles (up to 90% DOD).

Does this system support both single-phase and three-phase output?

Yes, depending on the configuration, it can support 220V single-phase or 400V three-phase output.

Is technical support provided for system installation?

Complete professional technical guidance is provided to ensure correct system setup and performance.
