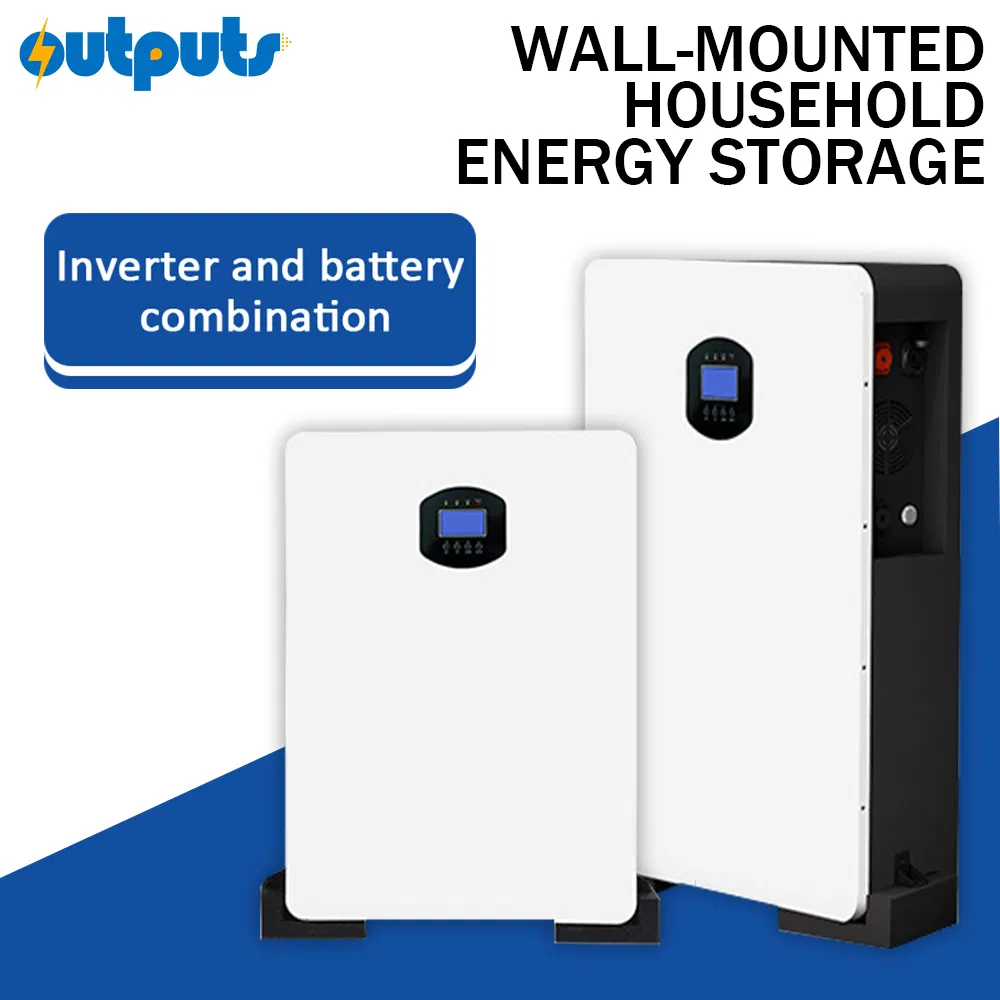

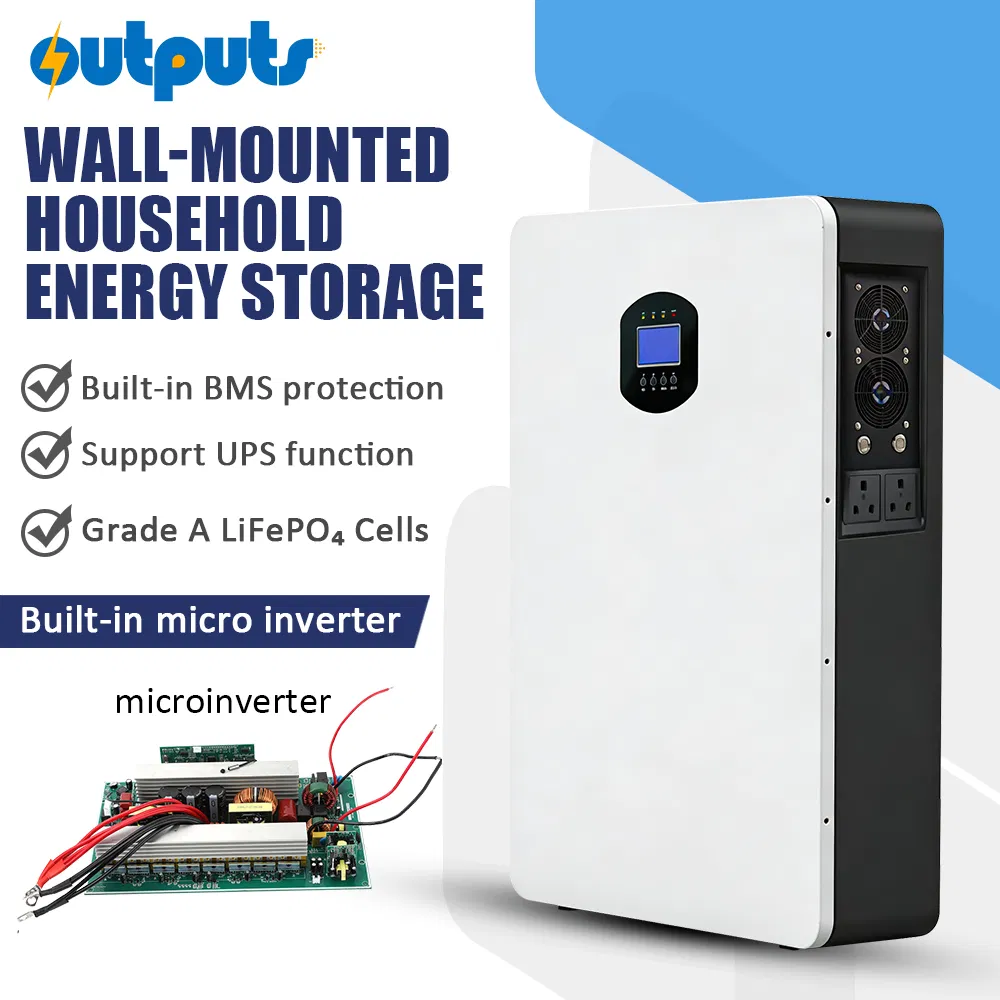

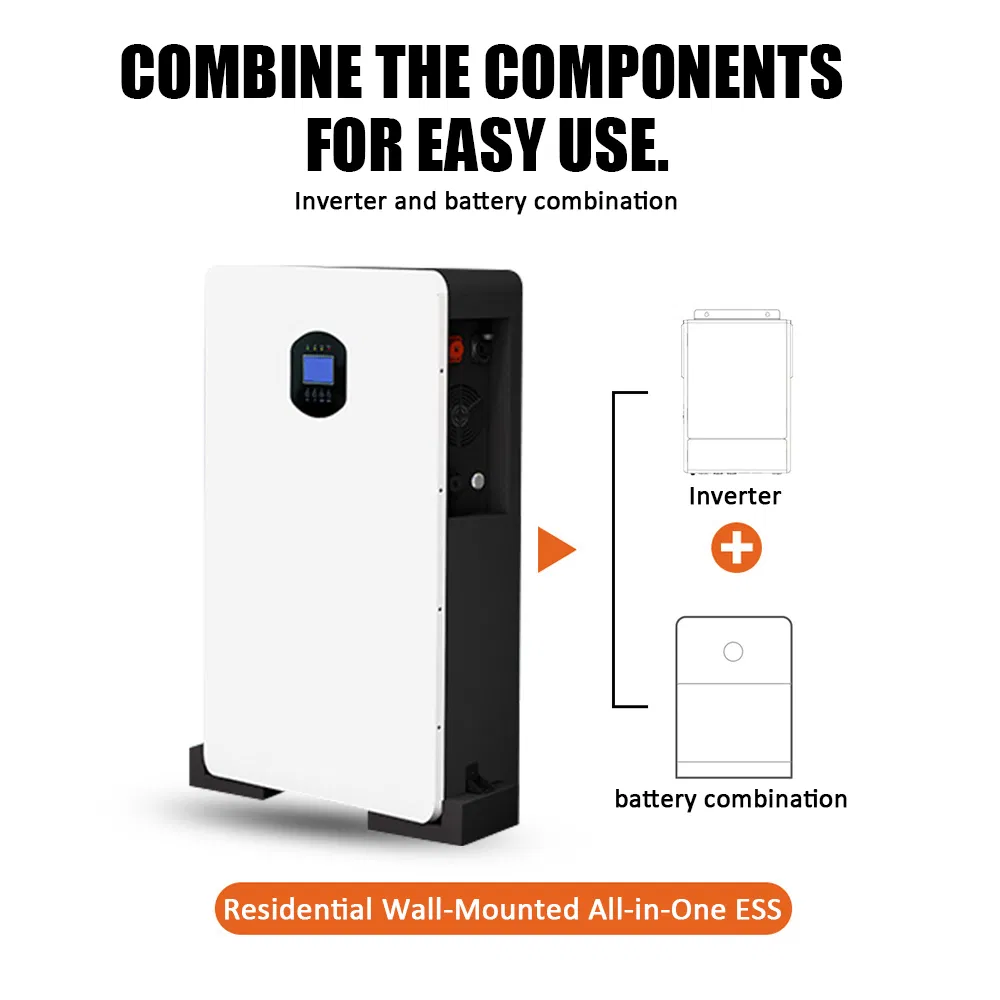

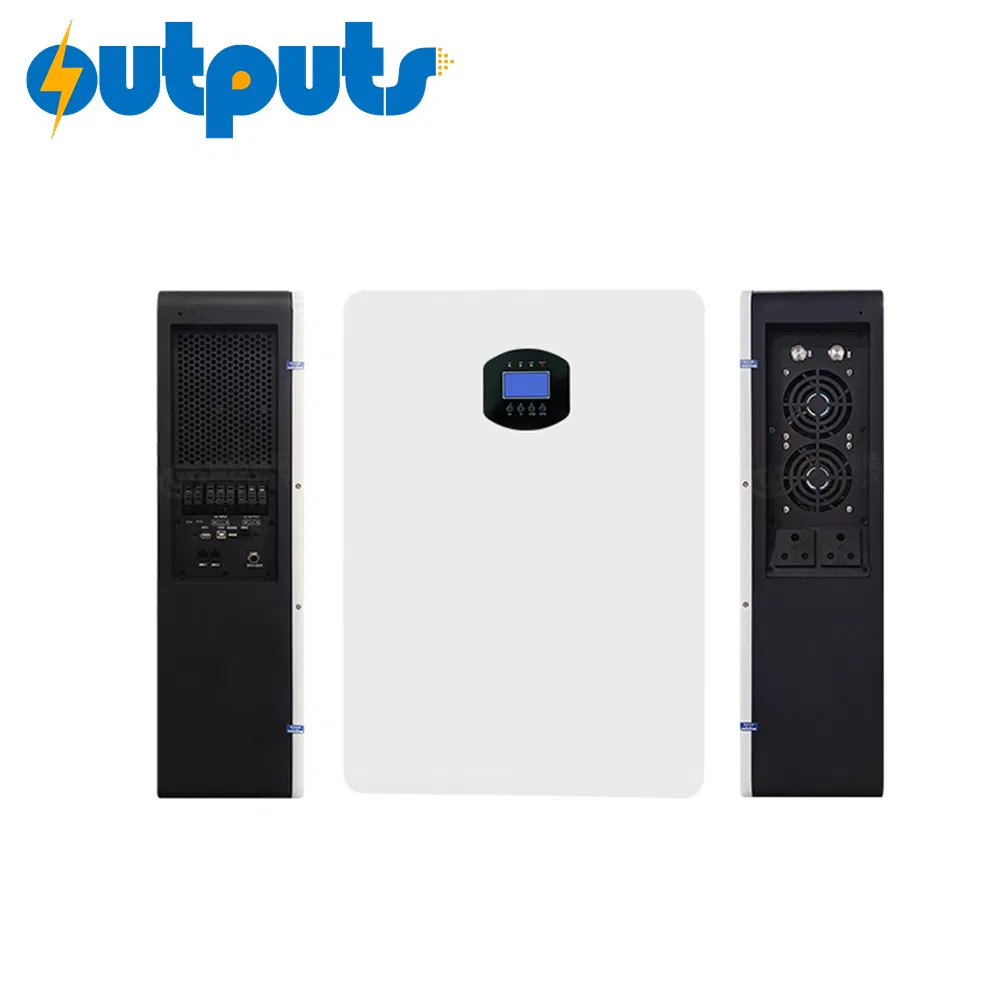

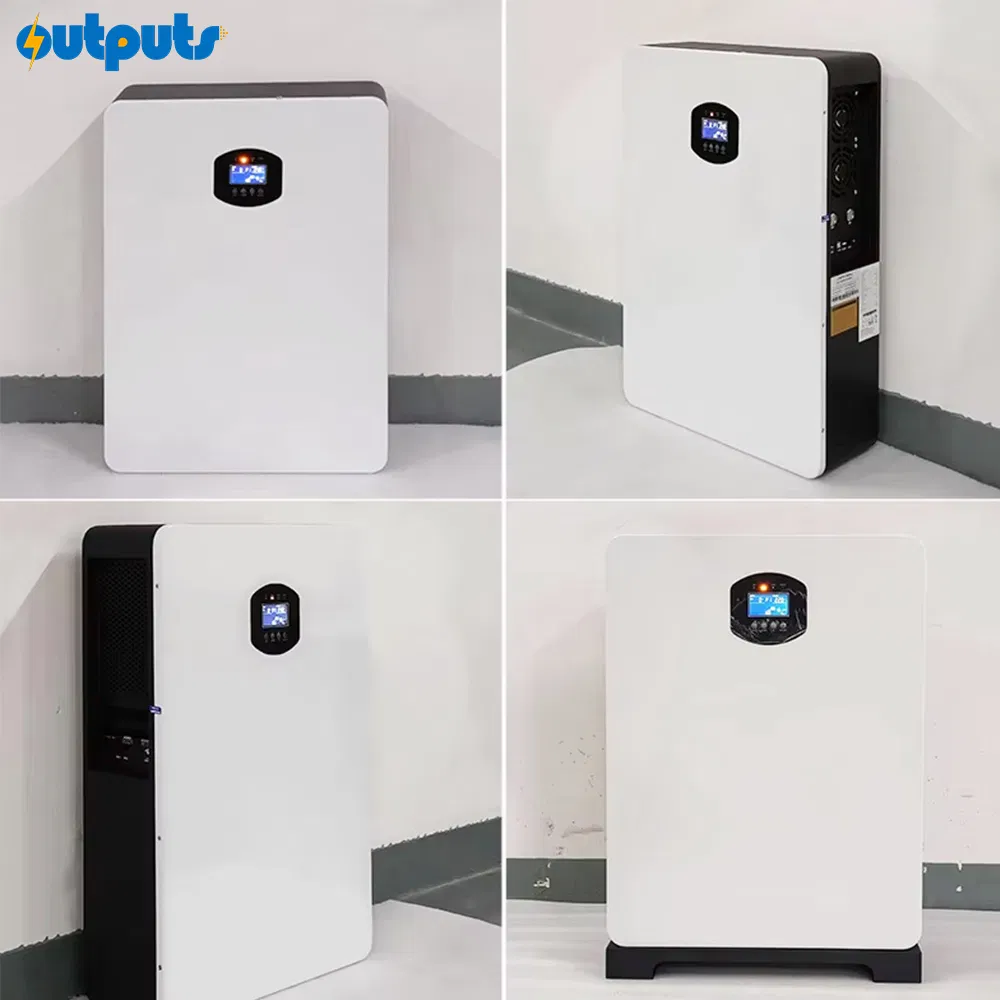

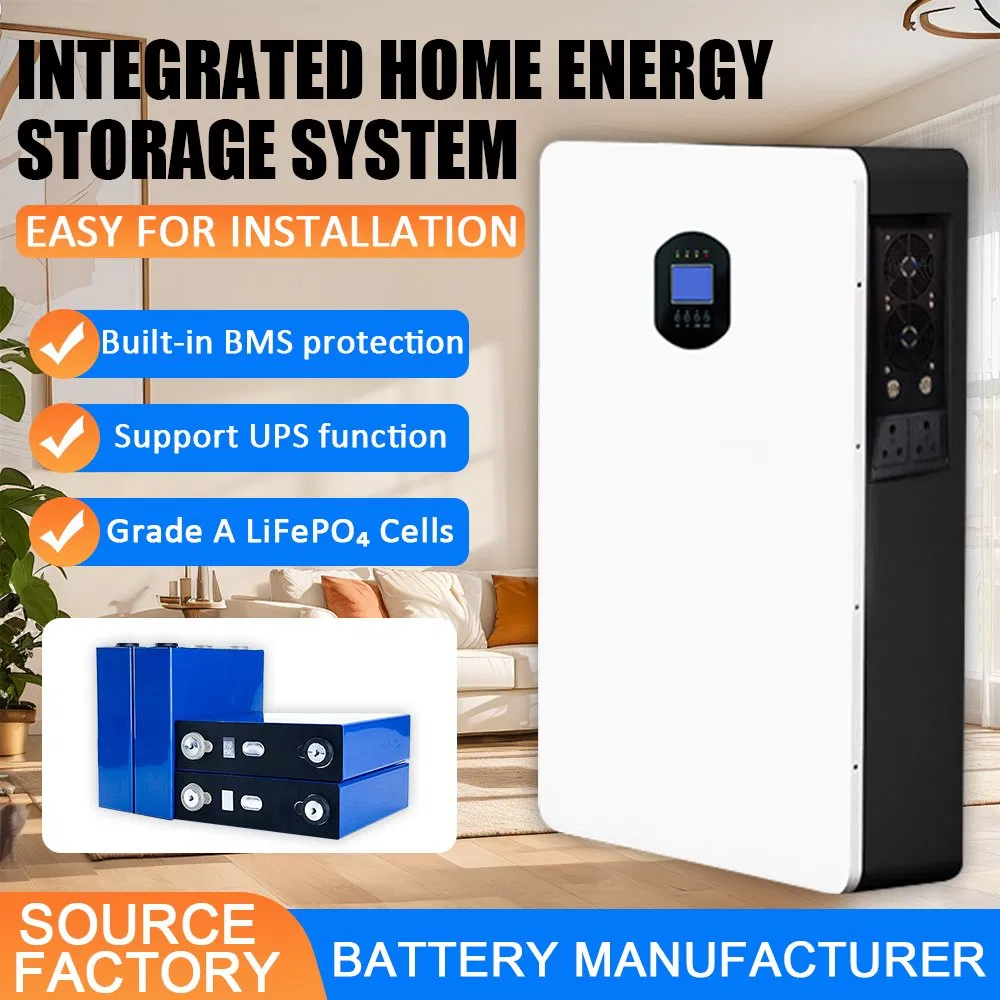

Introducing our sleek, high-performance All-in-One Wall-Mounted Energy Storage System Series. This fully integrated solution combines a premium LiFePO4 battery and a pure sine wave hybrid inverter into a single, ultra-compact unit. Engineered for simplicity and reliability, it delivers complete energy autonomy for a wide range of homes and small businesses, from backup power to maximizing solar investment.

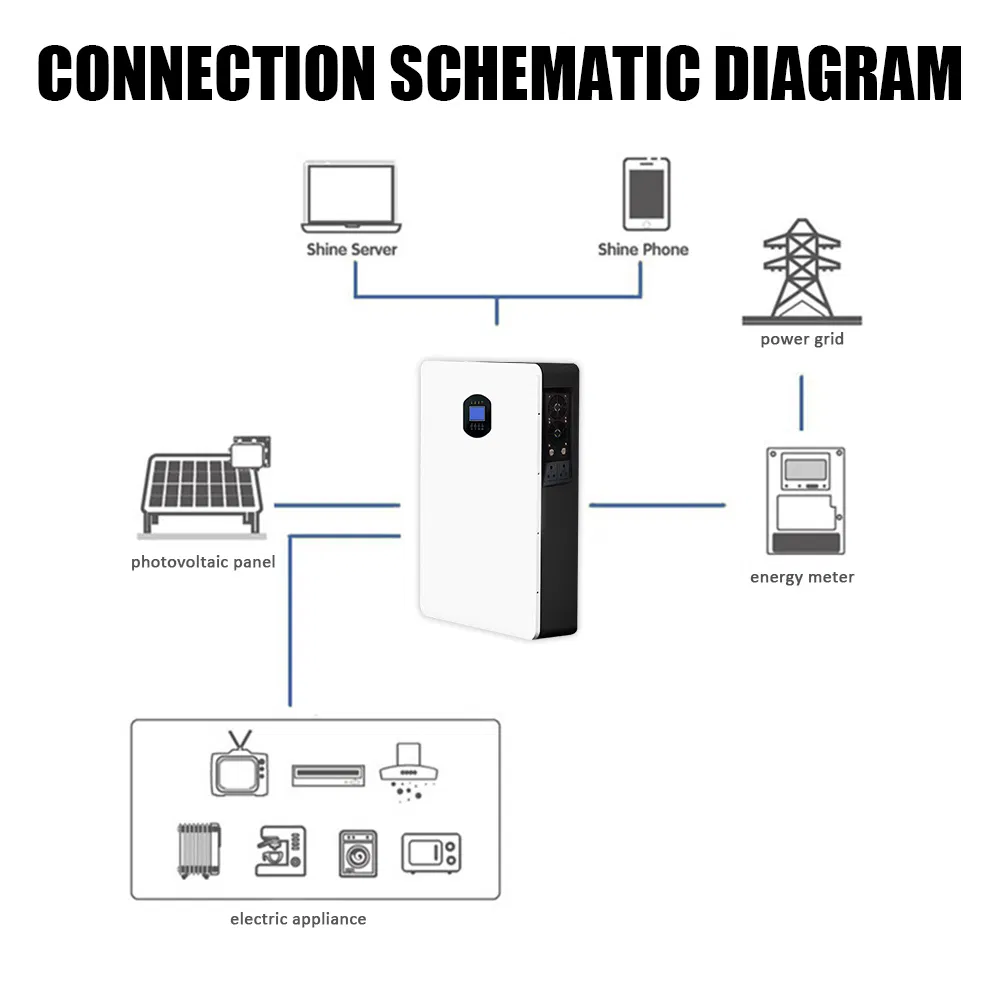

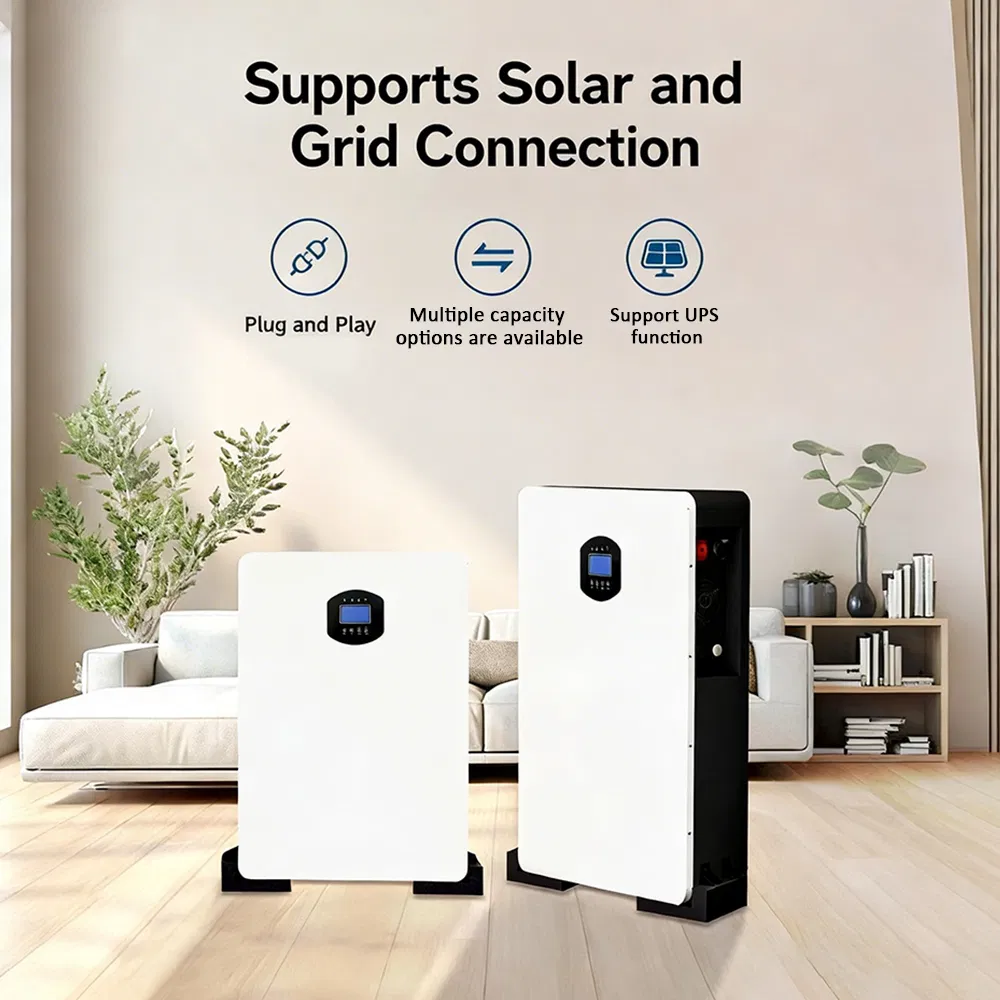

Intelligently manages power from both AC grid and solar PV panels for optimal efficiency.
True UPS function with sub-20ms switchover, ensuring critical devices stay online.
Equipped with intuitive display and mobile app connectivity (Wi-Fi/Bluetooth).
| Battery Model | 1.28kWh+1kW | 2.56kWh+3kW | 5.12kWh+6kW | 10.24kWh+12kW |
|---|---|---|---|---|
| Nominal Voltage | 12.8V | 25.6V | 51.2V | 51.2V |
| Rated Capacity | 100Ah | 100Ah | 100Ah | 200Ah |
| Energy | 1.28kWh | 2.56kWh | 5.12kWh | 10.24kWh |
| Inverter Power | 1kW | 3kW | 6kW | 12kW |
| MPPT Voltage Range | 20~100Vdc | 40~450Vdc | 60~450Vdc | 60~450Vdc |
| Communication | RS485/WiFi | RS485/WiFi | RS485/WiFi | RS485/WiFi |
| Size(mm) | 280*150*400mm | 450*140*570mm | 500*150*730mm | 620*150*1300mm |
| Weight(kg) | ~16kg | ~30kg | ~58kg | ~95kg |

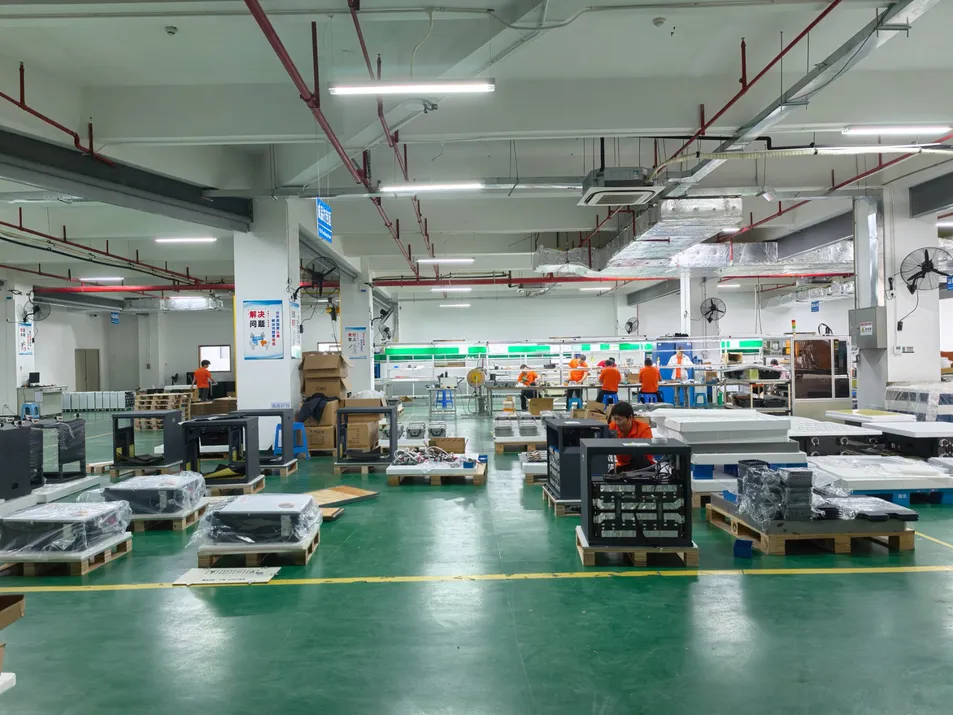

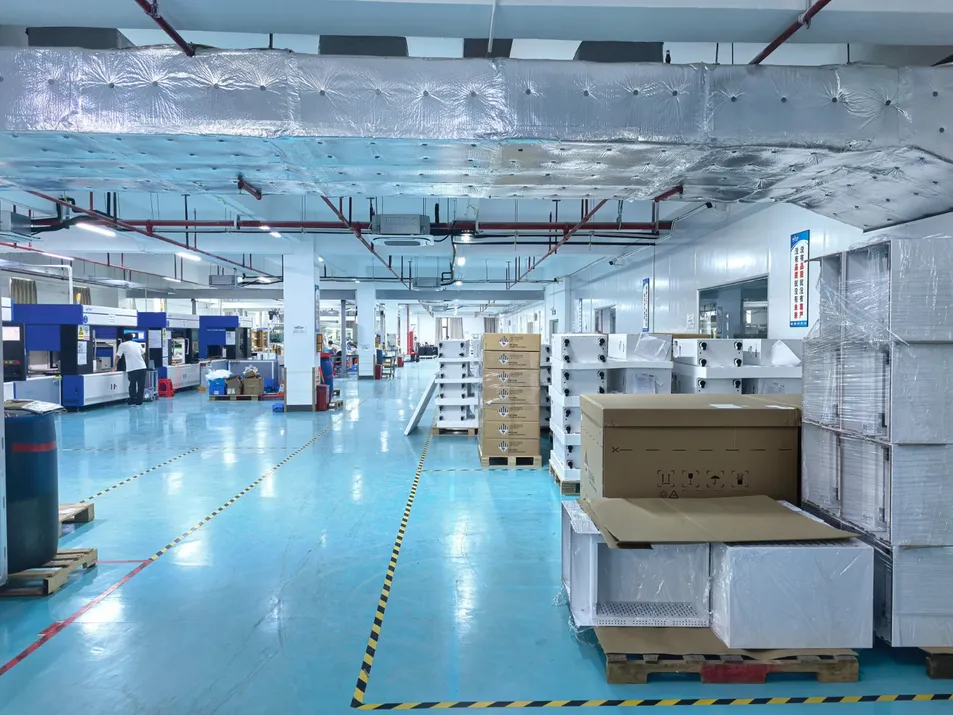

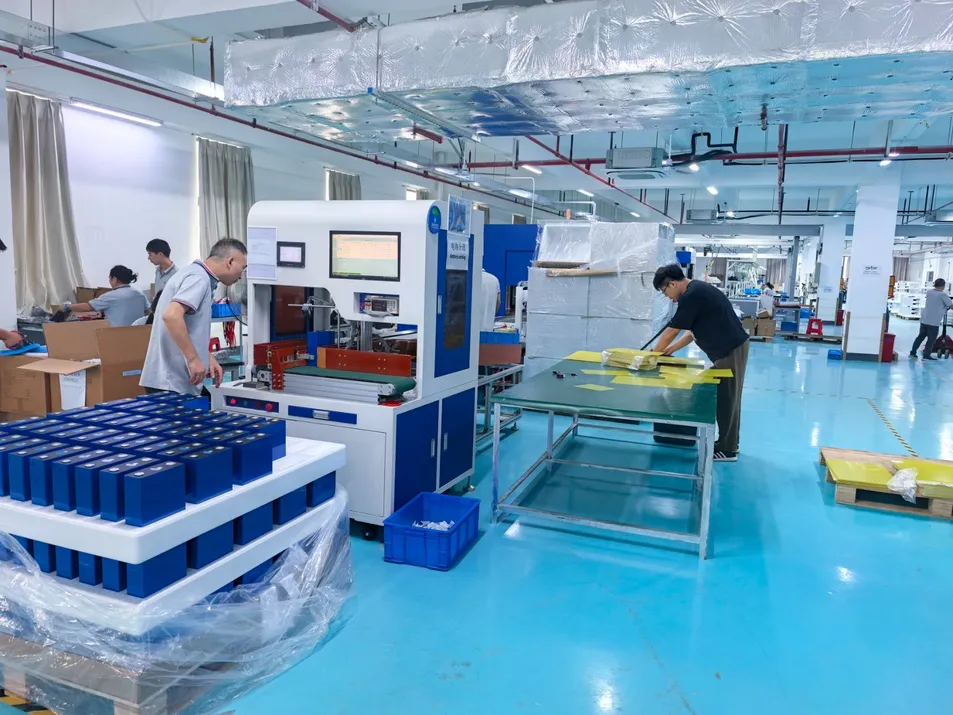

Our core mission is to empower businesses and households with safe, efficient, and customizable energy storage systems. Quality and reliability are embedded in every stage of our process, from rigorous raw material screening and automated precision manufacturing to exhaustive testing protocols. We ensure every product meets international safety and performance standards.

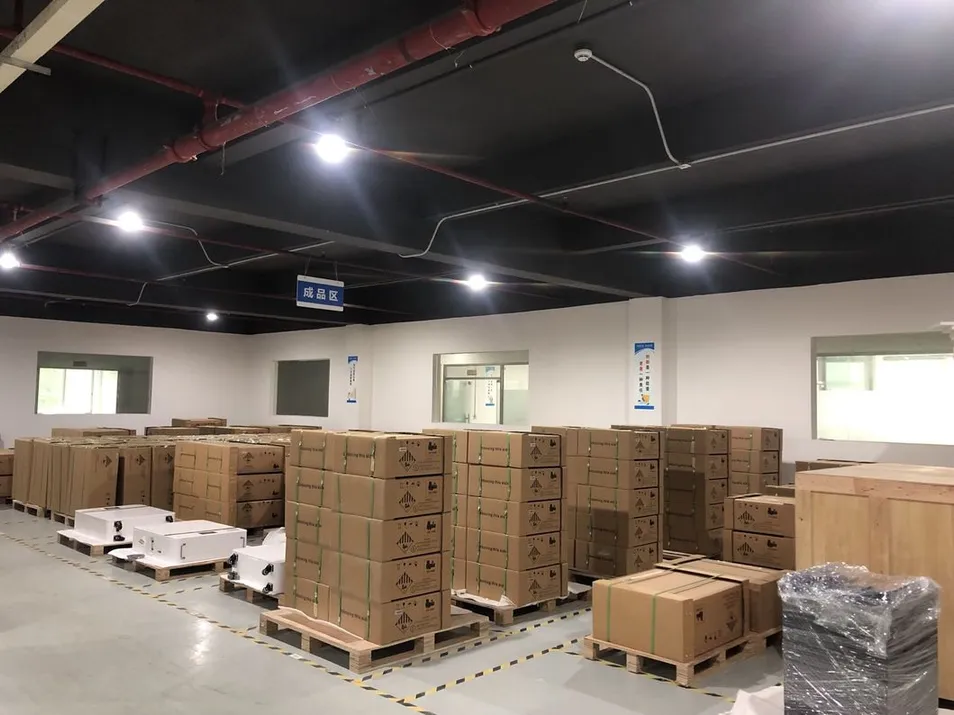

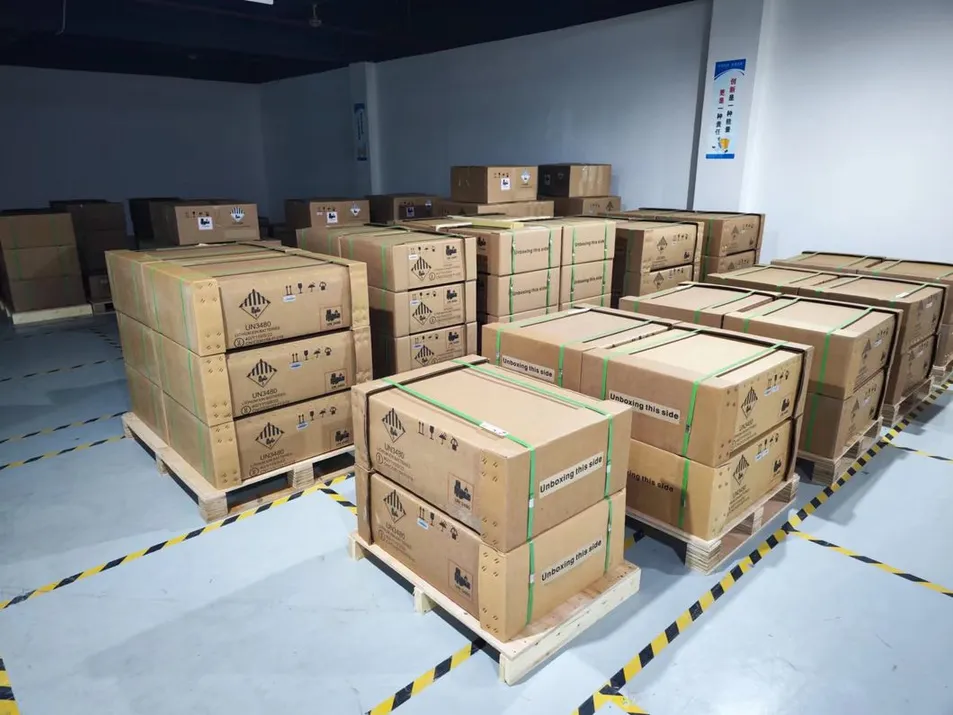

Every product is securely packed in durable packaging that ensures superior protection against shock, moisture, and handling throughout the logistics journey. We offer flexible global shipping solutions including express courier (DHL, UPS, FedEx), air freight, and sea freight.
