| Electrical Characteristics STC: AM1.5 1000W/m2 25°C | |||||
|---|---|---|---|---|---|

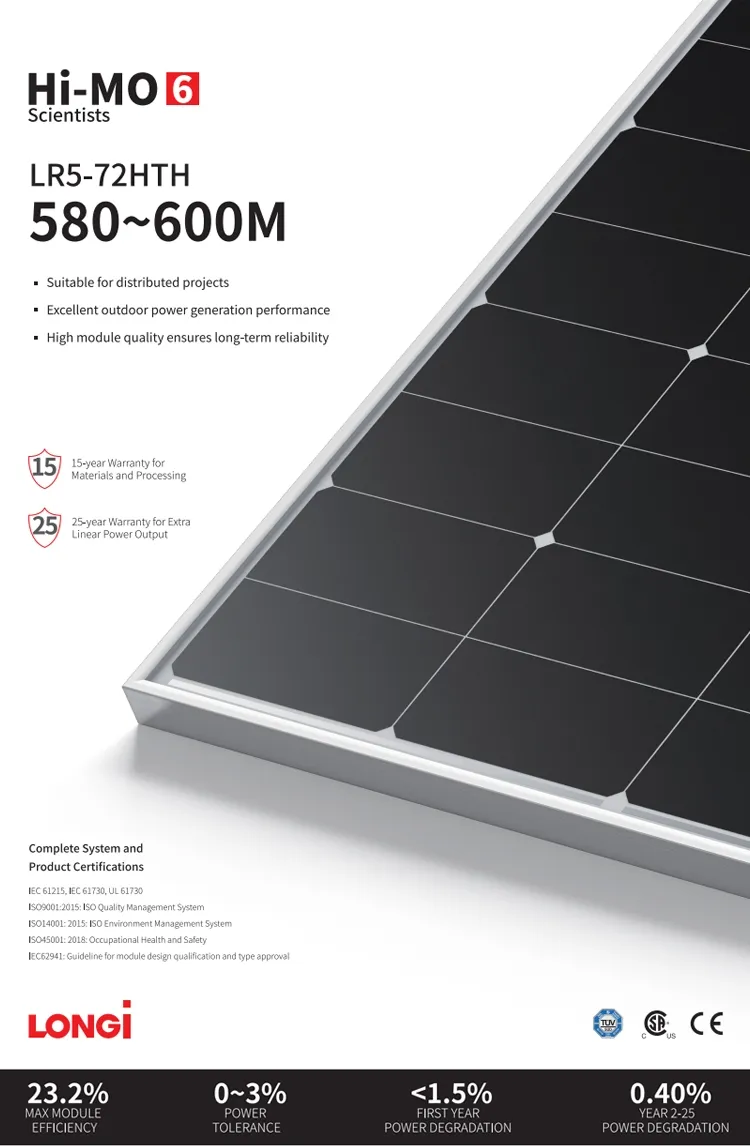

| Module Type | LR5-72HTH-580M | LR5-72HTH-585M | LR5-72HTH-590M | LR5-72HTH-595M | LR5-72HTH-600M |
| Maximum Power (Pmax/W) | 580 | 585 | 590 | 595 | 600 |
| Open Circuit Voltage (Voc/V) | 52.21 | 52.36 | 52.51 | 52.66 | 52.81 |
| Short Circuit Current (Isc/A) | 14.20 | 14.27 | 14.33 | 14.40 | 14.46 |
| Voltage at Max Power (Vmp/V) | 44.06 | 44.21 | 44.36 | 44.51 | 44.66 |
| Current at Max Power (Imp/A) | 13.17 | 13.24 | 13.31 | 13.37 | 13.44 |
| Module Efficiency (%) | 22.5 | 22.6 | 22.8 | 23.0 | 23.2 |

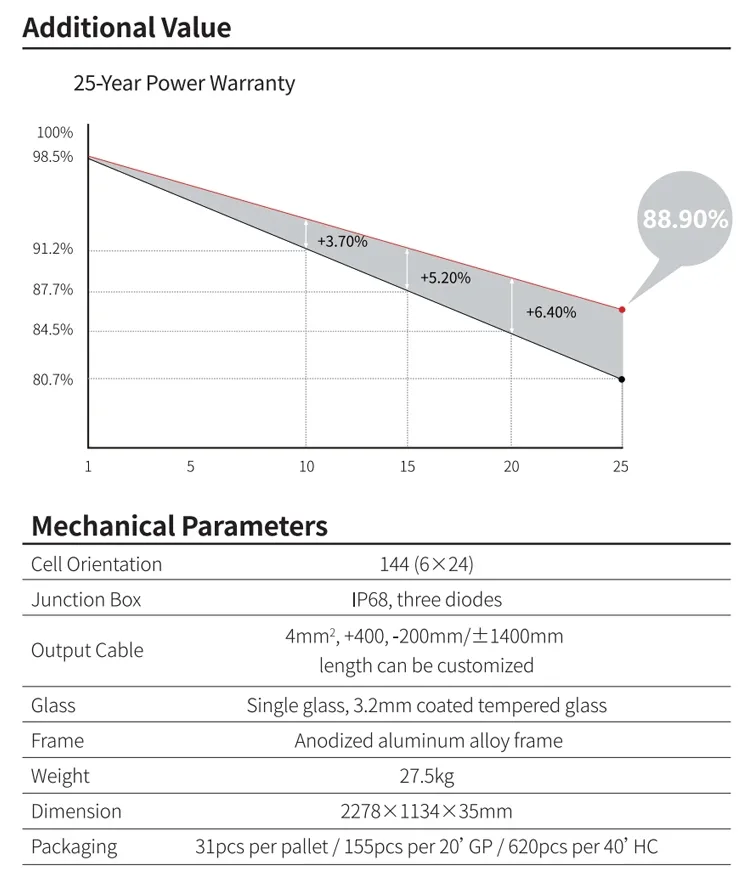

| Cell Orientation | 144 (6x24) |
| Junction Box | IP68, three diodes |
| Output Cable | 4mm² +400, -200mm/±1400mm length can be customized |
| Glass | Single glass, 3.2mm coated tempered glass |
| Frame | Anodized aluminum alloy frame |
| Weight | 27.5kg |

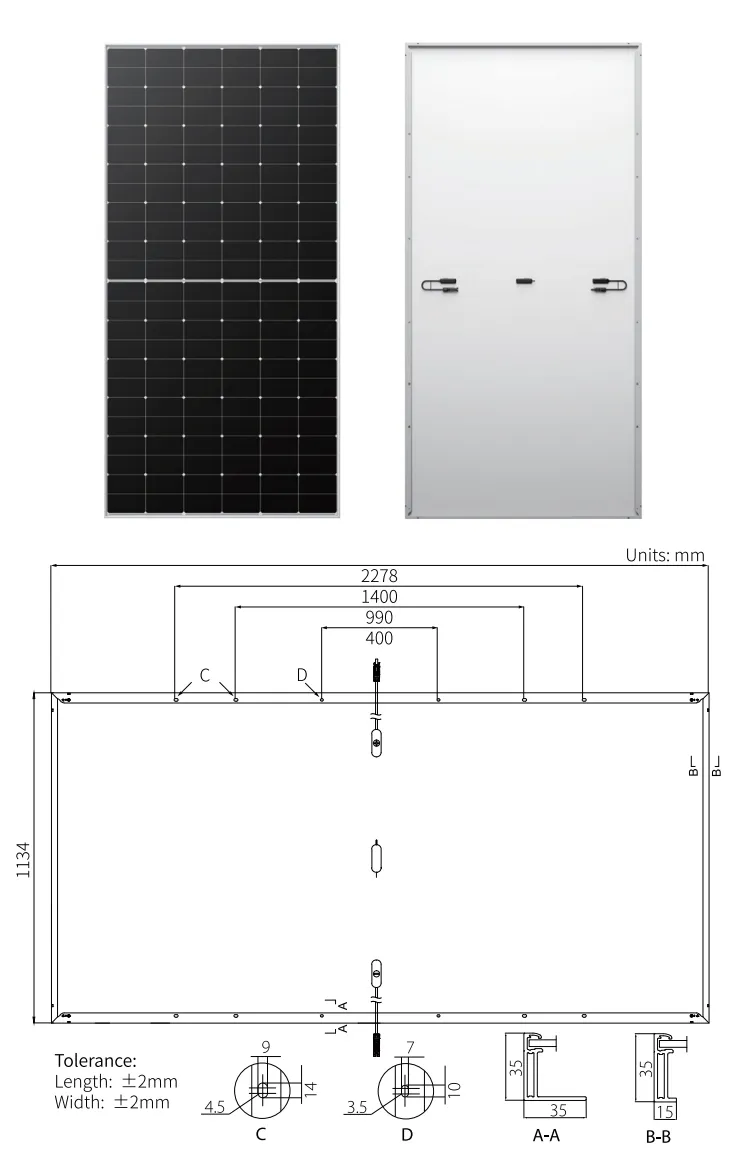

| Dimension | 2278x1134x35mm |

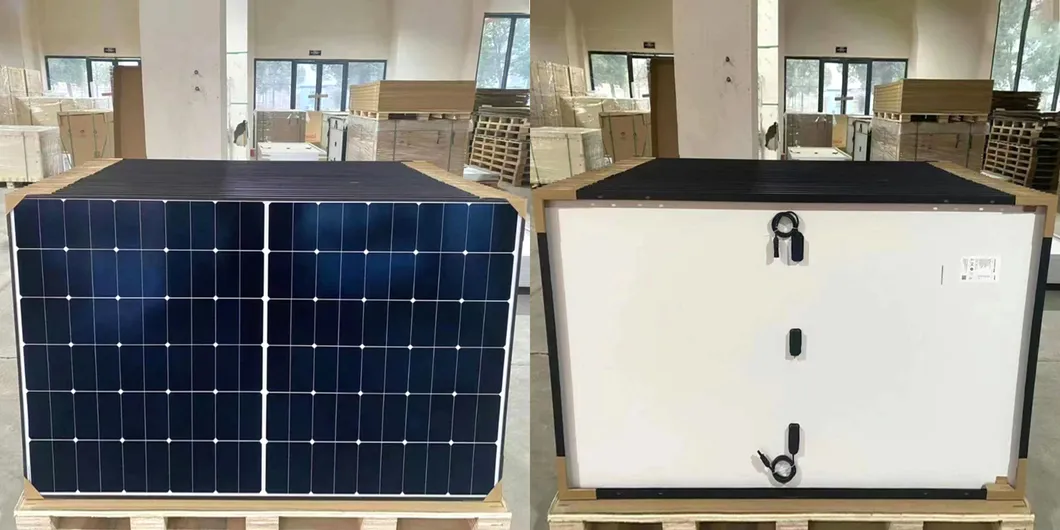

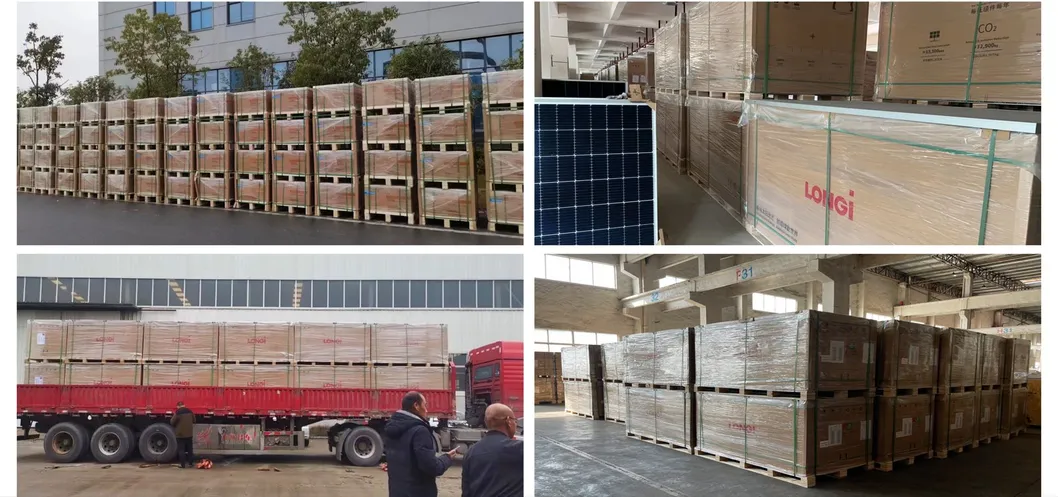

| Packaging | 31pcs per pallet / 155pcs per 20'GP / 620pcs per 40'HC |
With over 15 years of industry leadership, we are a professional manufacturer in the Solar Panel arena, consistently delivering quality and innovation. Our extensive product range encompasses poly and mono solar panels, solar batteries, comprehensive power systems, charge controllers, inverters, lighting solutions, and advanced solar air-conditioning. Serving clients in more than 60 countries across Europe, Asia, the Americas, and Africa.
