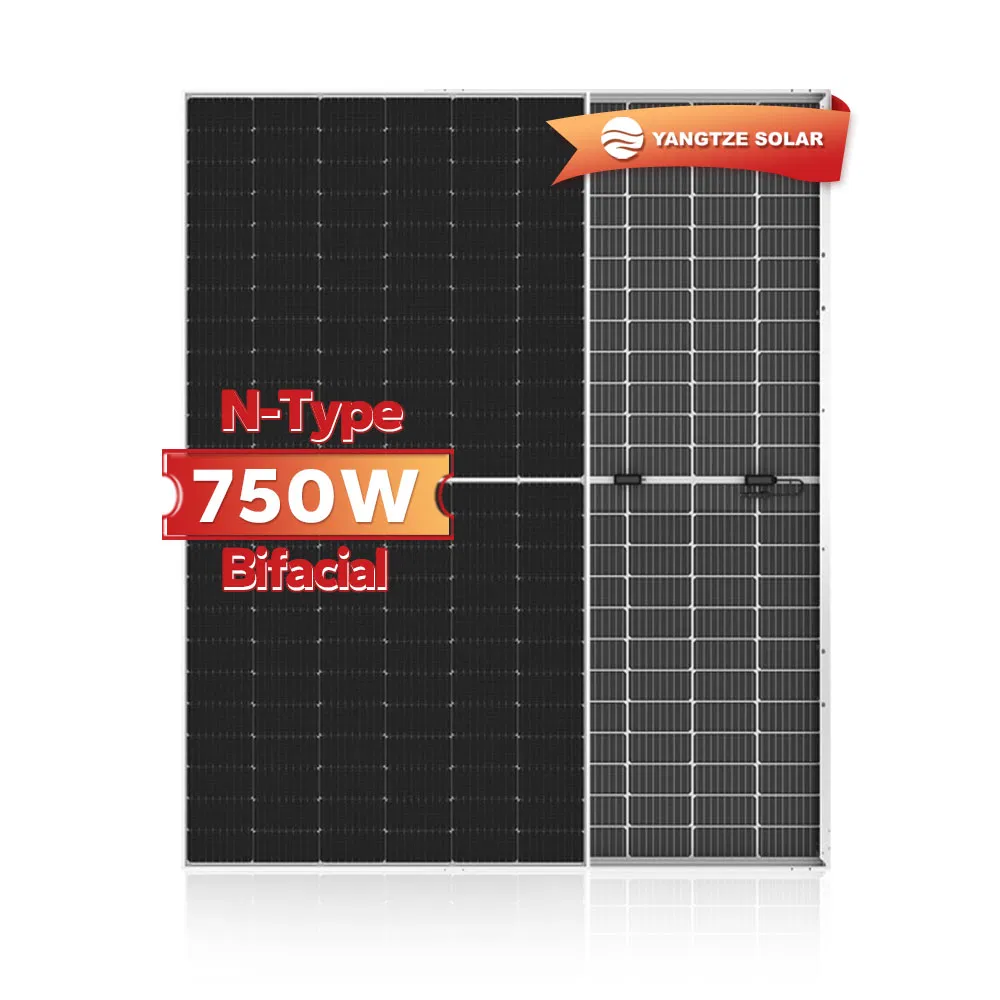

750W Commercial PV Solar Panel N-Type with Bifacial and Half Cell Topcon Type for Enhanced Efficiency
750W Commercial PV Solar Panel N-Type with Bifacial and Half Cell Topcon Type for Enhanced Efficiency
750W Commercial PV Solar Panel N-Type with Bifacial and Half Cell Topcon Type for Enhanced Efficiency
750W Commercial PV Solar Panel N-Type with Bifacial and Half Cell Topcon Type for Enhanced Efficiency
750W Commercial PV Solar Panel N-Type with Bifacial and Half Cell Topcon Type for Enhanced Efficiency
1 / 5
750W Commercial PV Solar Panel N-Type with Bifacial and Half Cell Topcon Type for Enhanced Efficiency
750W Commercial PV Solar Panel N-Type with Bifacial and Half Cell Topcon Type for Enhanced Efficiency
750W Commercial PV Solar Panel N-Type with Bifacial and Half Cell Topcon Type for Enhanced Efficiency
750W Commercial PV Solar Panel N-Type with Bifacial and Half Cell Topcon Type for Enhanced Efficiency
750W Commercial PV Solar Panel N-Type with Bifacial and Half Cell Topcon Type for Enhanced Efficiency

750W Commercial PV Solar Panel N-Type with Bifacial and Half Cell Topcon Type for Enhanced Efficiency

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

i

Basic Specifications

Model NO.
YS750M-132
Number of Cells
132PCS
Application
Industrial
Certification
ISO, CE, TUV, Cec, IEC61215, IEC61730
Material
Monocrystalline Silicon
Frame
Anodized Aluminium Alloy
Junction Box
IP67 Waterproof
Solar Cell
Mono 210*210mm Cell
Front Cover
3.2mm High Transmission Glass
Weight
35kg
Specification
2400*1303*35mm
Capacity
500,000 Piece/Year

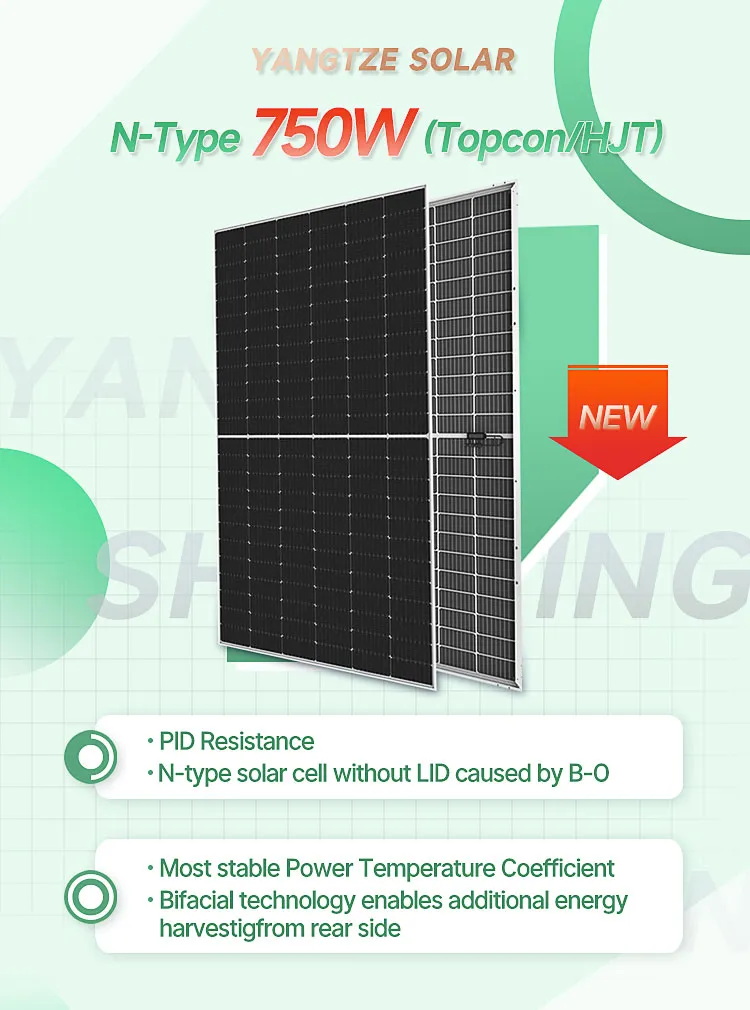

750W Commercial PV Solar Panel
T

Technical Parameters

Model Type YS710M-132 YS720M-132 YS730M-132 YS740M-132 YS750M-132
Rated Power (STC) 710W 720W 730W 740W 750W
Voltage (Vmp) 40.48V 40.86V 41.04V 41.34V 41.52V
Current (Imp) 17.54A 17.62A 17.78A 17.9A 18.06A
Open Circuit (Voc) 45.55V 45.85V 46.15V 46.45V 46.75V
Short Circuit (Isc) 18.45A 18.54A 18.66A 18.79A 18.92A
Module Efficiency 22.85% 23.17% 23.5% 23.82% 24.14%
Working Conditions
Operating Temp -40°c ~ +85°c
Max System Voltage DC 1000V / 1500V (IEC)
Max Series Fuse 25A
Power Tolerance 0 ~ +5W
F

Professional Manufacturing

  • Founded in 1994, with 300MW solar panel production capacity.
  • Power range from 3W to 750W for both polycrystalline and monocrystalline panels.
  • 10 years workmanship and materials warranty.
  • Linear power output warranty: 10 years at 90%, 25 years at 80%.
  • 100% EL test performed before packaging and shipping.
  • Integrated manufacturing with dedicated solar panel and battery facilities.
  • Products certified by TUV (Germany) and CE.
  • Exported to more than 150 countries worldwide.
  • Turn-key solar systems offered to optimize client investment.
G

Visual Overview

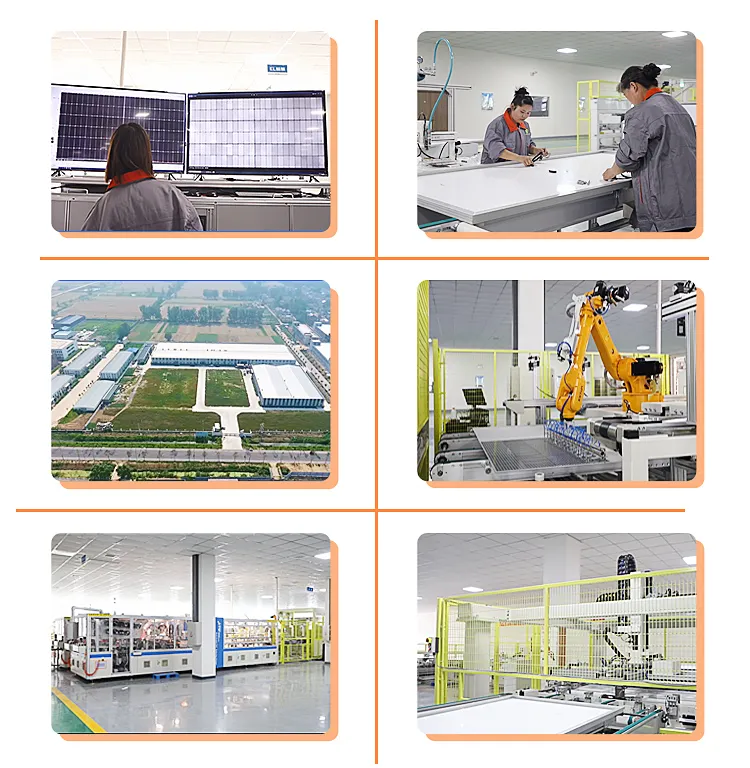

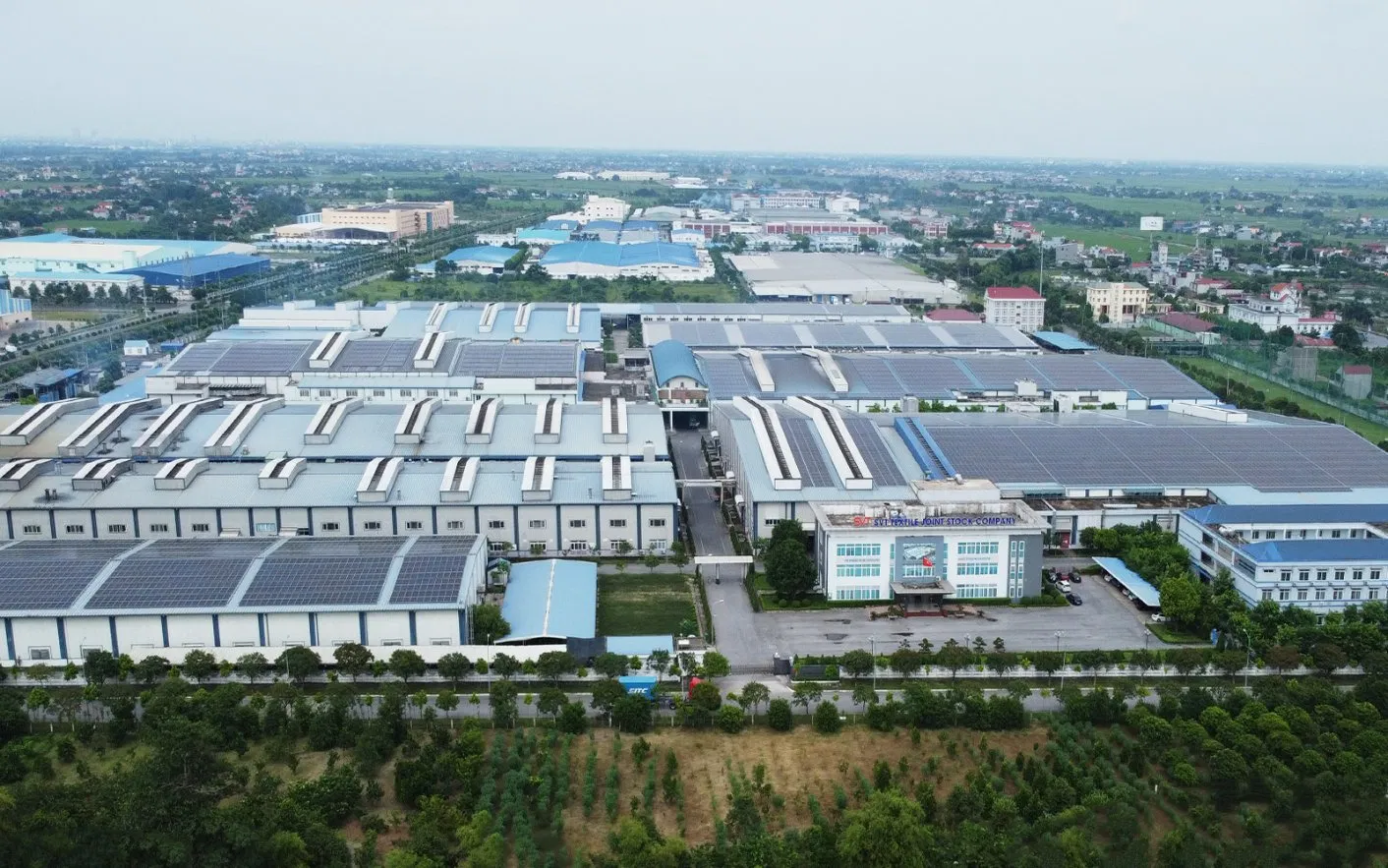

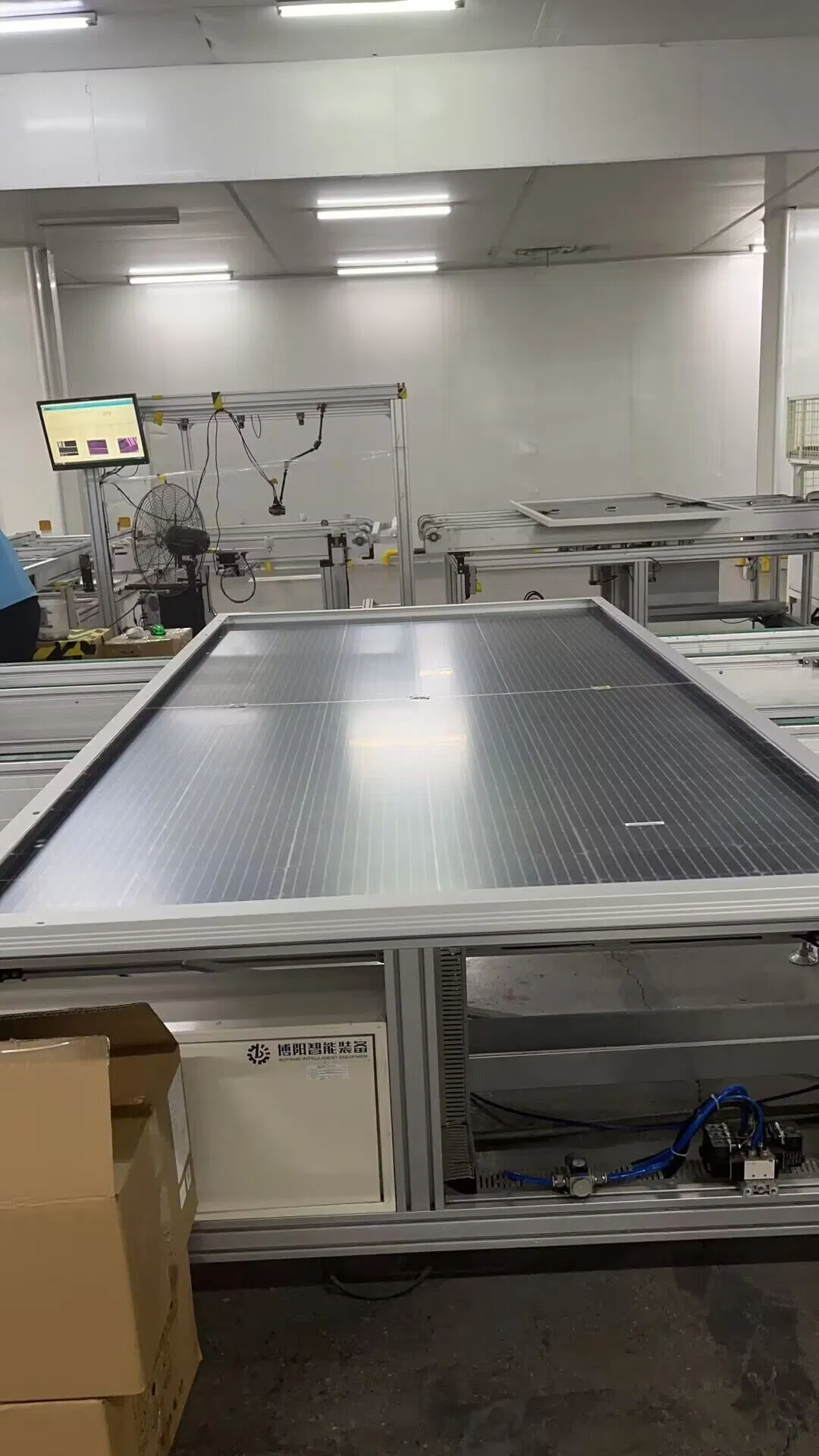

Factory Facility

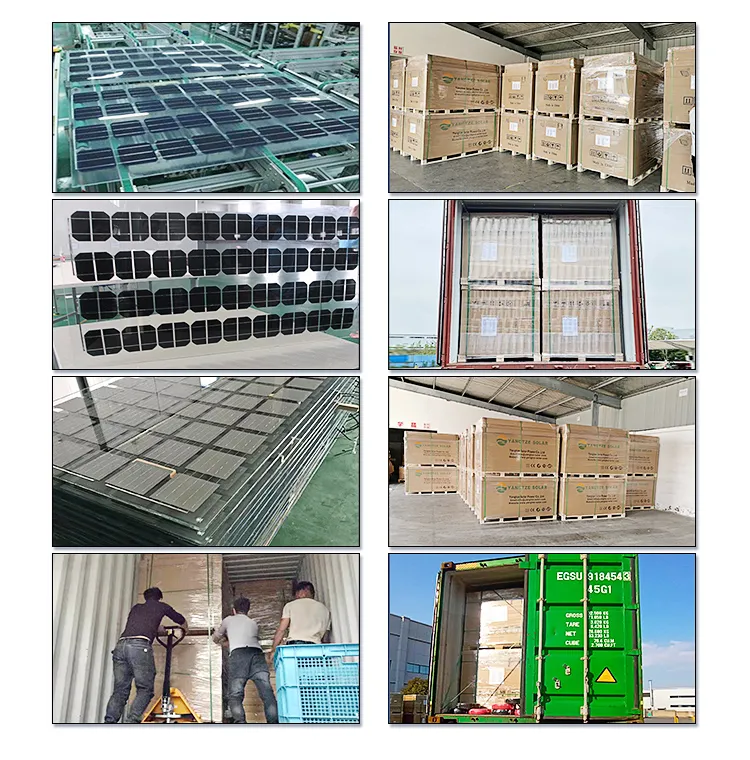

Professional Packaging
Certifications
Exhibition and Visiting

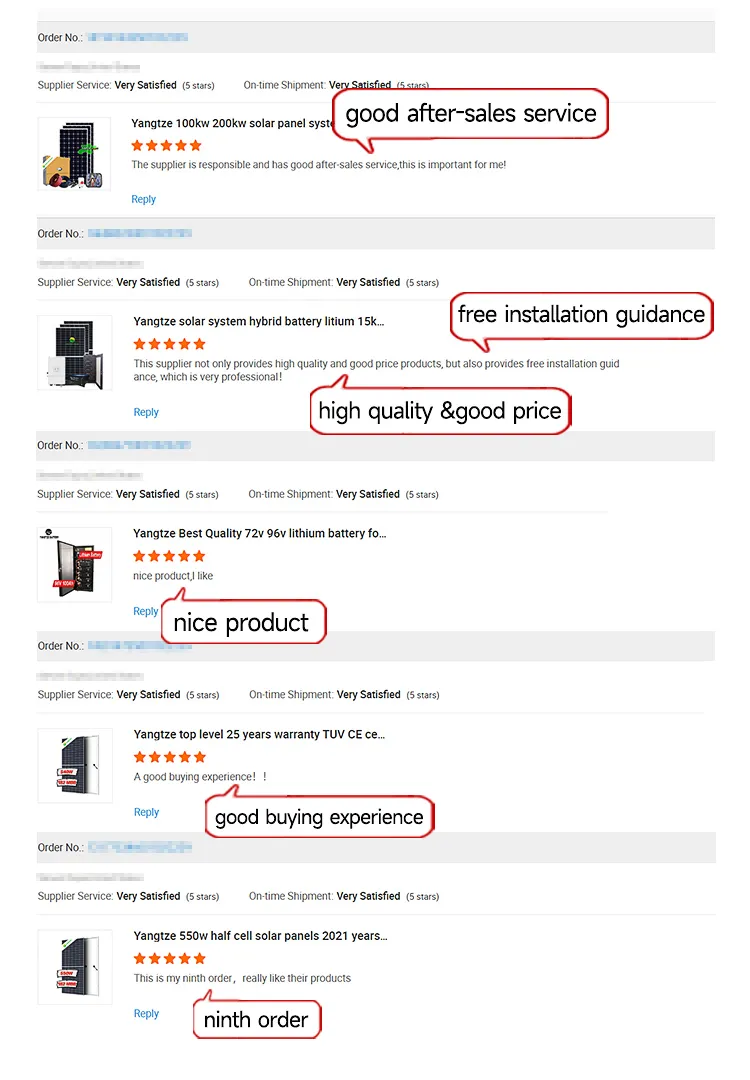

Customer Feedback
?

Frequently Asked Questions

Q1: What is the maximum power output for this series?
The series offers a high-efficiency power range reaching up to 750W, utilizing N-Type Topcon technology for maximum performance.
Q2: What kind of technology is used in these solar panels?
These panels feature N-Type Monocrystalline silicon with Bifacial and Half-Cell Topcon technology, which significantly enhances module efficiency and energy yield.
Q3: Are these panels suitable for harsh environmental conditions?
Yes, with an operating temperature range of -40°C to +85°C and an IP67 waterproof junction box, they are designed to withstand diverse industrial environments.
Q4: What certifications do these solar products hold?
Our solar panels are fully certified by international standards including ISO, CE, TUV, Cec, IEC61215, and IEC61730, ensuring safety and quality.
Q5: What is the warranty coverage for the 750W solar panels?
We provide a 10-year total workmanship and materials warranty, along with a 25-year linear power output warranty (at least 80% output after 25 years).
Q6: Do you support OEM orders?
Yes, OEM orders are acceptable. We can customize frame colors (Silvery or Black) and backsheet colors (White, Black, or Transparent) according to requirements.
