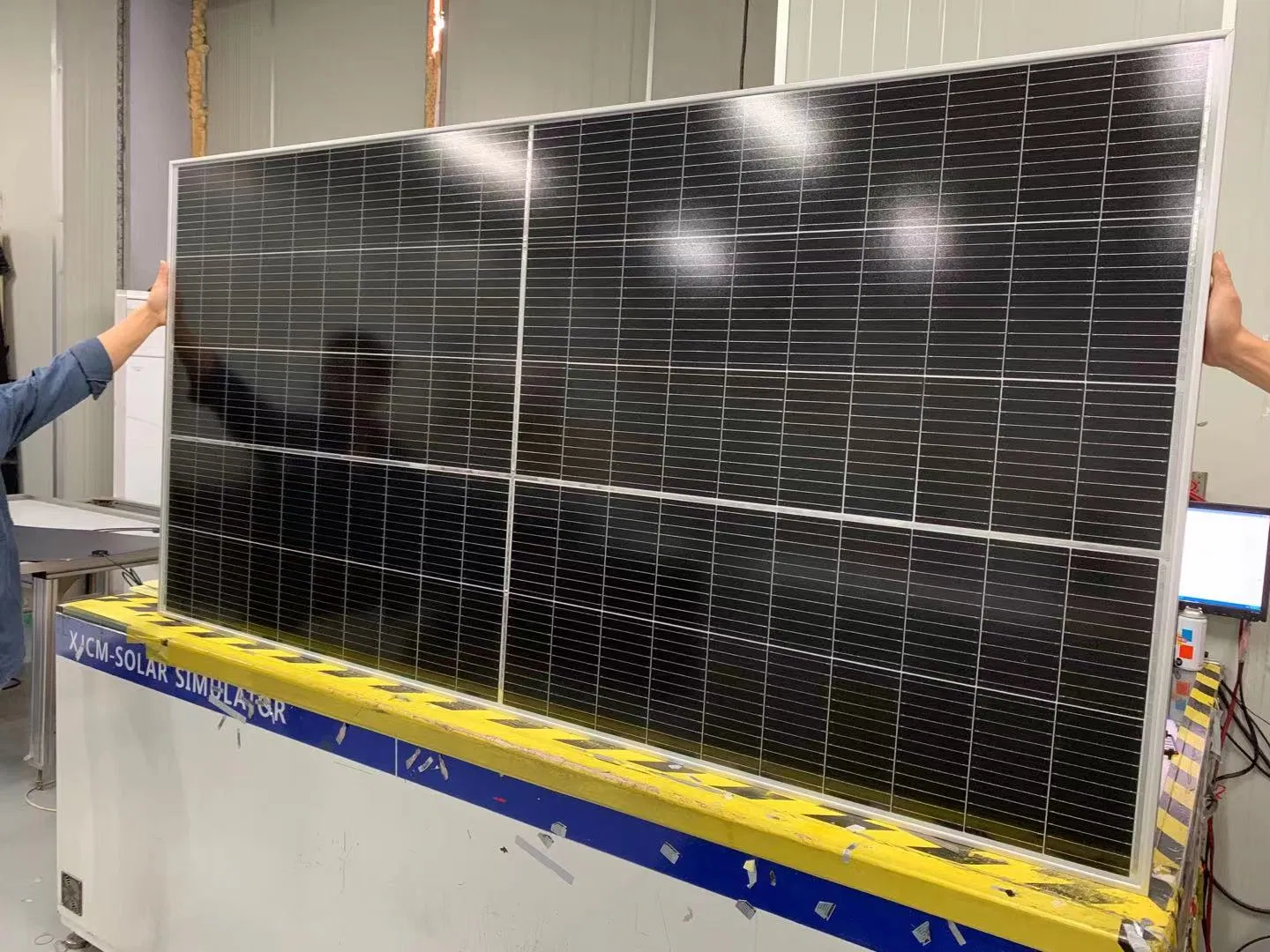

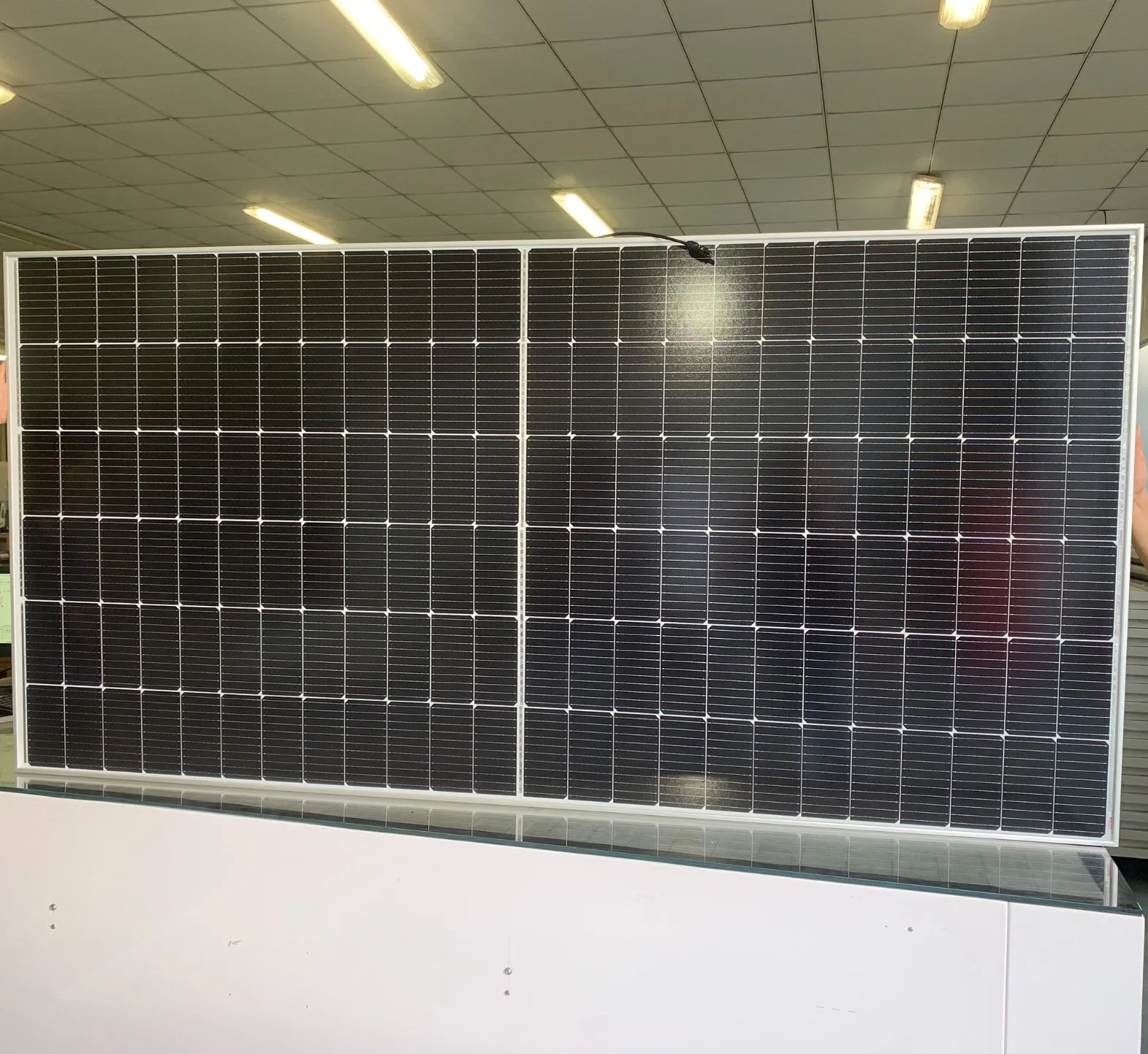

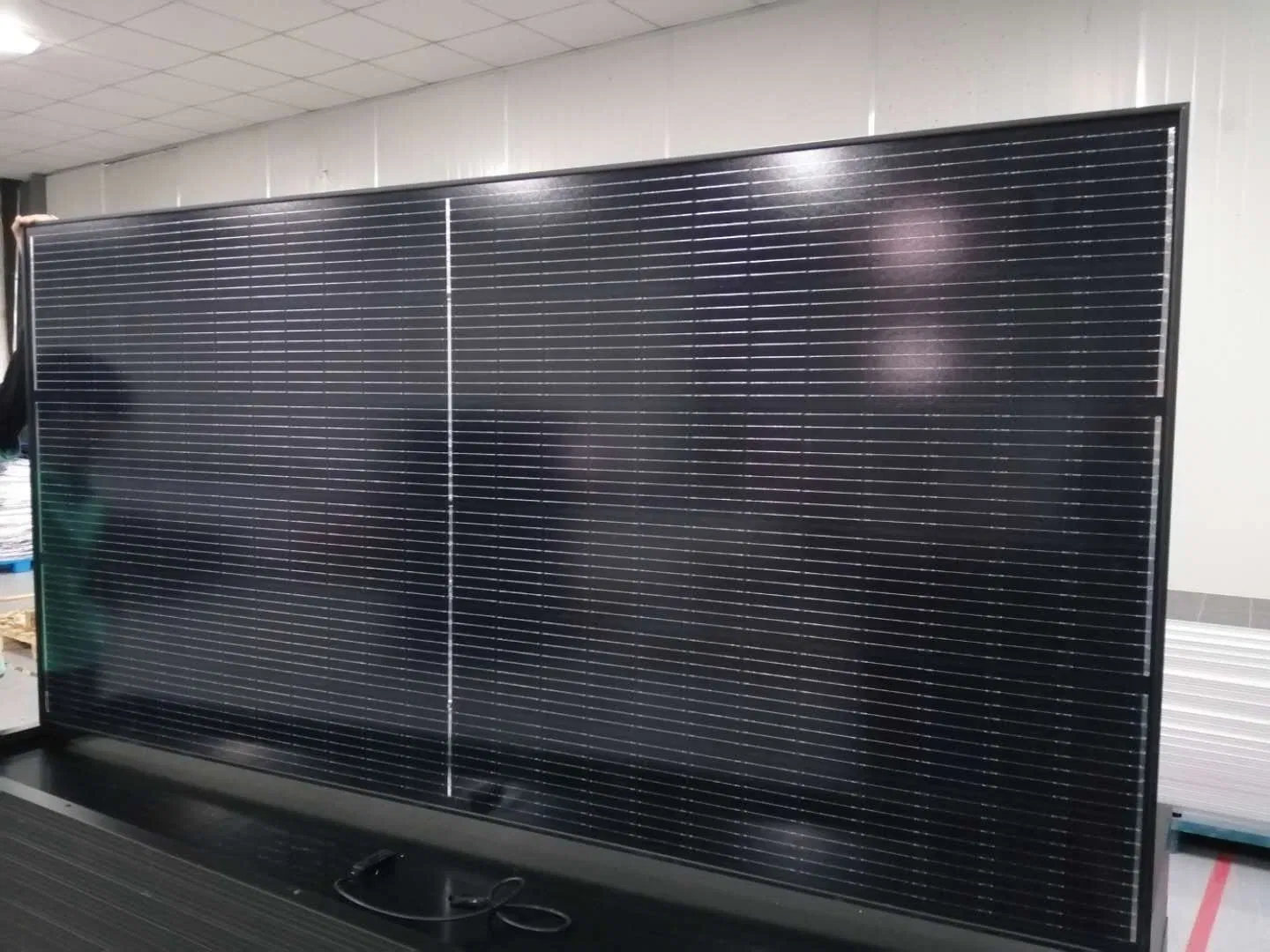

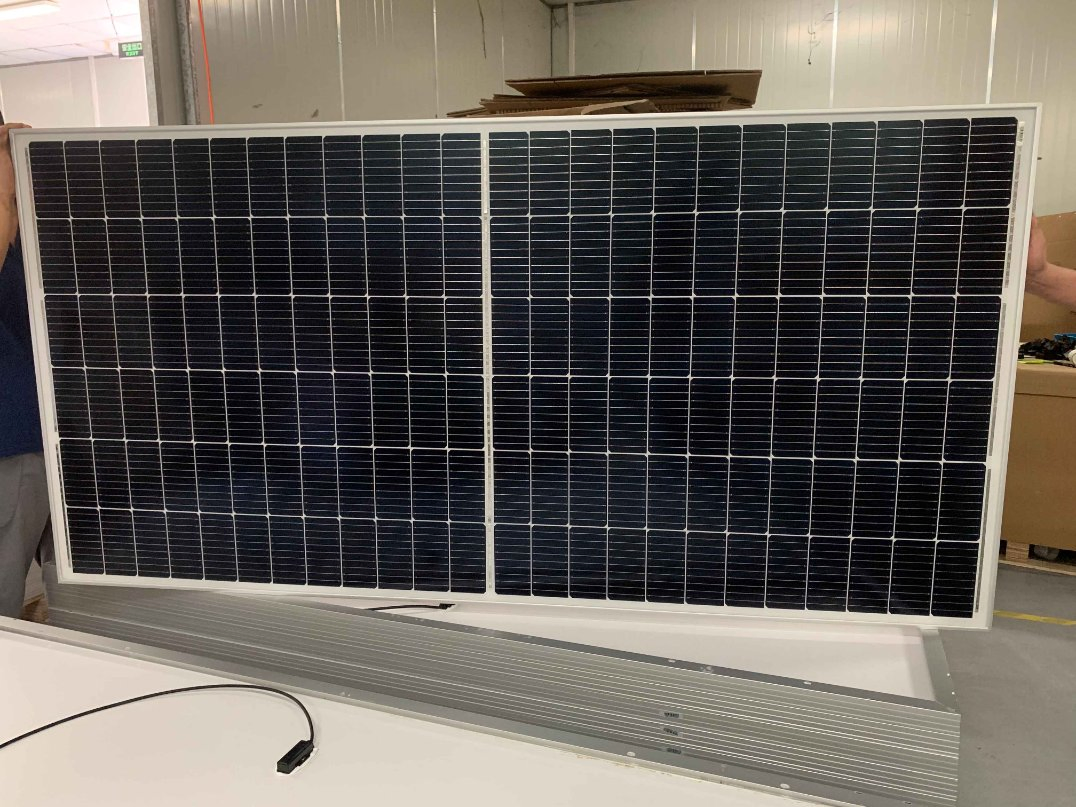

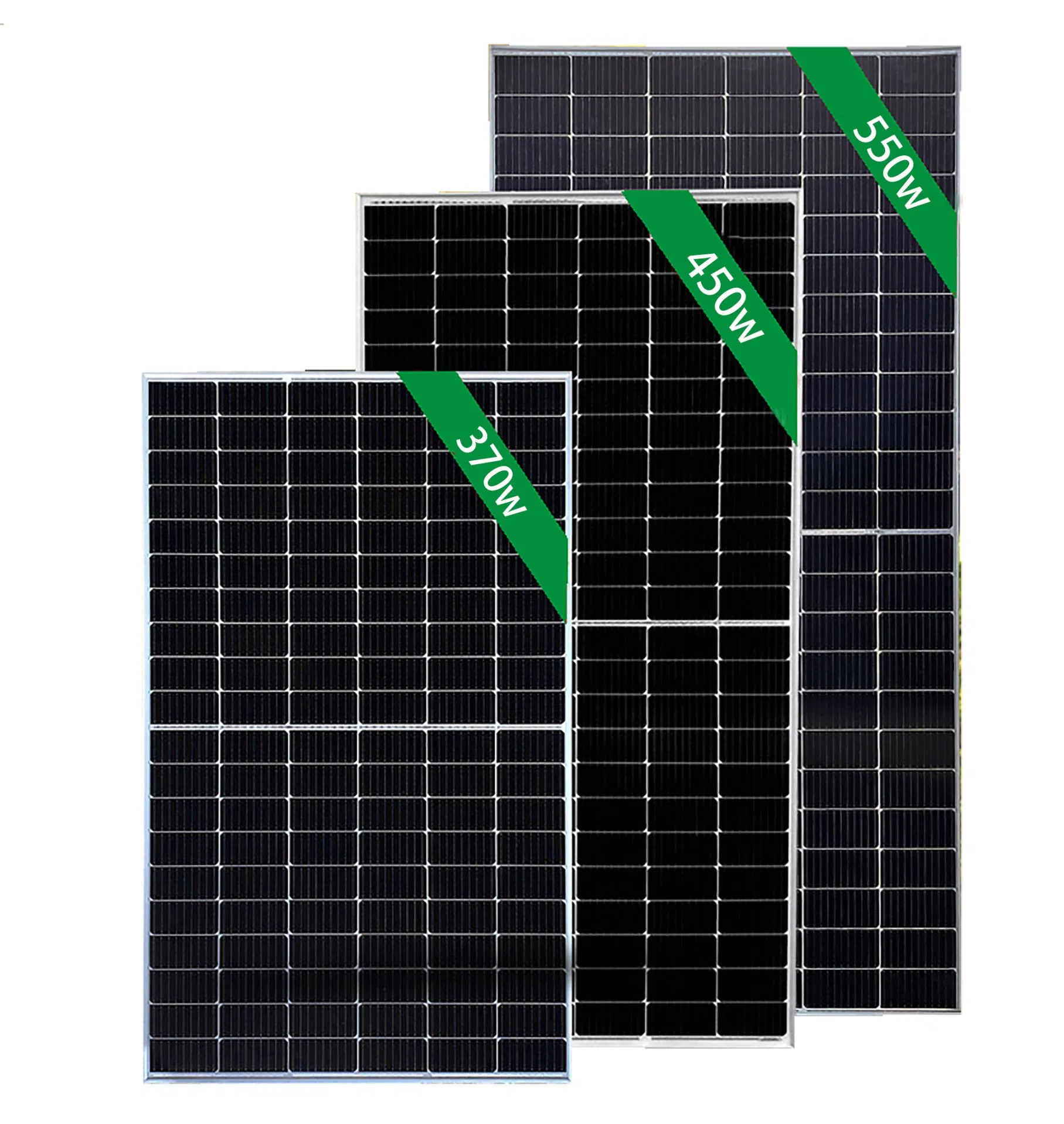

High Efficiency Jinko/Longi/Ja/Trina 370W 450W 540W Full-Black Bifacial Solar Power PV Module Panels

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Information

Model NO.
FSM-450W
Number of Cells
144PCS
Application
Solar Panel System/Solar Pump/Power Station
Condition
New
Certification
ISO, CE
Material
Monocrystalline Silicon
Product Name
Monocrystalline Solar Panel 500W

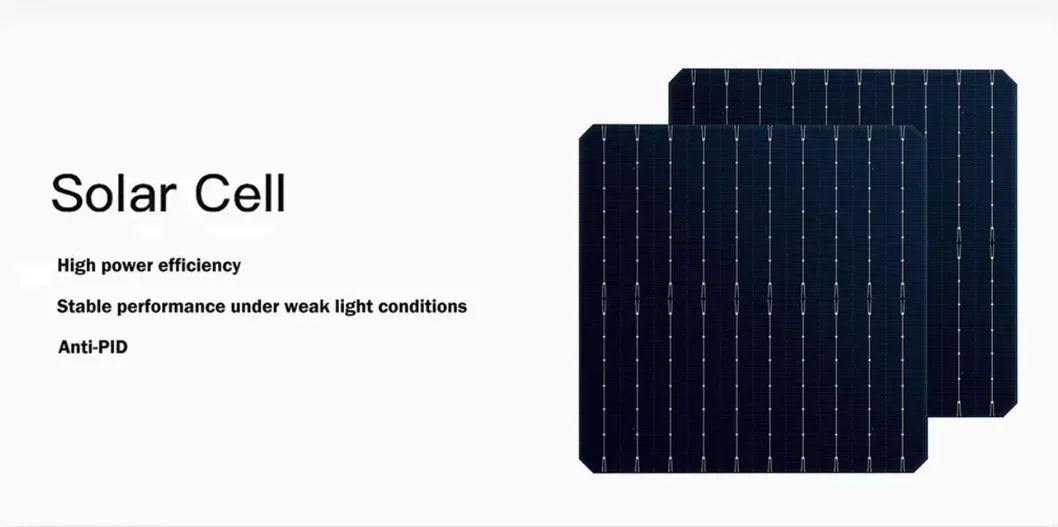

Solar Cell
182*182mm, Anti-Pid
Efficiency
More Than 21% Efficiency

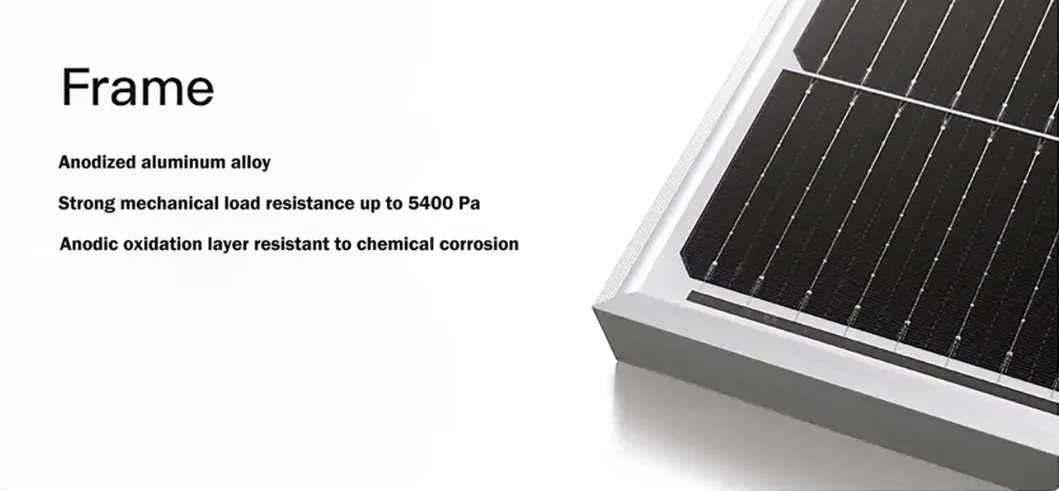

Frame
Anodized Aluminium Alloy

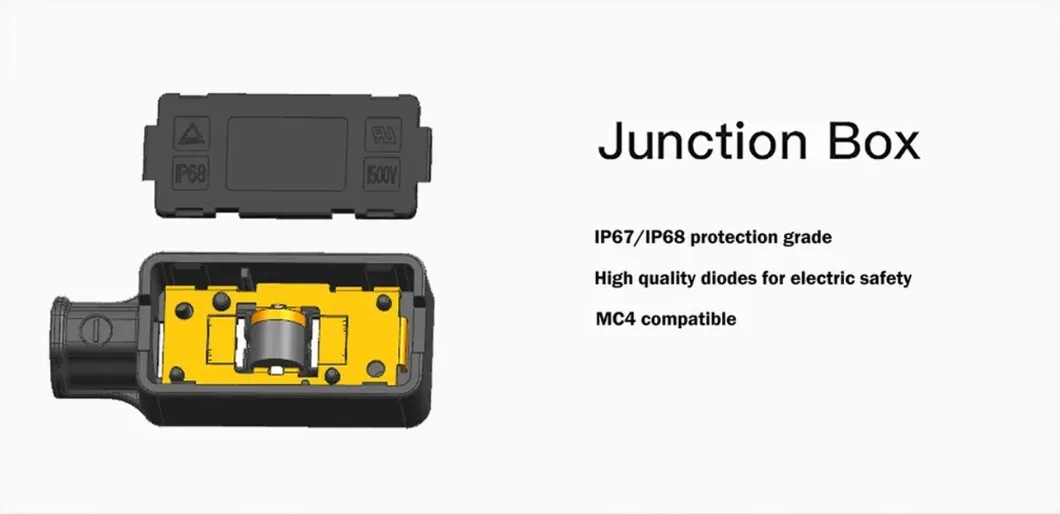

Junction Box
IP68 Water Proof
HS Code
8541402000

Technical Specifications

Module Mechanical Data
Weight29kg
Dimensions2279mm * 1134mm * 35mm
Cell Dimensions182 * 182mm
Cell Amount72 * 2 pcs
Maximum System Voltage1500V
Junction BoxIP68
Cable4mm2, Landscape: 1400mm / Portrait: 200-300mm
Application LevelClass A
Electrical Parameters at STC 530W 535W 540W 545W 550W
Open Circuit Voltage (Voc)49.00V49.20V49.40V49.60V49.80V
Short Circuit Current (Isc)13.76A13.81A13.87A13.93A13.99A
Max Power Voltage (Vmp)40.80V41.00V41.20V41.40V41.60V
Max Power Current (Imp)13.00A13.05A13.11A13.17A13.23A
Module Efficiency20.7%20.9%21.1%21.3%21.5%

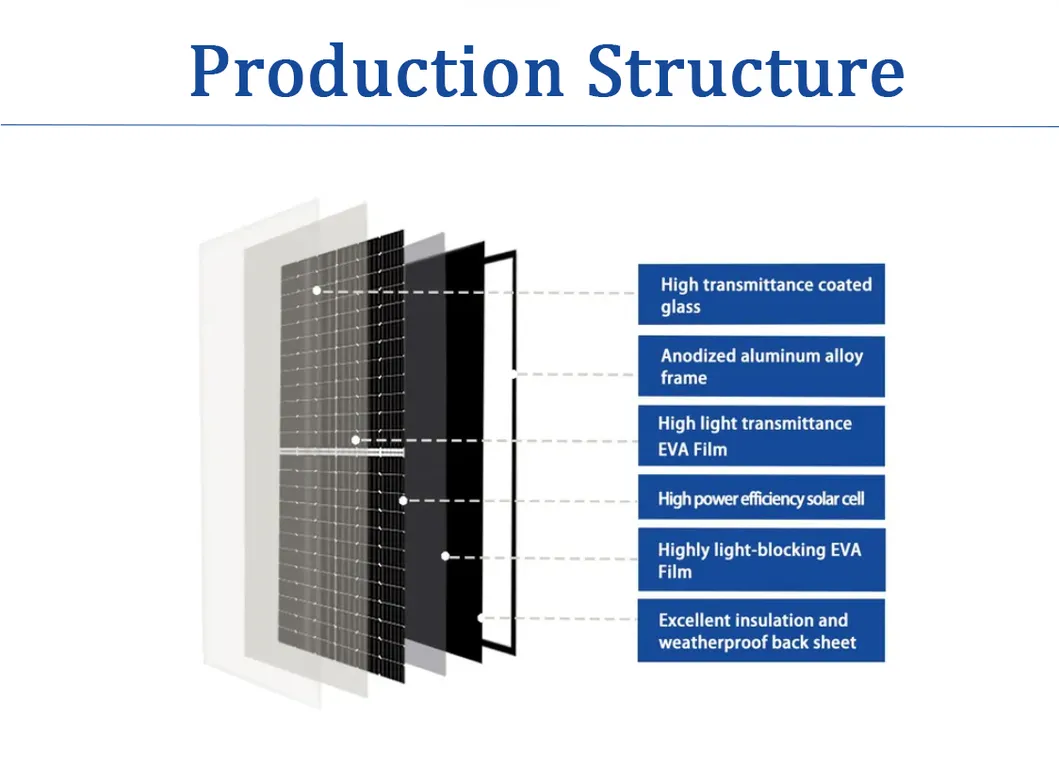

Product Features

Our Advantages

Advantages
  • GRADE A SOLAR CELLS: Ensuring all modules utilize high-efficiency grade A solar cells.
  • HIGH QUALITY: Fully automated production processes with strict testing for every panel.
  • PRICE ADVANTAGES: Cost-effective solutions through industry chain integration and scale.
  • AFTER-SALES SERVICE: 24-hour online service for timely and fast problem resolution.
  • INDUSTRY EXPERIENCE: Over 10 years of experience in the PV industry with a large-scale production base.

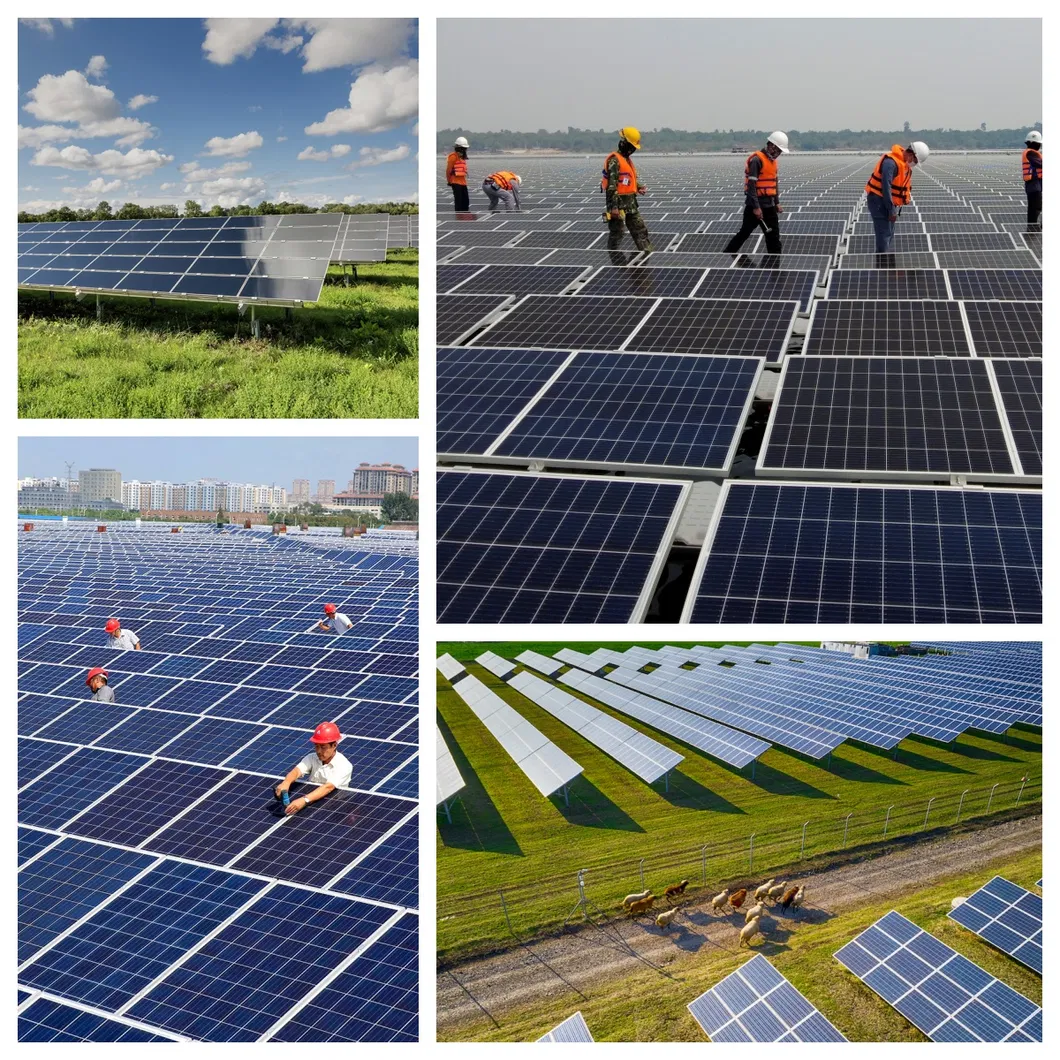

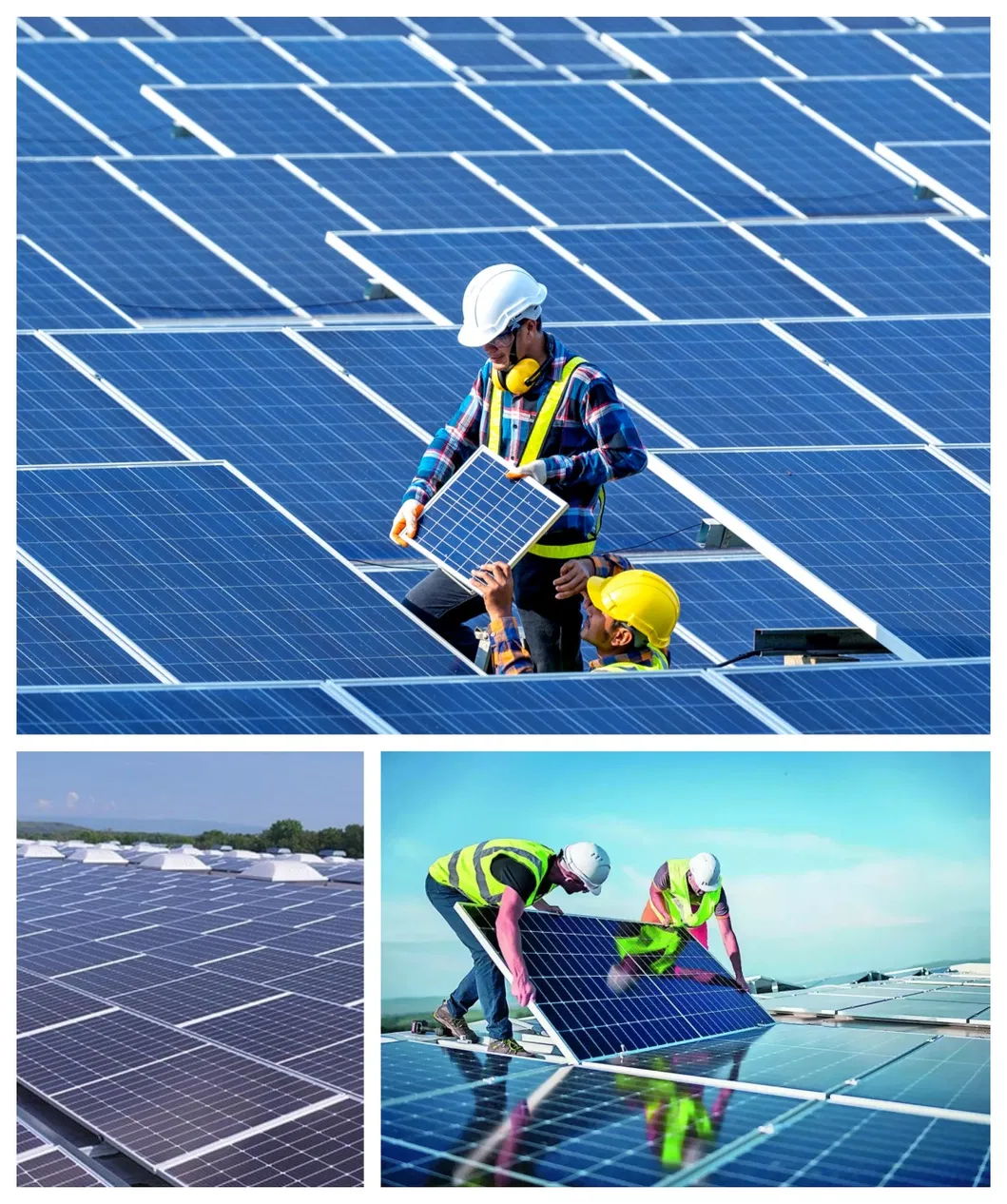

Project Cases

Certifications

Certifications

Frequently Asked Questions

How can we guarantee quality?
We always provide a pre-production sample before mass production and conduct a final inspection before every shipment to ensure the highest standards.
Why should you buy from us rather than other suppliers?
We are a global solar energy provider with a presence in more than 130 countries. Over 1.5GW of our modules are currently used in residential, commercial, and off-grid systems worldwide.
What services can we provide?
We offer various delivery terms including FOB, CFR, CIF, and EXW. We accept payments in USD, EUR, and CNY via T/T, L/C, or Credit Card.
What is the efficiency of these solar panels?
Our Monocrystalline solar panels offer high performance with efficiencies exceeding 21%, ensuring maximum power output for your system.
Are these panels durable for extreme weather?
Yes, the panels are designed with IP68 waterproof junction boxes and are rated to withstand wind loads of 2400pa and snow loads of 5400pa.
What type of solar cells are used in the modules?
We use Grade A Monocrystalline 10bb Half Cut cells (182*182mm) with Anti-PID technology for superior longevity and performance.
