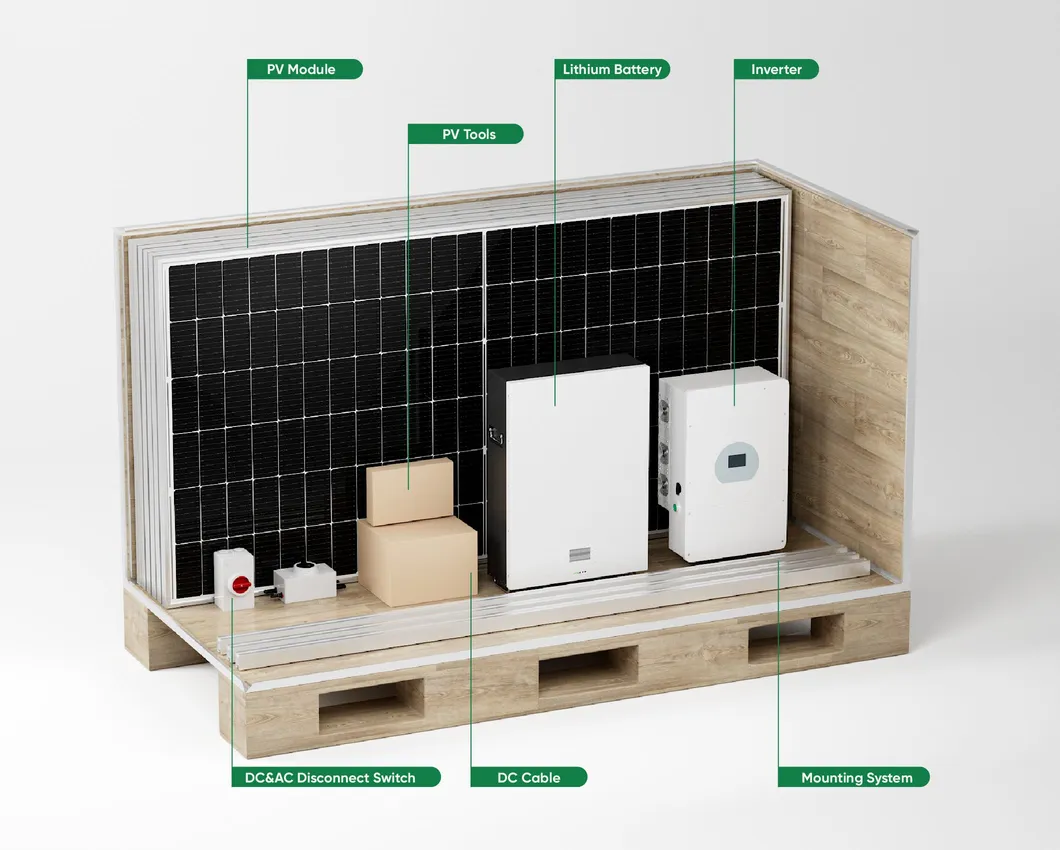

| Component | SP-3KW-OFF | SP-5KW-OFF | SP-10KW-OFF |
|---|---|---|---|
| Mono 550W Solar Panel | 6 Pieces | 8 Pieces | 20 Pieces |
| PV Combiner Box | 1 Piece | 1 Piece | 2 Pieces |
| Hybrid Inverter | HF4830S60 | HF4850S80 | HFP4850S80/2PCS |
| GEL Battery (12V 200AH) | 4 PCS | 4 PCS | 8 PCS |
| DC Cable 4mm2 | 100m | 200m | 400m |
| Component | SP-15KW-OFF | SP-20KW-OFF | SP-30KW-OFF |
|---|---|---|---|
| Mono 550W Solar Panel | 24 Pieces | 32 Pieces | 48 Pieces |
| PV Combiner Box | 3 Pieces | 4 Pieces | 5 Pieces |
| Hybrid Inverter | HFP4850S80/3PCS | HFP4850S80/4PCS | HFP4850S80/6PCS |
| GEL Battery (12V 200AH) | 12 PCS | 16 PCS | 20 PCS |
| DC Cable 4mm2 | 600m | 800m | 1000m |

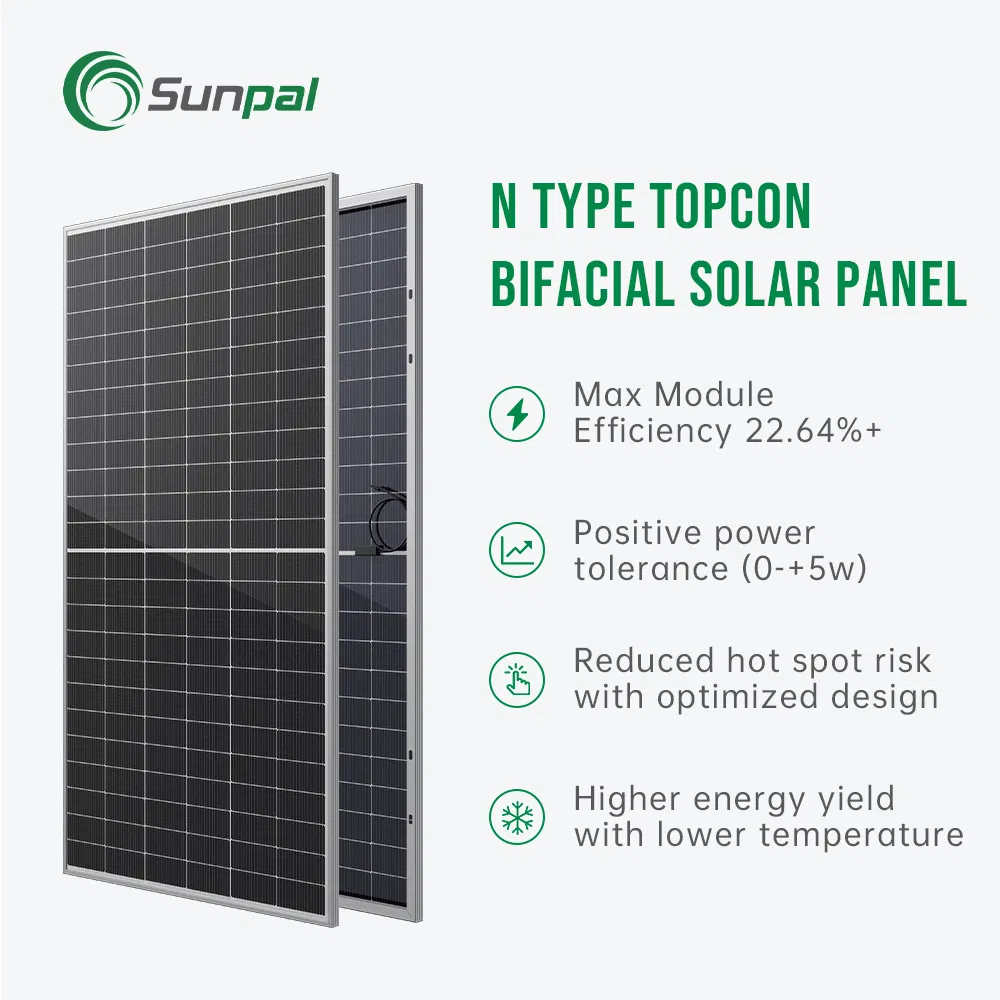

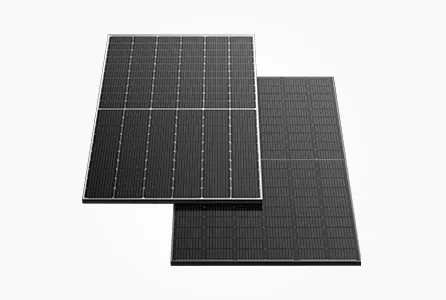

Peak Power: 550W
Max Power Voltage: 42.06V
Max Power Current: 12.84A
Dimensions: 2279x1134x35mm
Weight: 26.9 kg

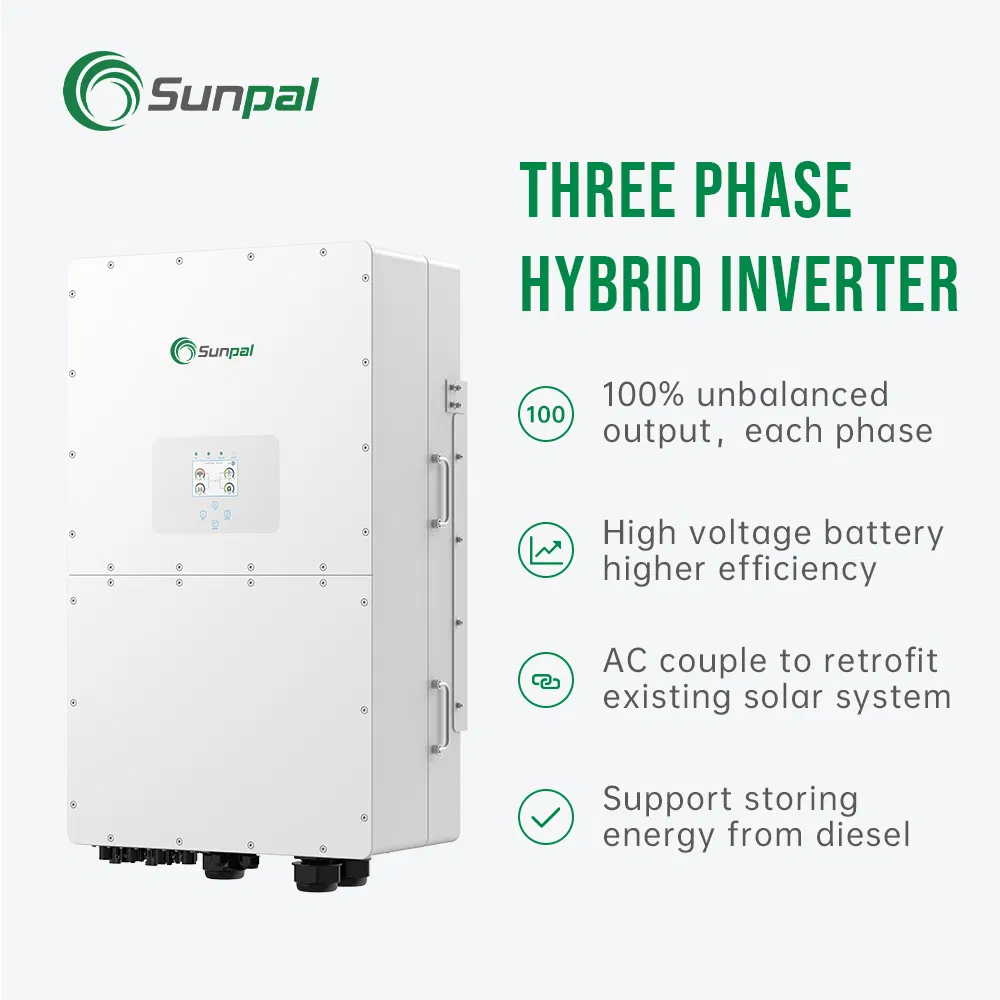

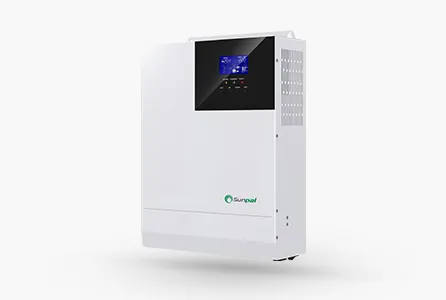

Integrates solar energy storage and AC sine wave output. Features full digital voltage and current double closed loop control. Advanced MPPT technology with 99.9% efficiency.

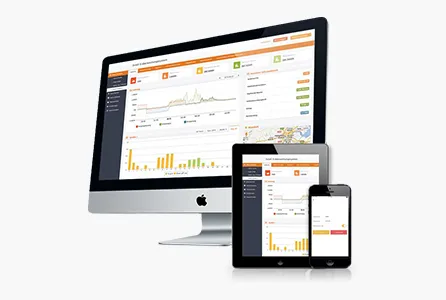

Supports one-click installation and registration. Features safe operation with traceable logs and full lifecycle data storage for maximum security and reliability.

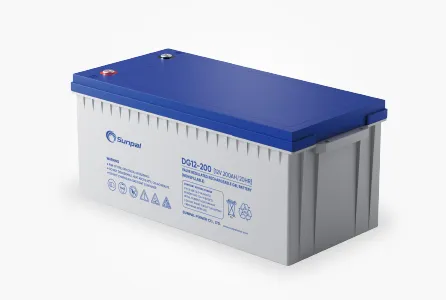

DG series pure GEL battery with a 20-year floating design life. Ideal for frequent cyclic discharge under extreme environments. Excellent recovery after deep discharge.

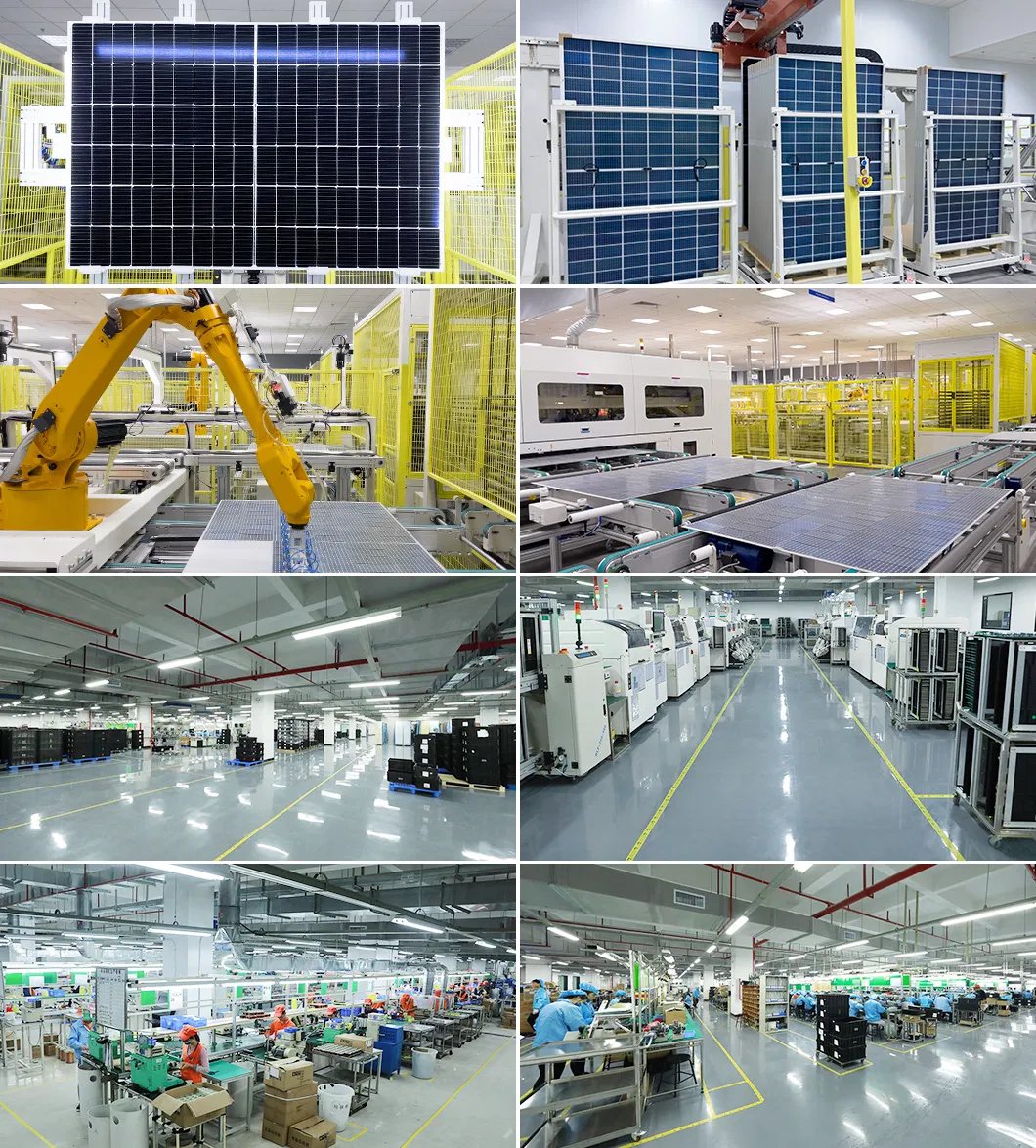

Specializing in solar PV research and development since 1998. The facility covers 150,000 square meters with 600 experienced employees, exporting high-quality solar products to 86 countries globally.
