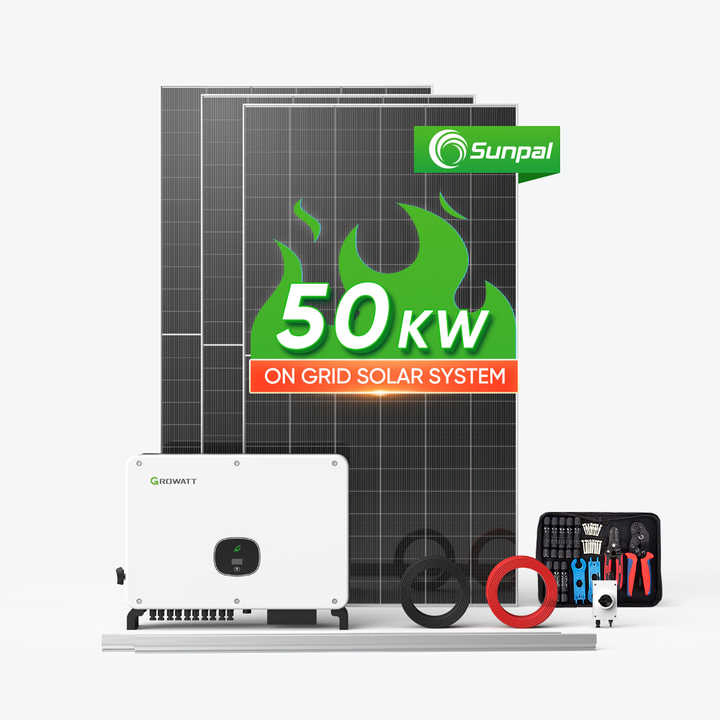

Sunpal All In One Solar System 40Kw 50Kw Multifunctional Solar Power Kit
Sunpal All In One Solar System 40Kw 50Kw Multifunctional Solar Power Kit
Sunpal All In One Solar System 40Kw 50Kw Multifunctional Solar Power Kit
Sunpal All In One Solar System 40Kw 50Kw Multifunctional Solar Power Kit
Sunpal All In One Solar System 40Kw 50Kw Multifunctional Solar Power Kit
1 / 5
Sunpal All In One Solar System 40Kw 50Kw Multifunctional Solar Power Kit
Sunpal All In One Solar System 40Kw 50Kw Multifunctional Solar Power Kit
Sunpal All In One Solar System 40Kw 50Kw Multifunctional Solar Power Kit
Sunpal All In One Solar System 40Kw 50Kw Multifunctional Solar Power Kit
Sunpal All In One Solar System 40Kw 50Kw Multifunctional Solar Power Kit

Sunpal All In One Solar System 40Kw 50Kw Multifunctional Solar Power Kit

Customization: Available
After-sales Service: Yes
Warranty: 5 Years
Send Inquiry

Product Description

Basic Information
Model NO.
SP50KW3-ON
Source Flow
Active Inverter
Phase
Single
Output Power
50-250kw
Certification
CE, ROHS, ISO9001, IEC
Type
DC/AC Inverters
Power Source
Solar Power
Circuit Topologies
Half-Bridge Type
Nature of Wave
Sine Wave Inverter
Efficiency
93%-97%
MPPT Range
120VDC ~ 430VDC
Battery Voltage
48 VDC
Product Description

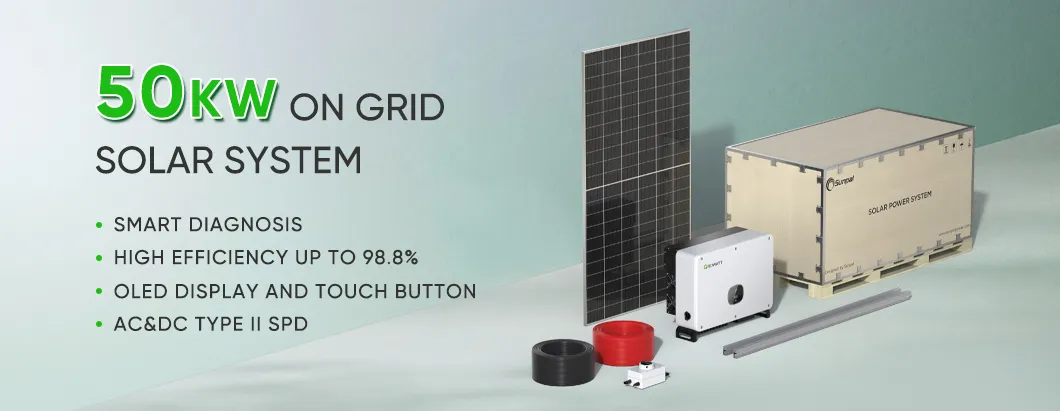

Multifunctional Solar Power Kit
System Components

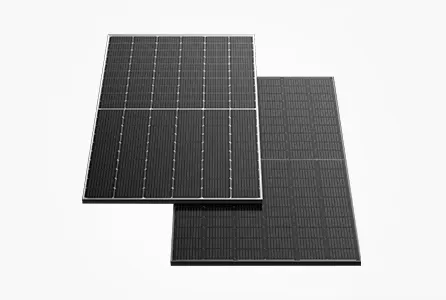

N Type Solar Panel
N Type Solar Panel
✓ Peak Power Watts: 580W
✓ Maximum Power Voltage: 42.71V
✓ Open Circuit Voltage: 51.79V
✓ Size: 2279*1134*30mm / Weight: 31.5 kg
On Grid Solar Inverter
✓ 3 MPPTs with Smart Diagnosis
✓ High efficiency up to 98.8%
✓ OLED display and touch button
✓ AC & DC type II SPD

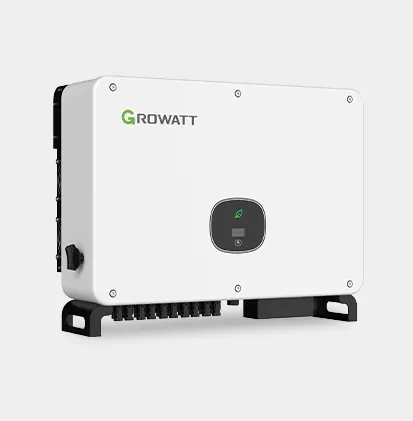

Solar Inverter

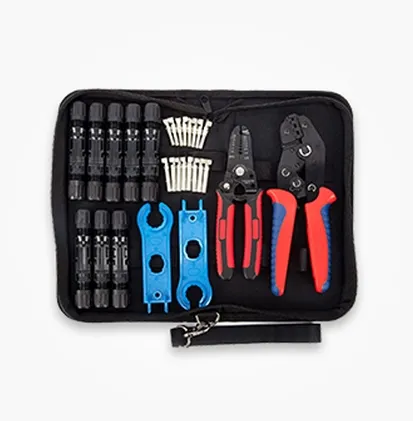

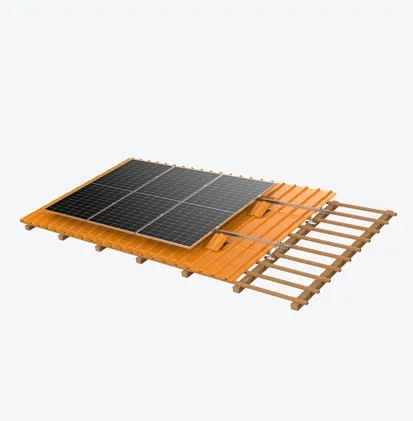

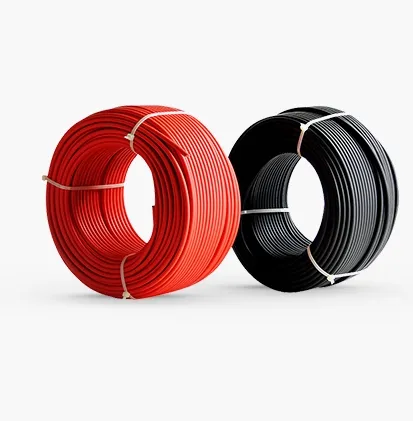

Mounting Bracket PV Cable Tool Kit
Technical Parameters
Solar Panel Specifications
Module TypeSP585M-72H
Maximum power (Pmax)580W
Open Circuit Voltage (Voc)51.79V
Short Circuit Current (Isc)14.29A
Voltage at Maximum power (Vmpp)42.71V
Module Efficiency22.44%
Inverter Input Data (DC)
Max. recommended PV power75000W
MPPT voltage range200V-1000V
No. of MPP trackers3
Inverter Output Data (AC)
Rated AC output power50000W
Nominal AC voltage230V/400V
AC grid frequency50/60 Hz
Detailed Introduction

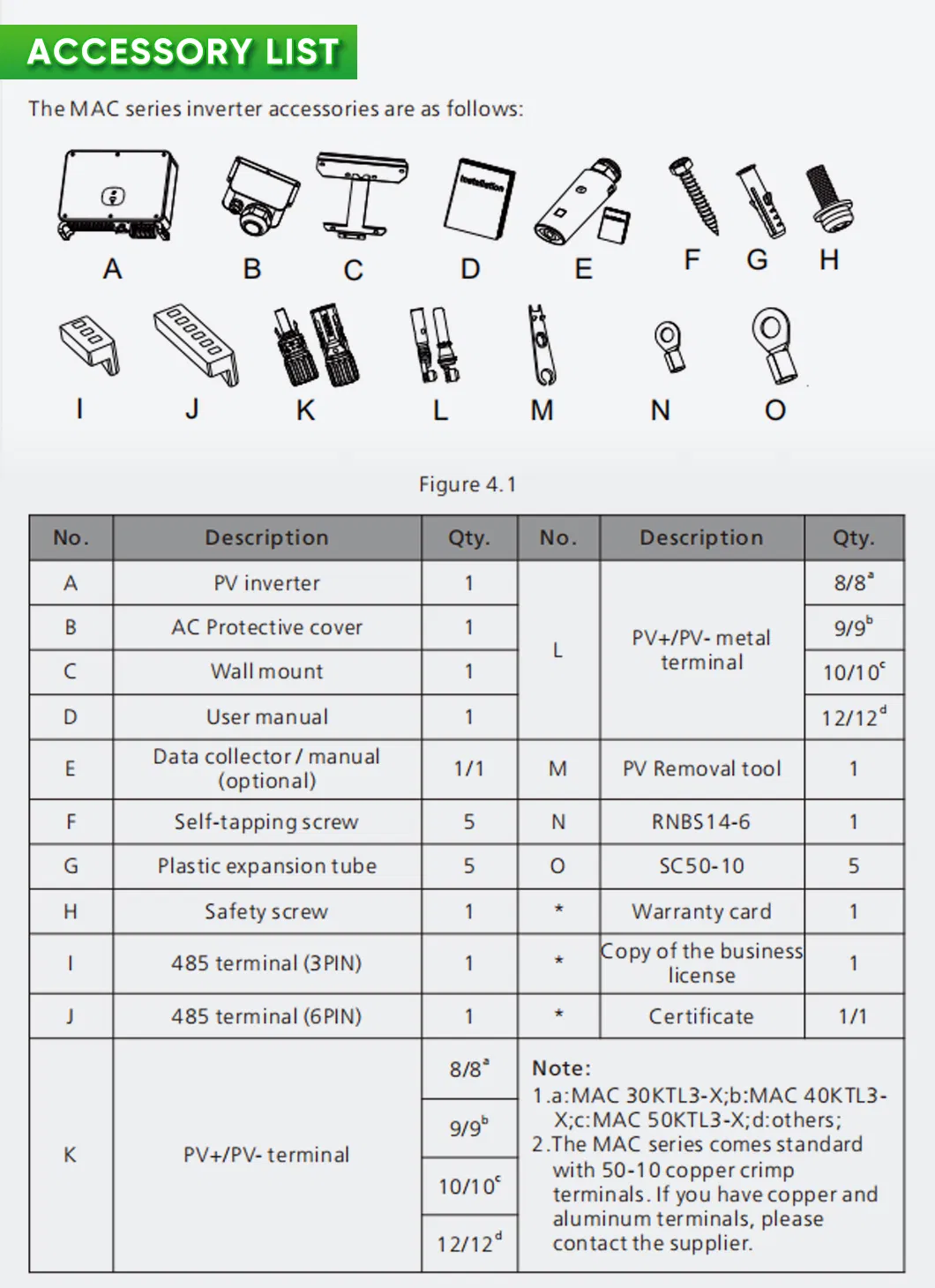

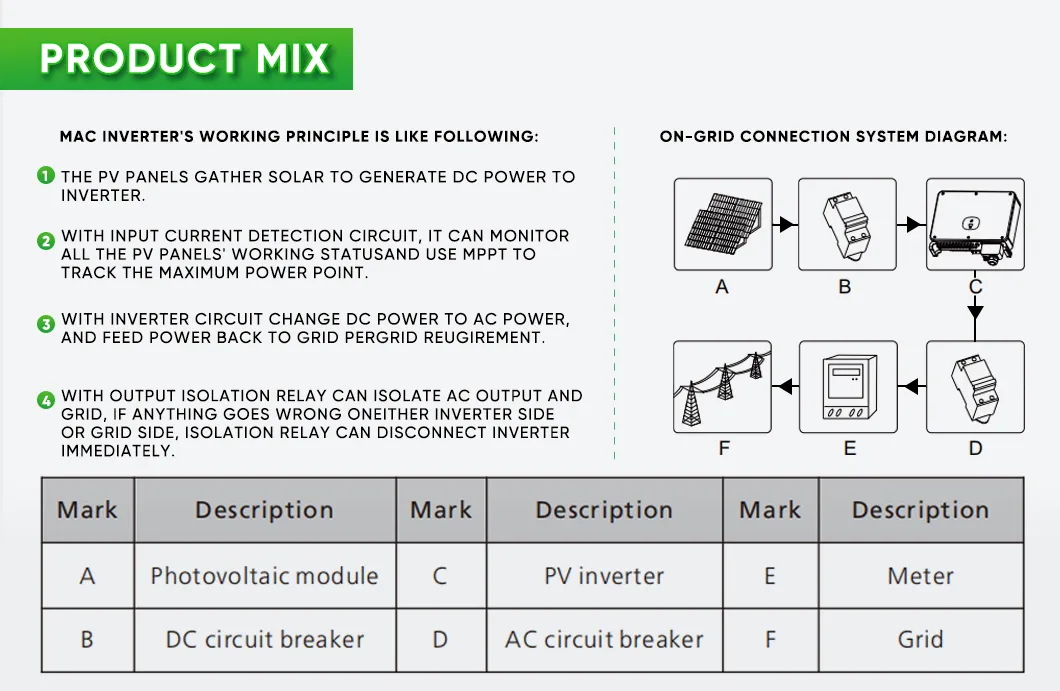

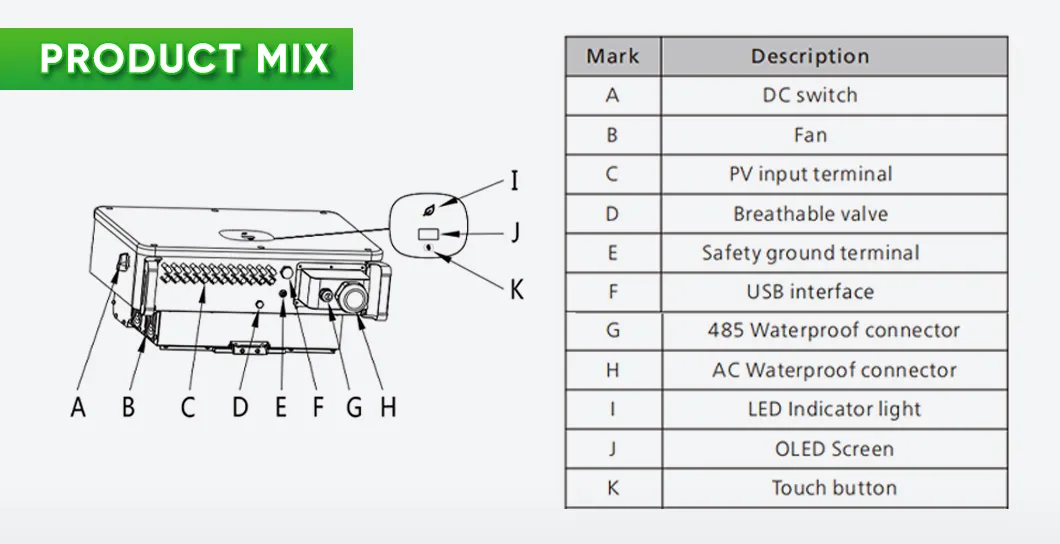

Inverter Features Technical Layout Connection Diagram
As a world-class solar products manufacturer, we specialize in the research, development, production, and sales of solar PV products and solar panels. Focusing on high-efficiency solar technology since 1998, products have been exported to 86 countries. Our facilities cover 150,000 square meters with a dedicated team of 600 experienced employees.
Production Facility
Project Cases

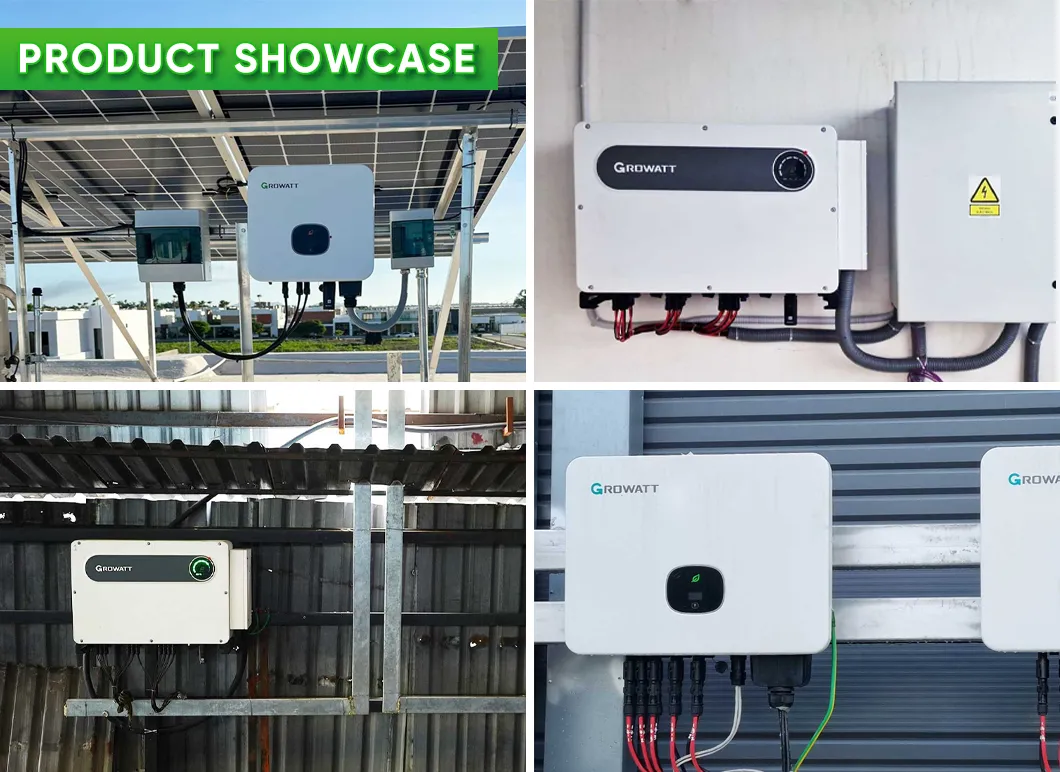

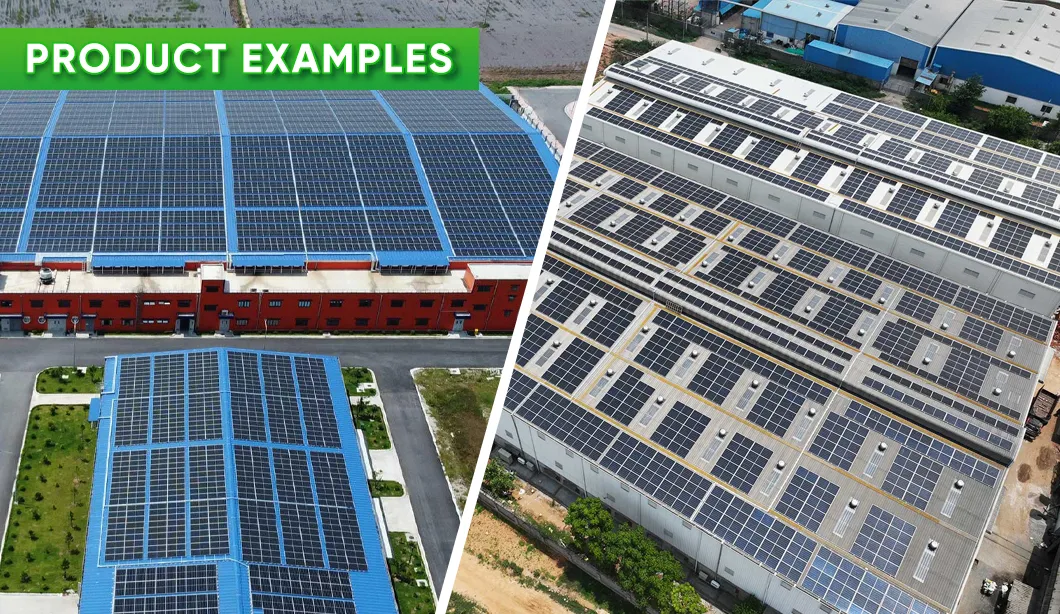

Installation Case 1 Installation Case 2
Frequently Asked Questions
What is a Grid Connected Rooftop Solar PV System?
In a grid-connected rooftop or small solar photovoltaic (SPV) system, the DC power generated from the solar panel is converted to AC power using a power conditioning unit/Inverter and is fed directly to the grid.
What types of roofs are suitable for Rooftop solar (RTS) systems?
Rooftop solar PV systems can be installed on any type of roof including metal roofs, tile roofs, and flat roofs, provided they have sufficient load-bearing capacity.
Will I get the same annual energy from the RTS for all 25 years?
No. Due to exposure to sunlight and environmental factors, solar modules gradually lose a small percentage of their generation capacity over time, a process known as degradation.

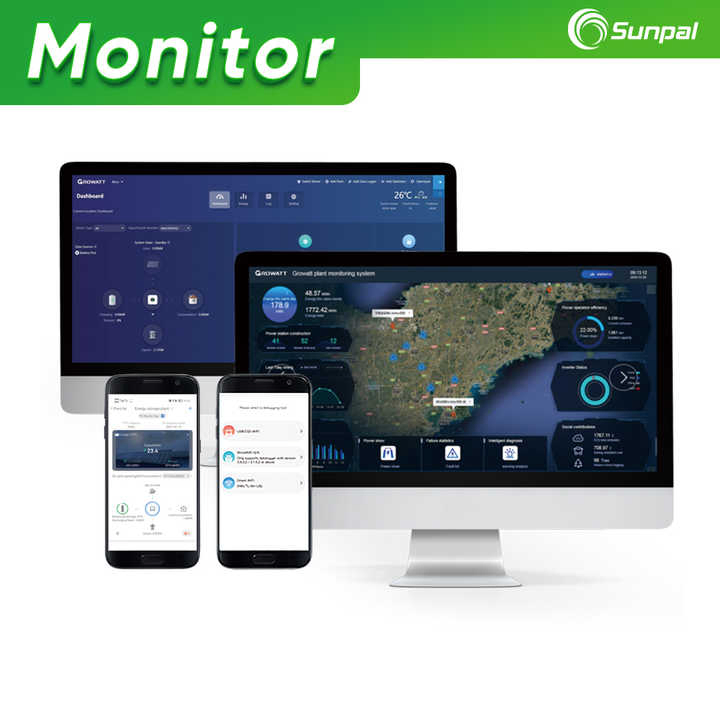

How can I monitor the performance of my 50kW system?
The system supports remote communication via WiFi or GPRS. You can monitor real-time data and system status through an OLED display or a dedicated mobile application.
What maintenance is required for these solar panels?
Solar panels generally require minimal maintenance. It is recommended to clean the panel surfaces periodically to remove dust and debris and ensure maximum sunlight absorption.
Does this system include protection against lightning or power surges?
Yes, the inverter is equipped with AC & DC type II Surge Protection Devices (SPD) to protect the equipment from electrical surges and voltage spikes.
