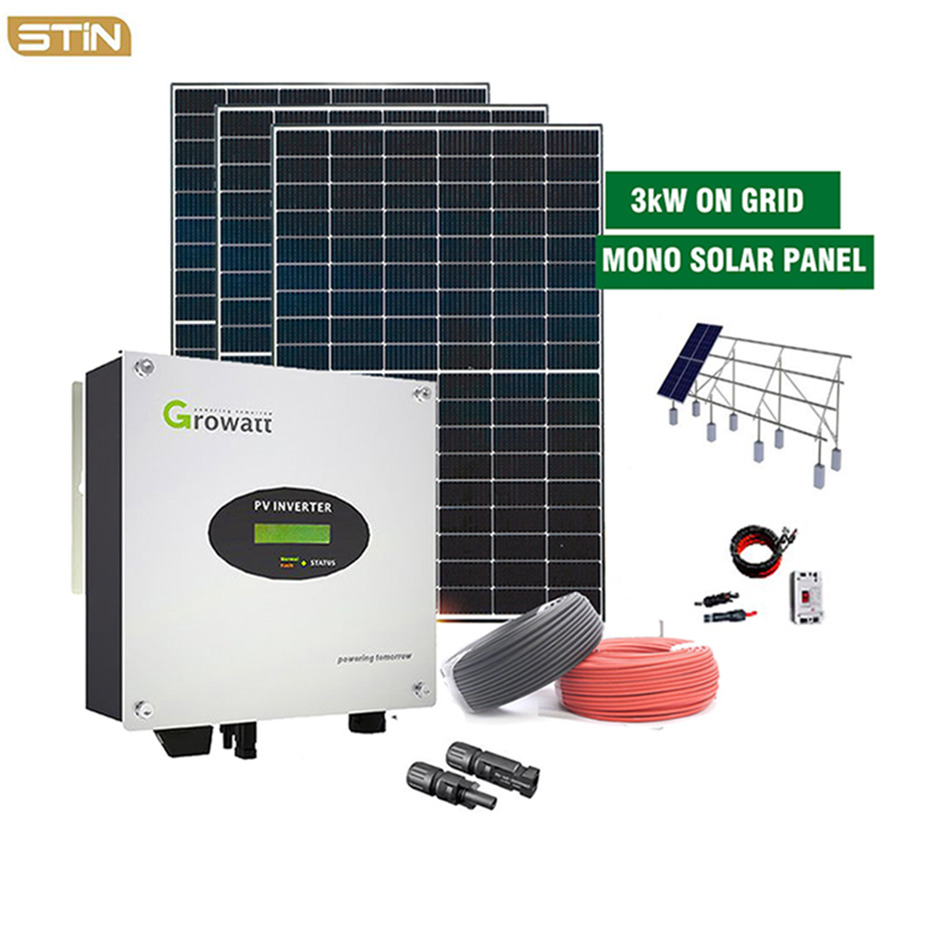

All in One 3kw 3000watt on Grid Solar Power Panel Photovoltaic System Kit
All in One 3kw 3000watt on Grid Solar Power Panel Photovoltaic System Kit
All in One 3kw 3000watt on Grid Solar Power Panel Photovoltaic System Kit
All in One 3kw 3000watt on Grid Solar Power Panel Photovoltaic System Kit
All in One 3kw 3000watt on Grid Solar Power Panel Photovoltaic System Kit
1 / 5
All in One 3kw 3000watt on Grid Solar Power Panel Photovoltaic System Kit
All in One 3kw 3000watt on Grid Solar Power Panel Photovoltaic System Kit
All in One 3kw 3000watt on Grid Solar Power Panel Photovoltaic System Kit
All in One 3kw 3000watt on Grid Solar Power Panel Photovoltaic System Kit
All in One 3kw 3000watt on Grid Solar Power Panel Photovoltaic System Kit

All in One 3kw 3000watt on Grid Solar Power Panel Photovoltaic System Kit

Customization: Available
After-sales Service: Yes
Warranty: More Than 5 Years
Send Inquiry

Product Description

📊

Basic Information

Model NO.
on grid 3kw system
Condition
New
Certification
ISO, CE
Application
Home, Industrial, Commercial
Inverter Type
on Grid Single Phase
Voltage Range
180-280V
Inverter Efficiency
97.2%
Capacity
1000 sets/Month
💡

Product Description

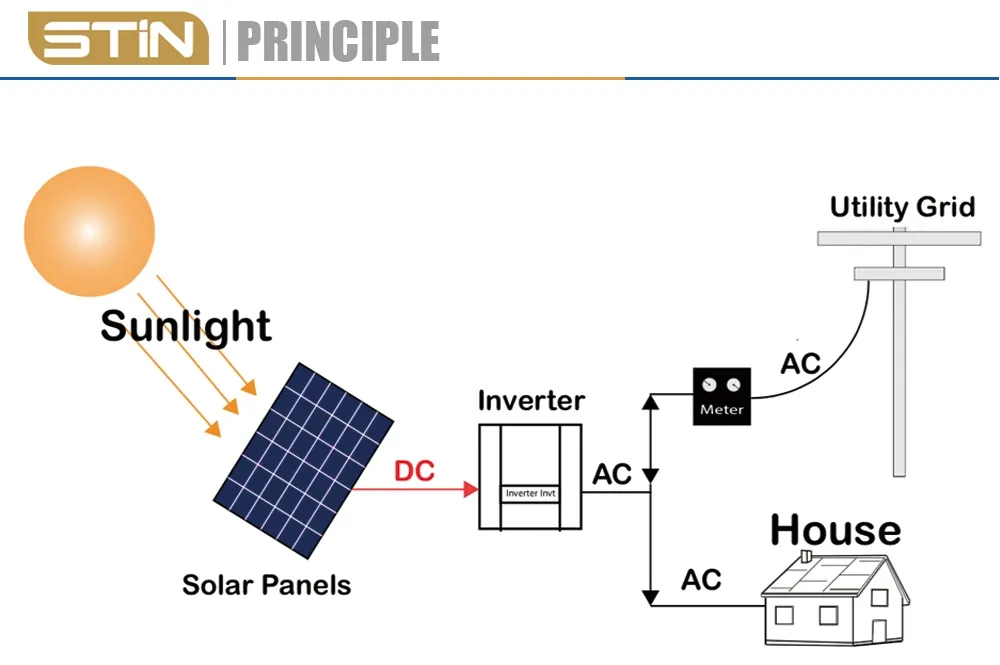

Principle of on-grid solar power generation:
The solar photovoltaic power system connected to the public grid is called an on-grid photovoltaic power generation system. The system structure includes solar battery arrays, DC/DC converters, DC/AC inverters, AC loads, transformers, and other components.
The grid-connected system converts DC power from solar cells into AC power synchronized with the grid. When sunshine is strong, the system supplies the load and feeds excess energy into the grid. When sunshine is insufficient, the grid supplies power to the load, ensuring continuous operation.
Advantages of On-Grid Solar System:
  • No energy storage batteries required, reducing costs and maintenance while increasing reliability.
  • Excess electricity can be fed back into the power grid, allowing users to harvest power and increase income.
  • Not limited by battery state of charge; can access electricity from the grid at any time.
  • Optimized inclination angles maximize solar radiation reception throughout the year.
  • Peak shaving: High summer output coincides with peak refrigeration demands (air conditioning).
3kw on Grid Solar Power System
⚙️

Product Parameters

Item Part Specification Quantity Remarks
1 Solar panel Mono 410W 6 PCS 3pcs in one string, 2 strings in parallel

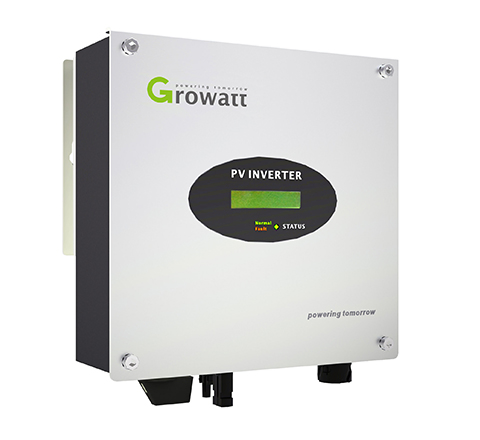

2 Inverter 3000-S 1 SET Single phase output
3 Bracket C-shaped steel 1 SET Hot-dip zinc

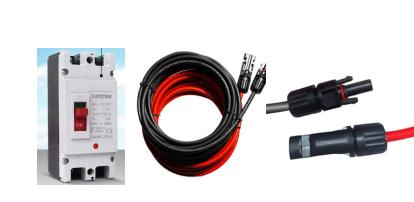

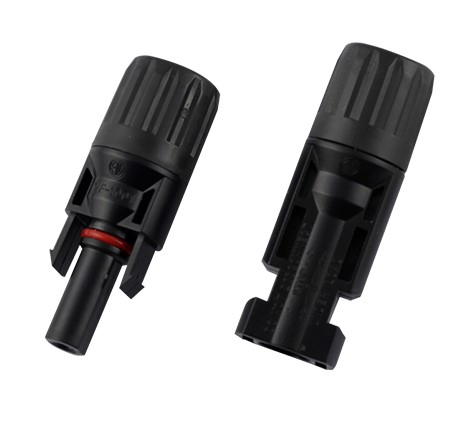

4 Connector MC4 2 pairs Standard PV connector
5 Wifi Module Monitoring Device 1 PC Remote monitoring
6 AC cables 2*4mm² 20M Inverter to distribution box

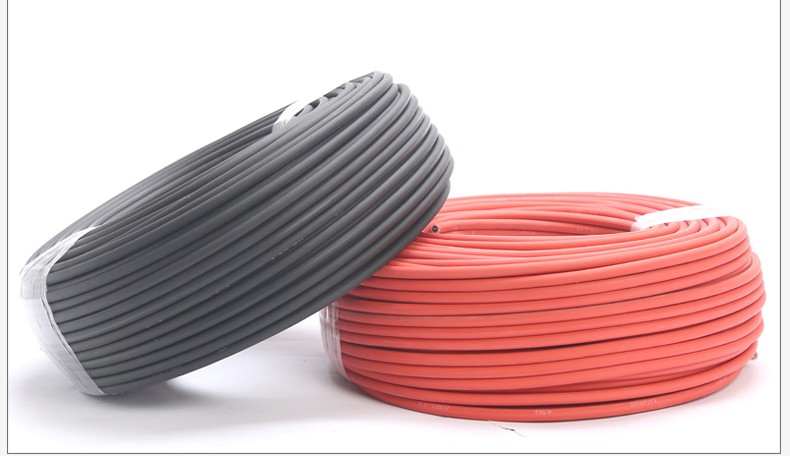

7 PV cables 4mm² 100M Panel to inverter
8 AC distribution box with breaker and SPD 1 SET Safety protection
📸

Detailed & Project Photos

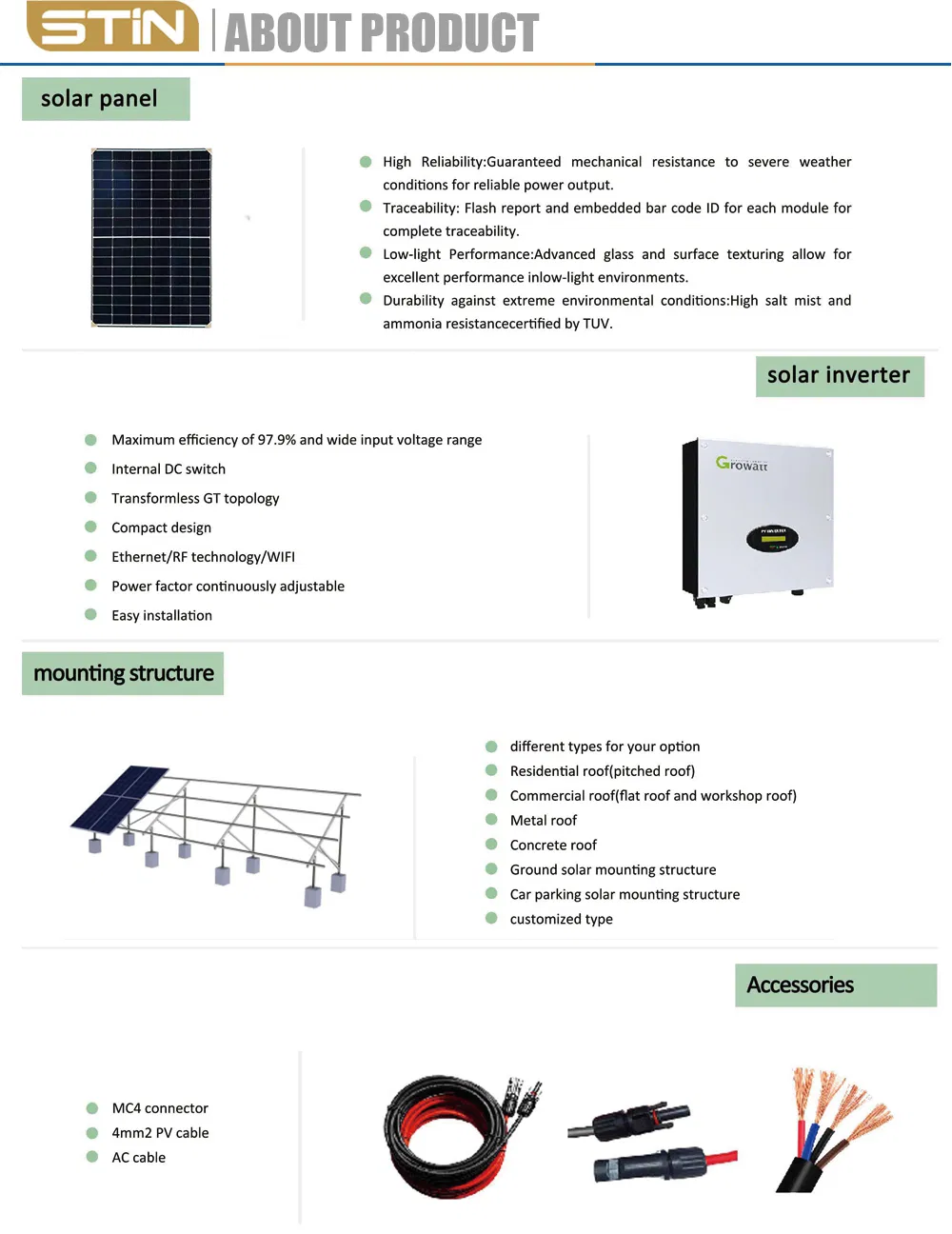

Solar System Detail

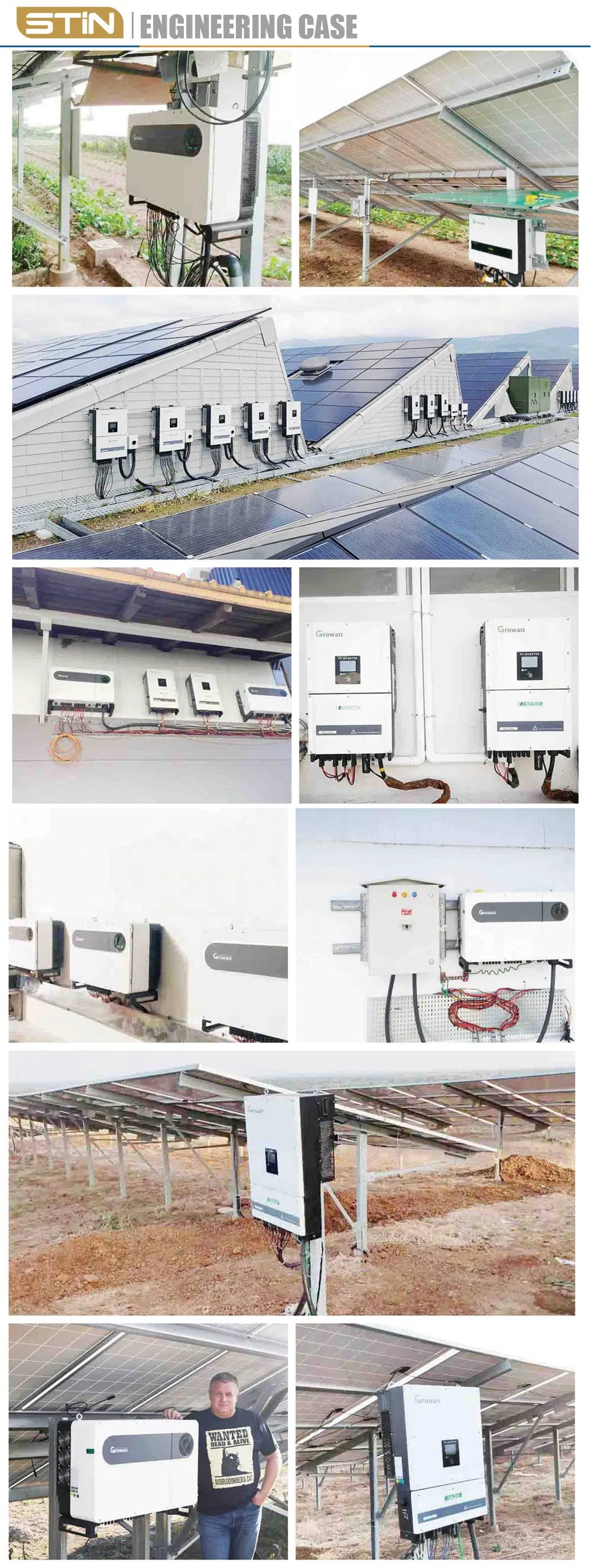

Solar Project Photo

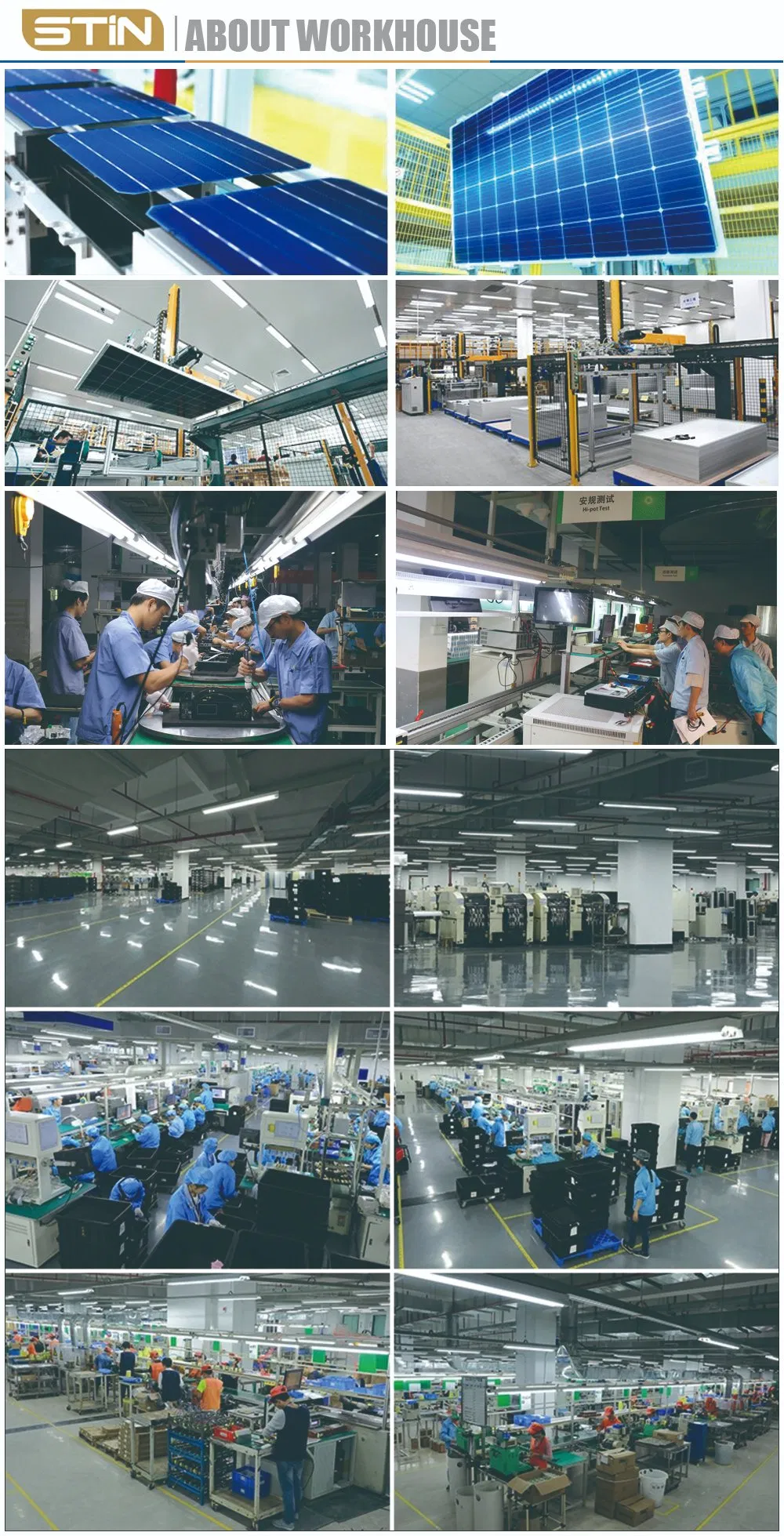

Solar Factory Photo
🏢

About Us

In a world facing energy instability and environmental challenges, we are committed to providing clean, sustainable solar solutions. Our expertise spans the entire solar industry chain, including polysilicon, wafers, cells, modules, and PV equipment.
We focus on green energy independence globally, supplying high-quality materials and residential solutions. We understand the vital importance of renewable energy and endeavor to protect the environment through technological innovation.
❓

Frequently Asked Questions

1. What are your main solar products? We provide mono and poly solar panels, gel and lithium-ion batteries, on-grid and off-grid systems, solar inverters, and MPPT/PWM charge controllers.
2. Does a 3kW on-grid system require batteries? No, an on-grid system is designed to work with the public utility grid. It uses the grid as virtual storage, though you can add lithium batteries if you wish to have backup power during outages.
3. Can I monitor my solar production remotely? Yes, our systems include a Wifi Module as standard, allowing you to track energy production and system health via a mobile app or web portal.
4. What is the minimum order quantity (MOQ)? Our MOQ starts from 1 set, making it accessible for both residential testing and large-scale commercial projects.
5. How are the shipping costs calculated? Shipping costs depend on the quantity and your preferred transportation method (Sea, Air, or Express). Once the quantity is confirmed, we provide a detailed quote based on your destination port.
6. What payment methods do you accept? We accept various payment methods including T/T, L/C, Paypal, and Western Union for your convenience.
