Smart Energy
1 / 5
Peak Power Watts: 580W
Maximum Power Voltage: 42.71V
Maximum Power Current: 13.58A
Open Circuit Voltage: 51.79V
Short Circuit Current: 14.29A
Size: 2279*1134*30mm | Weight: 31.5 kg
Flexible: Various working modes can be set flexibly.

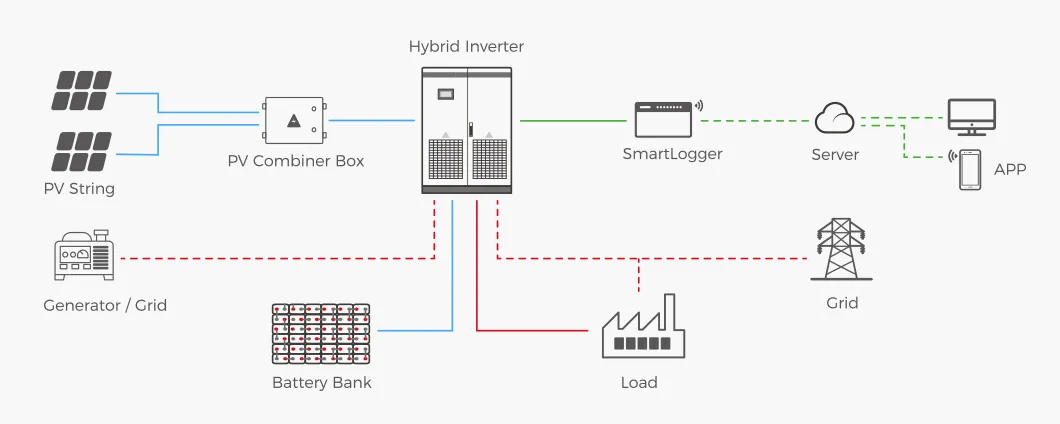

Convenient: Integrated design to support loads, batteries, power grids, diesel generators and PV connection.
Reliable: Intelligent battery management and discharge time prediction.

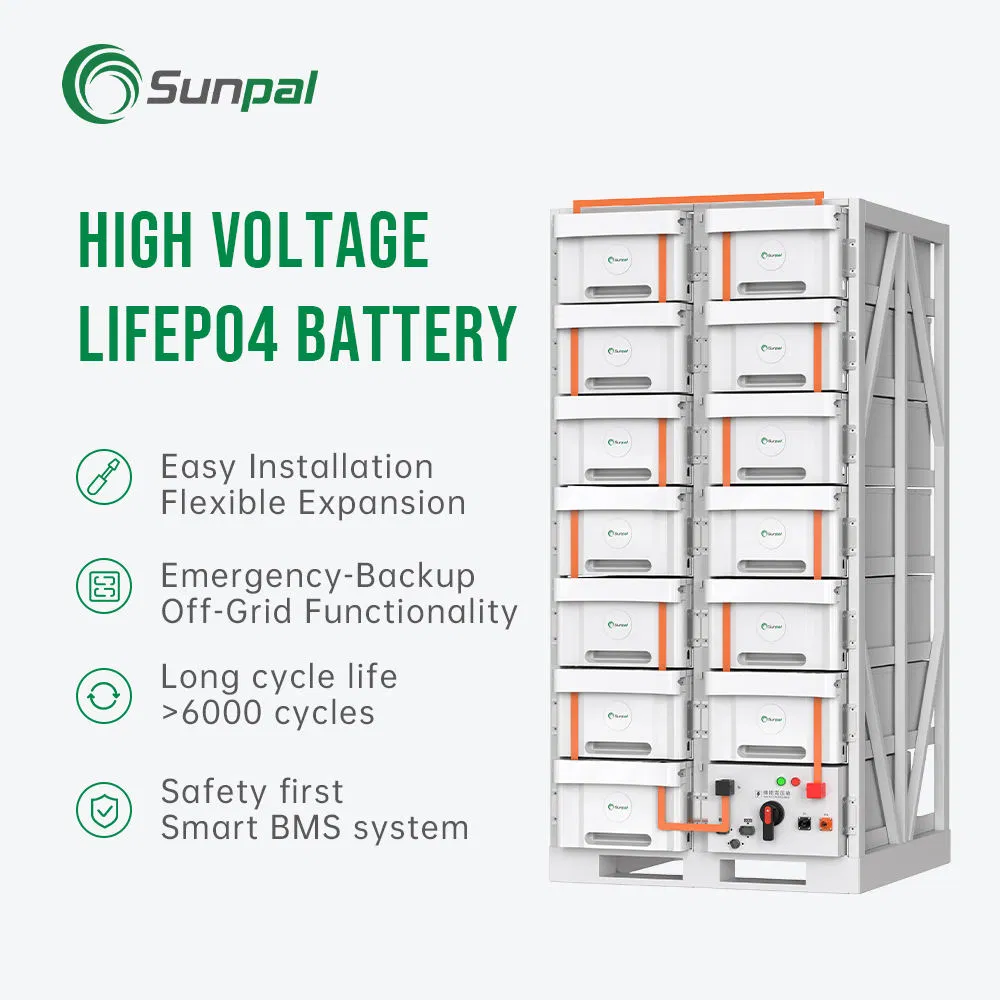

Quick Customization of Electricity; Long cycle life 6000 cycles.
Safety first Smart BMS system.
Emergency-Backup and Off-Grid Functionality.

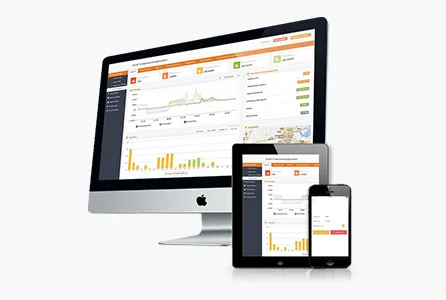

Monitoring: One-click installation and registration; safe operation with traceable logs; full lifecycle data storage.

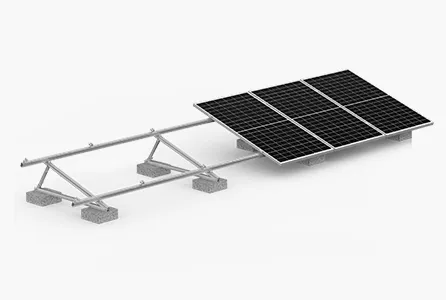

Mounting: AI6005 & SUS304 Rail Splice Kit; Mid & End Clamps (30/35mm); L Foot Asphalt Shingle Mount optional.

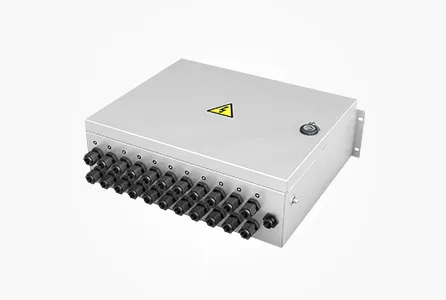

PV Combiner Box: IP65 Rating, 1000VDC Rated Voltage.

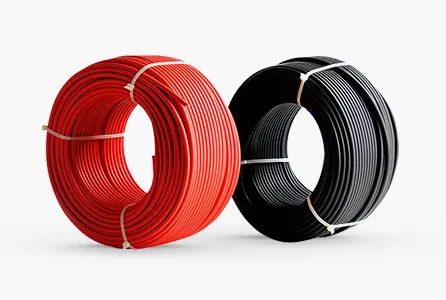

DC Cable & MC4: 4mm²/6mm² cross section; TUV 600V/1000VDC rated; 25 years lifetime.
PV Tools: Complete set including cable cutters, strippers, and MC4 crimpers.

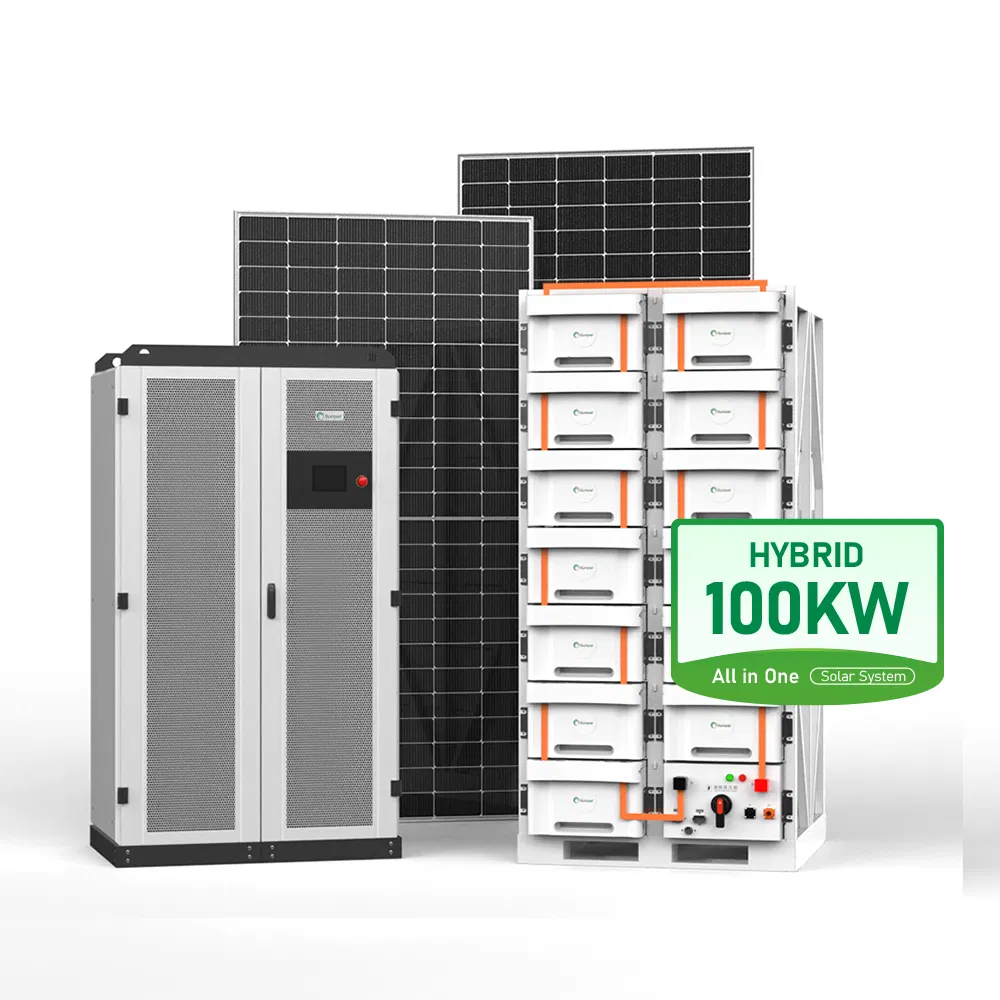

| System Model: SP-100KW-HY | |
|---|---|

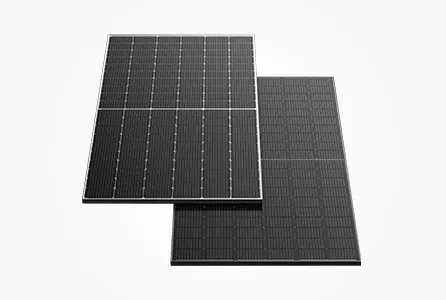

| PV Module Specification | |
| Power | 580W |
| Voc / Isc | 51.79V / 14.29A |
| Vmp / Imp | 42.71V / 13.58A |
| Dimensions | 2279*1134*30mm |

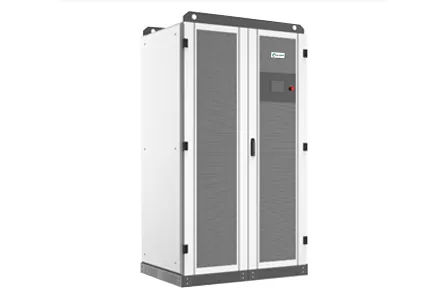

| Inverter Specification | |
| Capacity | 100 KW |
| MPPT Voltage Range | 200-850V |
| Output Frequency | 50/60Hz |
| Grid Type | Hybrid |

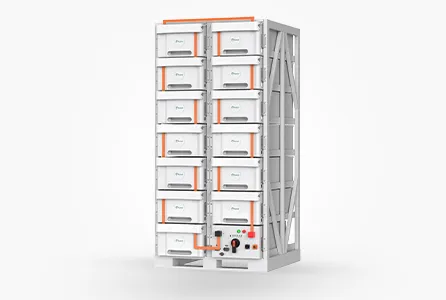

| Battery Pack Specification | |
| Battery Type | LiFePO4 |
| Total Energy | 200.704 kWh |
| Bank Voltage / Current | 716.8V / 280Ah |

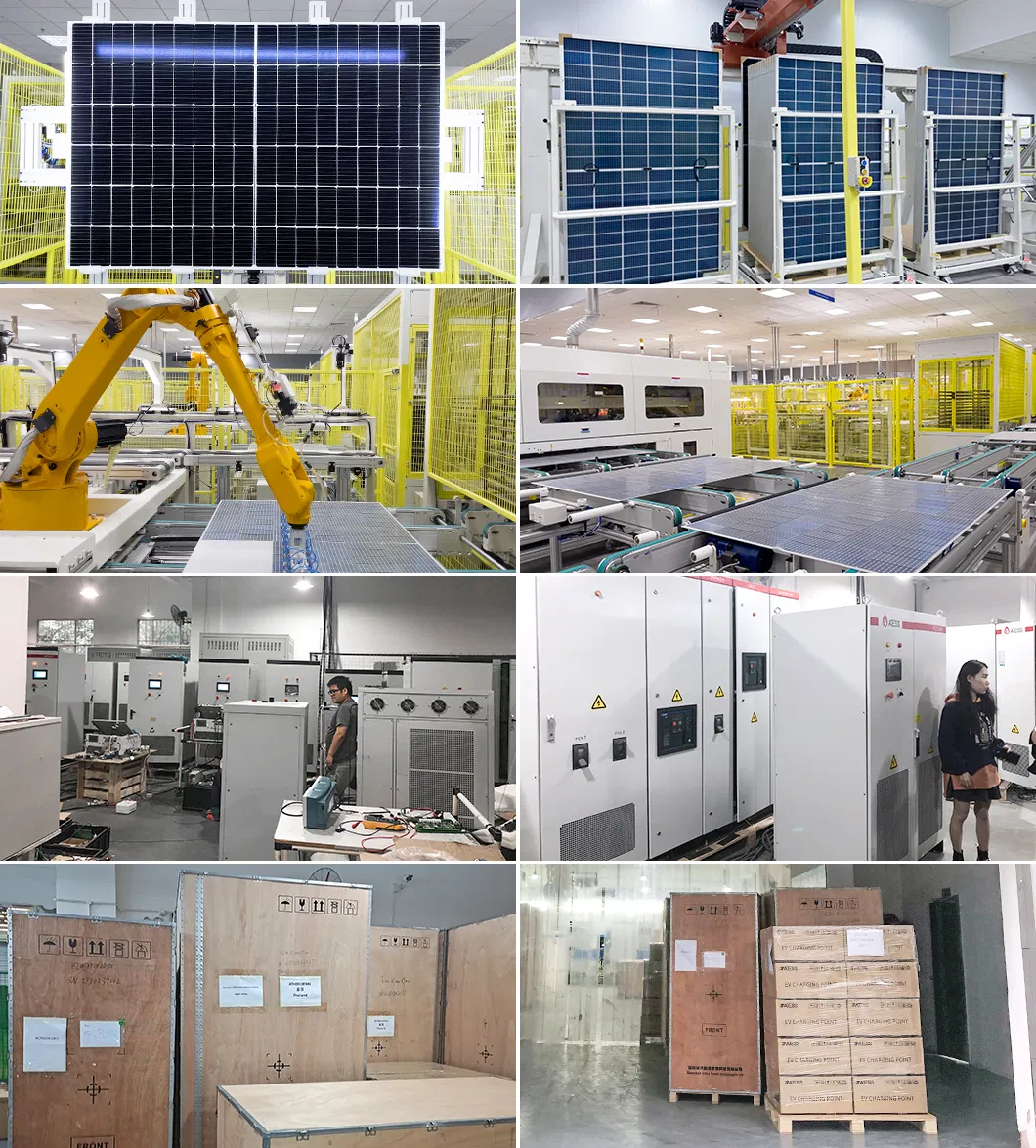

As a world-class solar products manufacturer, we specialize in the research, development, and production of solar PV products. Since 1998, we have focused on high-efficiency solar panels, exporting to 86 countries. Our facility covers 150,000 square meters with over 600 experienced employees.

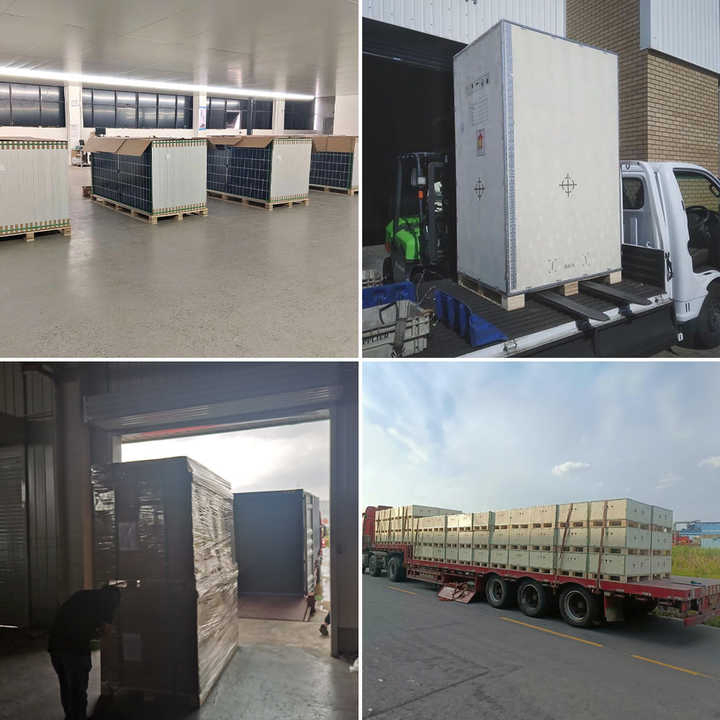

The total volume for a 100KW solar system is approximately 22CBM. We recommend using a 20ft container for safe and cost-effective transport. As lithium batteries are classified as sensitive goods, full container shipping is more convenient and reduces destination port fees.

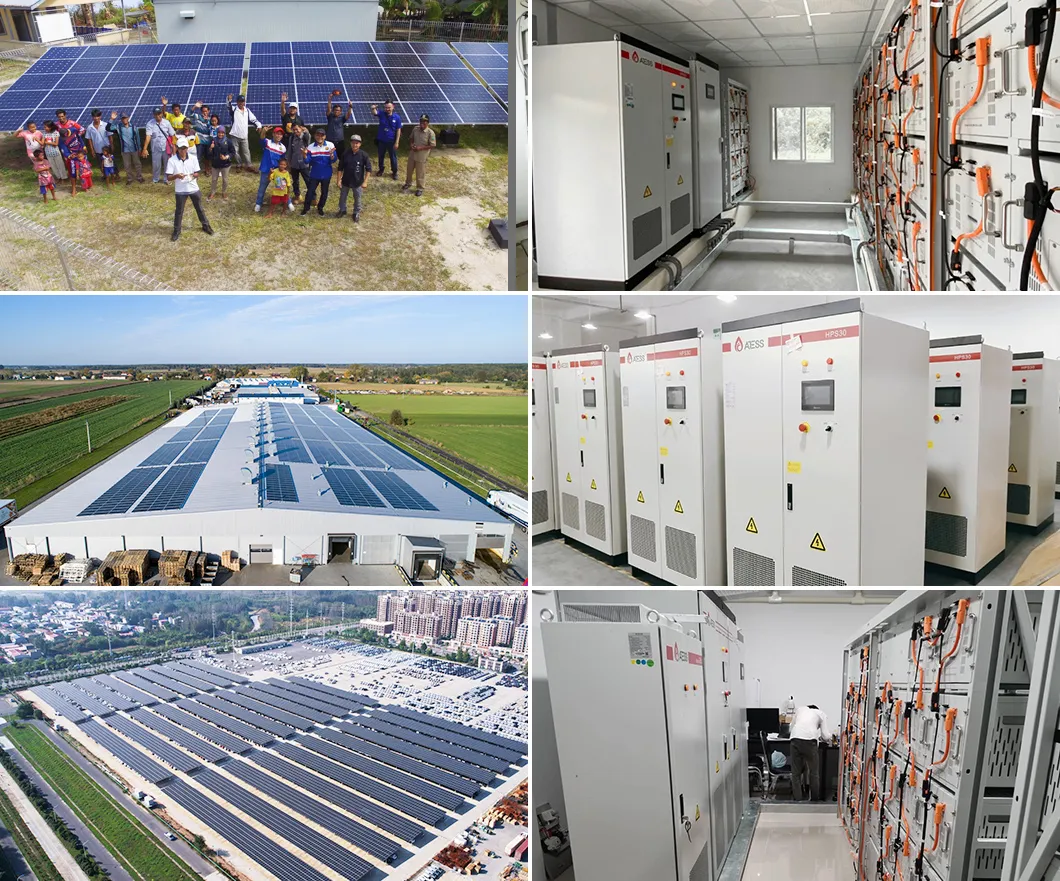

We provide comprehensive technology support for commercial solar projects, including system design, electric diagrams, and connection drawings. Our engineers are available to provide installation guidance on-site if required.
