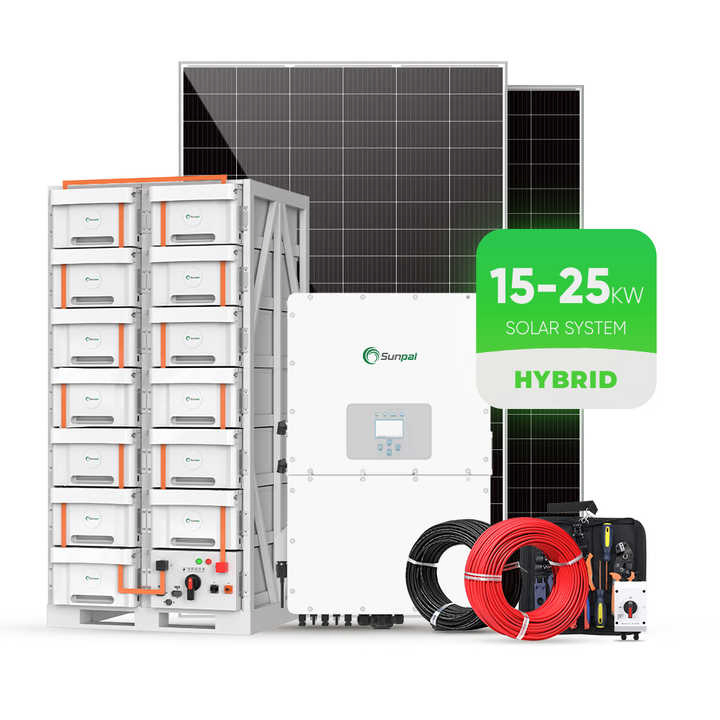

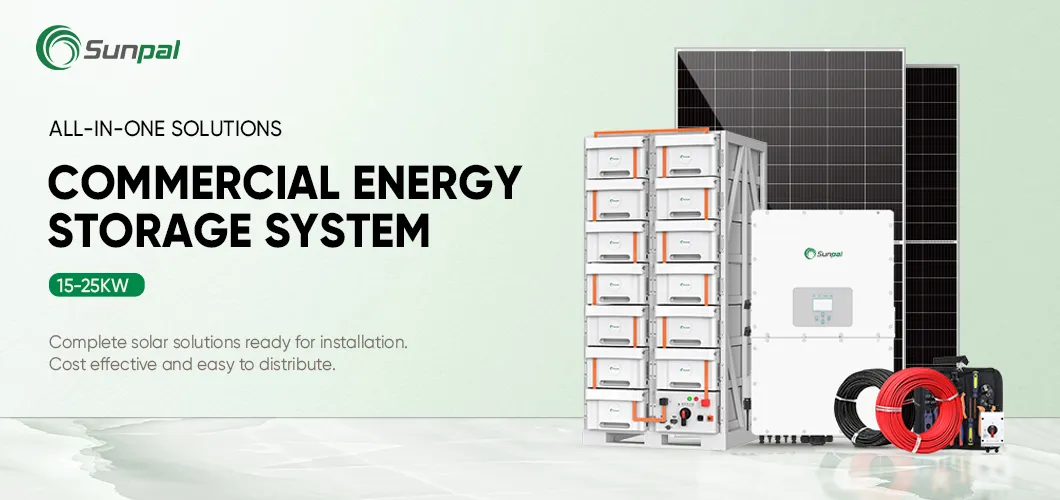

Sunpal All In One Pv Solar System 15Kw 20Kw Full Solar Power System Home Kit

1 / 5

Sunpal All In One Pv Solar System 15Kw 20Kw Full Solar Power System Home Kit

Customization:	Available
After-sales Service:	10 Years
Warranty:	10 Years

Send Inquiry

Product Description

Basic Specifications

Model:SP15-25KW3-HY

Certification:ISO, CB, CE, TUV

Application:Commercial Solar Energy Storage

Output Voltage:230V/400V, 127V/220V, 277V/480V

Frequency:50Hz/60Hz

Panel Type:Monocrystalline Silicon Half Cut

Inverter:Hybrid Inverter System

Battery:Lithium Ion (LiFePo4)

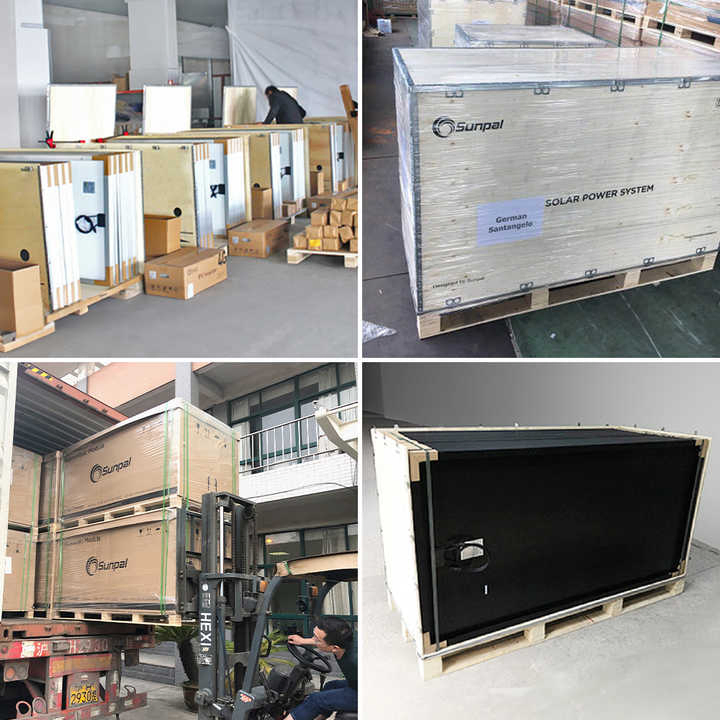

Packaging & Delivery

Package Size:230.0cm * 563.0cm * 126.0cm

Gross Weight:2300.00kg

Product Description

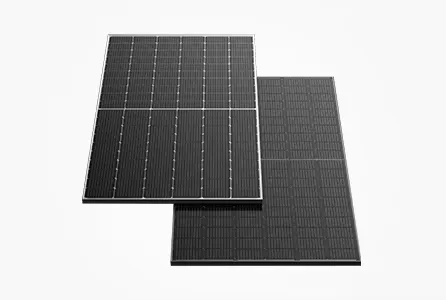

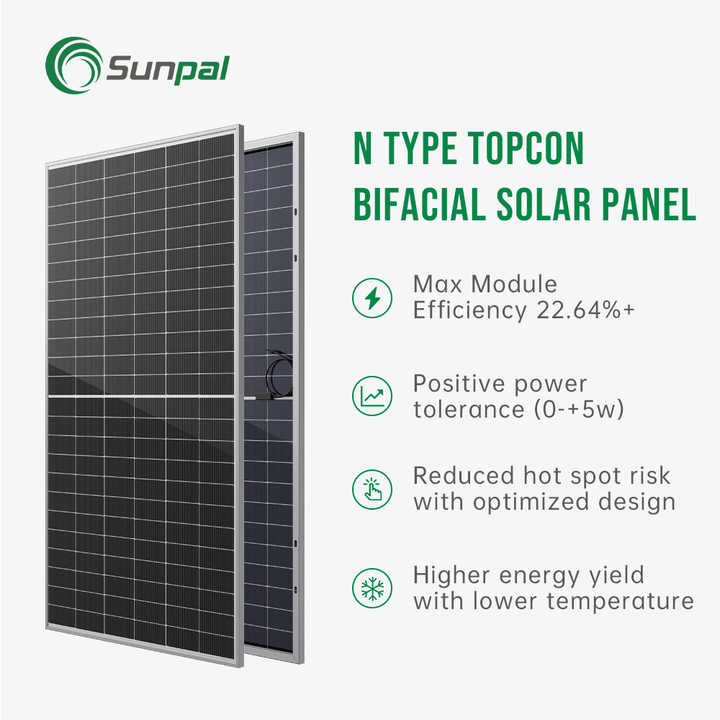

Topcon Half Cut Solar Panel

Peak Power Watts: 580W
Maximum Power Voltage: 42.71V
Maximum Power Current: 13.58A
Open Circuit Voltage: 51.79V
Size: 2279*1134*30mm | Weight: 31.5 kg

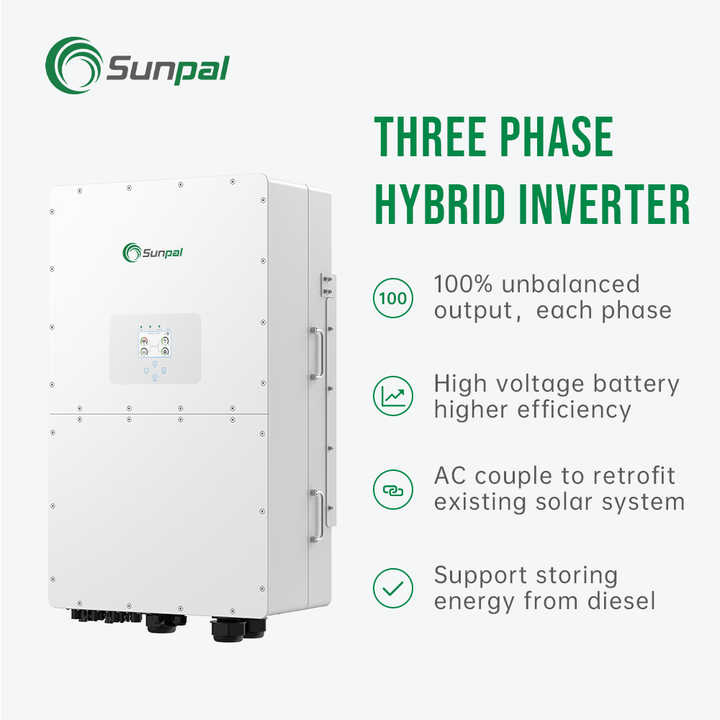

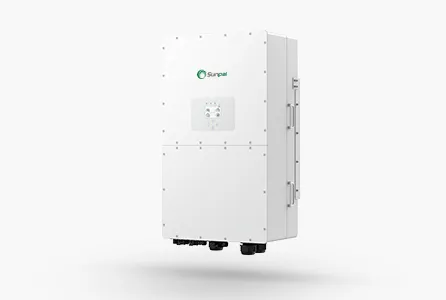

Hybrid Solar Inverter

100% unbalanced output for each phase
AC couple compatibility for existing systems
Max. charging/discharging current of 100A
High voltage battery support for higher efficiency

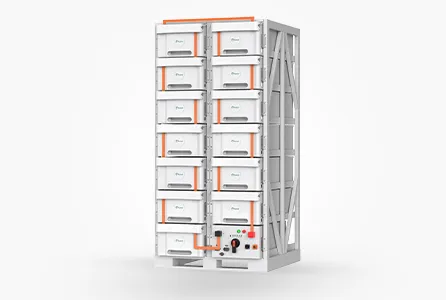

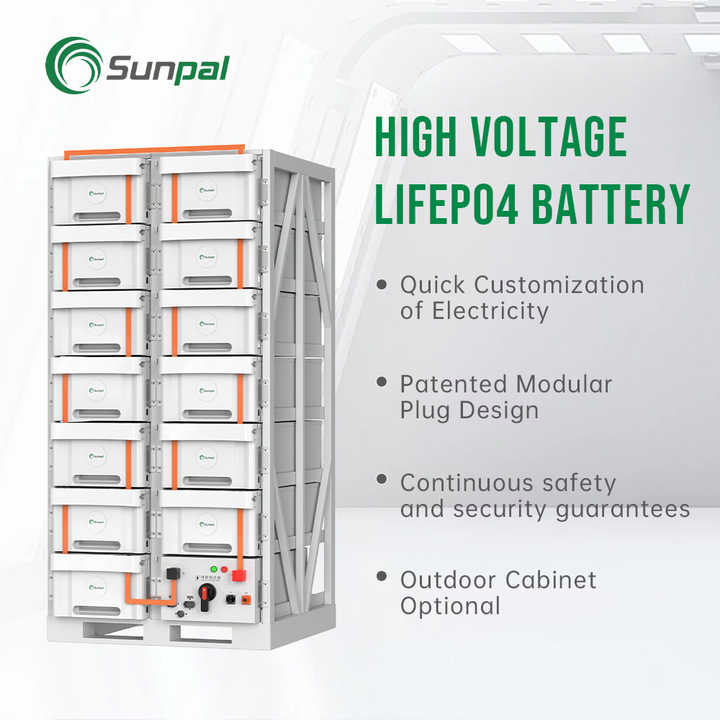

High Voltage LiFePo4 Battery

Quick Customization of Electricity capacity
Long cycle life: 6000 cycles
Safety-first Smart BMS system
Emergency-Backup and Off-Grid functionality

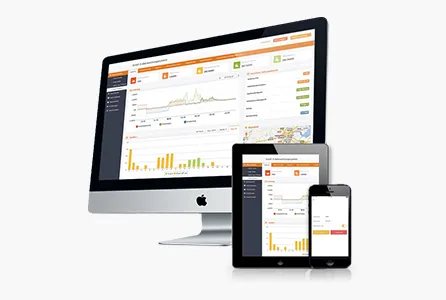

Intelligent Monitoring System

One-click installation and registration
Safe operation with traceable logs
Full lifecycle data storage for reliability
One-click dispatch and navigation for support

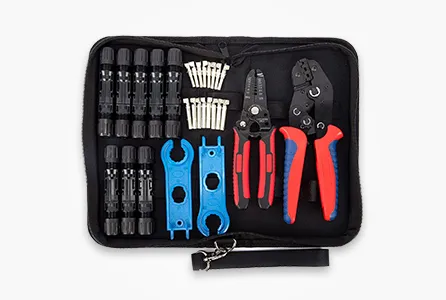

Professional PV Tools

Wire Cable Cutter & Stripper
MC3 & MC4 Crimper
MC4 Connectors Assembly & Disassembly Tool

Technical Parameters

Model	SP-15KW200KWh	SP-20KW200KWh	SP-25KW200KWh
Battery Specification
Battery Type	Lithium-ion
Configuration	14 modules + 1 BPU
Rated Energy	280Ah / 716.8V / 200.7kWh
Voltage Range	627.2V - 795.2V
AC Input/Output Data
Rated Active Power (W)	15000	20000	25000
Max. Output Current (A)	24	31.9	39.9
Peak Power (Off Grid)	1.5 times of rated power, 10s
Grid Type	Three Phase

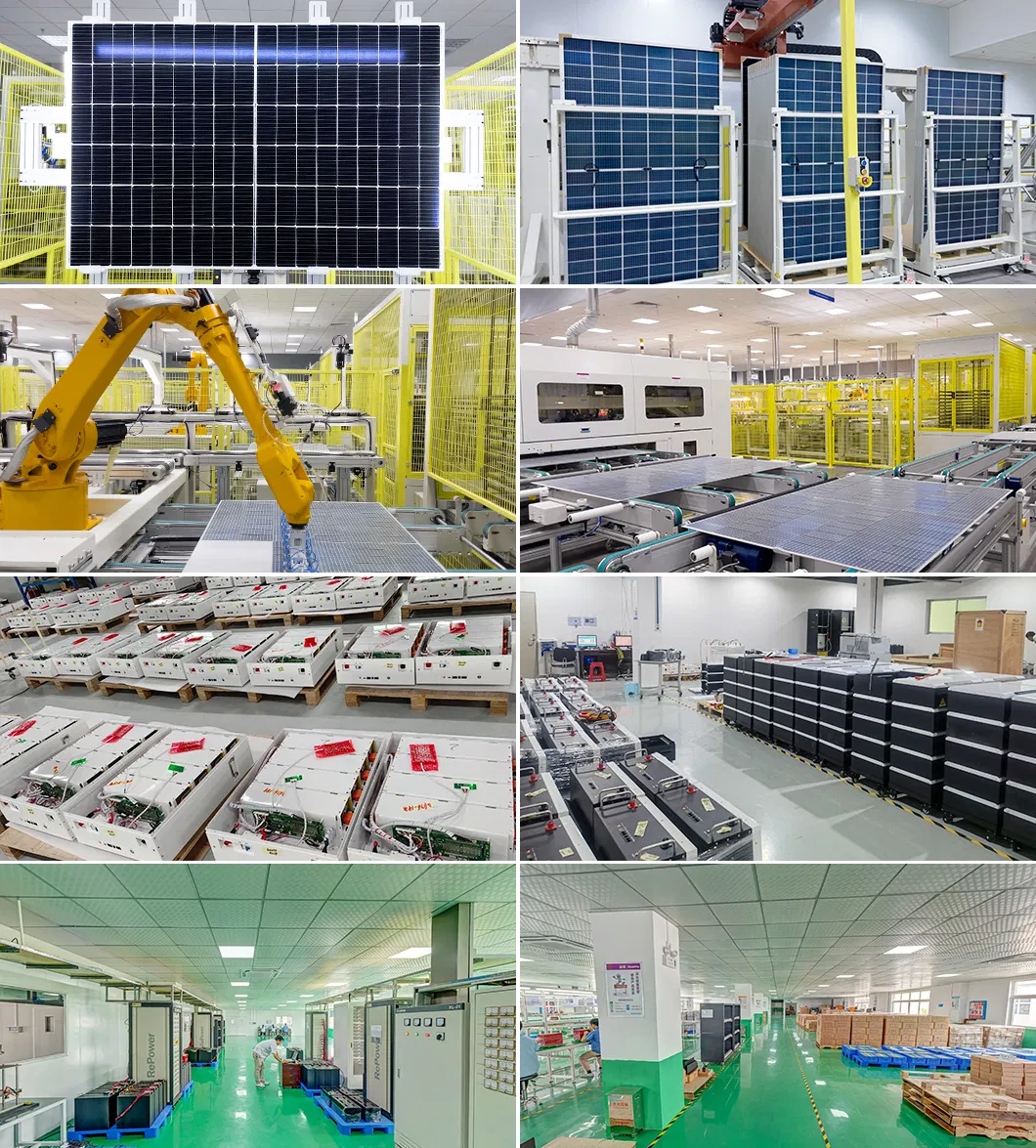

Manufacturing Excellence

Specializing in the research, development, and production of world-class solar PV products and solar panels. With over a decade of focused manufacturing, the facility covers 150,000 square meters and maintains a reputation for high-quality production across various international markets.

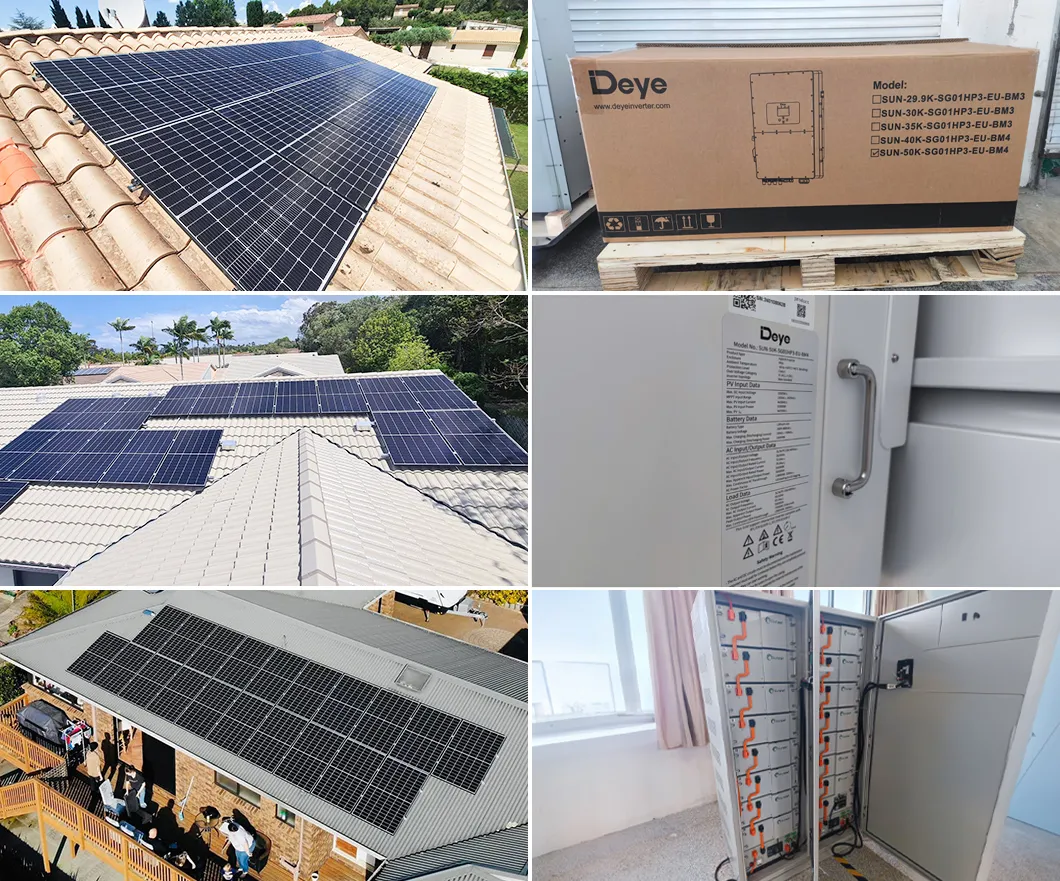

Project Case & Solutions

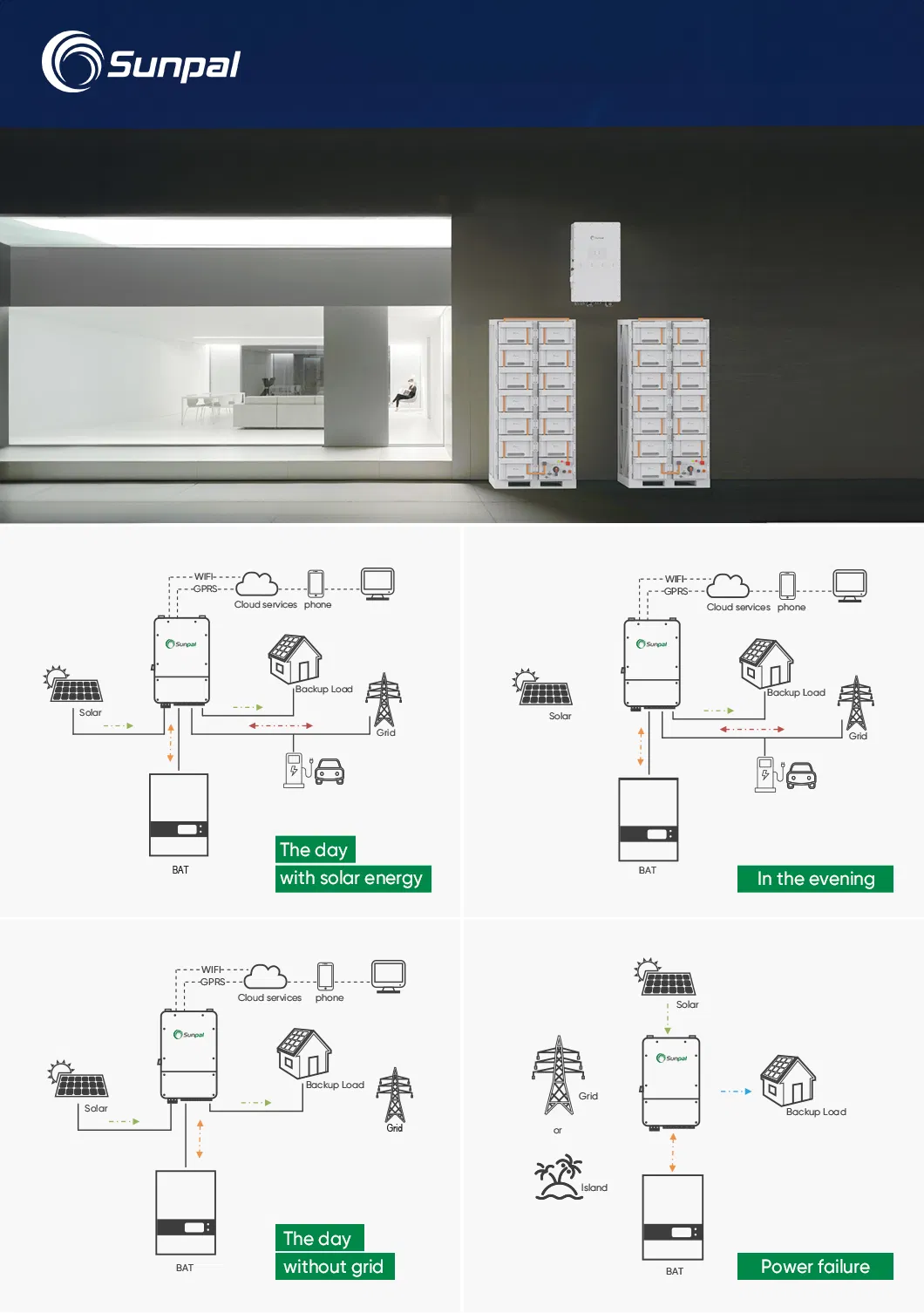

Commercial Solar Hybrid System

A well-designed commercial scale solar hybrid system serves critical purposes including peak lopping and emergency backup.

Peak Lopping: Utilizes an intelligent inverter charger to draw additional load capacity from the battery rather than the grid during peak times, significantly reducing demand charges.

Battery Backup: Provides autonomous power during grid outages without delay. Excess solar energy is stored for later use, ensuring business continuity.

Frequently Asked Questions

What is the lifespan of the battery system?

The high-voltage LiFePo4 battery is designed for long-term durability, offering a cycle life of up to 6000 cycles with a smart BMS for safety management.

Can the system handle unbalanced electrical loads?

Yes, the hybrid inverter supports 100% unbalanced output for each phase, making it ideal for diverse commercial applications.

How does the "Peak Lopping" feature save costs?

Peak lopping allows the system to supply power from the batteries during high-demand periods (peak kVA), reducing the amount of electricity drawn from the grid and lowering demand charges.

Does the system continue to work during a power outage?

Absolutely. The solar hybrid solution powers on autonomously during grid outages without delay, allowing your loads to run on solar and battery power seamlessly.

What kind of solar panels are used in this kit?

The kit includes high-efficiency Topcon Half Cut Monocrystalline Silicon panels, typically rated at 580W each for maximum energy capture.

Is there a way to monitor the system's performance?

Yes, the system includes an intelligent monitoring platform that supports one-click registration, traceable logs, and full lifecycle data storage for remote management.
