Sunark Good Price Solar Energy Storage System 3kw 5kw 7kw All in One off Grid Solar Power System Kit for Home

1 / 5

Sunark Good Price Solar Energy Storage System 3kw 5kw 7kw All in One off Grid Solar Power System Kit for Home

Customization:	Available
After-sales Service:	Yes
Warranty:	5years

Send Inquiry

Product Description

⚡ Basic Information

Model NO.

SE-0FF 1-30Kw

Condition

New

Certification

CE, TUV

Application

Home

Specification

Normal, 1-30Kw

Product Name

Residential off Grid Solar System

Solar Panel

Monocrystalline 400-700W

Solar Inverter

off Grid 1-30kw

Battery Type

Gel / LiFePO4 Lithium Battery

Monitoring System

APP Available for PC and Phone

📋 Product Description

Warranty & Reliability

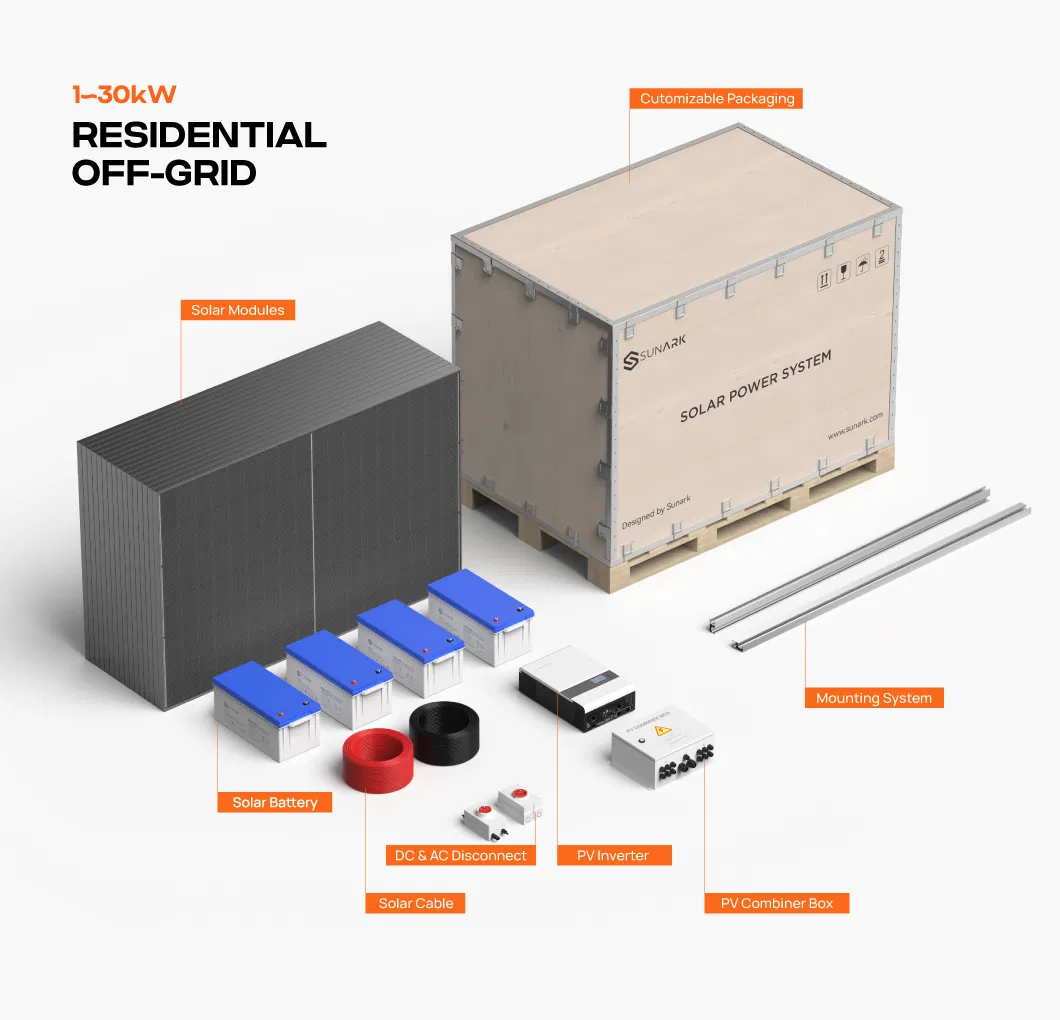

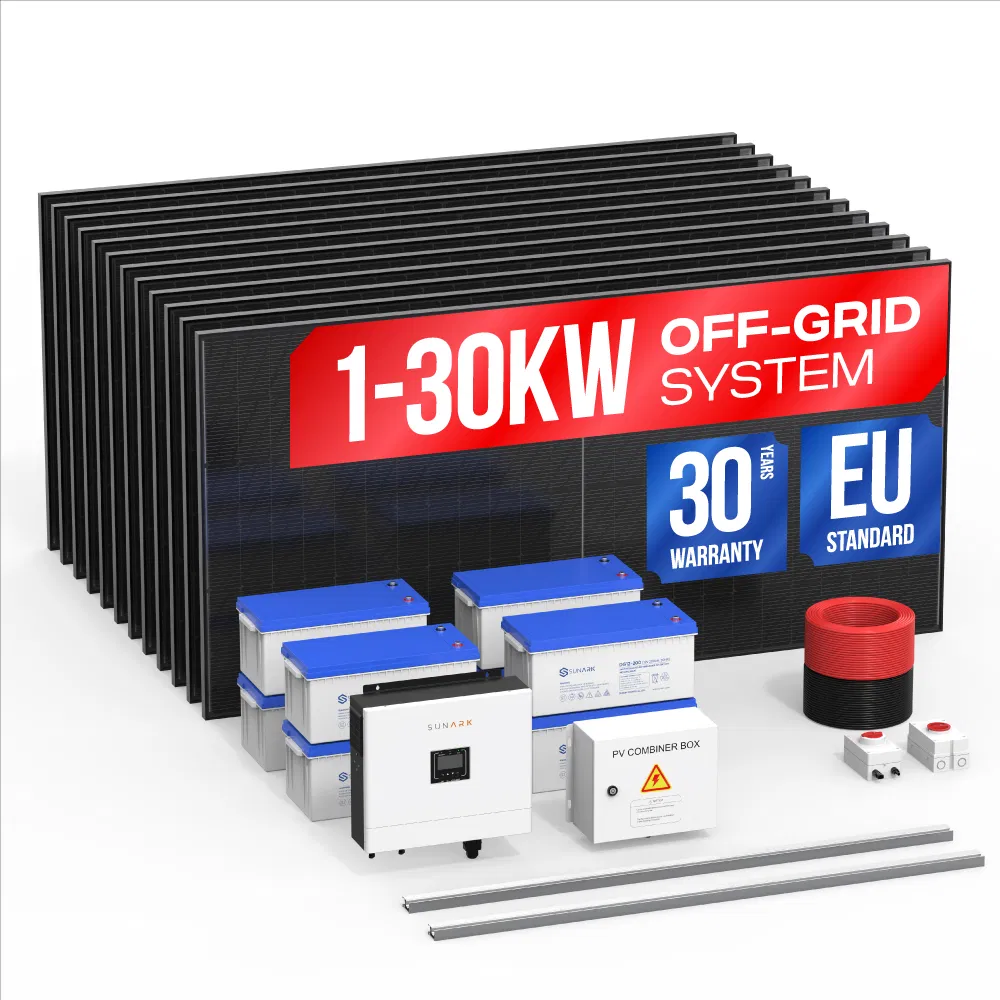

System Configuration - What's Included

Model	SE-3KW-OFF	SE-5KW-OFF	SE-10KW-OFF
Mono 550W Panels	6 pcs	8 pcs	16 pcs
PV Combiner Box	1 pc	1 pc	1 pc
Off Grid Inverter	1 pc	1 pc	1 pc
Gel Batteries 200Ah	2 pcs	4 pcs	4 pcs
PV Cable 4mm2	100m	100m	200m
Roof Mounting System	1 set	1 set	1 set

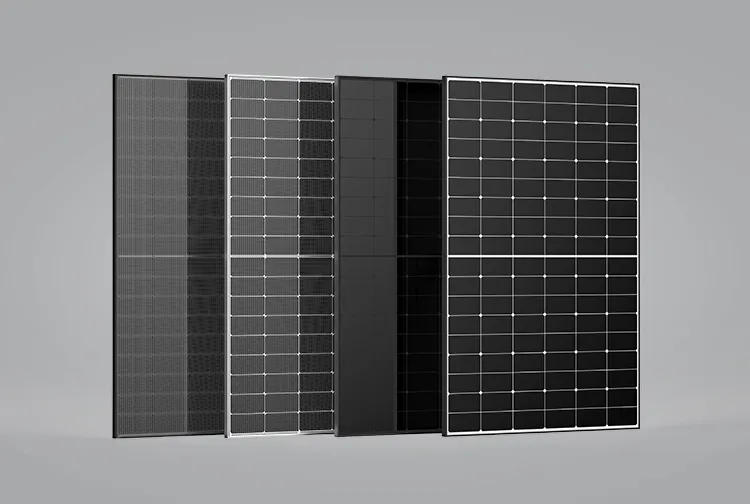

☀️ Half Cut Mono 550W Solar Panel

Peak Power Watts: 550W
Maximum Power Voltage: 42.06V
Maximum Power Current: 12.84A
Dimensions: 2279x1134x35mm
Weight: 26.9 kg

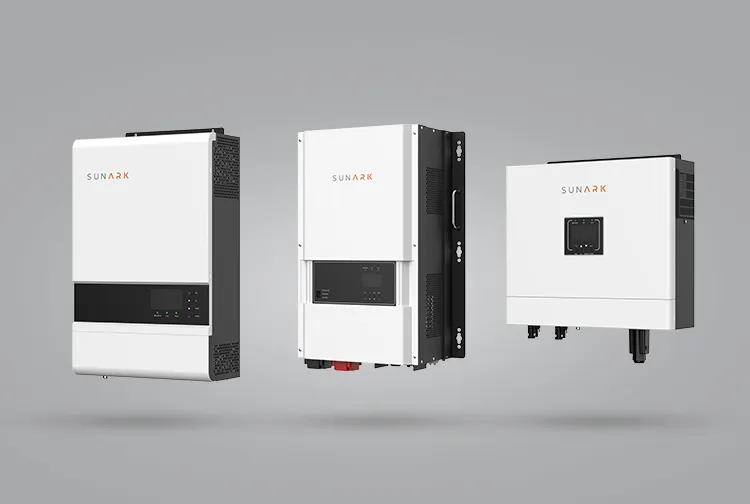

🔌 Off Grid Solar Inverter

Support both single phase and three phase. Transformer isolation design with different working modes. Charging/discharging current of 240A. Max 6pcs parallel support.

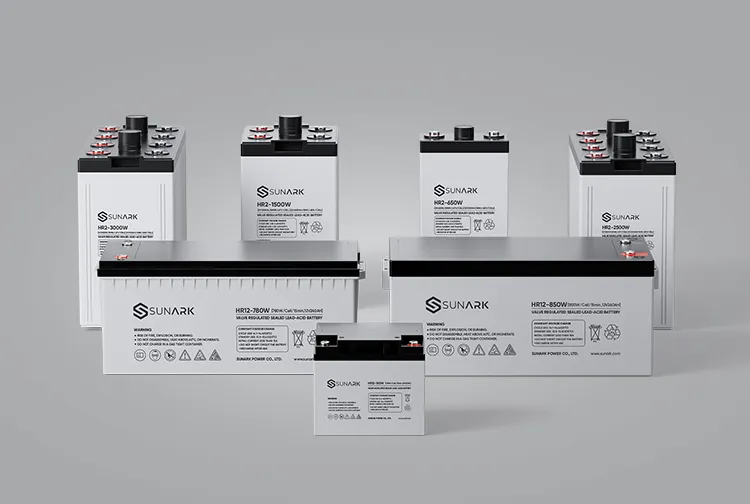

🔋 Low Voltage Gel Battery Bank

8-10 years design life. Up to 1500+ cycle life. Ground stack brick design, simply connecting to inverter. Scalable for larger storage requirements.

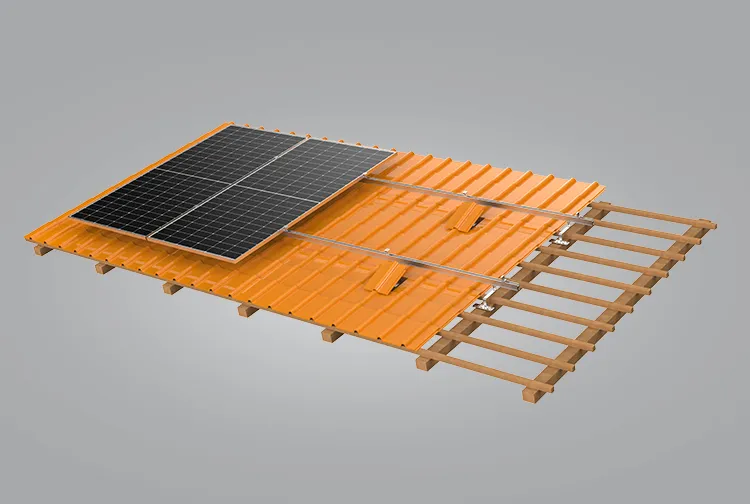

🏗️ PV Mounting System

Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt. Mid & End Clamps for various panel sizes. Asphalt Shingle Mount & Hanger Bolt optional.

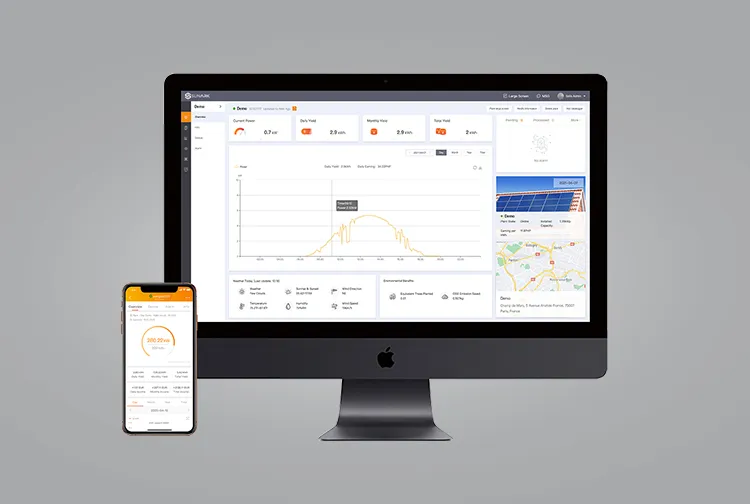

📱 Monitoring System

One-click installation and registration. Safe operation with traceable logs. Supports full lifecycle data storage to ensure security and reliability.

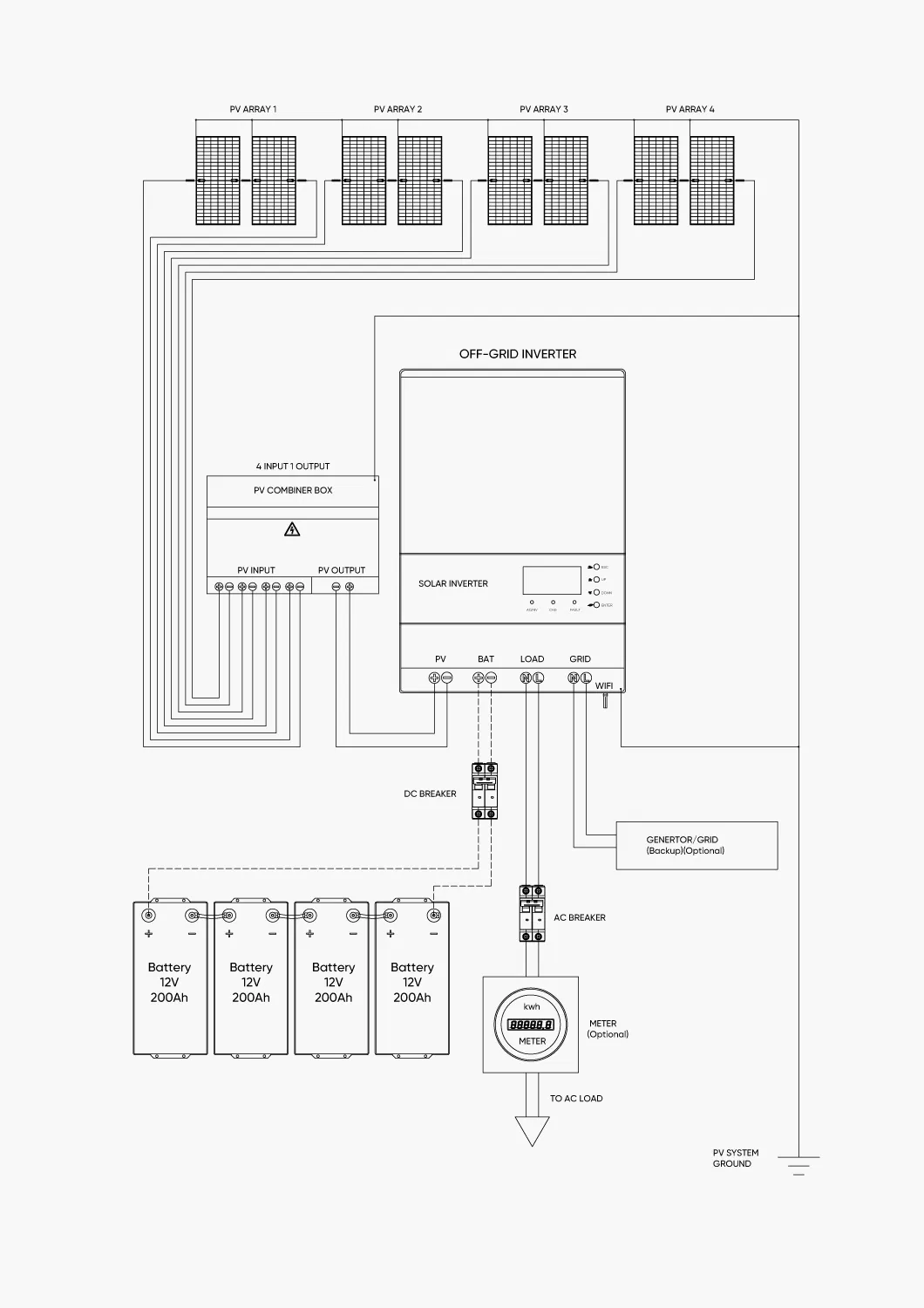

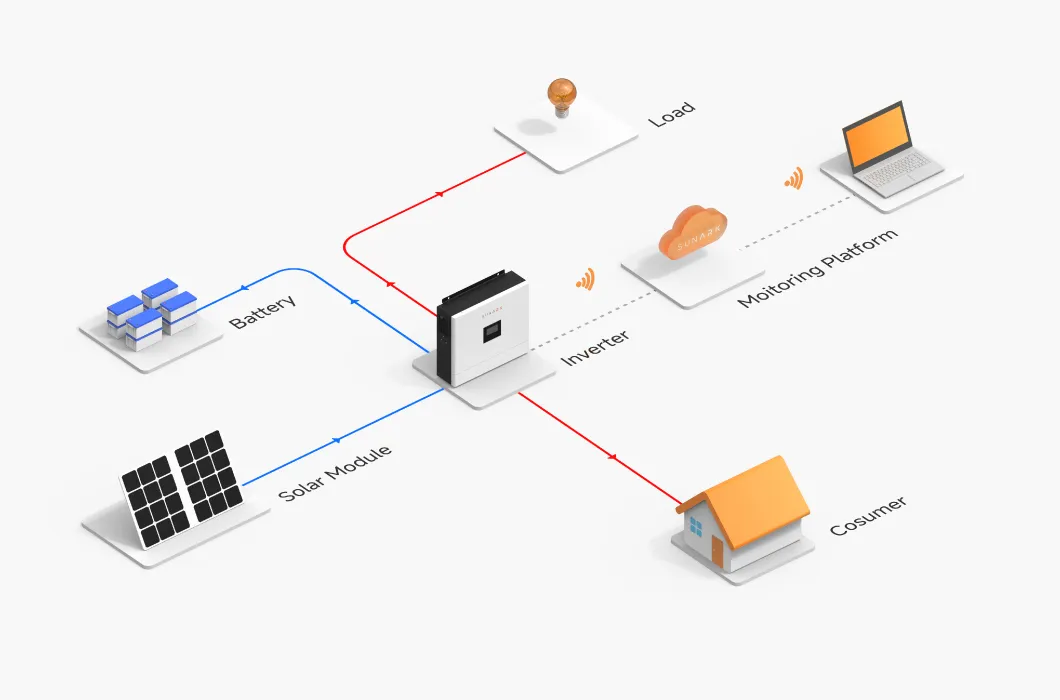

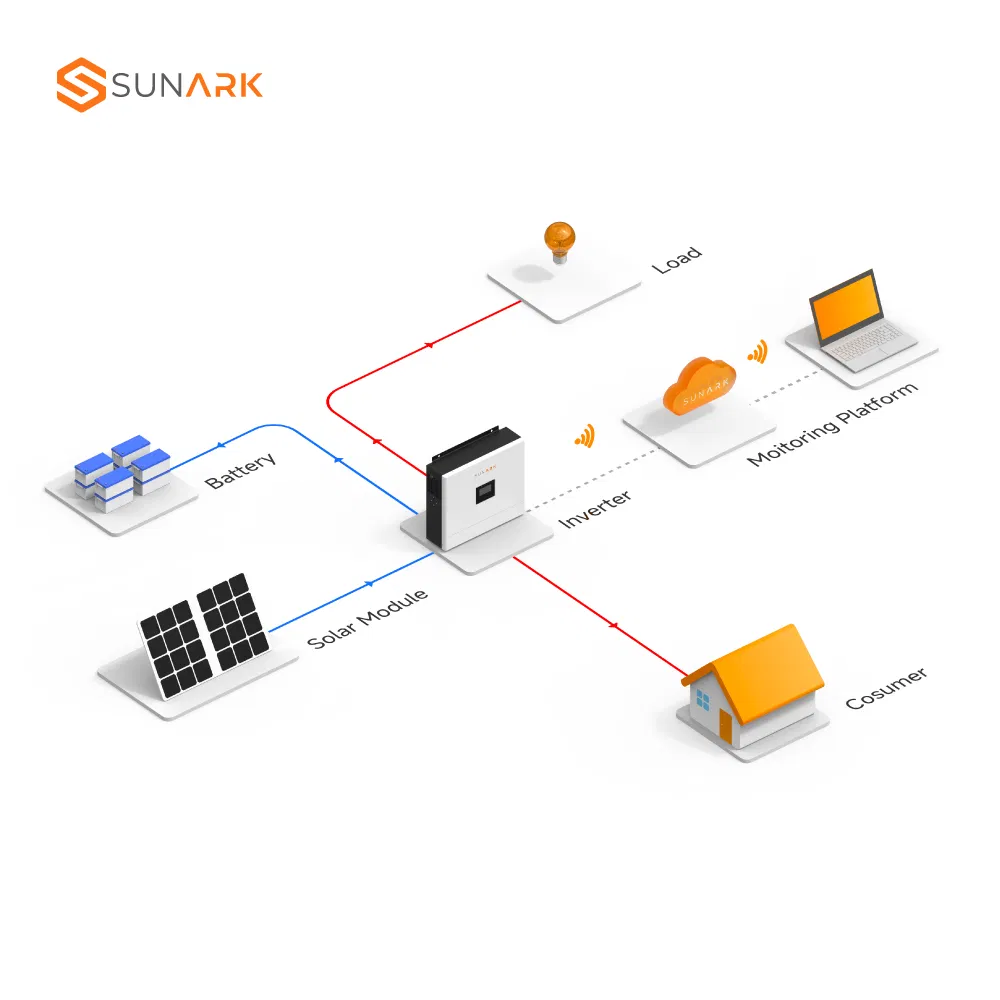

⚙️ Working Principle & Applications

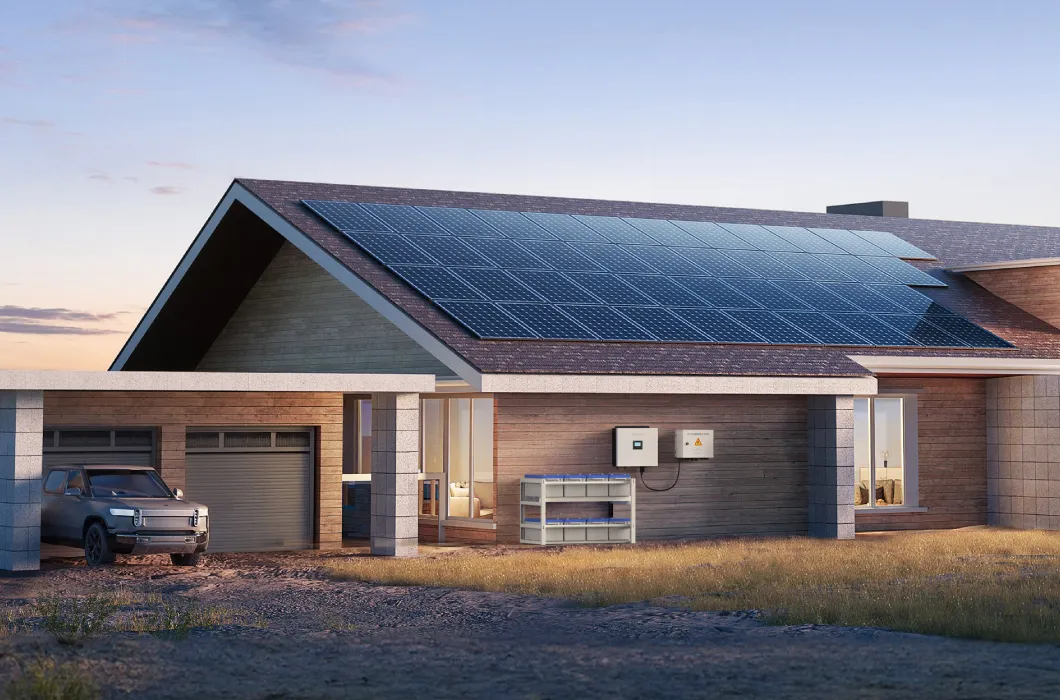

Real-world Applications

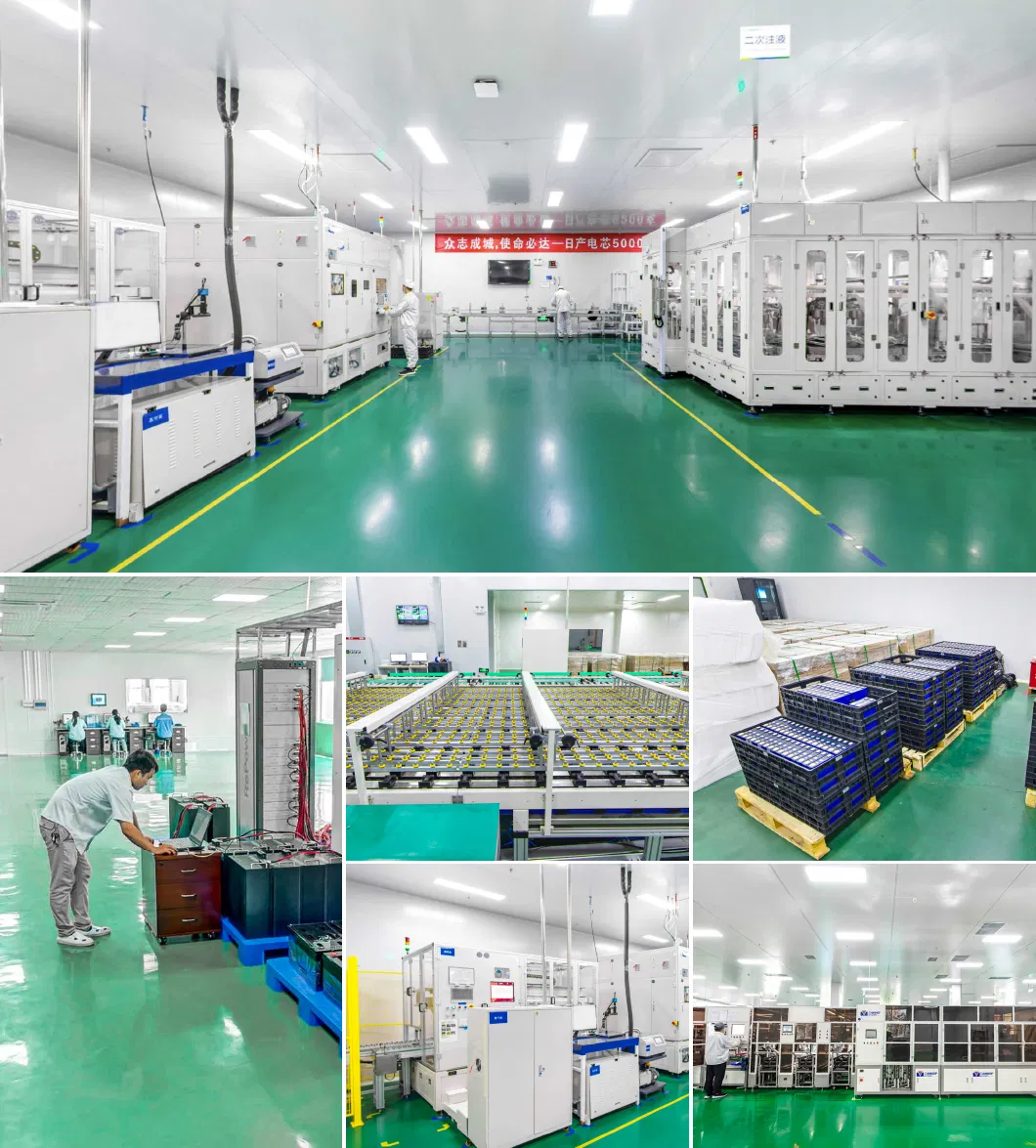

🏭 Factory & Quality Control

Our facility is a leading global energy storage solution provider, specializing in residential and commercial applications. With over 20 years of experience, we have deployed over 90,000 systems across 80+ countries. We hold core technology patents in new materials and structures for battery power supply, leading multiple industrial standards.

Frequently Asked Questions

What is an off-grid solar system?

An off-grid solar system is a standalone power solution that is not connected to the local utility grid. It uses solar panels to generate electricity and batteries to store that energy for use when the sun isn't shining.

How long do the batteries last?

Our Gel batteries are designed for an 8-10 year life span with up to 1500+ cycles, while our LiFePO4 lithium options offer even longer cycle lives for daily use.

Can I monitor the system remotely?

Yes, the system comes with a smart monitoring module that allows you to track energy production and battery status through a dedicated mobile app or PC software.

Is the mounting system compatible with my roof?

We provide customized mounting solutions for various roof types, including tile, metal, and flat concrete roofs, using high-quality aluminum and stainless steel components.

What happens on cloudy or rainy days?

The system relies on the energy stored in your battery bank during those times. If the batteries run low, our inverters can also support backup input from a generator or AC source.

Is the system expandable?

Yes, the modular design of our inverters and batteries allows you to increase storage capacity or power output as your energy needs grow.
