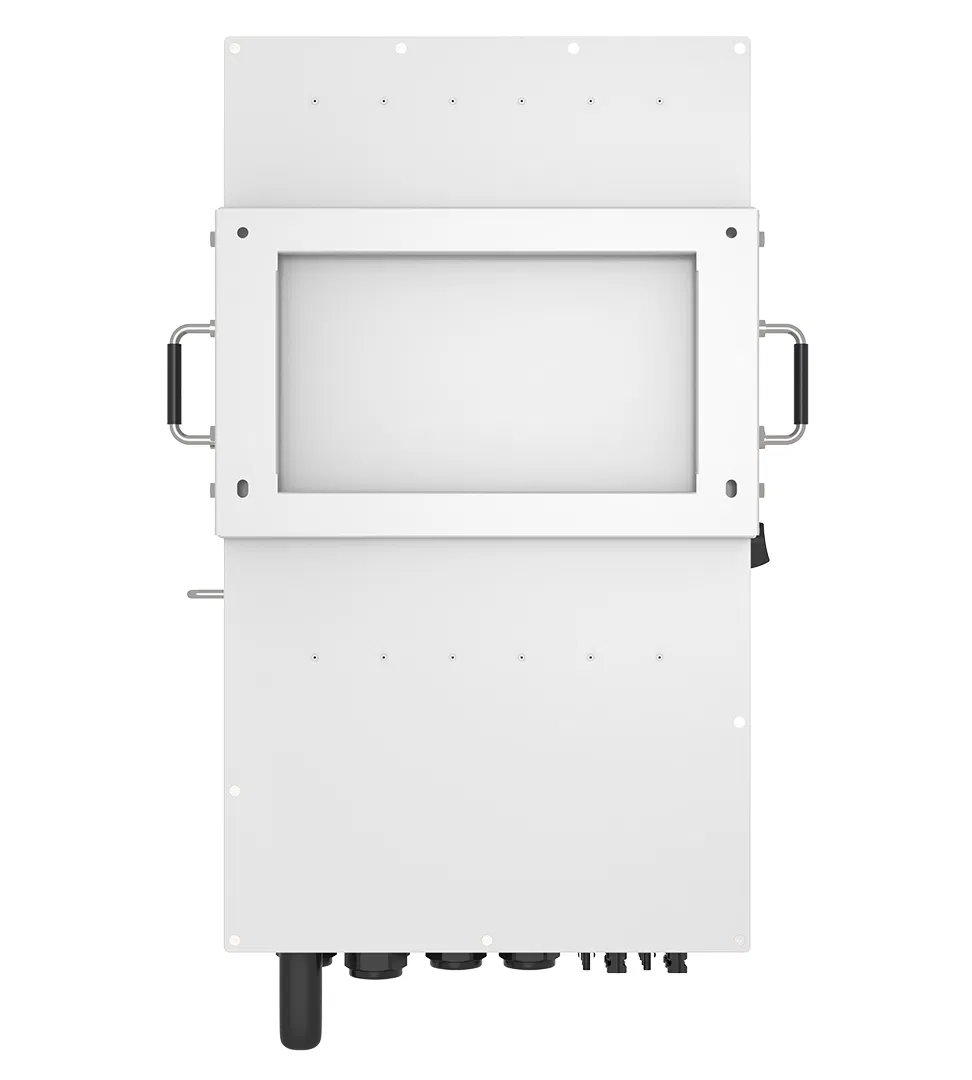

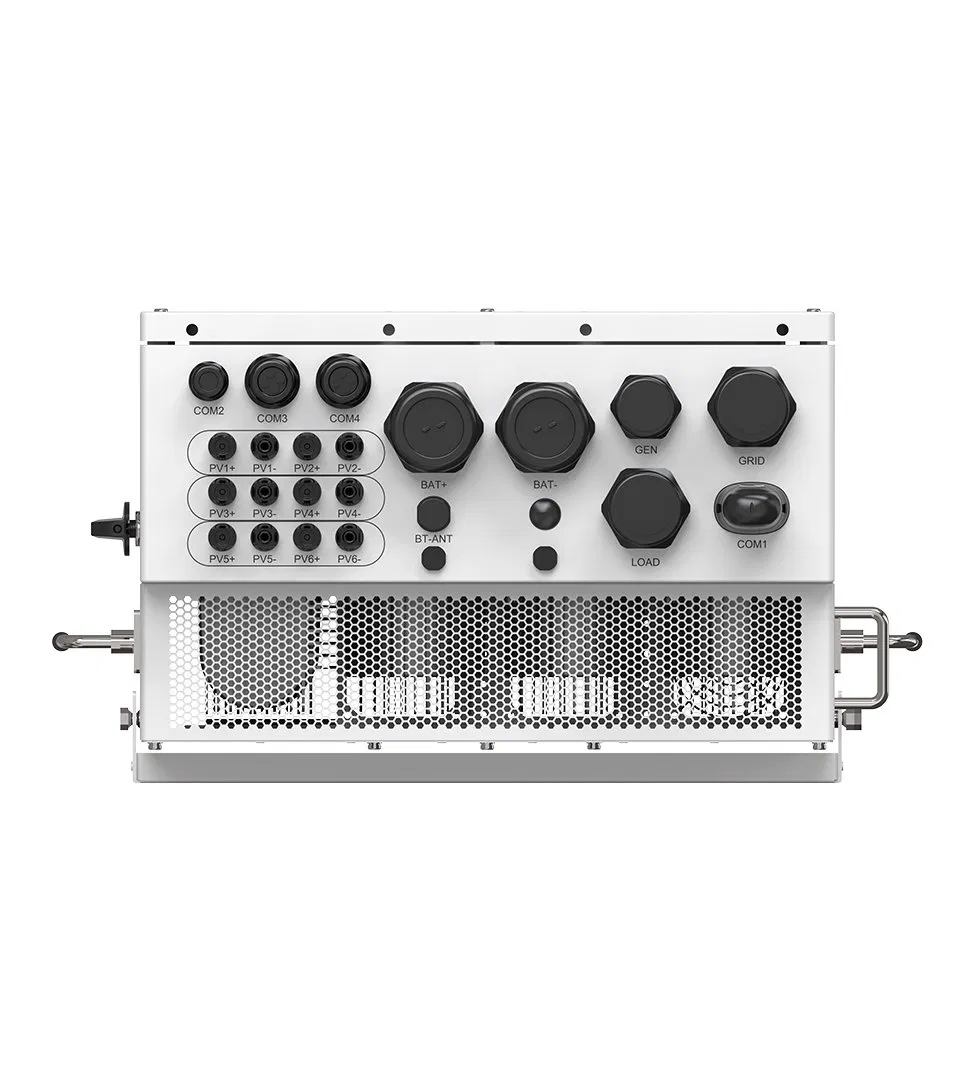

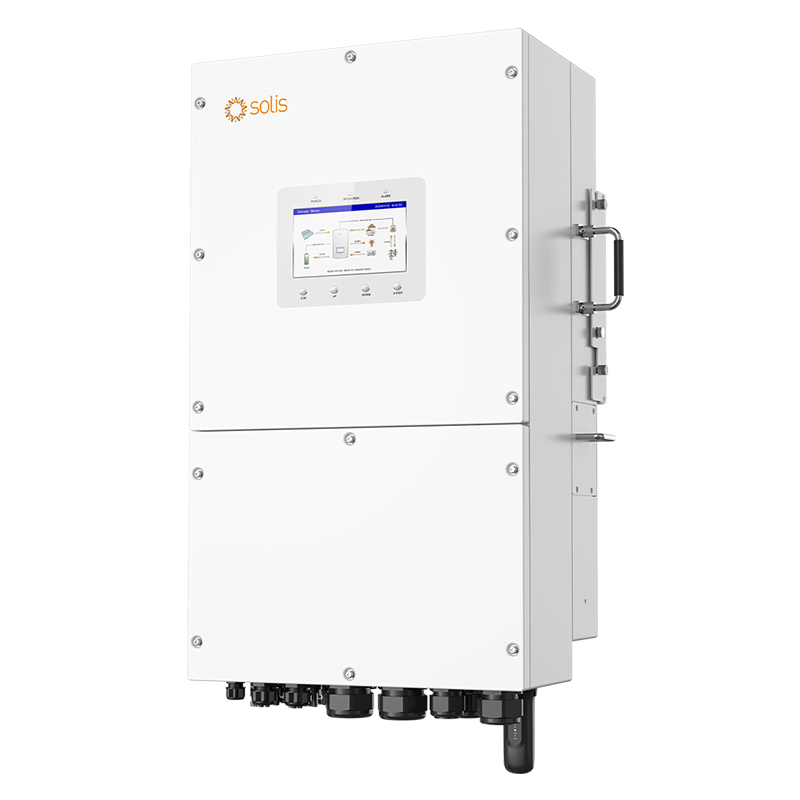

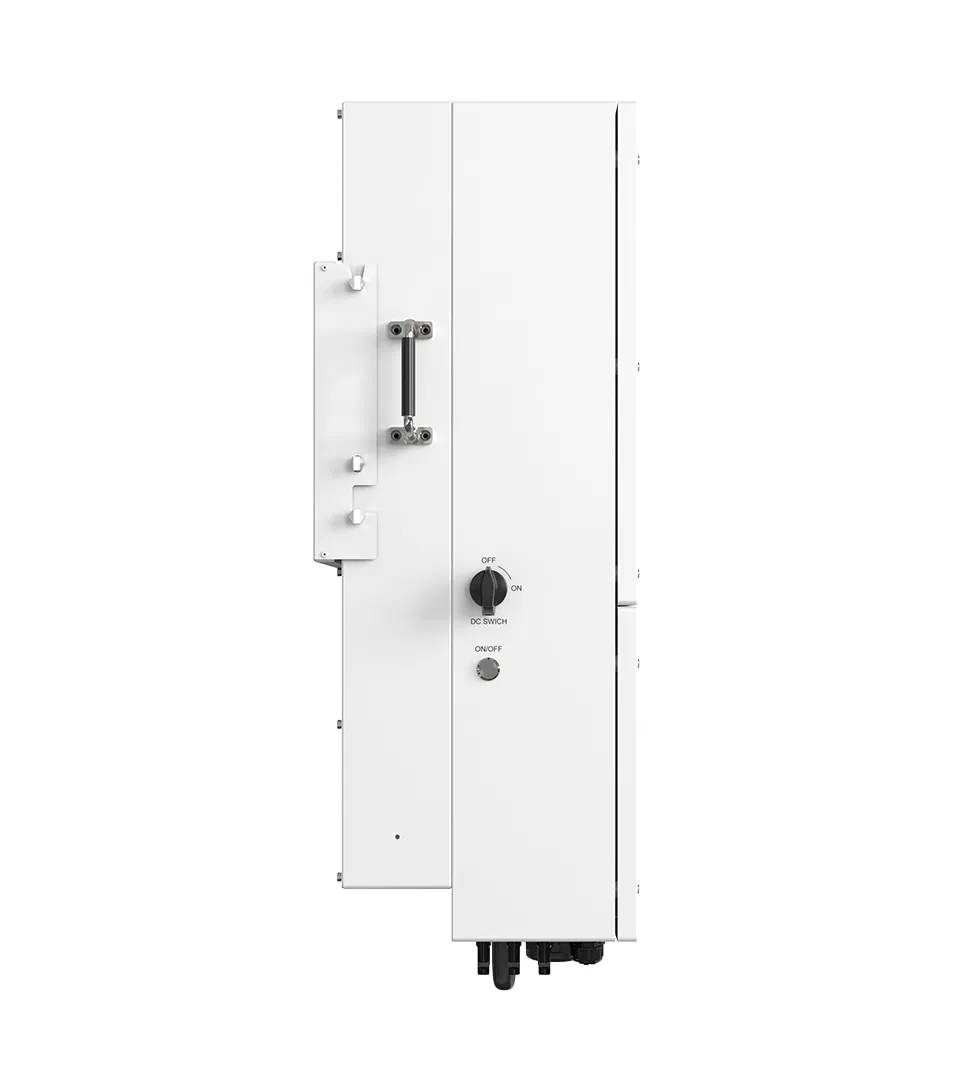

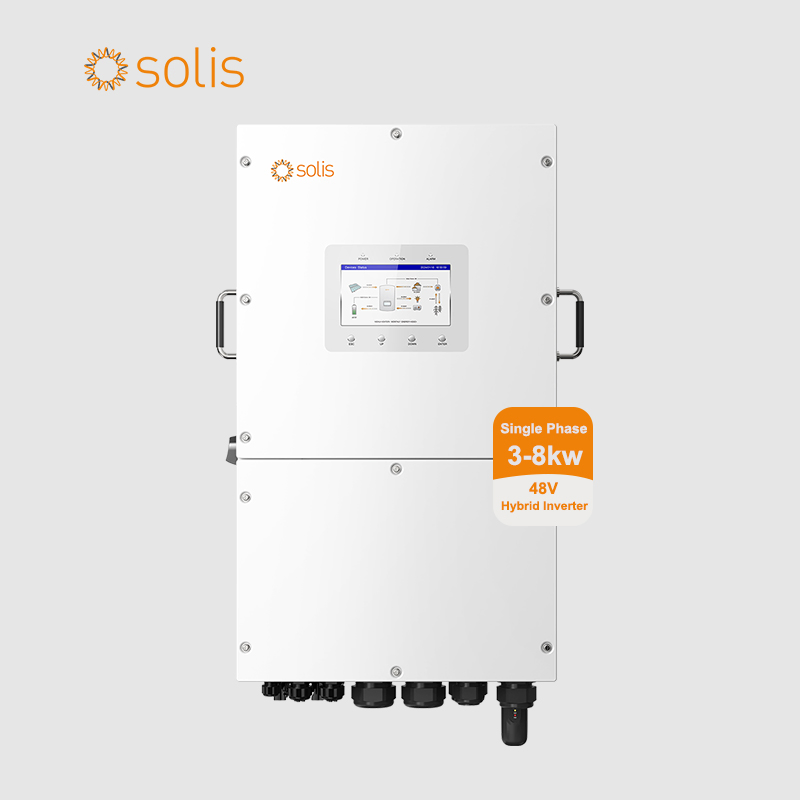

Solis Hybrid Solar Inverter S6-Eh1p (3-8) K-L-Plus 3kw 3.6kw 5kw 6kw 8kw Single Phase Low Voltage Energy Storage Inverter
Solis Hybrid Solar Inverter S6-Eh1p (3-8) K-L-Plus 3kw 3.6kw 5kw 6kw 8kw Single Phase Low Voltage Energy Storage Inverter
Solis Hybrid Solar Inverter S6-Eh1p (3-8) K-L-Plus 3kw 3.6kw 5kw 6kw 8kw Single Phase Low Voltage Energy Storage Inverter
Solis Hybrid Solar Inverter S6-Eh1p (3-8) K-L-Plus 3kw 3.6kw 5kw 6kw 8kw Single Phase Low Voltage Energy Storage Inverter
Solis Hybrid Solar Inverter S6-Eh1p (3-8) K-L-Plus 3kw 3.6kw 5kw 6kw 8kw Single Phase Low Voltage Energy Storage Inverter
1 / 5
Solis Hybrid Solar Inverter S6-Eh1p (3-8) K-L-Plus 3kw 3.6kw 5kw 6kw 8kw Single Phase Low Voltage Energy Storage Inverter
Solis Hybrid Solar Inverter S6-Eh1p (3-8) K-L-Plus 3kw 3.6kw 5kw 6kw 8kw Single Phase Low Voltage Energy Storage Inverter
Solis Hybrid Solar Inverter S6-Eh1p (3-8) K-L-Plus 3kw 3.6kw 5kw 6kw 8kw Single Phase Low Voltage Energy Storage Inverter
Solis Hybrid Solar Inverter S6-Eh1p (3-8) K-L-Plus 3kw 3.6kw 5kw 6kw 8kw Single Phase Low Voltage Energy Storage Inverter
Solis Hybrid Solar Inverter S6-Eh1p (3-8) K-L-Plus 3kw 3.6kw 5kw 6kw 8kw Single Phase Low Voltage Energy Storage Inverter

Solis Hybrid Solar Inverter S6-Eh1p (3-8) K-L-Plus 3kw 3.6kw 5kw 6kw 8kw Single Phase Low Voltage Energy Storage Inverter

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Overview & Basic Information
Model NO.
S6-EH1P(3-8)K-L-PLUS
Phase
Single Phase
Output Power
3-8kw
Certification
SAA, CE, ROHS, ISO9001, CCC
Type
DC/AC Inverters
Input Voltage
500V
Protection
IP66
Battery Type
Lead Acid / Lithium
Product Description

Hybrid Solar Inverter S6-EH1P(3-8)K-L-PLUS Single Phase Low Voltage Energy Storage Inverter

Hybrid Solar Inverter Features Description
Product Parameters
S6-EH1P(3-8)K-L-PLUS
Models 3K 3.6K 5K 6K 8K
Input DC (PV side)
Max. PV array size 6 kW 7.2 kW 10 kW 12 kW 16 kW
Max. input voltage 500 V
MPPT voltage range 90-435 V
Battery
Battery type Li-ion / Lead-acid
Max. charge/discharge power 3 kW 3.6 kW 5 kW 6 kW 8 kW
Output AC (Grid side)
Rated output power 3 kW 3.6 kW 5 kW 6 kW 8 kW
General Data
Dimensions (W*H*D) 335*560*227 mm
Weight 21.6 kg 22.2 kg
Ingress protection IP66
Basic System Architecture

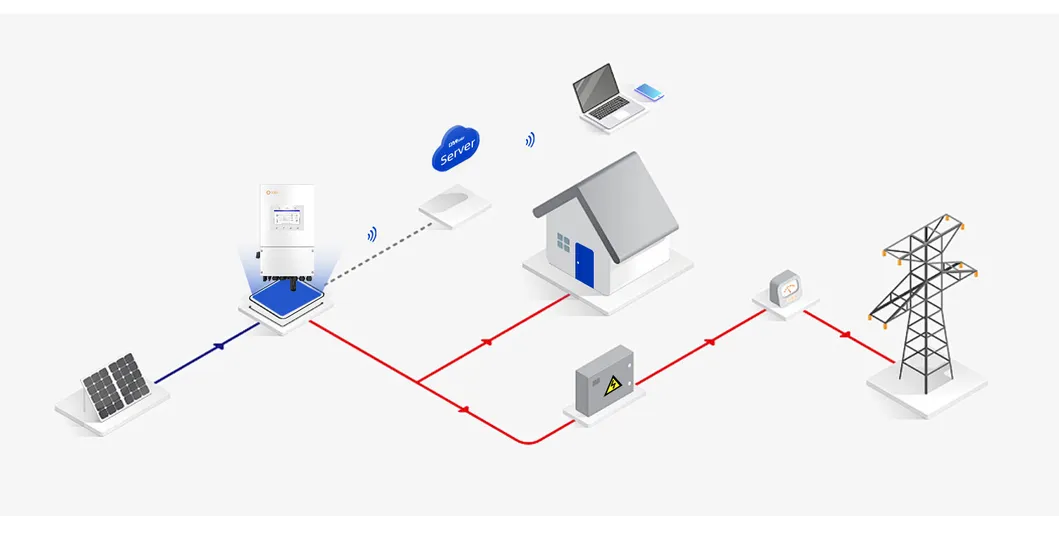

System Architecture
Packaging & Shipping

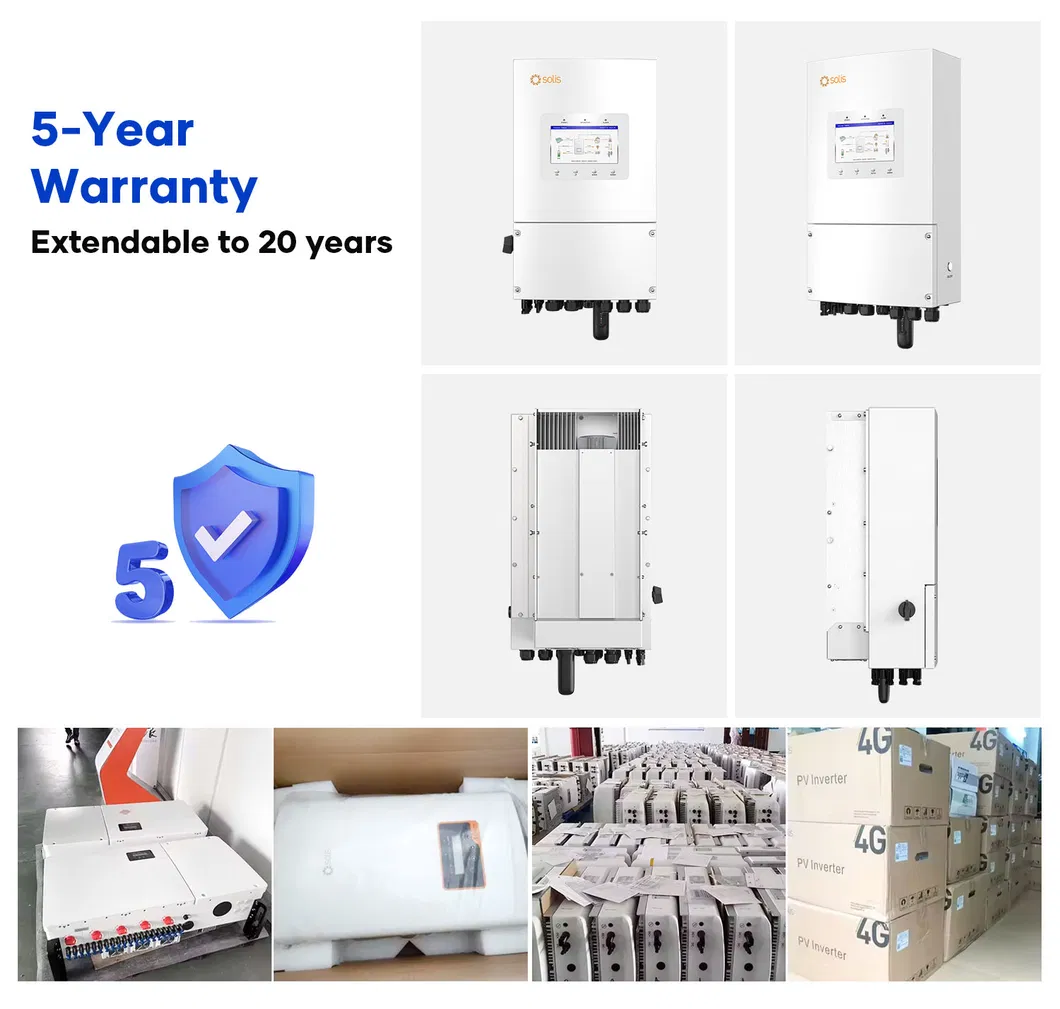

Packaging Details
Project Cases

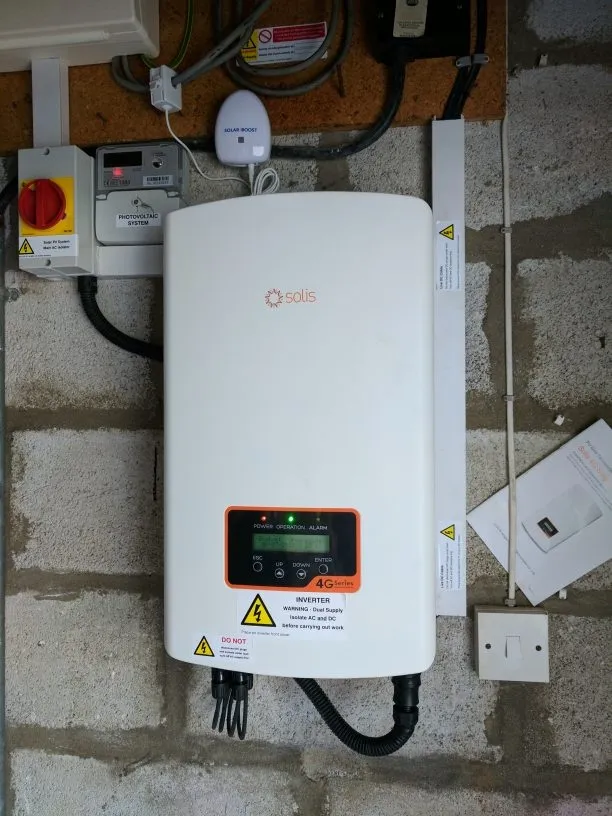

Project Case 1

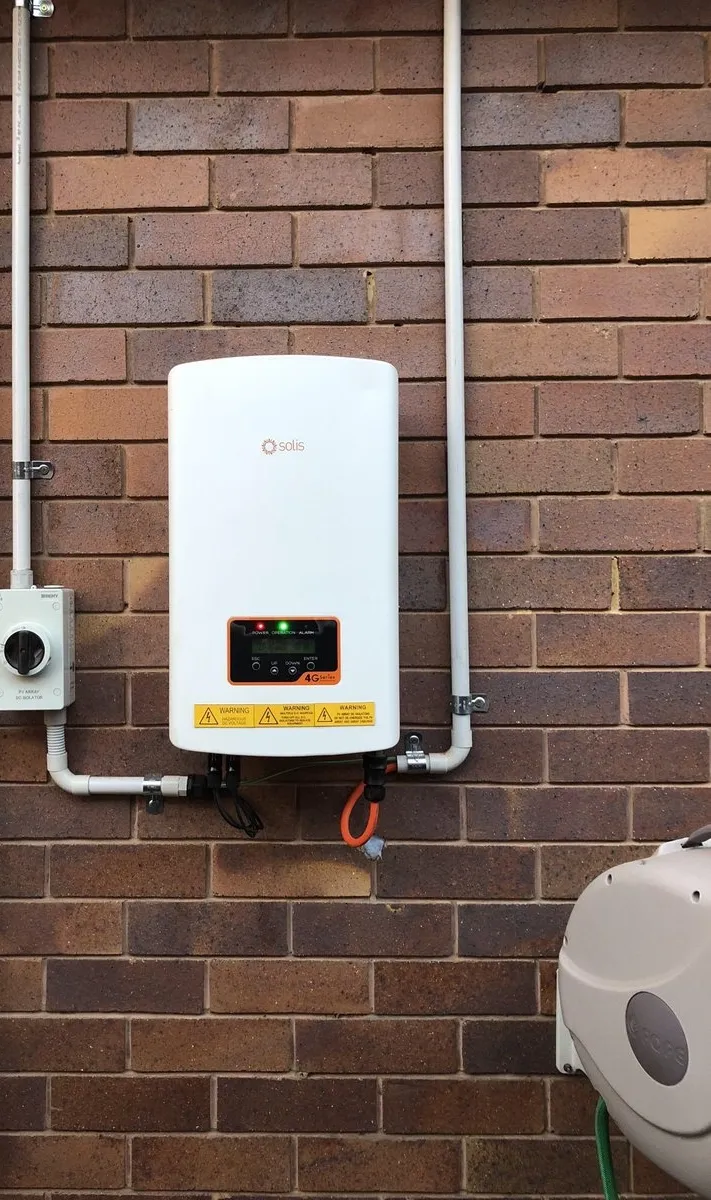

Project Case 2

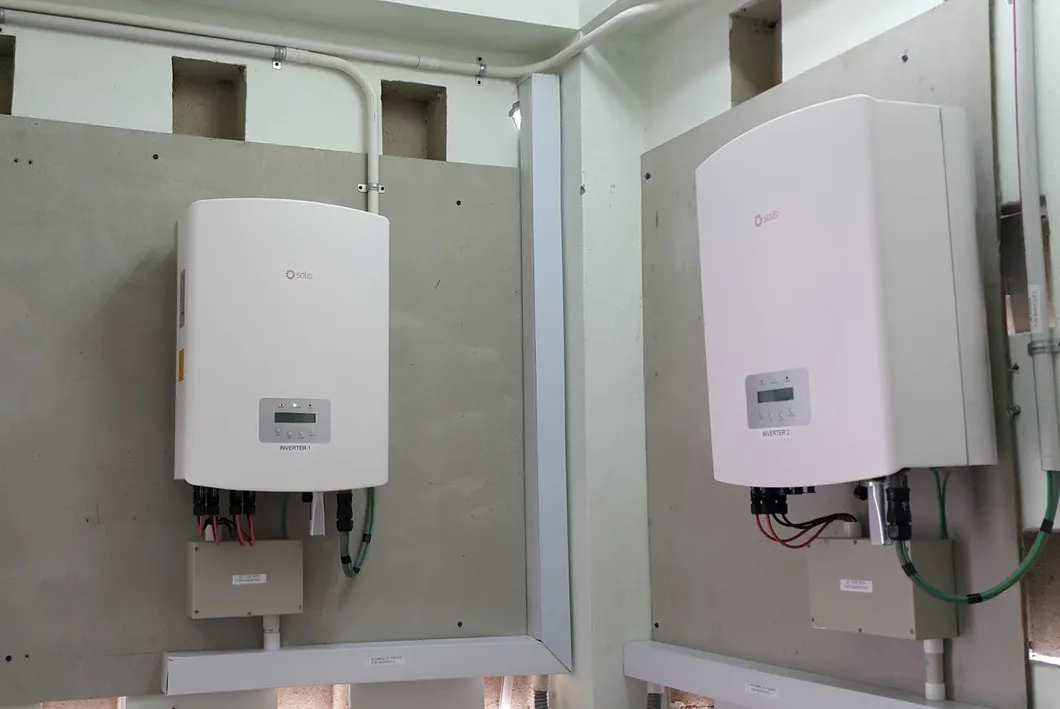

Project Case 3

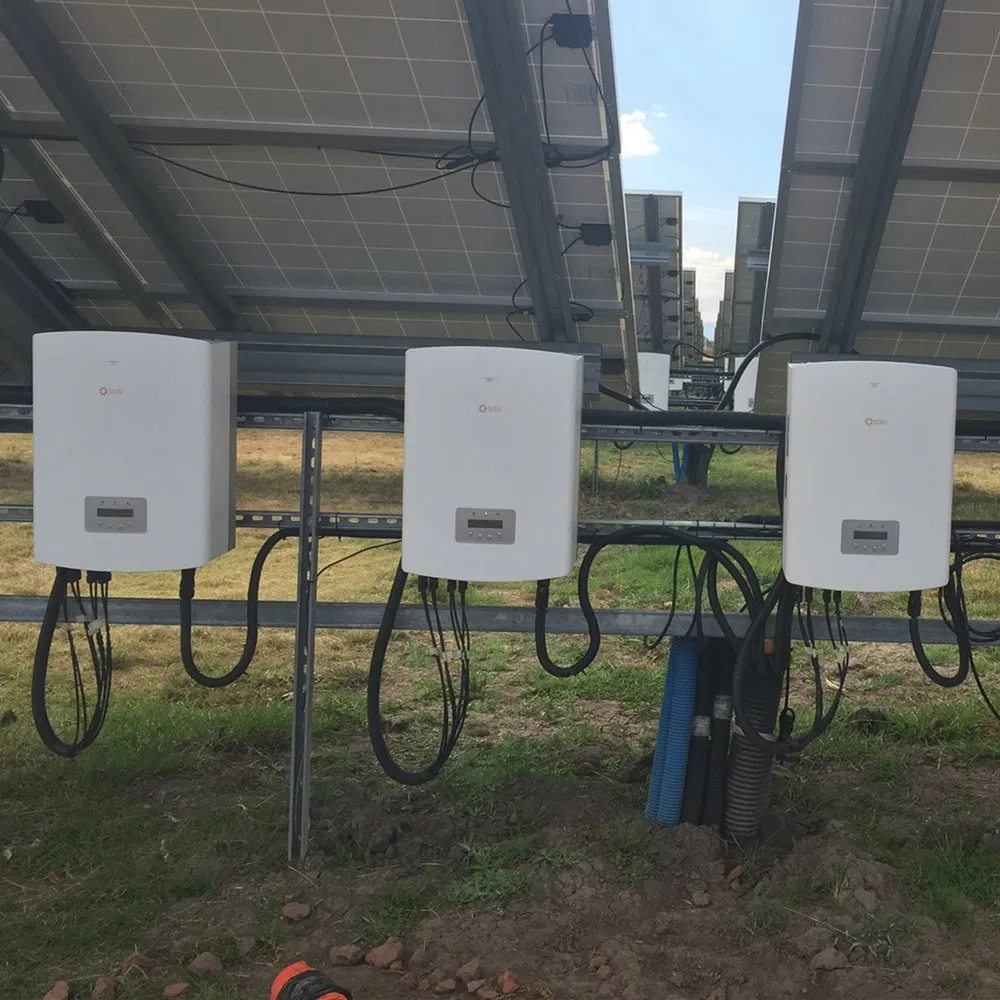

Project Case 4

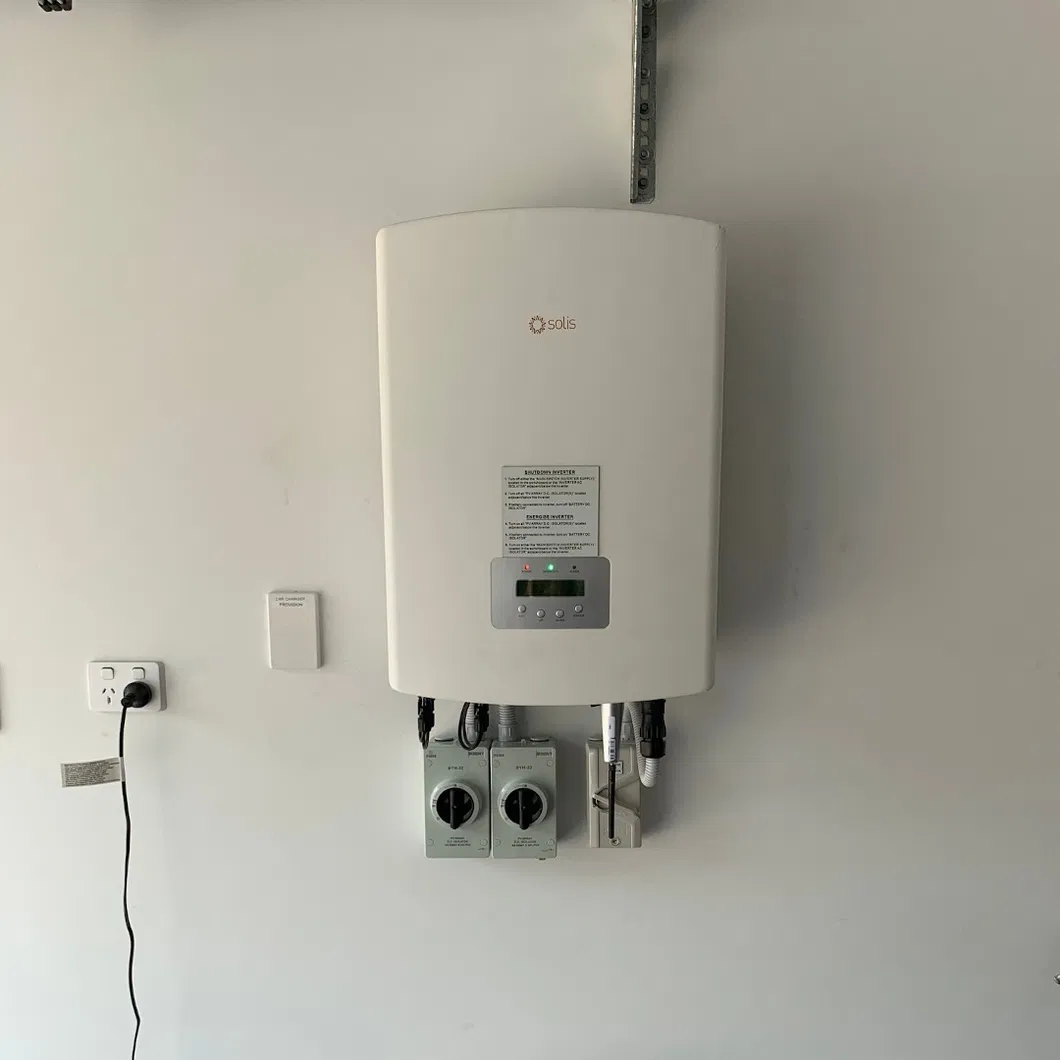

Project Case 5
Frequently Asked Questions
What power capacities are available for this hybrid inverter?
The S6-EH1P series is available in 3kW, 3.6kW, 5kW, 6kW, and 8kW single-phase models to suit various energy storage needs.
What types of batteries are compatible with the system?
This inverter is designed to work with both Lithium-ion and Lead-acid batteries, providing flexibility for different storage solutions.
What is the switching time during a power outage?
The inverter features a backup switch time of less than 4ms, ensuring an uninterruptible power supply for critical loads.
Is the inverter suitable for outdoor installation?
Yes, with an IP66 ingress protection rating, the inverter is highly resistant to dust and water, making it suitable for outdoor environments.
What is the operating temperature range?
The unit is engineered to operate reliably in extreme conditions, with an ambient temperature range from -40°C to +60°C.
What communication options are supported for monitoring?
Standard communication includes RS485 and CAN, with optional support for Wi-Fi, GPRS, and LAN for remote monitoring via apps.
