Basic Specifications
Certification
ISO, CB, CE, TUV, VDE, IEC61215, IEC617, Pid, Cec, Jet
Application
Home, Industrial, Commercial, Agriculture Irrigation
Specification
Normal, 10KW
Solar Panel Type
Mono / Poly Solar Panel
Output Voltage
EU: 380/400/480V Us: 240/480V etc
Monitoring
WiFi/GPRS Device
Work Time (H)
24hours/Day
Mounting Brackets
Roof/Ground Installation
Accessories
Mc4 Spanner, Crimping Pliers etc
Inverter
Singe Phase/Three Phase
Battery Type
AGM/Gel/Lithium Battery
⚡

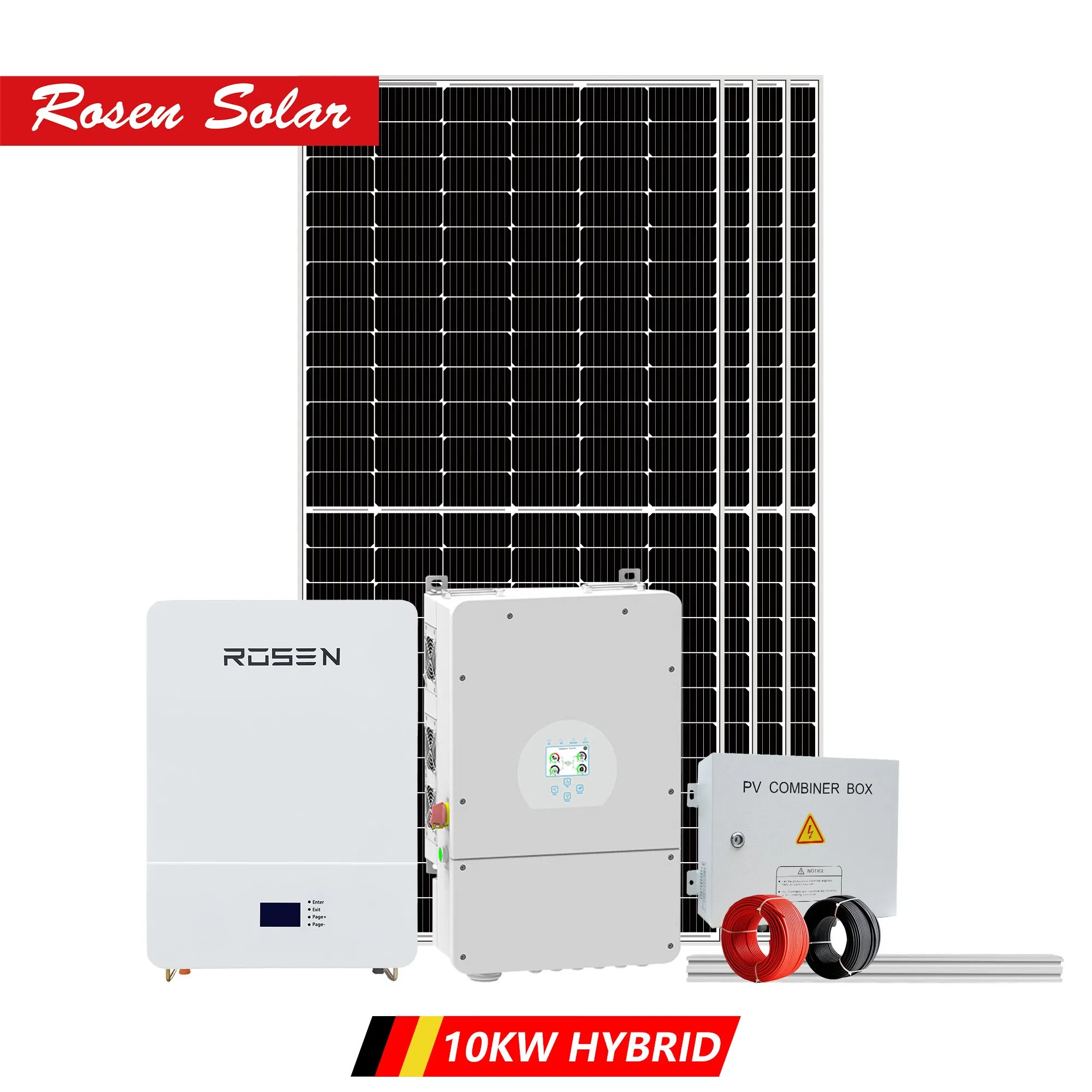

Product Overview
⚙️

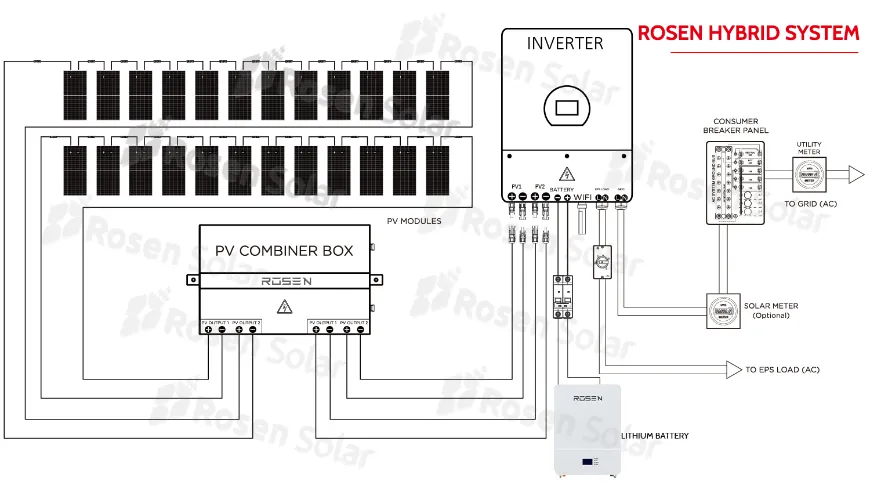

System Configuration
| Item |
5KW |
10KW |
15KW |
| Half Cell Solar Panel |
12 pieces |
24 pieces |
36 pieces |
| PV Combiner Box |
1 inputs 1output |
2 inputs 2outputs |
3 inputs 3 outputs |

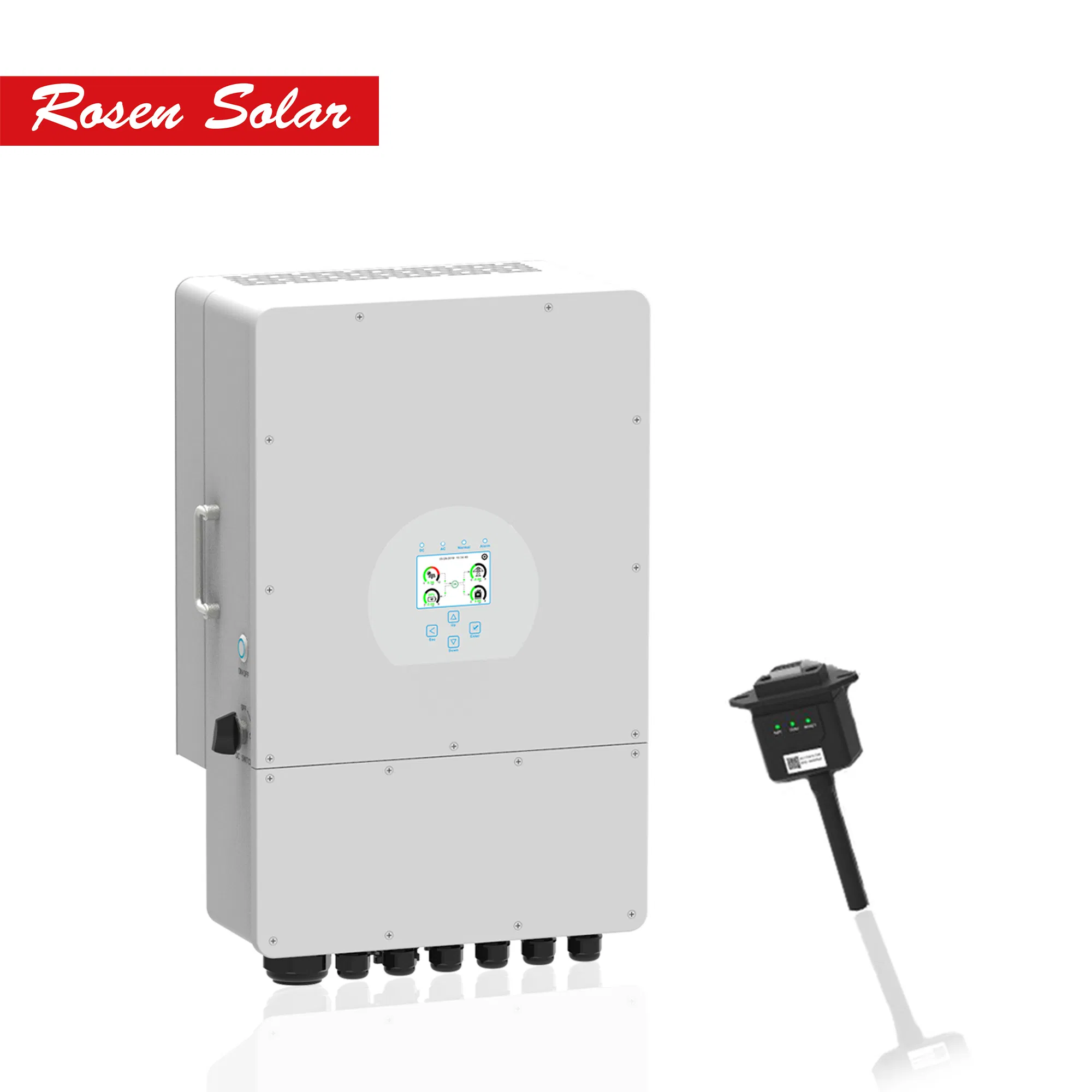

| Hybrid Off Grid Inverter |
5kw |
10kw |
15kw |
| WIFI Module Monitor |
1 set |
1 set |
1 set |
| Solar Battery |
GEL/Lithium Powerwall |
GEL/Lithium Powerwall |
GEL/Lithium Powerwall |
| PV Cable |
6mm2 |
6mm2 |
6mm2 |
| Mounting Bracket |
Tile Roof/Ground |
Tile Roof/Ground |
Tile Roof/Ground |
| MC4 Connector |
12pcs |
24pcs |
36pcs |
| Installation Tool Box |
1set |
1set |
1set |
| Installation Manual |
Yes |
Yes |
Yes |
📊

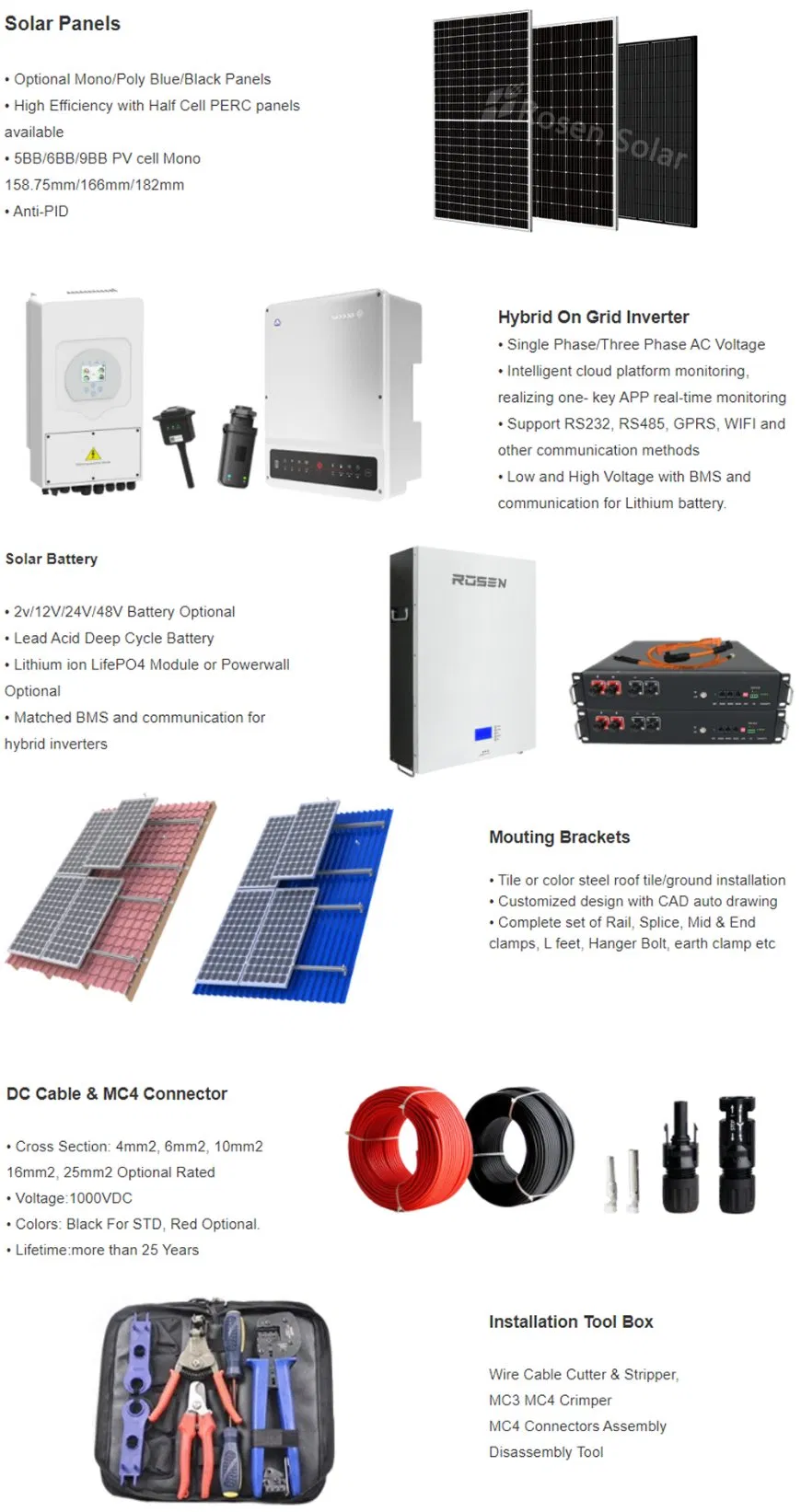

Technical Specification
📦

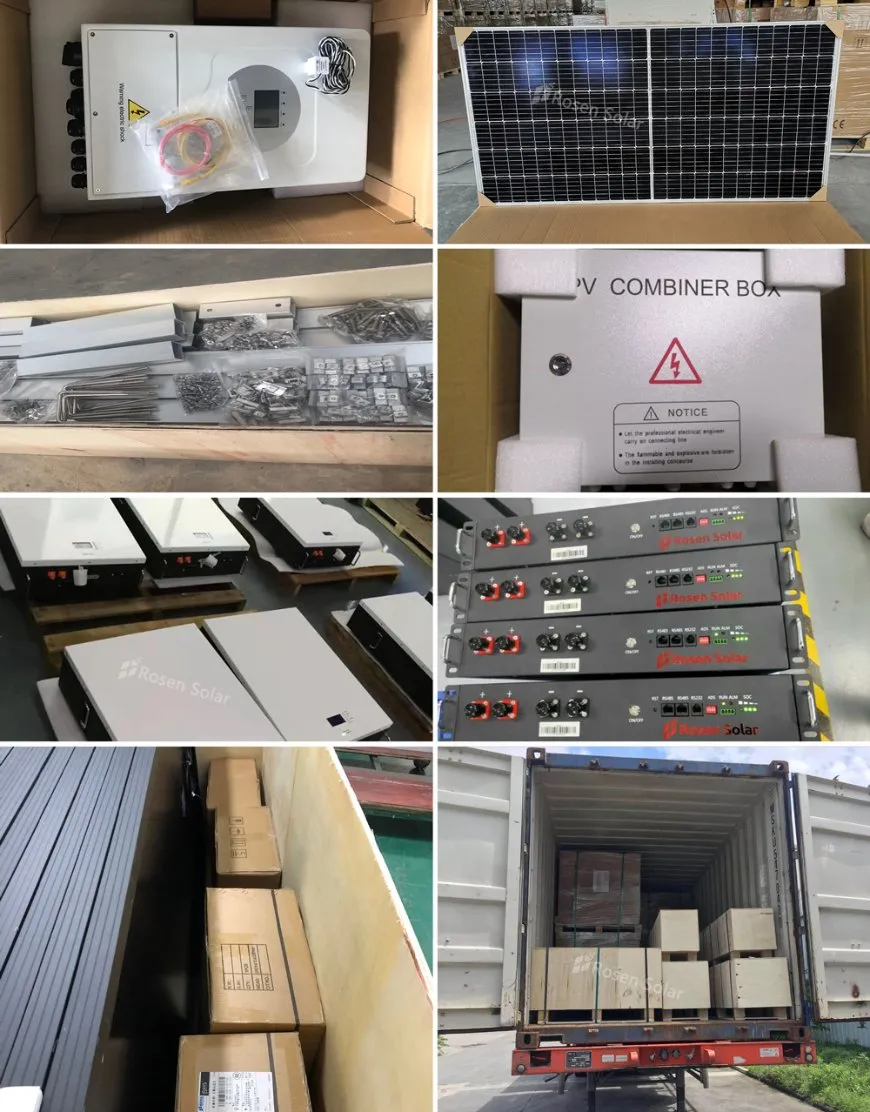

Packing & Delivery
🏗️

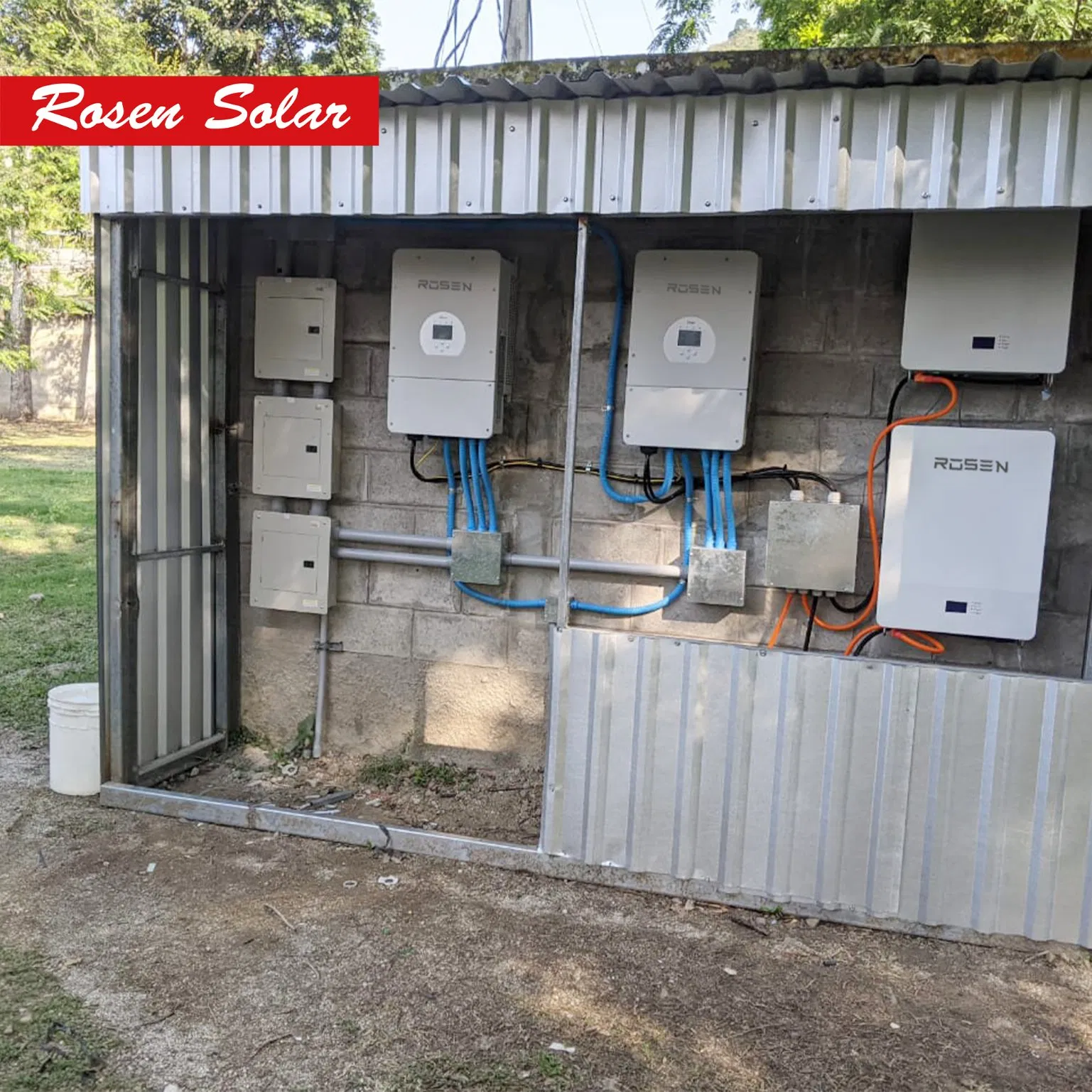

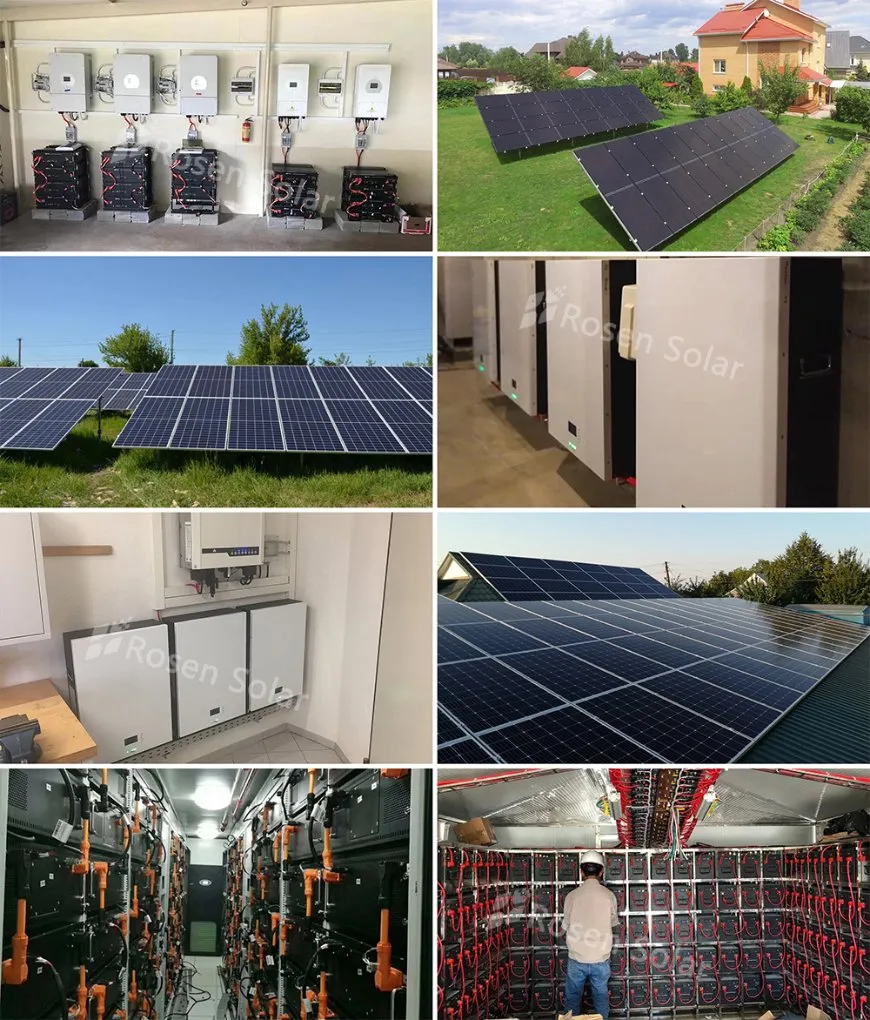

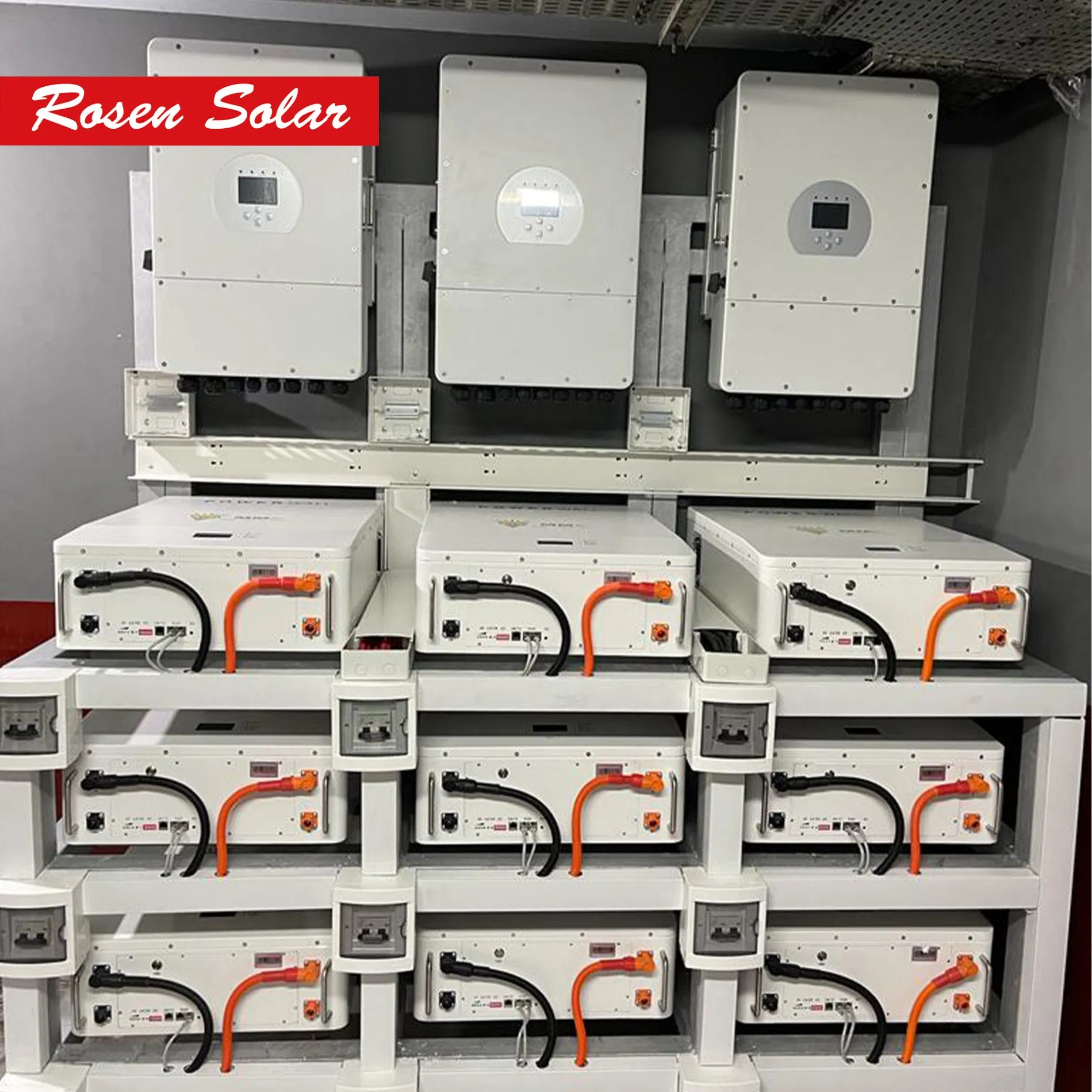

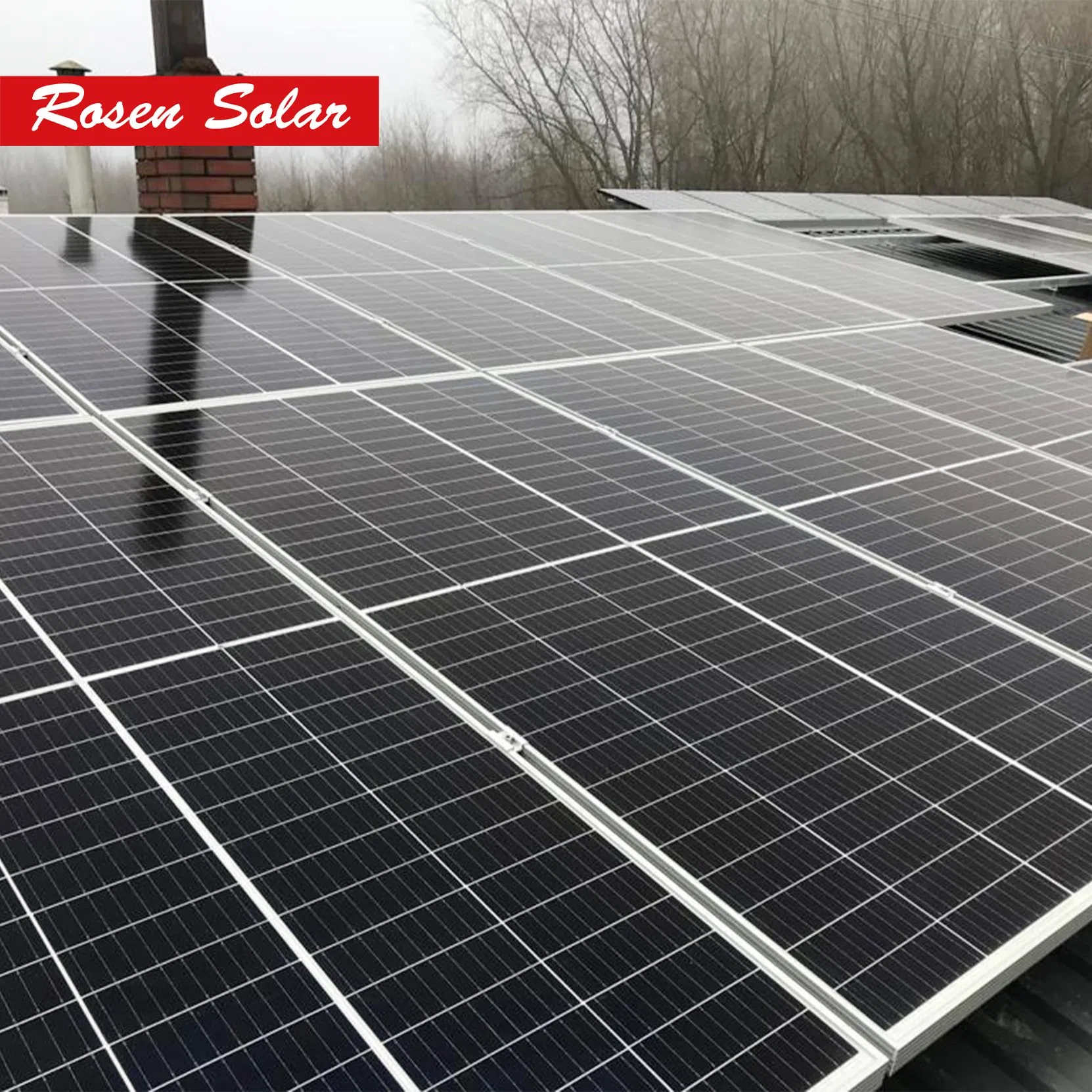

Project Gallery
❓
Frequently Asked Questions
What applications is this 10KW hybrid solar system suitable for?
This system is highly versatile and suitable for residential homes, industrial facilities, commercial buildings, and agricultural irrigation projects.
Which battery types are compatible with this inverter?
The system supports a variety of battery technologies, including AGM, Gel, and Lithium-ion Powerwall batteries with integrated Battery Management Systems (BMS).
Does the system support remote monitoring?
Yes, the system includes a WiFi/GPRS device that allows you to monitor performance and energy production 24/7 via mobile or desktop.
Can the system be installed on different types of surfaces?
Absolutely. We provide mounting brackets specifically designed for both tile roof installations and ground-mounted setups.
What certifications does this solar equipment hold?
Our products are fully certified with international standards including ISO, CE, TUV, VDE, and IEC to ensure safety and reliability.
Is the system capable of running 24 hours a day?
Yes, by combining solar panels with high-capacity battery storage, the system is designed to provide power 24 hours a day, depending on your load requirements.
