⚡ Basic Information
Model NO.
SAS500KW-1000KWH-HY
Application
Industrial, Commercial
Solar Panel Type
Monocrystalline / Polycrystalline
Mounting Type
Ground/Rooftop
Output Frequency
50Hz/60Hz
📋 Product Description
⚙️ Product Specification
| 500KW Solar Energy System Parameters |
| Model | SAS500KW-HY |
| 590W Solar Panel | 848 pieces |
| Hybrid Inverter | 500KW |
| Lithium Battery | 1MWH Customized LiFePO4 Battery Storage System with BMS |
| DC Cable 4mm2 | 1400 Meters |
| MC4 Connector | 900 Pairs |
| Mounting System | Customized for Rooftop or Ground |
| Storage Battery Specification |
| Battery Type | LiFePO4 battery |
| Nominal Capacity | 1000KWH |
| Nominal Voltage | 614~768V |
| Cooling Method | Air-Cooled |
| Protection Class | IP54 |
| Max Charge/Discharge Current | 700A |
🔍 Product Details

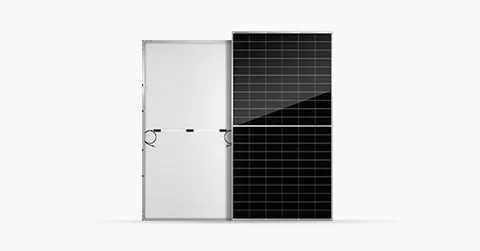

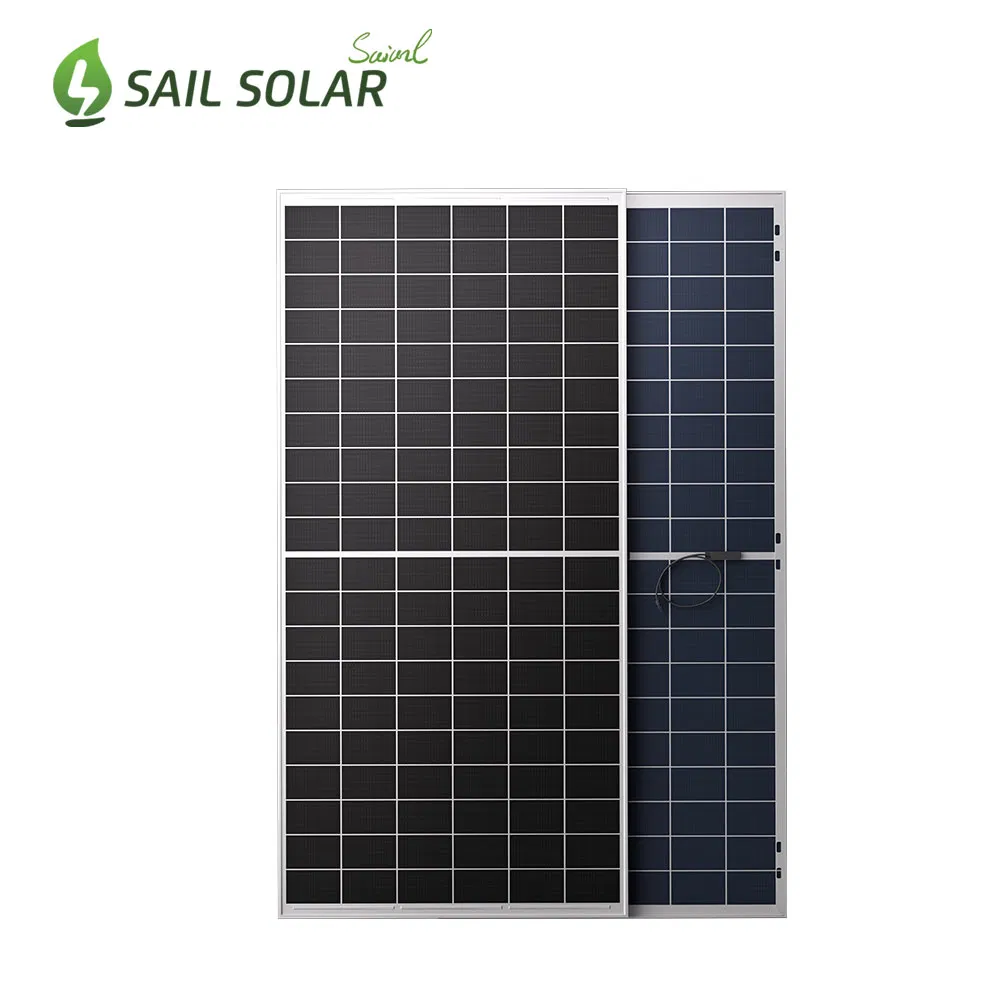

Solar Panel
- Mono/Poly/Black High Efficiency modules
- 25 years Warranty
- Conversion efficiency over 21%
- Anti-reflective and anti-soiling surface
- PID Resistant, High salt and ammonia resistance

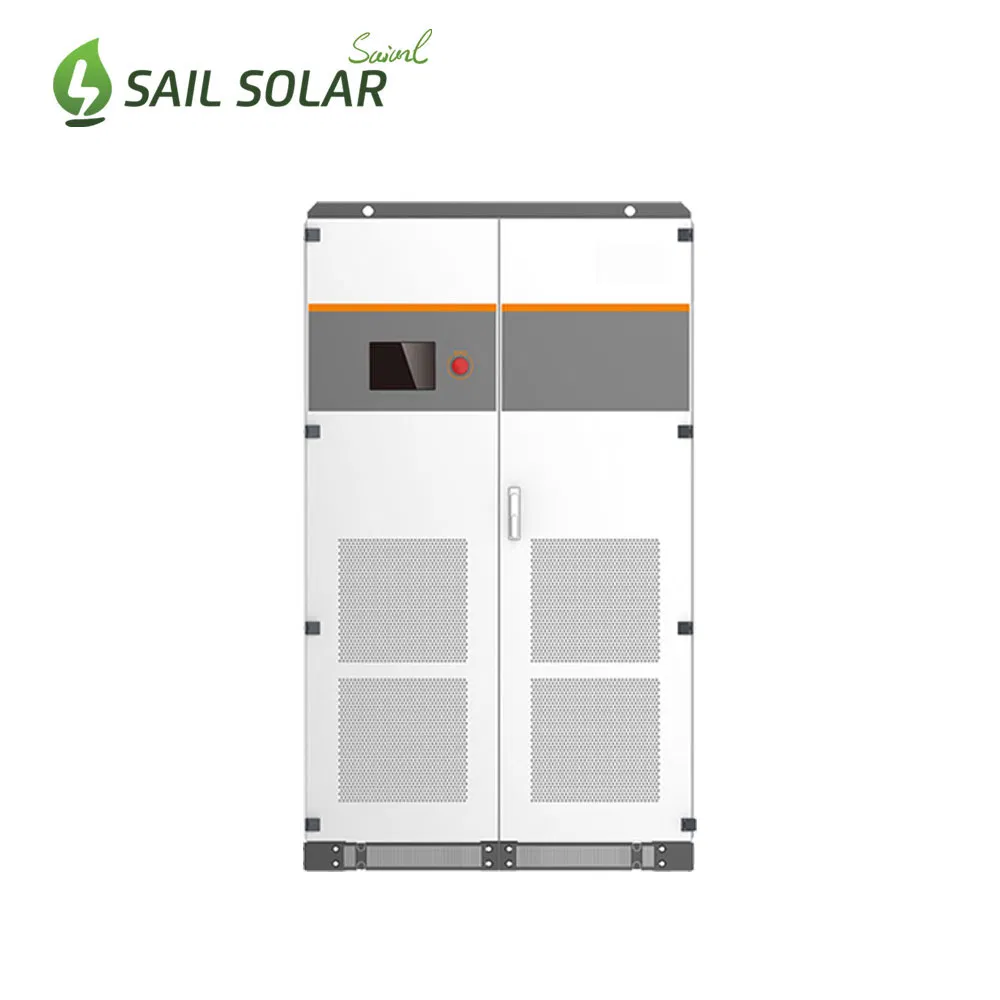

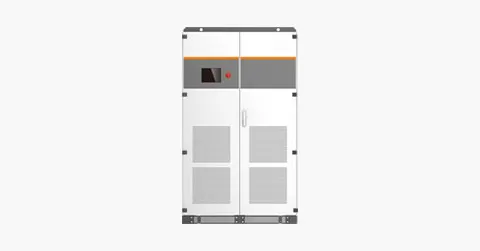

500KW Hybrid Inverter
- Support 100% unbalance
- Easy expansion, support PV flexible configuration
- Parallel connection of multiple machines
- Integrated PV/MPPT module/transformer/STS
- Maintenance bypass included

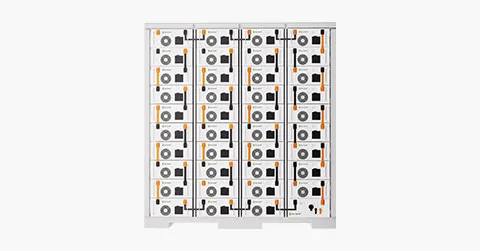

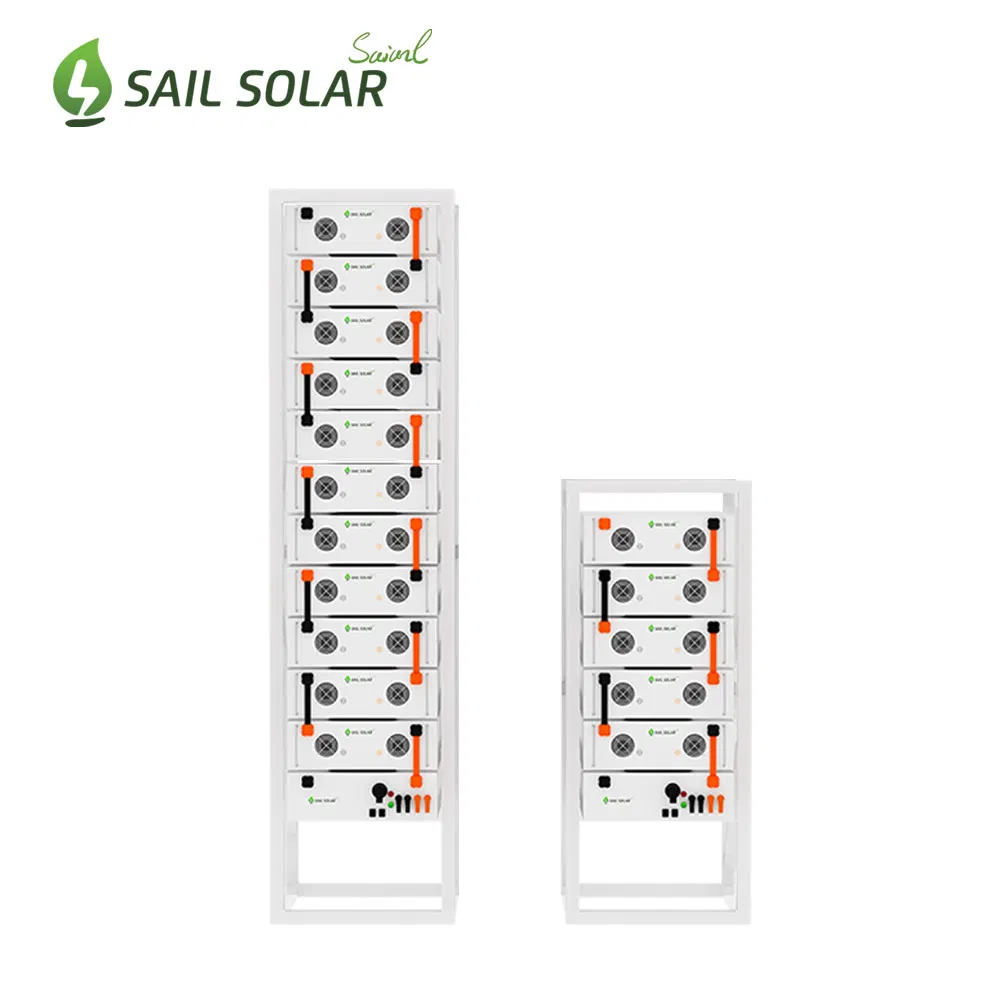

Lithium Battery
- LiFePO4 battery cells
- Flexible and customized capacity options
- Built-in BMS, connect in parallel
- More than 6000 times cycle life

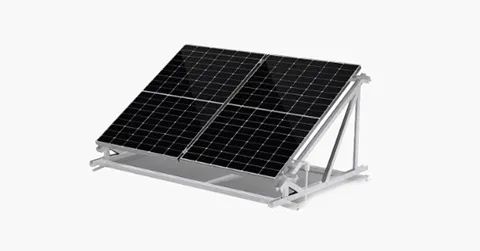

Mounting Brackets
- Residential Pitch Roof systems
- Commercial Flat & workshop roof options
- Ground Solar Mounting systems
- All aluminum structure for durability
- Car parking solar mounting available

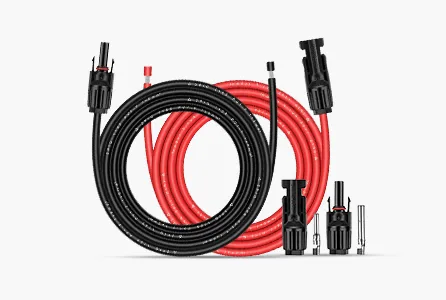

Accessories

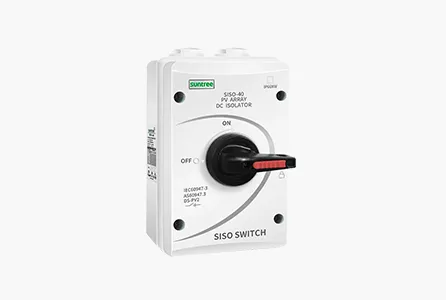

DC Isolating Switch

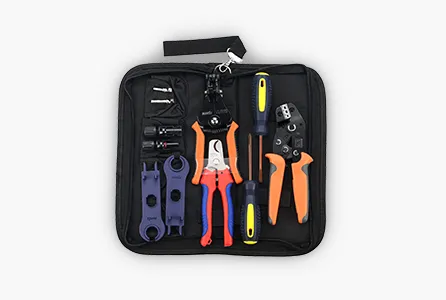

Installation Tools

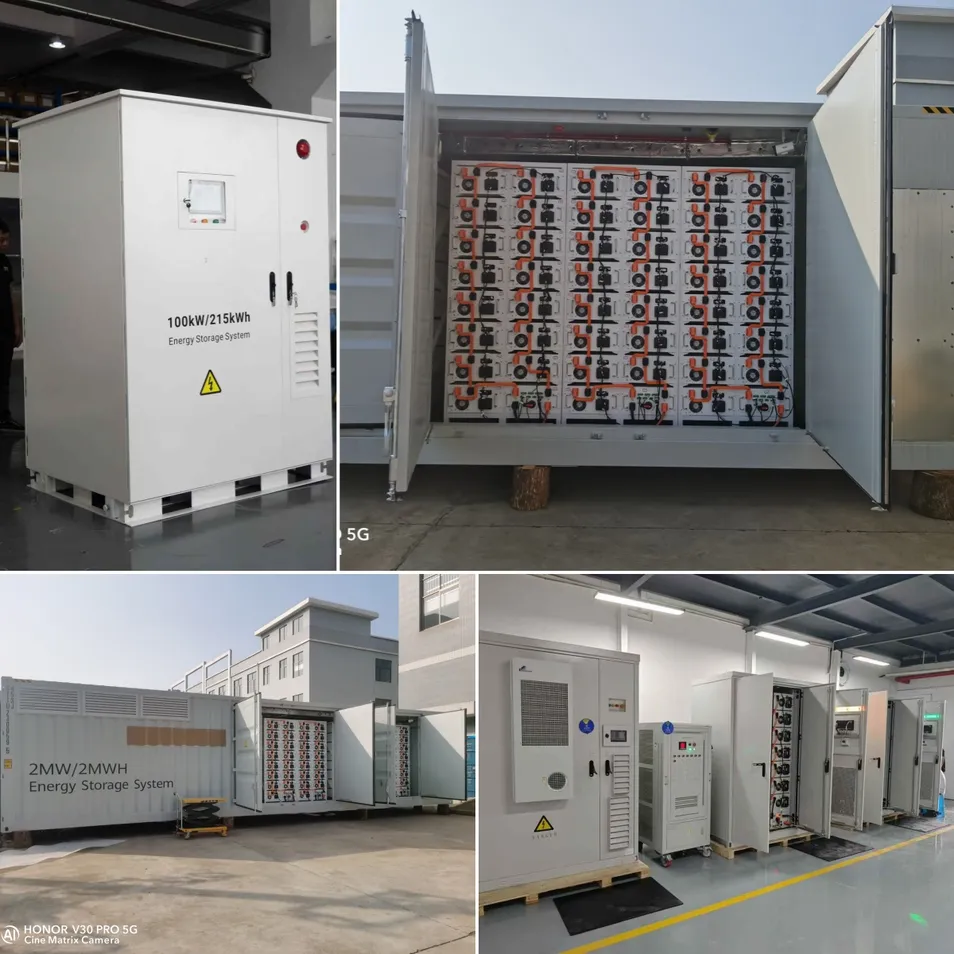

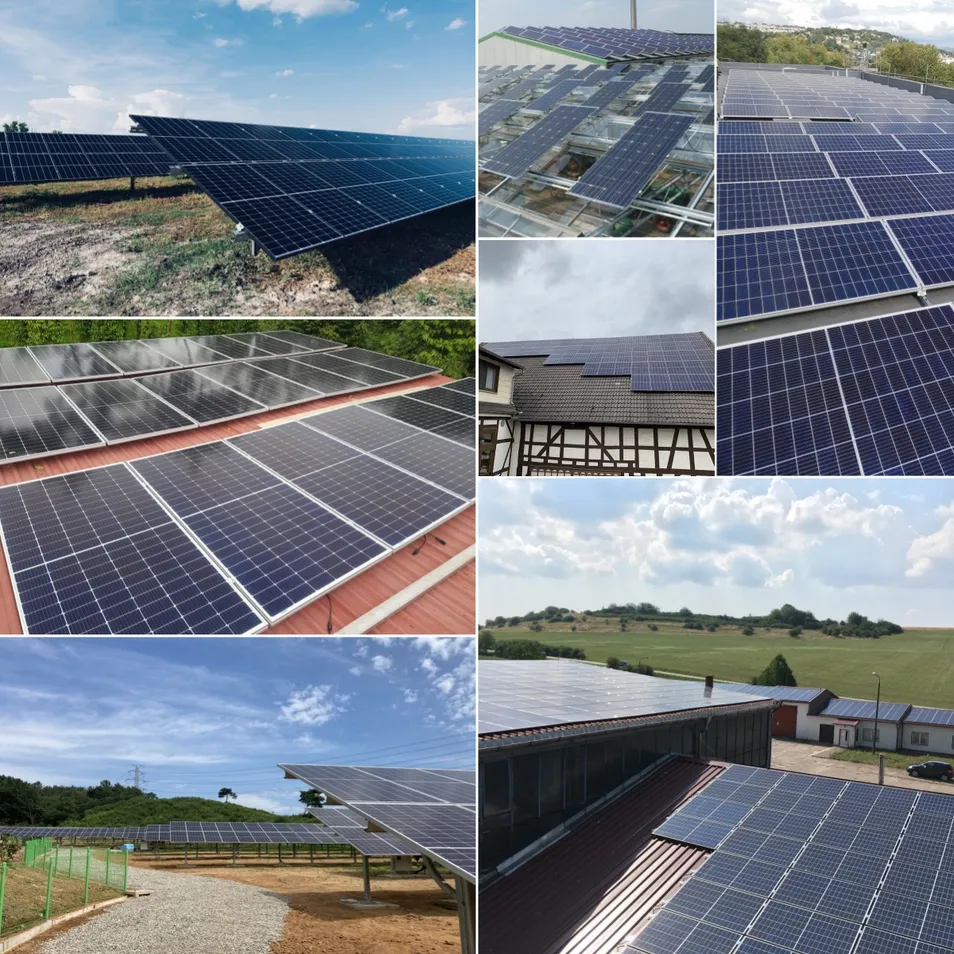

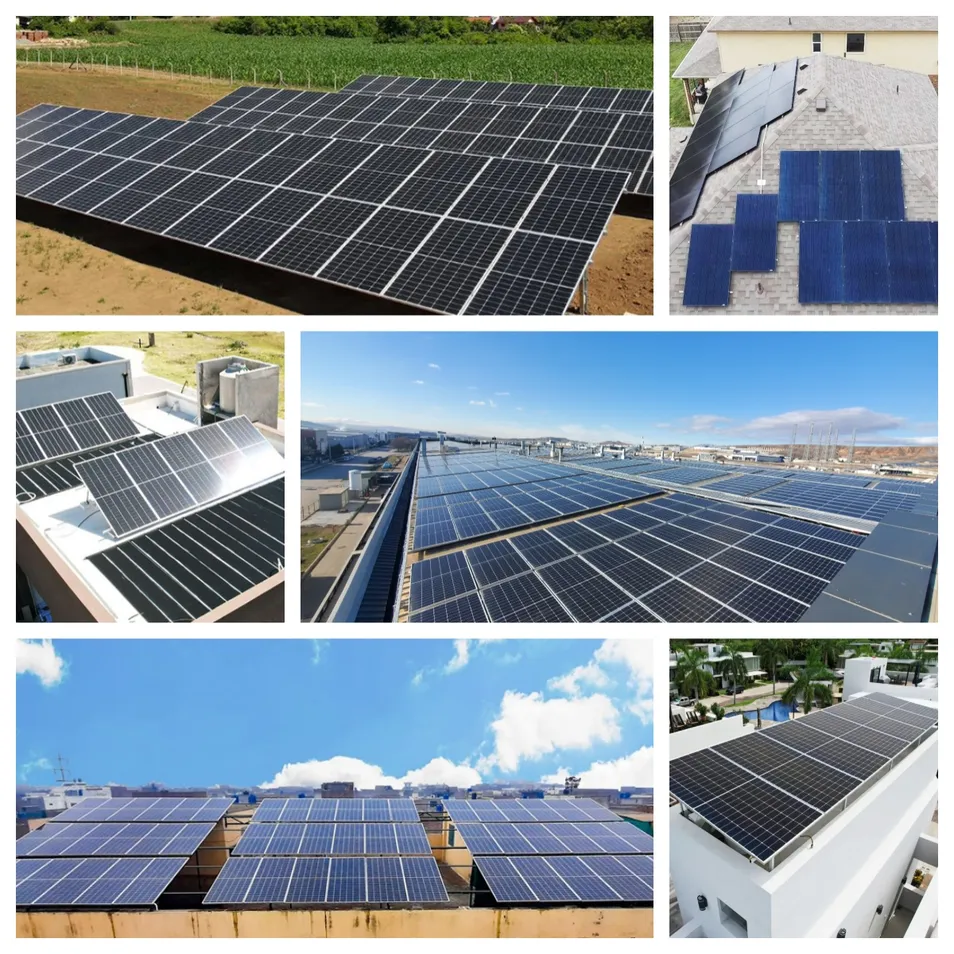

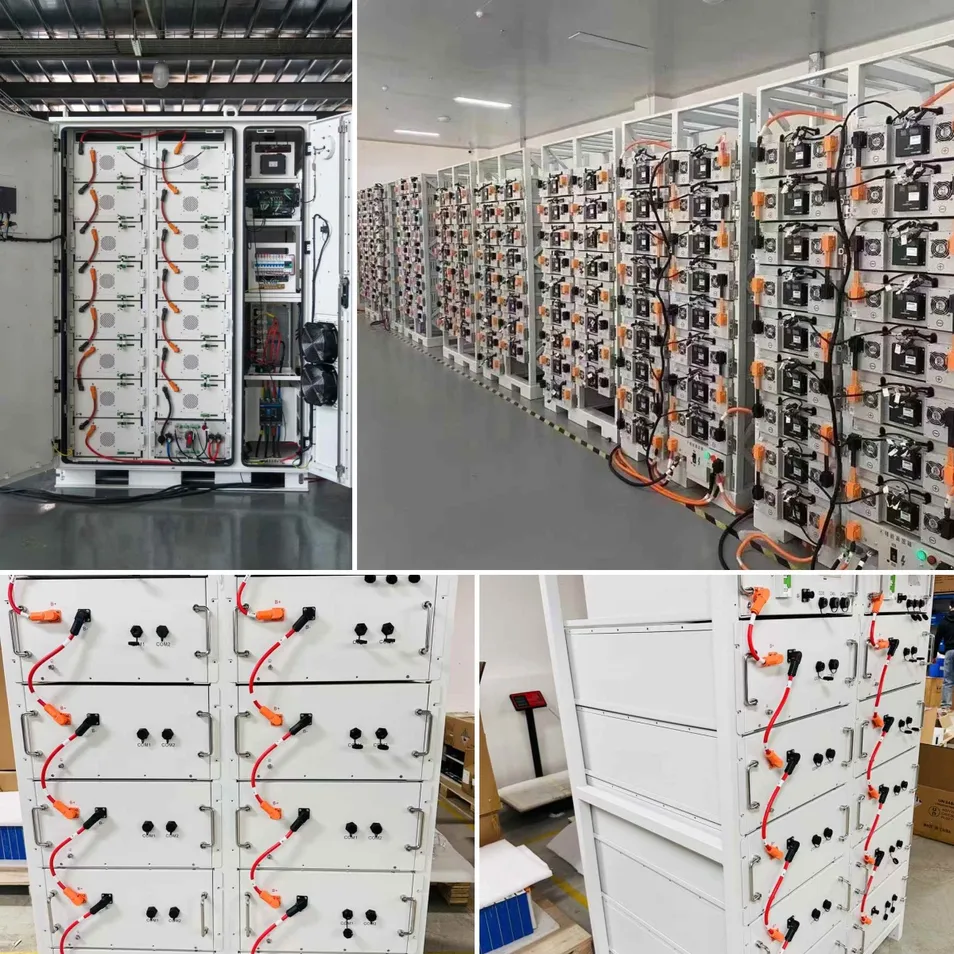

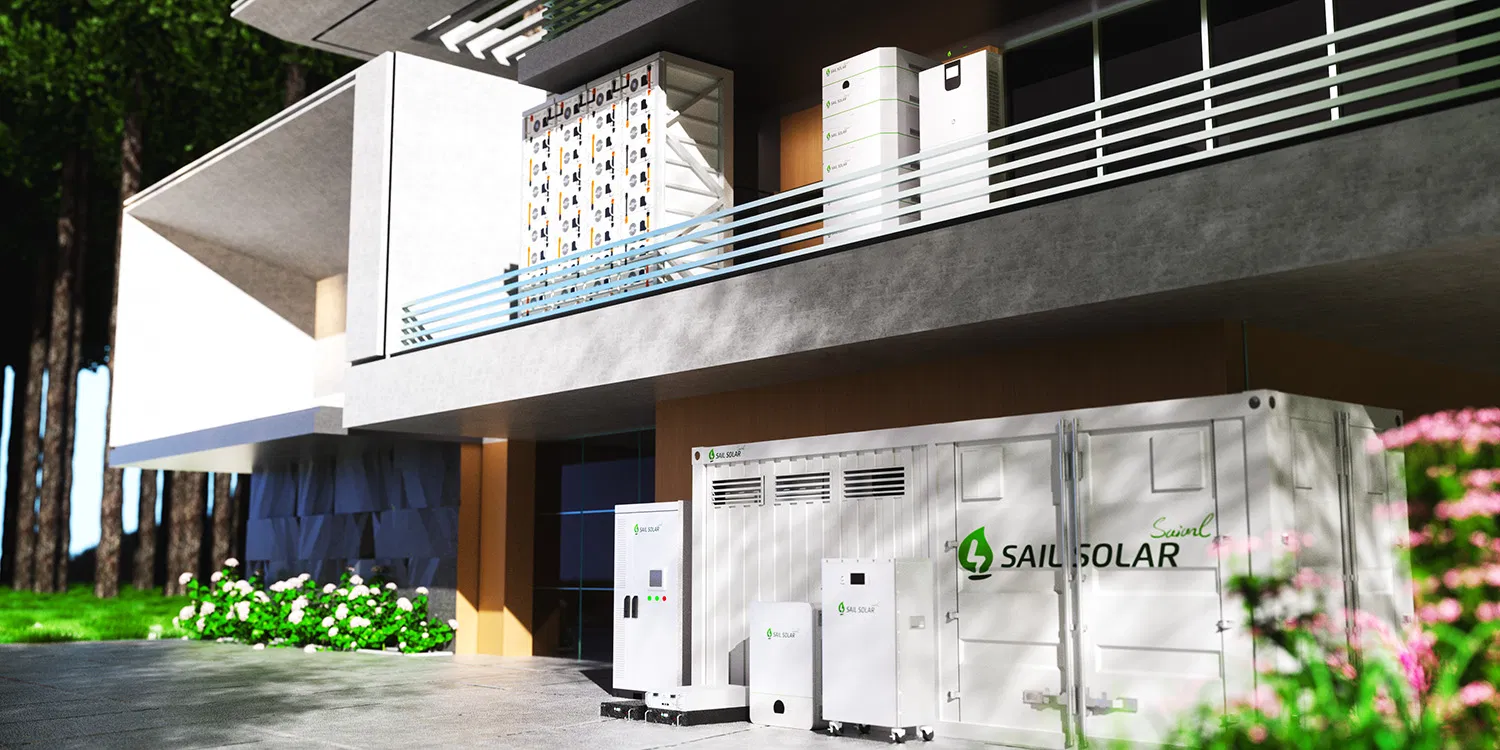

🏗️ Product Application

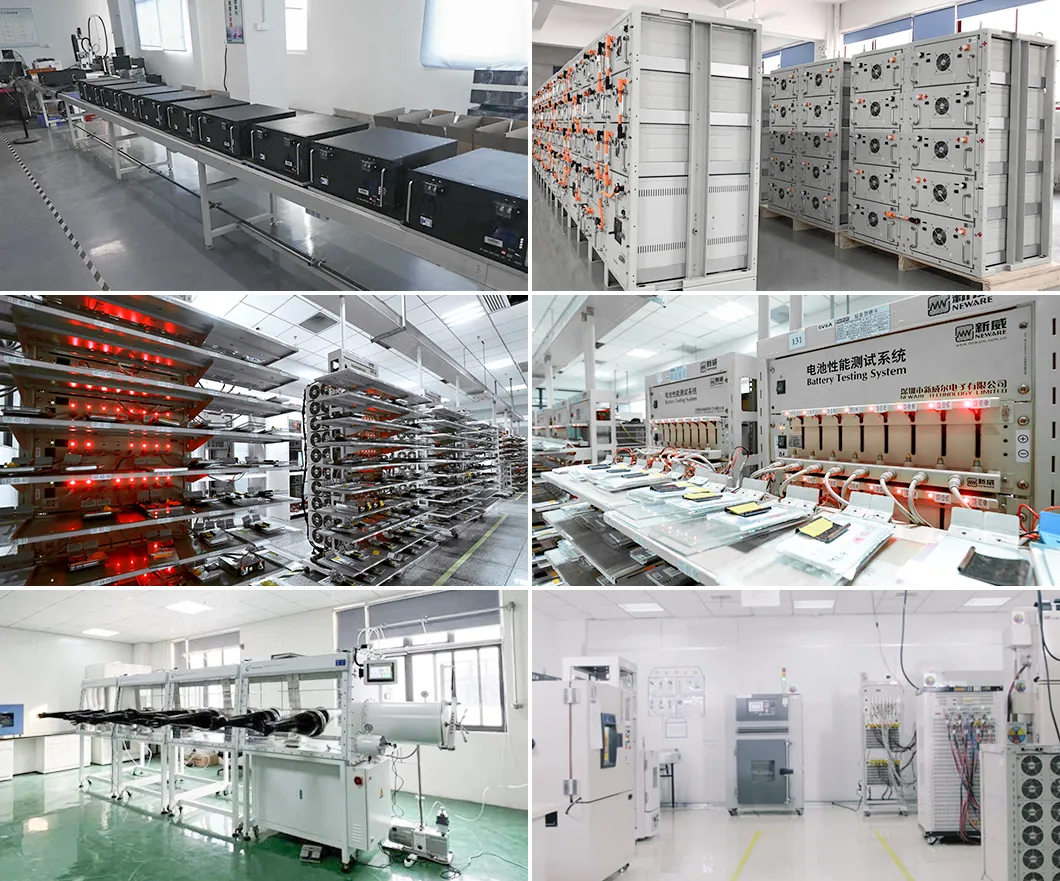

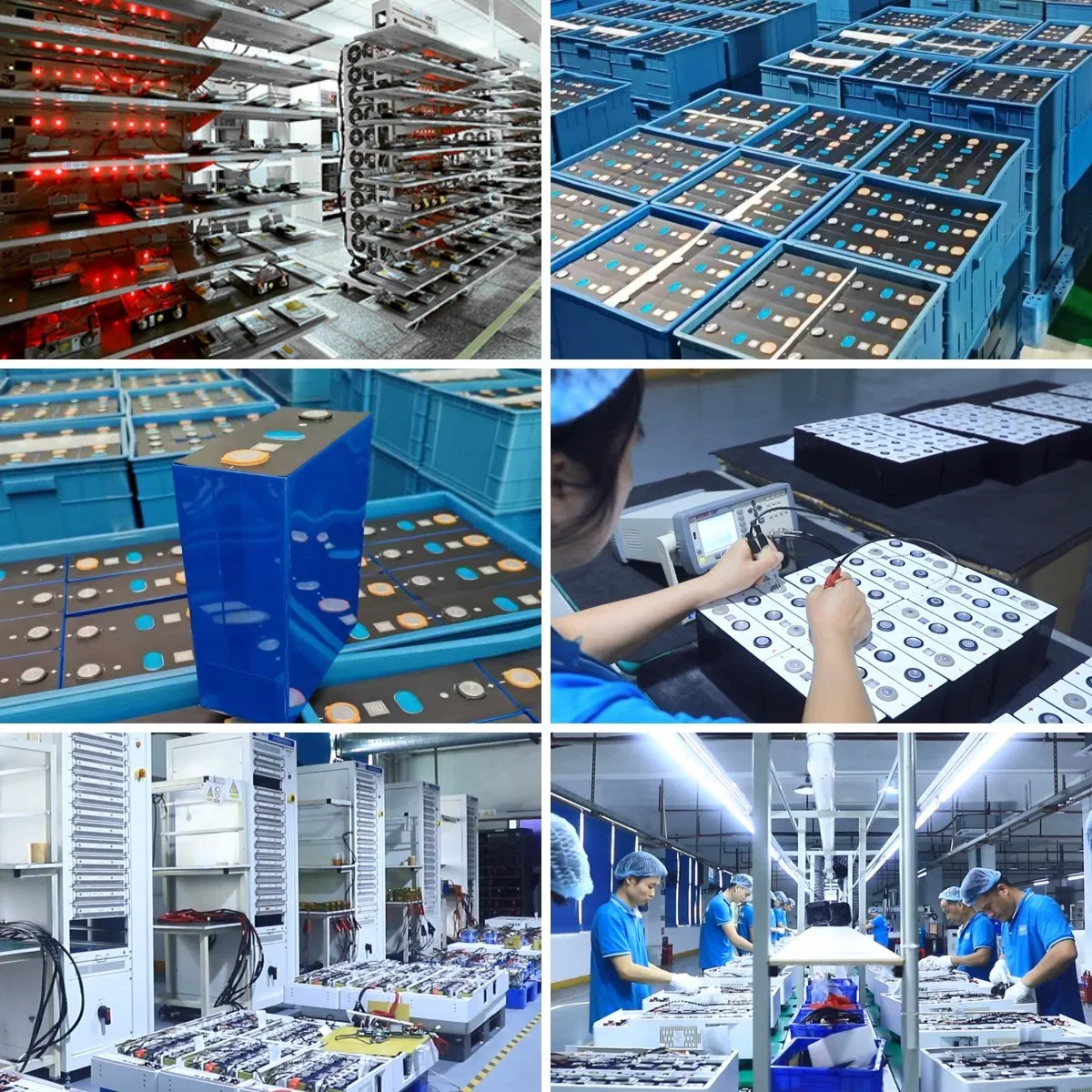

🏭 Our Factory
📜 Certification & Exhibition
📦 Packaging & Shipping
❓ Frequently Asked Questions
1. What are the primary applications for this 500KW solar system?
This system is specifically designed for large-scale industrial and commercial use, such as factories, shopping centers, and large office buildings.
2. How long is the warranty for the solar panels?
The solar panels come with a 25-year performance warranty, ensuring long-term reliability and power output.
3. Can the lithium battery storage be expanded?
Yes, the system supports customized lithium battery configurations and flexible capacity options to meet specific energy storage needs.
4. Is the inverter compatible with both on-grid and off-grid modes?
Yes, the 500KW hybrid inverter supports both on-grid and off-grid operations, providing seamless power transition and stability.
5. What mounting options are available for the solar panels?
We provide customized mounting solutions for rooftops (pitched or flat), ground installations, and even vertical wall or car parking structures.
6. How is the equipment protected during international shipping?
All components are professionally packed using wooden pallets and reinforced carton boxes to ensure safe arrival during sea or land transport.
