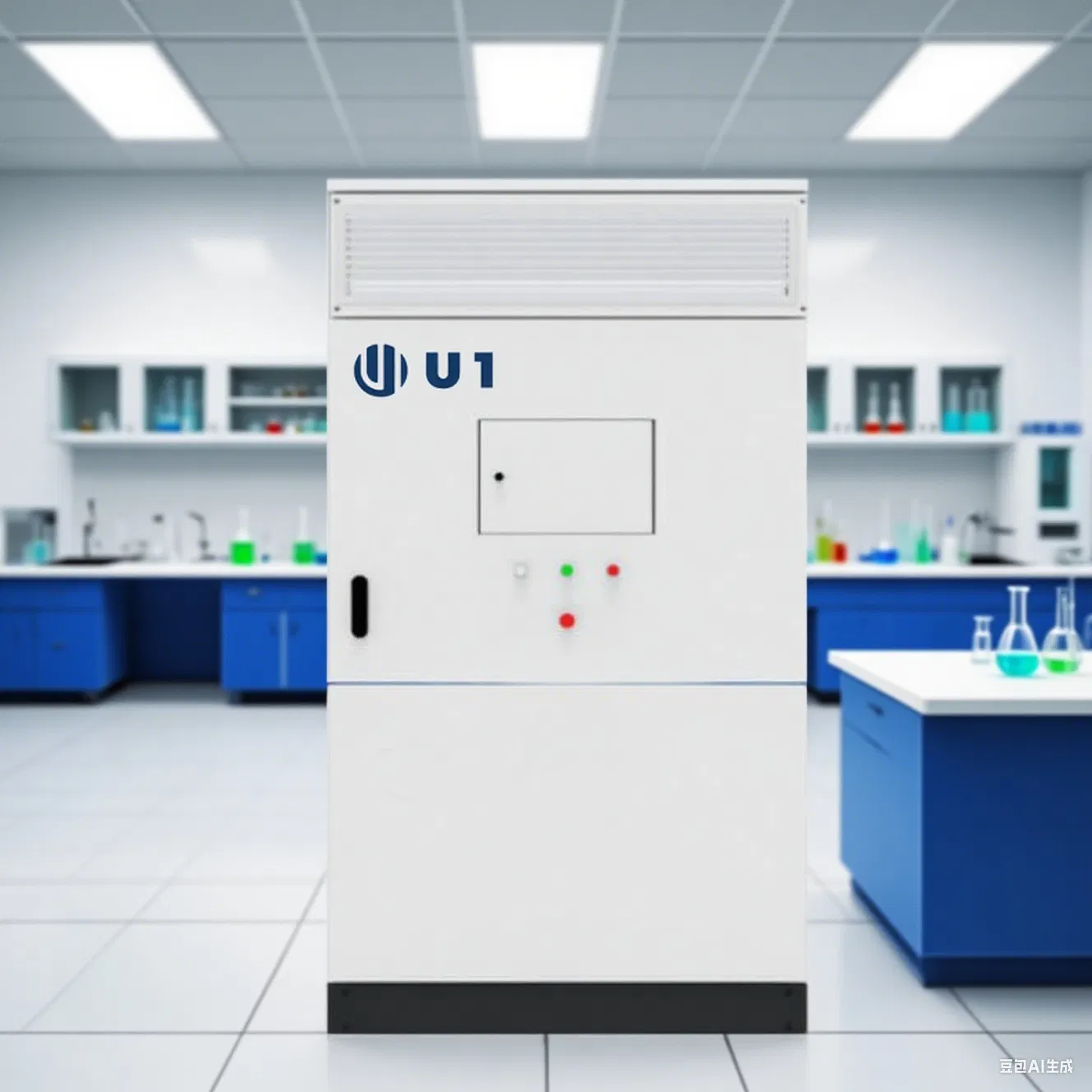

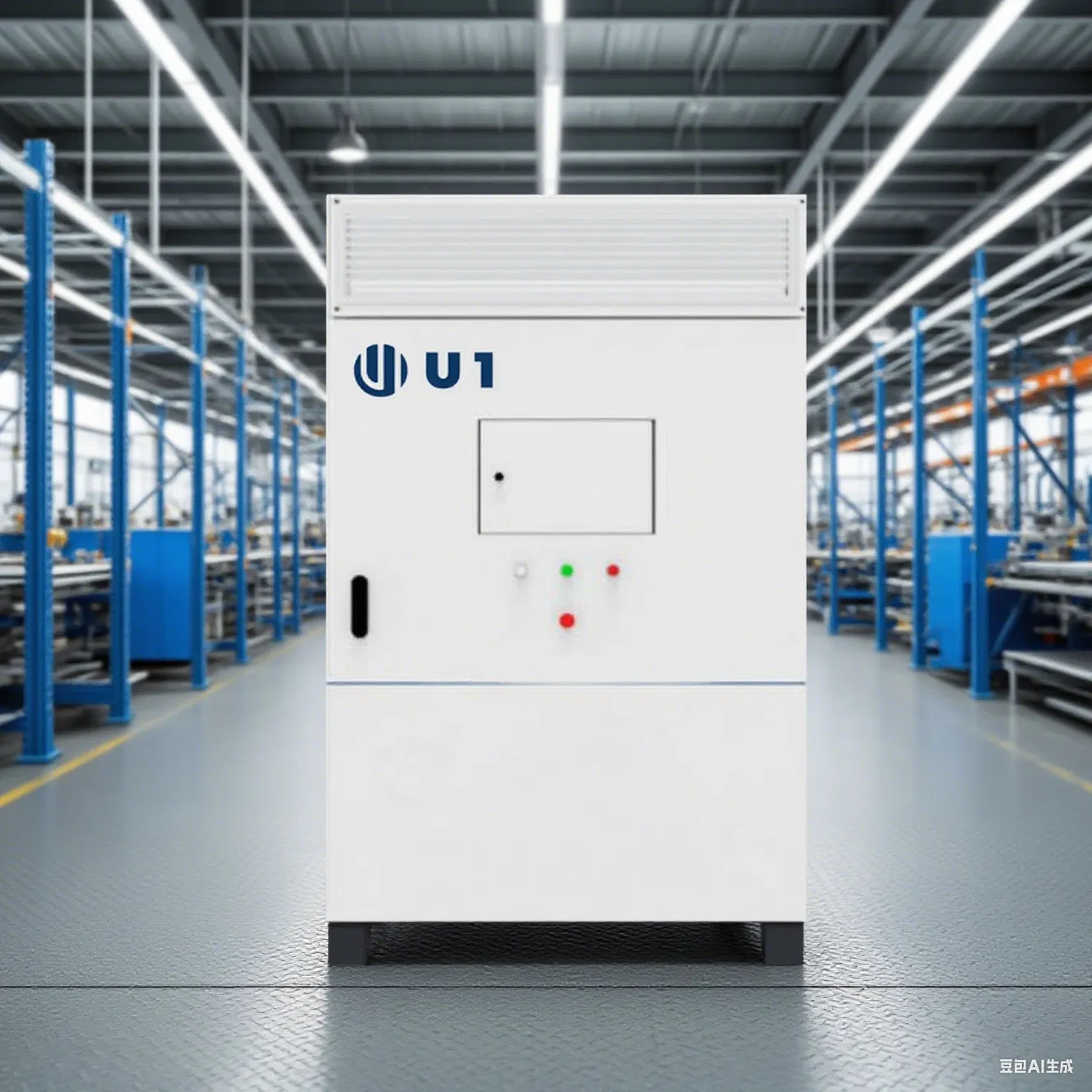

Commercial Bess LiFePO4 Scalable Battery Solar Energy Storage System - ISO9001 Certified Power Solution

Commercial Bess LiFePO4 Scalable Battery Solar Energy Storage System - ISO9001 Certified Power Solution

Commercial Bess LiFePO4 Scalable Battery Solar Energy Storage System - ISO9001 Certified Power Solution

Commercial Bess LiFePO4 Scalable Battery Solar Energy Storage System - ISO9001 Certified Power Solution

Commercial Bess LiFePO4 Scalable Battery Solar Energy Storage System - ISO9001 Certified Power Solution

1 / 5

Commercial Bess LiFePO4 Scalable Battery Solar Energy Storage System - ISO9001 Certified Power Solution

Commercial Bess LiFePO4 Scalable Battery Solar Energy Storage System - ISO9001 Certified Power Solution

Commercial Bess LiFePO4 Scalable Battery Solar Energy Storage System - ISO9001 Certified Power Solution

Commercial Bess LiFePO4 Scalable Battery Solar Energy Storage System - ISO9001 Certified Power Solution

Commercial Bess LiFePO4 Scalable Battery Solar Energy Storage System - ISO9001 Certified Power Solution

Commercial Bess LiFePO4 Scalable Battery Solar Energy Storage System - ISO9001 Certified Power Solution

Customization:	Available
Weight:	2.6t
Warranty:	2 Years

Send Inquiry

Product Description

Overview - Basic Info

Model NO.

U1-03-215

Cycle Life

8000times

Nominal Capacity

215kwh

Type

Power

Certification

ISO9001:2000

Form

All- Packaged Type

Operation Voltage

High Voltage

Shell Grade

IP65

Battery Type

LiFePO4

Rated Voltage

768 V

Specification

1250*1300*2350 mm

Weight

2.6t

Product Parameters

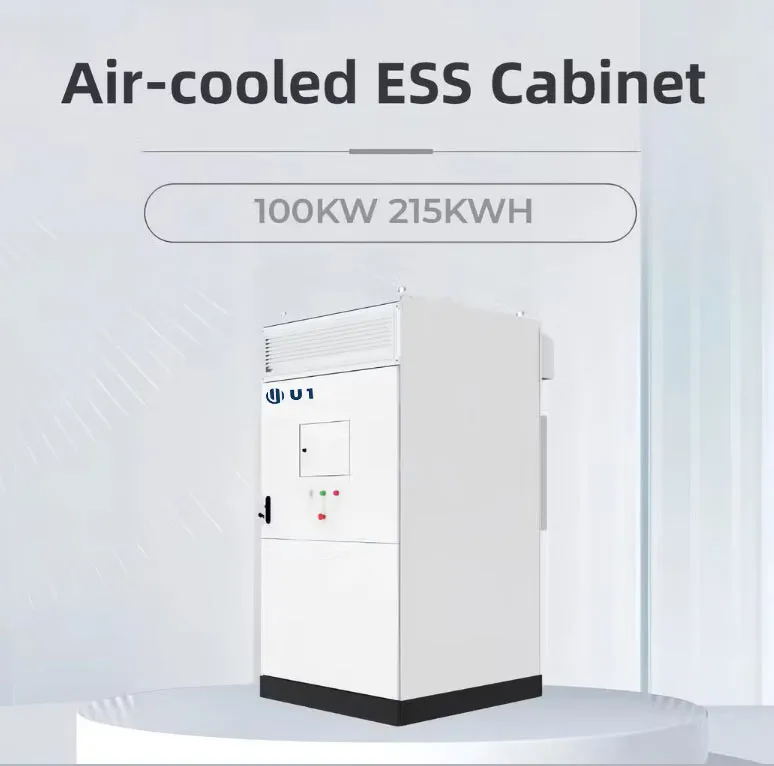

Commercial Bess LiFePO4 Parameters

DC Battery Parameters
Battery Cell Type	LFP 280Ah
Battery System Configuration	215kWh/1P240S
Battery Voltage Range	600~876V DC
System Rated Voltage	768V DC

AC Side Parameters
AC Rated Power	100kW
AC Maximum Power	110kW (continuous for 1min)
Grid Rated Voltage	400V AC
Rated Grid Frequency	50Hz

Main Features & Benefits

U1 215KWH commercial & industrial energy storage system leverages cutting-edge cabinet-level liquid cooling and temperature balancing strategies. With a cell temperature variation kept under 3°C, this ensures enhanced cell temperature uniformity and prolongs battery longevity.

Compact: Requires only a 1.4m² footprint.
High Integration: 233kWh of energy in a single cabinet.
Efficient Cooling: Optimized in-PACK duct design.
Long Cycle Life: Exceeding 8,000 cycles.

Ultimate Safety: In-PACK fire warning and protection system.
Black Start: Capable for autonomous power restoration.
Modular Design: Permitting flexible parallel expansion.
Economic Solution: Advantageous for solar panel storage.

Detailed Photos

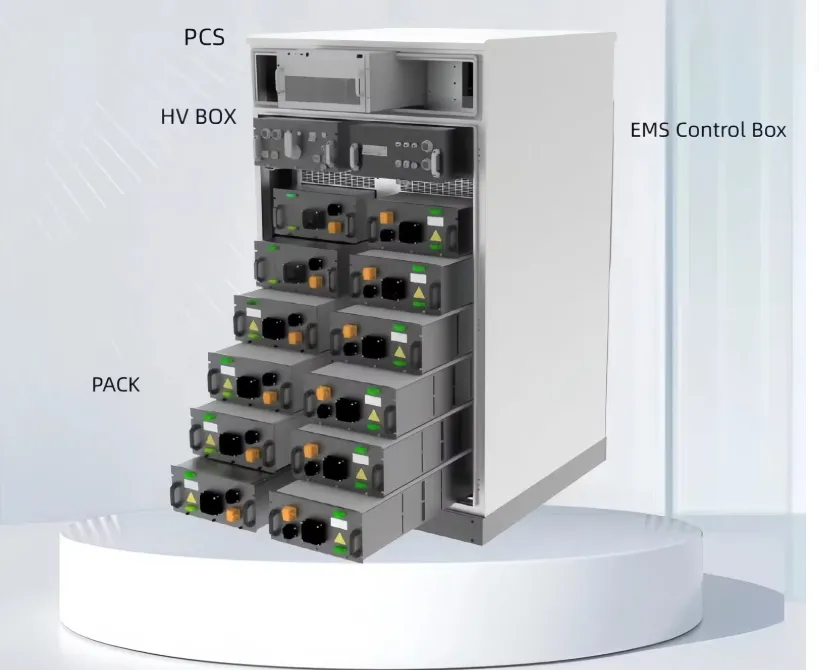

Energy Storage System Detail 1

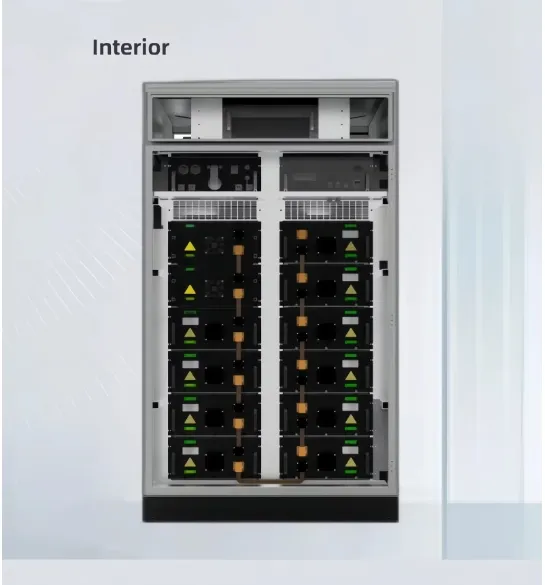

Energy Storage System Detail 2

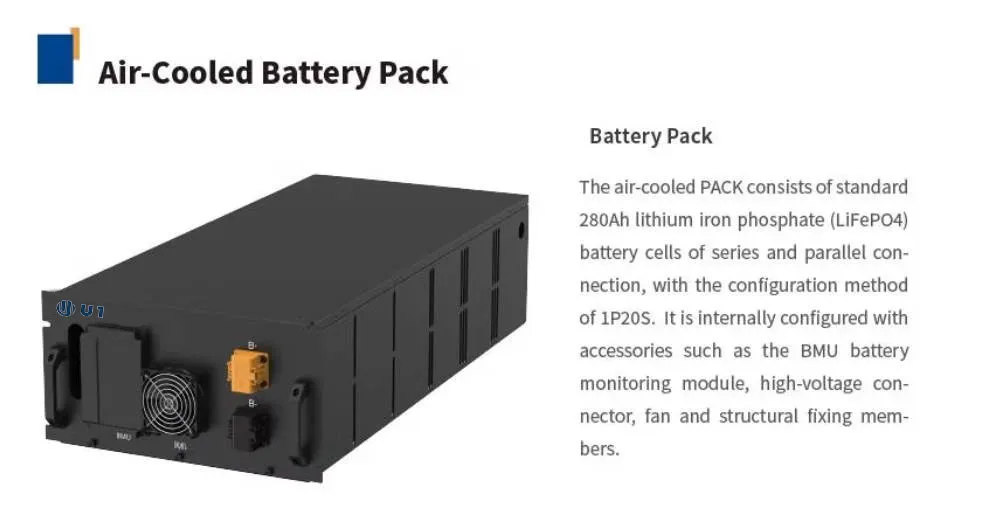

Energy Storage System Detail 3

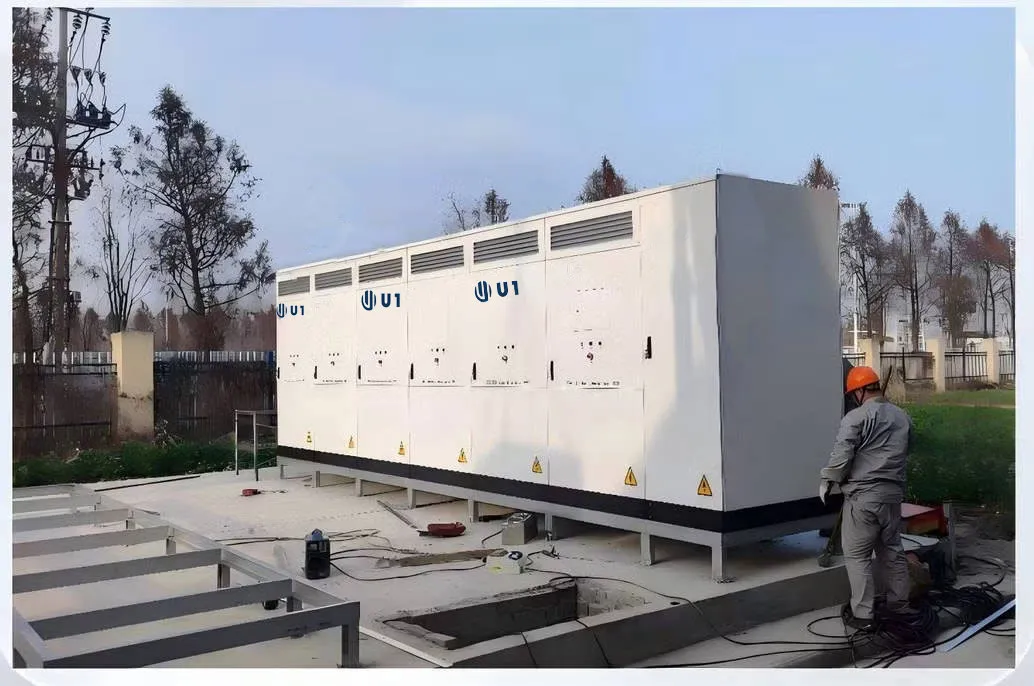

Energy Storage System Detail 4

Energy Storage System Detail 5

Energy Storage System Detail 6

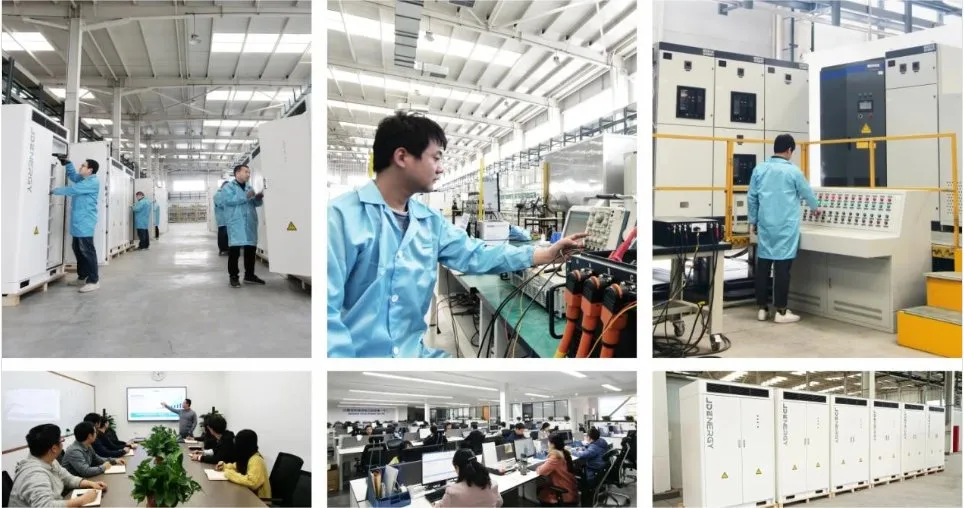

Full System Layout

Certifications

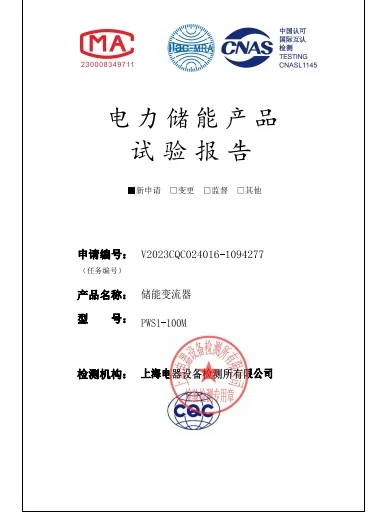

Certification 1

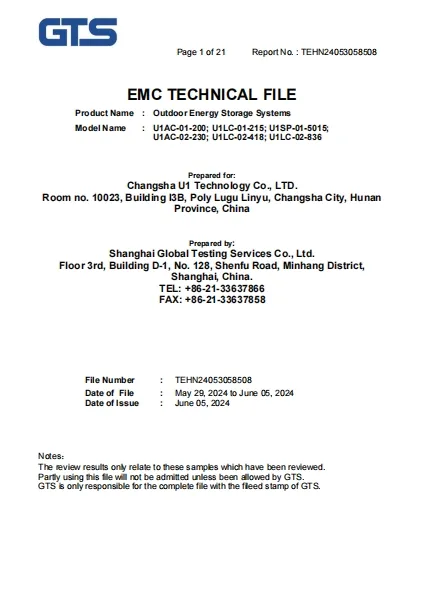

Certification 2

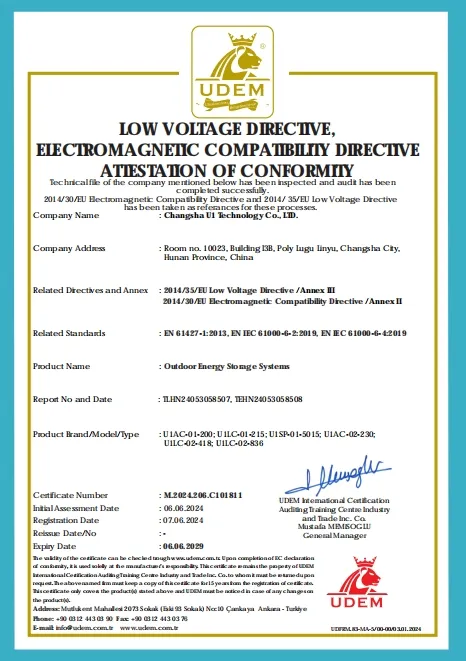

Certification 3

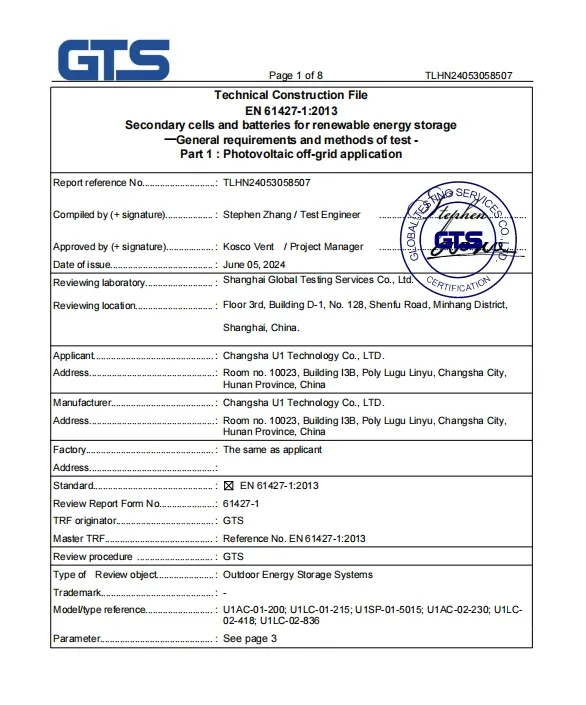

Certification 4

Certification 5

Frequently Asked Questions

Q: Are you a trading company or a manufacturer?

A: We are a professional manufacturer with our own factory.

Q: Does your company provide customized manufacturing?

A: Yes, we provide OEM/ODM services. Our experienced R&D team provides efficient, customized solutions.

Q: How long is your delivery time?

A: Generally, it takes about 1 month for items that are in stock.

Q: Do you provide samples?

A: Yes, samples are available. Please note that sample costs and freight charges apply.

Q: What are your terms of payment?

A: For orders less than $3000, 100% before shipment. For orders over $3000, 30% deposit and 70% before shipment, or via negotiation.

Q: What is the cycle life of the battery system?

A: Our battery systems offer an exceptional cycle life exceeding 8,000 cycles.
