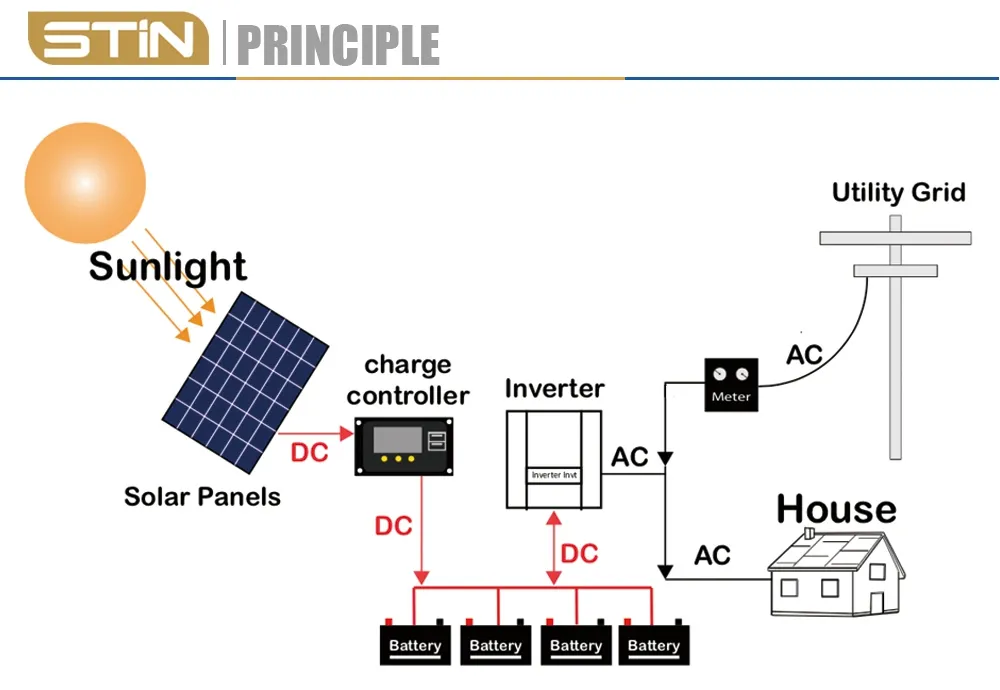

Off-grid solar energy systems, also known as stand-alone solar systems, operate independently of the public power grid (utility). These systems are highly popular and ideal for remote areas without access to public power or where the grid is unstable.
Our solutions are versatile and suitable for Home, Commercial, and Industrial applications. Available capacities include 1kW to 200kW+, or fully customized systems to meet specific power requirements.
| Part | Specification | Quantity | Remarks |
|---|---|---|---|
| Solar Panel | Mono 410W | 27 PCS | 3 in string, 9 parallel |

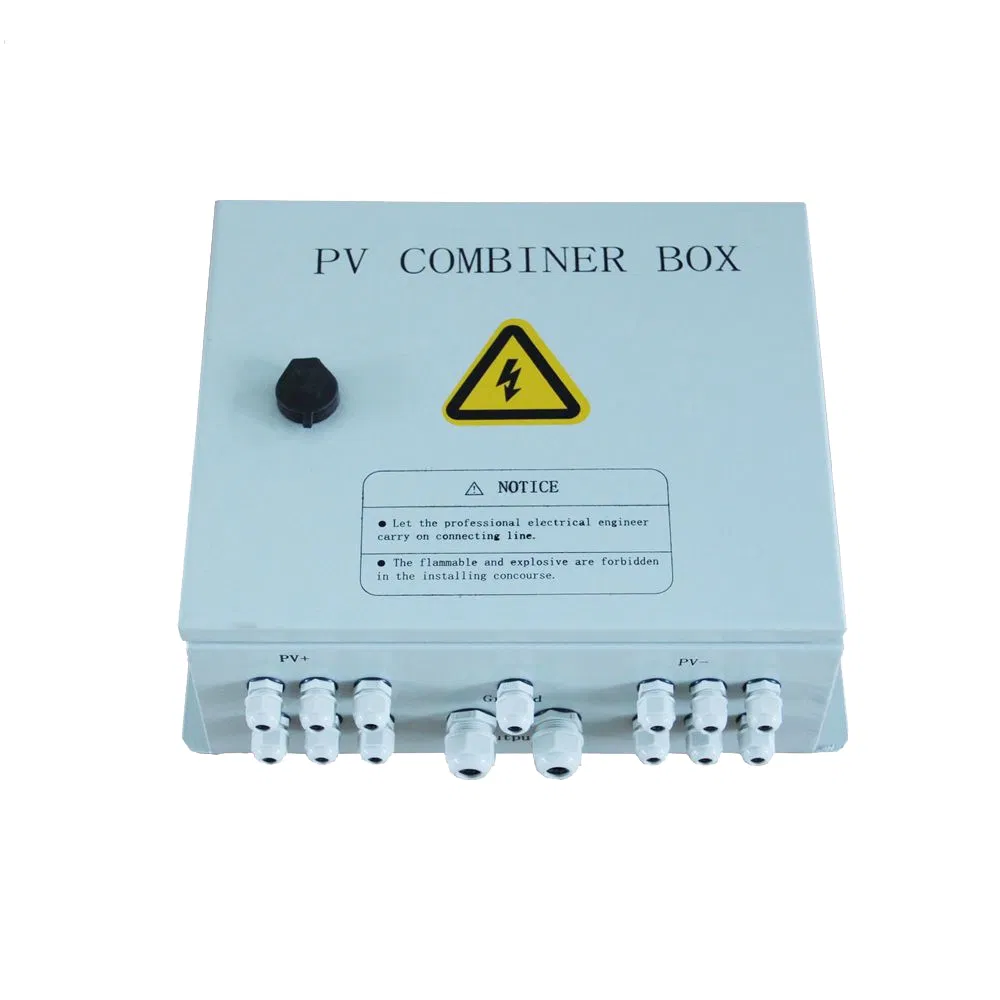

| PV Combiner Box | 3 inputs, 1 output | 3 SETS | - |

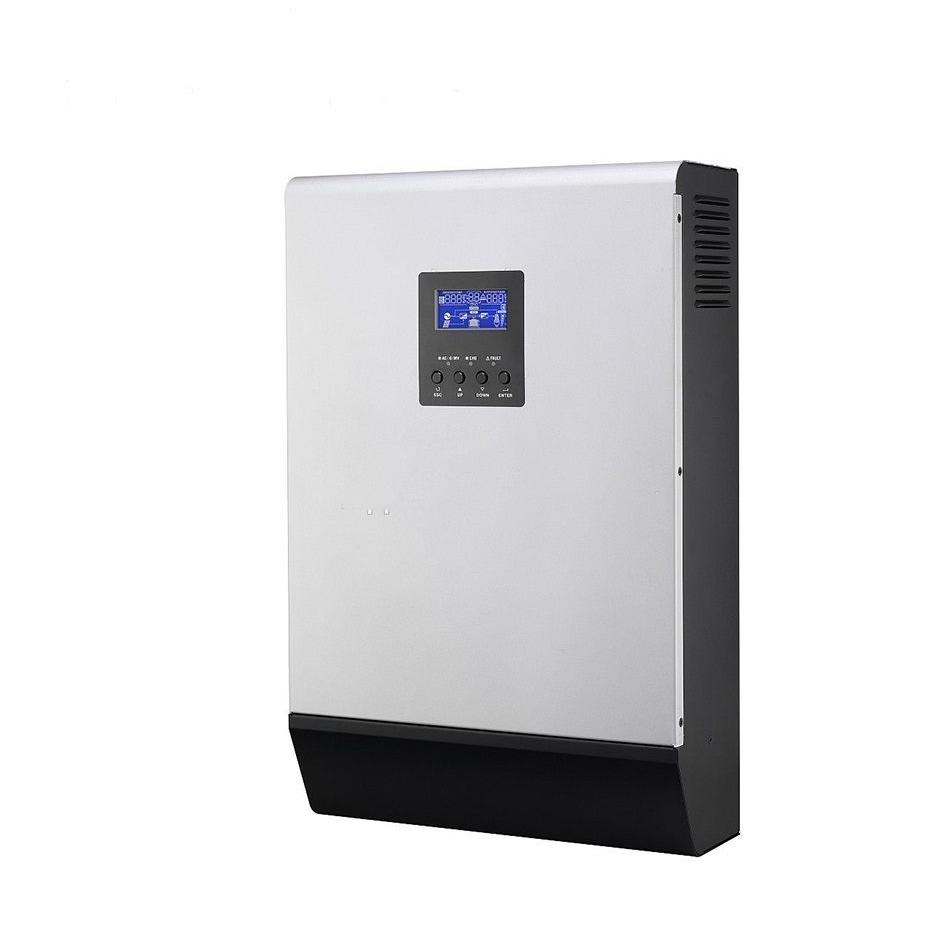

| Inverter w/ MPPT | 4000W High Freq | 3 PCS | Parallel connection |

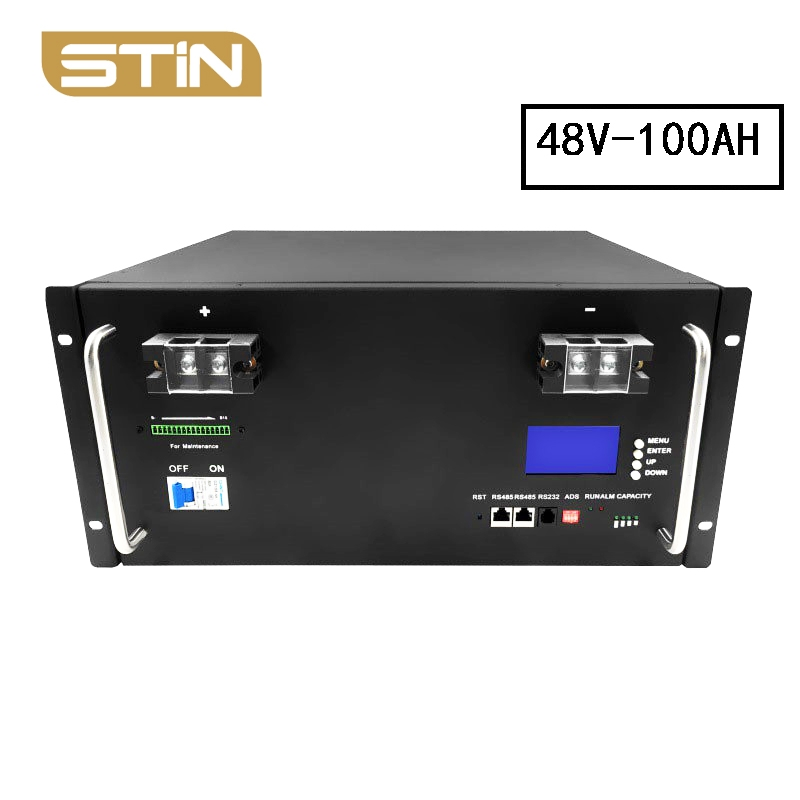

| LiFePo4 Battery | 48V-100AH | 6 PCS | - |
| PV Cables | 4mm² | 600M | 300M Red + 300M Black |
| Part | Specification | Quantity | Remarks |
|---|---|---|---|
| Solar Panel | Mono 410W | 36 PCS | 3 in string, 12 parallel |
| PV Combiner Box | 3 inputs, 1 output | 4 SETS | - |
| Inverter w/ MPPT | 4000W High Freq | 4 PCS | Parallel connection |
| LiFePo4 Battery | 48V-100AH | 8 PCS | - |
| PV Cables | 4mm² | 800M | 400M Red + 400M Black |

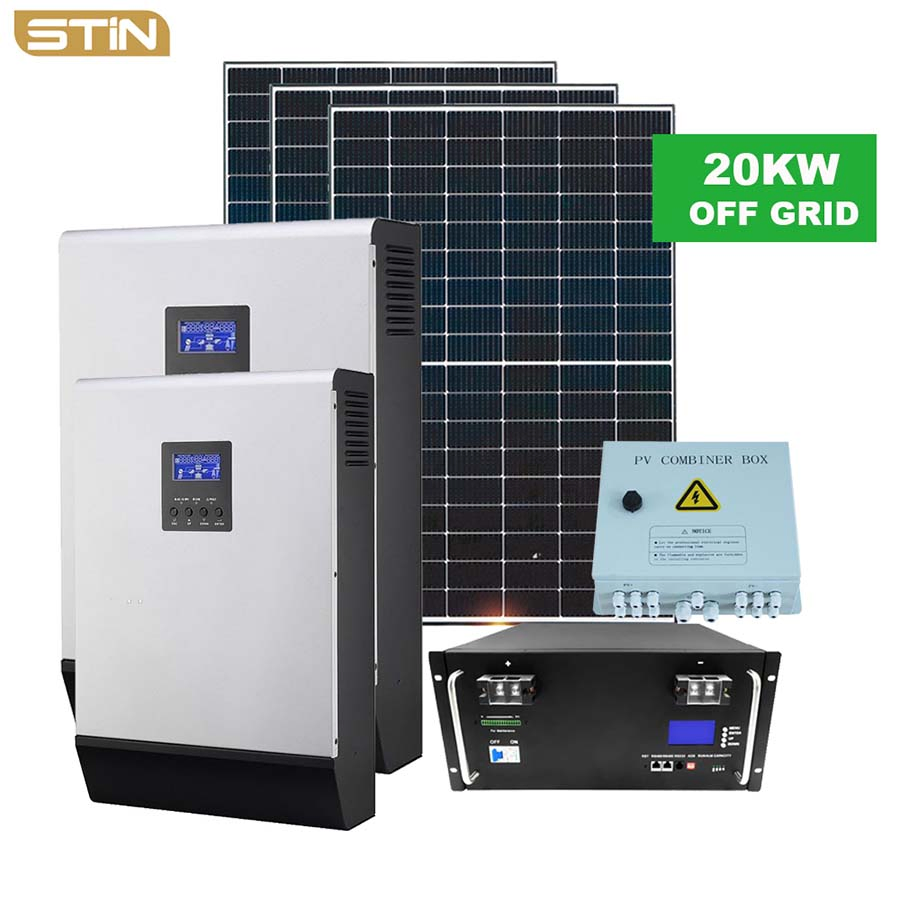

| Capacity | Solar Panels | Batteries | Inverters | Full Charge Time |
|---|---|---|---|---|
| 20,000W | 45 PCS (410W) | 10 PCS (100AH) | 5 PCS (4kW) | ~3 Hours (STC) |
| 24,000W | 54 PCS (410W) | 12 PCS (100AH) | 6 PCS (4kW) | ~3 Hours (STC) |

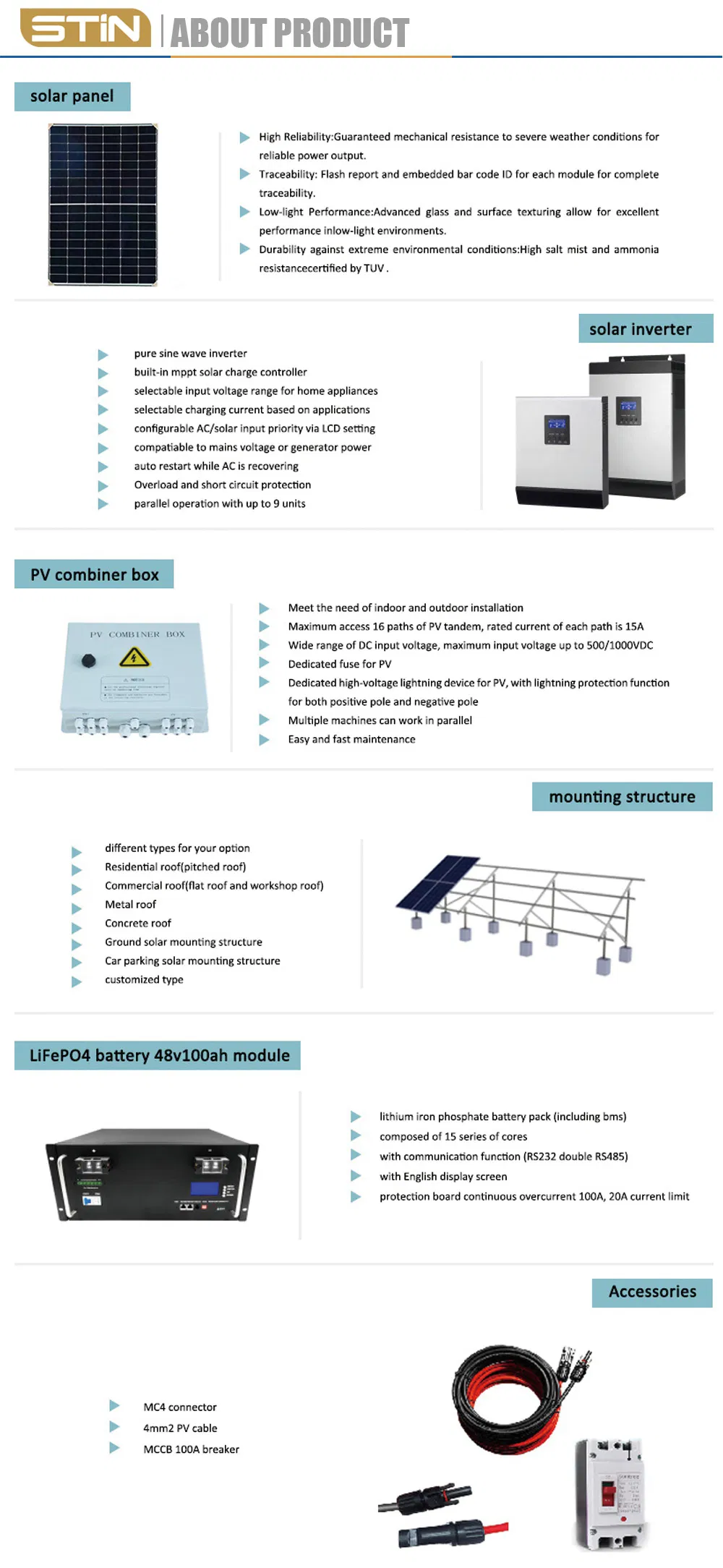

We are a total solution provider based on clean, sustainable solar energy. Our core focus includes product development, production, system integration, and global sales. Our comprehensive catalog features high-efficiency solar panels, turn-key completed on-grid/off-grid systems, hybrid solutions, solar air conditioners, and advanced lithium-ion battery storage.
Our commitment is to manufacture and deliver the most reliable, cost-effective solar energy solutions to every corner of the world, supported by rigorous quality control and expert engineering.
