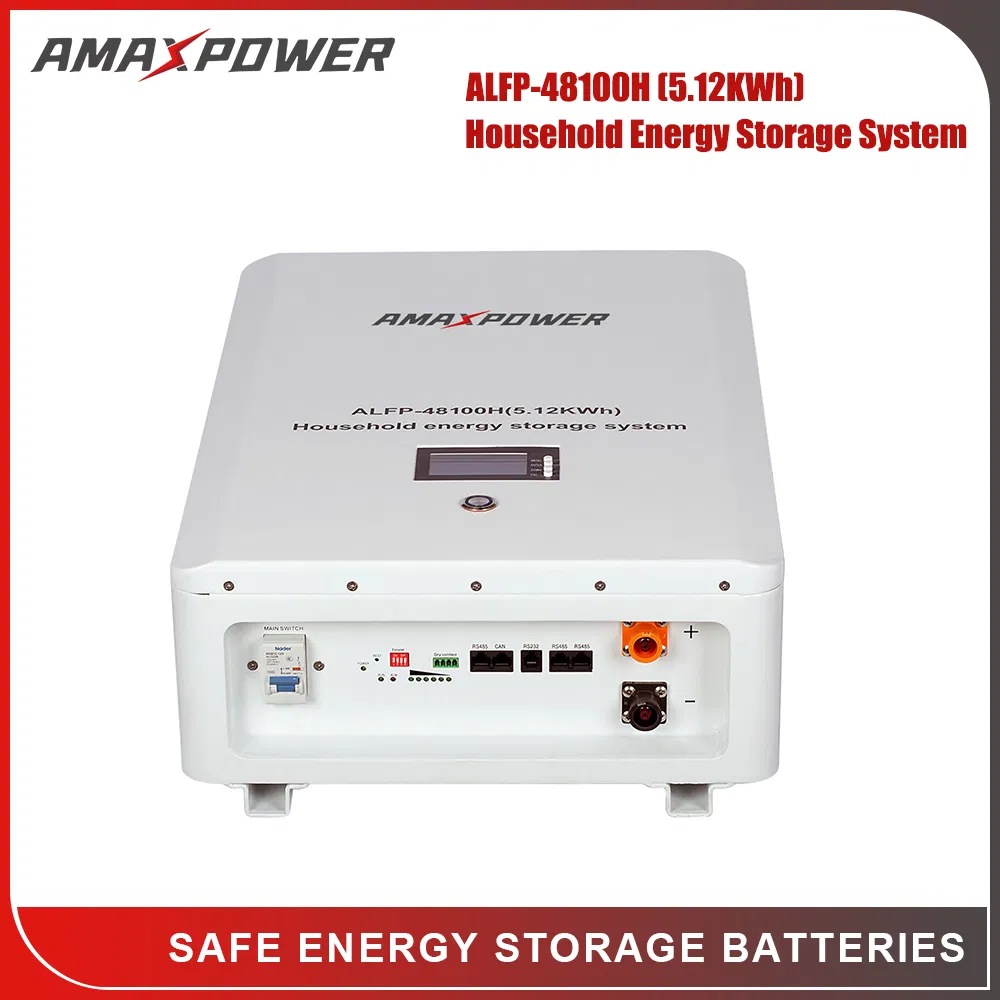

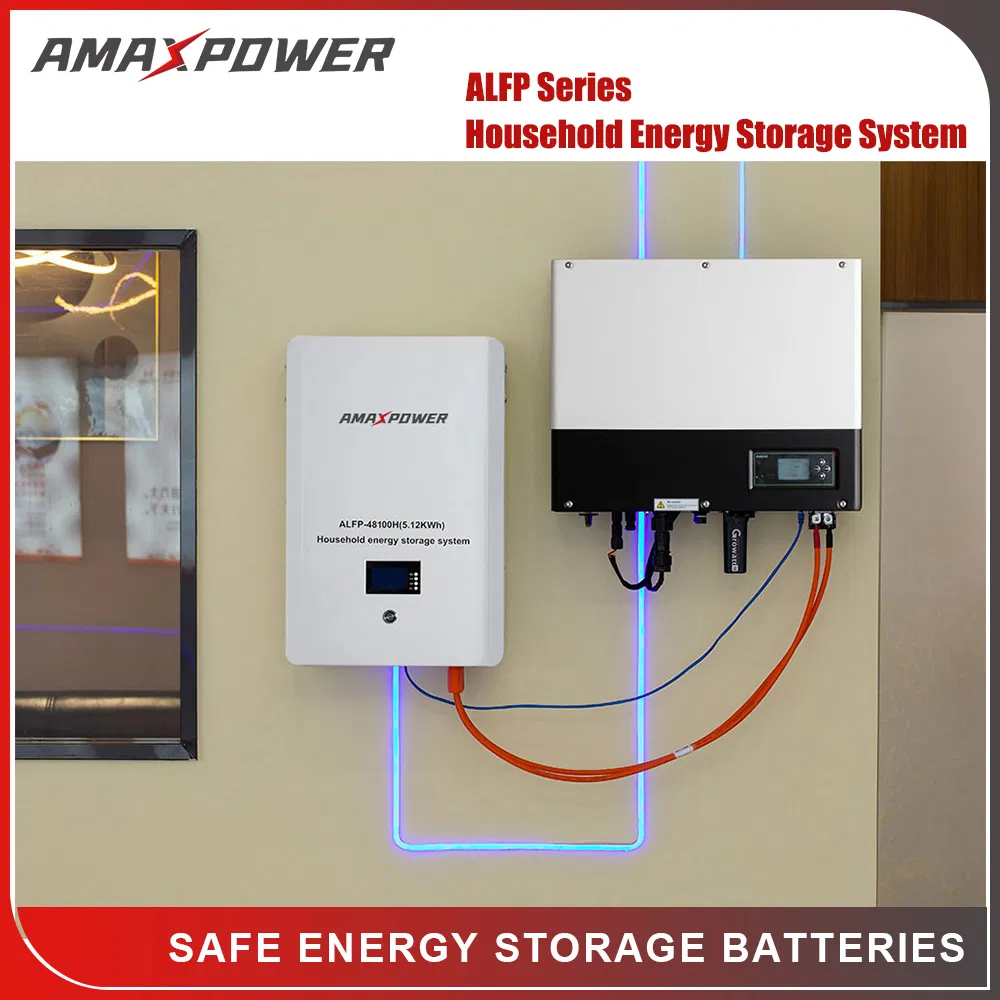

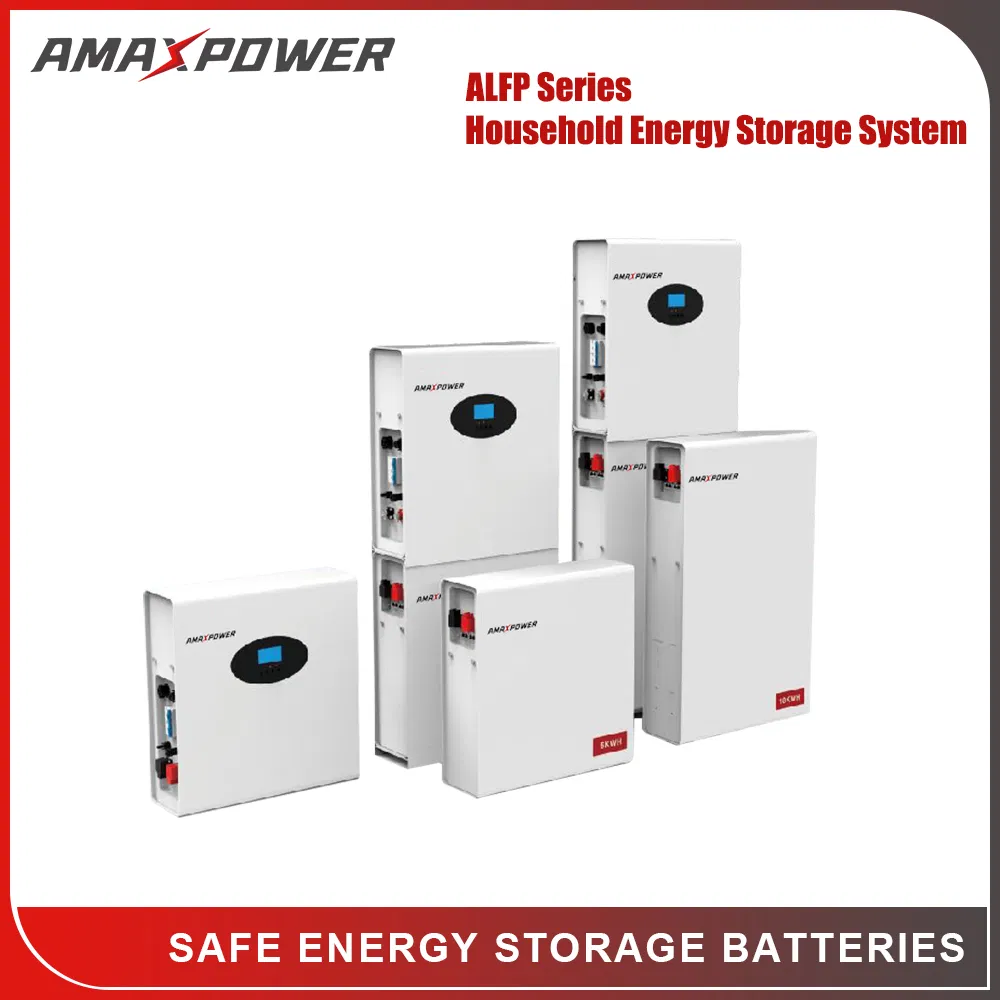

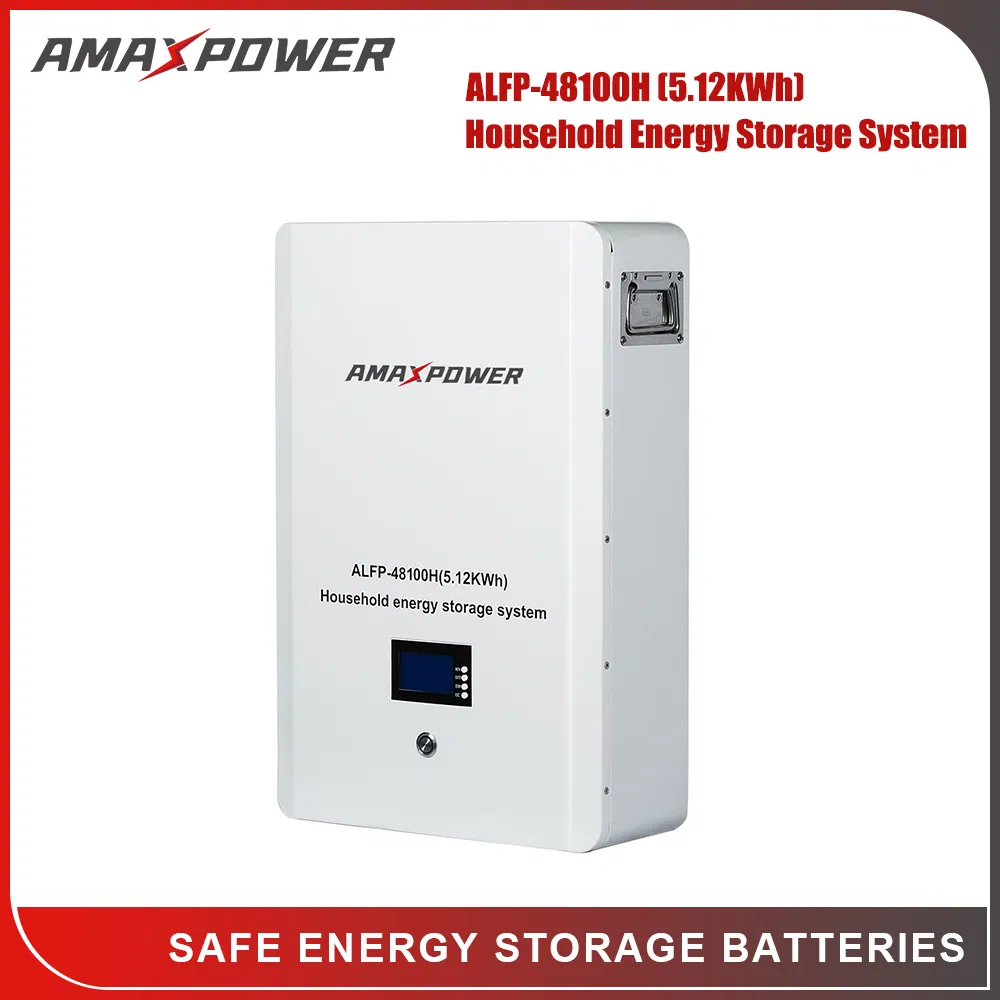

Household Energy Storage System for 5KWh/10KWh/15KWh RESS type LiFePO4(lithium iron phosphate) battery products. This chemistry eliminates the risk of explosion or combustion due to high impact, overcharging or short circuit situations. Compatible with most leading inverters (Deye, Growatt, Voltronic, Goodwe, Victron, SMA).
Integrated hardware BMS with independent protection for charge and discharge. Features OVP, LVP, OCP, OTP, LTP protection and RS485/CAN communication ports for inverter compatibility.
| Specifications | 51.2V 100Ah | 51.2V 150Ah | 51.2V 200Ah | 51.2V 300Ah |
|---|---|---|---|---|
| Normal Capacity | 5.12kWh | 7.68kWh | 10.24kWh | 15.36kWh |
| Voltage Window | 51.2V ~ 58.4V | |||
| Max Charge/Discharge | 100A | 100A | 150A | 200A |
| Cycle Life | ≥6000 times @80%DOD | |||
| IP Degree | IP54 | IP32 | ||

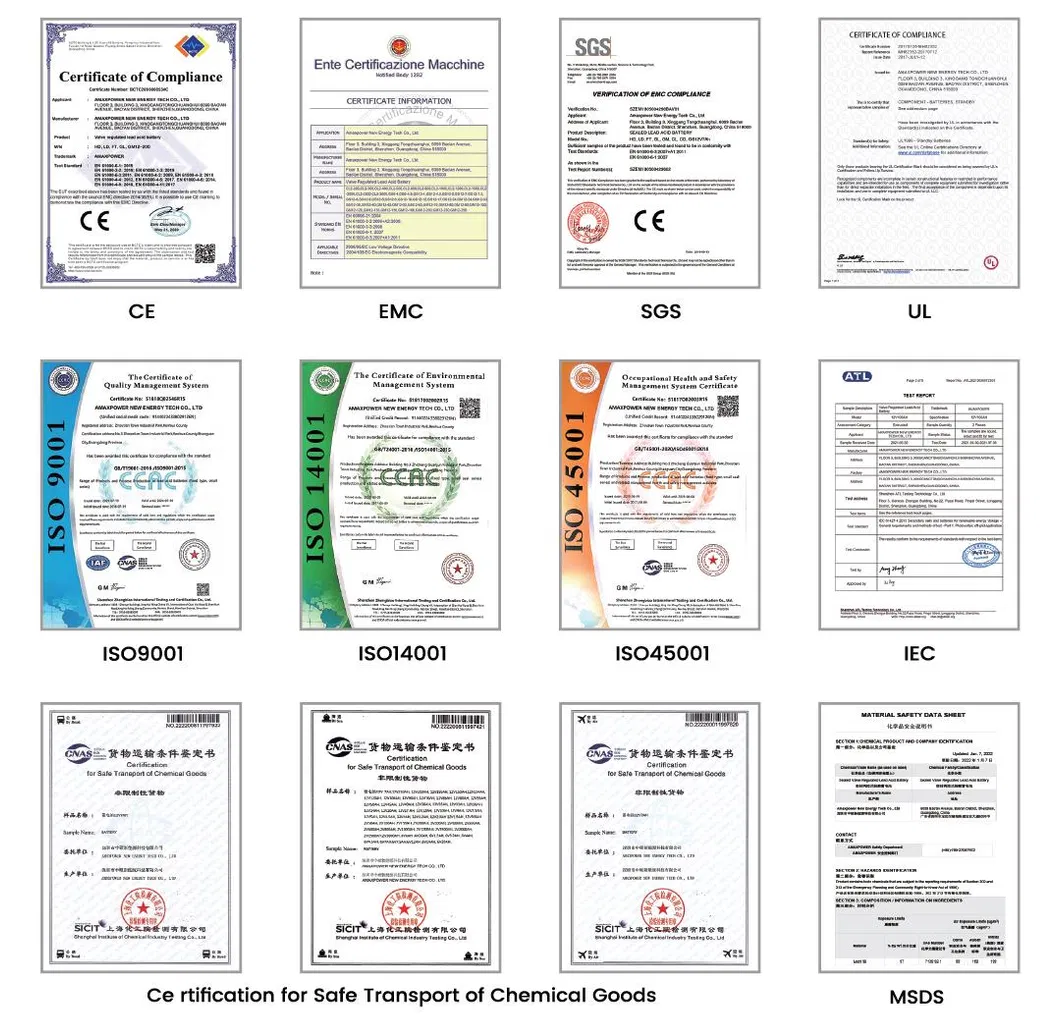

| Safety Standard | IEC 62109-1&-2, IEC 62477, CE-EMC | |||
Ideal for household solar energy, RV/Marine storage, low-speed vehicles, communication base stations, UPS backup power, and off-grid power generation.

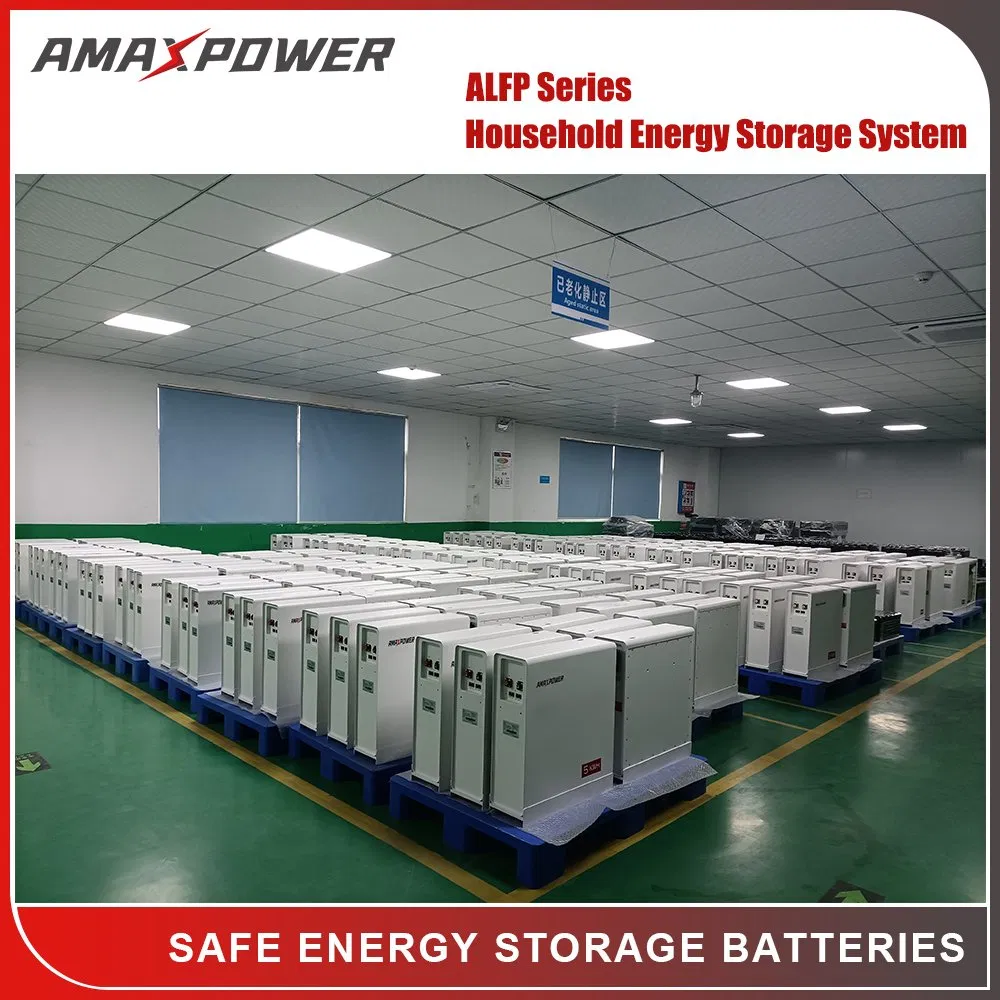

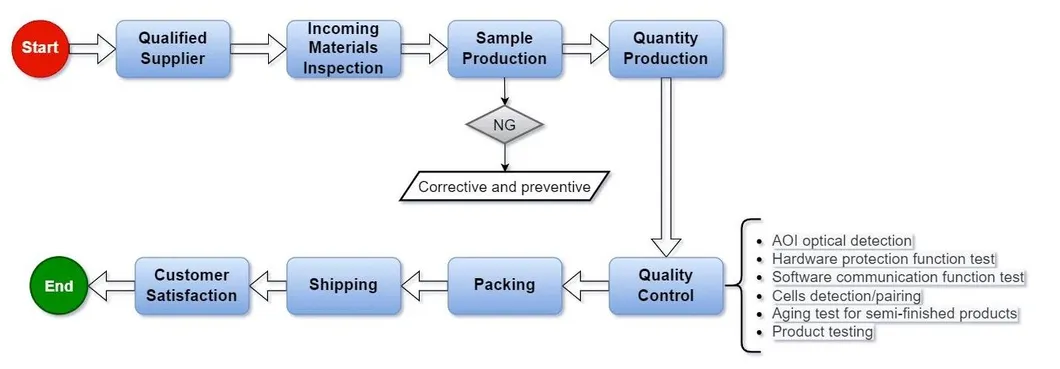

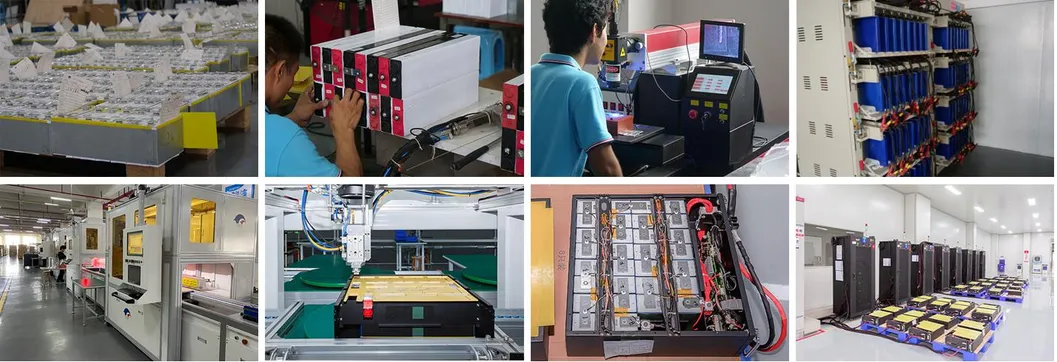

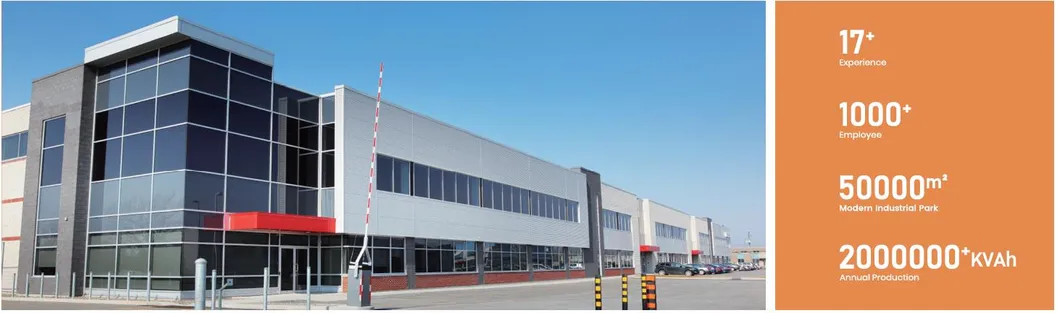

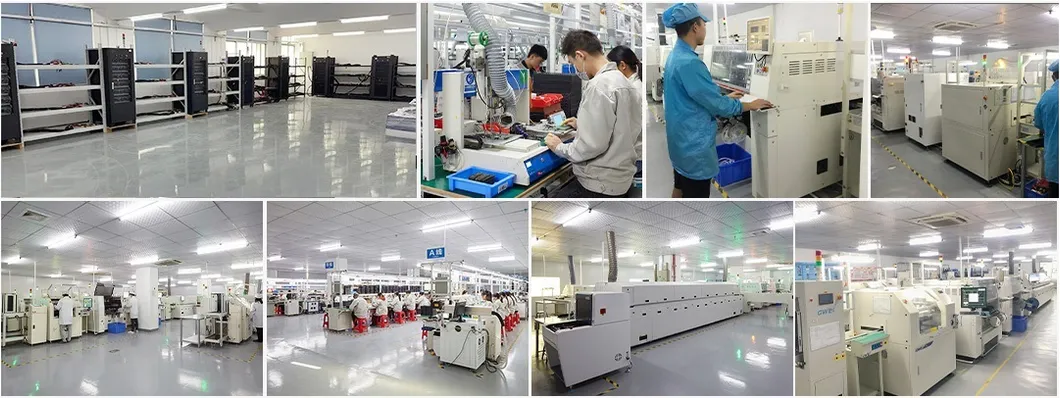

Utilizing first-class production facilities with an annual capacity of approximately 2,000,000kVAh. Strictly complying with ISO quality management systems.
