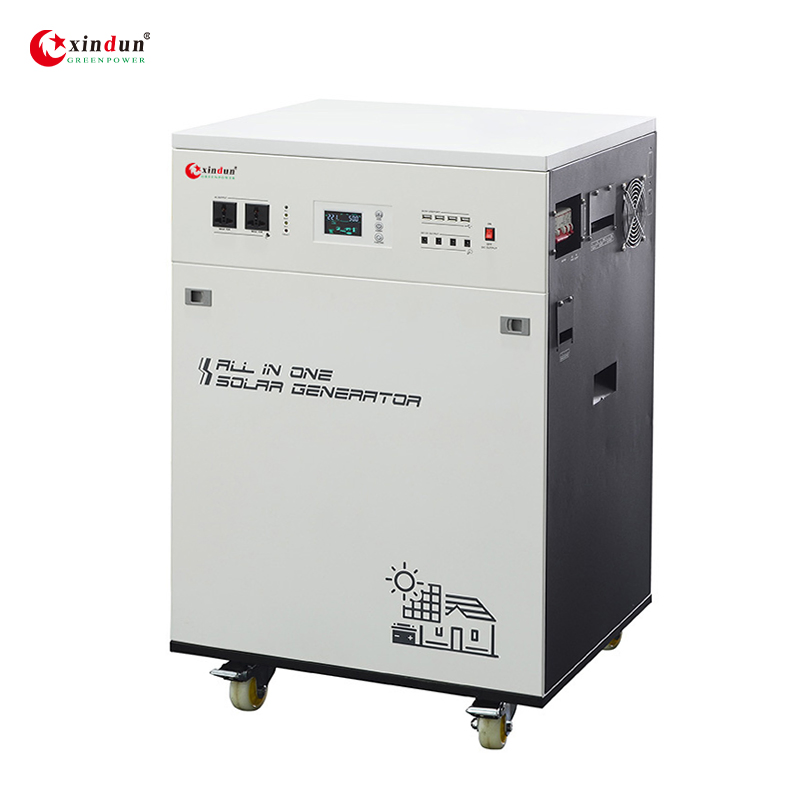

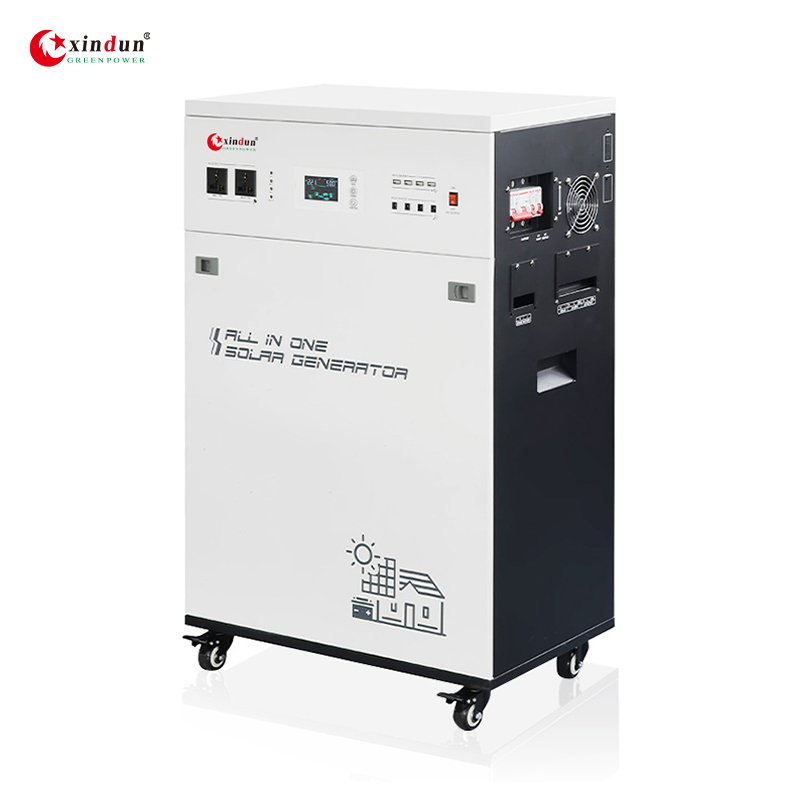

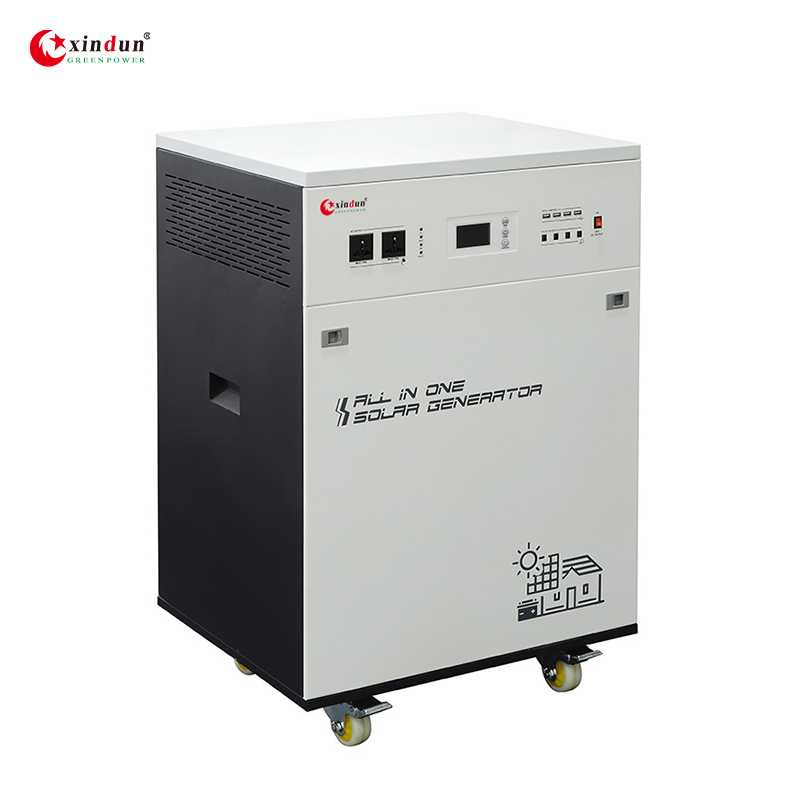

3000W Home Use Portable All in One Energy Storage 5kwh Solar Power Generator Mobile PV off Grid Hybrid Lithium Battery Backup Solar Power Kits

1 / 5

3000W Home Use Portable All in One Energy Storage 5kwh Solar Power Generator Mobile PV off Grid Hybrid Lithium Battery Backup Solar Power Kits

Customization:	Available
After-sales Service:	Yes
Warranty:	1 Year

Send Inquiry

Product Description

Basic Information

Model NO.

XD-ESS

Output Type

DC to AC Solar Generator

System

Off-Grid system

Certification

CE, ISO, Test Report

Power

300W/500W/1000W

Application

Home/Industrial/Office

Output Efficiency

>99%

Rated Voltage

110V/120V/220V/230V/240VAC

Battery Type

Lithium / Lead Acid Battery

Output Frequency

50/60Hz

Transfer Time

>10ms

Display

LCD+LED Display

Protection

Overload/Short Circuit/Temperature

Working Modes

AC First, Battery First, PV First

★

Inverter Features

✔ 3 times peak power, excellent loading capability.

✔ Combine inverter, solar controller, and battery all in one.

✔ Multiple output: 2*AC output socket, 4*DC 12V, 2*USB.

✔ Working mode AC prior/ECO mode/Solar prior selectable.

✔ AC charging current 0-10A selectable.

✔ LVD/HVD/Charging voltage adjustable, suitable for kinds of batteries.

✔ Adding fault code to monitor real-time work situations.

✔ Continuous stable pure sine wave output with inbuilt AVR stabilizer.

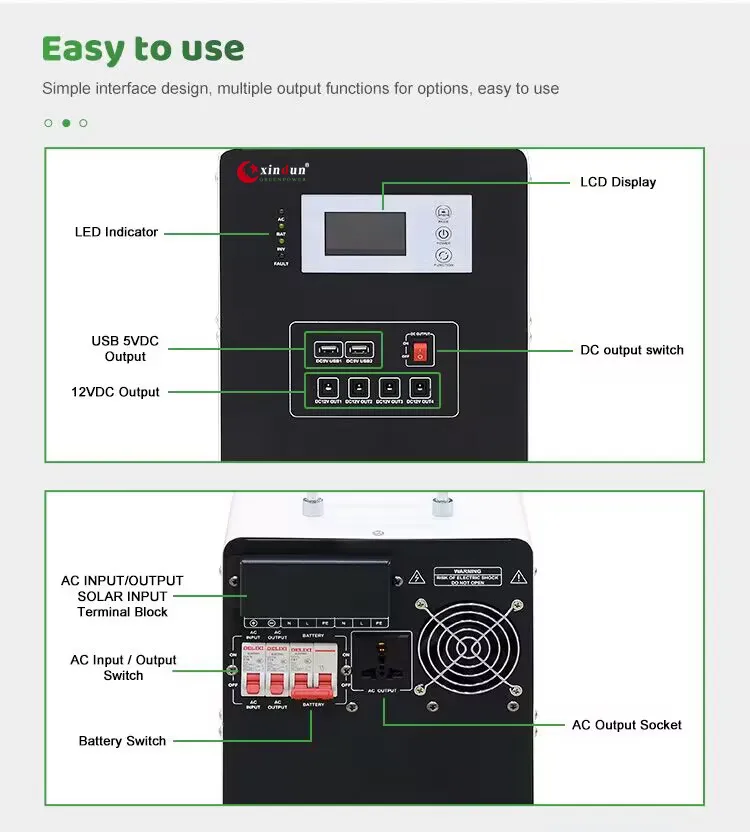

✔ Digital LCD and LED for visualization of operation status.

✔ Inbuilt automatic AC charger and switcher, time ≤ 4ms.

📷

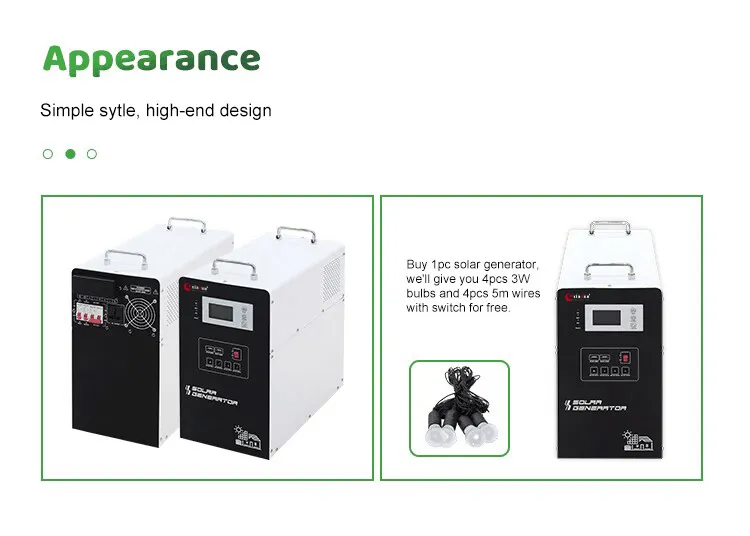

Product Detail Display

📋

Technical Specifications

Model : ESS		301P	501P	102P
Capacity	Rated power	300W	500W	1000W
Capacity	Peak power(20ms)	900VA	1500VA	3000VA
Input	Standard battery voltage	12VDC
Input	AC input frequency range	45Hz~55Hz(50Hz); 55Hz~65Hz(60Hz)
Output	Conversion efficiency	≥85%(Battery mode); >99%(AC mode)
	AC Output waveform	Pure Sine Wave
	DC Output voltage	4DC 12V; 2USB(5V)
Solar Charger	Max PV input voltage(Voc)	50V
Solar Charger	Max PV input power	280W		560W
Other	Transfer time	≤4ms

⚡

Wiring Diagram

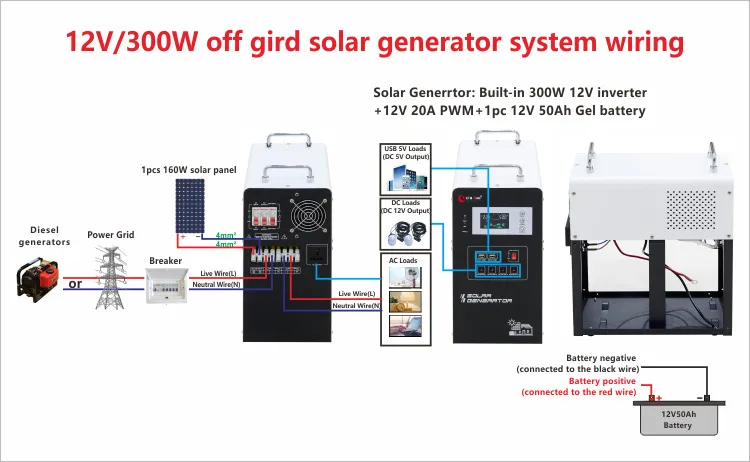

300W Solar Generator System:

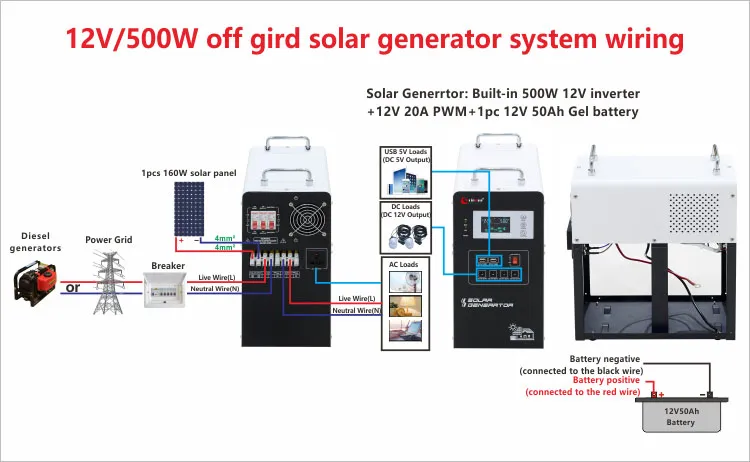

500W Solar Generator System:

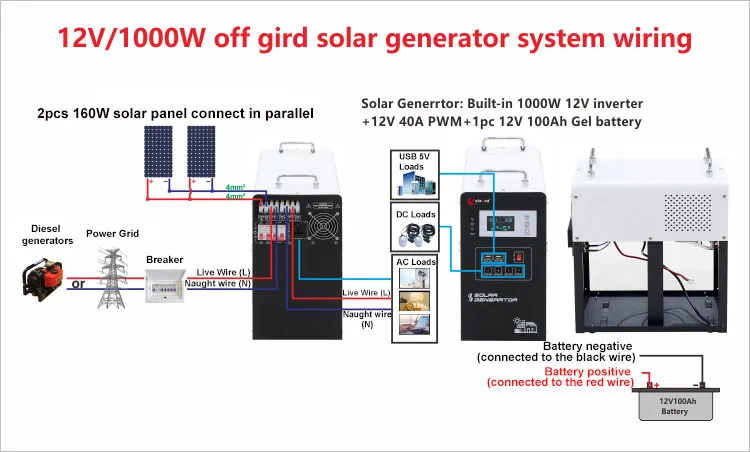

1000W Solar Generator System:

🏠

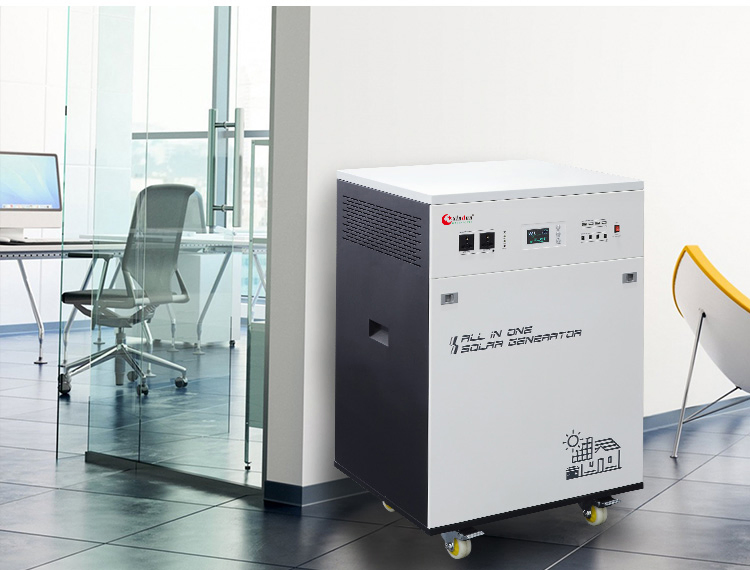

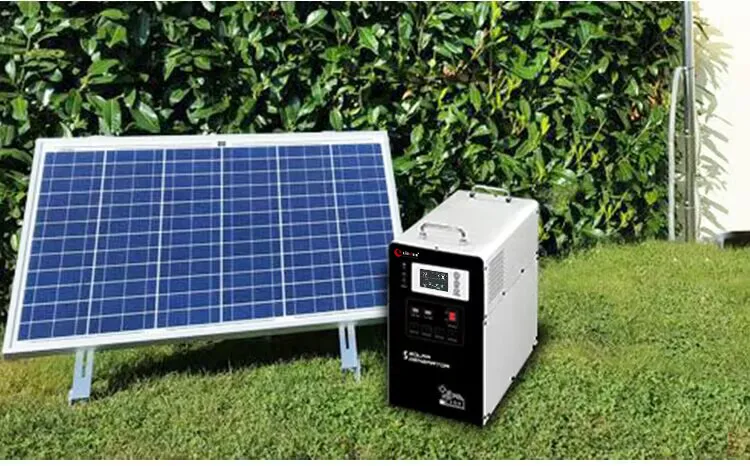

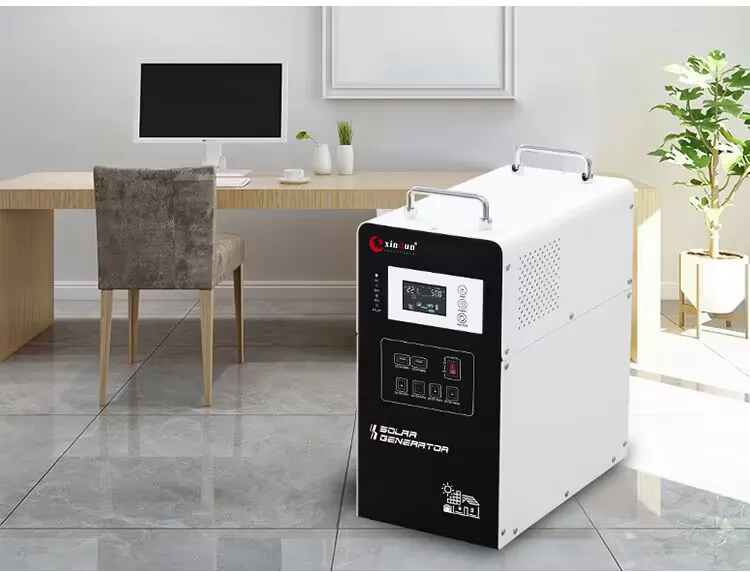

Application Cases

📦

Packing & Shipping

Package

Standard Carton Box for general packaging. Wooden Boxes are recommended for samples to provide maximum protection during transportation.

Shipping

1. Courier: Fedex/DHL/TNT/UPS for door-to-door sample delivery.

2. Bulk: By air or sea for batch goods (Air port/Port receiving).

3. Flexible: Customer-specified freight forwarders or negotiable methods.

Frequently Asked Questions

What appliances can this solar generator power?

The system can power home, office, and industrial equipment including lights, fans, computers, and small appliances, depending on the rated power (300W/500W/1000W).

What is the peak power capability?

It supports up to 3 times the rated peak power for 20ms, which is excellent for handling initial surge currents from motors or compressors.

Does it output a pure sine wave?

Yes, it provides a continuous and stable pure sine wave output, which is safe for sensitive electronic devices.

What are the different working modes?

You can select between AC Priority, ECO Mode, and Solar Priority mode to optimize energy usage based on your needs.

How long is the transfer time during a power outage?

The system features an inbuilt automatic AC mains switcher with a transfer time of ≤ 4ms, ensuring uninterrupted power for your devices.

Can I use different types of batteries?

Yes, the LVD/HVD and charging voltages are adjustable, making it suitable for various battery types including Lithium and Lead Acid batteries.
