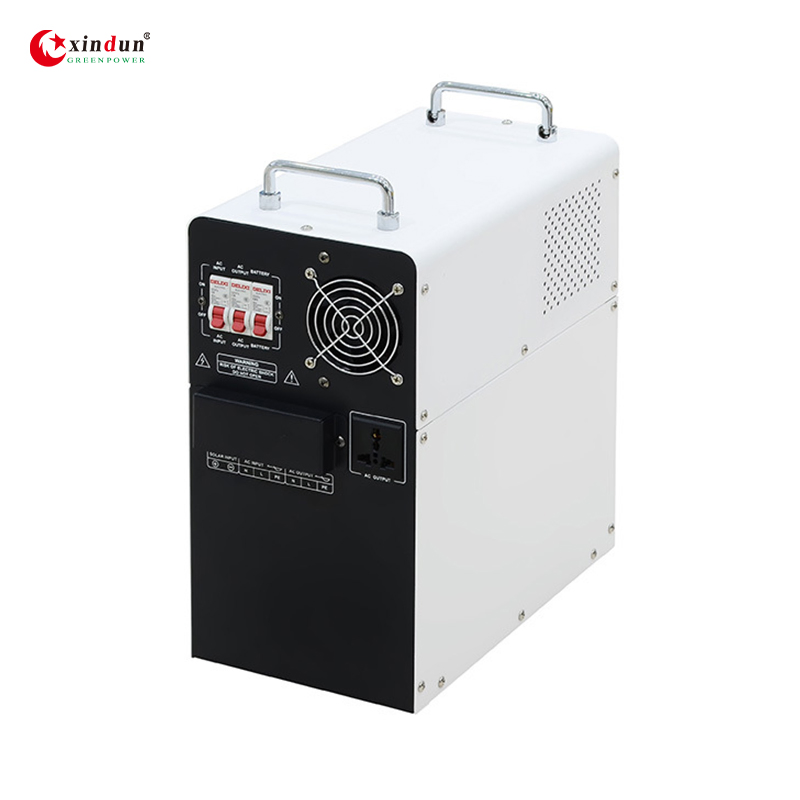

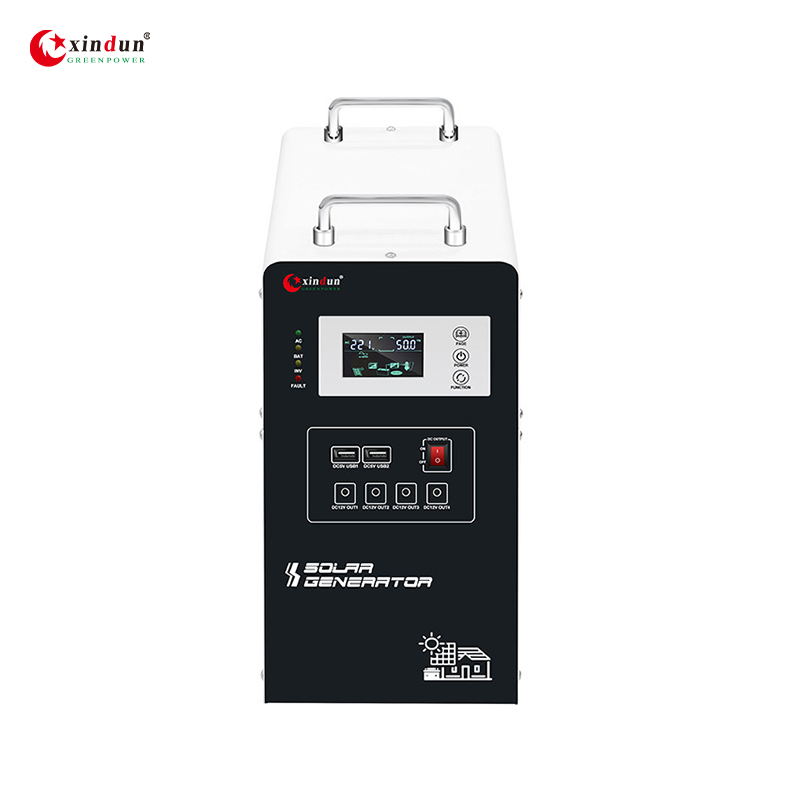

500W Home Use Portable All in One Energy Storage 1kwh Solar Power Generator Mobile PV off Grid Hybrid Lithium Battery Backup Solar Power Kits
500W Home Use Portable All in One Energy Storage 1kwh Solar Power Generator Mobile PV off Grid Hybrid Lithium Battery Backup Solar Power Kits
500W Home Use Portable All in One Energy Storage 1kwh Solar Power Generator Mobile PV off Grid Hybrid Lithium Battery Backup Solar Power Kits
500W Home Use Portable All in One Energy Storage 1kwh Solar Power Generator Mobile PV off Grid Hybrid Lithium Battery Backup Solar Power Kits
500W Home Use Portable All in One Energy Storage 1kwh Solar Power Generator Mobile PV off Grid Hybrid Lithium Battery Backup Solar Power Kits
1 / 5
500W Home Use Portable All in One Energy Storage 1kwh Solar Power Generator Mobile PV off Grid Hybrid Lithium Battery Backup Solar Power Kits
500W Home Use Portable All in One Energy Storage 1kwh Solar Power Generator Mobile PV off Grid Hybrid Lithium Battery Backup Solar Power Kits
500W Home Use Portable All in One Energy Storage 1kwh Solar Power Generator Mobile PV off Grid Hybrid Lithium Battery Backup Solar Power Kits
500W Home Use Portable All in One Energy Storage 1kwh Solar Power Generator Mobile PV off Grid Hybrid Lithium Battery Backup Solar Power Kits
500W Home Use Portable All in One Energy Storage 1kwh Solar Power Generator Mobile PV off Grid Hybrid Lithium Battery Backup Solar Power Kits

500W Home Use Portable All in One Energy Storage 1kwh Solar Power Generator Mobile PV off Grid Hybrid Lithium Battery Backup Solar Power Kits

Customization: Available
After-sales Service: Yes
Warranty: 3 Years
Send Inquiry

Product Description

Basic Information

Model NO.
XD-ESS
Output Type
DC to AC Solar Generator
System
Off-Grid system
Certification
CE, ISO
Power
1500W - 7000W
Efficiency
>99%
Output Voltage
110V/120V/220V/230V/240VAC
Battery Type
Lithium / Lead Acid
Frequency
50/60Hz
Protection
Overload/Short Circuit/Temp

Inverter Features

013 times peak power, excellent loading capability.
02Combine inverter/solar controller/battery all in one.
03Multiple output: 2*AC socket, 4*DC 12V, 2*USB.
04Working mode AC prior/ECO mode/Solar prior selectable.
05AC charging current 0-10A selectable.
06LVD/HVD/Charging voltage adjustable for various batteries.
07Fault code monitoring for real-time status.
08Continuous stable pure sine wave output with AVR stabilizer.
09Digital LCD and LED for operation status visualization.
10Inbuilt automatic AC charger, switch time ≤ 4ms.

Product Details

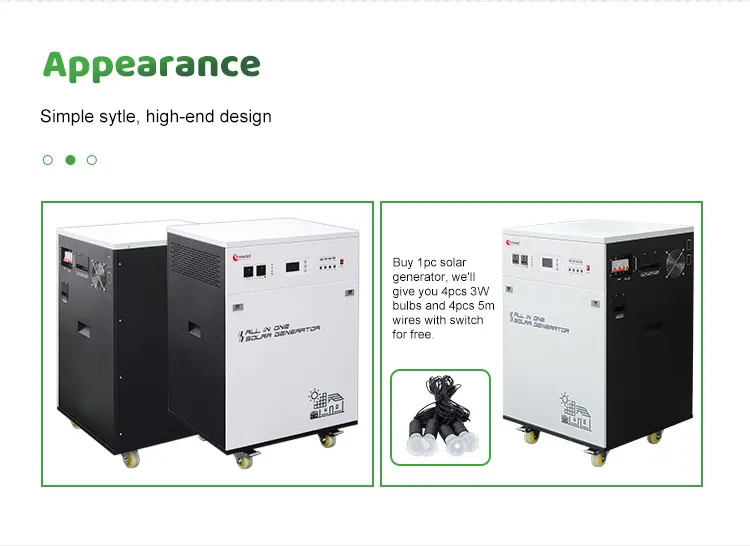

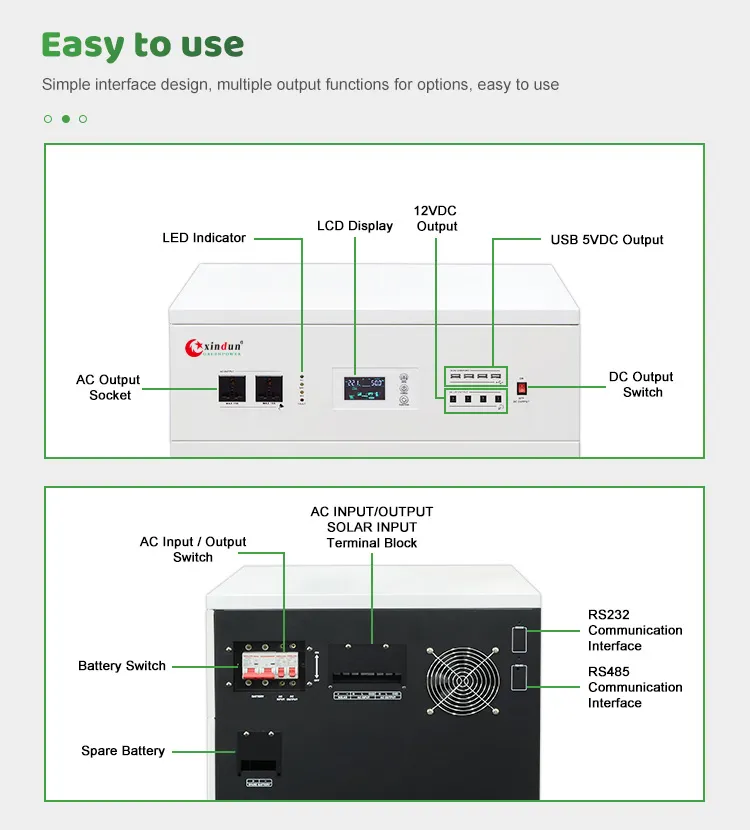

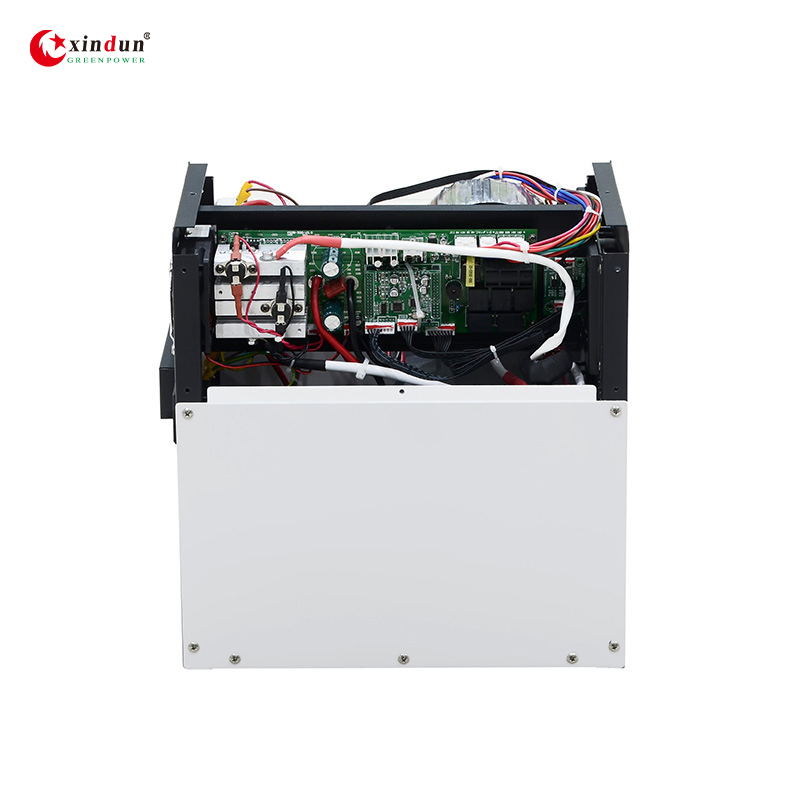

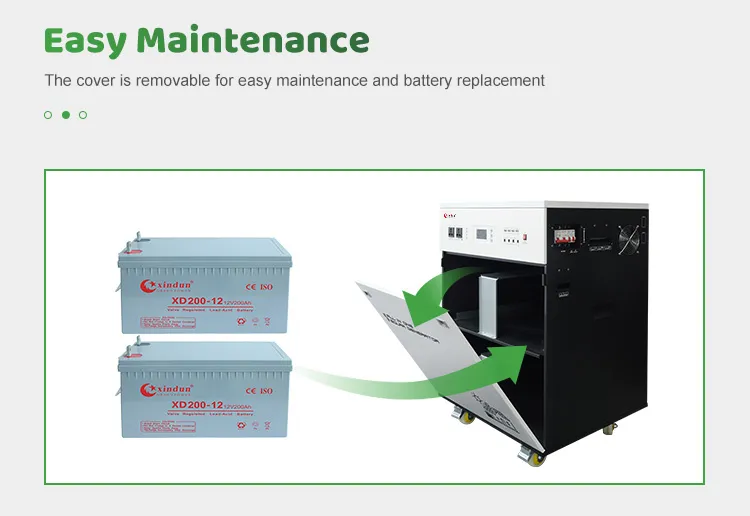

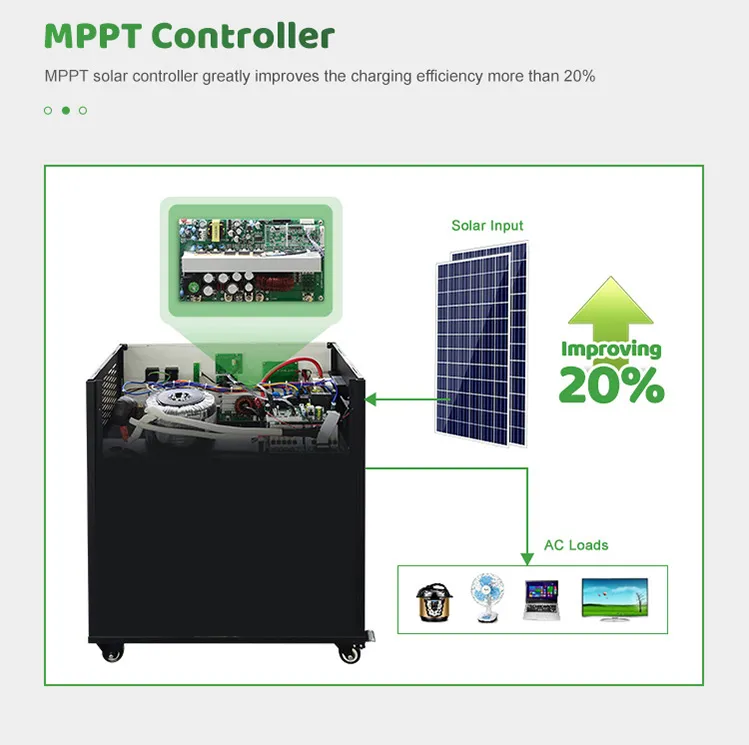

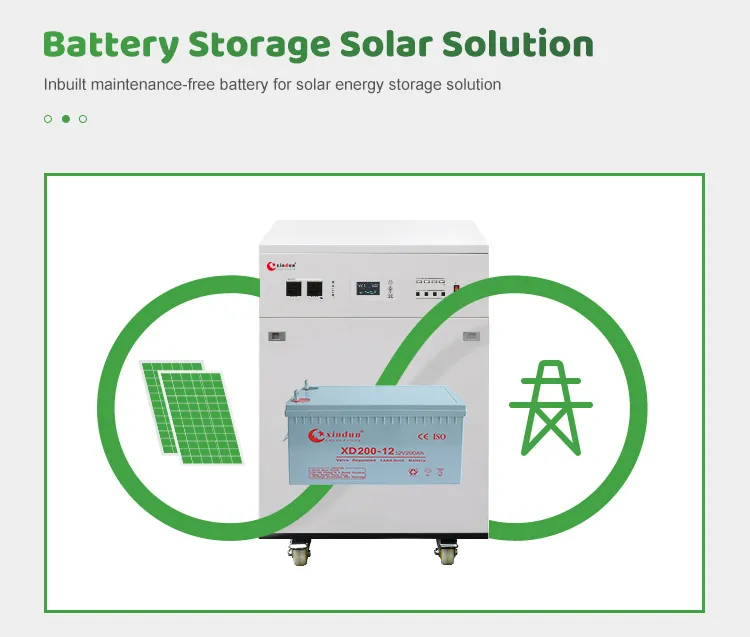

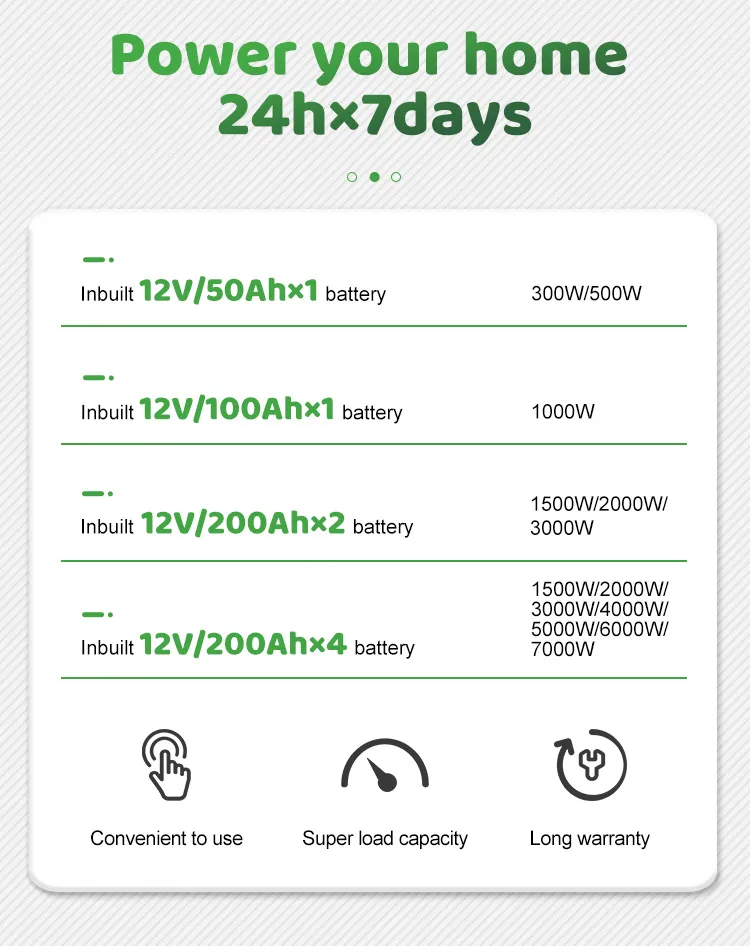

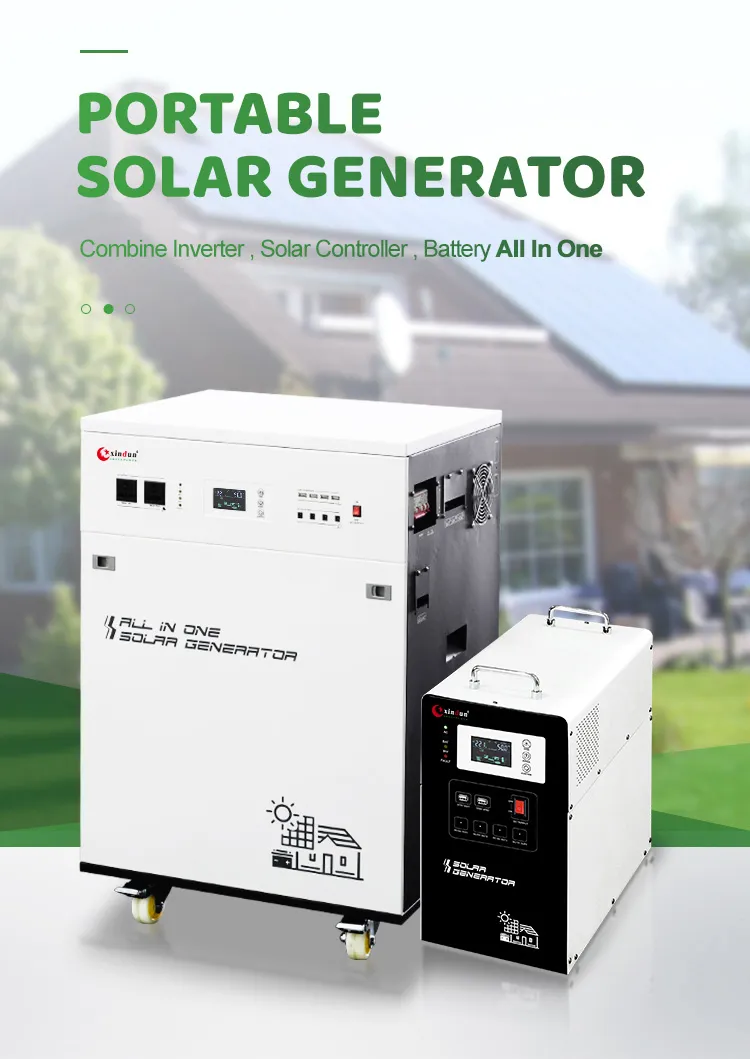

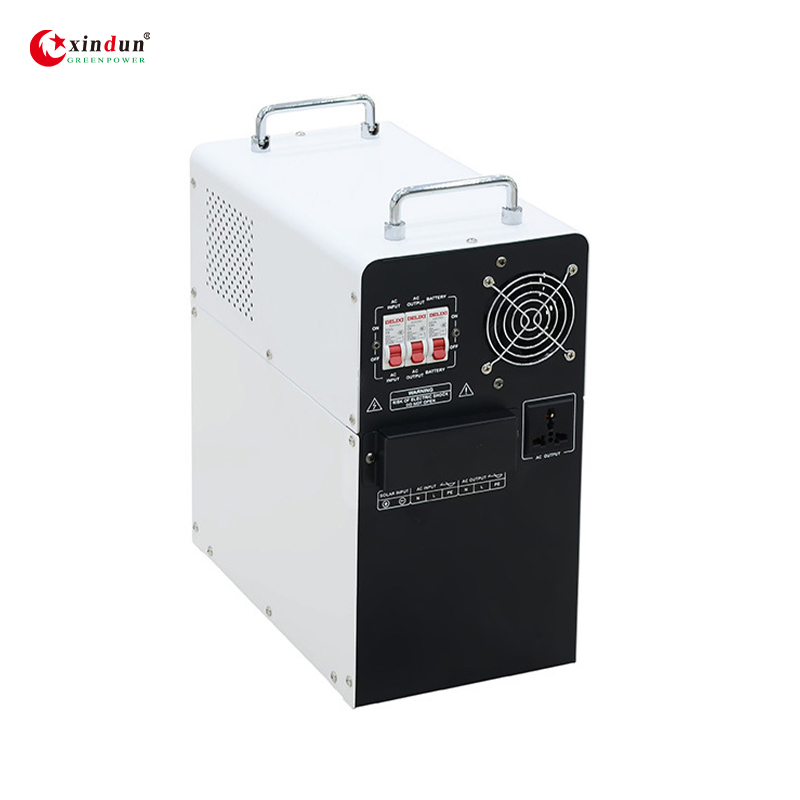

Solar Generator Overview Energy Storage System Internal Components Back Panel View Interface Details Battery System Portable Design Dimensions

Technical Specifications

Model : ESS 152P8/W8 202P8/W8 302P8/W8 402P/W 502P/W 602P/W 702P/W
Capacity Rated Power 1500W 2000W 3000W 4000W 5000W 6000W 7000W
Peak Power 4500VA 6000VA 9000VA 12KVA 15KVA 18KVA 21KVA
Input Battery Voltage 48VDC
AC Range 85VAC-295VAC (Depends on model)
AC Frequency 45Hz-65Hz
Output Waveform Pure Sine Wave
Efficiency ≥85%(Battery); >99%(AC)
DC Output 4*DC 12V; 4*USB(5V)
Physical Net Weight 53kg 55kg 59kg 61kg 63kg 64kg 66kg

Wiring & Application

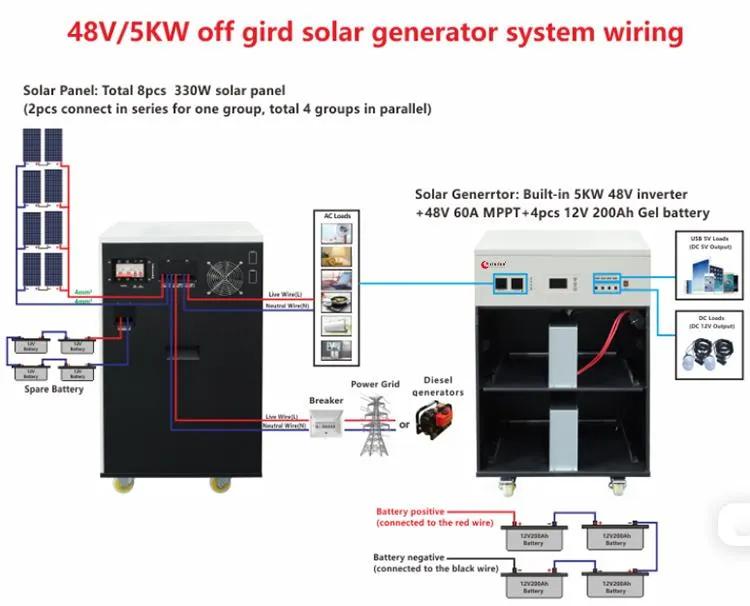

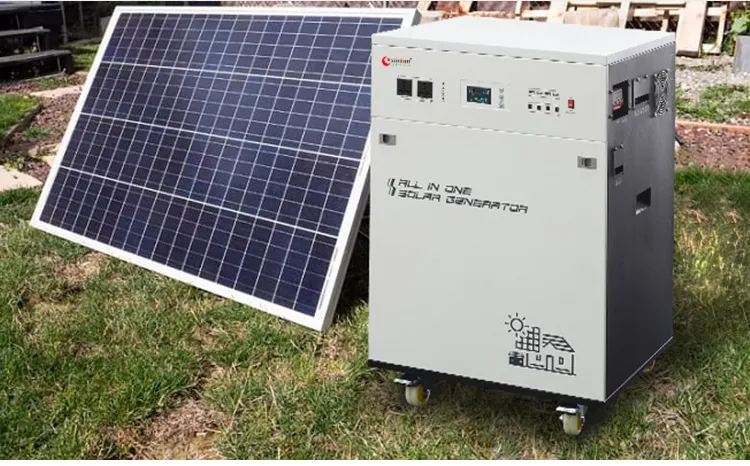

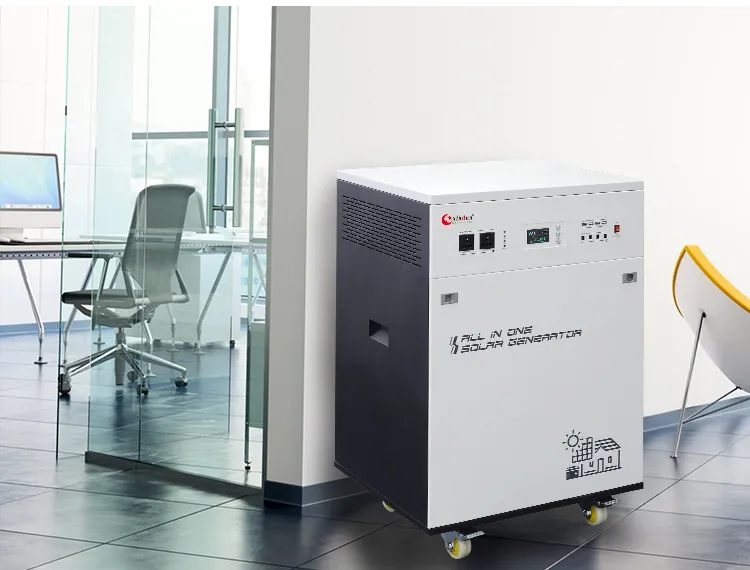

Wiring Diagram Solar Application Case 1 Solar Application Case 2

Production & Delivery

Logistics & Packaging

Package: Robust Carton Boxes or reinforced Wooden Cases for maximum protection during international transit.

Shipping: Support for Express (FedEx, DHL, UPS), Air Freight, and Sea Freight for batch orders. Delivery time ranges from 7 days for samples to 25 days for bulk orders.

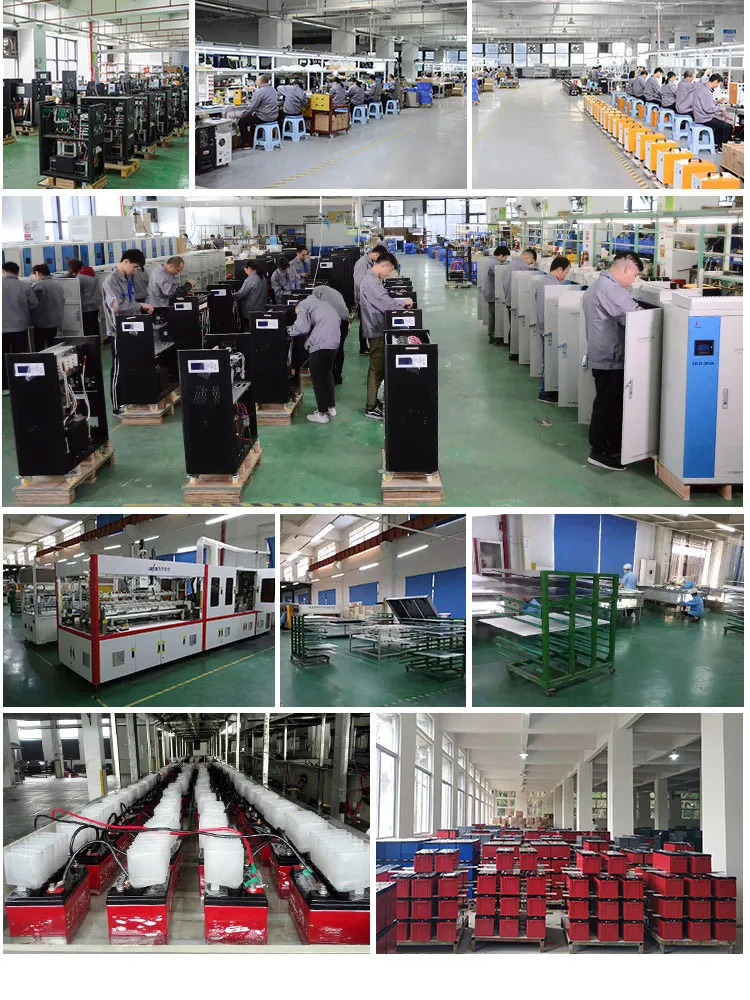

Workshop Environment Production Line Quality Control

Frequently Asked Questions

1. What batteries can I use with this solar generator?
The system is compatible with both Lithium and Lead-Acid batteries. The charging voltage is adjustable to suit different battery types.
2. Does it produce a pure sine wave?
Yes, it provides a continuous stable pure sine wave output with an inbuilt AVR stabilizer, making it safe for sensitive electronic equipment.
3. What is the transfer time between solar and AC power?
The unit features an inbuilt automatic AC charger and mains switcher with a transfer time of ≤ 4ms, ensuring uninterrupted power.
4. Can I monitor the system performance?
Yes, the system includes a digital LCD and LED display for real-time status. Optional RS485/WiFi/GPRS monitoring via APP is also available.
5. What are the available working modes?
Users can select from three modes: AC Priority mode, ECO mode, or Solar Priority mode, depending on their energy needs.
6. What protection features are included?
The generator is equipped with over-voltage, low-voltage, overload, short circuit, and high-temperature protections for maximum safety.
