We are committed to the development and application of new nanomaterials in the field of new energy. Our team possesses outstanding technical advantages and rich process experience in dry electrodes, LTO all-tab batteries, energy storage systems, and all-solid-state batteries. We realize technical R&D and product development including material preparation characterization, cell assembly evaluation, and energy storage system testing.
Our main products include supercapacitors, LTO batteries, and large-scale energy storage systems, which are exported to more than 50 countries and regions worldwide.
Overcomes the industrial problem of producing gases at high temperatures through innovative graphene modification and nanomaterials technology.

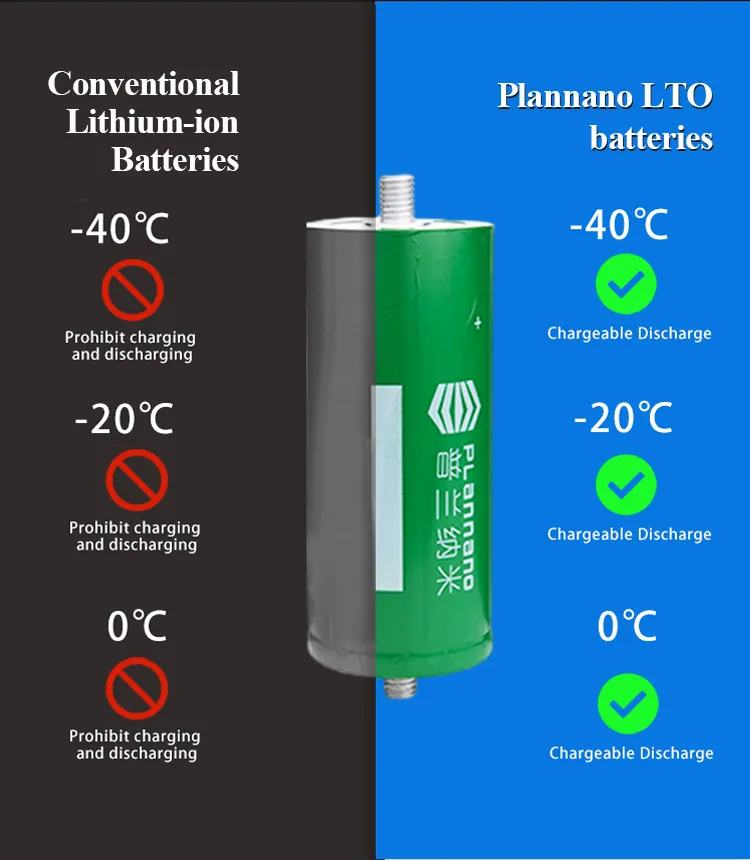

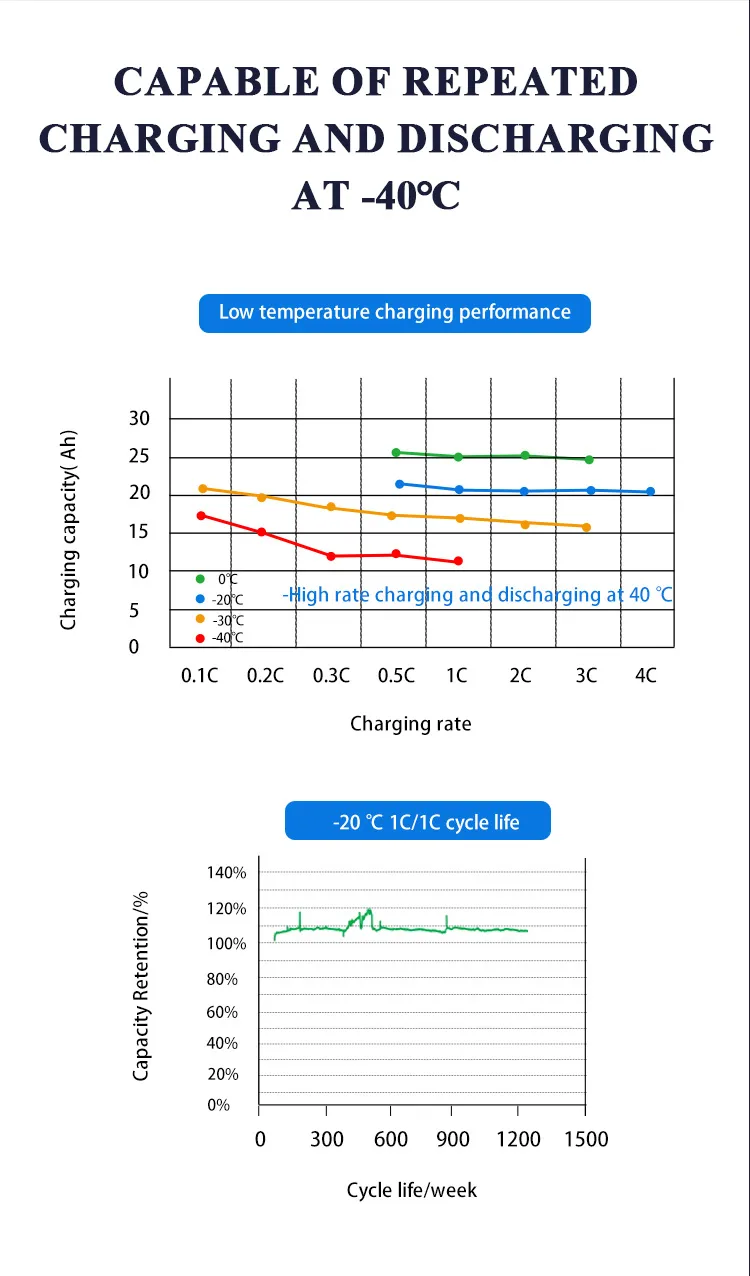

Operates reliably from -40°C to 60°C, making it suitable for ultra-low temperature harsh environments.

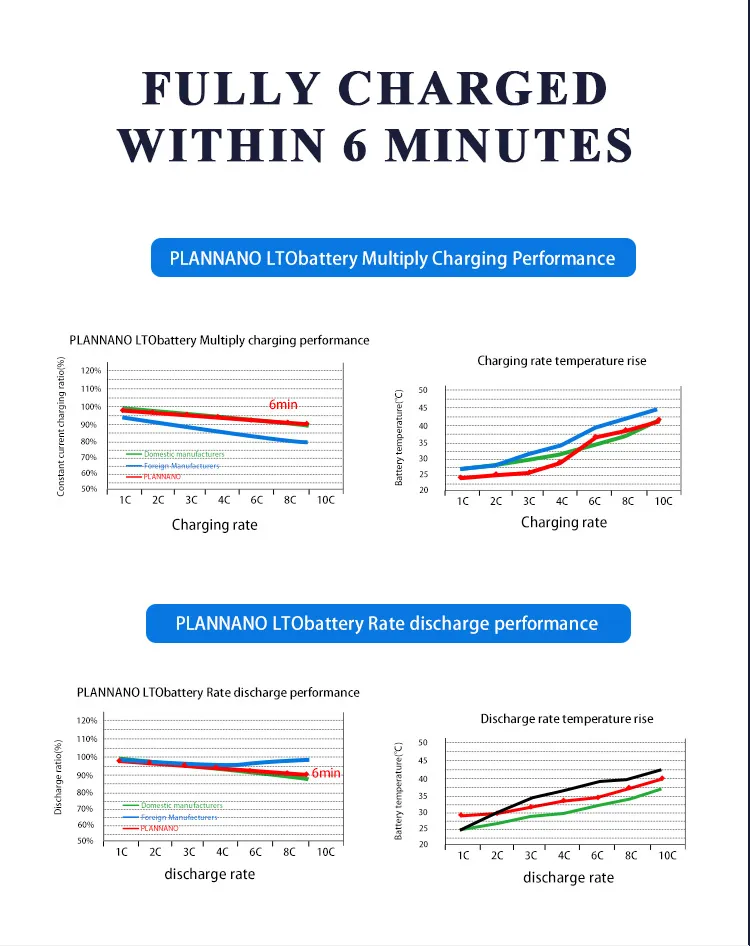

Excellent multiplier performance with 30C high power charge/discharge capabilities.

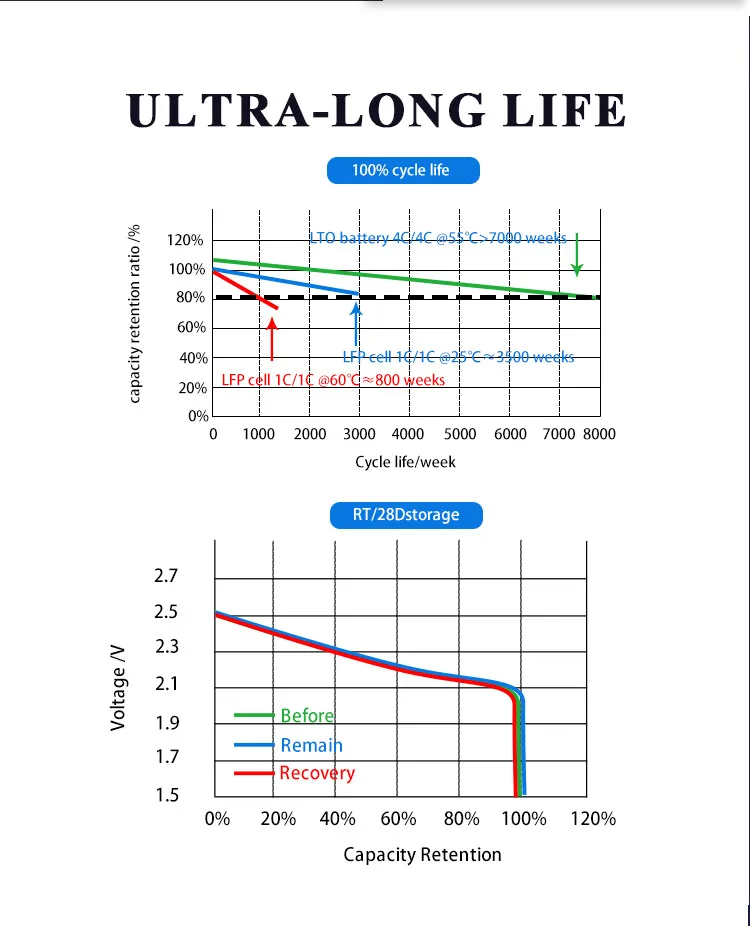

Cycle life can reach up to 30,000 times, significantly reducing the full life cycle operating costs.

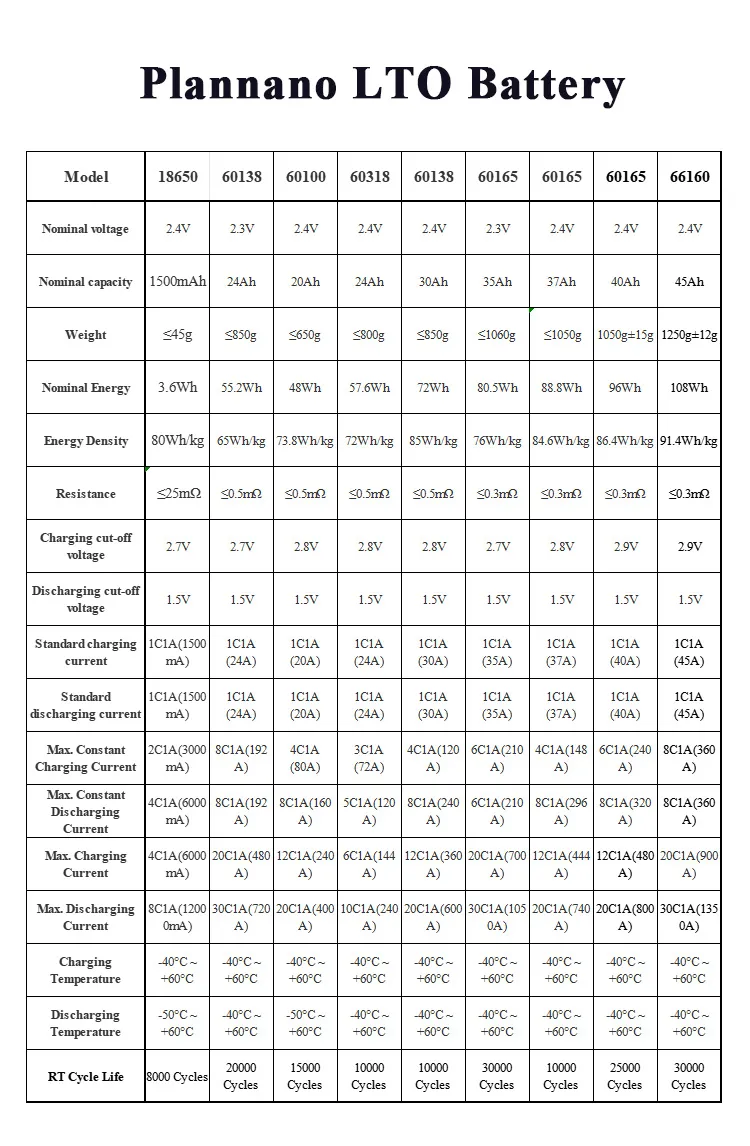

| Parameter Item | Specifications |
|---|---|

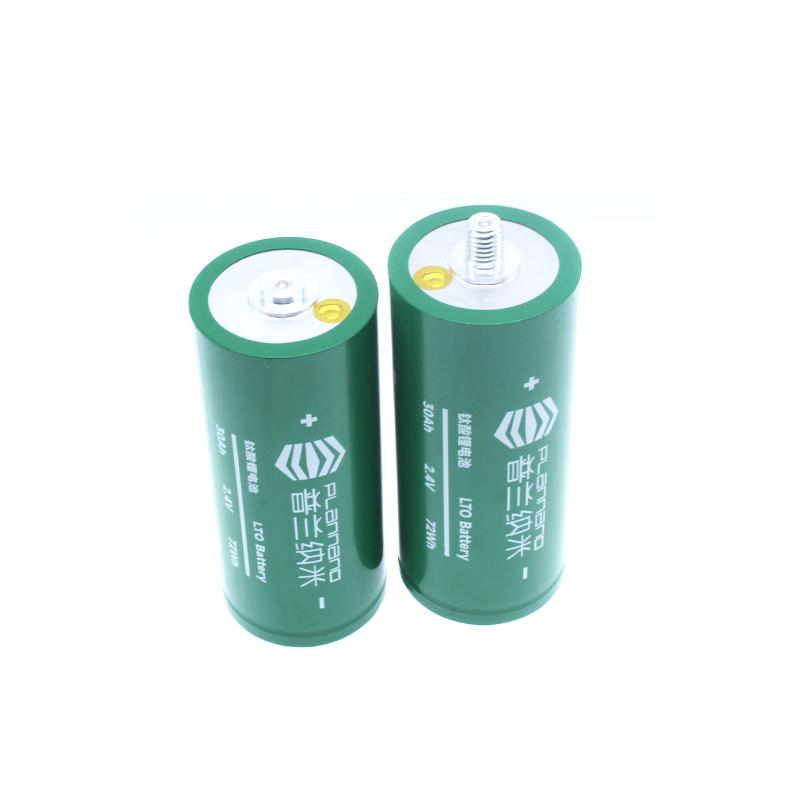

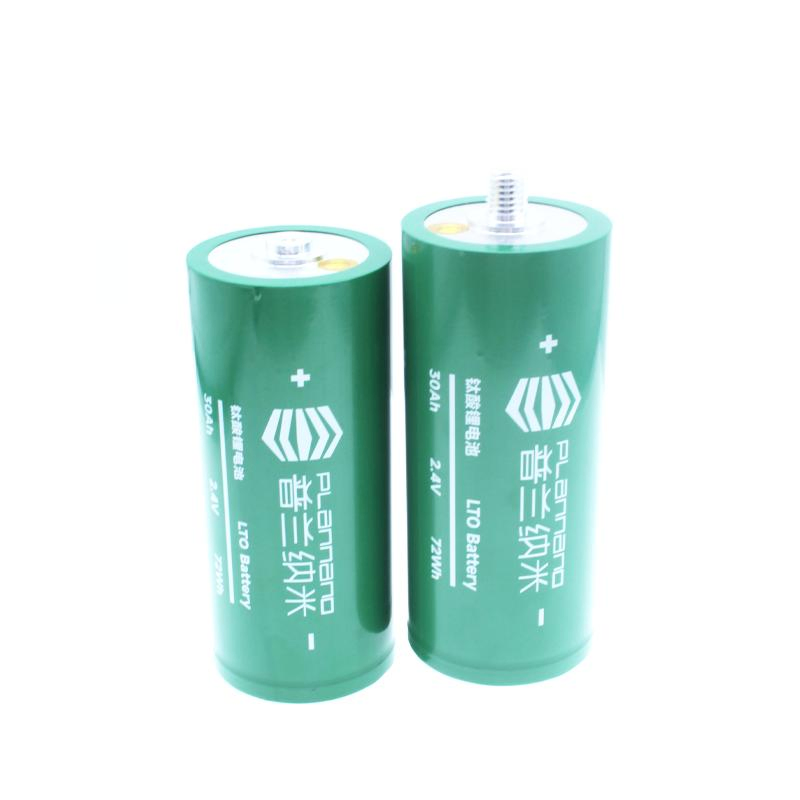

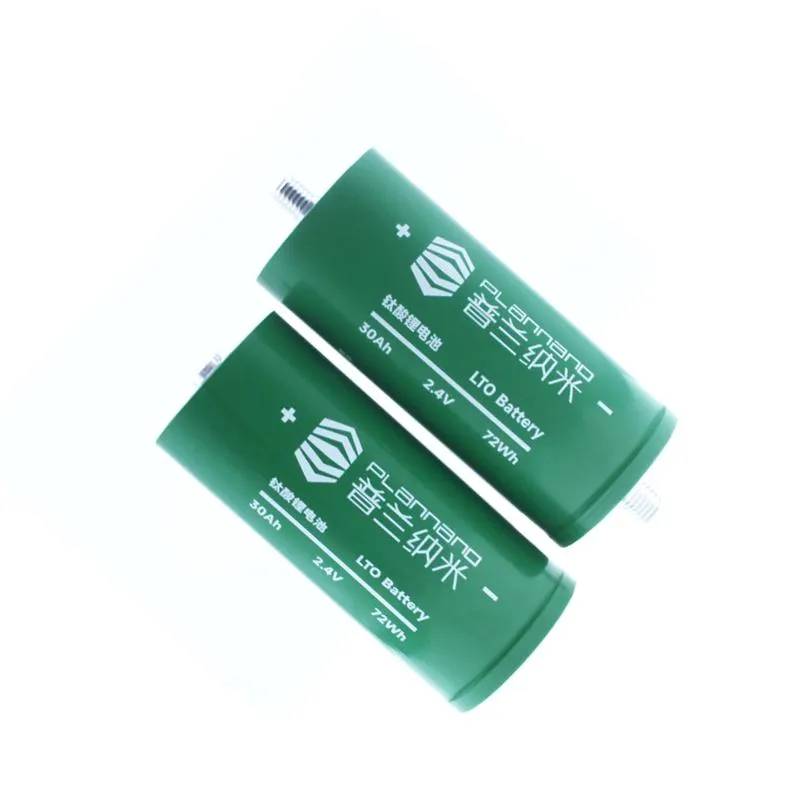

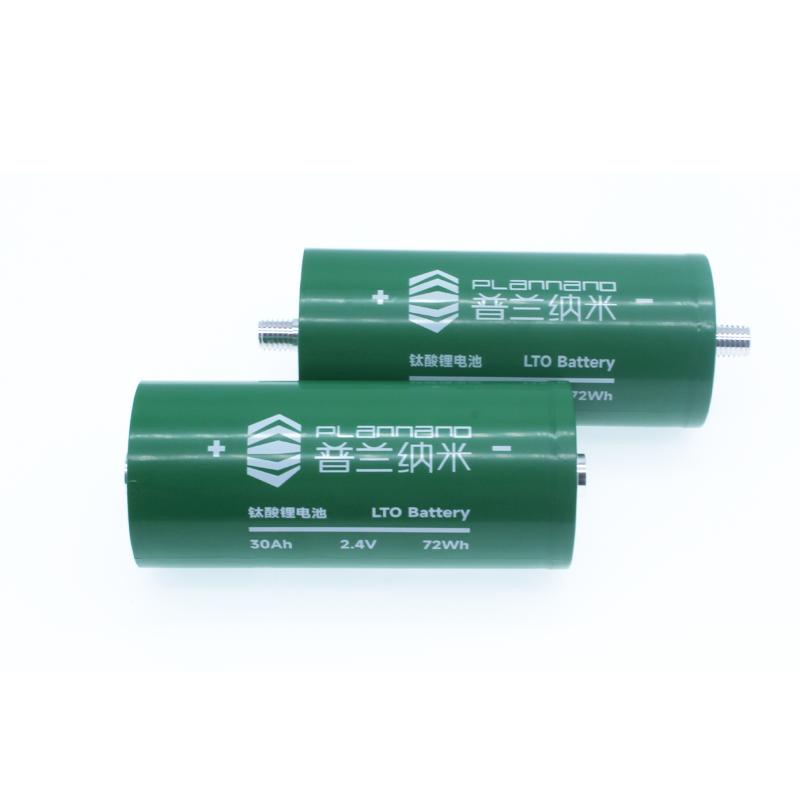

| Model | PLITR60138CWLA-30Ah-2.4V |
| Nominal Capacity | 30Ah |
| Rated Voltage | 2.4V |
| Resistance | ≤0.5 mΩ (AC, 1000 Hz) |
| Energy Density | 85 Wh/kg |
| Dimension (H*D) | 60*138 mm |
| Nominal Energy | 72Wh |
| Max. Constant Charging Current | 4C (120A) |
| Max. Constant Discharging Current | 8C (240A) |
| Operating Temperature | -50ºC ~ 60ºC |
| RT Cycle Life | 15,000 ~ 30,000 Cycles |
