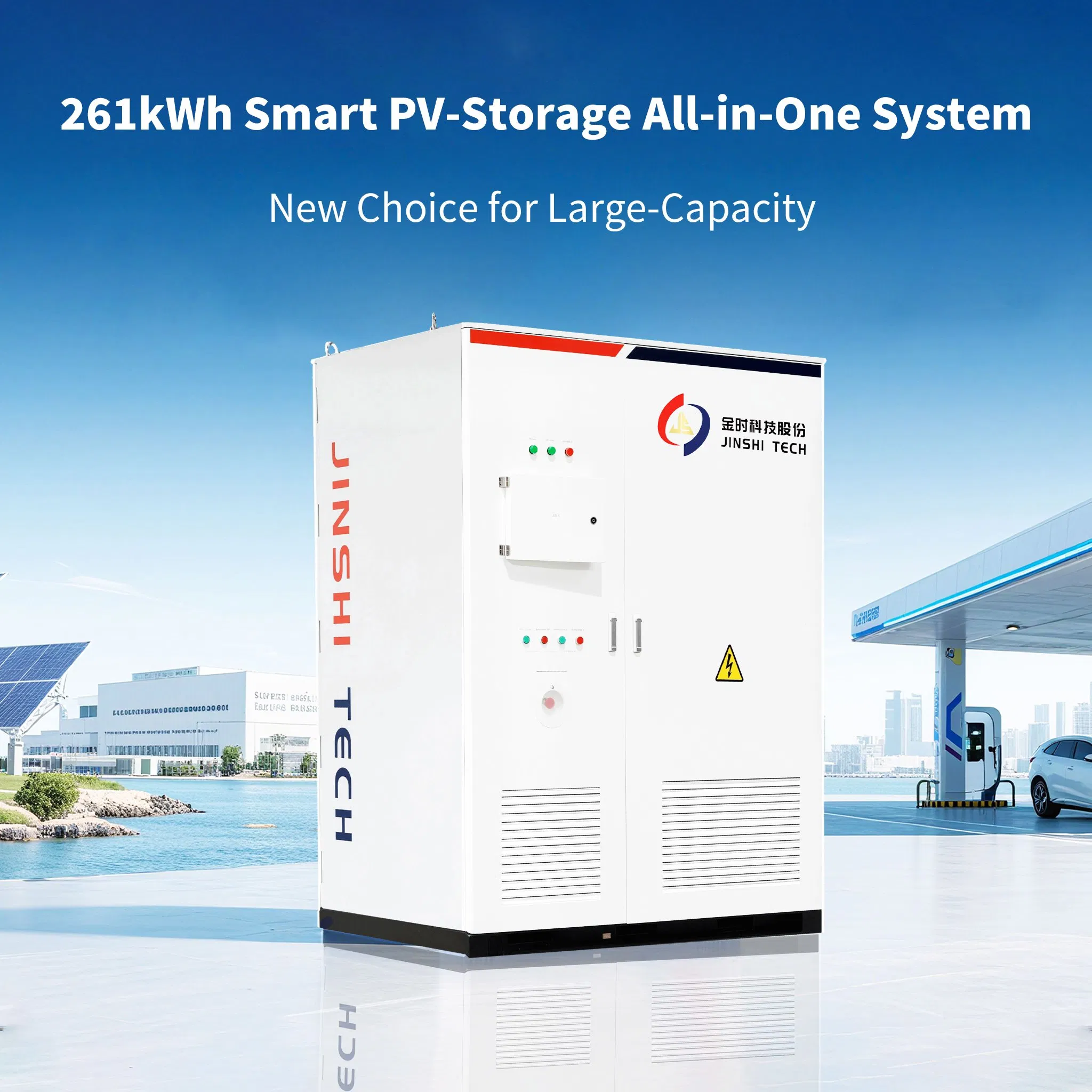

OEM ODM Customized Integrated and off Grid Hybrid Solar Cell Outdoor Cabinet Energy Storage System Solution

1 / 5

OEM ODM Customized Integrated and off Grid Hybrid Solar Cell Outdoor Cabinet Energy Storage System Solution

Customization:	Available
Nominal Voltage:	832V
Warranty:	2 Year

Send Inquiry

Product Description

📊 Basic Specifications

Model NO.

Smart PV-ESS All-in-One Unit-a-A

Nominal Capacity

314ah

Cycle Life

6000

Rated Power

125kw

Battery Type

3.2V/314ah/LFP

Nominal Energy

261kwh

Cooling System

Intelligent Liquid Cooling

Protection Level

IP54

Fire Protection

Perfluorohexane/Aerosol (Optional)

Rated Voltage

832V

HS Code

8537109090

Max Efficiency

99%

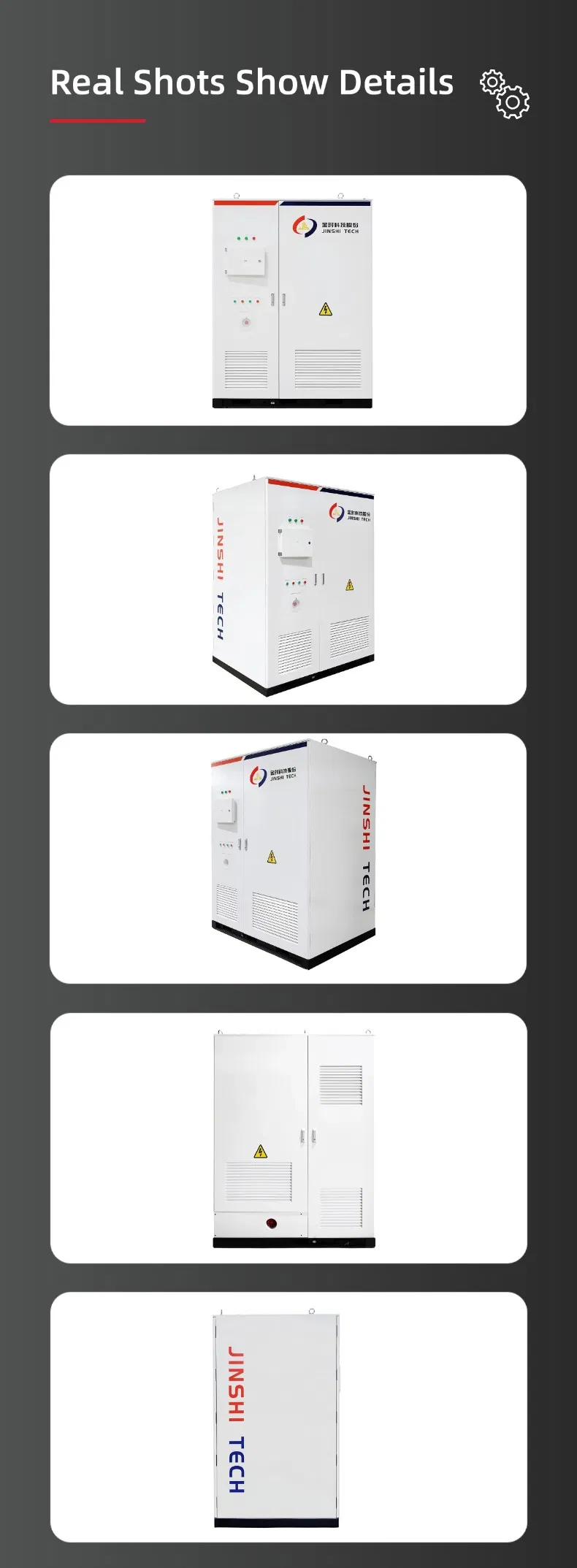

🖼️ Product Overview

📋 Product Parameters

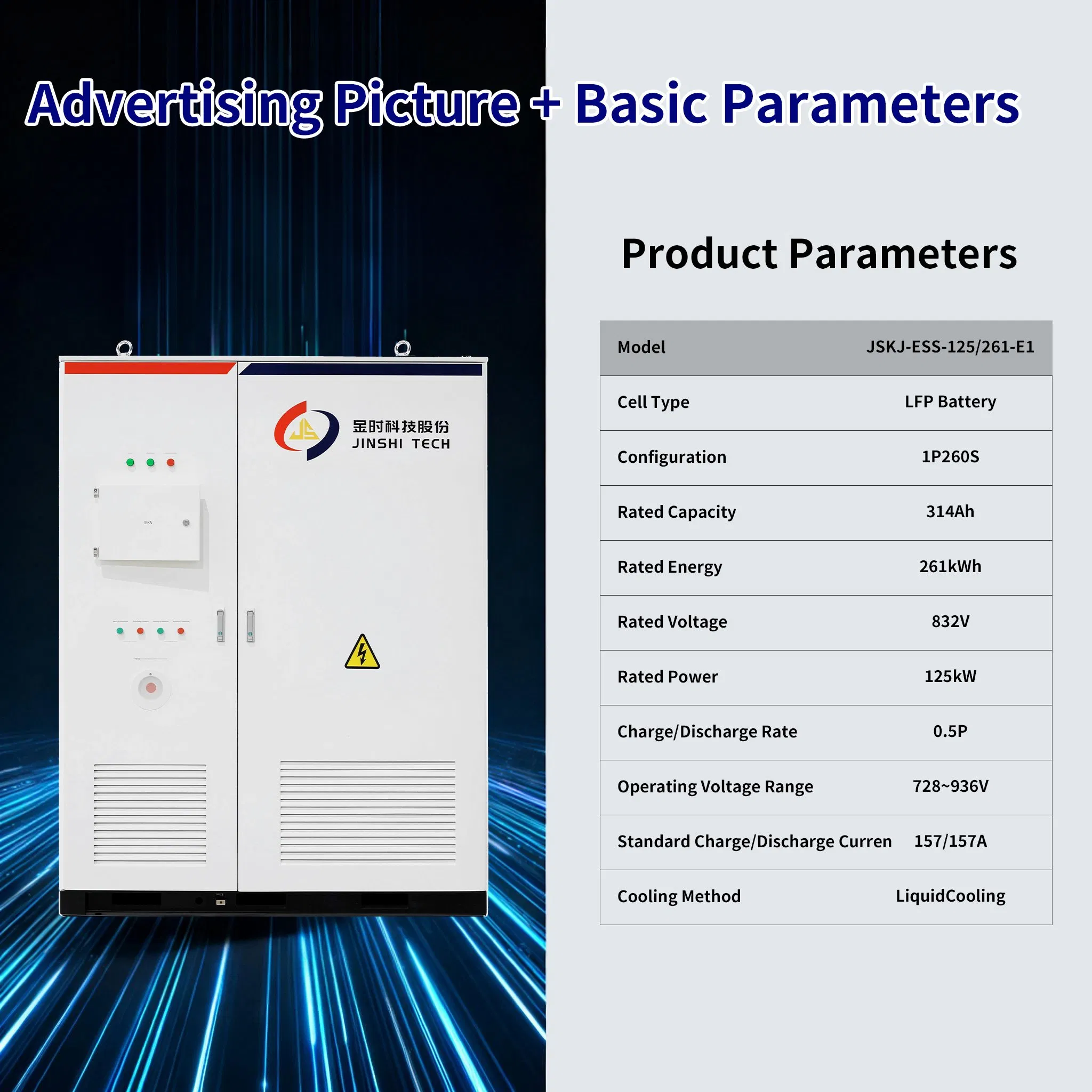

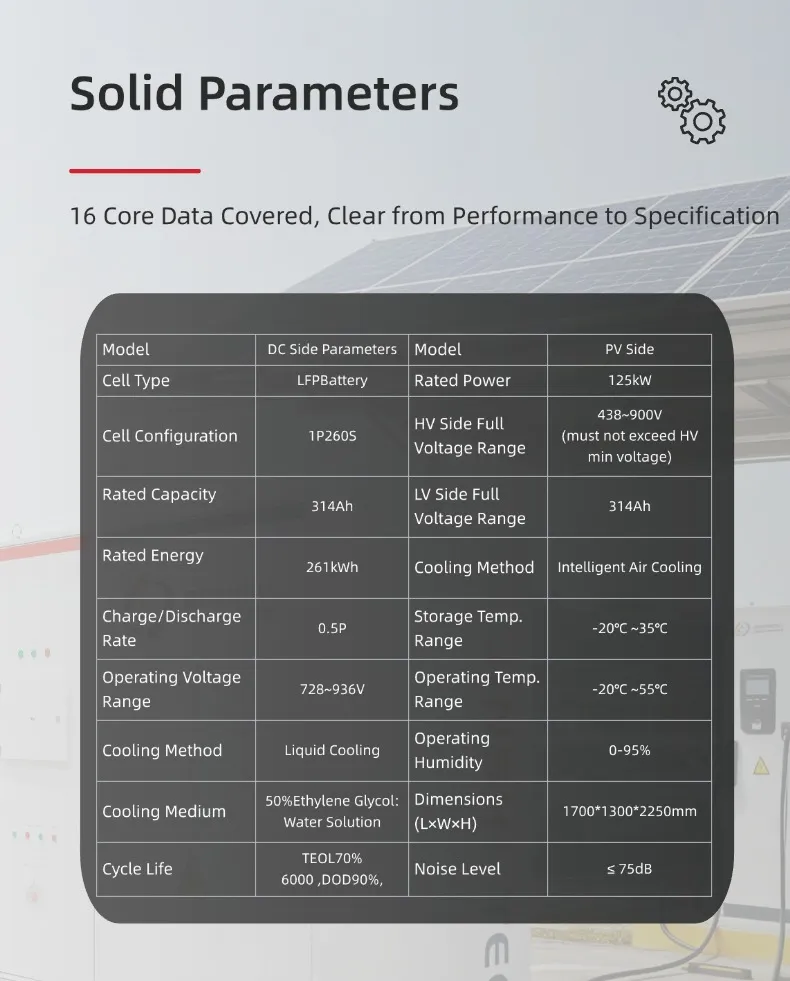

Technical Data Sheet
Cell Type	LFP Battery
Configuration	1P260S
Rated Capacity	314Ah
Rated Energy	261kWh
Rated Voltage	832V
Rated Power	125kW
Charge/Discharge Rate	0.5P
Operating Voltage Range	728~936V
Standard Charge/Discharge Current	157/157A
Cooling Method	Liquid Cooling
Maximum Efficiency	99%

❓ Frequently Asked Questions

What is the cycle life of the Smart PV-ESS All-in-One Unit?

The system is designed for high durability with a cycle life of up to 6000 cycles, ensuring long-term reliability for energy storage needs.

How is the battery system cooled?

This unit features an Intelligent Liquid Cooling system, which provides superior thermal management compared to traditional air cooling, enhancing efficiency and battery lifespan.

What is the protection rating for outdoor installation?

The unit has an IP54 protection level, making it suitable for outdoor cabinet energy storage solutions and protecting it against dust and water splashes.

What are the fire safety features?

Safety is prioritized with a built-in fire protection system. Options include Perfluorohexane or Aerosol based on specific project requirements.

What is the maximum efficiency of this energy storage system?

The system achieves a maximum efficiency of up to 99%, minimizing energy loss during power conversion and storage processes.

What is the battery configuration and capacity?

The unit uses LFP (Lithium Iron Phosphate) cells in a 1P260S configuration, providing a rated capacity of 314Ah and a total energy of 261kWh.
