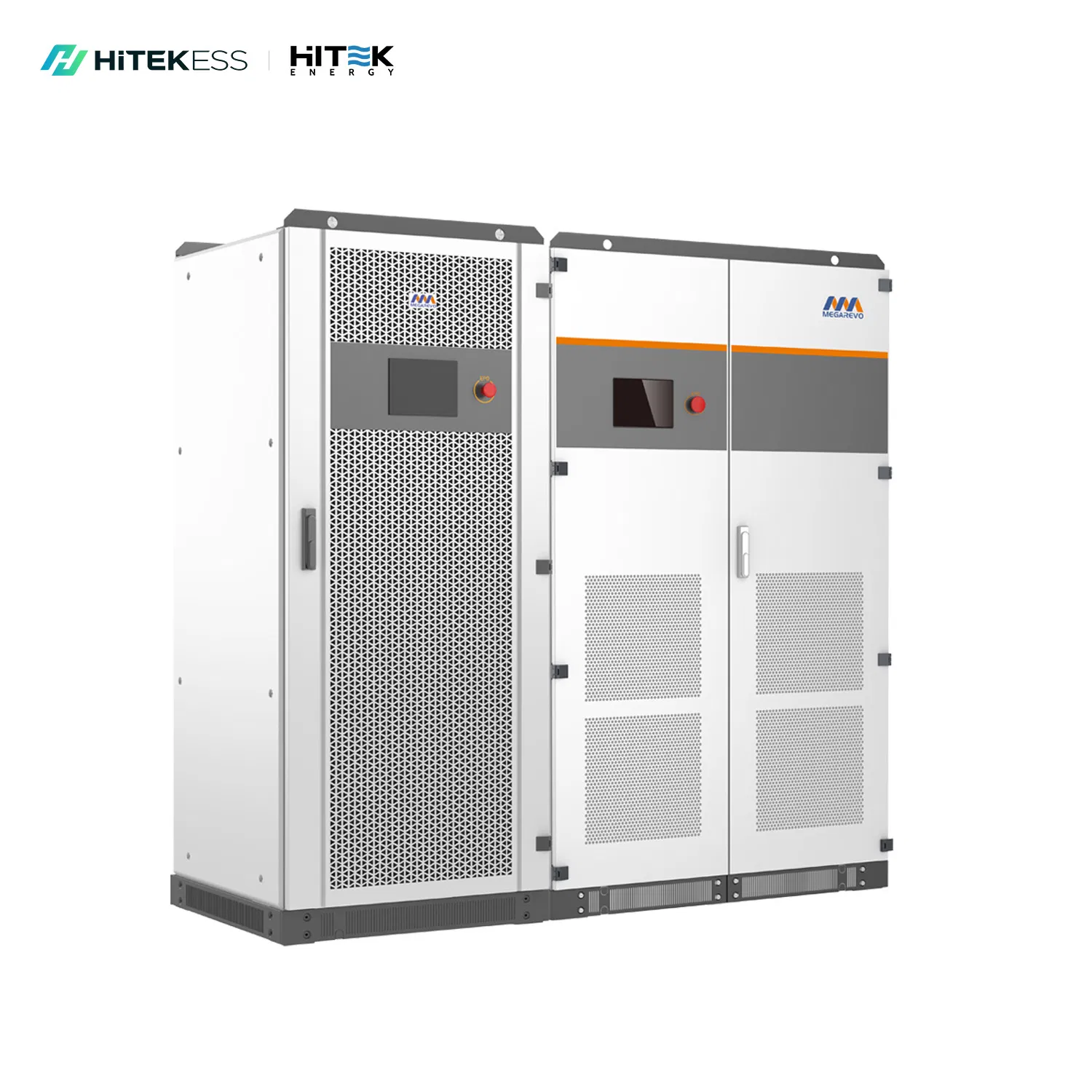

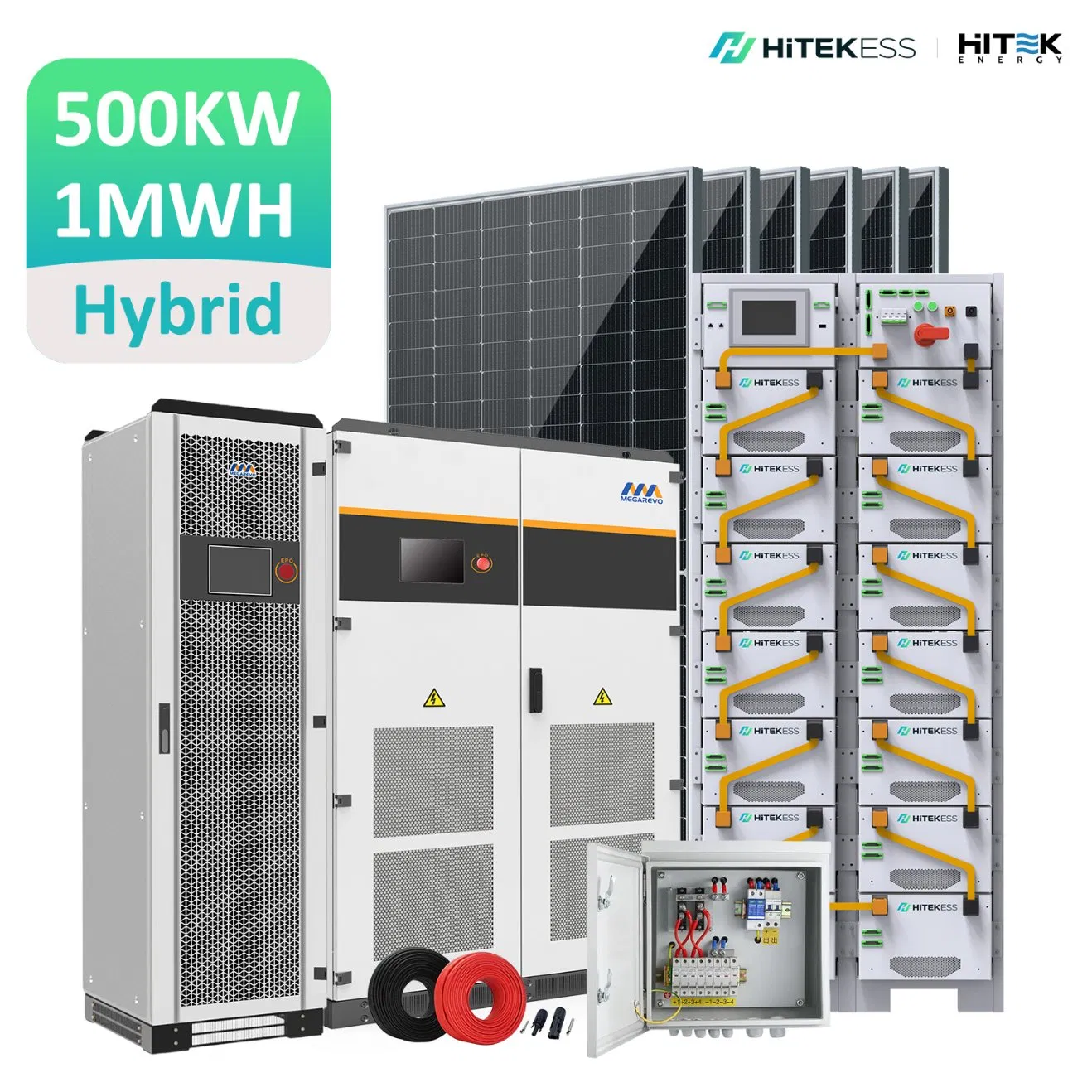

Hitek 500kw on off Grid Solar Energy System 350kw 400kw 600kw 800kw Hybrid Solar Photovoltaic Storage System High Voltage 3 Phase Solar Energy System

1 / 5

Hitek 500kw on off Grid Solar Energy System 350kw 400kw 600kw 800kw Hybrid Solar Photovoltaic Storage System High Voltage 3 Phase Solar Energy System

Customization:	Available
After-sales Service:	Available
Warranty:	5 Years

Send Inquiry

Product Description

📊 Basic Information

Model NO.

HT500KW-HY

Certification

ISO, CE

Application

Home, Industrial, Commercial

System Type

Hybrid Solar System

Output Voltage

380V/400/415VAC 3Phase

Battery Type

Lithium Ion, LiFePO4

Monitoring

WiFi/LAN/GPRS

Capacity

30KW - 500KW Scalable

🌟 Product Description

Hybrid solar system is a renewable energy system that is grid-tied and includes battery storage. The system uses solar panels to produce energy during the day, while the batteries store excess energy for use later at night when there is no sunlight. Hybrid solar systems have both on-grid and off-grid capabilities, allowing you to continue running on solar power even if the grid goes dark.

🛡️ Warranty & Reliability

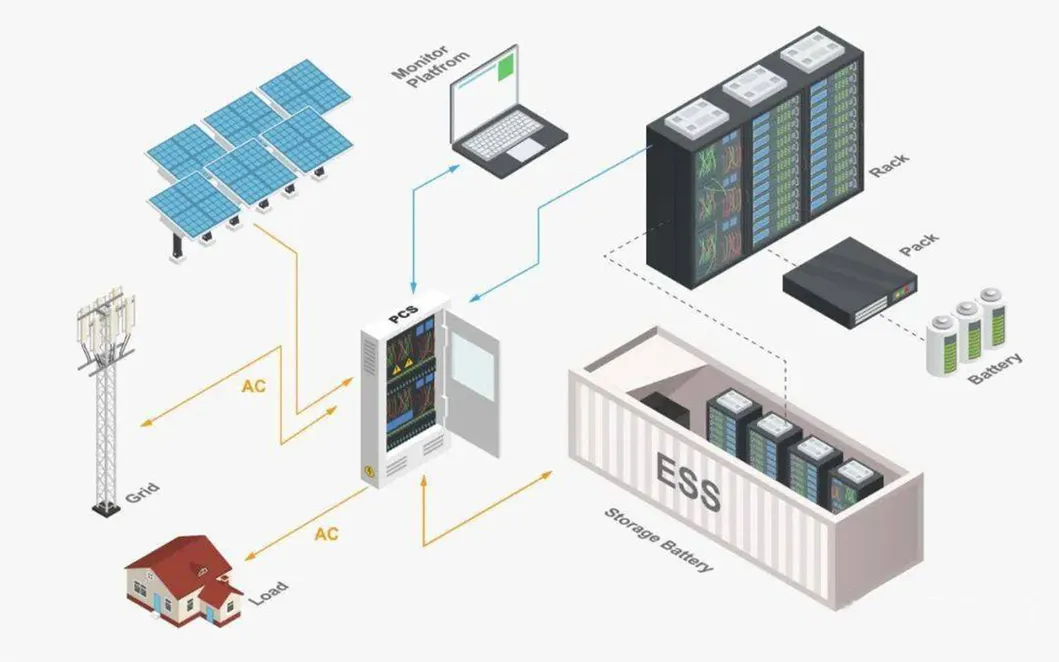

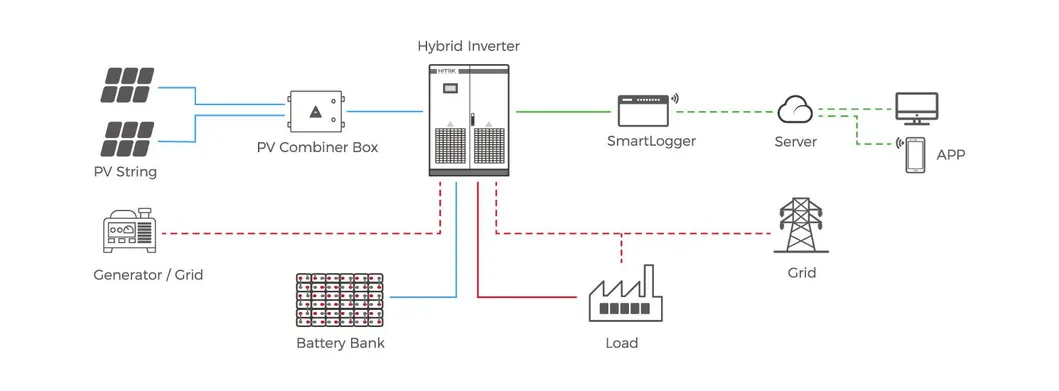

⚙️ How It Works

📋 Technical Configuration Details

Parameter	HT30KW-HY	HT50KW-HY	HT100KW-HY	HT250KW-HY	HT500KW-HY
AC Rated Power	30KW	50KW	100KW	250KW	500KW
Grid Voltage	380/400VAC 50/60HZ
Solar Panel Qty	68 PCS	102 PCS	204 PCS	510 PCS	1020 PCS
Total PV Power	38.08KW	57.1KW	114.24KW	285.6KW	571.2KW
Battery Capacity	40.96KWH	100.35KWH	200.7KWH	473.08KWH	946.17KWH
MPPT Voltage	250-850VDC

🧩 System Components

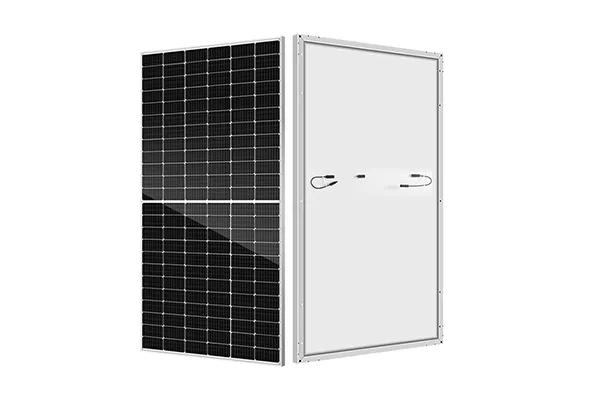

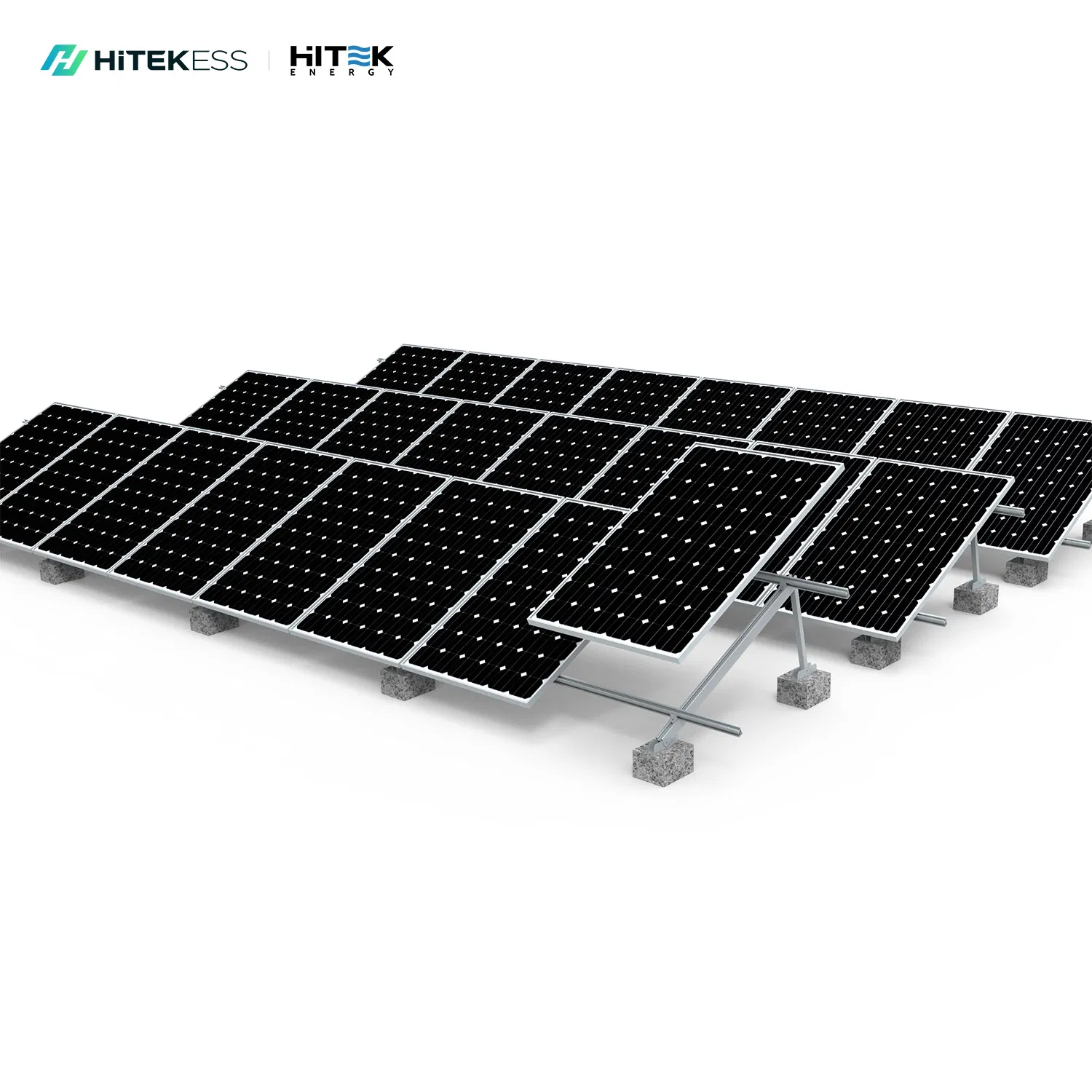

Mono Solar Panel

Model: HT560M-72 | Peak Power: 560Wp
High-efficiency monocrystalline cells with robust 35mm aluminum frame. Designed for 25-year durability.

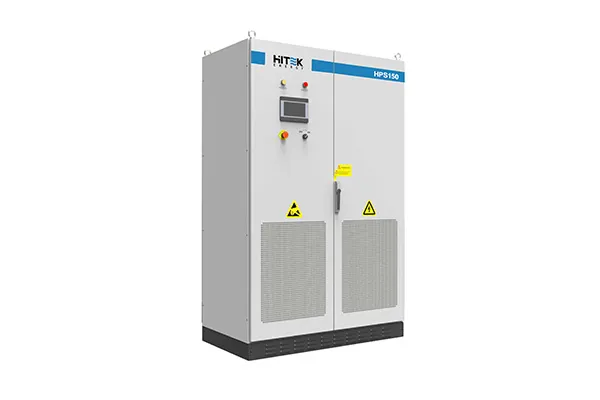

Hybrid Inverter

Programmable working modes with touchscreen LCD. Supports seamless transfer and scalable design (up to 4 units in parallel).

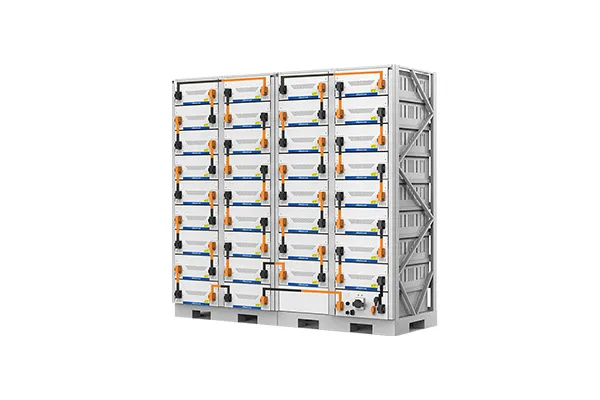

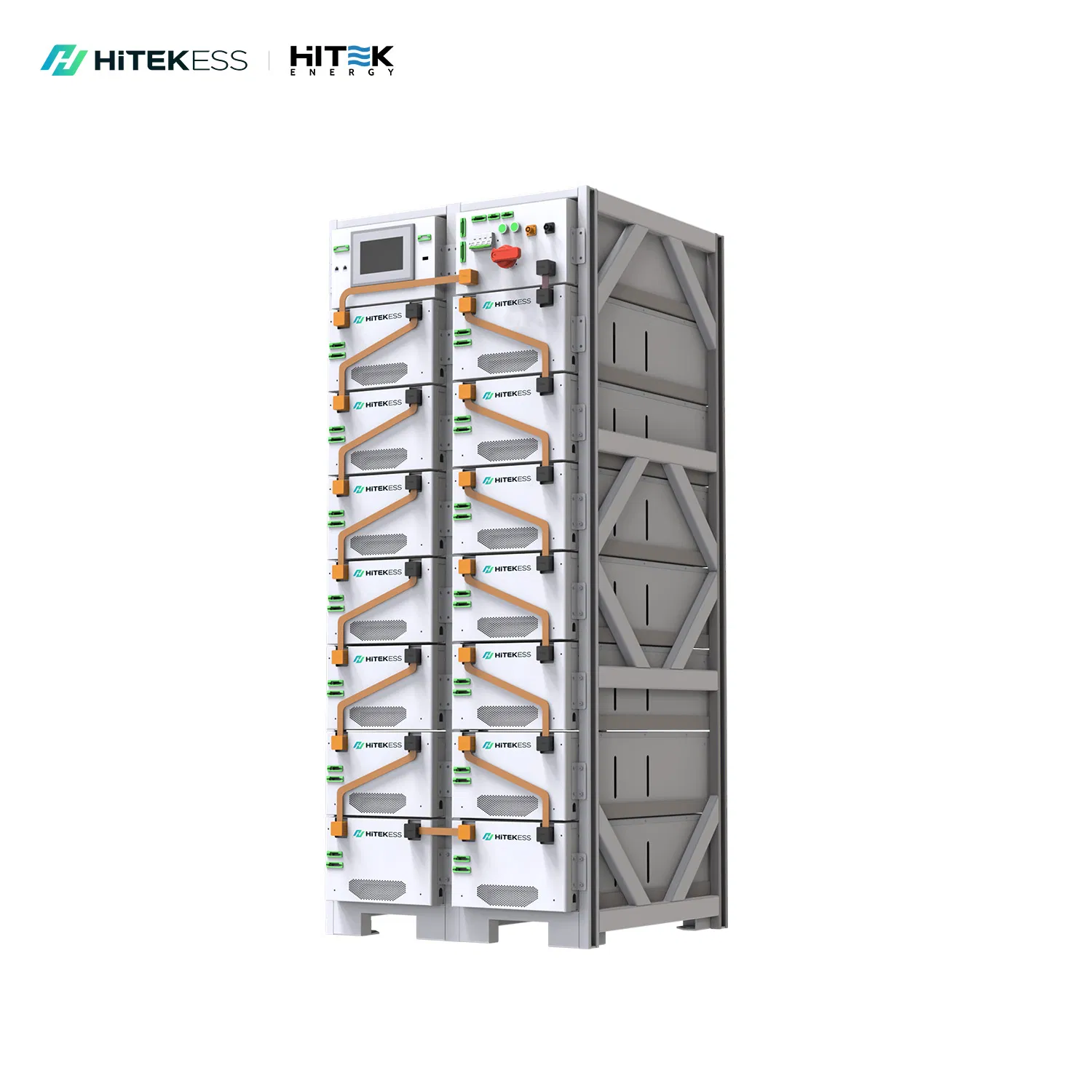

Lithium Battery Packs

LiFePO4 high-discharge performance. More than 6000 cycles at 90% DOD. Easy installation and maintenance-free rack design.

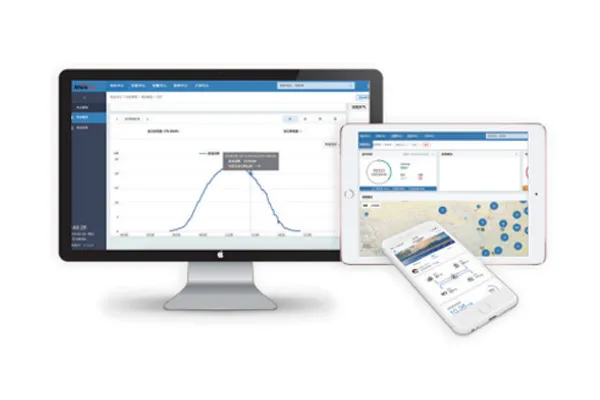

Online Monitoring System

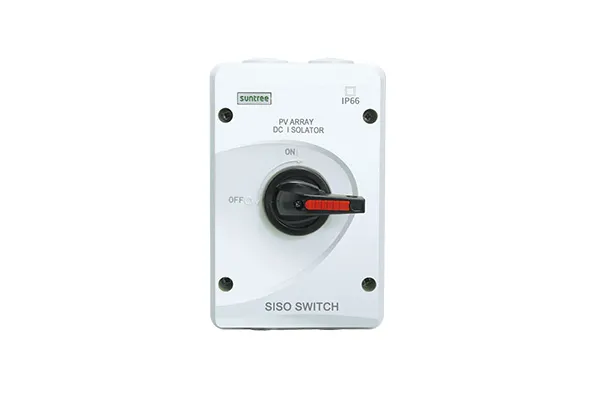

DC/AC Disconnect Switch

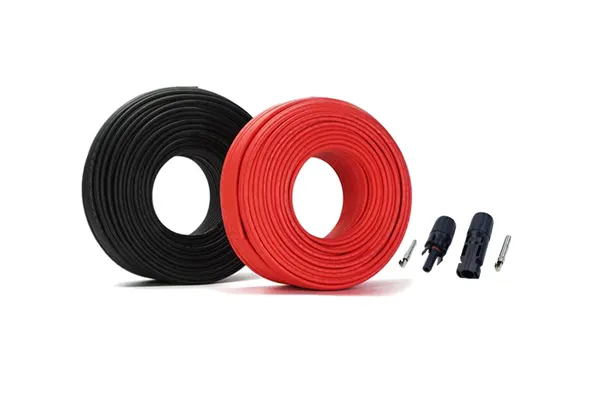

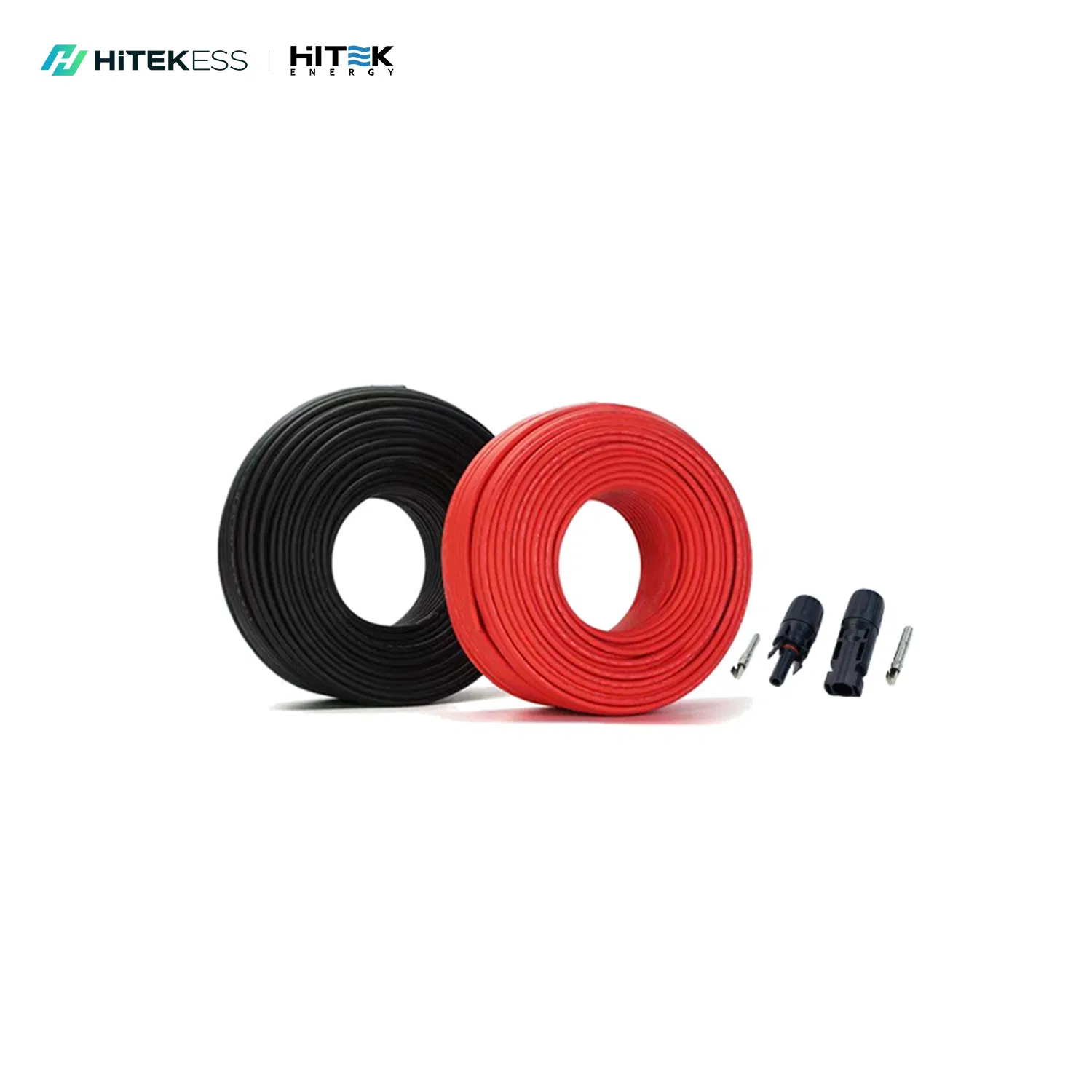

PV Cables & Connectors

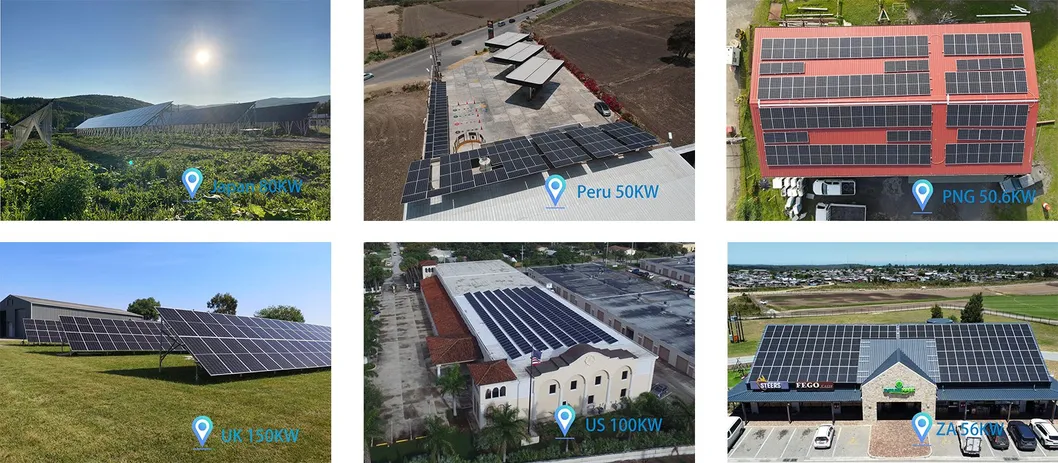

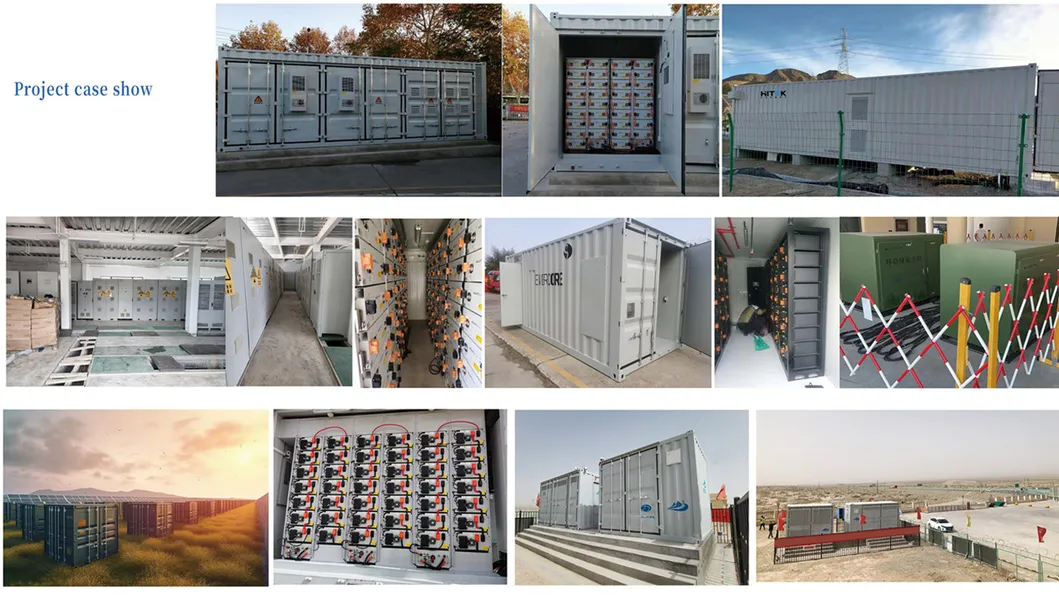

🏗️ Global Project Cases

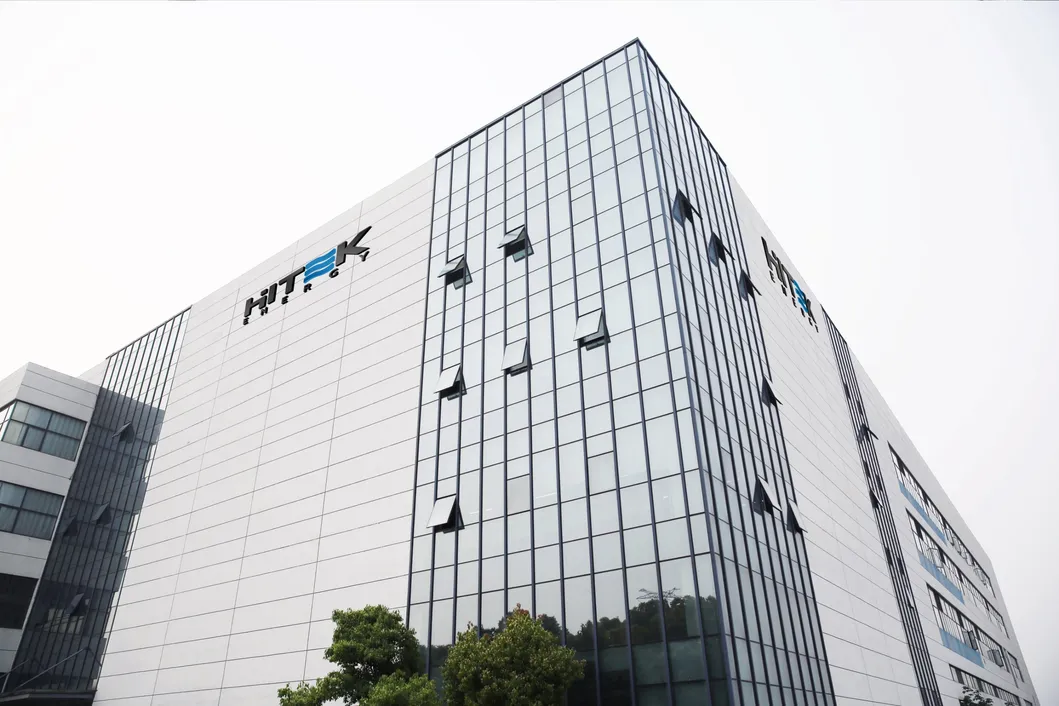

🏢 Company Profile

Founded in 2018 as a superior photovoltaic manufacturer, we are dedicated to providing sustainable and renewable energy solutions to strengthen homes, businesses, and factories. We provide tailored solar energy solutions for backup, residential, and commercial needs, catering to unique power requirements.

Brighter and Greener Future: We use only reliable, approved equipment to ensure long-term satisfaction and electric bill savings.

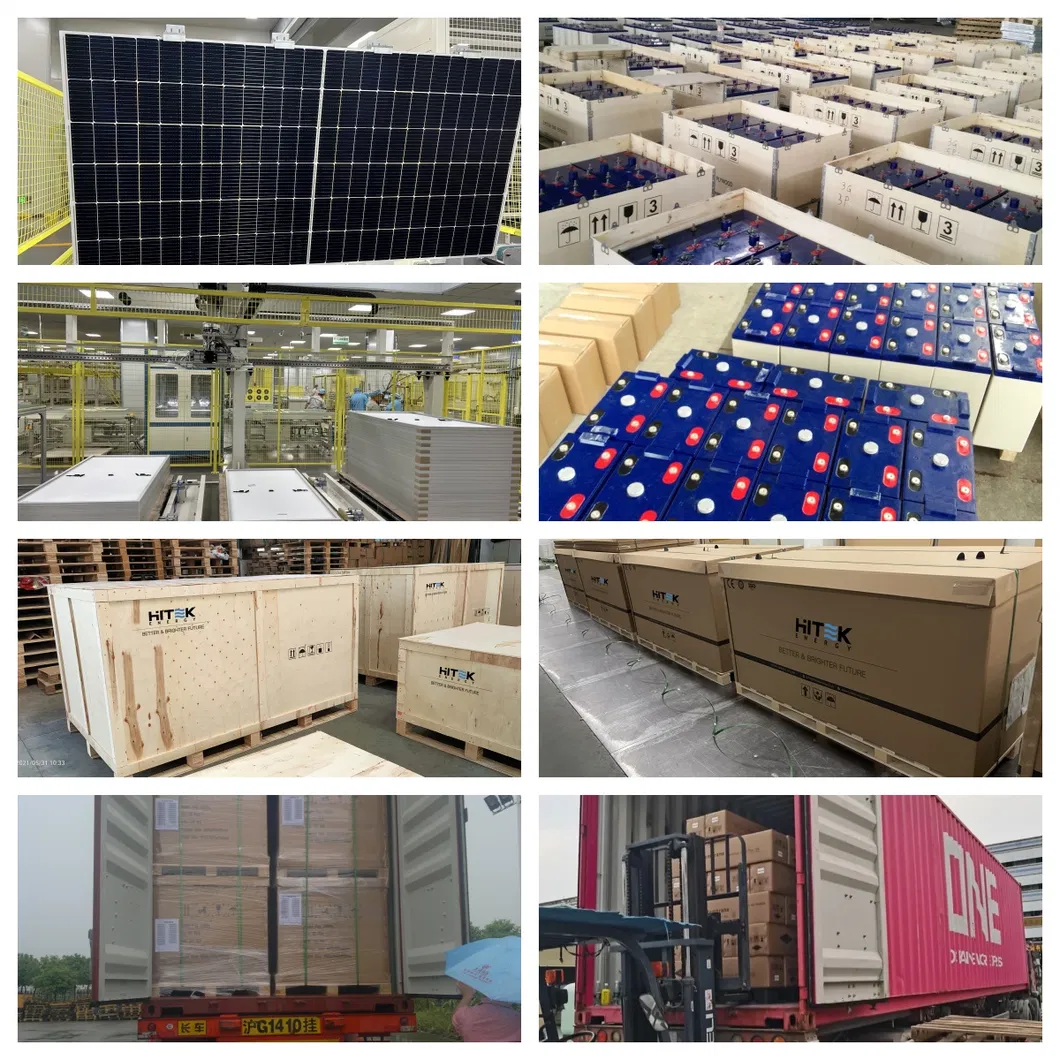

📦 Packaging & Shipping

❓ Frequently Asked Questions

How long is the warranty for the system?

We offer a comprehensive warranty including 10-12 years for solar panels and 5 years for the hybrid inverter and battery systems, with optional extensions.

Can this system work during a power outage?

Yes, the hybrid system includes battery storage and seamless transfer capabilities, allowing it to provide backup power when the grid is down.

Is the system monitoring accessible remotely?

Absolutely. Our online monitoring system supports WiFi, LAN, and GPRS, allowing you to track energy production and consumption via a smartphone app or PC.

What is the lifespan of the Lithium batteries?

The LiFePO4 battery packs are designed for deep-cycle use with a lifespan of over 6,000 cycles at 90% Depth of Discharge (DOD).

Do you provide technical guidance for installation?

Yes, we provide complete professional technical guidance and support throughout the installation and system commissioning process.

Can the system power industrial equipment?

Yes, our systems are designed for residential, commercial, and industrial applications, supporting 3-phase high-voltage requirements up to 500KW and beyond.
