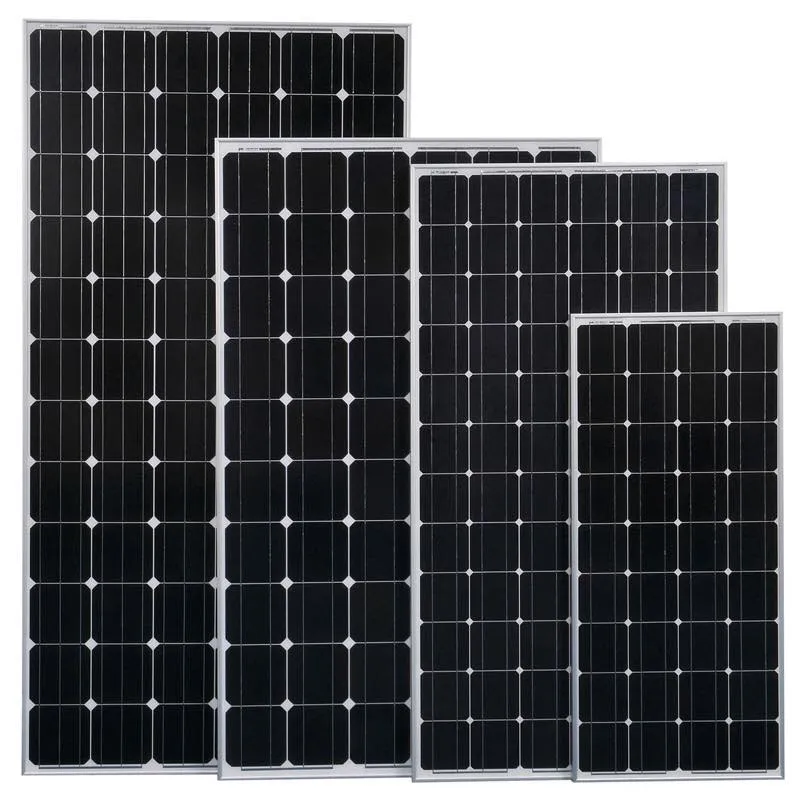

High Efficiency Mono Half Cell Solar Power double glass solar modules - Tier 1 Technical Specifications.
| Rated Power - Pmax (W) |
530w |
535w |
540w |
545w |
550w |
| Open Circuit Voltage -Voc (V) |
49.2 |
49.35 |
49.51 |
49.69 |
49.88 |
| Short Circuit Current -Isc (A) |
13.68 |
13.75 |
13.82 |
13.89 |
13.97 |
| Working Voltage -Vpm (V) |
41.53 |
41.82 |
42.12 |
42.41 |
42.71 |
| Working Current -Ipm (A) |
12.76 |
12.79 |
12.82 |
12.85 |
12.88 |
| Module Efficiency (%) |
20.51 |
20.7 |
20.89 |
21.09 |
21.28 |
*STC: Irradiance 1000W/m², Cell Temperature 25°C, Air Mass AM 1.5

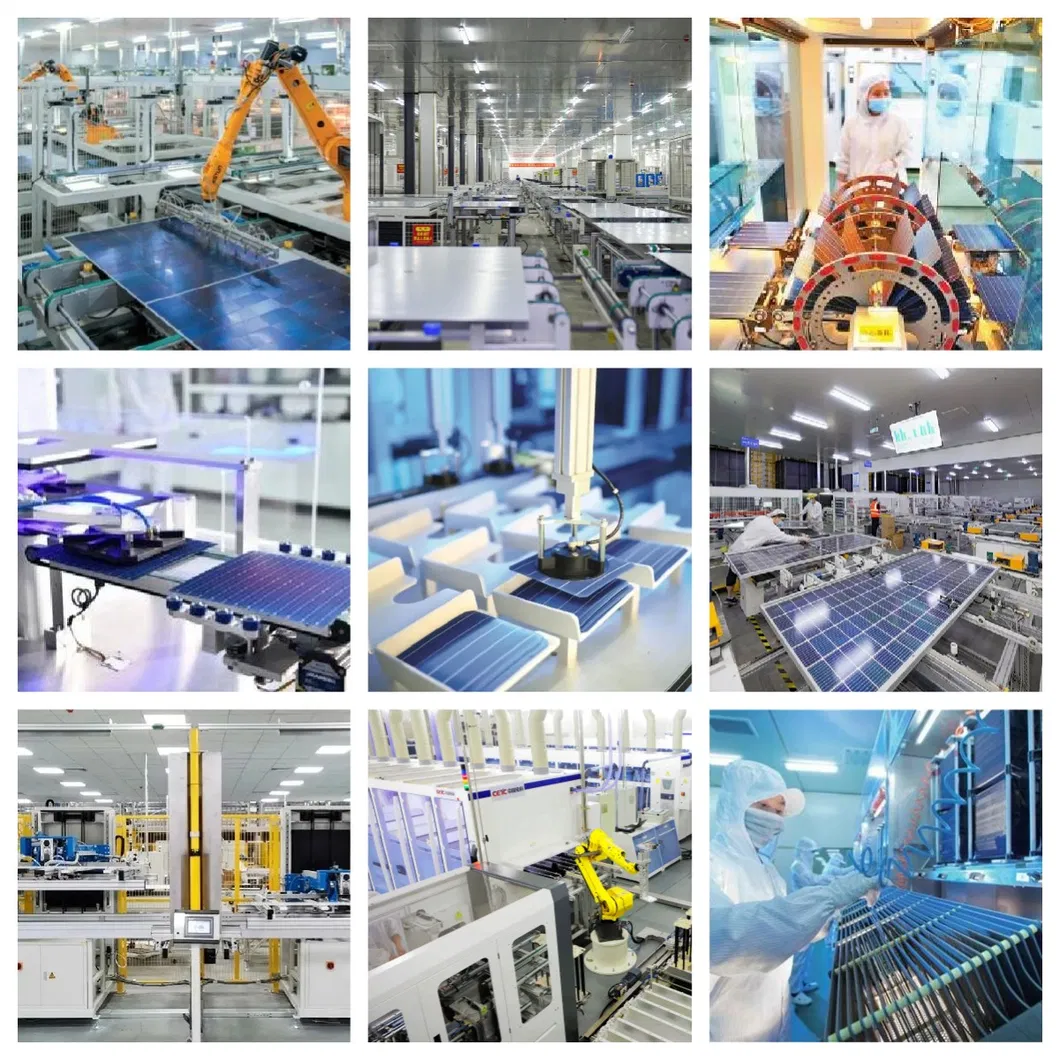

As an industry-leading solar energy company with a current high-efficiency module production capacity of 10GW, we design, manufacture, and supply monocrystalline solar modules. Our focus is on providing outstanding photovoltaic products and system solutions to customers globally, contributing to carbon peaking goals.
?
Frequently Asked Questions
Q1: What is the lead time for solar panel orders?
A1: For requirements under 200kW, the lead time is typically 10 days. For orders exceeding 200kW, the schedule will be negotiated based on production capacity.
Q2: What payment methods are accepted?
A2: We accept 100% TT (Telegraphic Transfer) or a standard 30% TT in advance with the remaining 70% TT due upon goods being ready before shipment.
Q3: How are the products transported internationally?
A3: International shipping is generally handled via sea transport. Upon entry to the destination country, we utilize multimodal transport including rail and barge for delivery.
Q4: What are the warranty terms for the PV modules?
A4: We offer a 10-year enhanced product warranty on materials and workmanship, along with a 25-year linear power output warranty.
Q5: What certifications do your solar panels hold?
A5: Our solar panels are fully certified with international standards including ISO, CE, and RoHS, ensuring high quality and safety compliance.
Q6: What is the conversion efficiency of the N-Type Mono modules?
A6: Depending on the specific power rating (530W to 550W), the module efficiency ranges from 20.51% up to 21.28%.
