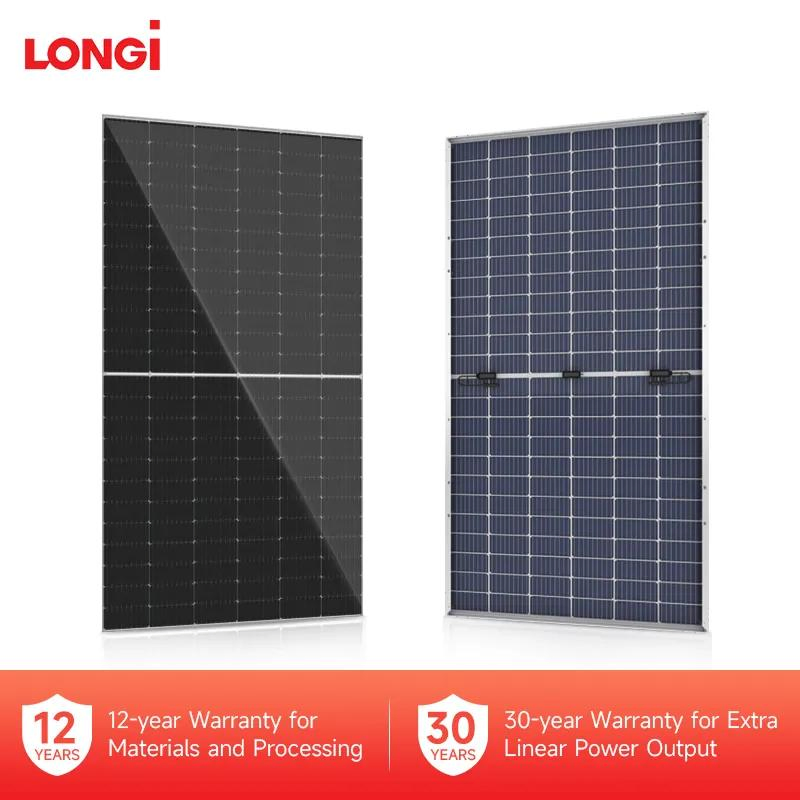

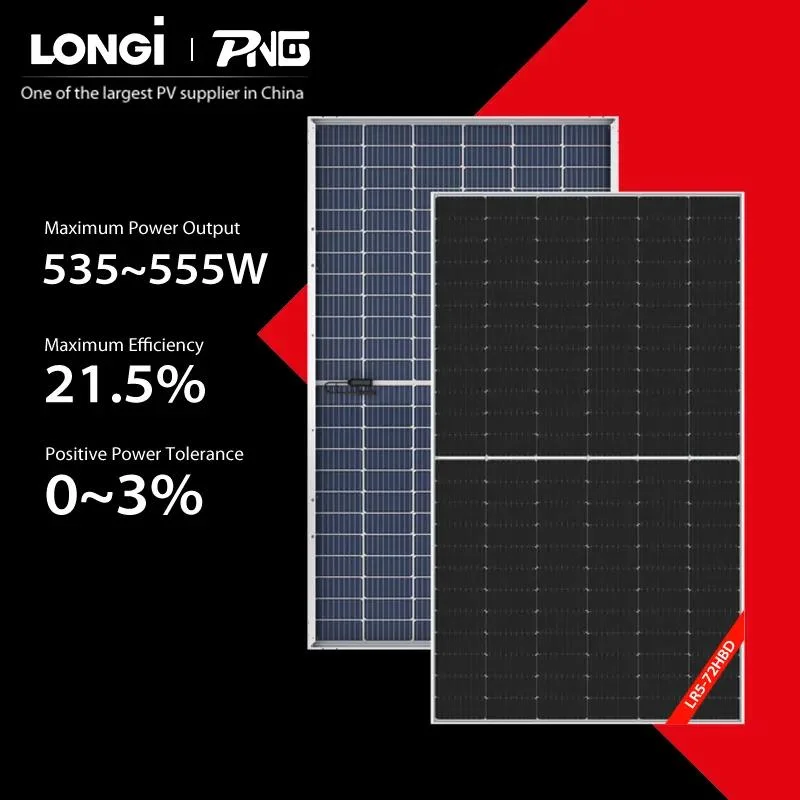

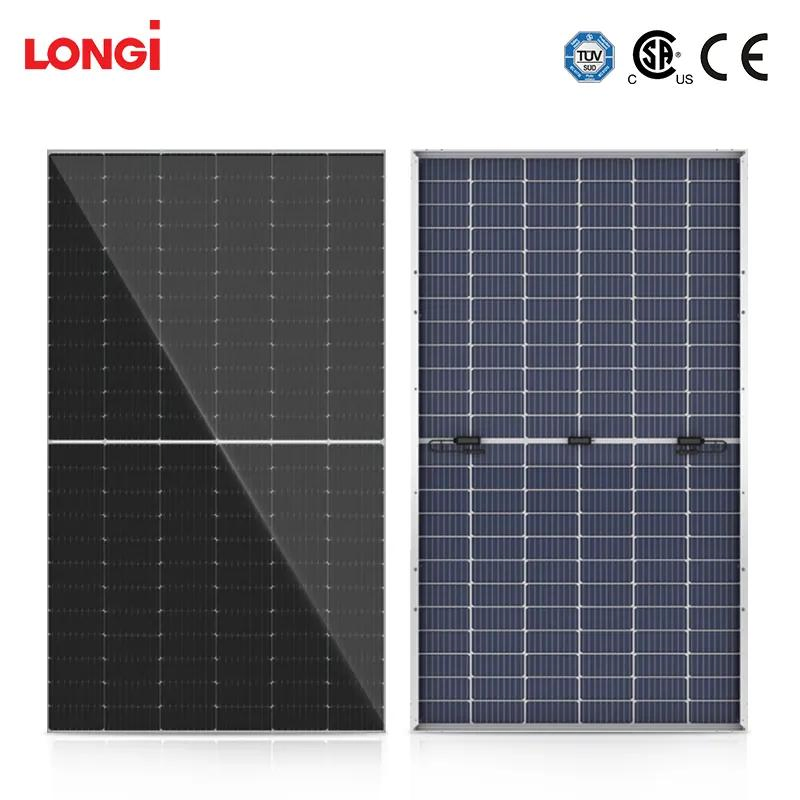

Longi High Quality Warranty 25 Years Half Cut 144 Half Cells 182mm 545W 550W Bifacial Solar Mono Panel

Customization: Available
After-sales Service: Yes
Warranty: 25 Years

Product Description

Basic Information
Model NO.
LR5-72HBD-540
Number of Cells
144
Application
Agriculture
Condition
New
Certification
CE
Material
Monocrystalline Silicon
Transport Package
Pallets
Specification
2278*1134*30mm
Origin
China
Production Capacity
1000MW/Year
Product Description

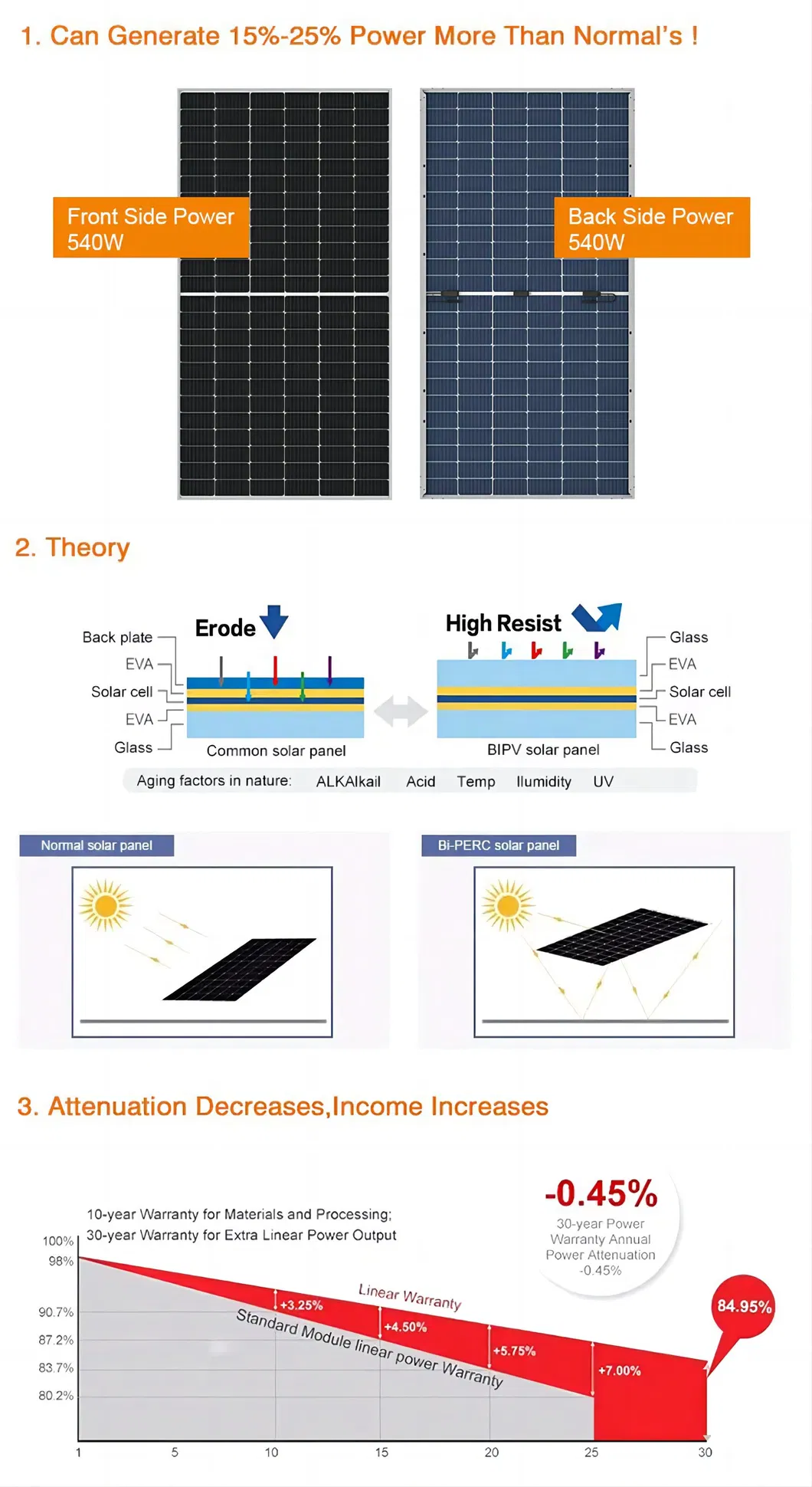

Solar Panel Description
Product Parameters
MECHANICAL DATA
Module Dimensions 2256*1133*35mm
Weight 32.3kg
Glass 3.2 mm, High Transmission, AR Coated Tempered Glass
Junction-Box IP 68, three diodes
Cables 4.0mm², 300mm in length
Cell Orientation 144 cells (6*24)
ELECTRICAL CHARACTERISTICS (STC)
Model Number LR5-72HBD-540M LR5-72HBD-545M LR5-72HBD-550M
Maximum Power (Pmax/W) 540 545 550
Open Circuit Voltage (Voc/V) 49.50 49.65 49.80
Short Circuit Current (Isc/A) 13.85 13.92 13.99
Voltage at Pmax (Vmp/V) 41.65 41.80 41.95
Current at Pmax (Imp/A) 12.97 13.04 13.12
Module Efficiency (%) 21.1% 21.3% 21.5%
Material & Production Process

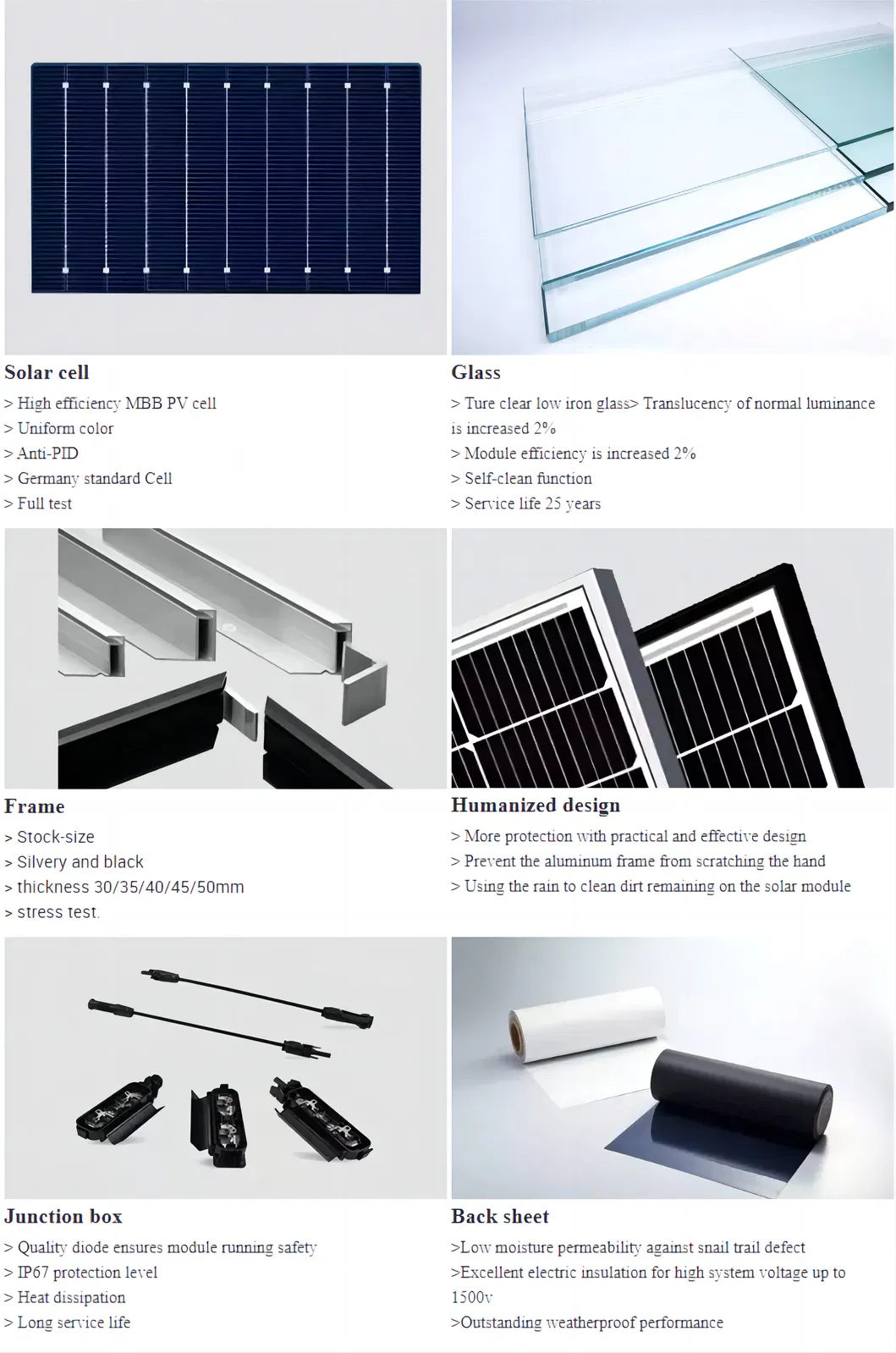

Material details

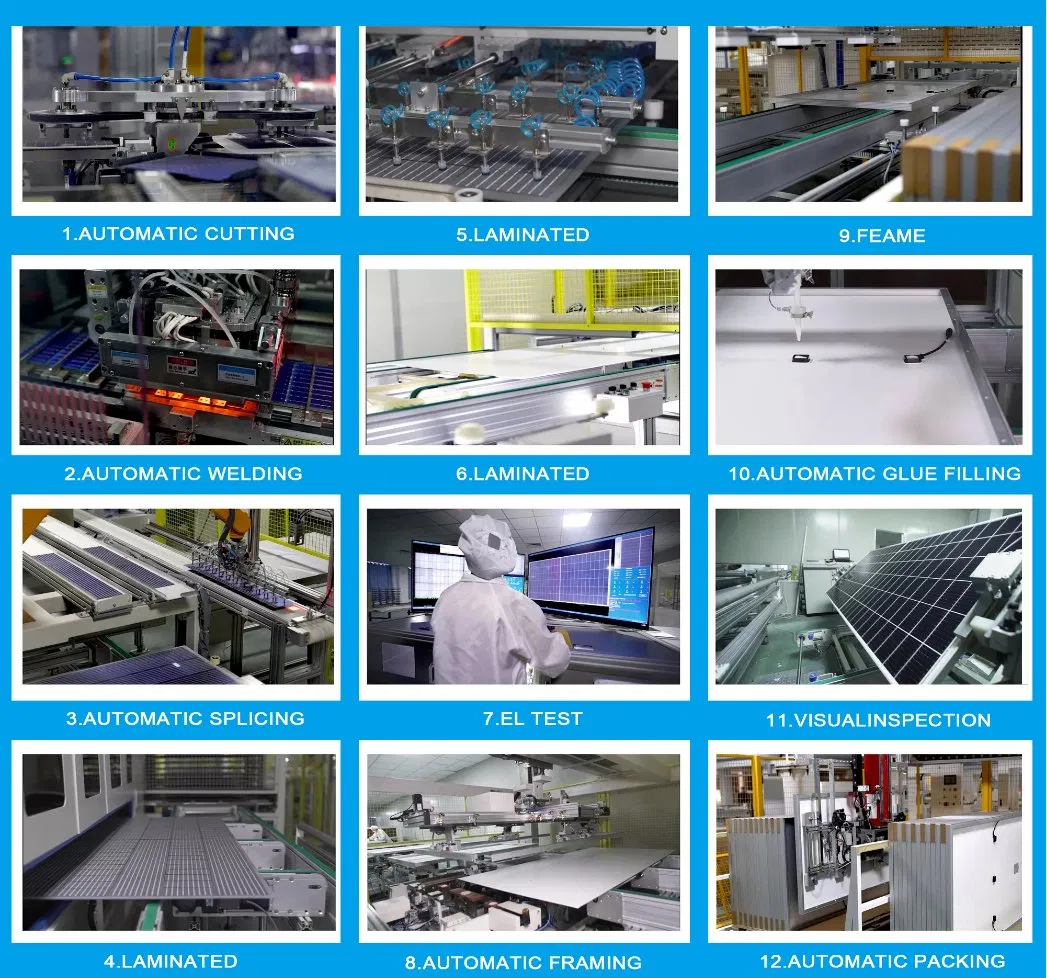

Production process

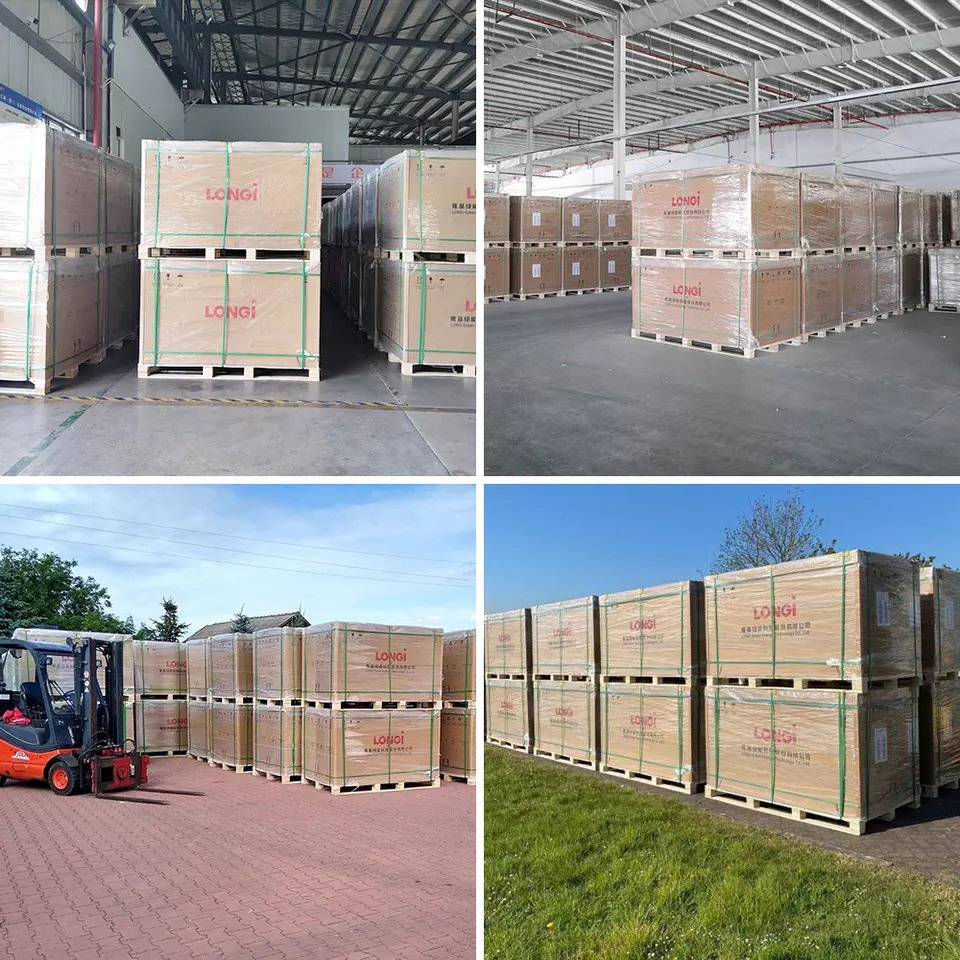

Packaging & Shipping

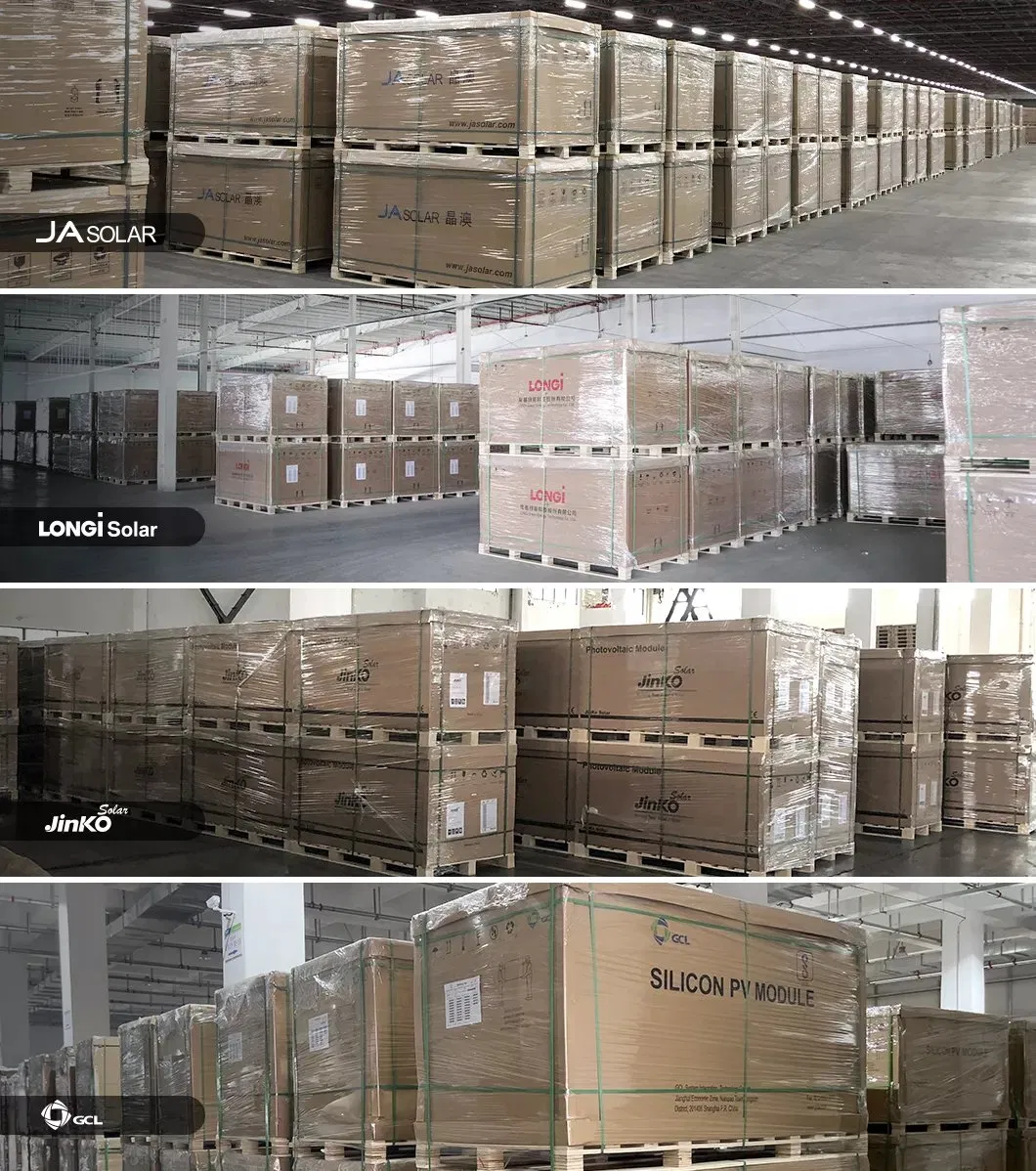

Packaging info
Shipping method 1
Shipping method 2
Company Information

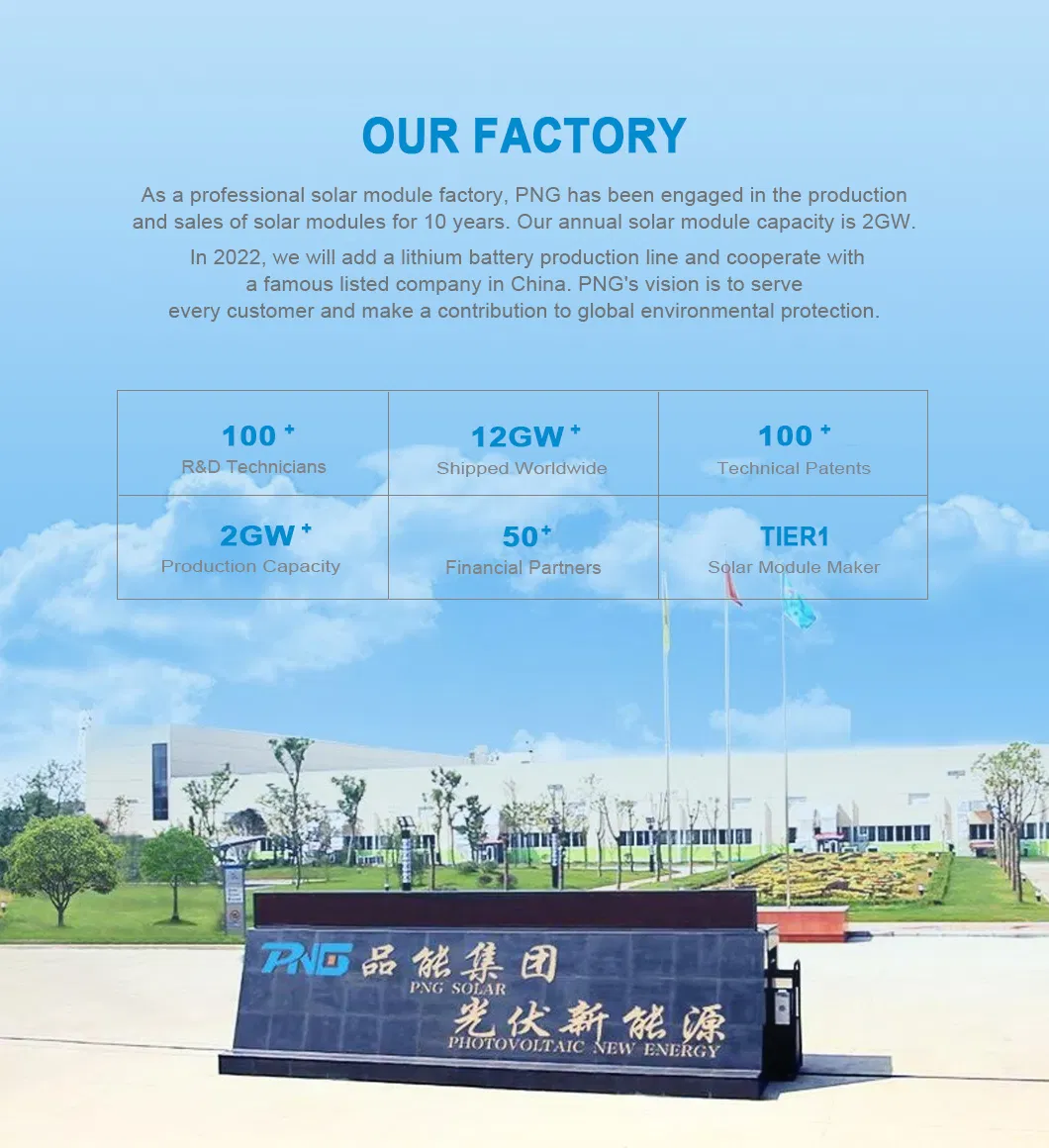

Company profile overview
Frequently Asked Questions
What is the maximum efficiency of these solar panels?
The maximum module efficiency reaches up to 21.5% for the LR5-72HBD-550M model.
What type of solar cells are used in this product?
These panels use 144 high-efficiency Monocrystalline Silicon cells (6*24 orientation).
Are these panels durable for outdoor use?
Yes, they feature 3.2mm high transmission, AR coated tempered glass and an IP68 rated junction box for superior weather resistance.
What are the physical dimensions and weight?
The module measures 2256*1133*35mm and weighs approximately 32.3kg.
What certifications do these solar panels have?
The product is CE certified, ensuring it meets European safety and environmental standards.
What is the production capacity for these panels?
The production facility has a capacity of 1000MW per year to ensure a stable supply.
