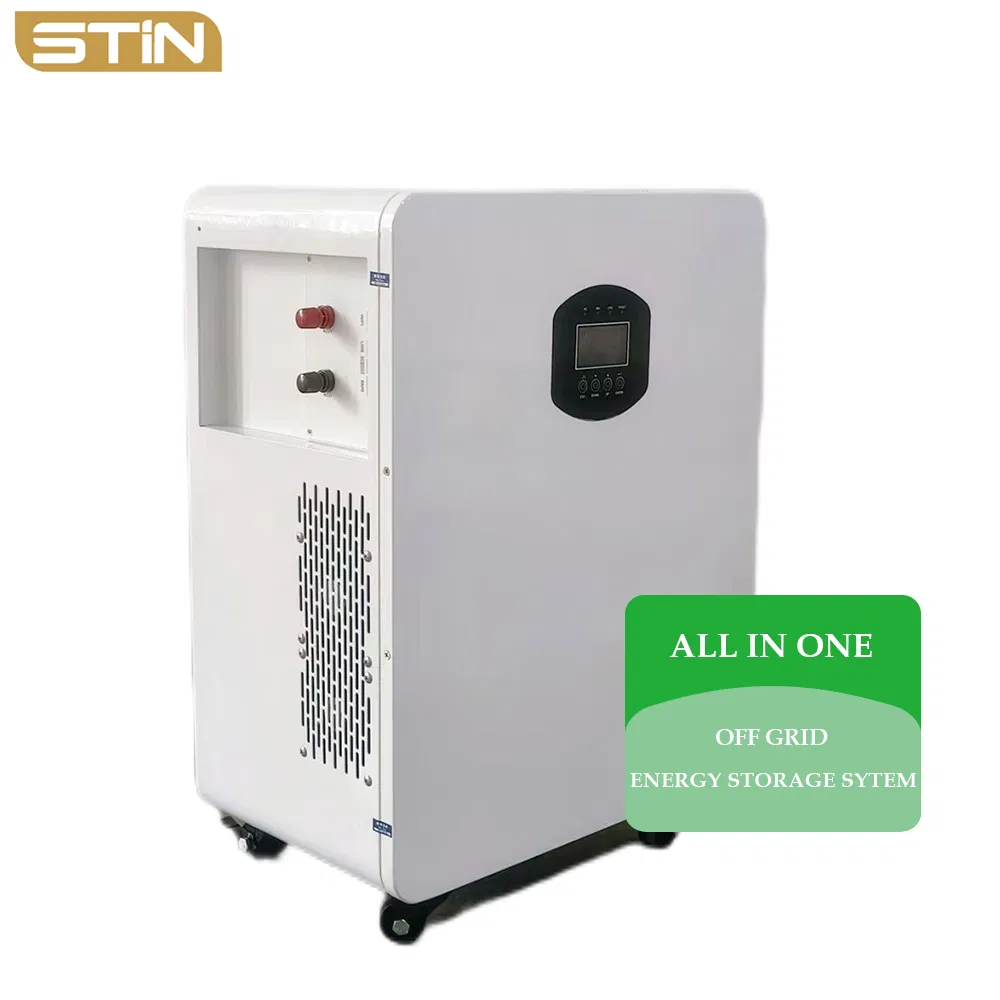

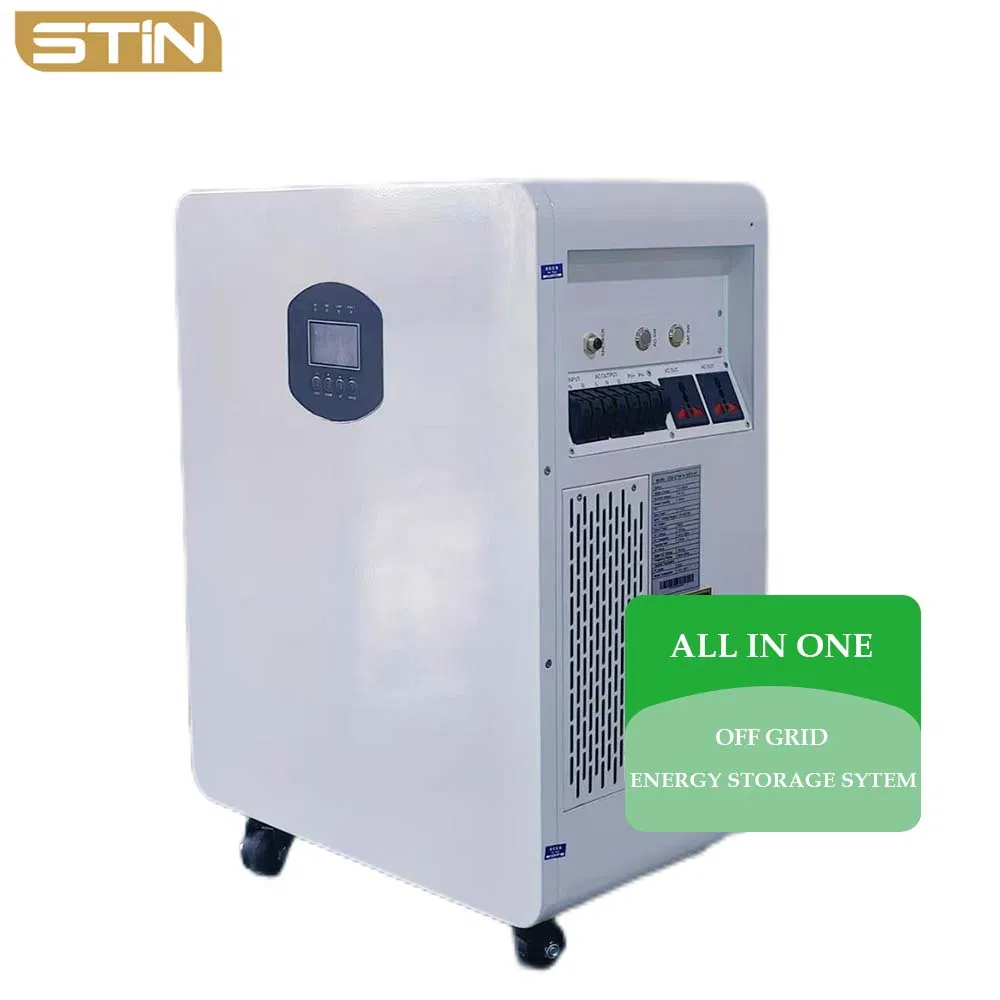

LiFePO4 14.3kwh Lithium Battery 51.2V 208ah Wall Floor Mounted Home Solar Energy Storage System

Customization: Available
Weight: 160kgs
Warranty: 10 Year

Product Description

i

Overview & Basic Info

Model NO.
14.3KWH-10KF1-A1
Cycle Life
6000+
Nominal Capacity
200ah
Battery Chemistry
LiFePO4
Display
LCD Display
Nominal Voltage
51.2V
Connection Port
RS485/WiFi/4G(Option)
Size
510*376*710mm
Origin
China

Product Description

Lifepo4 14.3kWh Lithium Battery 51.2V 208Ah Wall Floor Mounted Home Solar Energy Storage System
Fashionable Design; All-In-One (Battery & Inverter)
Support AC charge and PV charge; High integration and easy installation
Support UPS function
Flexibly and Easy Installation wall-mounted or floor-mounted
Easy Management: Real time online monitoring system, intelligent warning
Seamless transition between Off grid or grid connected mode
Safety & Reliability: Nano-coating and self-healing technology
Plug and use
Detailed Photo 1

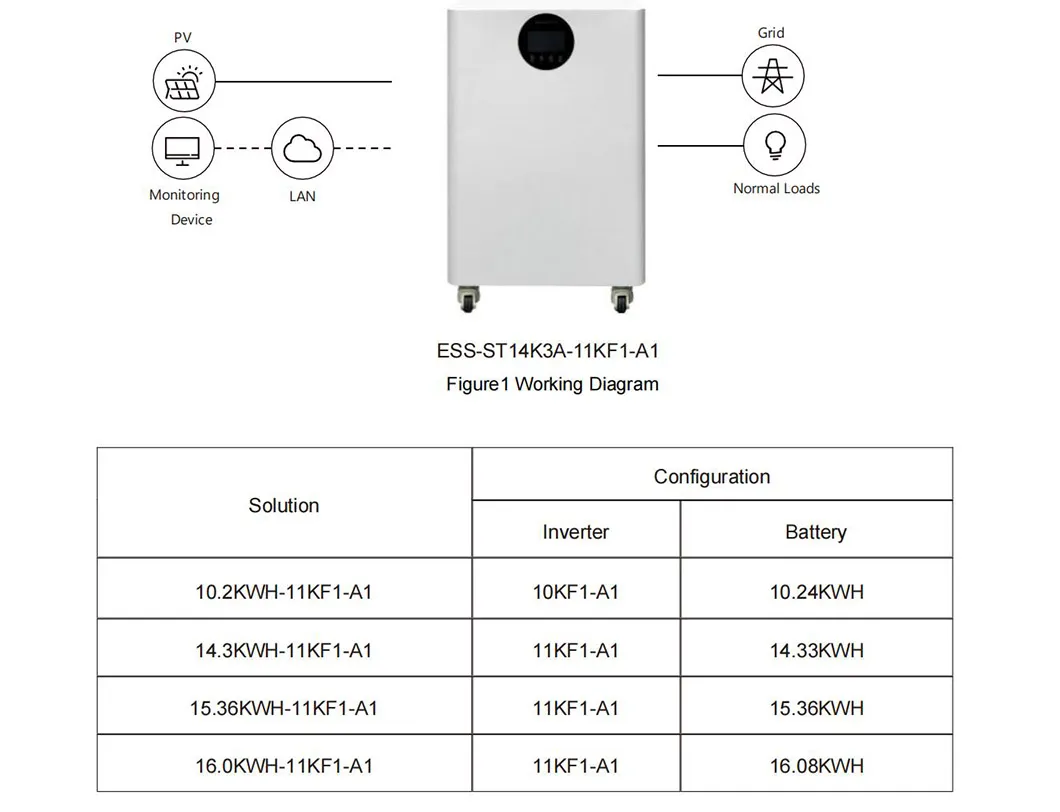

Detailed Photo 2

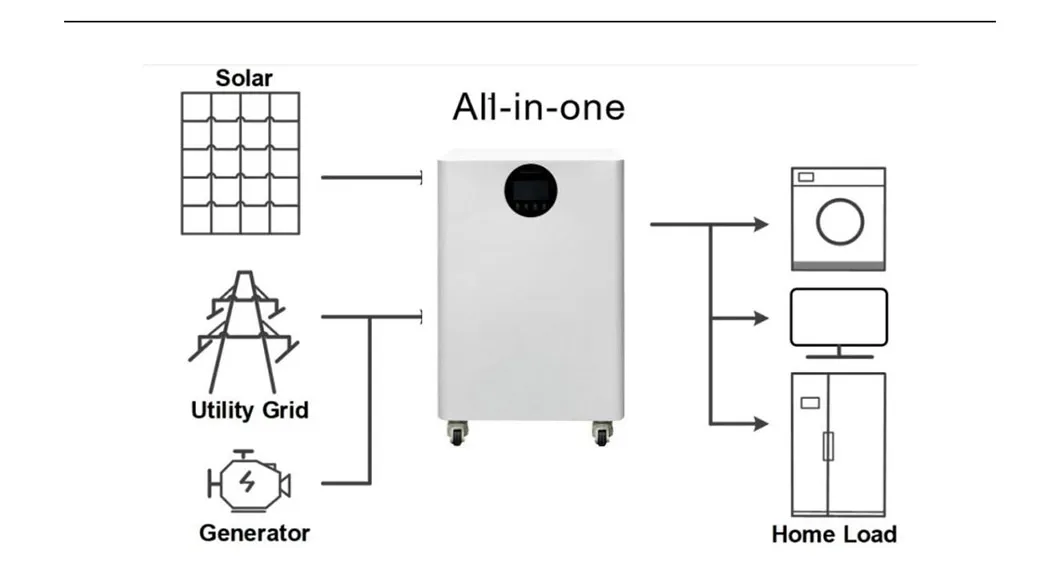

Detailed Photo 3

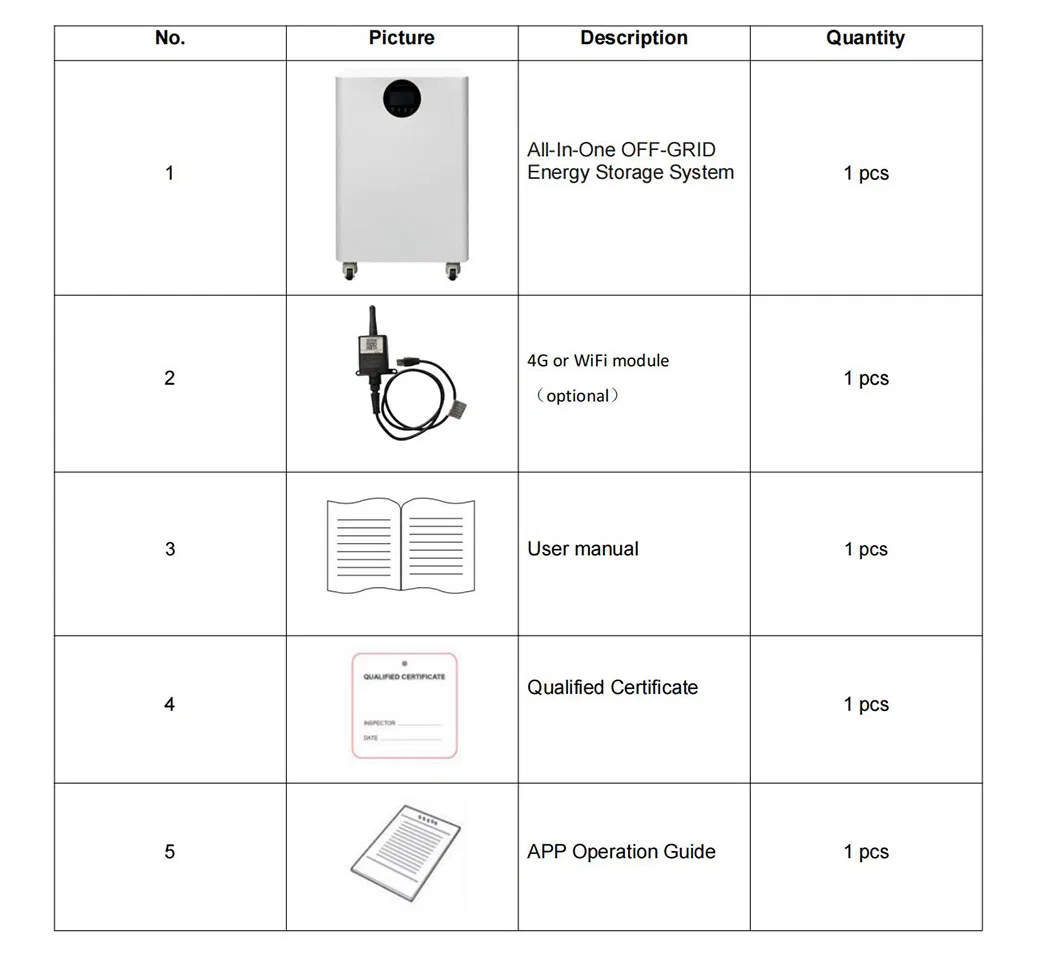

Detailed Photo 4

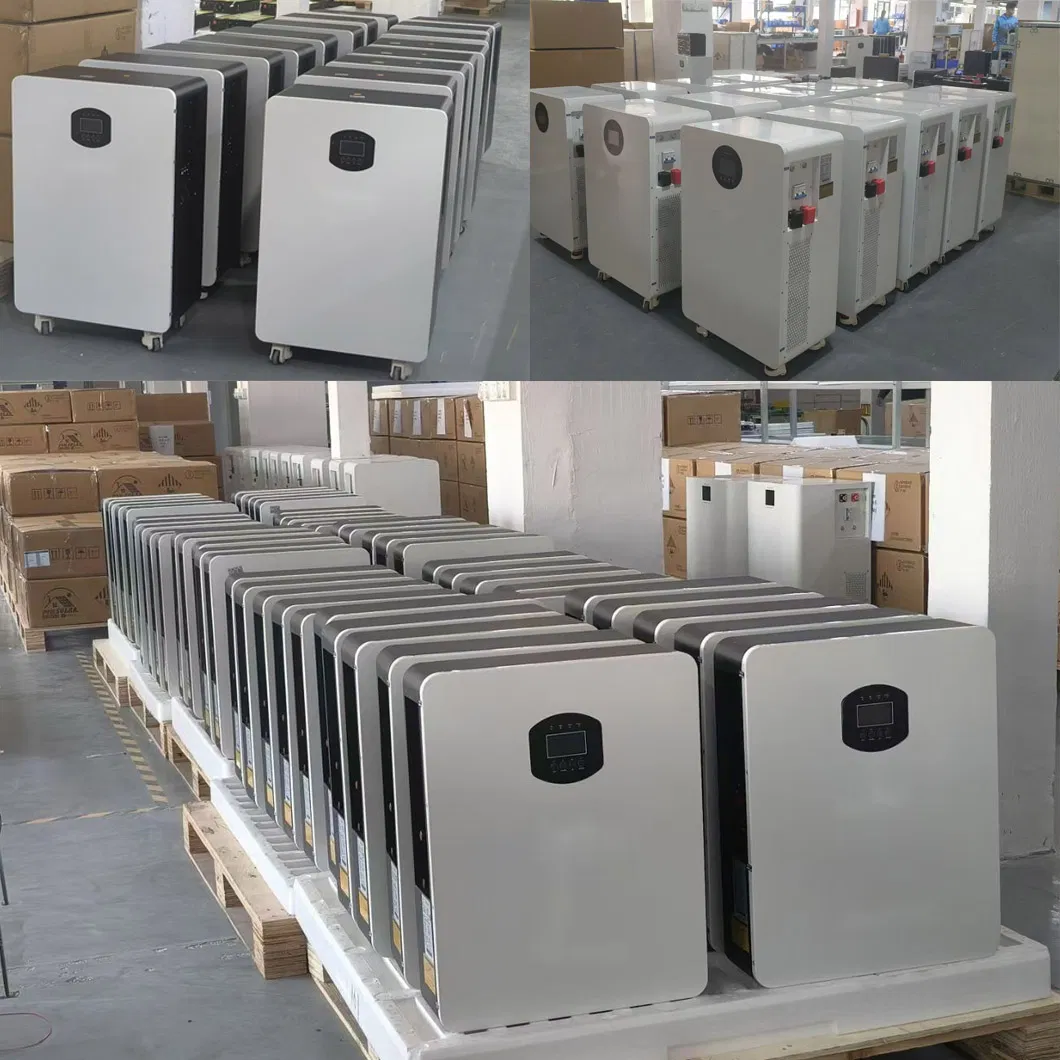

Detailed Photo 5
📋

Product Parameters

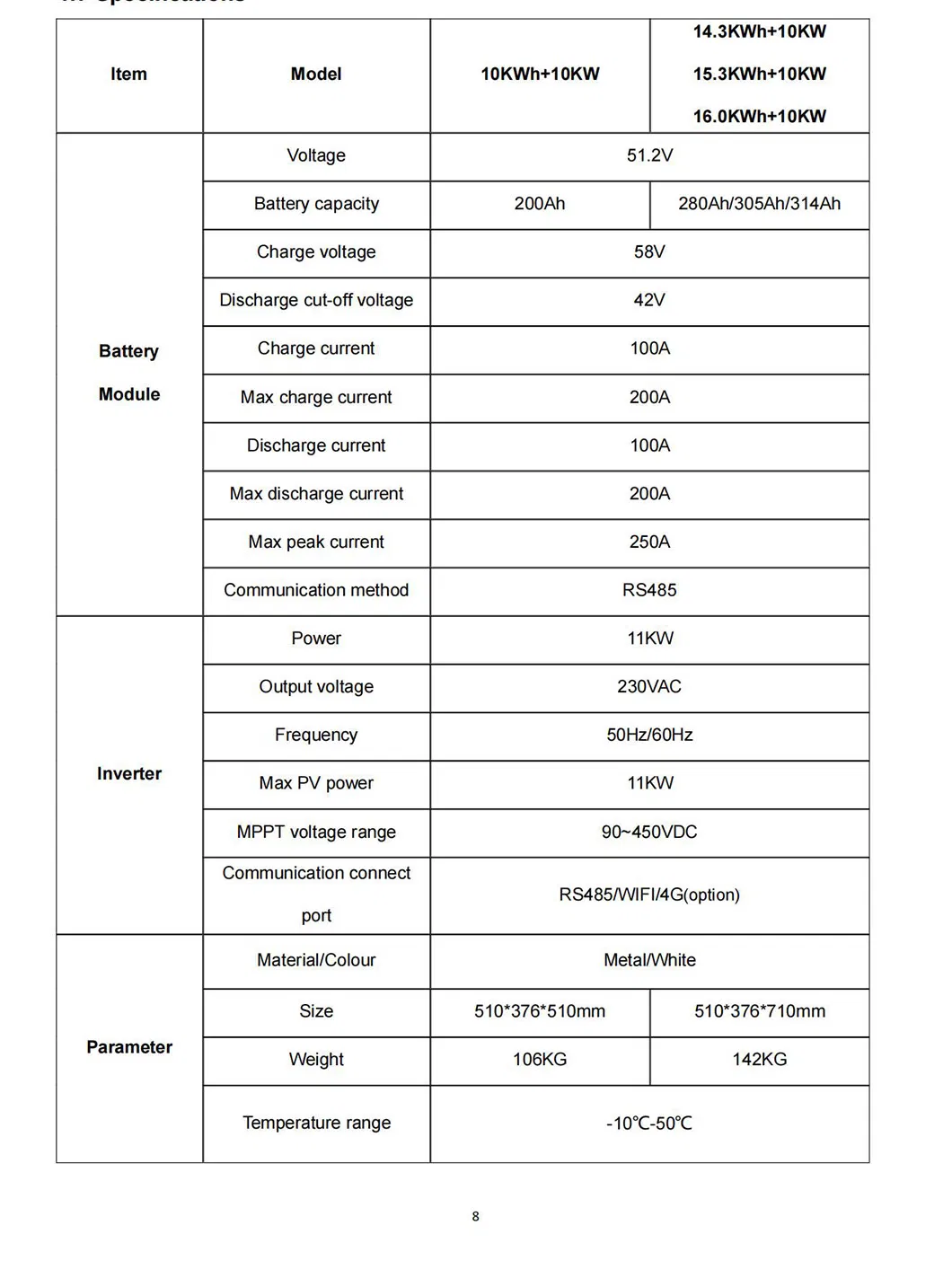

Spec Image 1
Spec Image 2
Spec Image 3
Item Model 10KWh+10KW 14.3KWh / 15.3KWh / 16.0KWh (+10KW)
Battery Module Voltage 51.2V
Capacity 200Ah 280Ah / 305Ah / 314Ah
Charge Voltage 58V
Charge/Discharge Current 100A (Max 200A)
Max Peak Current 250A
Communication RS485
Inverter Power 11KW
Output Voltage 230VAC (50Hz/60Hz)
Max PV Power 11KW
MPPT Voltage Range 90~450VDC
Physical Size 510*376*510mm 510*376*710mm
Weight 106KG 142KG
Temp Range -10ºC to 50ºC

Application

Application Diagram
🏢

About Company

Nowadays, the world is faced with instability of nuclear power generation and environmental problems. Our enterprise is established and targeted on being a Total Solution Company based on clean sustainable solar energy. Including polysilicon, ingot, wafer, cell, and module which are the base of the solar industry, we also deal with PV Equipment, EPC, and O&M.
We are making an effort for green energy independence worldwide. Starting with the supply of high-quality raw materials, building PV plants, and providing residential solutions, we keep solving global environment problems and protecting precious values.

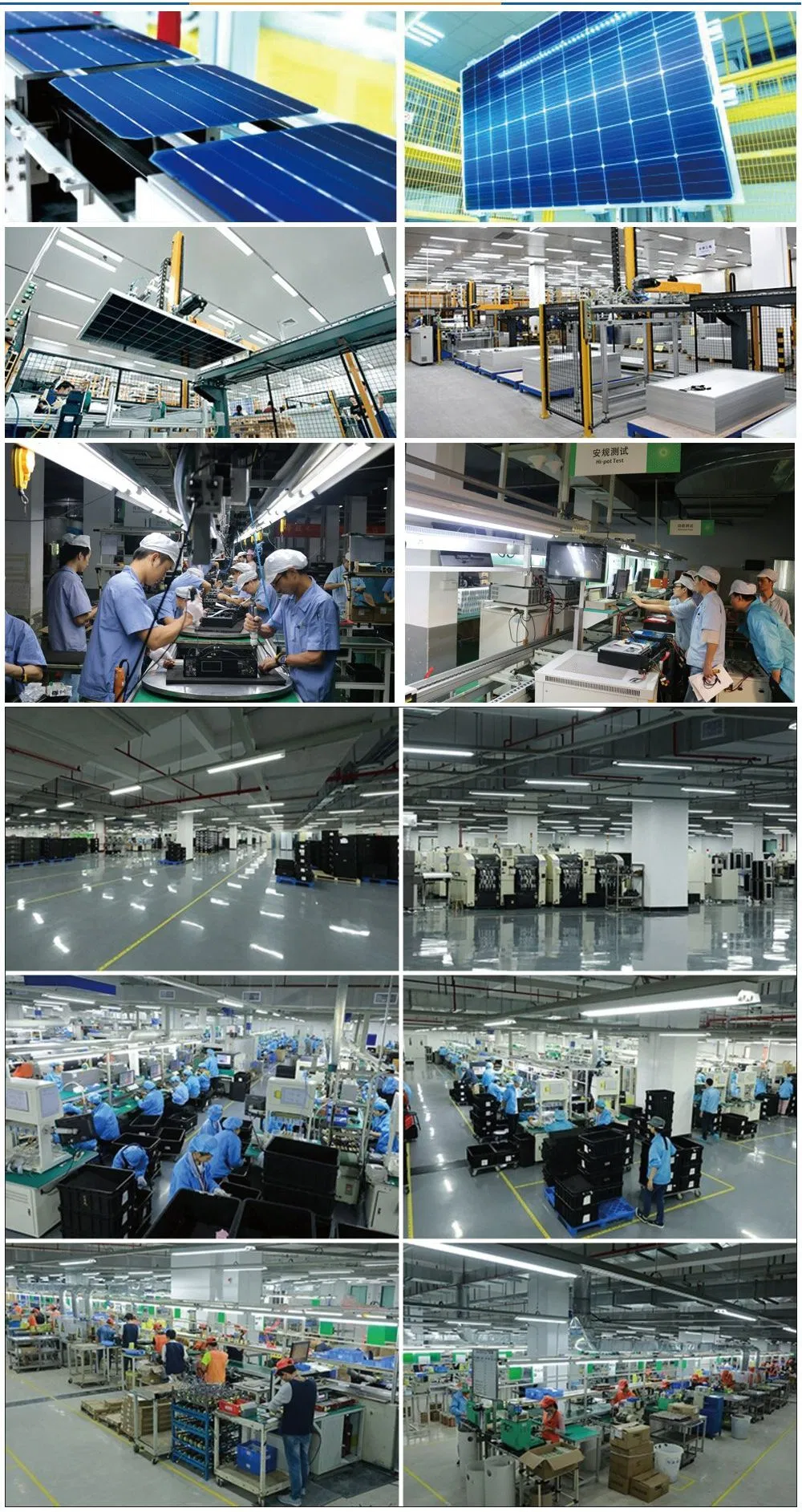

Factory Profile
?

FAQ

1. What's your main products?
Solar panel mono and poly, solar battery gel and lithium-ion, solar system on grid and off grid, solar inverter on grid and off grid, solar charge controller MPPT and PWM.
2. What is your advantage in solar products?
We have been in the solar industry for more than 10 years and accumulated rich experience with branches in multiple regions. Full support can be supplied from design to installation.
3. Can you send samples?
It depends on the kind of products. Normally the sample fee will be returned after you place a massive order.
4. What's the shipping cost and time?
After confirming the quantity and preferred transportation (sea, air, or express) and destination port, we will provide the detailed cost and estimated time.
5. What's your minimum order quantity?
Our minimum order quantity is 1pc.
6. How can we send the payment?
We accept T/T, L/C, Paypal, and Western Union.
