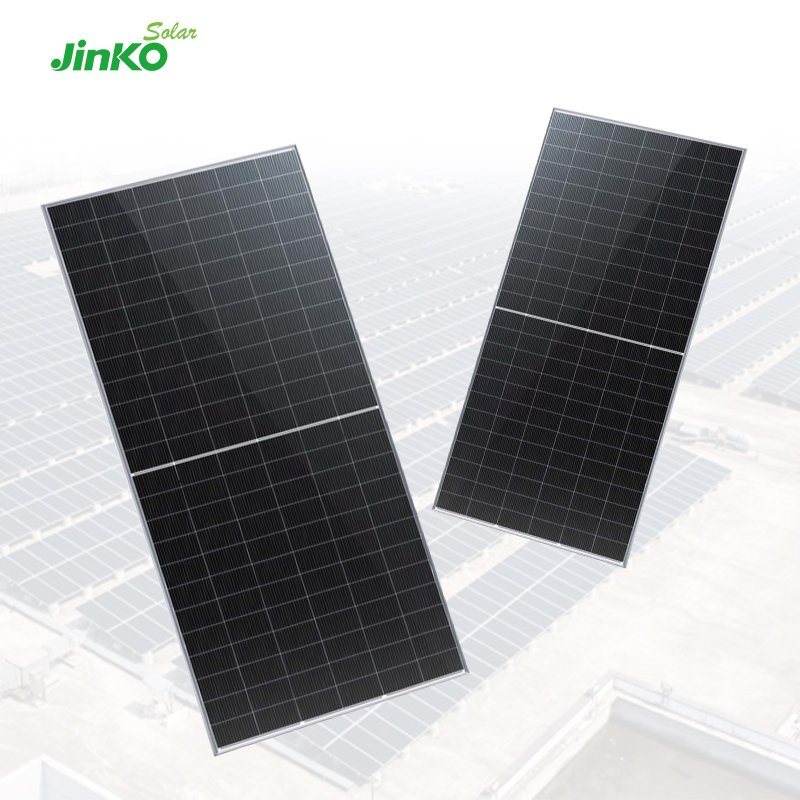

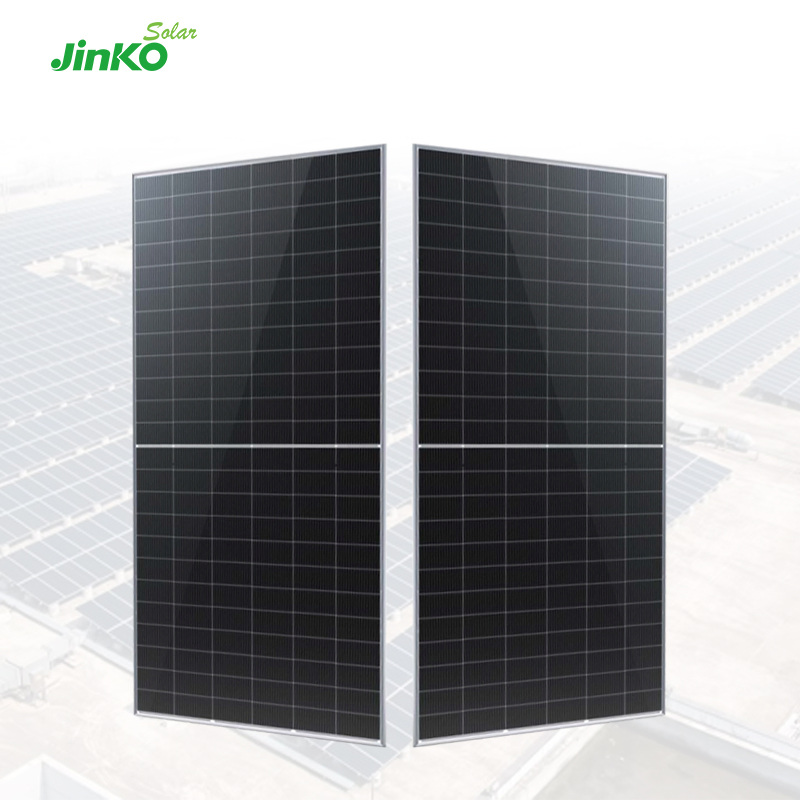

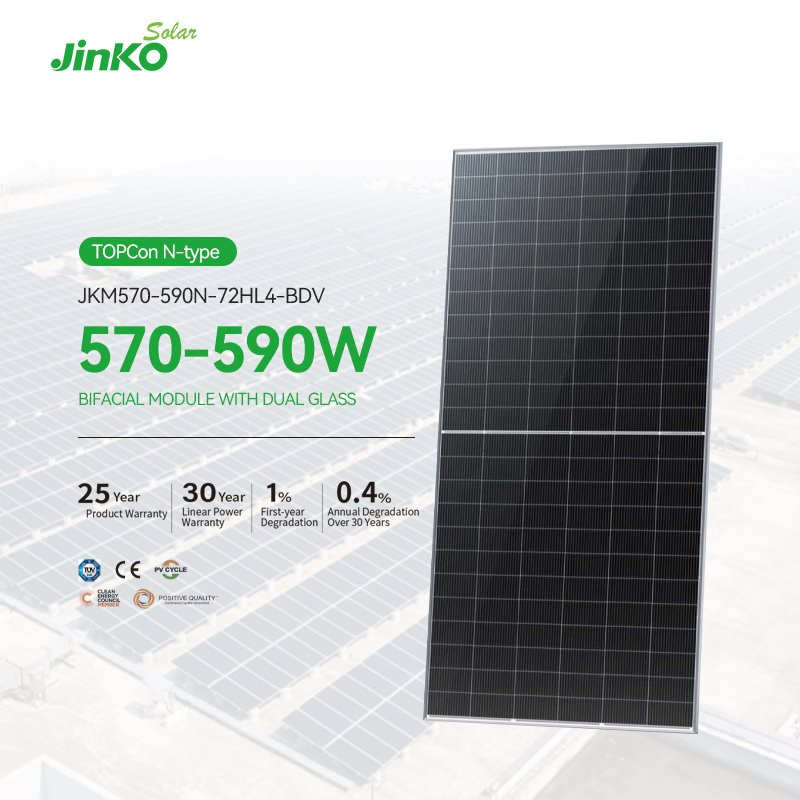

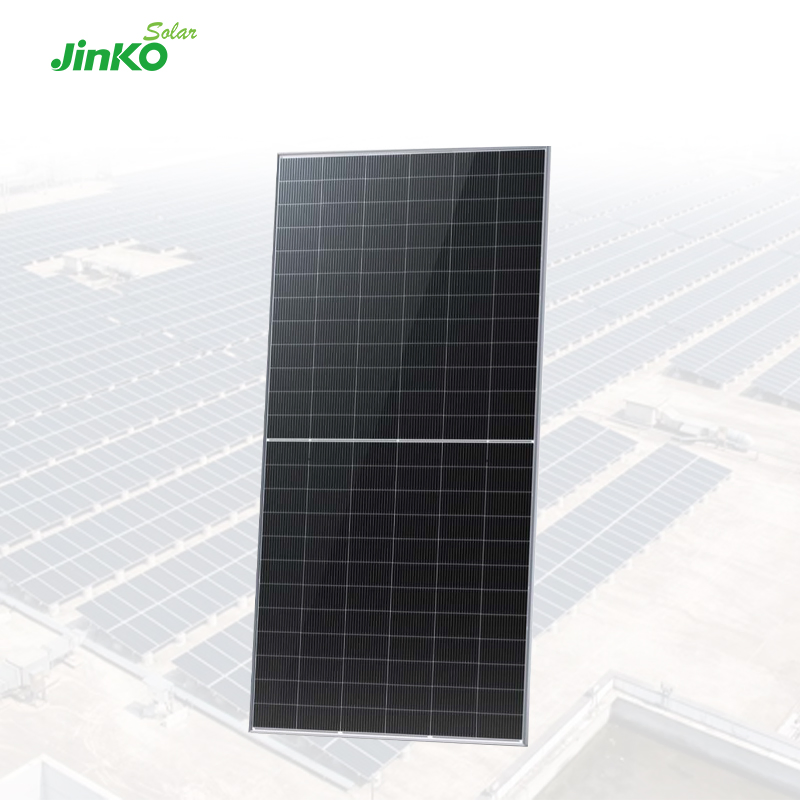

Jinko Solar Tiger Neo N-Type Panel Solar 425-625W Double Glass Bifacial Solar Panels

1 / 5

Jinko Solar Tiger Neo N-Type Panel Solar 425-625W Double Glass Bifacial Solar Panels

Customization:	Available
After-sales Service:	Yes
Warranty:	25 Years

Send Inquiry

Product Description

Basic Specifications

Model NO.

JKM445N-54HL4R-V

Number of Cells

72pcs

Application

Solar System

Condition

New

Certification

ISO, CE, TUV, IEC

Material

Monocrystalline Silicon

Cell Type

N Type Mono-Crystalline

Weight

22 Kg (48.50 Lbs)

Junction Box

IP68 Rated

Frame

Anodized Aluminium Alloy

Specification

1762*1134*30mm

Origin

China

HS Code

8541430000

Production Capacity

50000PCS/Month

📦

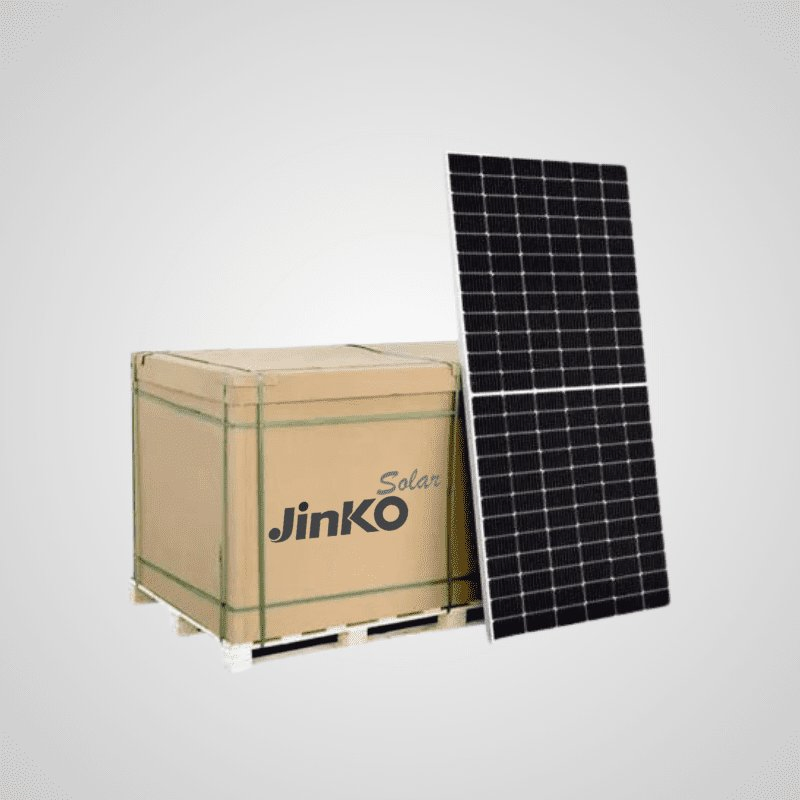

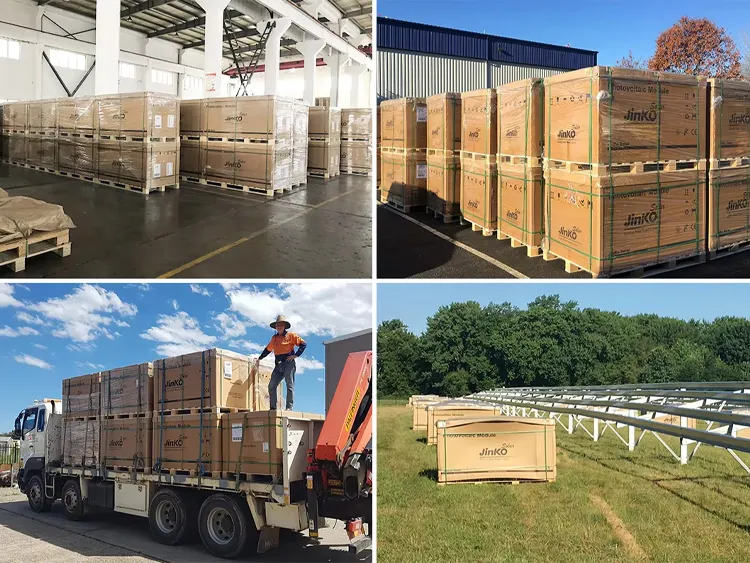

Packaging & Delivery

Package Size

100.00cm * 100.00cm * 100.00cm

Package Gross Weight

100.000kg

Transport Package

Carton & Wooden Pallet

✔

Product Description

Product Parameter

Module Type	JKM435N-54HL4R-V	JKM445N-54HL4R-V	JKM450N-54HL4R-V
Maximum Power (Pmax)	435Wp	445Wp	450Wp
Maximum Power Voltage (Vmp)	32.59V	33.02V	33.21V
Maximum Power Current (Imp)	13.35A	13.35A	13.55A
Open-circuit Voltage (Voc)	39.16V	39.59V	39.78V
Short-circuit Current (Isc)	13.80A	13.80A	14.00A
Module Efficiency STC (%)	21.77%	22.27%	22.52%
Operating Temperature	-40~+85ºC
Maximum system voltage	1000/1500VDC (IEC)
Max series fuse rating	25A
Power tolerance	0~+3%

🔍

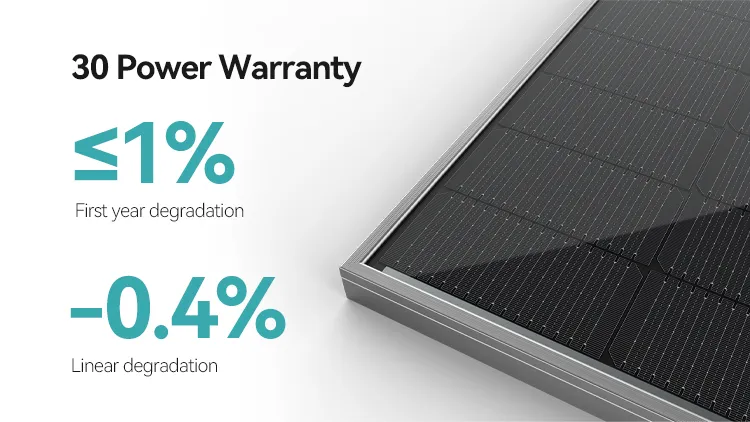

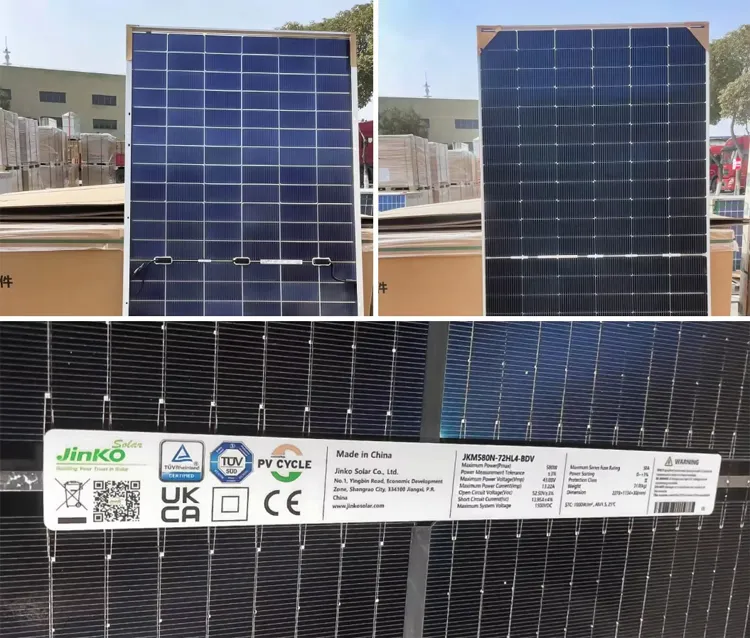

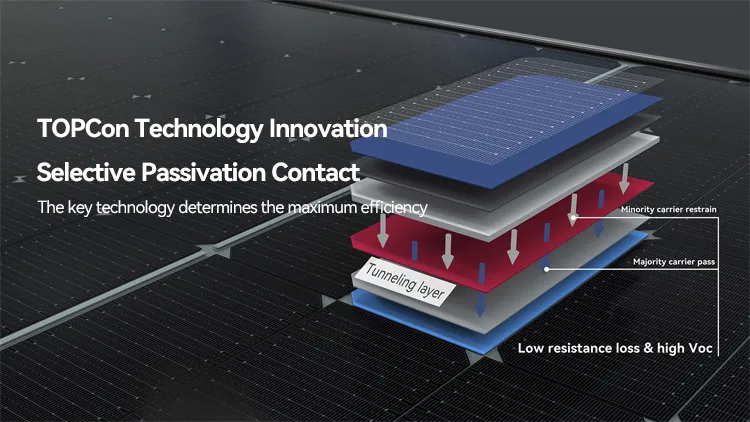

Product Details

🏗️

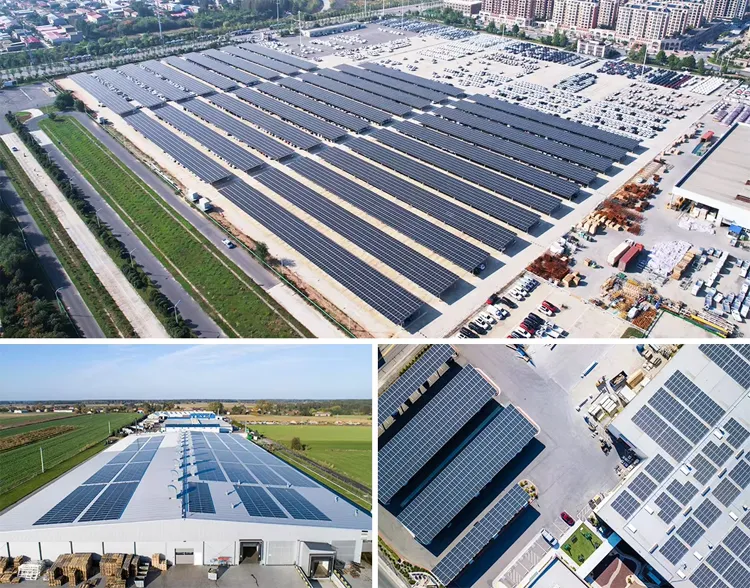

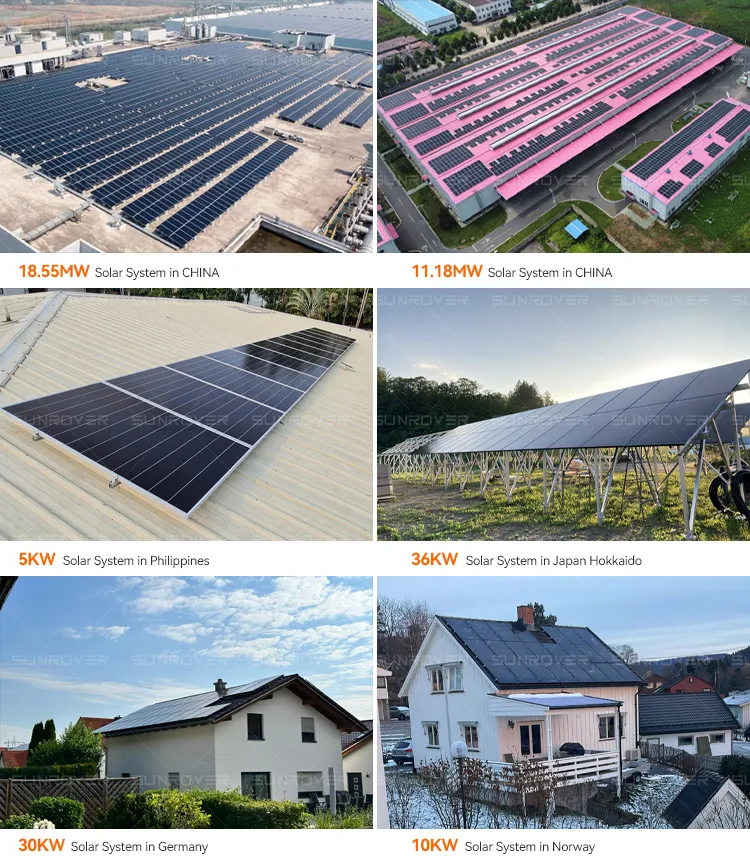

Project Cases

Frequently Asked Questions

What is the maximum efficiency of these solar modules?

The modules offer high efficiency ranging from 21.77% up to 22.52% depending on the specific model (435Wp to 450Wp).

What are the dimensions and weight of the JKM445N panel?

Each panel measures 1762*1134*30mm and weighs approximately 22 Kg (48.50 Lbs).

What type of solar cells are used in this product?

These panels utilize N-Type Mono-Crystalline silicon cells, which are known for high performance and durability.

Can these panels withstand harsh weather conditions?

Yes, they are designed to operate in temperatures ranging from -40ºC to +85ºC and feature an IP68 rated junction box for superior water resistance.

What certifications do these solar panels hold?

The panels are fully certified with ISO, CE, TUV, and IEC standards, ensuring international quality and safety compliance.
