ELECTRICAL DATA (STC)
STC: Irradiance 1000W/m², Cell Temperature 25°C, Air Mass AM1.5. Measuring Tolerance: ±3%.
| Model |
Cell Types |
Watts |
Cells |
Size |
Package |
| Tiger Neo N-type 54HL4-B |
N type mono 182×182mm |
395-415W |
108 (6×18) |
1722×1134×30mm |
36pcs/pallet |
| Tiger Neo N-type 54HL4-B |
N type mono 182×182mm |
410-430W |
108 (6×18) |
1722×1134×30mm |
36pcs/pallet |

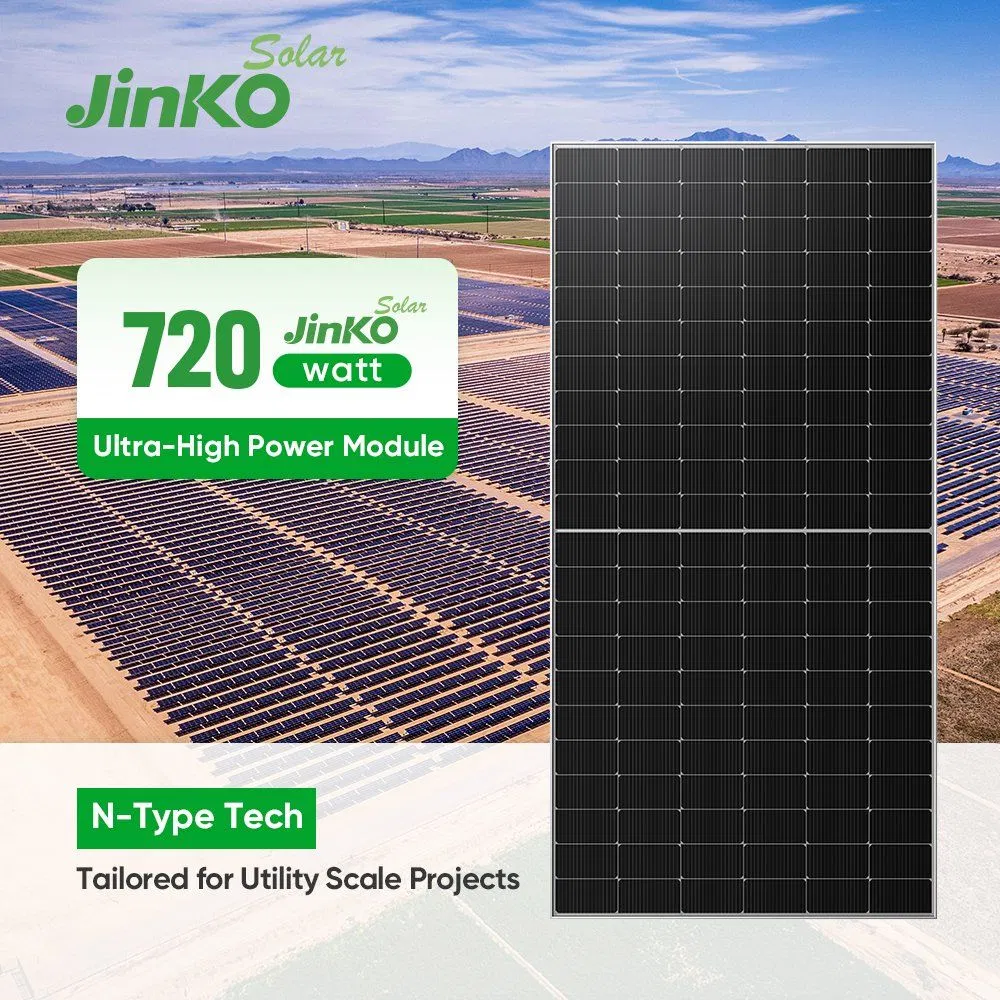

| Tiger Neo N-type 66HL5-B |
N type mono 210×210mm |
710-735W |
132 (66x2) |
2384x1303x33mm |
33pcs/pallet |
V

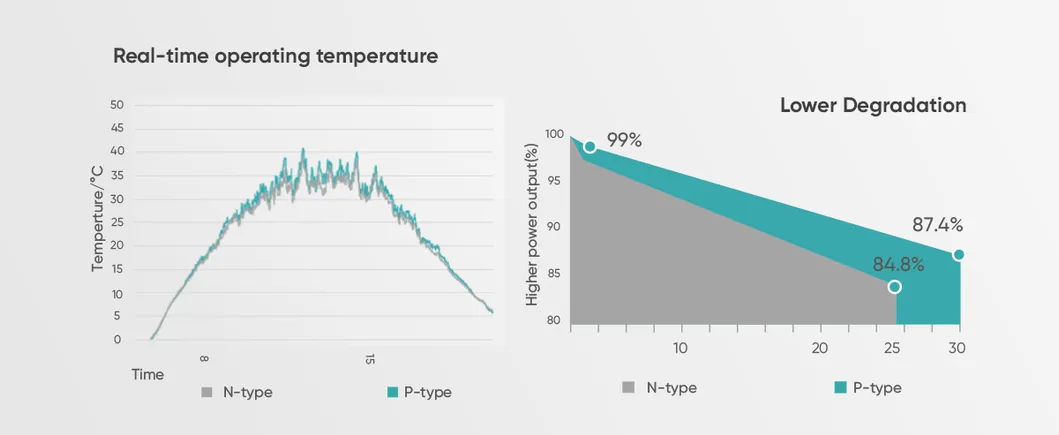

N-Type VS P-Type Advantage
Optimized Temperature Coefficient: -0.29%/ºC
The temperature coefficient of P-type is -0.35%/ºC. Under high temperature conditions, Tiger Neo can generate 2% more power than P-type modules.
?
Frequently Asked Questions
What are the main advantages of Tiger Neo N-type panels?
Tiger Neo N-type panels feature a better temperature coefficient (-0.29%/ºC) and higher bifaciality, leading to 2% higher power generation compared to traditional P-type panels in high-temperature environments.
What is the efficiency rating of these solar modules?

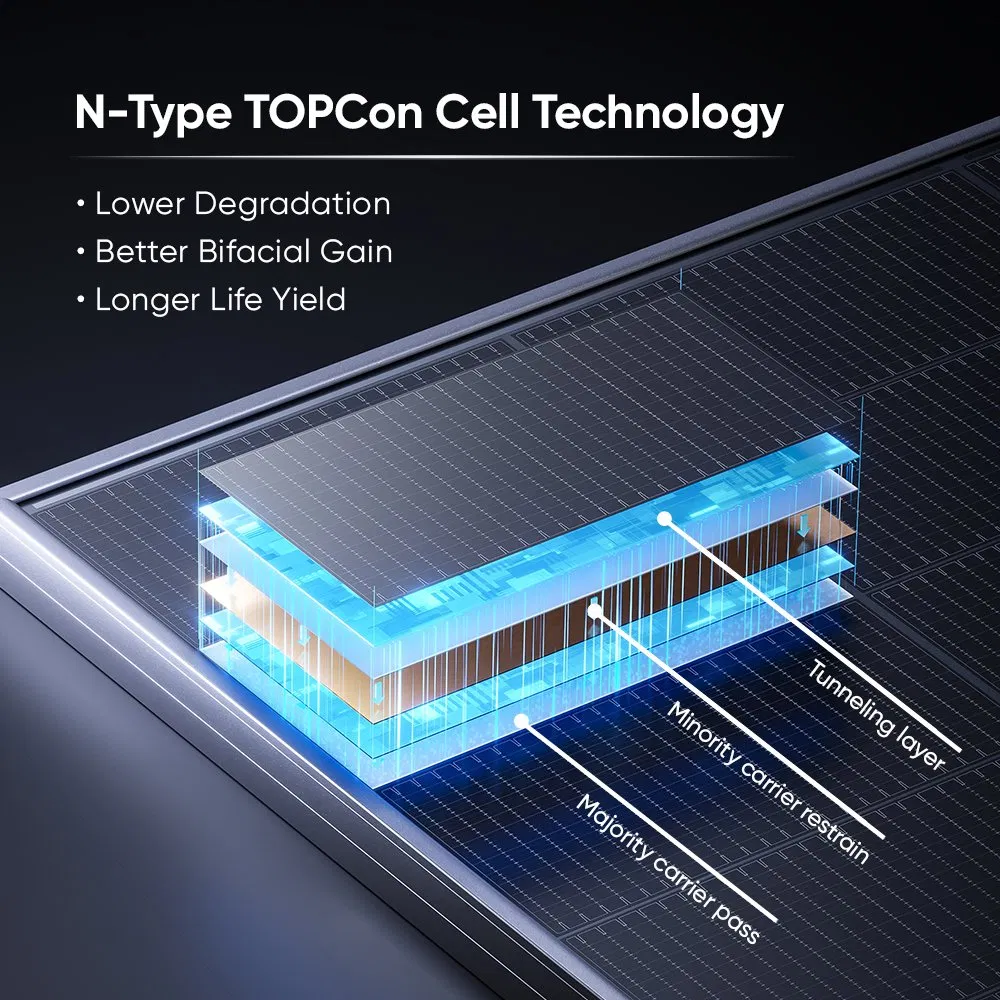

These panels offer a high efficiency of up to 22%, utilizing advanced TOPCon monocrystalline silicon technology.
Are these panels suitable for industrial use?
Yes, they are designed for versatile applications including residential, commercial, and large-scale industrial projects.
What certifications do these solar panels hold?
The modules are fully certified with ISO, CE, CB, and TUV standards, ensuring international quality and safety compliance.
How well do these panels handle extreme weather?
The panels are built to withstand significant mechanical loads, rated for up to 2400Pa wind load and 5400Pa snow load.
What is the weight and dimension of the 66HL5-B model?
The model weighs approximately 37.5kg and has dimensions of 2384*1303*33mm.
