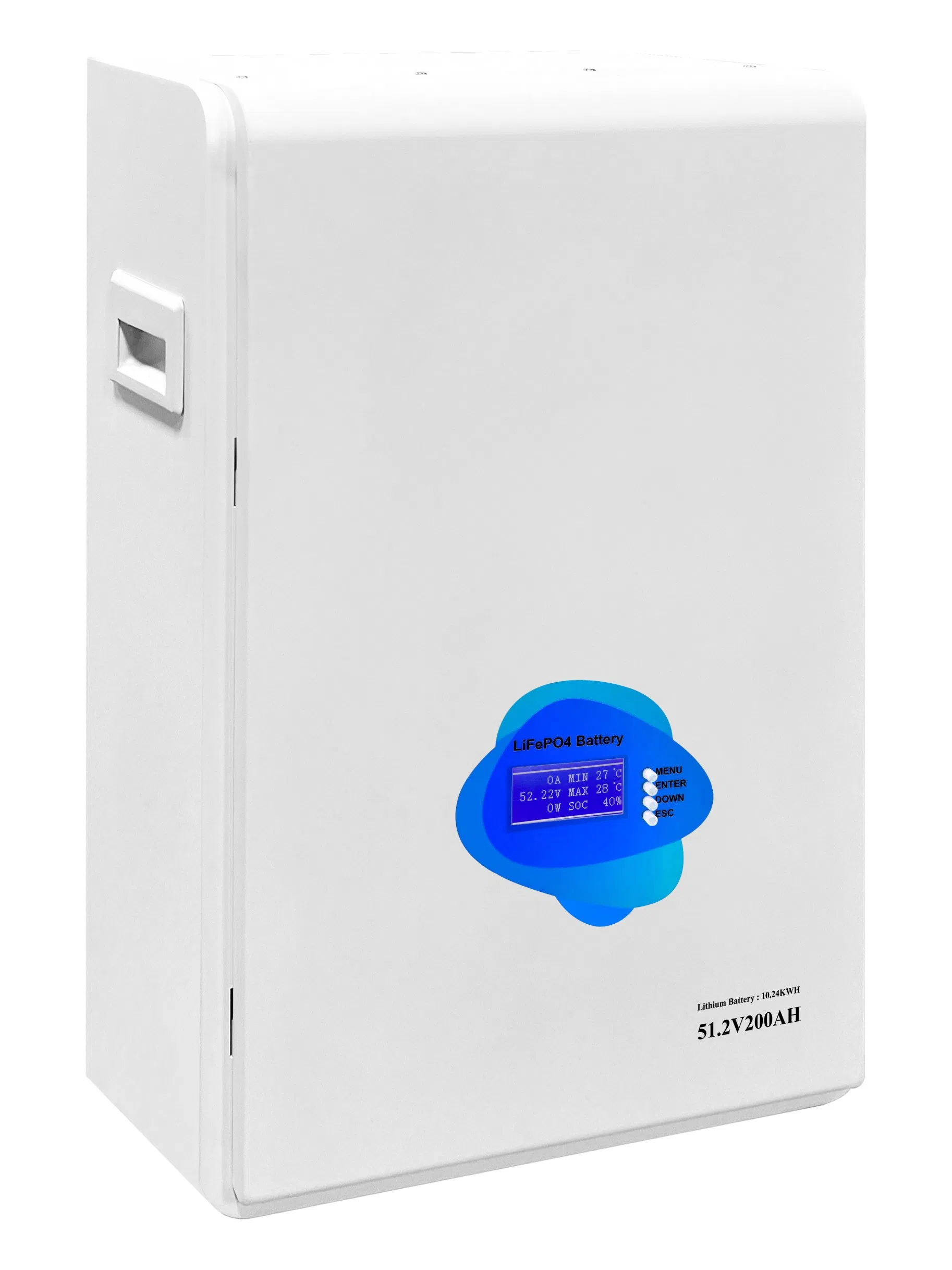

Household Wall Mounted Energy Storage System Lithium Battery 5120wh Cycle 6000 Times Use Lithium Battery Pack
Household Wall Mounted Energy Storage System Lithium Battery 5120wh Cycle 6000 Times Use Lithium Battery Pack
Household Wall Mounted Energy Storage System Lithium Battery 5120wh Cycle 6000 Times Use Lithium Battery Pack
Household Wall Mounted Energy Storage System Lithium Battery 5120wh Cycle 6000 Times Use Lithium Battery Pack
Household Wall Mounted Energy Storage System Lithium Battery 5120wh Cycle 6000 Times Use Lithium Battery Pack
1 / 5
Household Wall Mounted Energy Storage System Lithium Battery 5120wh Cycle 6000 Times Use Lithium Battery Pack
Household Wall Mounted Energy Storage System Lithium Battery 5120wh Cycle 6000 Times Use Lithium Battery Pack
Household Wall Mounted Energy Storage System Lithium Battery 5120wh Cycle 6000 Times Use Lithium Battery Pack
Household Wall Mounted Energy Storage System Lithium Battery 5120wh Cycle 6000 Times Use Lithium Battery Pack
Household Wall Mounted Energy Storage System Lithium Battery 5120wh Cycle 6000 Times Use Lithium Battery Pack

Household Wall Mounted Energy Storage System Lithium Battery 5120wh Cycle 6000 Times Use Lithium Battery Pack

Customization: Available
Weight: 45.5kg
Warranty: 5 Years
Send Inquiry

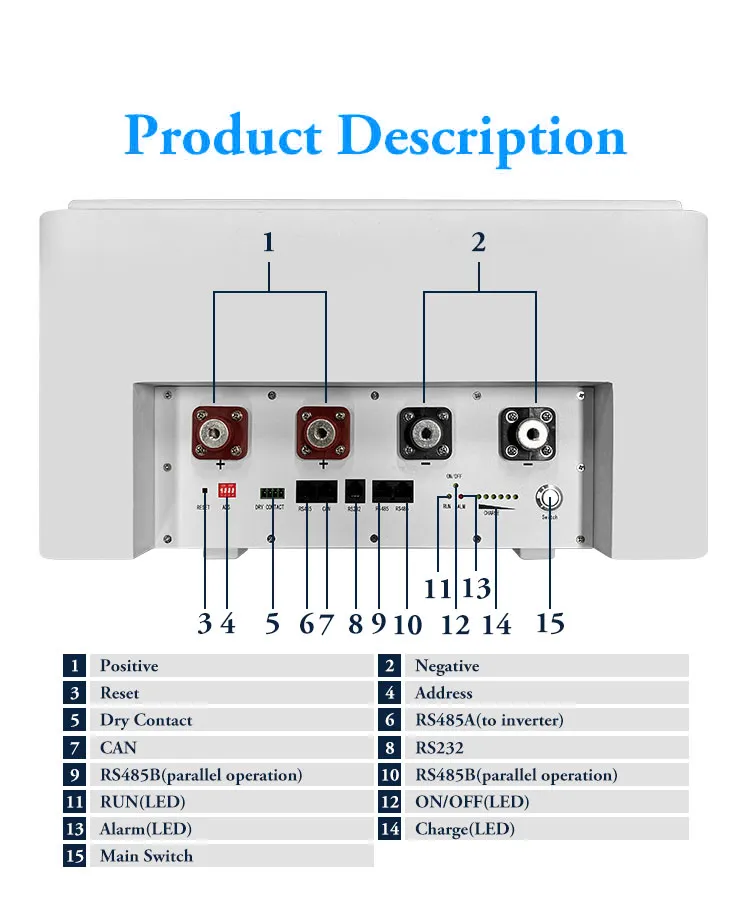

Product Description

ℹ

Basic Information

Cycle Life
6000
Nominal Capacity
5120wh
Battery Voltage
40V~58.4V
Type of Battery
LiFePO4
Communication
RS485, Can, RS232
Parallel Capability
Up to 6 Units
Safety
IEC62109-1, IEC62109-2, UL1741
IP Rating
IP21
Wall Mounted Energy Storage System

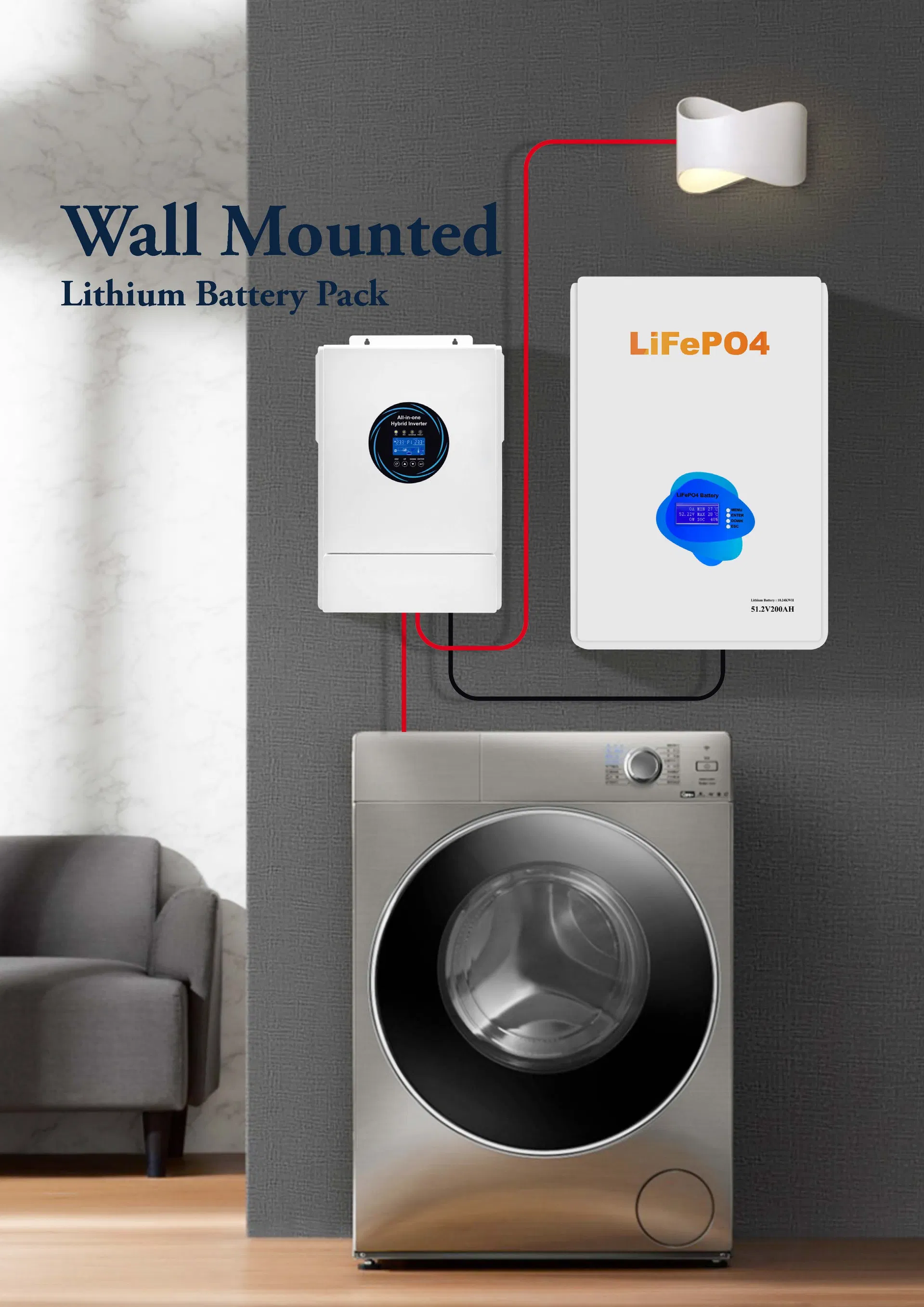

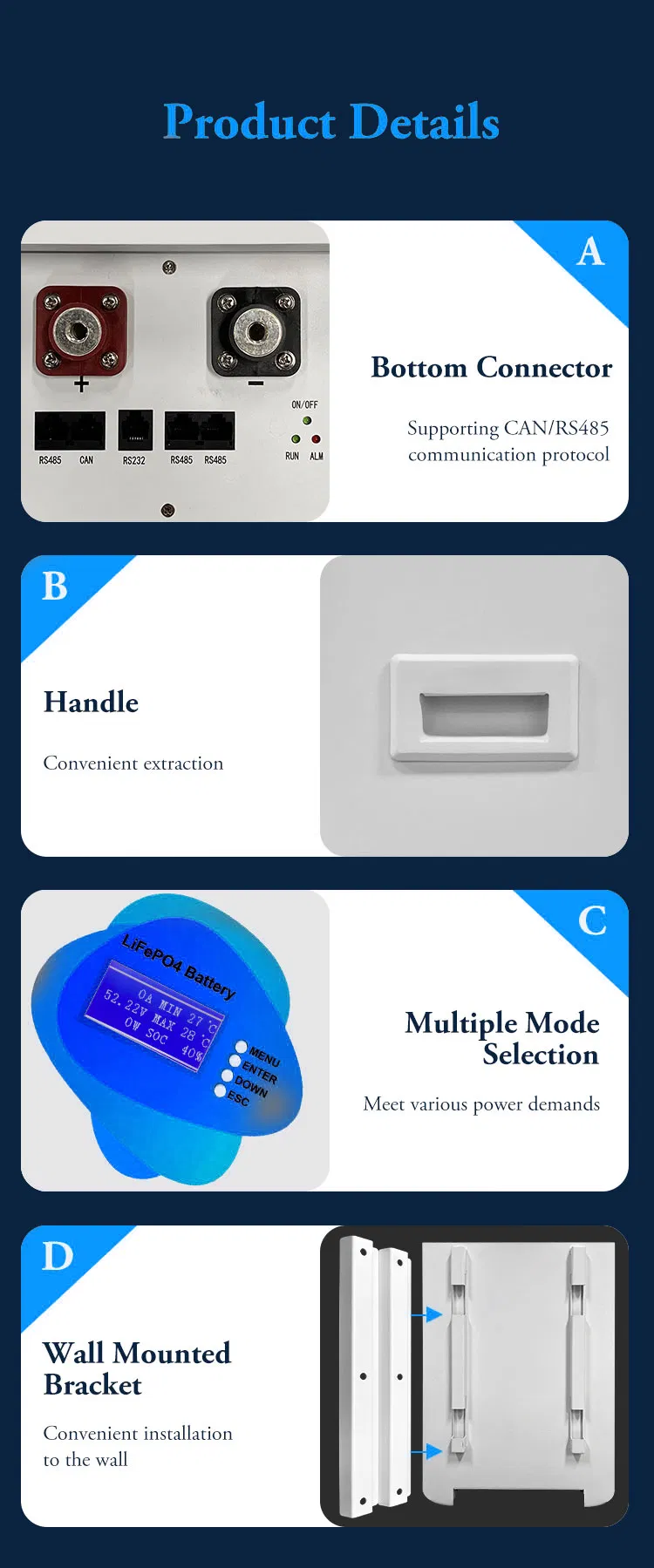

Lithium Battery Pack Details
📋

Technical Specification

Model WM 512100 WM 512200
COMPREHENSIVE PARAMETERS
Battery Voltage 40V-58.4V
Storage Capacity 5120Wh 10240Wh
Weight 45.5KGS 116.1KGS
Colour White
External Dimension 601.5*400*155mm 651.5*445*235mm
BATTERY MODULE PARAMETERS
Type of Battery LiFePO4
Capacity 102Ah 206Ah
Cycle Life ≥6000 @ 25℃, 80% EOL
FUNCTIONAL CONFIGURATION
Communication RS485, CAN, RS232
IP Rating IP21

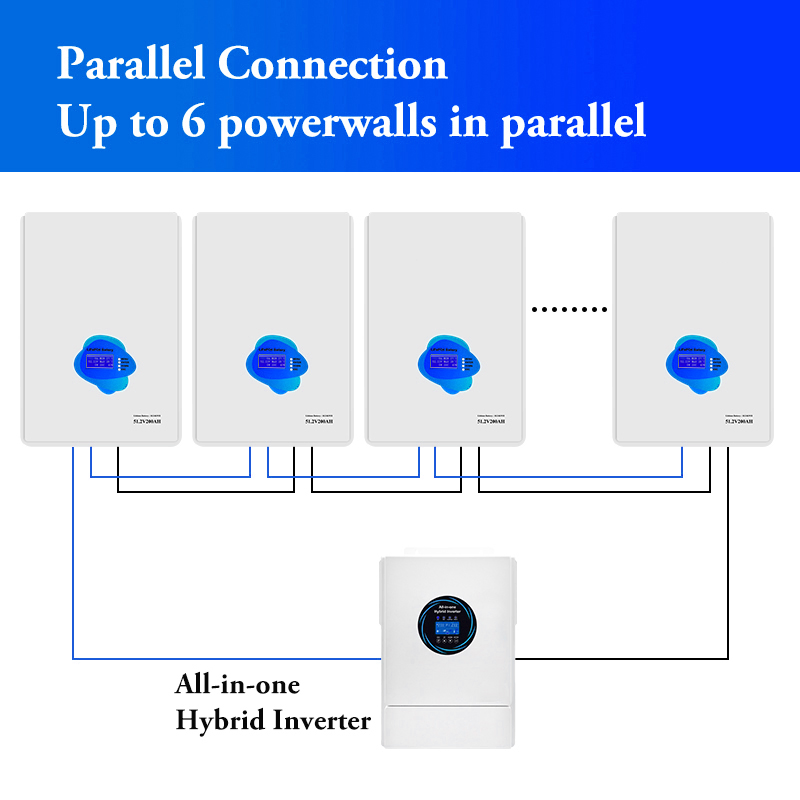

Parallel Capability Up to 6 units
✨

Product Highlights

🏭

Professional Production

❓

Frequently Asked Questions

Why should you choose us?
We offer more than 20 years of electrical equipment factory experience, a professional sales and R&D team, qualified products at competitive prices, timely delivery, and sincere service.
Can I have a sample order?
Yes, we welcome sample orders to test and check the quality of our energy storage systems.
What is your MOQ (Minimum Order Quantity)?
It depends on the products. Some items do not have an MOQ, and 1 piece is available for testing.
Do you support OEM/ODM services?
Yes. Please inform us formally before production and confirm the design based on our sample. We provide various customized options.
What are your service strengths?
We provide customized options, competitive pricing, on-time delivery, and 24-hour engineer after-sales service to ensure system reliability.
What certifications do your products have?
Our products are rigorously selected and have been awarded quality excellence awards, meeting national standards for brand influence and consumer choice.
