Basic Specifications
Nature of Source Flow
Active Inverter
Certification
SAA, CE, ROHS, ISO9001, CCC
Power Source
Solar Power, Wind Power
Frequency Range
50Hz/60Hz (Auto)
Product Description

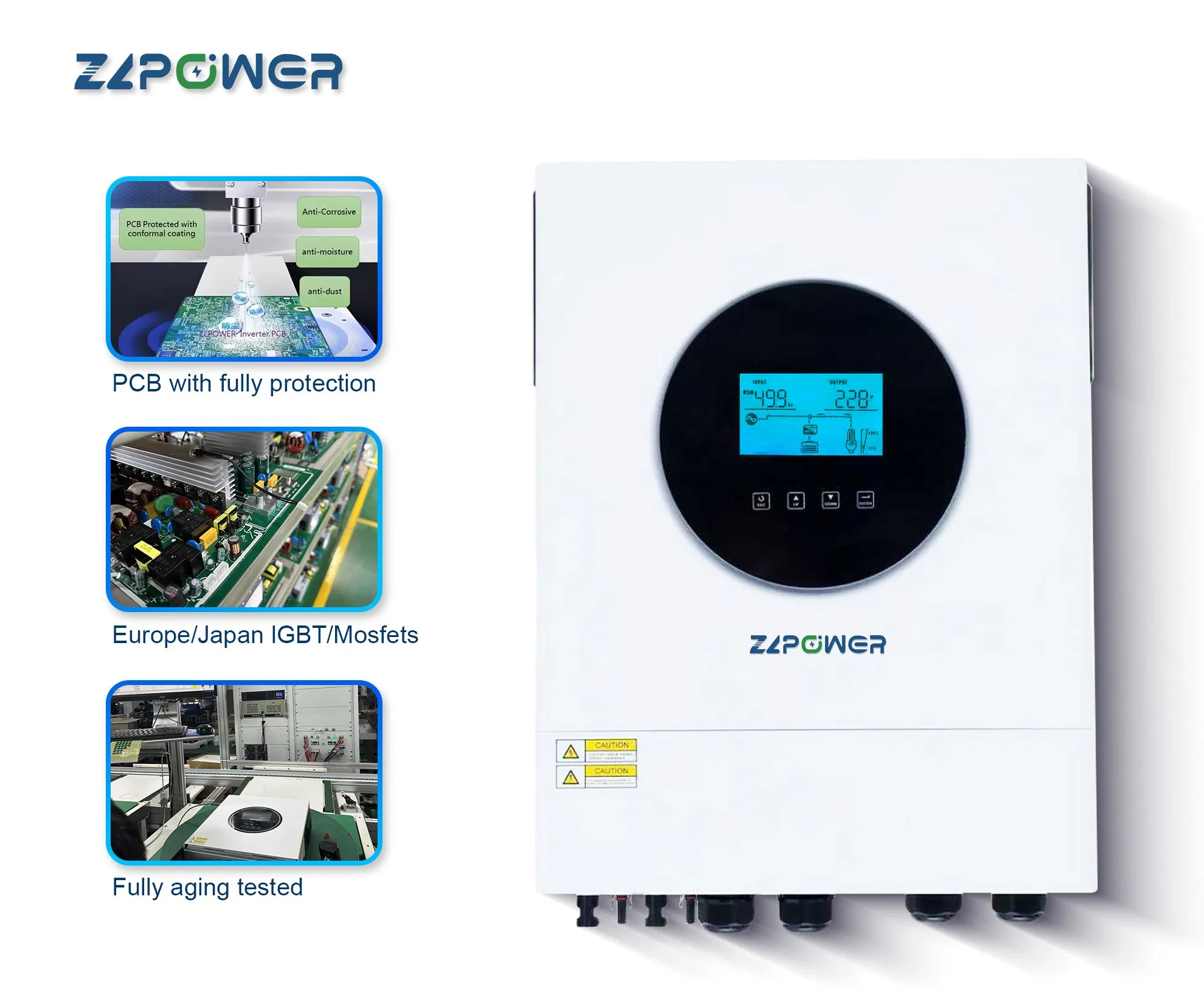

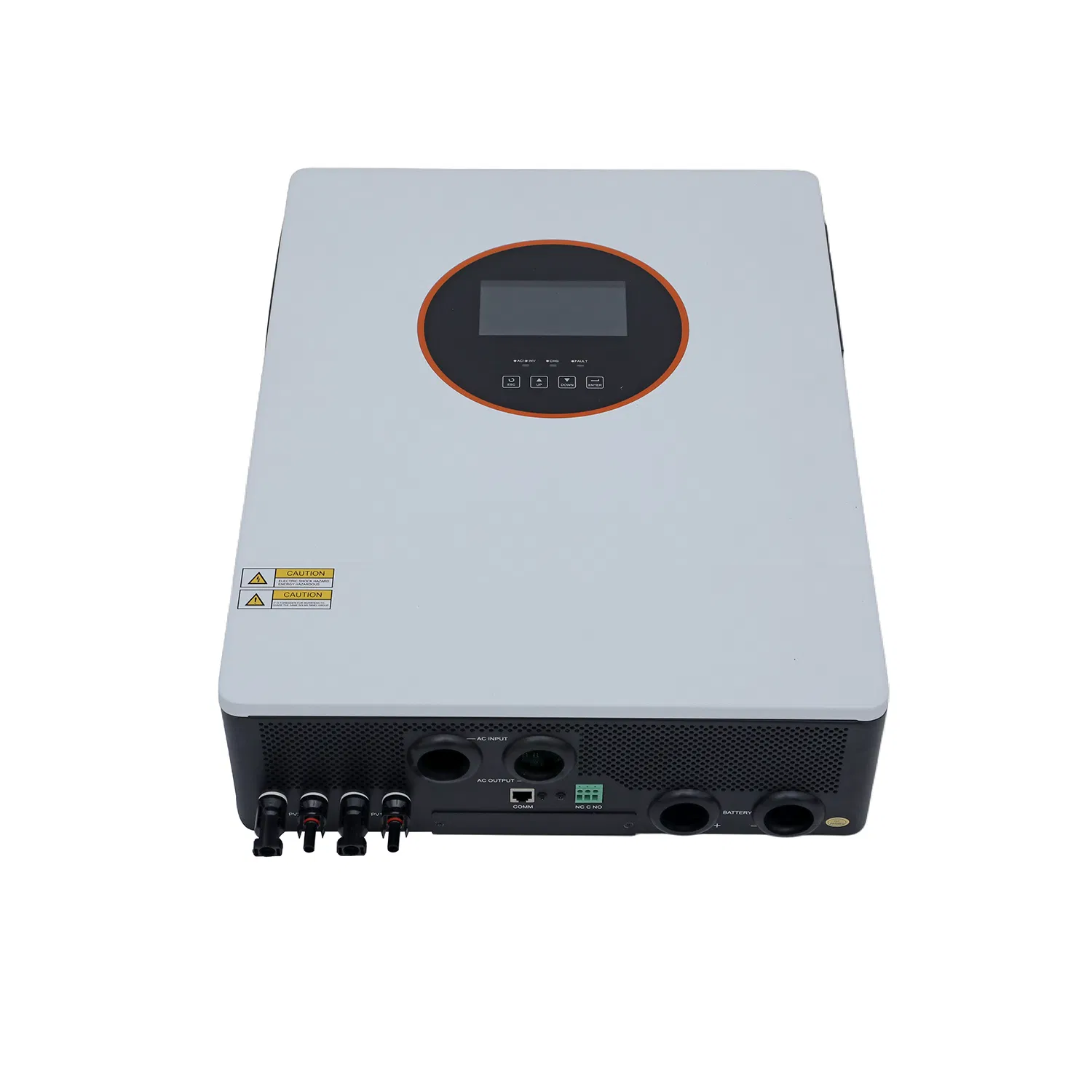

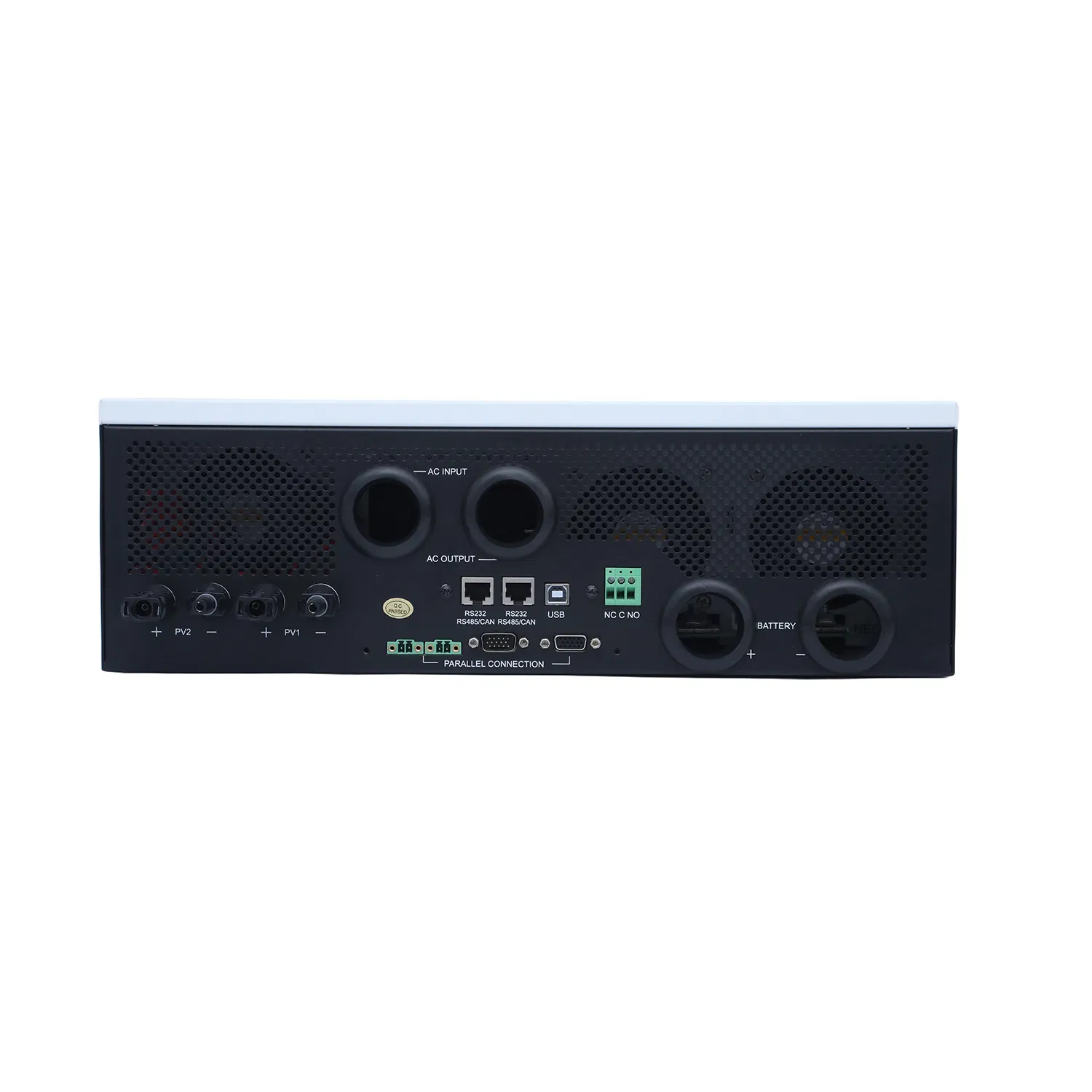

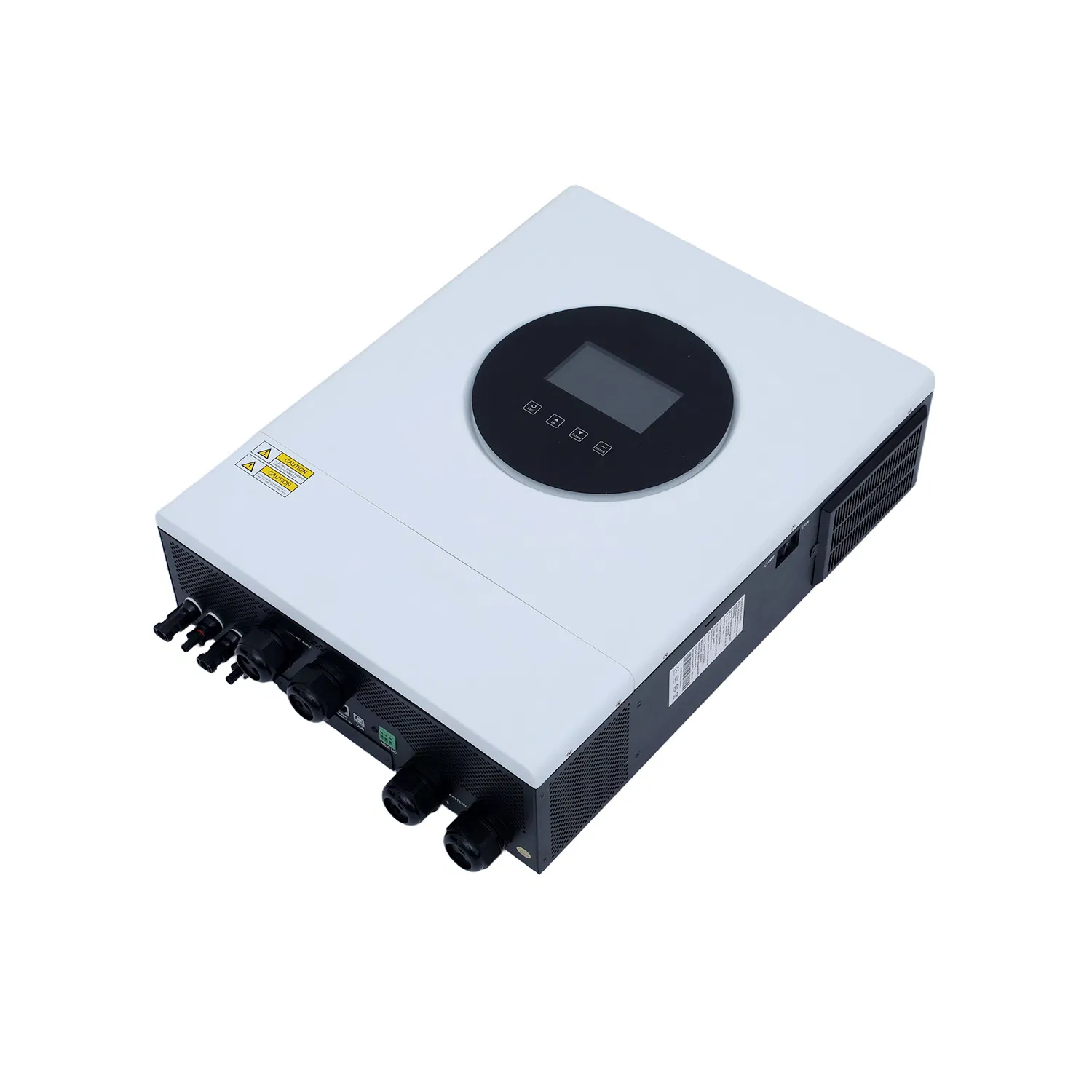

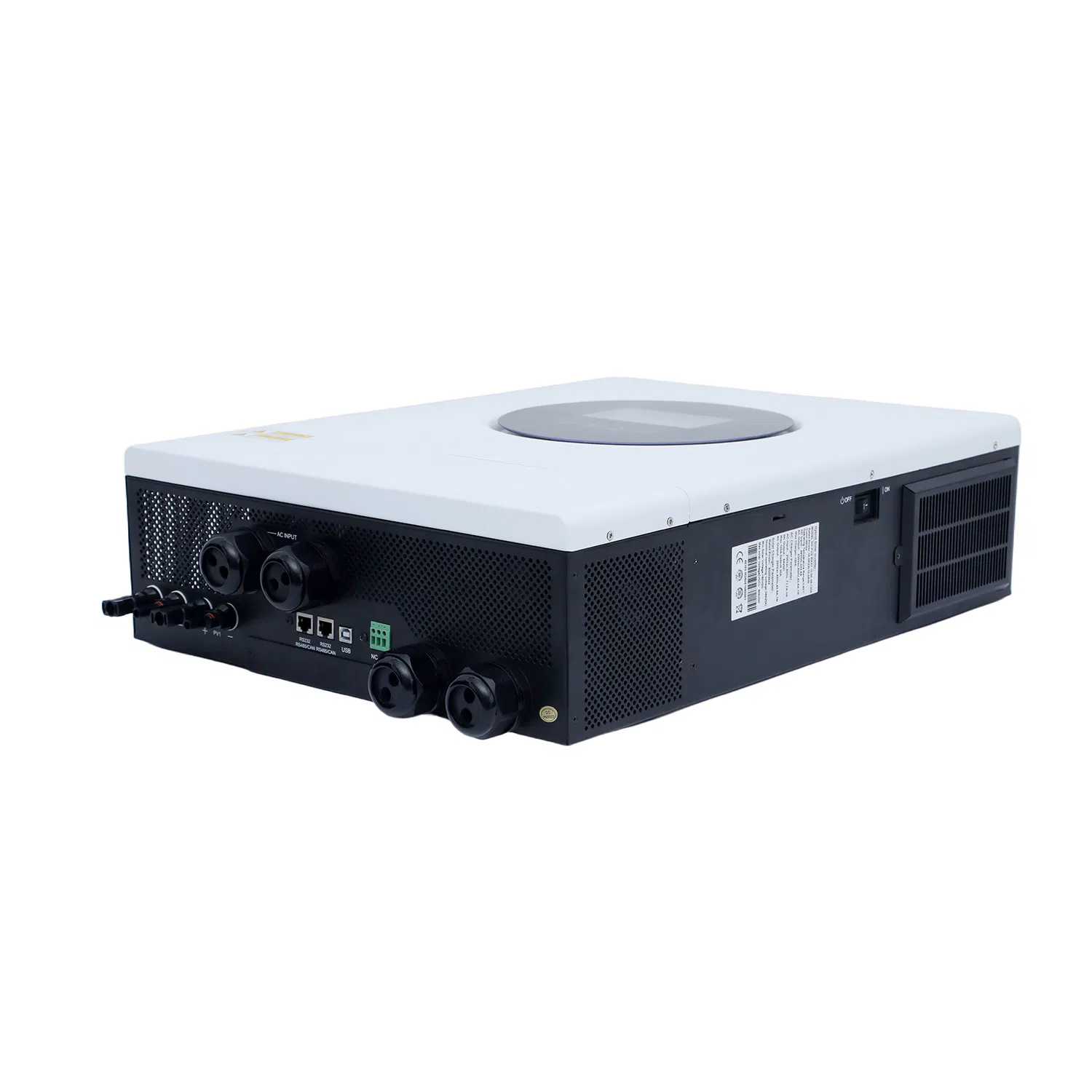

High Frequency 4000W 5500W 6200W Pure Sine Wave Hybrid Solar Inverter
✓
High Performance: 5.5KW Output, 230Vac voltage regulation, and max 80A charging current with built-in 100A MPPT.
✓
Flexible Battery Options: Supports Lead-Acid (AGM, Gel, Flooded) and Lithium batteries, and can even run without a battery.
✓
Smart Monitoring: Equipped with an LCD & LED display for user-configurable settings such as charging priority and input voltage range.
✓
Complete Protection: Includes overload, over-temperature, and short-circuit protection with an intelligent variable speed fan.

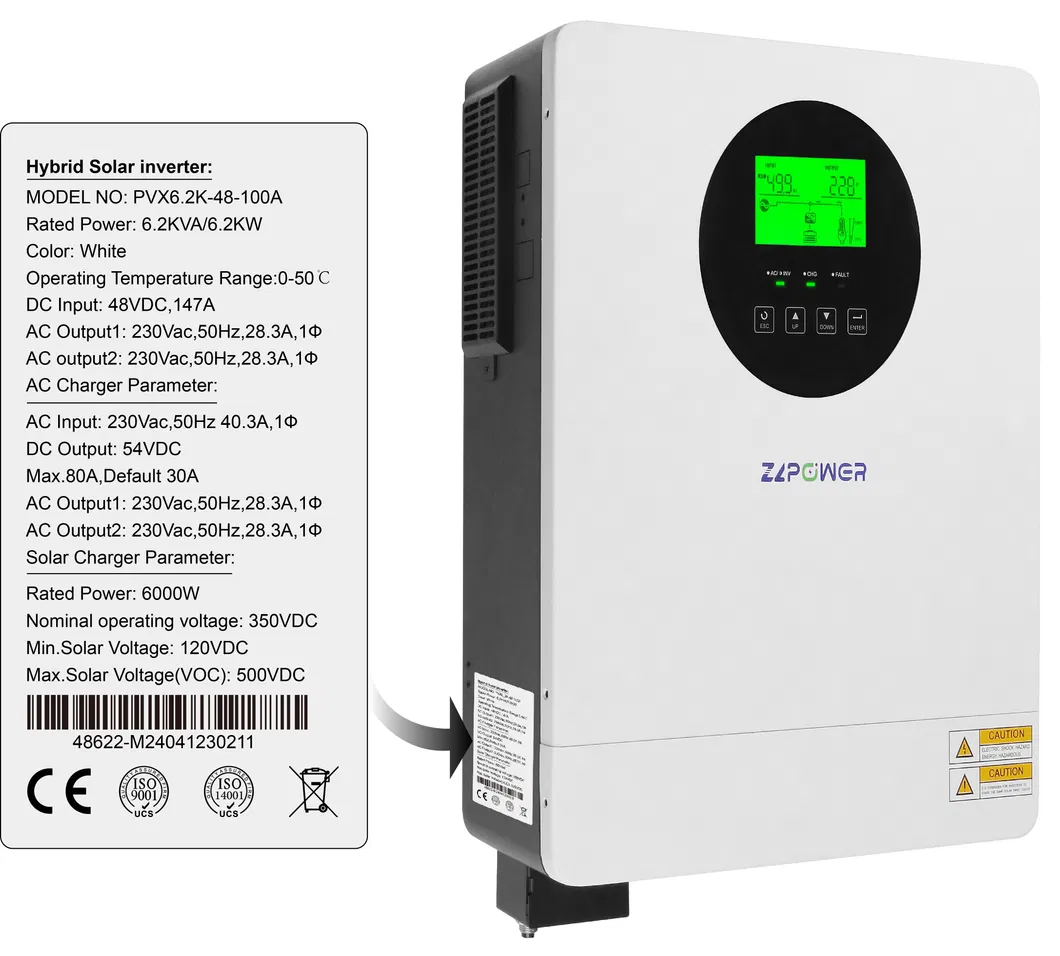

Technical Specifications
| MODEL |
PVM4000-24 |
PVM6000-48 |
| Rated Power |
4000W / 4200W |
6000W / 6200W |
| INPUT |
| Voltage |
230VAC |
230VAC |
| Selectable Voltage Range |
170-280VAC (PC) / 90-280VAC (Appliances) |
| OUTPUT |
| Surge Power |
7000VA |
11000VA |
| Waveform |
Pure sine wave |
| BATTERY & CHARGER |
| Battery Voltage |
24VDC |
48VDC |
| Max PV Array Power |
6000W |
7000W |
| MPPT Voltage Range |
120~450VDC |
Frequently Asked Questions
Q1. What is a hybrid solar inverter?
A hybrid solar inverter combines the functionalities of a solar inverter and a battery inverter. It manages power from solar panels, batteries, and the grid, offering energy independence, cost efficiency, and seamless operation during power outages.
Q2. What is the expected delivery time?
Usually, it takes about 3-5 days for sample orders and 10-15 days for bulk production.
Q3. What is the price range for these inverters?
The price range is approximately USD 100 to USD 500, depending on the specific functions and the capacity of the inverter.
Q4. Can I use my own logo on the products?
Yes, free OEM services are available for orders depending on the total quantity.
Q5. Does the inverter connect with the utility grid?

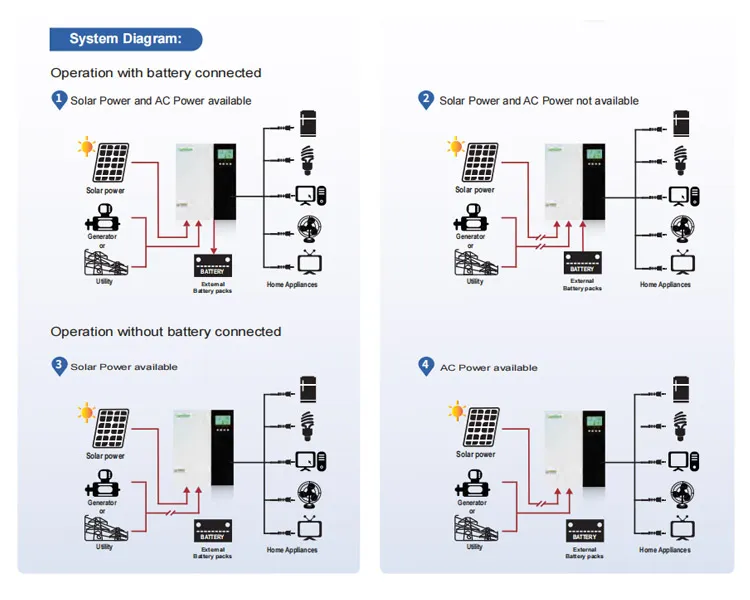

Yes, this is a complementary solar and utility inverter. It combines inverting, charging, and an AC auto-transfer switch into one unit. It can charge batteries via the utility grid or a generator.
Q6. What is the monthly production capacity?
The production capacity varies by model, but the total capacity reaches up to 10,000 pieces per month.
