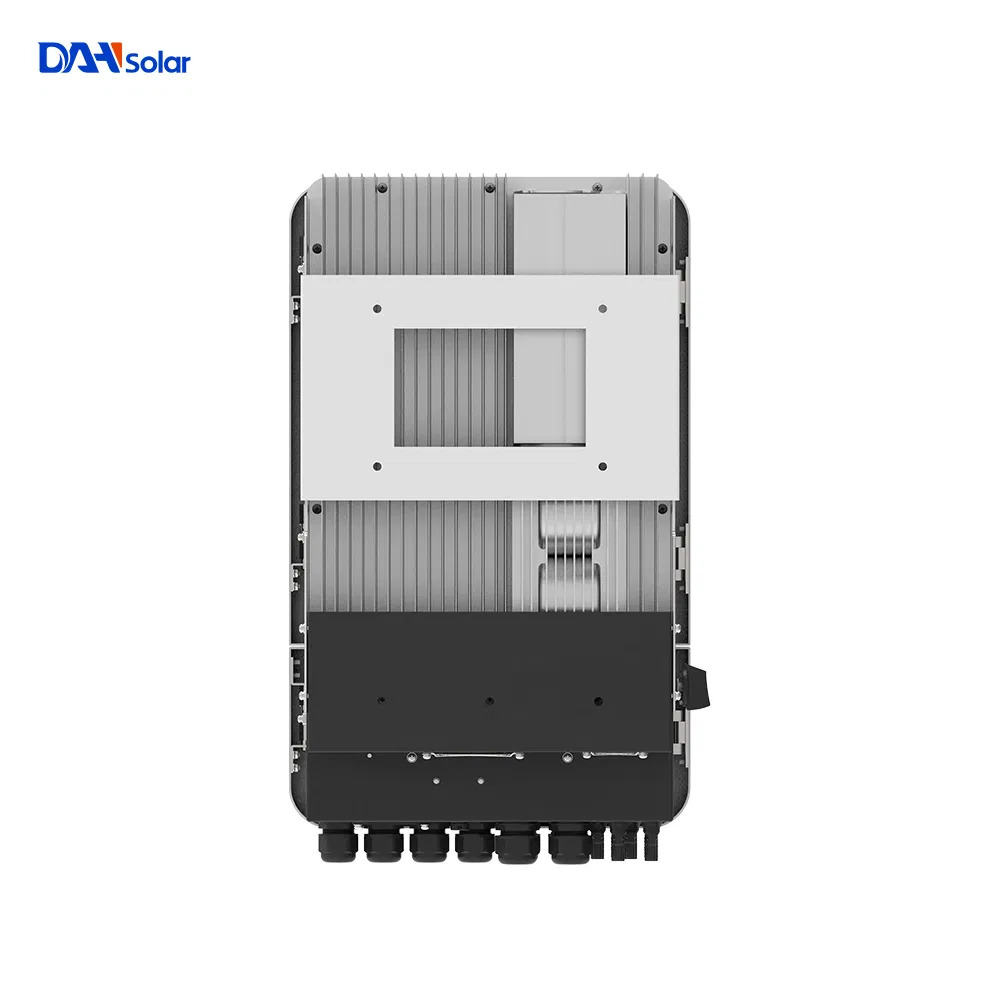

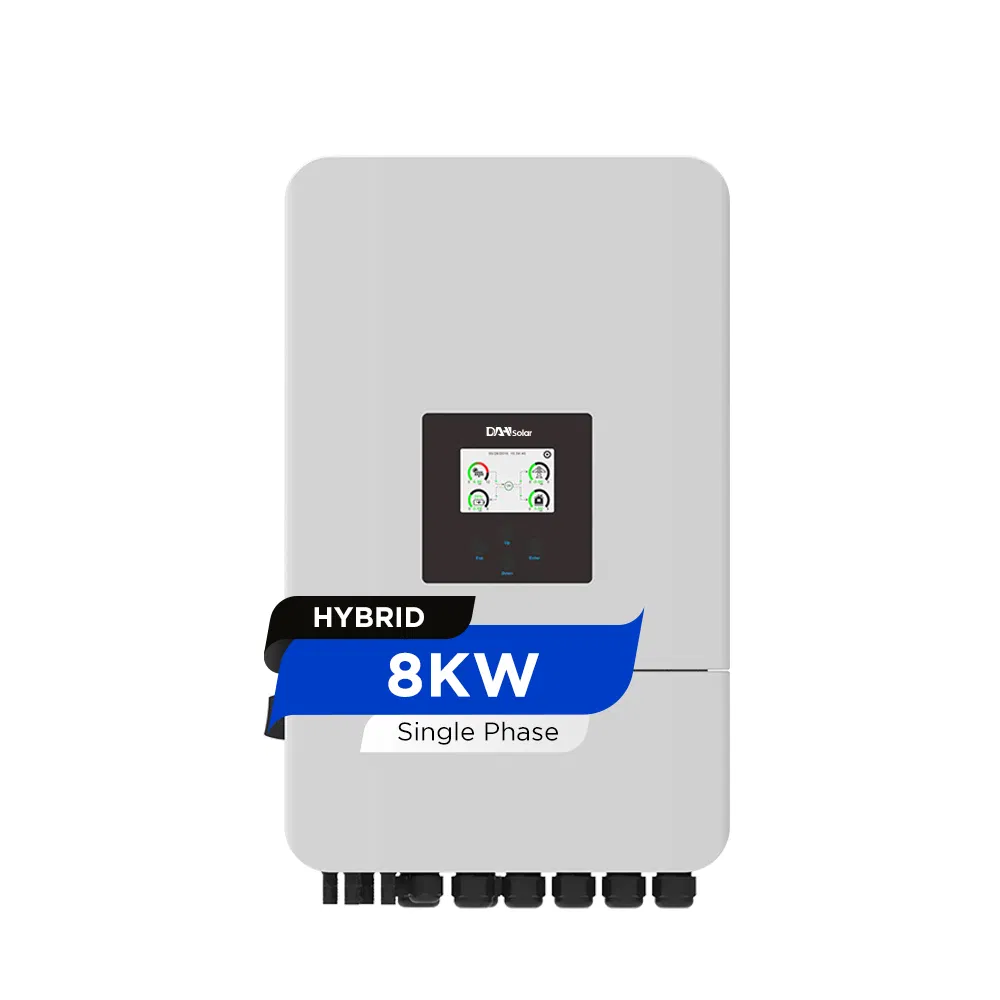

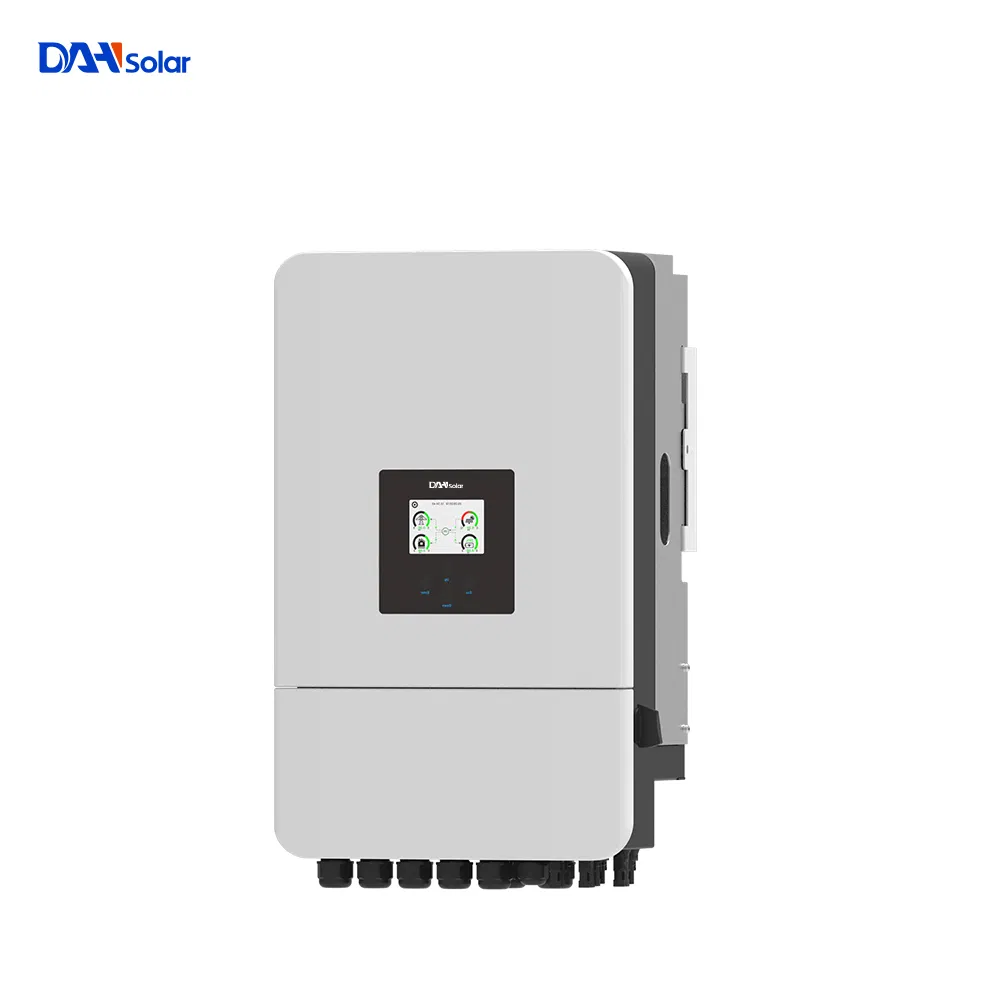

Deye 8kw Hybrid Inverter Sun-8K-Sg05lp1-EU-Sm2 Solar Inverters

1 / 5

Deye 8kw Hybrid Inverter Sun-8K-Sg05lp1-EU-Sm2 Solar Inverters

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📊 Basic Information

Model

SUN-8K-SG05LP1-EU-SM2

Phase

Single Phase

Output Power

6000W / 8000W Options

Efficiency

99.9% MPPT Efficiency

Protection

IP65 Rating

Power Source

Solar Power

Wave Type

Sine Wave Inverter

Interface

RS485/RS232/Can

💡 Product Description

Smart Monitoring Platform

Thanks to the smart monitoring platform, this full series of inverter products supports remote immediate shutdown in case of accidents. Setting parameters and firmware updates can be handled remotely, making PV plant operation and maintenance significantly easier.

⚙️ Technical Specifications

Model	3.6K-SG05	5K-SG05	6K-SG05	7K-SG05	8K-SG05
Battery Input Data
Battery Type	Lead-acid or Lithium-ion
Voltage Range	40-60V
Max Charge Current	90A	120A	135A	175A	190A
PV String Input Data
Max PV Input	4680W	6500W	7800W	10000W	10400W
MPPT Range	150-425V
AC Output Data
Rated Power	3600W	5000W	6000W	7000W	8000W
Grid Type	L+N+PE (Single Phase)

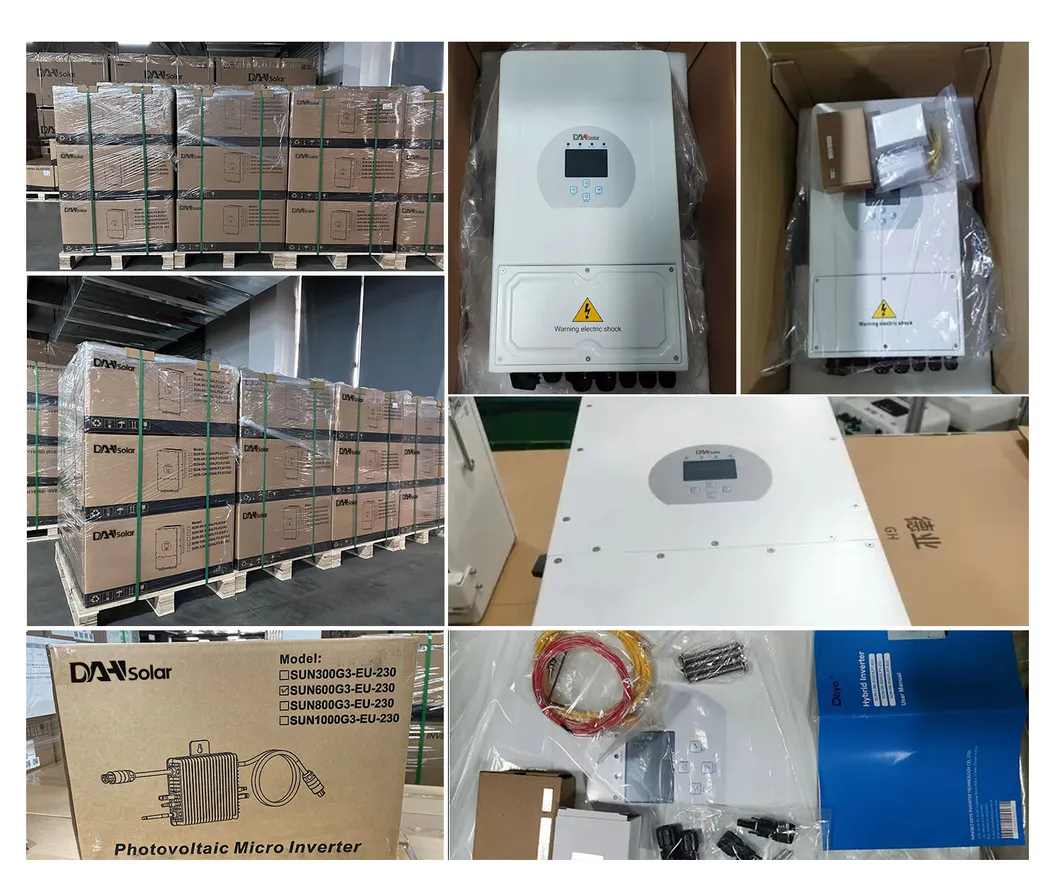

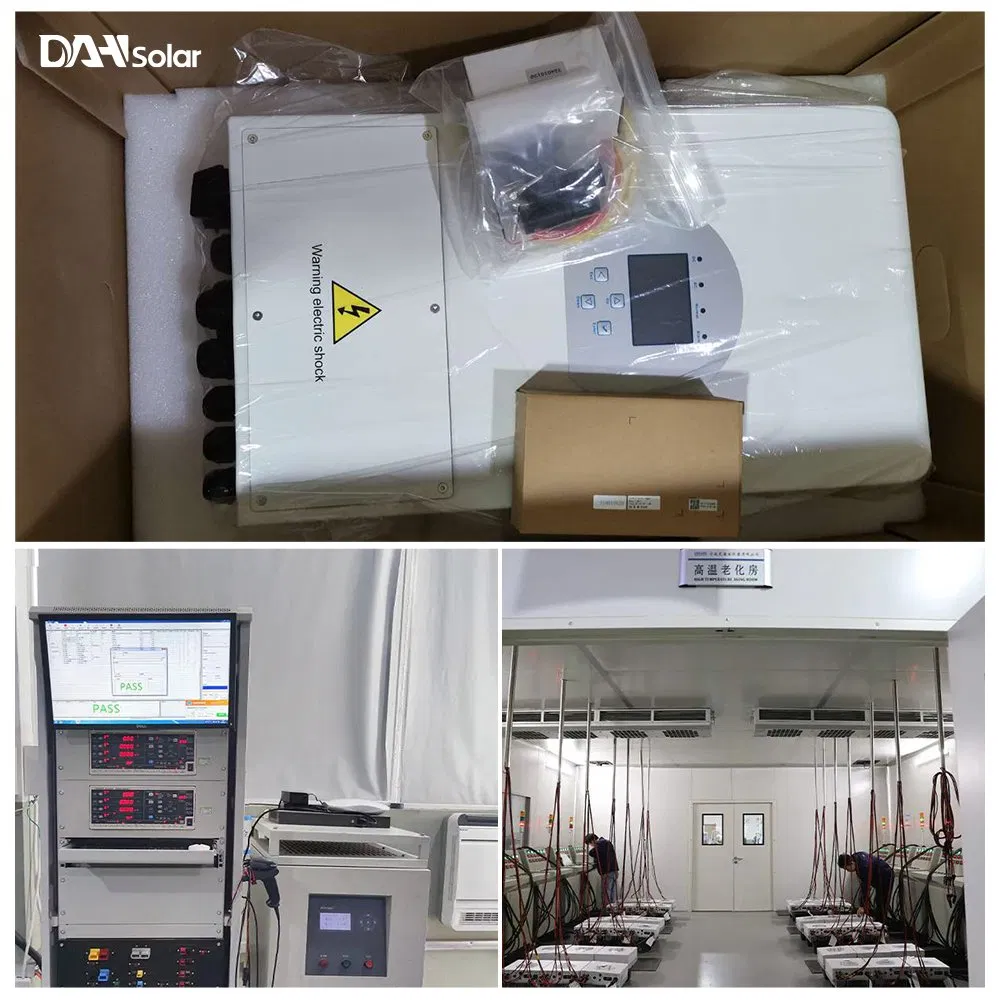

📦 Packaging & Shipping

Package Size

62.00cm * 46.00cm * 35.00cm

Gross Weight

30.000kg

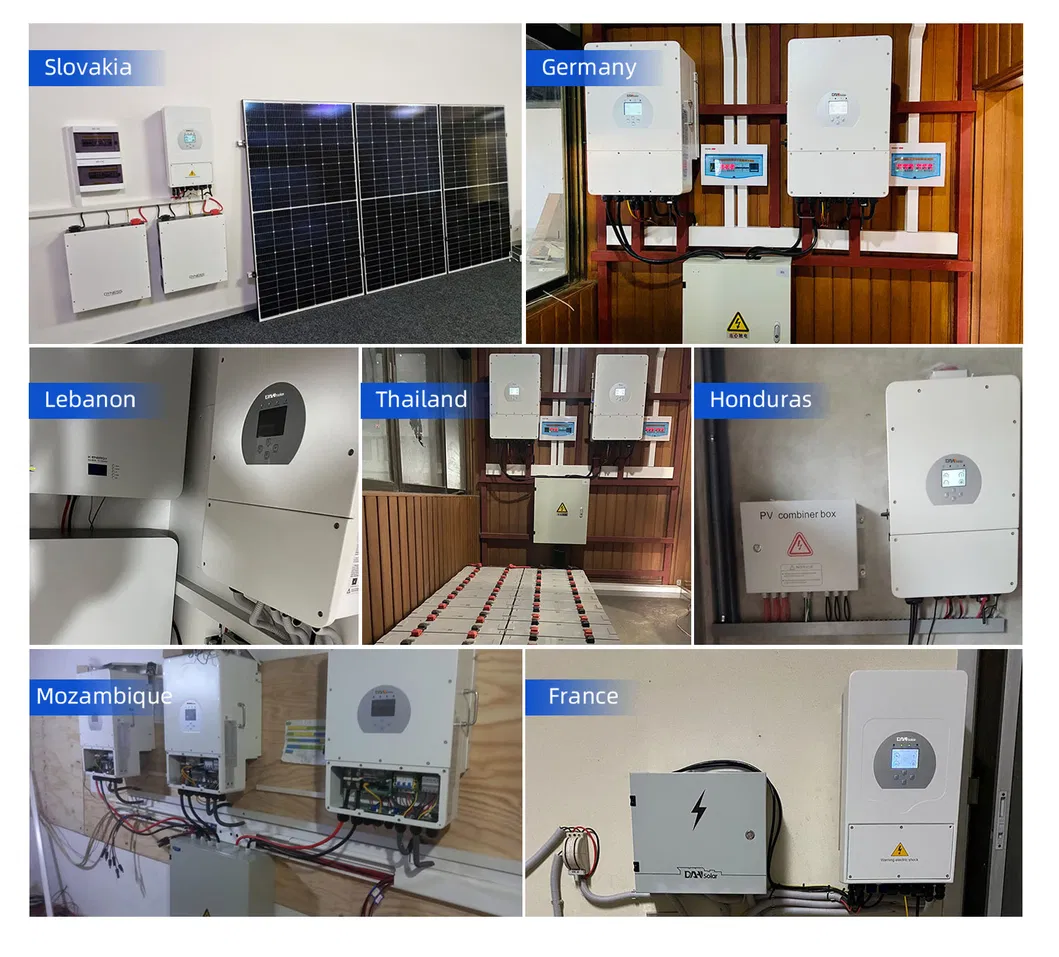

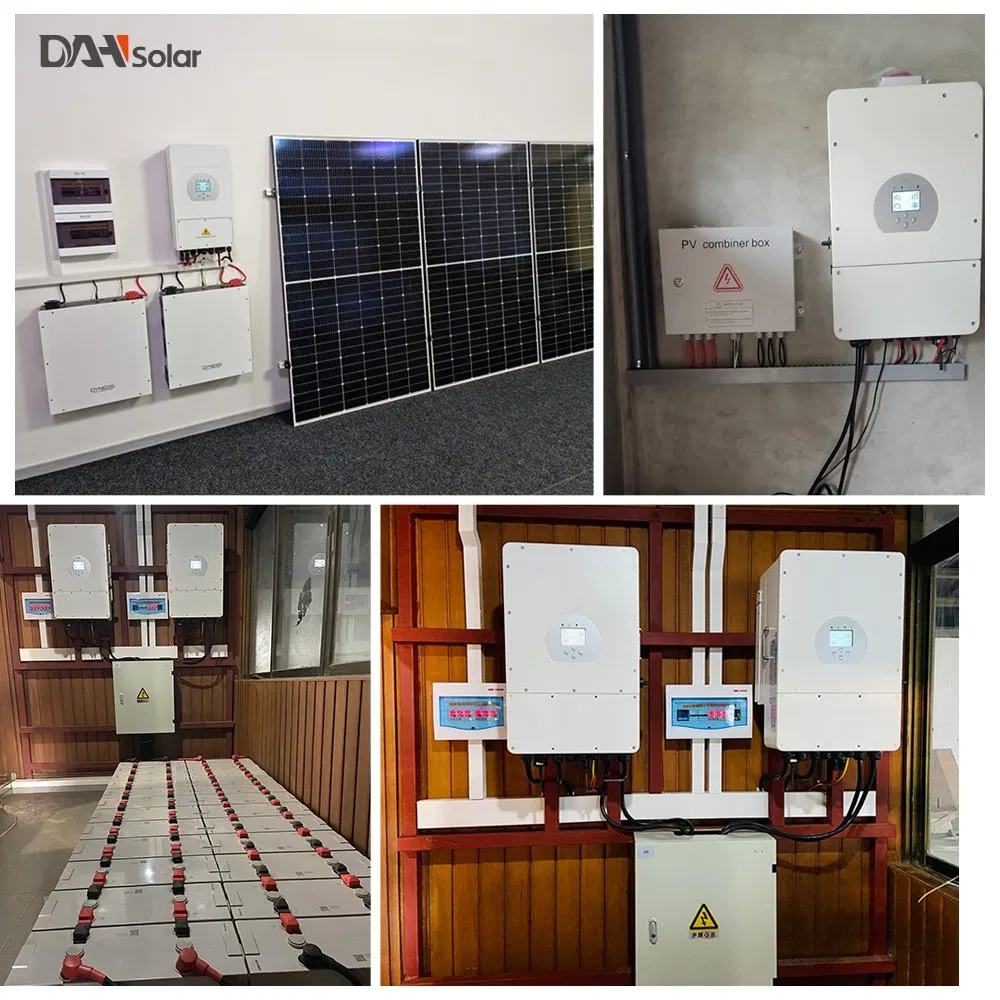

🏗️ Project Cases

❓ Frequently Asked Questions

What types of batteries are supported by this hybrid inverter?

The inverter is compatible with both Lead-acid and Lithium-ion batteries with a voltage range of 40-60V. It features self-adaptation to BMS for lithium batteries.

Can I monitor the system performance remotely?

Yes, the system supports multiple monitoring modes including GPRS, WIFI, Bluetooth, 4G, and LAN (optional) via a smart monitoring platform.

Is the inverter suitable for outdoor installation?

Absolutely. The inverter comes with an IP65 ingress protection rating, making it dust-tight and protected against water jets, suitable for outdoor environments.

Does it support remote firmware updates?

Yes, the smart monitoring platform allows for remote parameter settings and FW updates, which simplifies PV plant operation and maintenance.

What safety protections are integrated?

It includes DC Polarity Reverse Connection Protection, AC Overcurrent/Overvoltage Protection, Short Circuit Protection, Thermal Protection, and Ground Fault Monitoring.

What is the warranty period for this inverter?

The standard warranty ranges from 5 to 10 years, depending on the final installation site and specific warranty policies.
