Customizable Hybrid Solar Inverter: 4-11HP, 3-8kw Energy Storage IP65 Generator

Basic Specifications

Model NO.

S5 Series 3-8kW, 4-11HP

Nature of Source

Active Inverter

Phase

Single

Output Power

>1000W

Certification

CE / CQC

Type

DC/AC Inverters

Power Source

Solar Power

Wave String

Sine Wave Inverter

Protection Grade

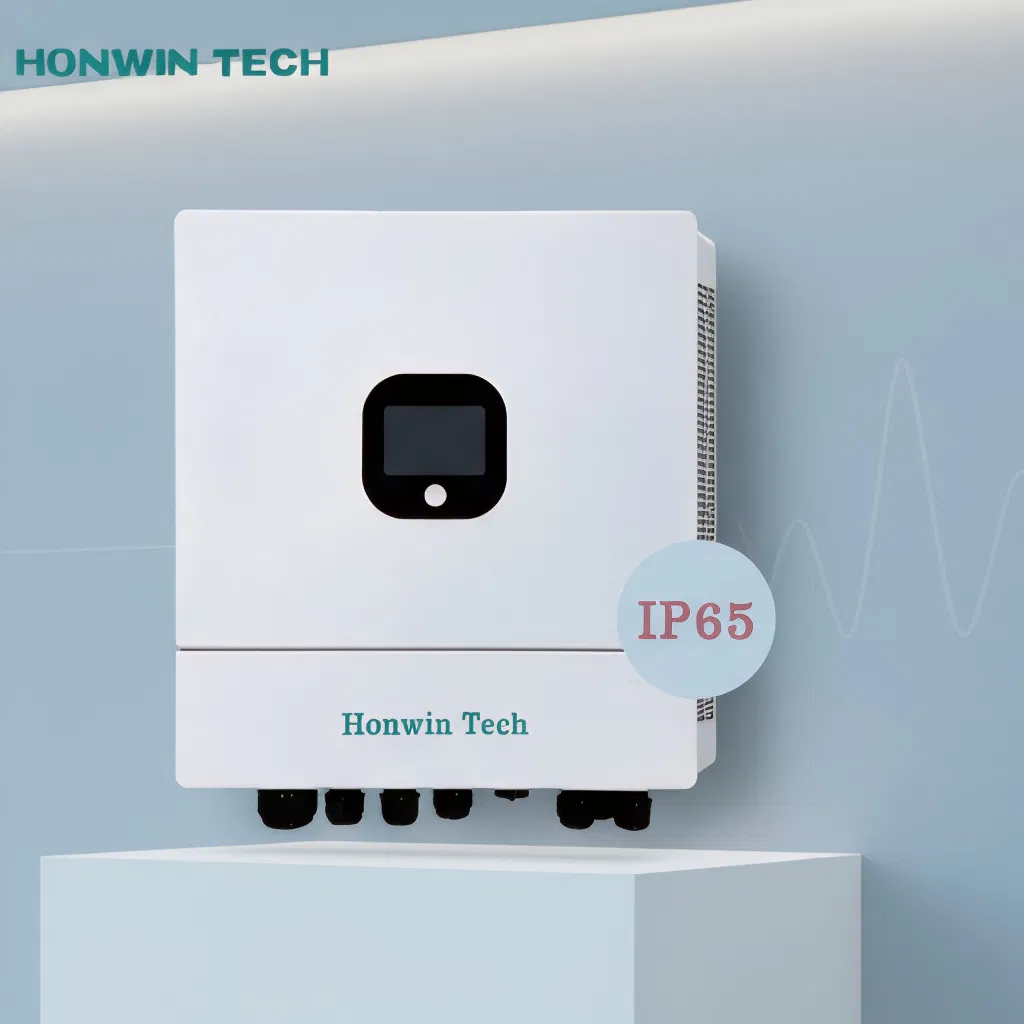

IP65 Dust and Water Resistant

HS Code

8507600090

Product Overview

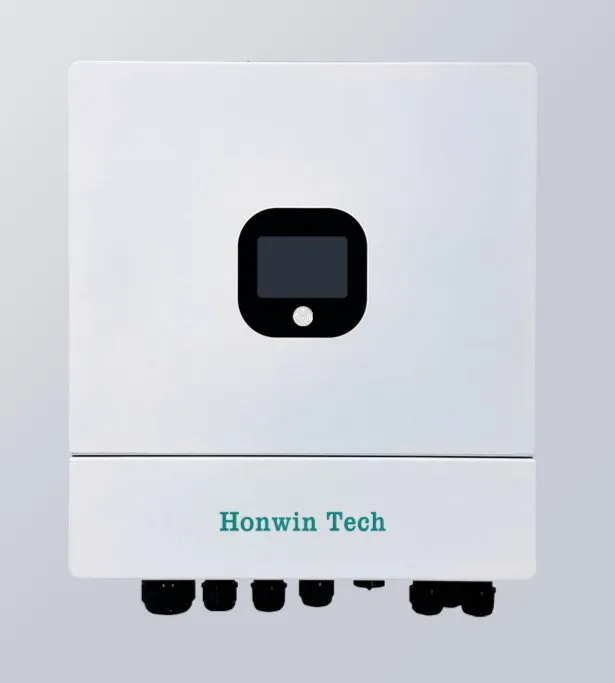

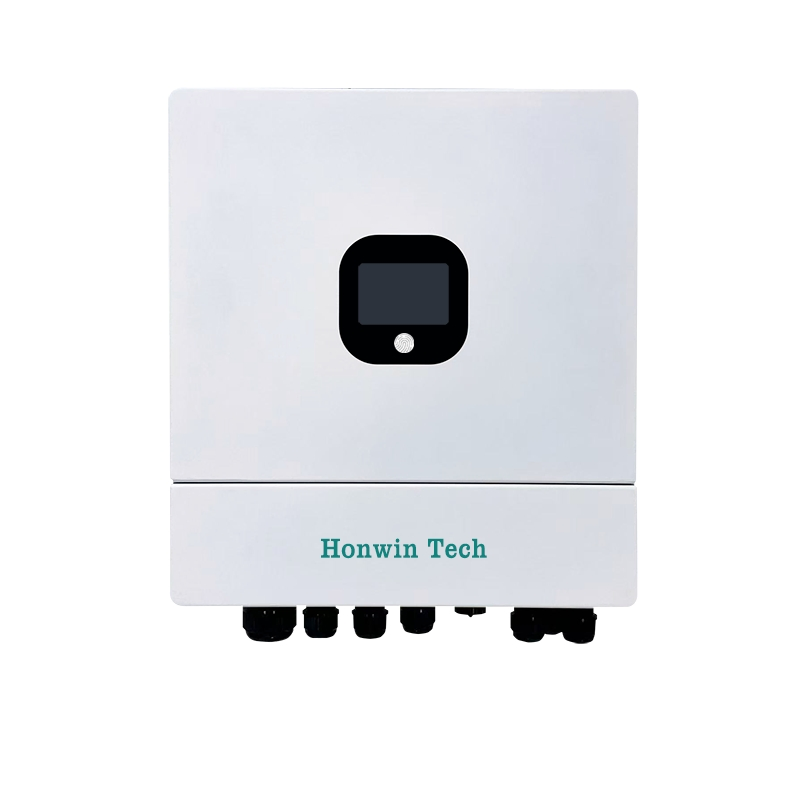

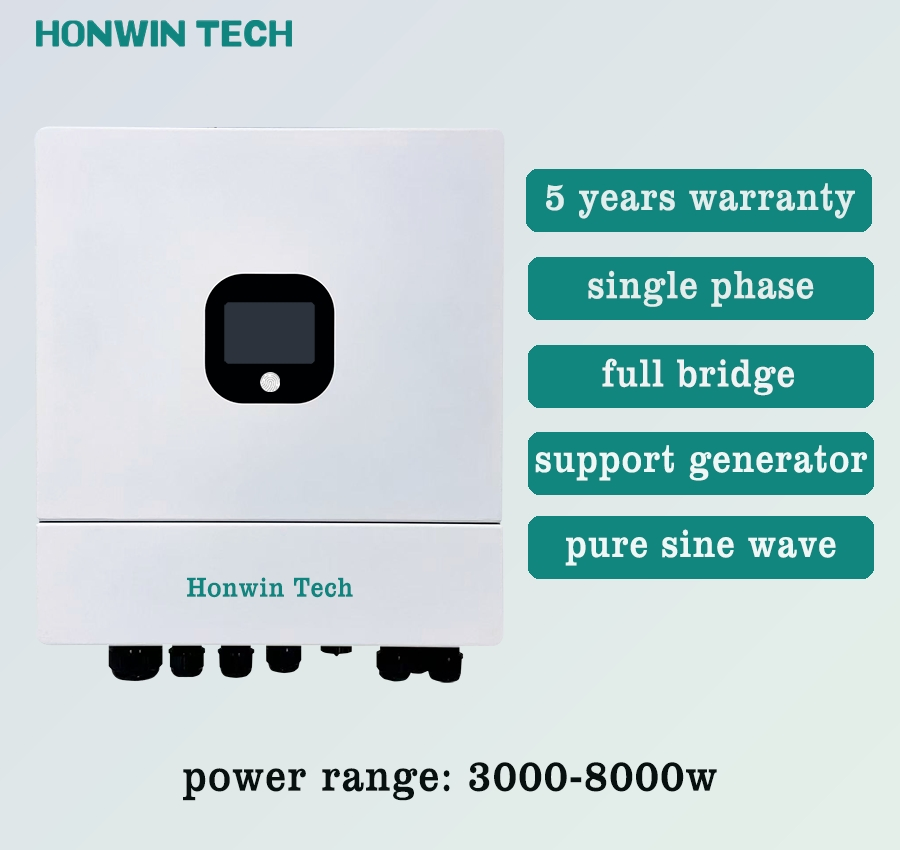

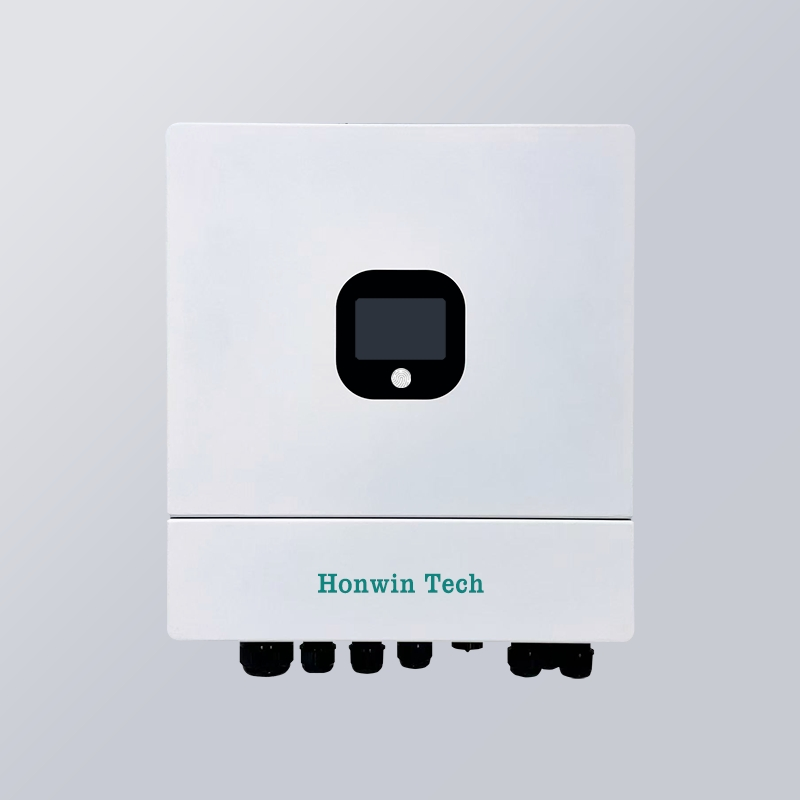

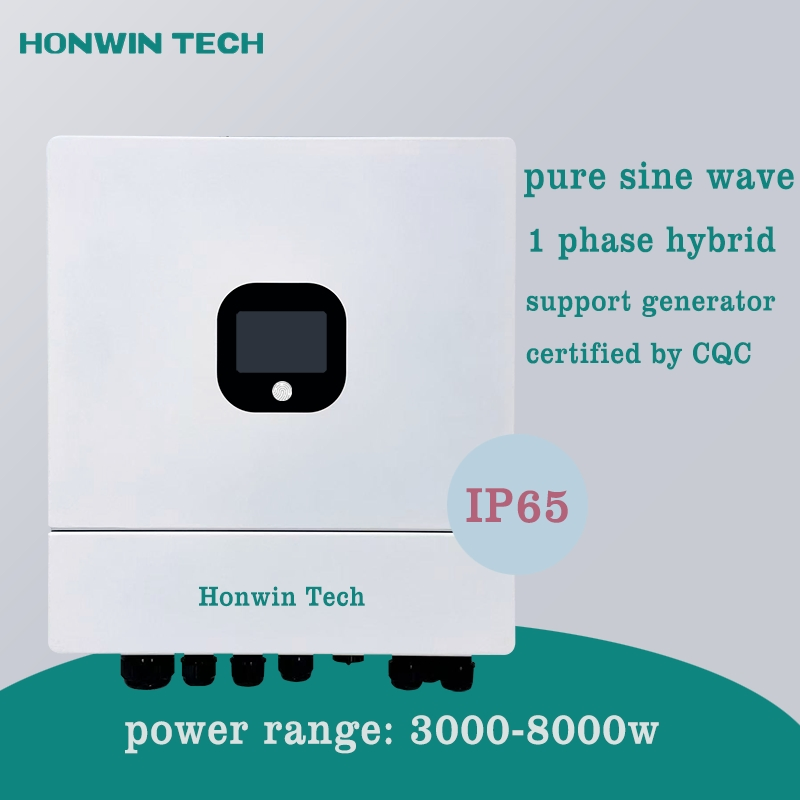

S5 series Household energy storage inverter

The S5 series household energy storage all-in-one machine is designed to provide you with an intelligent and convenient all-in-one photovoltaic energy storage solution. Based on advanced power conversion and energy storage technology, important components such as off-grid energy storage inverters, switch boxes, and batteries feature an elegant and unique appearance.

They adopt a modular design, a simple internal wiring method, and are extremely convenient to install and use. With an intelligent and easy-to-operate working mode and a remote intelligent operating system, they can perfectly integrate into modern smart home life.

Technical Parameters

Parameters	S5-3K-S65	S5-3.68K-S65	S5-4K-S65	S5-5K-S65	S5-6K-S65	S5-8K-S65
Efficiency
Max efficiency	98.10%	98.10%	98.20%	98.20%	98.30%	98.30%
Euro efficiency	97.10%	97.20%	97.20%	97.40%	97.70%	97.80%
DC (PV) Input
Max. input power	4500W	5500W	6000W	7500W	9000W	12000W
Max. DC input voltage	550V
MPPT voltage range	90V ~ 550V
AC Output (Grid)
Rated output power	3000W	3680W	4000W	5000W	6000W	8000W
Max. Apparent power	3300VA	4048VA	4400VA	5500VA	6600VA	8800VA
Battery Parameters
Battery type	Lithium battery / Lead-acid battery
Rated Battery Voltage	48V
Max. Charge/Discharge	60A	80A	80A	120A	120A	160A

Packaging & Delivery

Package Size

404.00cm * 367.00cm * 195.00cm

Gross Weight

22.000kg

Installation

Wall mounting

Cooling

Smart Air cooling

Frequently Asked Questions

Can I use my own logo or design on the product?

Yes, we offer OEM/ODM services; Your logo and design can be customized on the product.

Are you a professional manufacturer with a factory?

Yes, we operate a specialized factory and are professional manufacturers providing customers with customization and OEM/ODM services. You are welcome to visit our facilities.

Is it possible to obtain a sample before a bulk order?

Yes, samples are available for testing and quality evaluation.

What is your monthly production capacity?

We utilize five production lines, capable of manufacturing approximately 3,000 pieces of equipment per month to handle large-scale orders efficiently.

What is the estimated dispatch time for orders?

Our products are generally kept in stock. For orders under 100 units, we can typically ship within 15 days depending on the specific machine type.

Does the system support remote monitoring?

Yes, the system supports APP, WIFI, and LCD interaction for remote intelligent operation and management.
