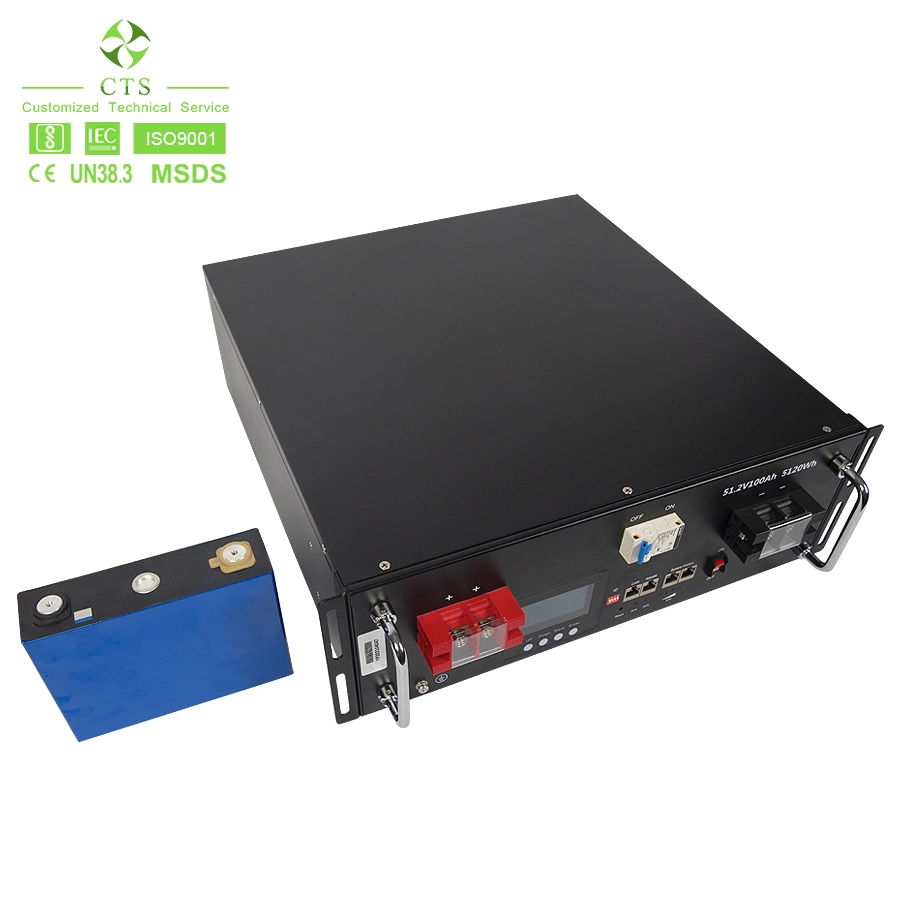

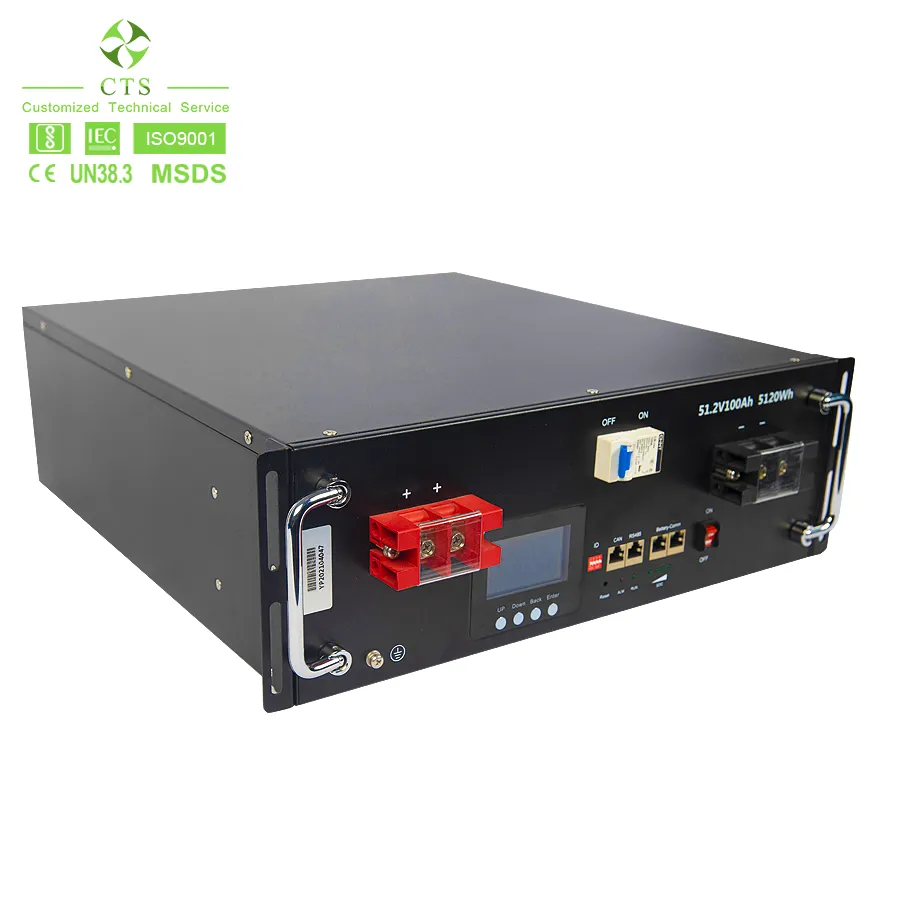

China Factory 5kwh 10kwh 24V 48V 100ah 200ah 300ah 400ah Lithium Ion Lipo Li Ion 48V LiFePO4 Lithium Storage Solar Battery for Home Solar Energy Storage

1 / 5

China Factory 5kwh 10kwh 24V 48V 100ah 200ah 300ah 400ah Lithium Ion Lipo Li Ion 48V LiFePO4 Lithium Storage Solar Battery for Home Solar Energy Storage

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📋 Basic Info.

Model NO.Lithium battery

RechargeableYes

Voltage51.2V

Capacity100ah, Expandable

CertificationUn38.3/MSDS/CE/TUV/IEC

Lifespan6000 Cycles

Design Life15 Years

BMSRS485/232/Can

ApplicationUPS, Solar Energy Storage System

Installation19 Inch Rack

🔍 Product Description

Factory Lithium Storage Solar Battery for Home Energy Storage

✔

Compatible: Works with various inverter brands including Growatt, Luxpower, Solis, Socolar, Victrons, Deye.

✔

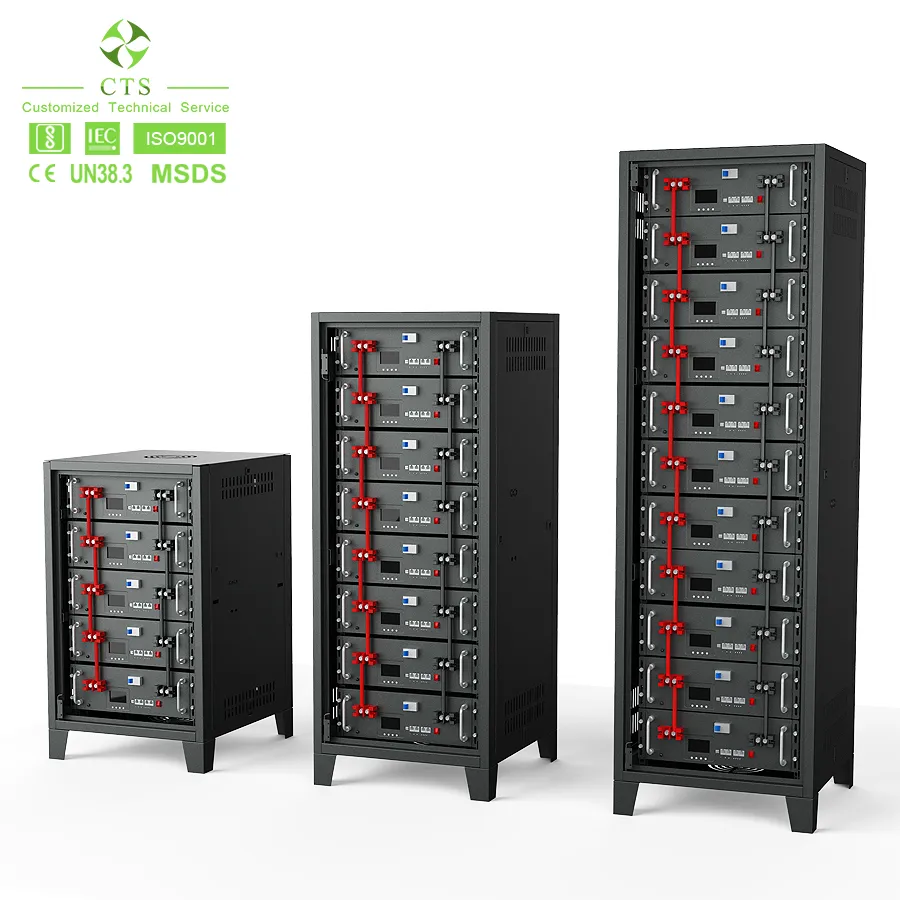

Scalable: Support max 64pcs in parallel (up to 48v 6400ah) to meet all house demands.

✔

High Efficiency: Features 99% Operating Efficiency vs 80% for AGM batteries.

✔

Long Life: A+++ Cells with 6000 cycles at 80% DOD, providing up to 15 years of use.

✔

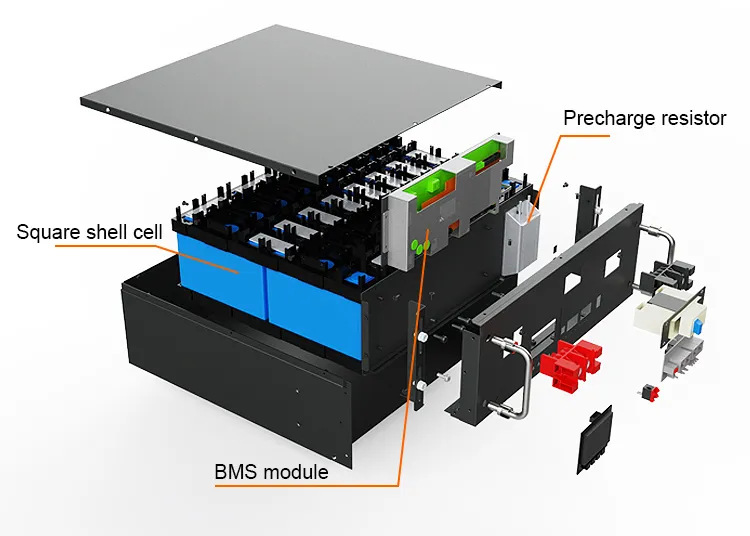

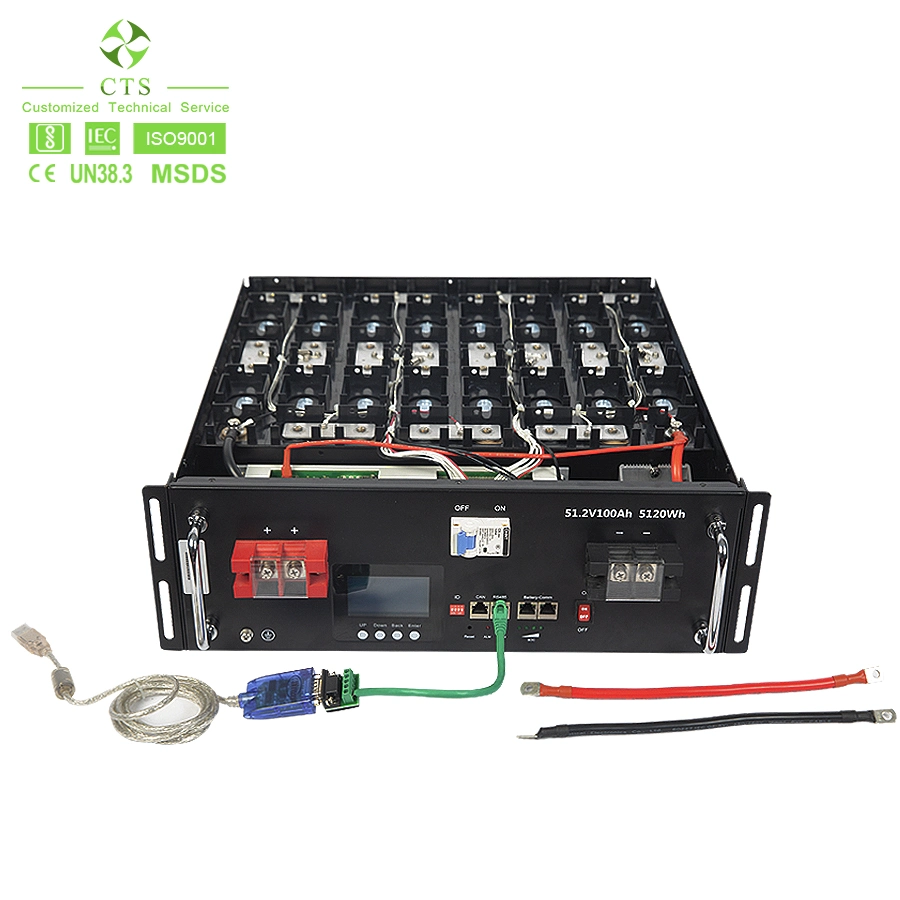

Build Quality: Cells are bolted together with heavy plates and ABS holders for reliable internal connections.

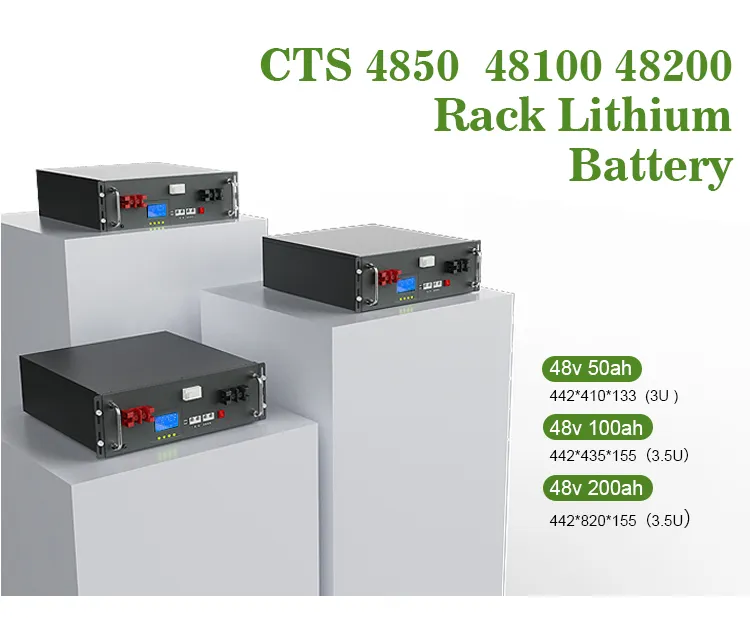

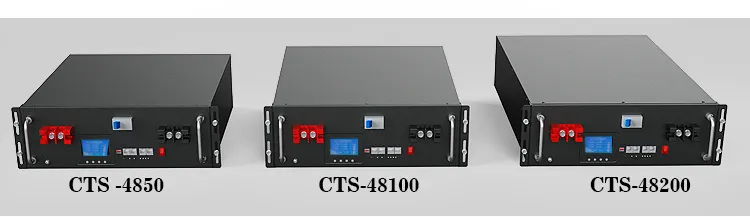

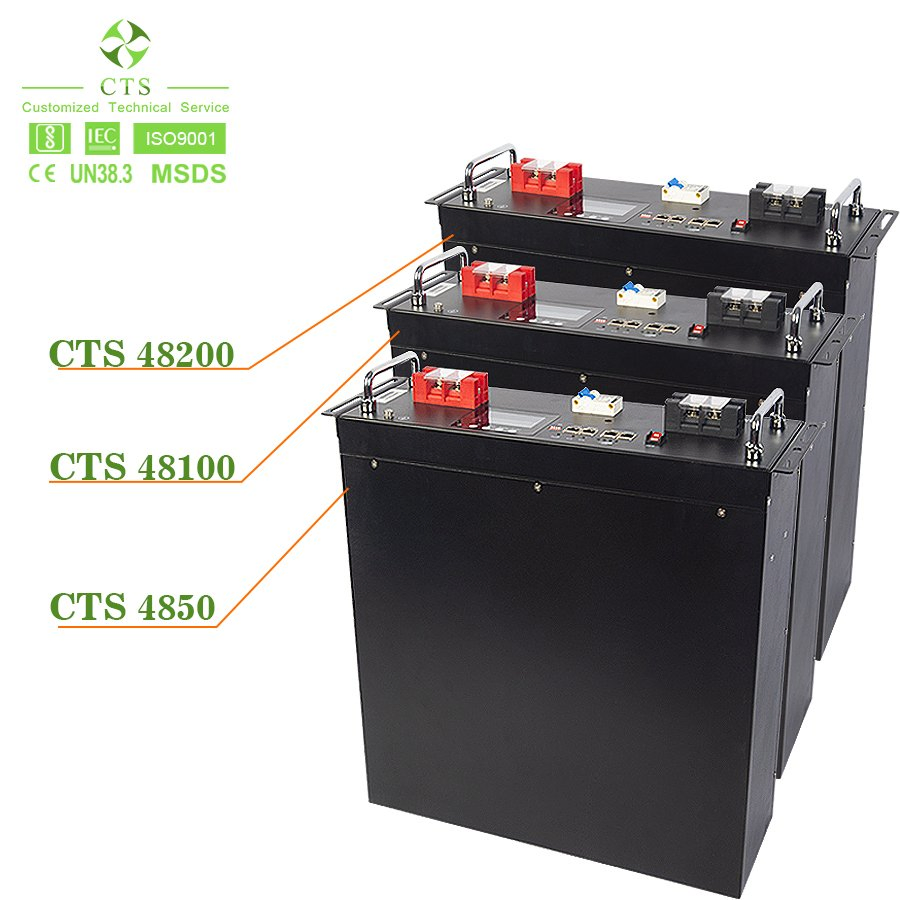

MODEL	4850R	48100R	48200R
Cell Type	LiFePO4	LiFePO4	LiFePO4
Rated Capacity	50Ah	100Ah	200Ah
Rated Voltage	51.2V	51.2V	51.2V
Energy	2.56kWh	5.12kWh	10.24kWh
Weight	28Kg	48Kg	82Kg
Max Discharge	50A	100A	150A

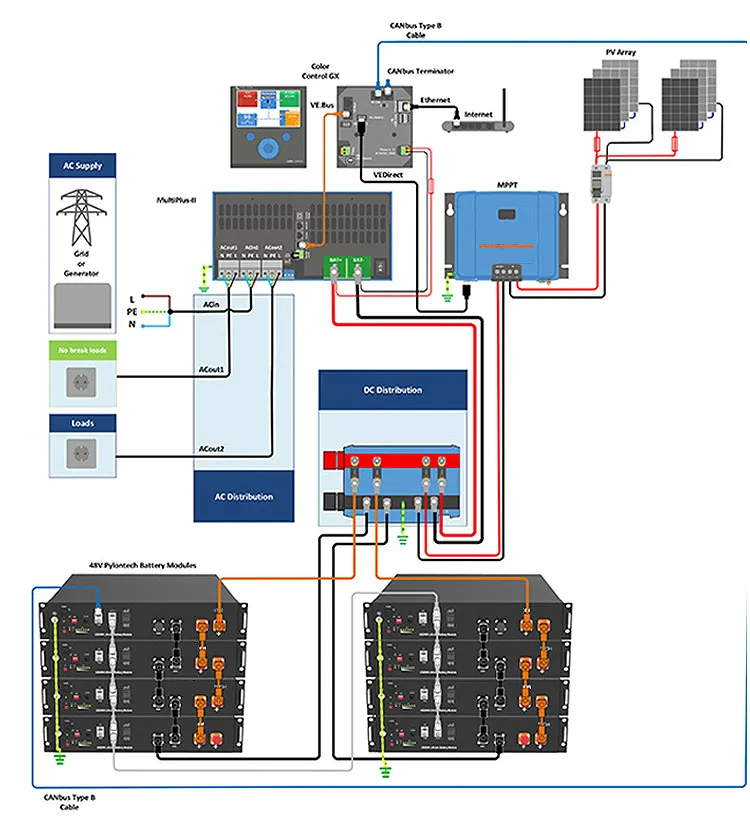

Connection Diagram

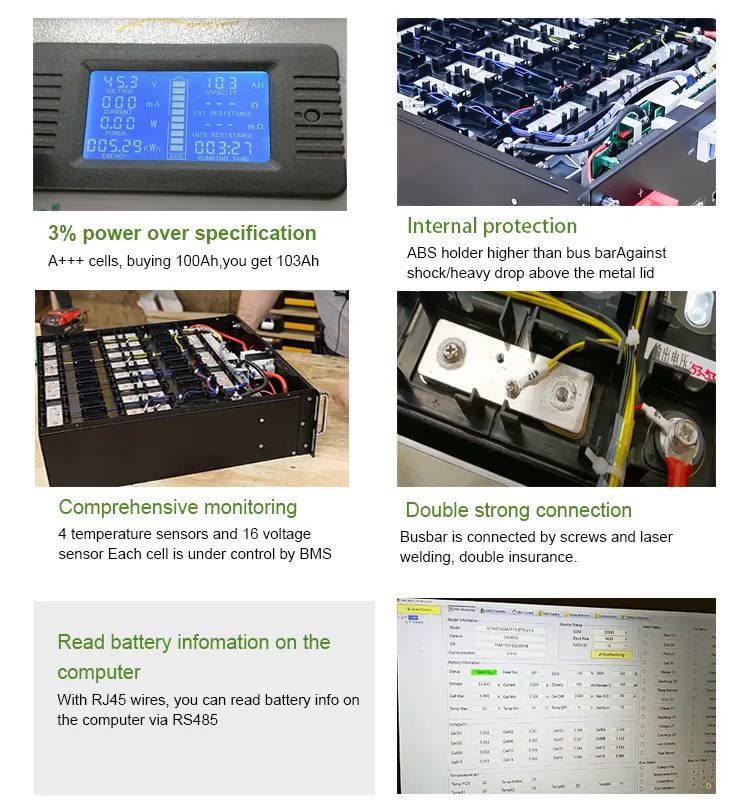

⭐ Exclusive Design Advantages

Feature	Our Design	Standard Others
Plastic Holder	Customized holders between cells for better insulation and safety.	No holders; insulation concerns.
Explosion-proof Valve	Unblocked valve ensures physical structure safety.	Often blocked; high safety risk.
BMS Protection	Well protected by metal cover to prevent shock damage.	No cover on BMS.
Connection	Laser welding + Screws to eliminate risk of falling and reduce resistance.	Untidy welding or only screws.

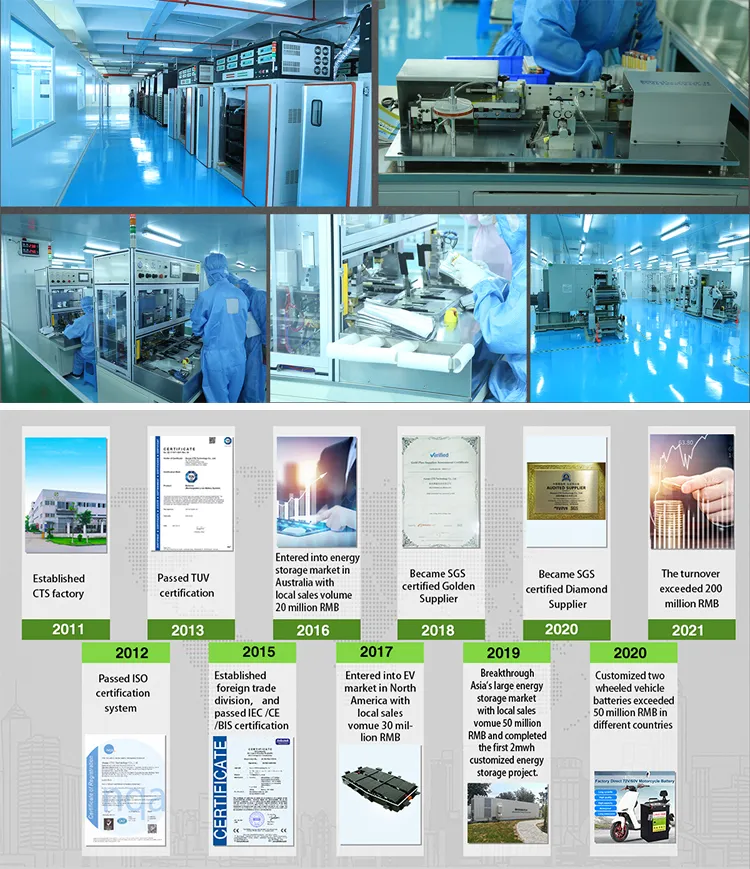

🏭 Manufacturing Excellence

Professional Customization with 10+ Years Experience:

20+ R&D Team Experts
150 Front-line production employees
10 Advanced production lines
20,000 Square meter plant

Focusing on one-stop customization of lithium battery products since 2011. Utilizing advanced equipment from Korea and Germany to ensure automated production and high quality standards, following ISO 9001 and ISO 14001 certifications.

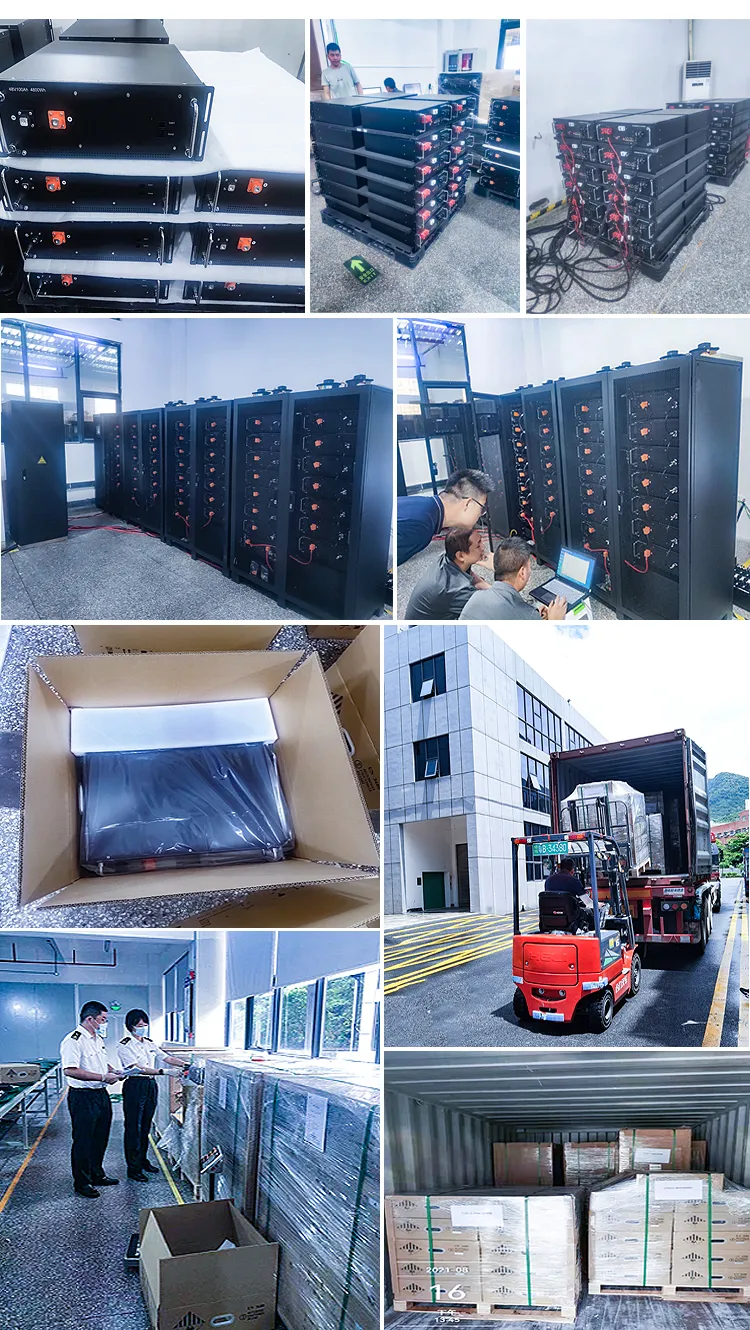

📦 Packaging & Shipping

1. Hard carton and foam packaging, safe for different shipment methods.

2. 100% full inspection before shipment to ensure quality control.

3. MSDS and UN38.3 certifications provided for smooth customs clearance.

💬 Customer Feedback

Frequently Asked Questions

Q1: How many cycles can I expect from this LiFePO4 battery? A: The battery features A+++ cells that offer 6000 cycles at 80% Depth of Discharge (DOD), translating to approximately 15 years of daily use.

Q2: Can I connect multiple batteries together for larger capacity? A: Yes, these modules support parallel connection of up to 64 units, allowing you to expand from 50Ah up to 6400Ah to meet high energy demands.

Q3: Is this battery compatible with my existing solar inverter? A: Our batteries are compatible with various major inverter brands, including Growatt, Luxpower, Solis, Victron, and Deye.

Q4: What is the operating efficiency of this system? A: The system features 99% operating efficiency, which is significantly higher than the 80% efficiency typically found in AGM batteries.

Q5: What safety features are included in the battery design? A: The battery includes customized plastic holders for insulation, unblocked explosion-proof valves, a metal-covered BMS for shock protection, and laser-welded connections.

Q6: What certifications do these batteries carry for shipping? A: All batteries come with MSDS and UN38.3 certifications to ensure safe transportation and smooth customs declaration and clearance.
