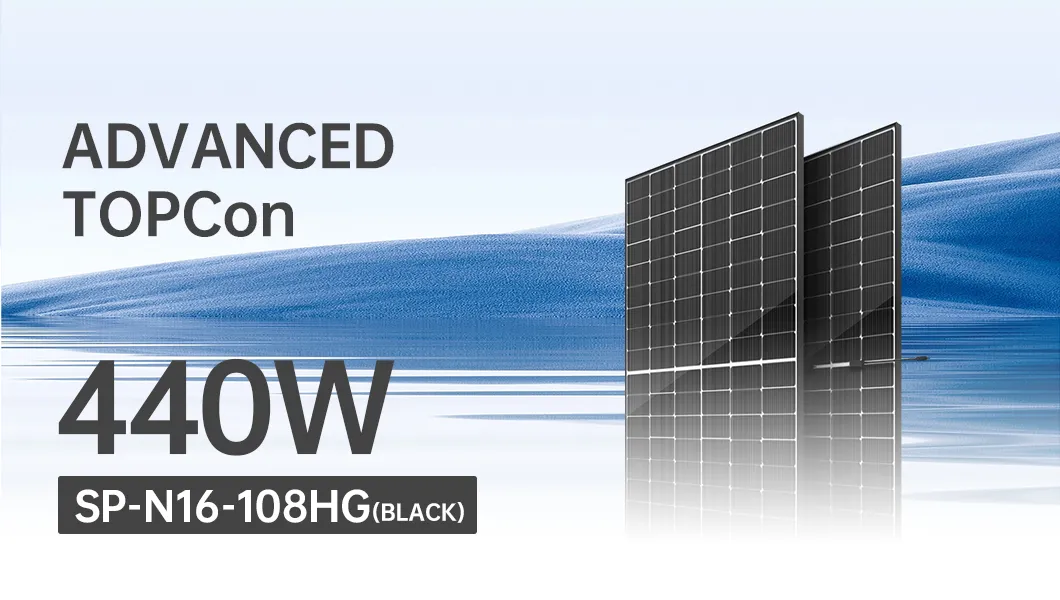

All-black Bifacial Solar Panels 420W 430W 440W Double Glass N Type TOPCon Solar Modules

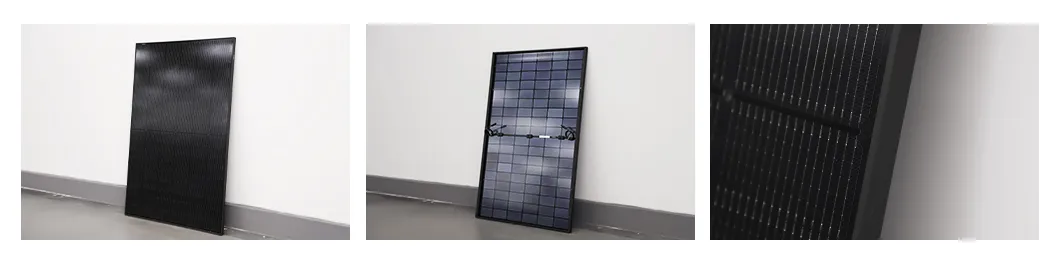

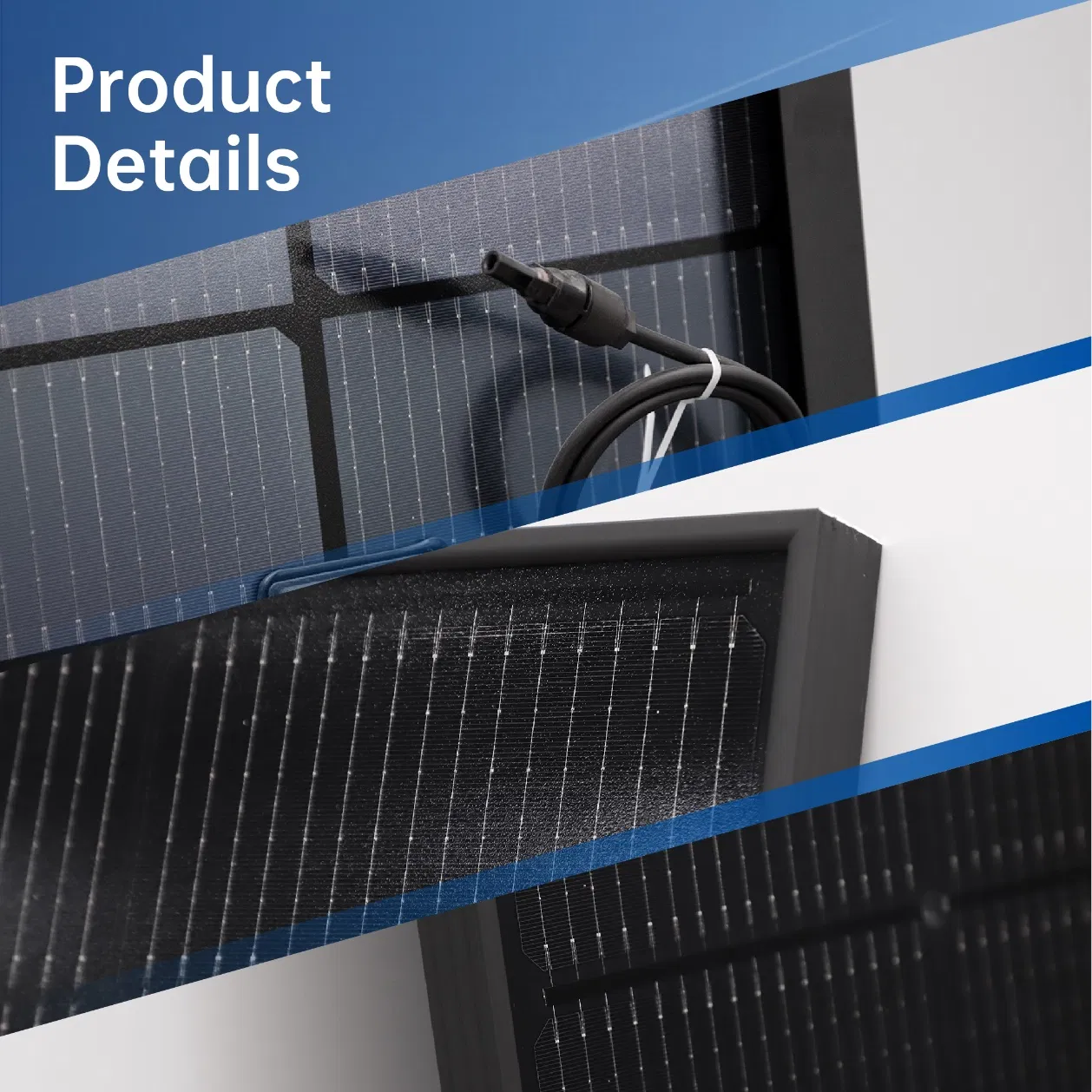

This series module features TOPCon 108 cells, with a maximum power output of 440W and an impressive efficiency rate of up to 22.5%. With black busbar, black frame and black backsheet, it showcases an elegant appearance, making it highly suitable for roofing projects with specific aesthetic requirements.
Besides, these modules exhibit minimal degradation and a low temperature coefficient, ensuring consistent high power production in any environment. Additionally, the products are backed by a comprehensive warranty, including a 15-year product warranty and a 30-year power warranty, providing unmatched reliability and assurance.
| Electrical Characteristics (STC: AM=1.5, 1000W/m2, 25ºC) | ||||||
|---|---|---|---|---|---|---|
| Maximum Power (Pm) [W] | 420 | 425 | 430 | 435 | 440 | |
| Maximum Power Voltage (Vm) [V] | 33.3 | 33.5 | 33.7 | 33.9 | 34.1 | |
| Maximum Power Current (Im) [A] | 12.61 | 12.69 | 12.76 | 12.83 | 12.91 | |
| Open Circuit Voltage (Voc) [V] | 38.85 | 39.05 | 39.25 | 39.45 | 39.65 | |
| Short Circuit Current (Isc) [A] | 13.46 | 13.51 | 13.56 | 13.61 | 13.66 | |
| Module Efficiency [%] | 21.5 | 21.8 | 22.0 | 22.3 | 22.5 | |
| Electrical Characteristics (NMOT: 800W/m2, 20ºC, 1m/s) | ||||||
|---|---|---|---|---|---|---|
| Maximum Power (Pm) [W] | 316 | 320 | 324 | 328 | 332 | |
| Maximum Power Voltage (Vm) [V] | 30.44 | 30.68 | 30.92 | 31.15 | 31.35 | |
| Maximum Power Current (Im) [A] | 10.38 | 10.43 | 10.48 | 10.53 | 10.59 | |
| Open Circuit Voltage (Voc) [V] | 36.70 | 36.90 | 37.10 | 37.30 | 37.50 | |

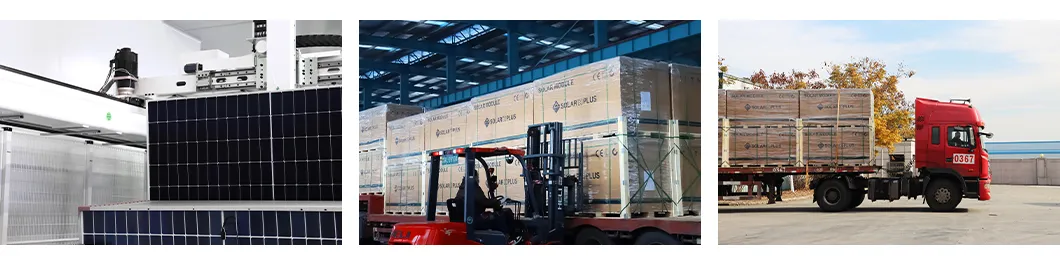

| Container Type | 40'HC |
| Pieces per Pallet | 36 pcs |
| Packaging Box Size | 1779×1145×1260mm |
| Pieces per Container | 936 pcs |
| Package Gross Weight | 23868.000kg |
