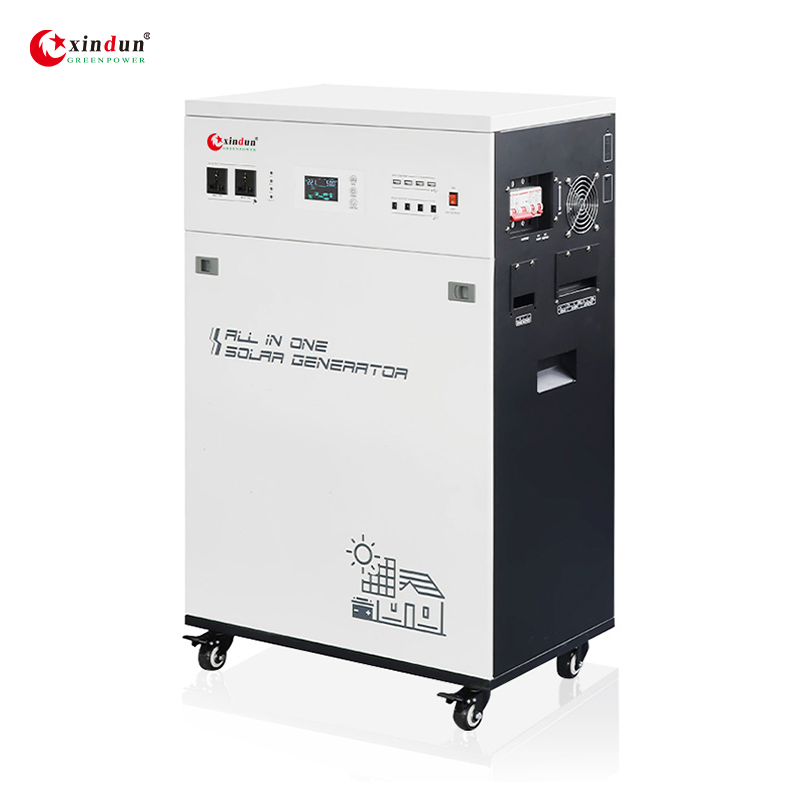

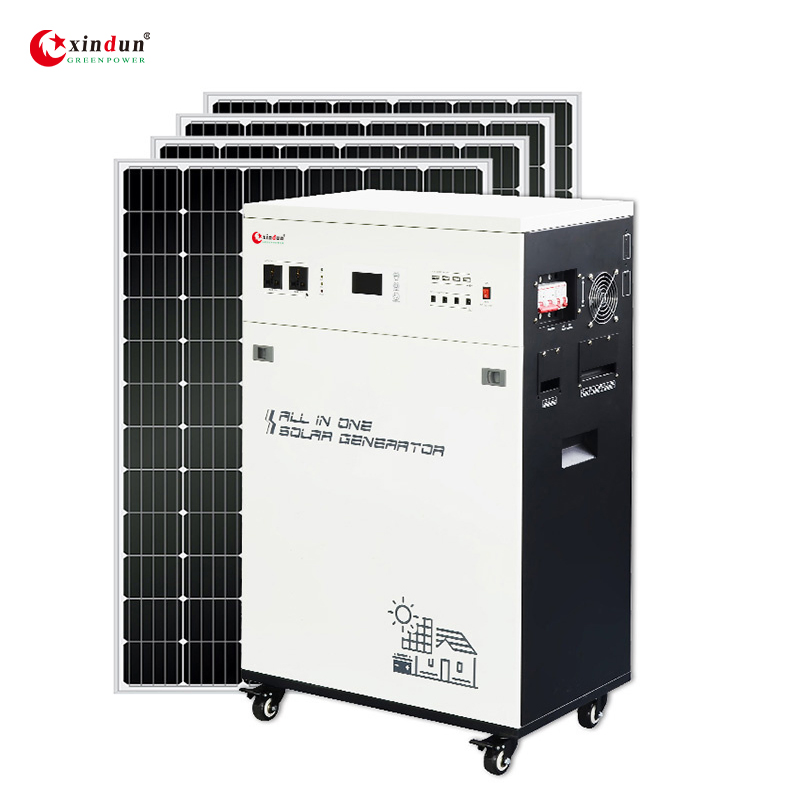

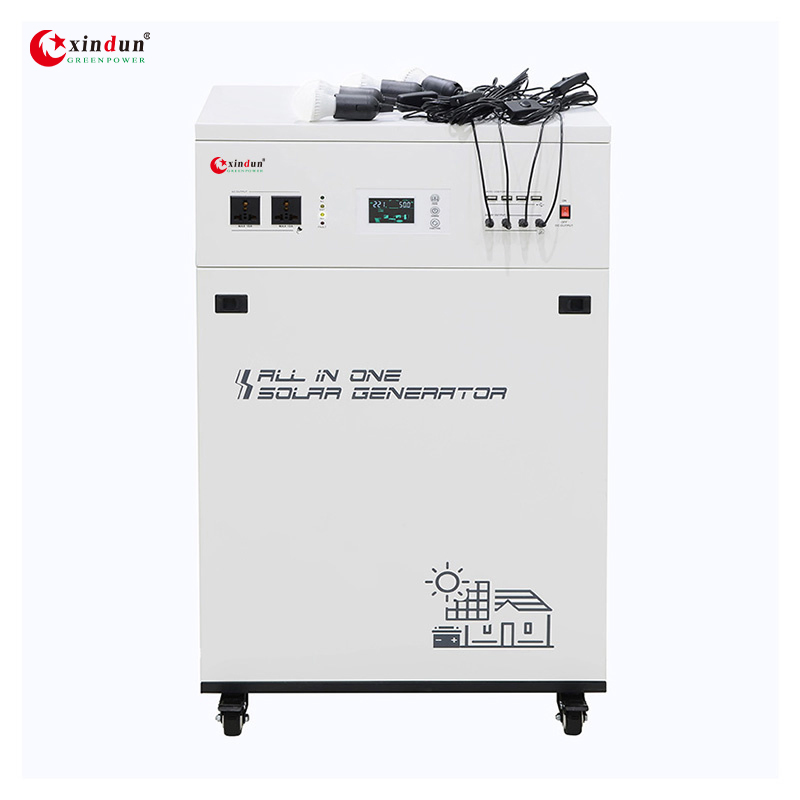

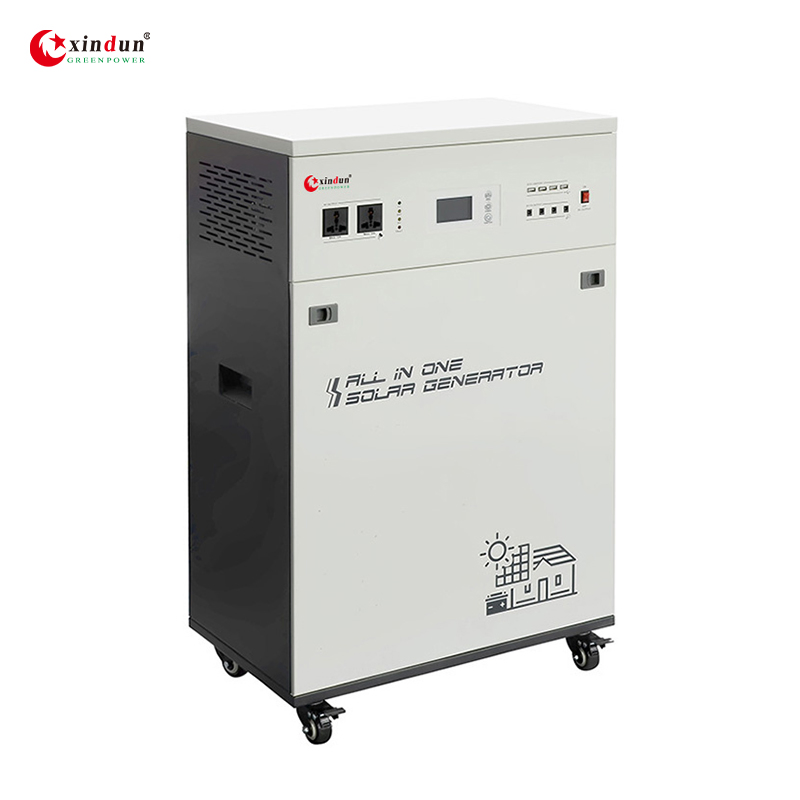

6000W Home Use Portable All in One Energy Storage 10kwh 12.5kwh Solar Power Generator Mobile PV off Grid Hybrid Lithium Battery Backup Solar Power Kits

Customization:	Available
After-sales Service:	Yes
Warranty:	1 Year

📊 Basic Information

Model NO.

XD-ESS

Output Type

DC to AC Solar Generator

System

Off-Grid system

Certification

CE, ISO, Test Report

Power

300W/500W/1000W

Application

Home/Industrial/Office

Output Efficiency

>99%

Rated Voltage

110VAC/120VAC/220VAC/230VAC/240VAC

Battery Type

Lithium / Lead Acid Battery

Display

LCD+LED Display

Working Modes

AC First, Battery First, PV First

Protection

Overload/Short Circuit/Temperature

⚡ Inverter Features

1

3 times peak power, excellent loading capability.

2

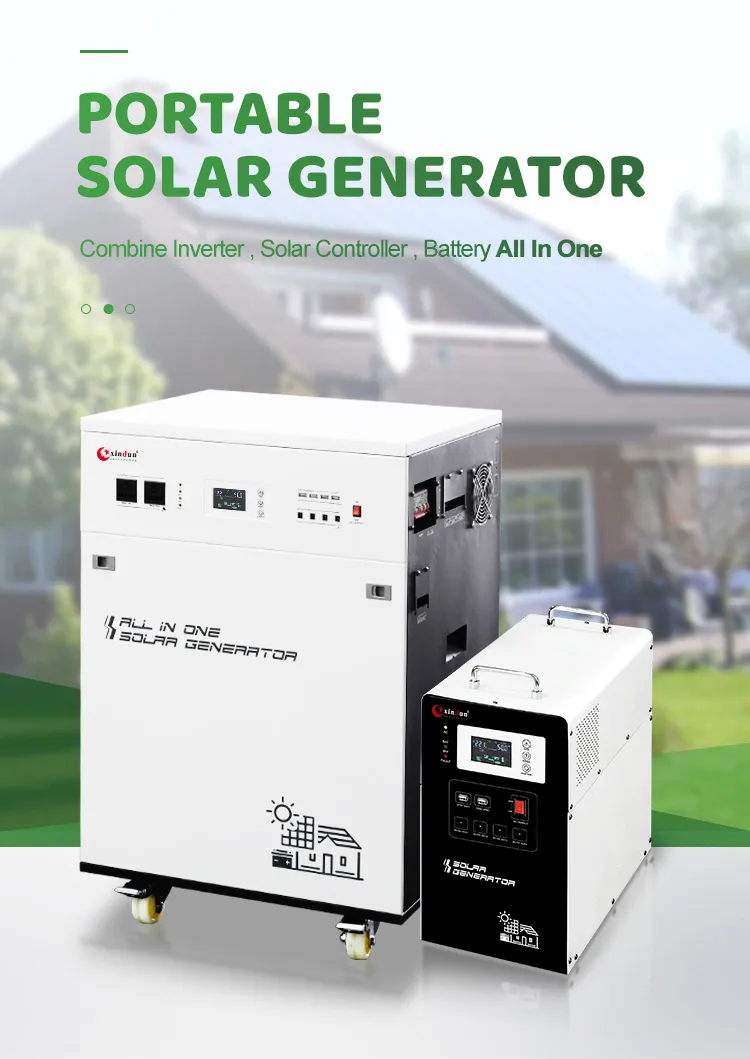

Combine inverter/solar controller/battery all in one.

3

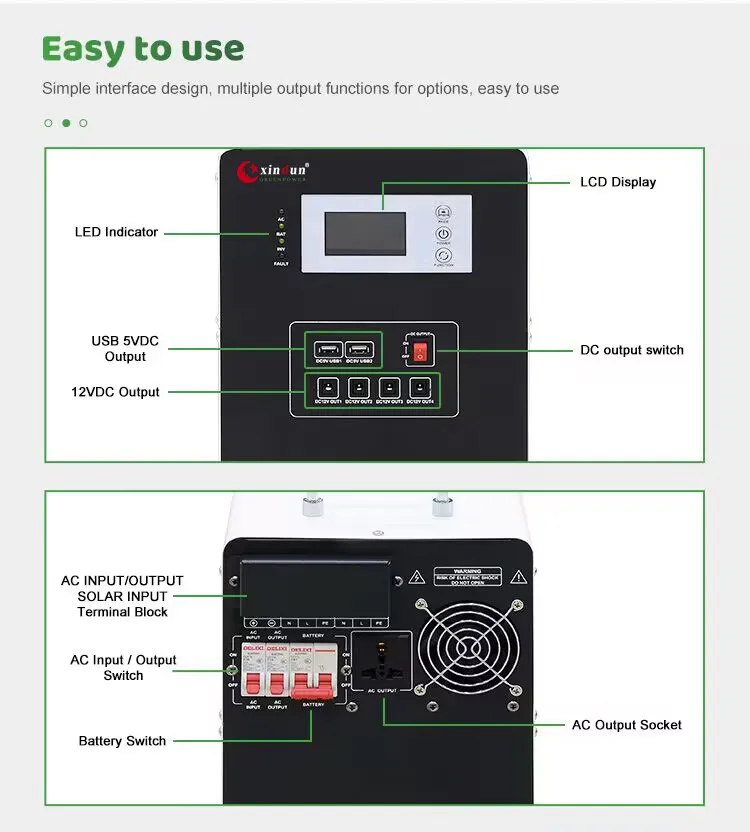

Multiple output: 2*AC socket, 4*DC 12V, 2*USB.

4

Working mode AC prior/ECO mode/Solar prior selectable.

5

AC charging current 0-10A selectable.

6

LVD/HVD/Charging voltage adjustable for various batteries.

7

Fault code monitoring for real-time status.

8

Stable pure sine wave output with inbuilt AVR stabilizer.

9

Digital LCD and LED for visualization of operation.

10

Inbuilt automatic AC charger, switch time ≤ 4ms.

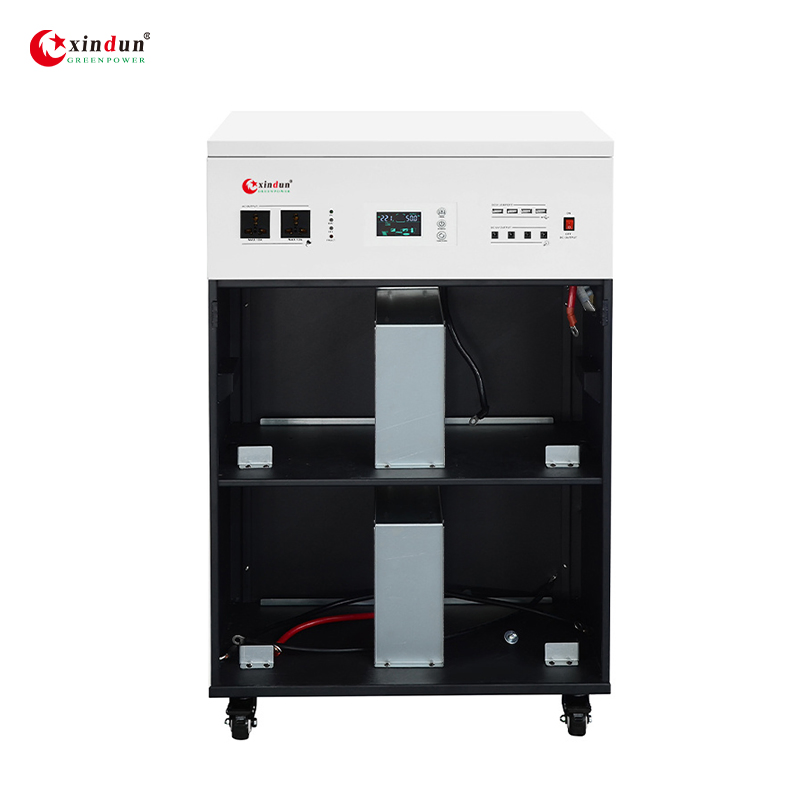

🔍 Product Details

📋 Technical Specifications

Model : ESS		301P	501P	102P
Capacity	Rated power	300W	500W	1000W
Capacity	Peak power(20ms)	900VA	1500VA	3000VA
Input	Battery voltage	12VDC
Input	AC input range	73~138VAC / 145~275VAC (50/60Hz)
Output	Waveform	Pure Sine Wave
	Efficiency	≥85%(Battery mode); >99%(AC mode)
	DC Output	4DC 12V; 2USB(5V)

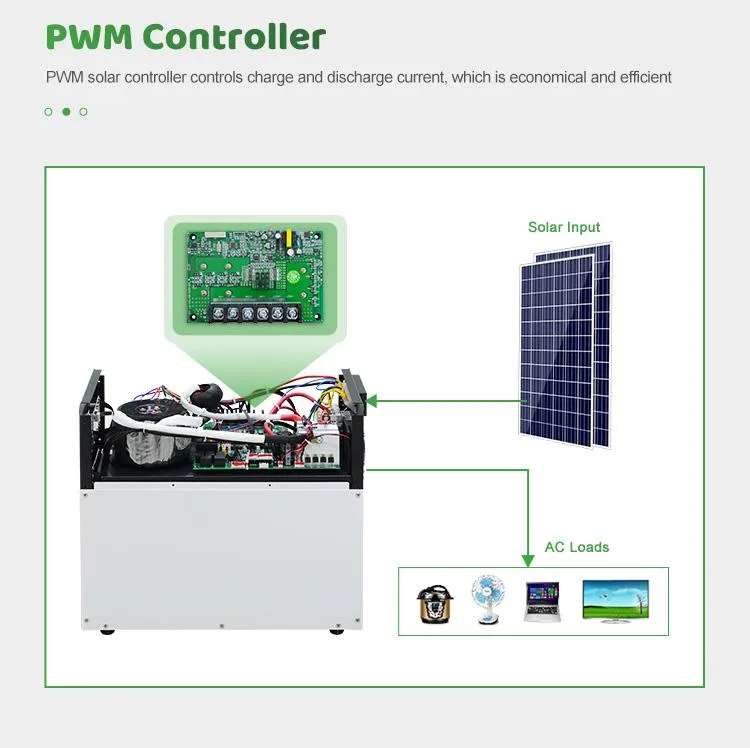

Solar Charger	Mode / Max PV	PWM / 280W (20A)		PWM / 560W (40A)
Physical	Net Weight (kg)	8	10	16

🔌 Wiring Diagrams

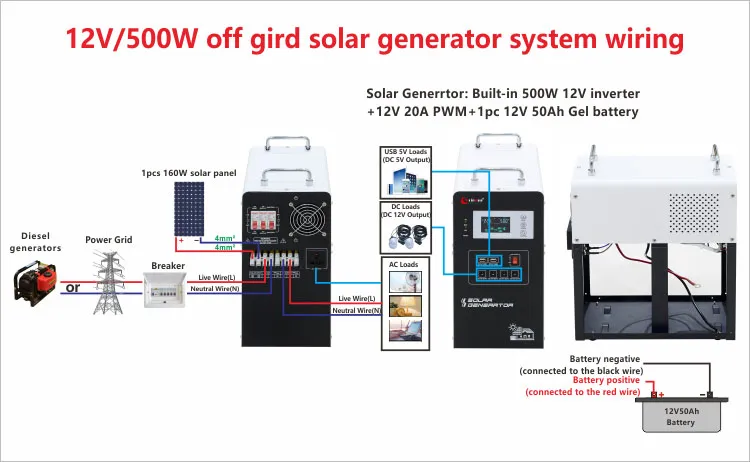

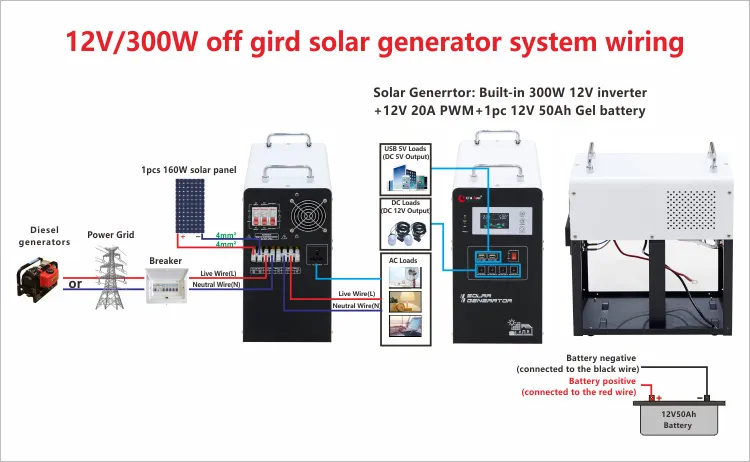

300W/500W Solar Generator Configuration:

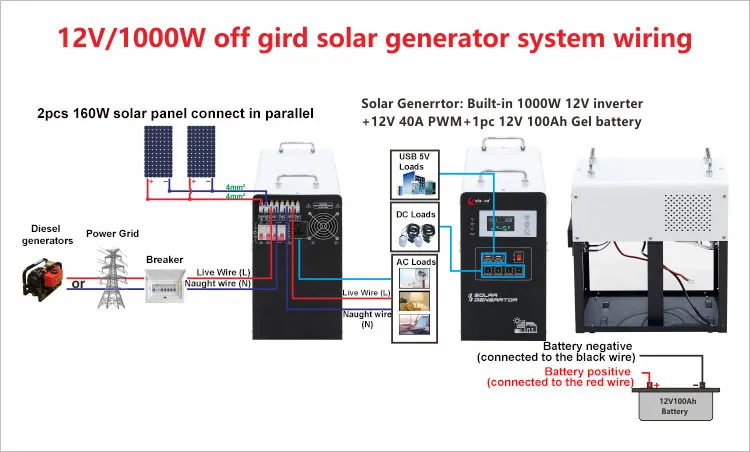

1000W Solar Generator Configuration:

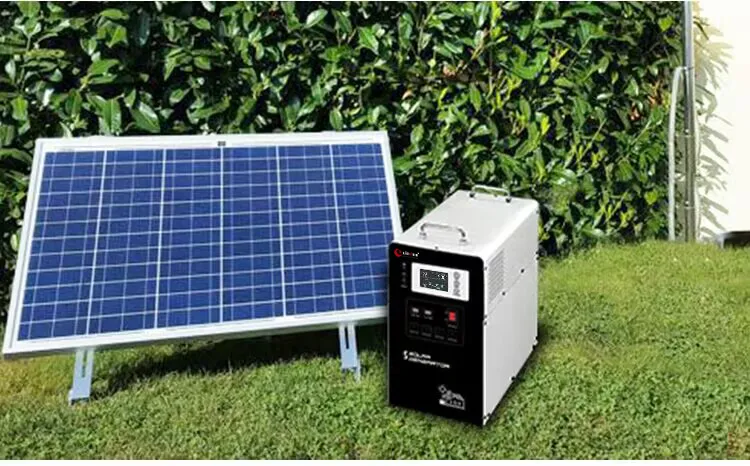

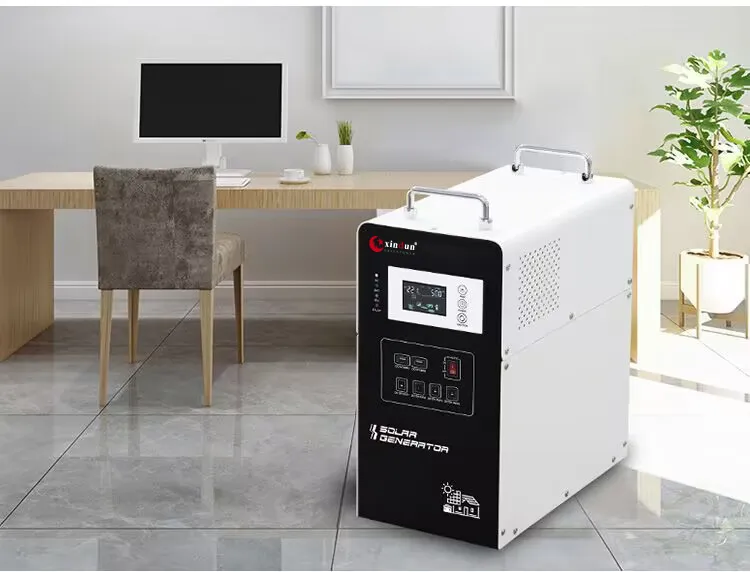

🏠 Application Cases

📦 Packing & Shipping

📦

Package: Robust Carton Box or reinforced Wooden Box for sample protection during transportation.

🚢

Shipping Options: FedEx, DHL, TNT, UPS for samples; Air or Sea freight for batch orders.

🕒

Delivery Time: 7 days for samples; 10 to 25 days for batch goods depending on quantity.

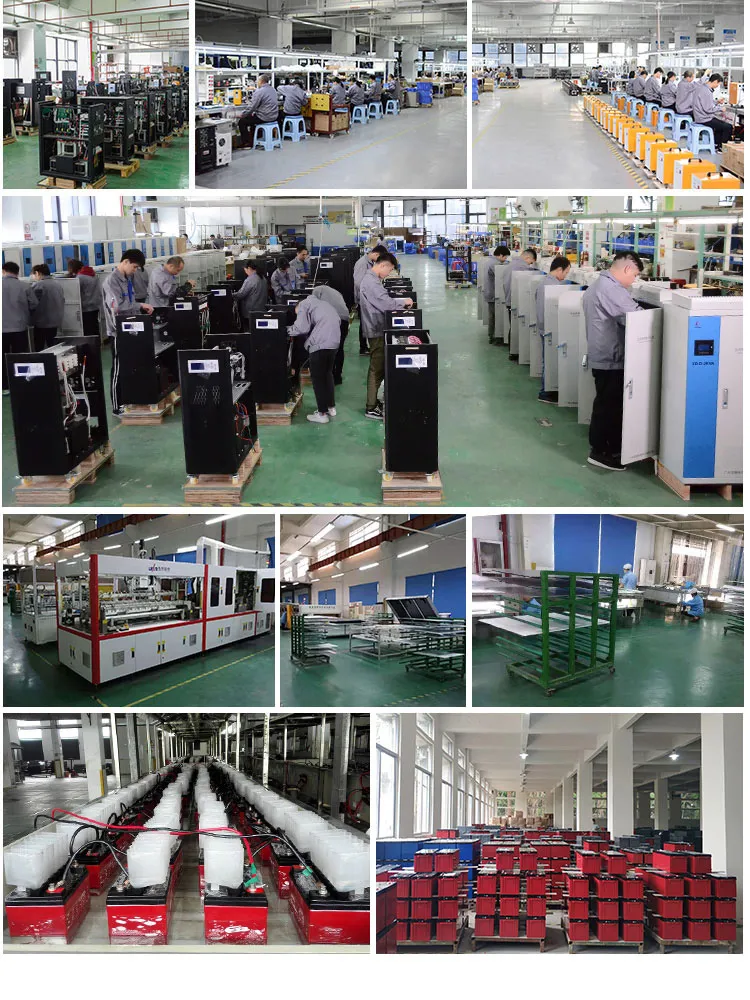

🏭 Production Workshop

❓ Frequently Asked Questions

Q1: Can this solar generator be used for both home and office?

A1: Yes, the XD-ESS series is designed for versatile use including home appliances, industrial tools, and office equipment with 300W to 1000W output options.

Q2: What battery types are compatible with the system?

A2: The system is designed to be compatible with both Lithium and Lead-Acid batteries. Charging parameters like LVD/HVD are adjustable.

Q3: How long is the transfer time between AC and Battery mode?

A3: The transfer time is ≤ 4ms, ensuring that most sensitive electronic devices continue to operate without interruption.

Q4: Does the generator produce a pure sine wave?

A4: Yes, it provides a stable pure sine wave output with an inbuilt AVR stabilizer, which is safe for all types of loads.

Q5: What are the three working modes available?

A5: You can select between AC Priority (d1), ECO Mode (d2), and Solar Priority (d3) based on your specific power needs and energy source availability.

Q6: Is it protected against short circuits and overloads?

A6: Absolutely. The unit features comprehensive protection including over-voltage, low-voltage, overload, short circuit, and high-temperature protections.
