4000W Home Use Portable All in One Energy Storage 5kwh Solar Power Generator Mobile PV off Grid Hybrid Lithium Battery Backup Solar Power Kits

1 / 5

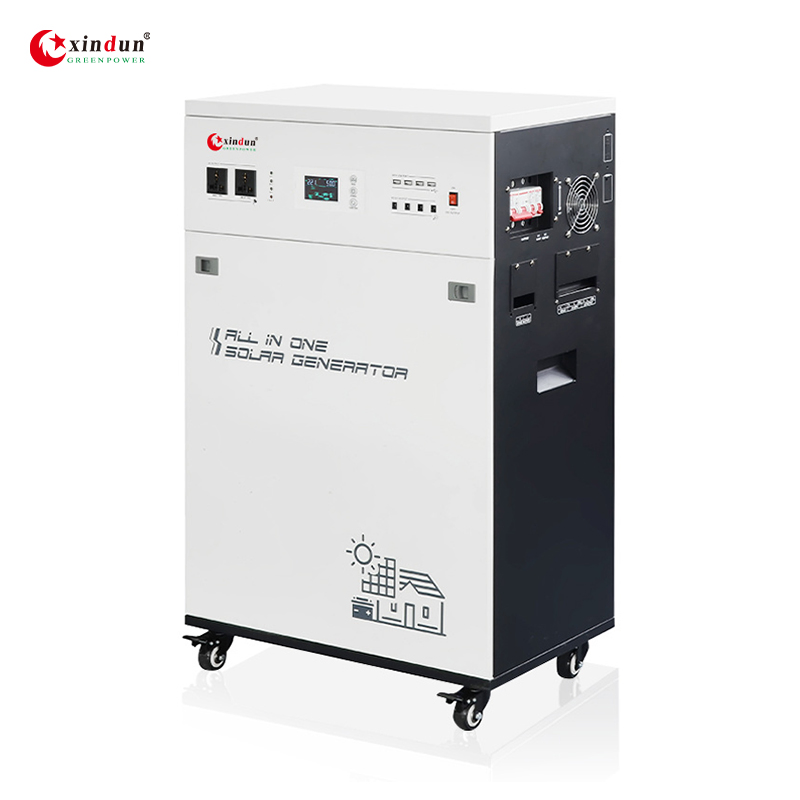

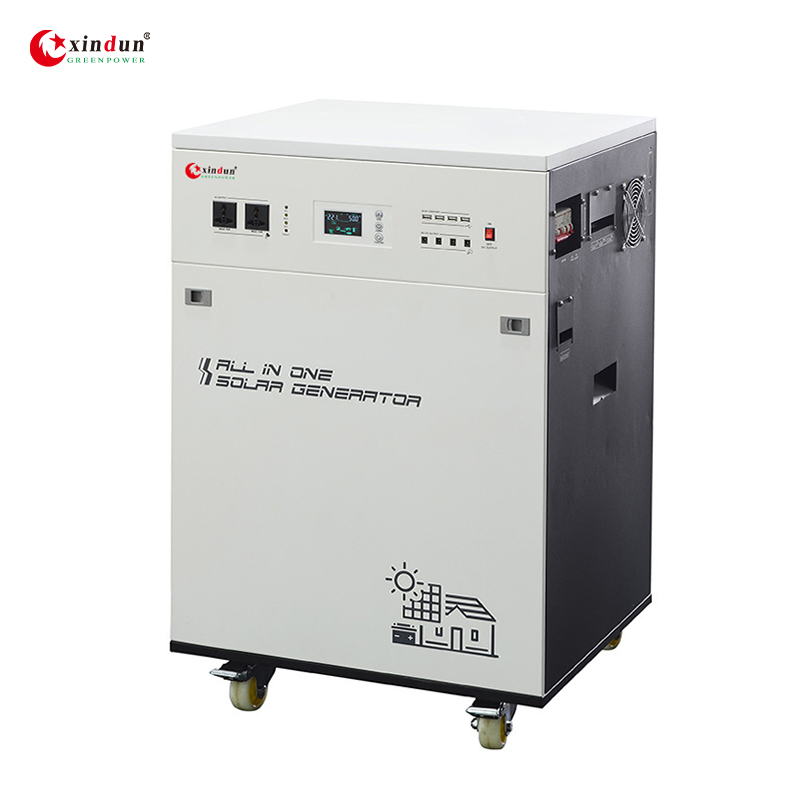

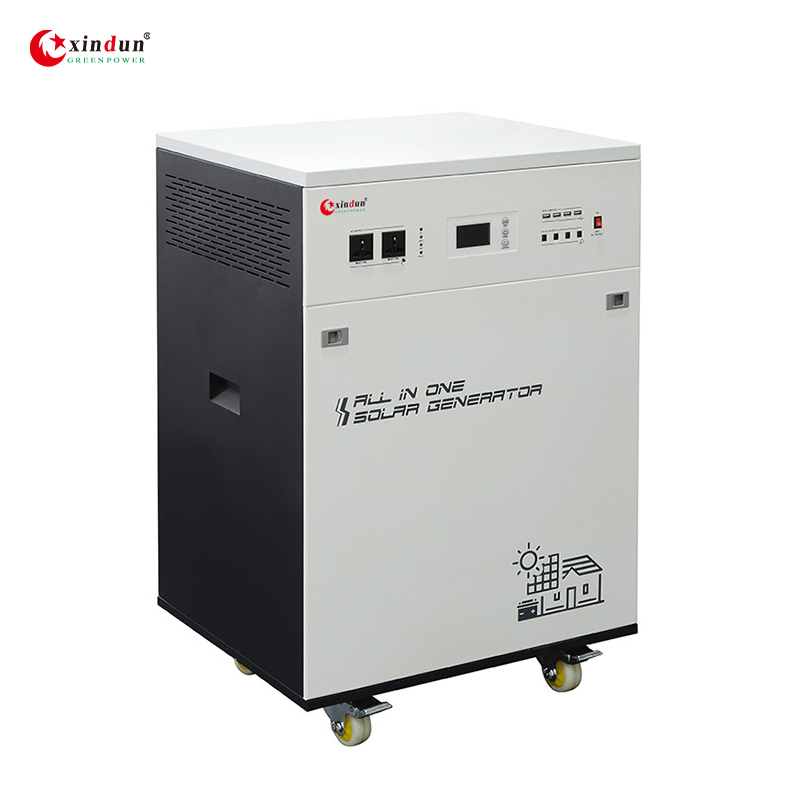

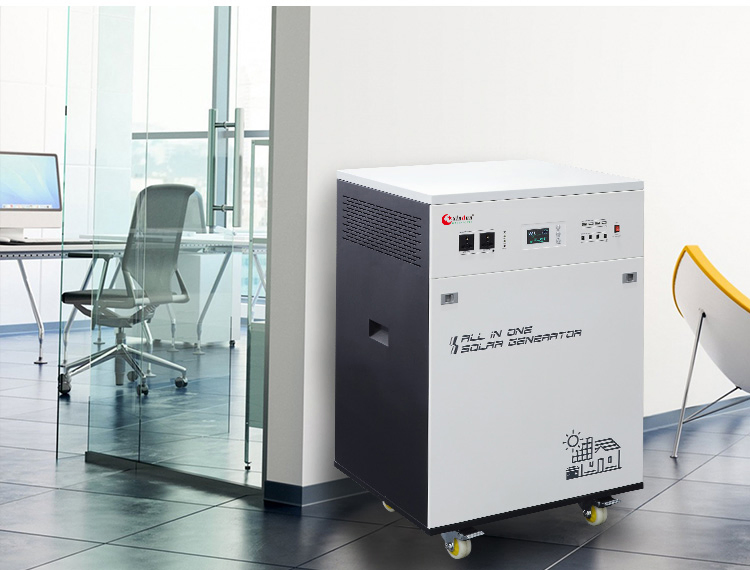

4000W Home Use Portable All in One Energy Storage 5kwh Solar Power Generator Mobile PV off Grid Hybrid Lithium Battery Backup Solar Power Kits

Customization:	Available
After-sales Service:	Yes
Warranty:	1 Year

Send Inquiry

Product Description

Overview

Basic Information

Model NO.

XD-ESS

Output Type

DC to AC Solar Generator

System

Off-Grid system

Certification

CE, ISO, Test Report

Power

300W/500W/1000W

Application

Home/Industrial/Office

Efficiency

>99%

Output Voltage

110V/120V/220V/230V/240VAC

Charging Mode

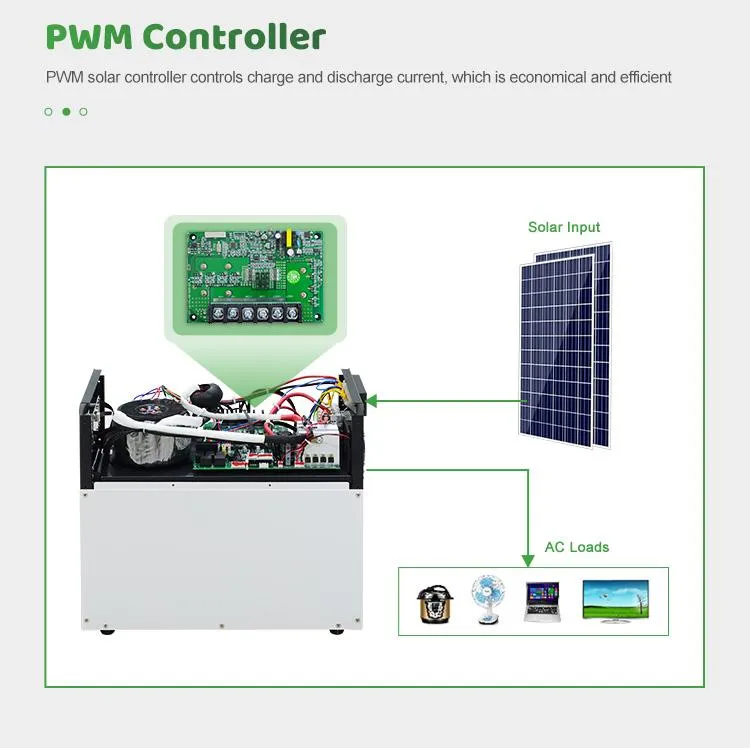

PWM Built-in

Battery Type

Lithium / Lead Acid

Transfer Time

>10ms

Display

LCD+LED Display

Protection

Overload/Short Circuit/Temp

Working Modes

AC First, Battery First, PV First

Inverter Features

✔

3 times peak power, excellent loading capability.

✔

Combine inverter/solar controller/battery all in one.

✔

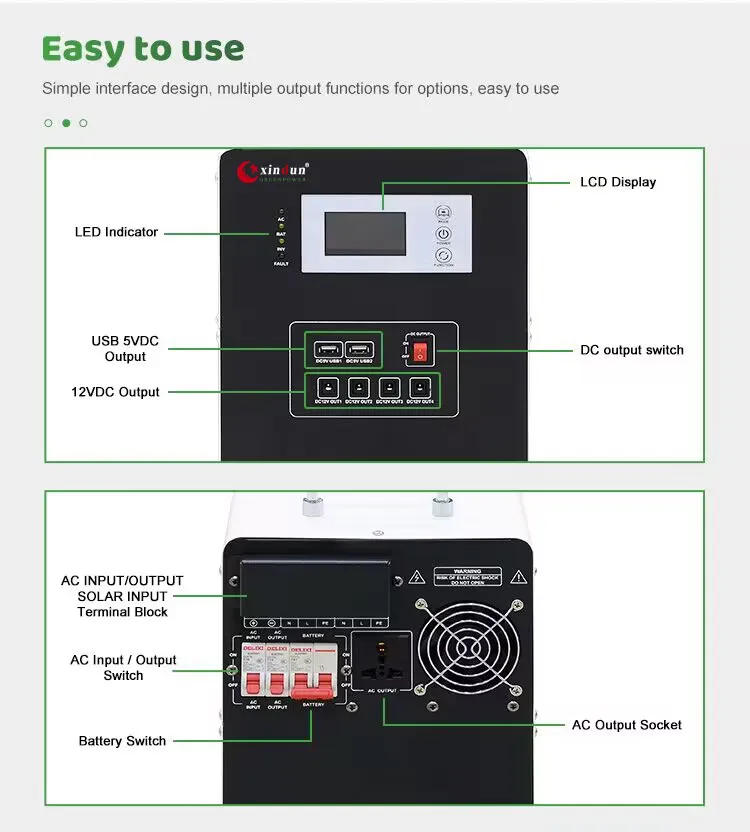

Multiple output: 2*AC output socket, 4*DC 12V, 2*USB.

✔

Working mode AC prior/ECO mode/Solar prior selectable.

✔

AC charging current 0-10A selectable.

✔

LVD/HVD/Charging voltage adjustable, suitable for various batteries.

✔

Fault code system to monitor real-time work situations.

✔

Continuous stable pure sine wave output with inbuilt AVR stabilizer.

✔

Digital LCD and LED for equipment visualization.

✔

Inbuilt automatic AC charger and AC mains switcher, switch time ≤ 4ms.

Product Detail

Specifications

Model : ESS		301P	501P	102P
Capacity	Rated power	300W	500W	1000W
Capacity	Peak power	900VA	1500VA	3000VA
Input	Battery voltage	12VDC
Input	AC range	73~138VAC / 145~275VAC
Output	Voltage	110V/120V/220V/230V/240VAC ±2%
	Waveform	Pure Sine Wave
	DC Output	4DC 12V; 2USB(5V)
Solar Charger	Max PV Input	50V (Voc)
Solar Charger	Charge Current	20A		40A

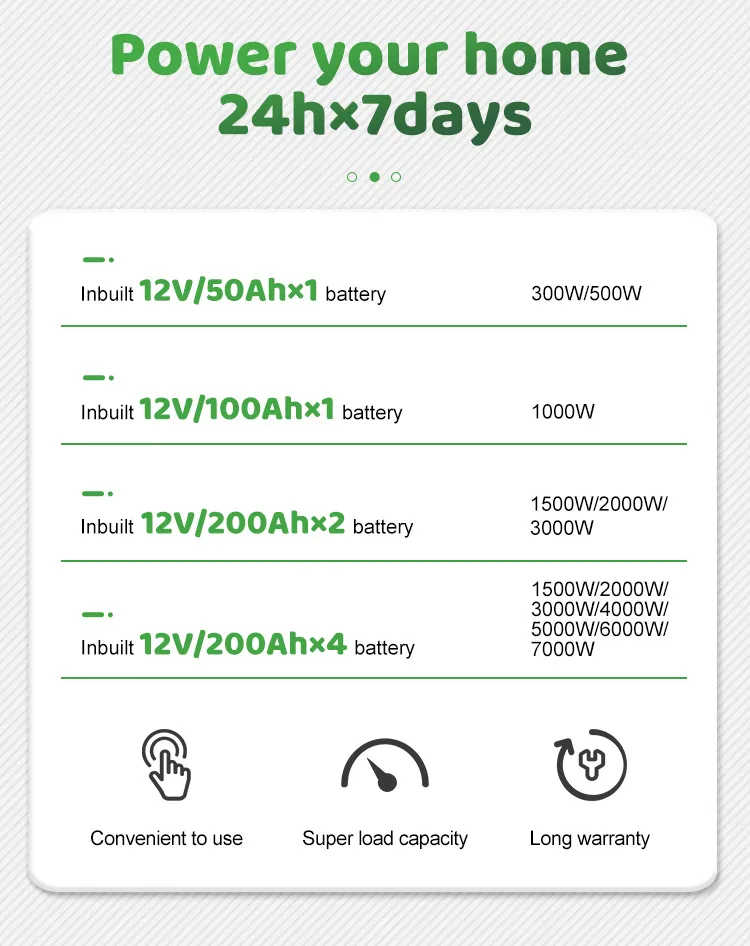

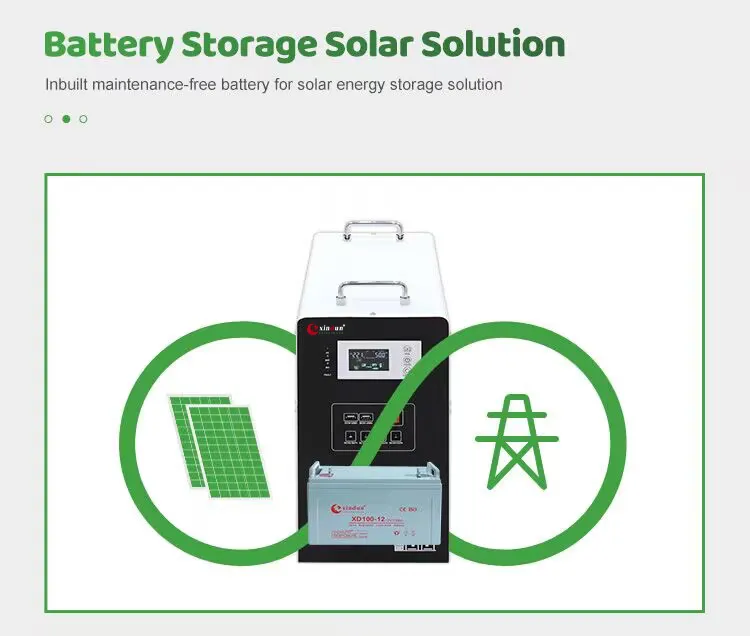

Battery	Inbuilt Capacity	1*50AH		1*100AH

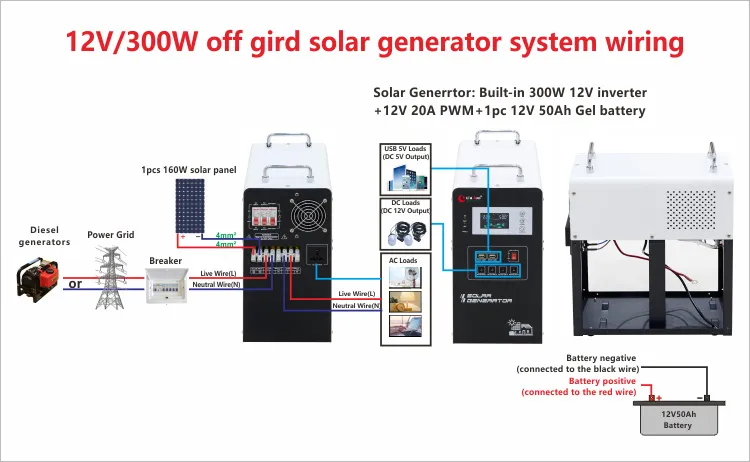

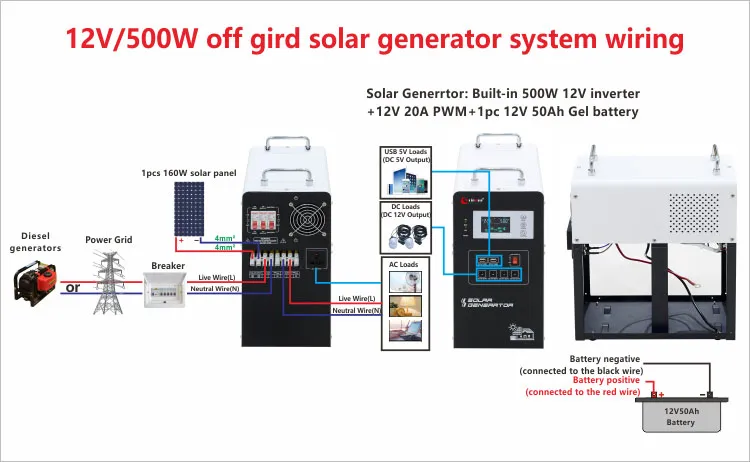

Wiring Diagram

300W Solar Generator

500W Solar Generator

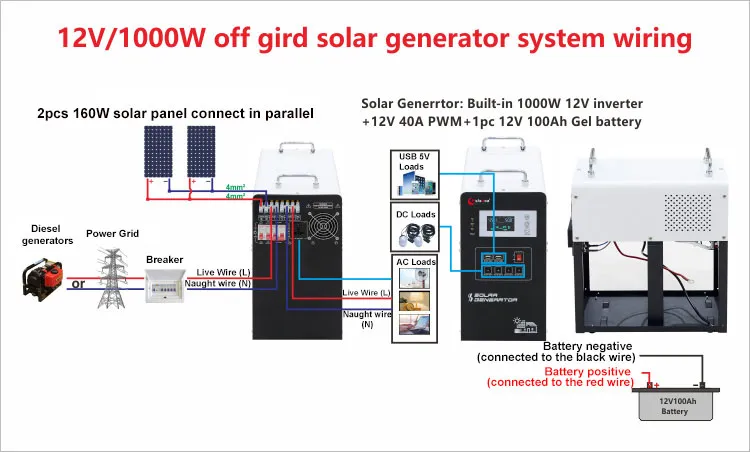

1000W Solar Generator

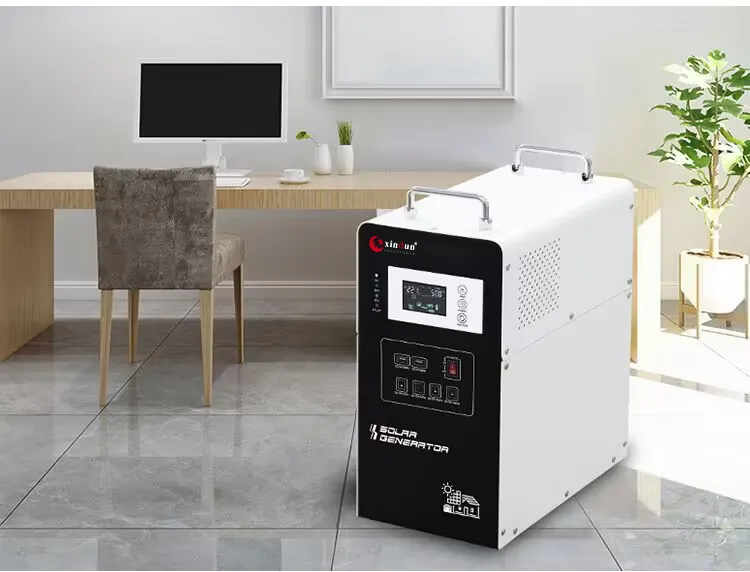

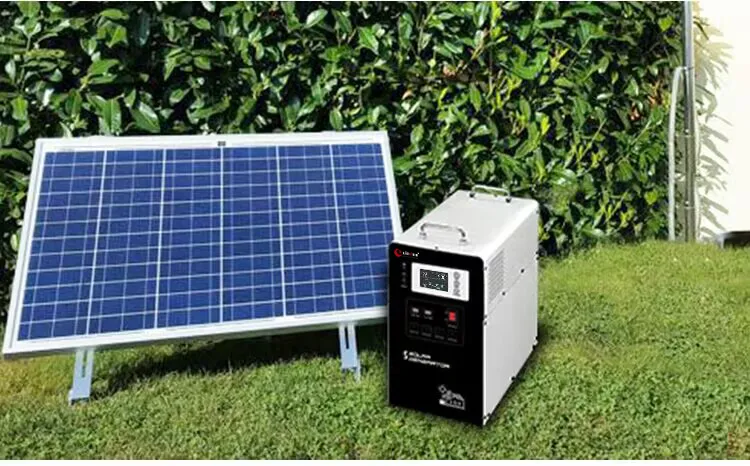

Application Cases

Packing & Delivery

Package: Carton Box for standard packaging, or Wooden Box recommended for Samples to ensure protection during transportation.

Shipping Methods:

Fedex / DHL / TNT / UPS for samples (Door-to-Door).
By air or by sea for batch goods.
Customer specified freight forwarders or negotiable shipping methods.
Delivery time: 7 days for samples; 10 to 25 days for batch goods.

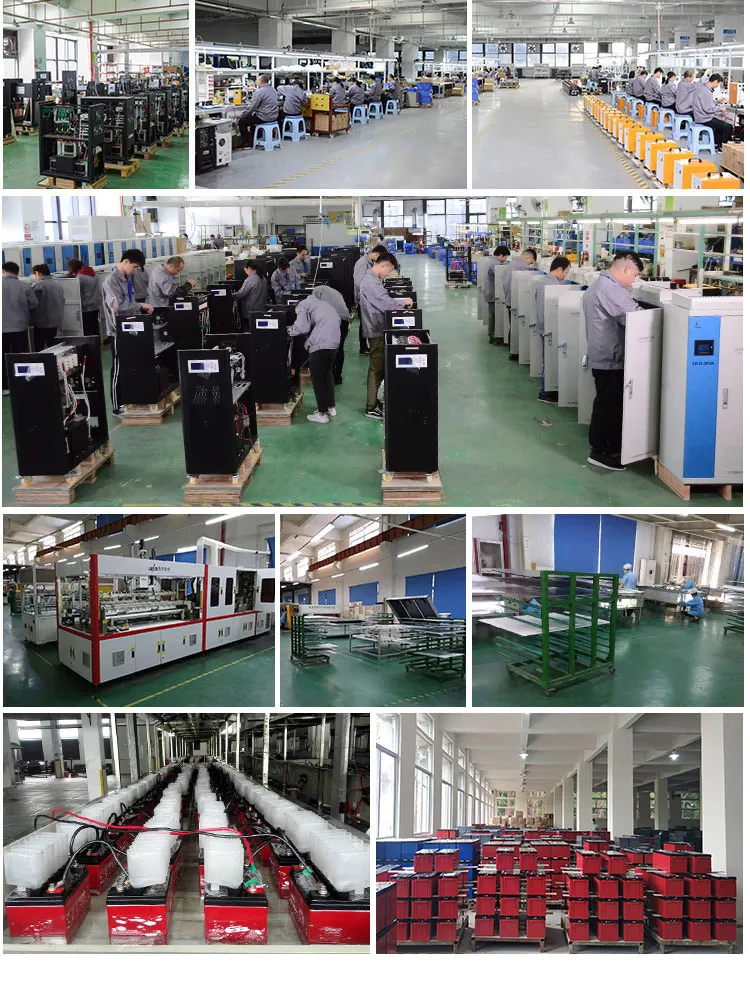

Workshop & Facility

Frequently Asked Questions

What are the available power capacities for this portable solar generator?

The XD-ESS series is available in 300W, 500W, and 1000W rated power options to suit different energy needs.

Can I use different types of batteries with this system?

Yes, the system is designed to be compatible with both Lithium and Lead Acid batteries, with adjustable LVD/HVD settings.

What kind of output waveform does the inverter provide?

It provides a continuous stable pure sine wave output, which is safe for sensitive electronics and appliances.

How many devices can I charge simultaneously?

The unit features multiple outputs: 2 AC sockets for standard appliances, 4 DC 12V ports, and 2 USB ports for mobile devices.

What are the selectable working modes?

You can choose between AC Priority mode, ECO mode, and Solar Priority mode depending on your power source availability.

What is the typical delivery time for orders?

Sample orders are usually delivered within 7 days, while batch goods typically take between 10 to 25 days.
