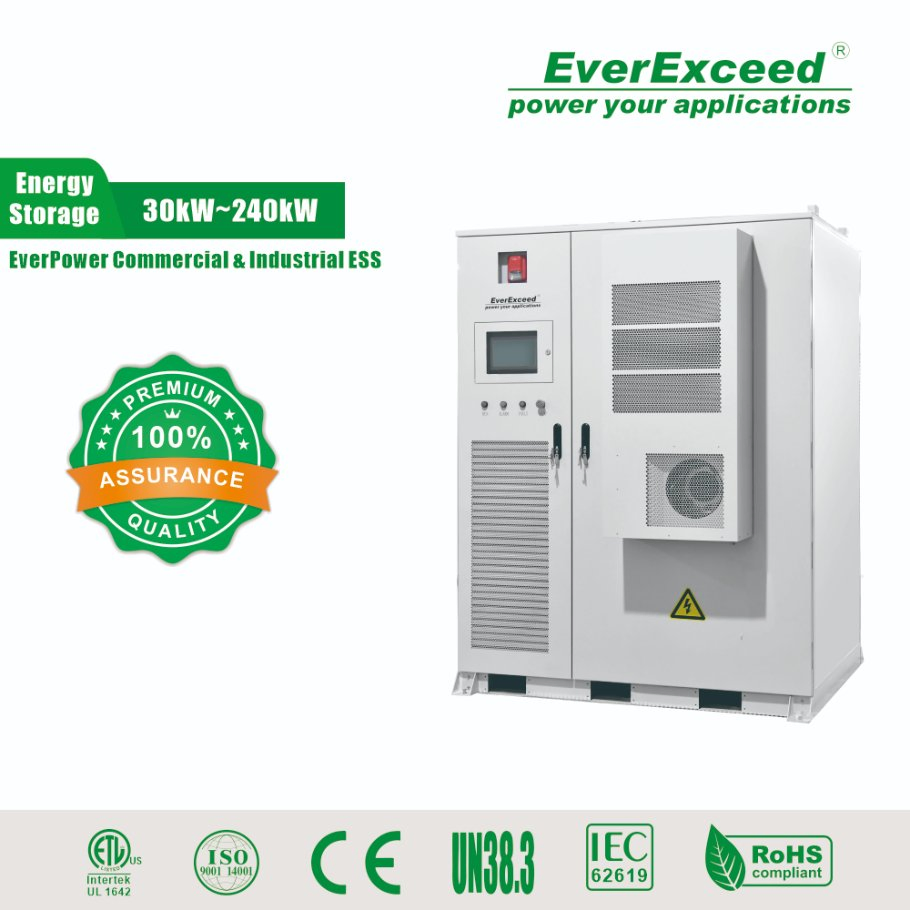

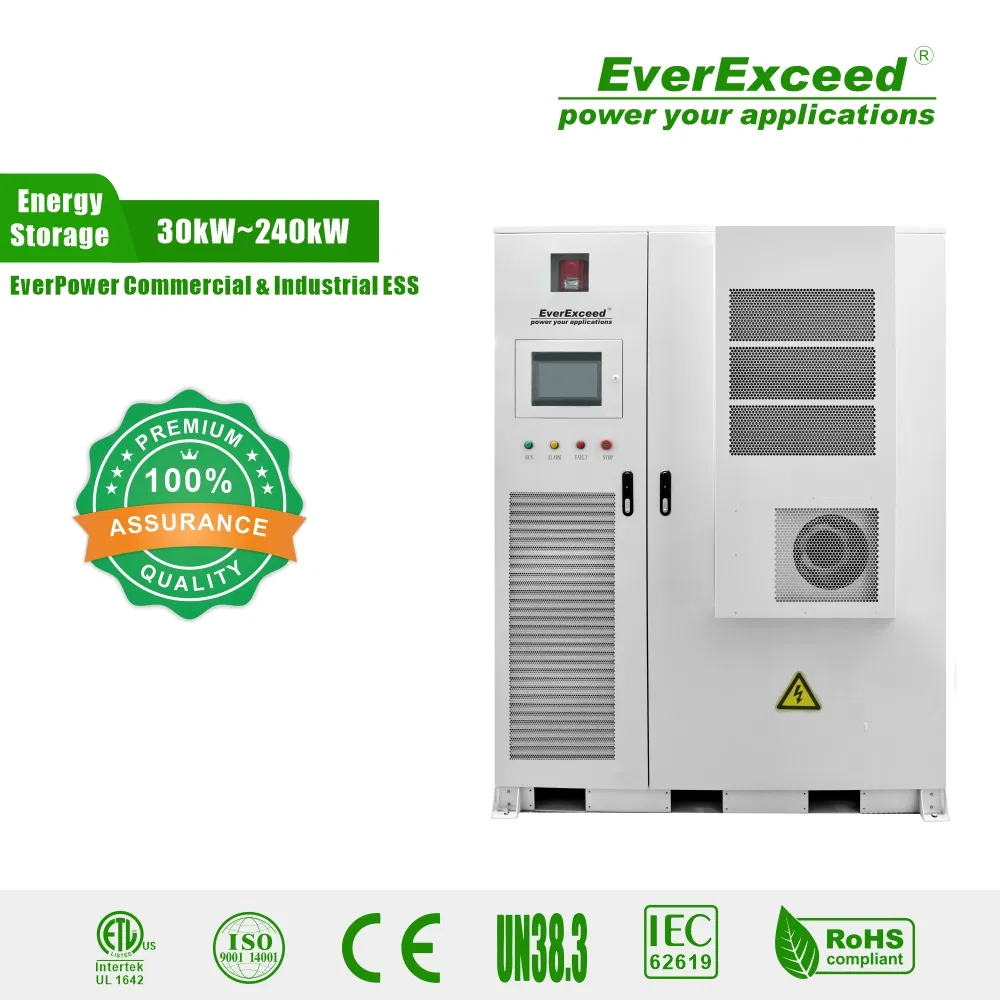

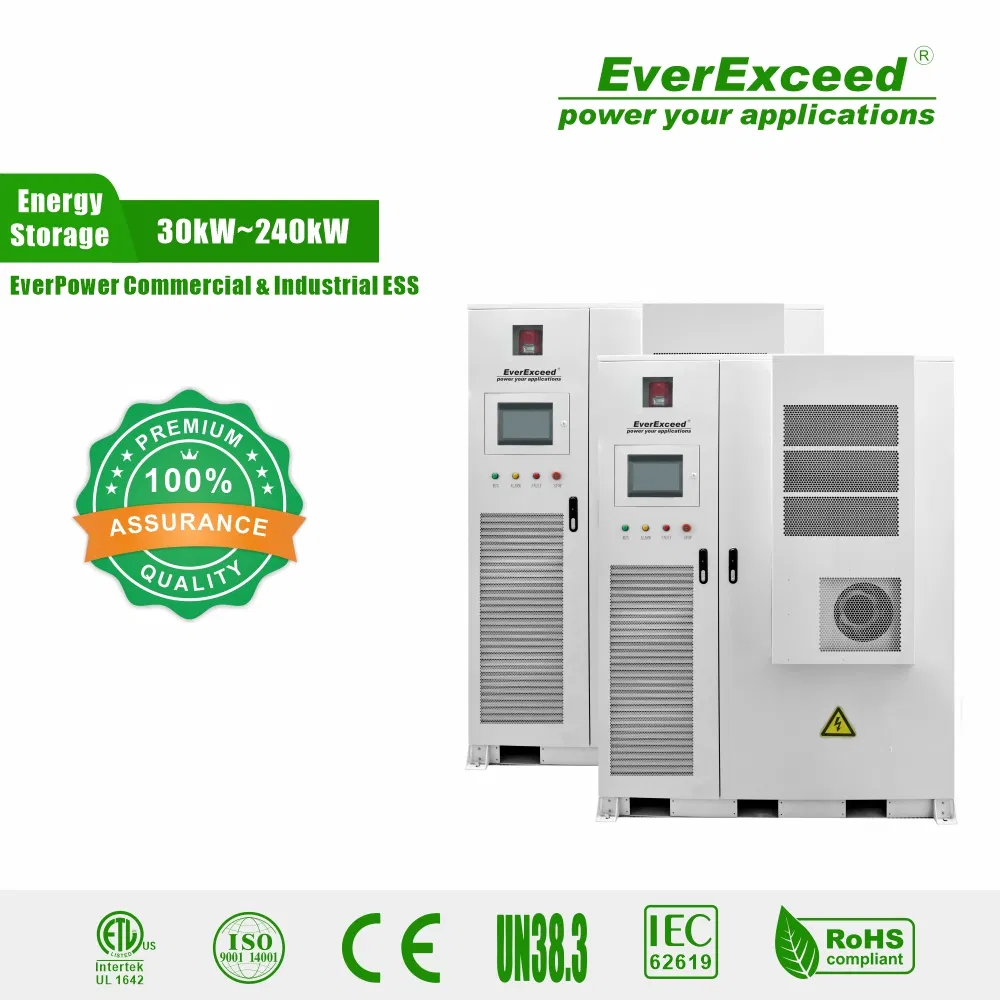

Industrial and Commercial Air Bess Solar Energy Storage Lithium Ion Battery System Solution Container

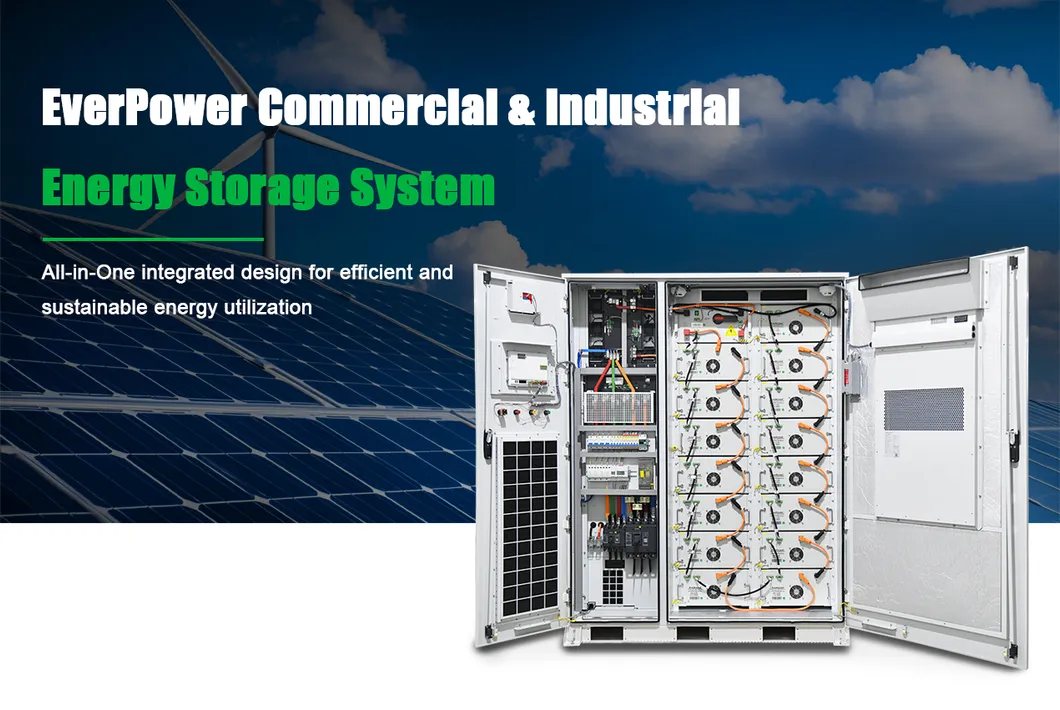

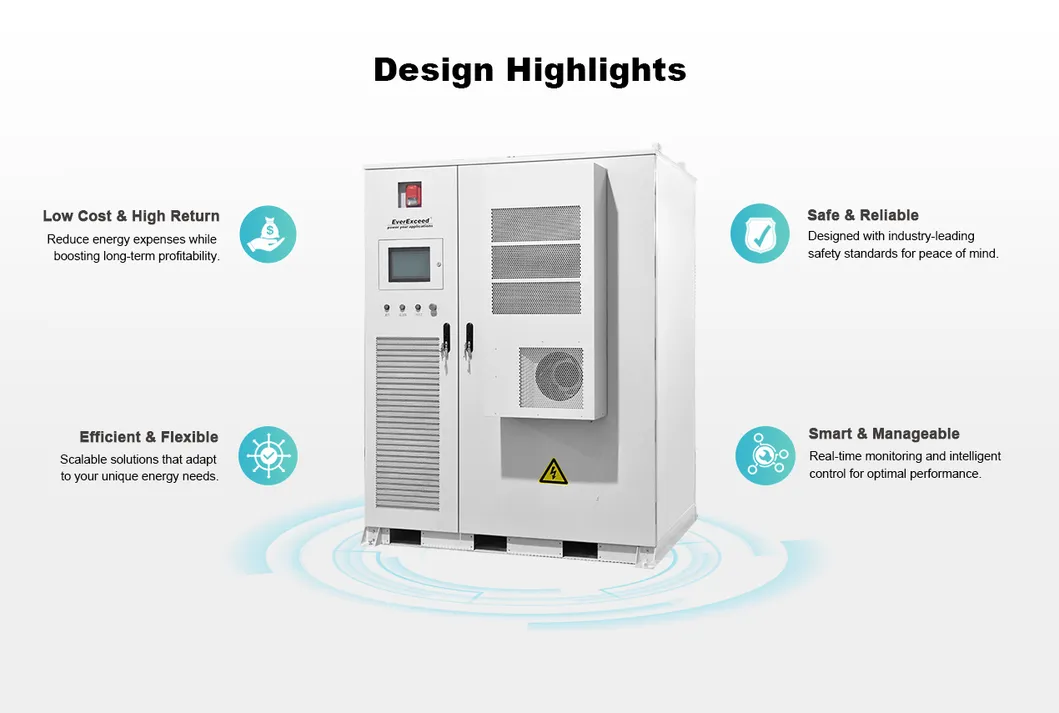

The All-in-one Industrial & Commercial ESS highly integrates PCS, LiFePO4 batteries, BMS, EMS, fire-fighting system, and heat dissipation system in one cabinet. It is a high-power backup power solution serving commercial, industrial, and grid-level customers. This high voltage energy storage system enables the highest flexibility for both rack-mounted and cabinet-based constructions. It is designed to be "Safer, Smarter, Simpler" for substations, outdoor areas, microgrids, factories, shopping malls, and solar storage charging stations.
| Wide CompatibilityWide battery voltage range; Fully compatible with lead acid & lithium-ion batteries. | Cold start functionOff-grid cold start function, support multi-machine parallel function. | Multiple protectionOvercharge, Over discharge, Overload, Short-circuit, High/Low temp. protection. |
| Dual power backupAC and DC dual power backup to ensure the power supply of the control system. | Energy consumptionLow power consumption fan with intelligent temperature control system. | High efficiencyThe highest power density, with peak efficiency reaching 97.5%. |
| Inverter functionsGrid-connected charging/discharging and off-grid independent inverter functions. | Smart InterfaceFlexible communication (RS485, CAN) accepting BMS commands in real time. | Compact sizeSmall footprint, easy to install, transport and maintain. |
| Product Model | CO25K-50E | CO50K-100E | CO100K-215E | CO150K-300E |
| Electrical Parameter | ||||
| Nominal AC power | 25 kW | 50 kW | 100 kW | 150 kW |
| Nominal grid voltage | 400 Vac (3W+N) | |||
| Max.THD of current | <3% (at nominal power) | |||
| Battery Parameter | ||||
| Cell Chemistry | Lithium Iron Phosphate (LFP) | |||
| Battery energy capacity | 51.2 kWh | 100 kWh | 215 kWh | 315 kWh |
| Cycle Life | 6000+ cycles | 10000+ cycles | 10000+ cycles | 10000+ cycles |
| Compliance | IEC62619, UL9540A, UL1973, UN38.3 | |||
| Solar Parameter (Optional) | ||||
| Max. PV input power | 30 kW | 60 kW | 120 kW | 240 kW |
| MPPT voltage range | 200 Vdc - 830 Vdc | 200 Vdc - 950 Vdc | ||
