📋 Basic Info. & Overview
Output Type
DC to AC Solar Generator
Certification
CE, ISO, Test Report
Application

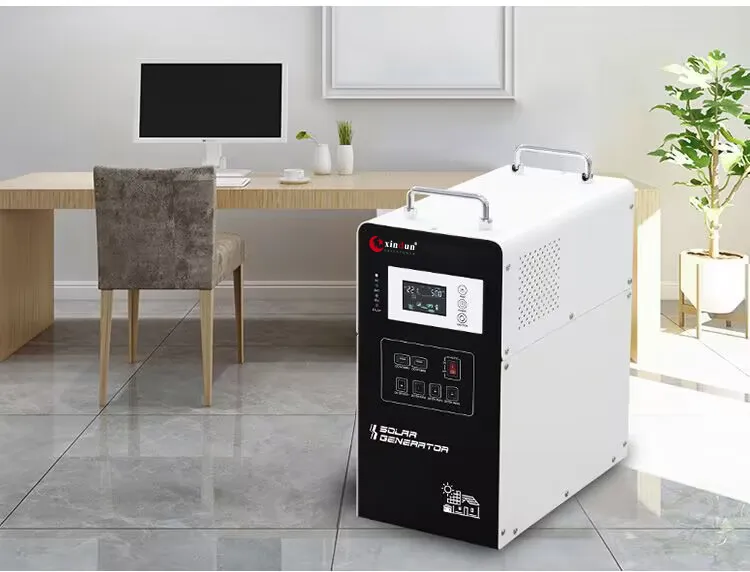

Home/Industrial/Office
Rated Output Voltage
110VAC/120VAC/220VAC/230VAC/240VAC
Battery Type

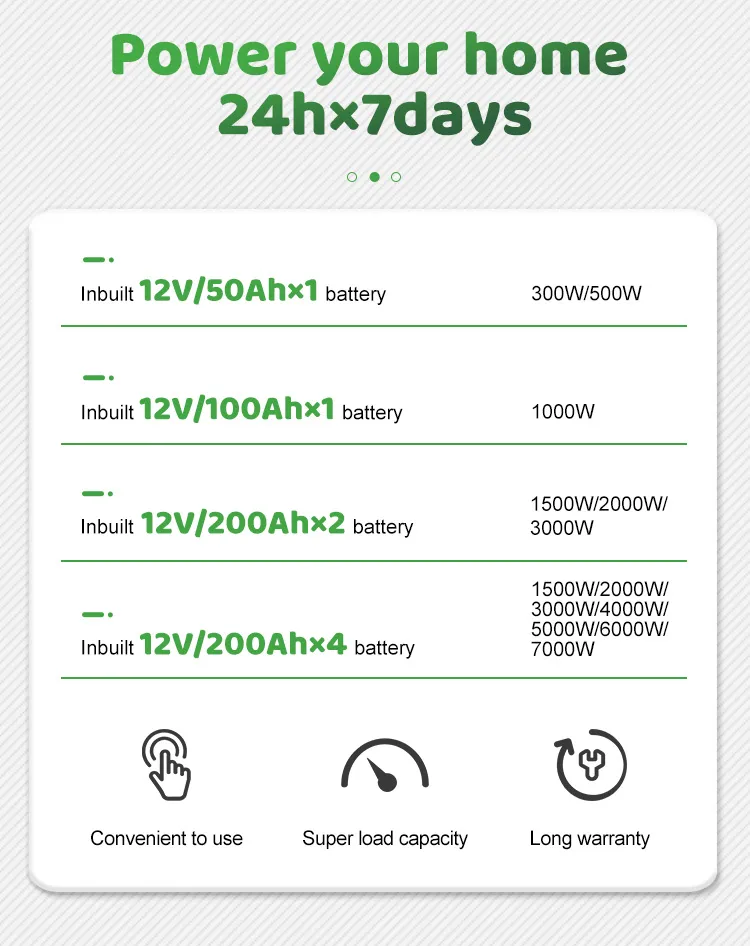

Lithium /Lead Acid Battery
Working Modes
AC First, Battery First, PV First
Protection
Overload/Short Circuit/Temperature
Customized
Color/Logo/Power (OEM/ODM)
⚡ Inverter Features
- 3 times peak power, excellent loading capability.

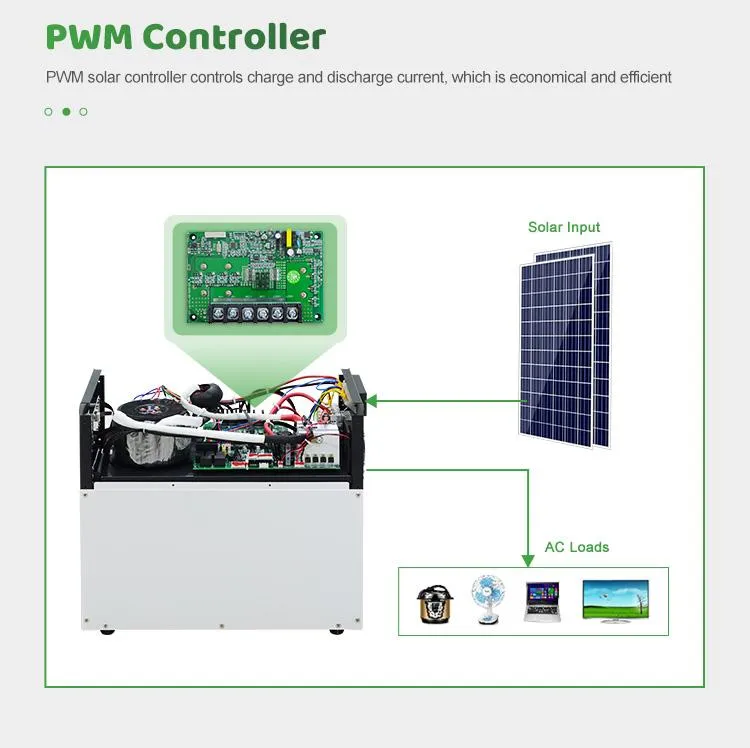

- Combine inverter/solar controller/battery all in one.

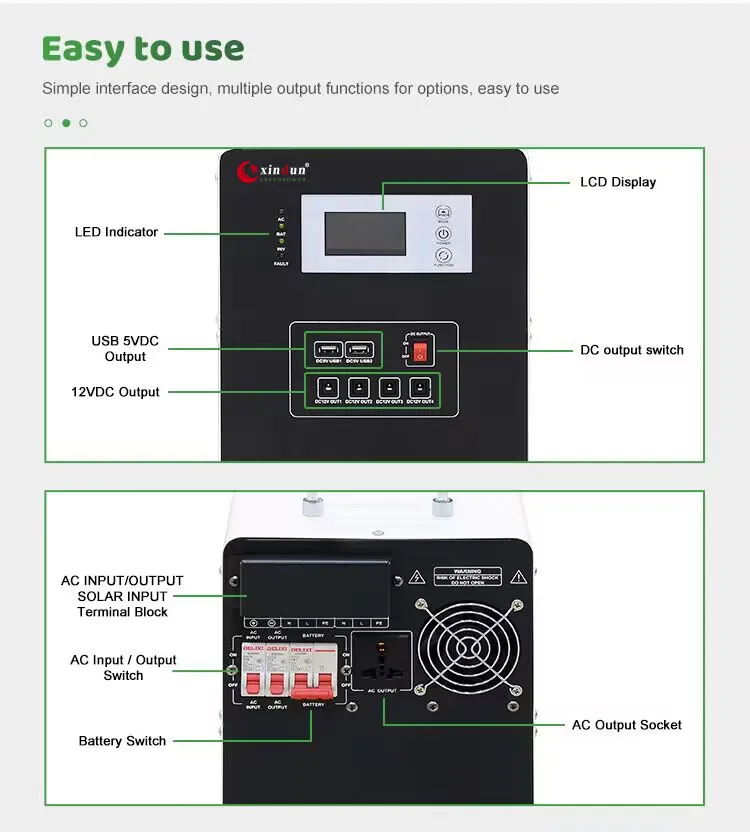

- Multiple output: 2*AC output socket, 4*DC 12V, 2*USB.
- Working mode AC prior/ECO mode/Solar prior selectable.
- AC charging current 0-10A selectable.
- LVD/HVD/Charging voltage adjustable, suitable for kinds of battery.
- Adding fault code to monitor real-time work situations.
- Continuous stable pure sine wave output with inbuilt AVR stabilizer.
- Digital LCD and LED for visualization of operation status.
- Inbuilt automatic AC charger and AC mains switcher, switch time ≤ 4ms.
📊 Technical Specifications
| Product Specification Parameters |
| Model : ESS |
301P |
501P |
102P |
| Capacity |
Rated power |
300W |
500W |
1000W |
| Peak power(20ms) |
900VA |
1500VA |
3000VA |
| Input |
Standard battery voltage |
12VDC |
| AC input voltage range |
73~138VAC / 145~275VAC / 155~285VAC |
| Output |
Conversion efficiency |
≥85%(Battery mode); >99%(AC mode) |
| AC Output waveform |
Pure Sine Wave |
| DC Output voltage |
4*DC 12V; 2*USB(5V) |
| Solar Charger |
Max PV input voltage(Voc) |
50V |
| Max PV input power |
280W |
560W |
| Physical |
Dimension L x W x H(mm) |
358*192*390 |
488*232*450 |
| Net weight(kg) |
8 |
10 |
16 |
🔌 Wiring Diagram

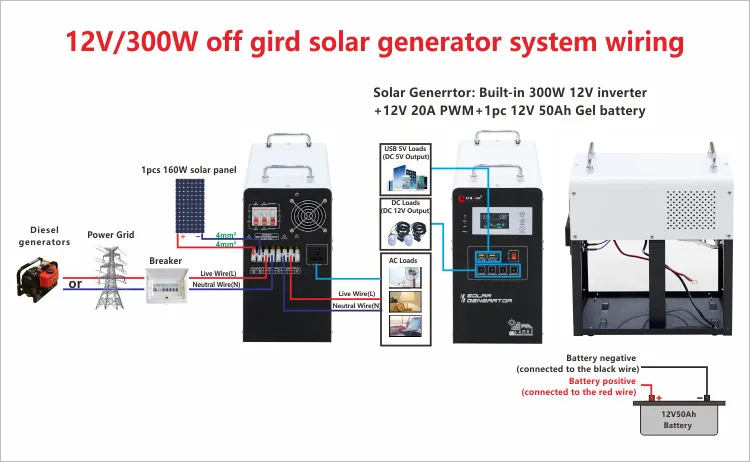

300W Solar Generator Wiring:

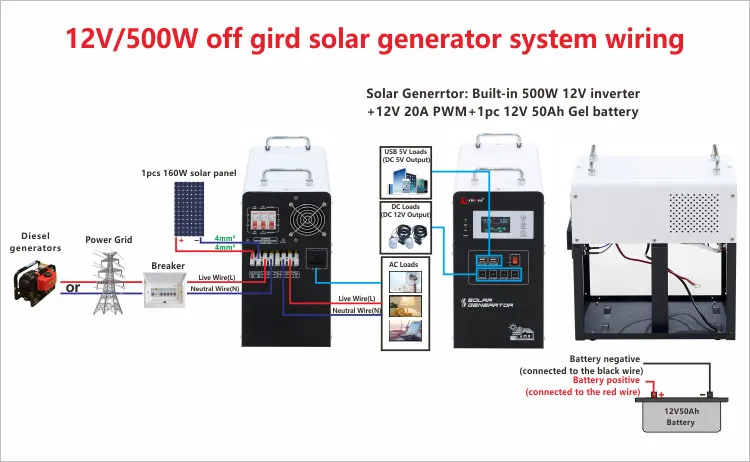

500W Solar Generator Wiring:
1000W Solar Generator Wiring:
📦 Packing & Delivery
Package: Carton Box for packaging, or Wooden Box advised for Samples to protect in transportations.
Shipping:
- Fedex/ DHL/ TNT/ UPS for samples, door-to-door.
- By air or by sea for batch goods.
- Delivery time: 7 days for samples; 10 to 25 days for batch goods.

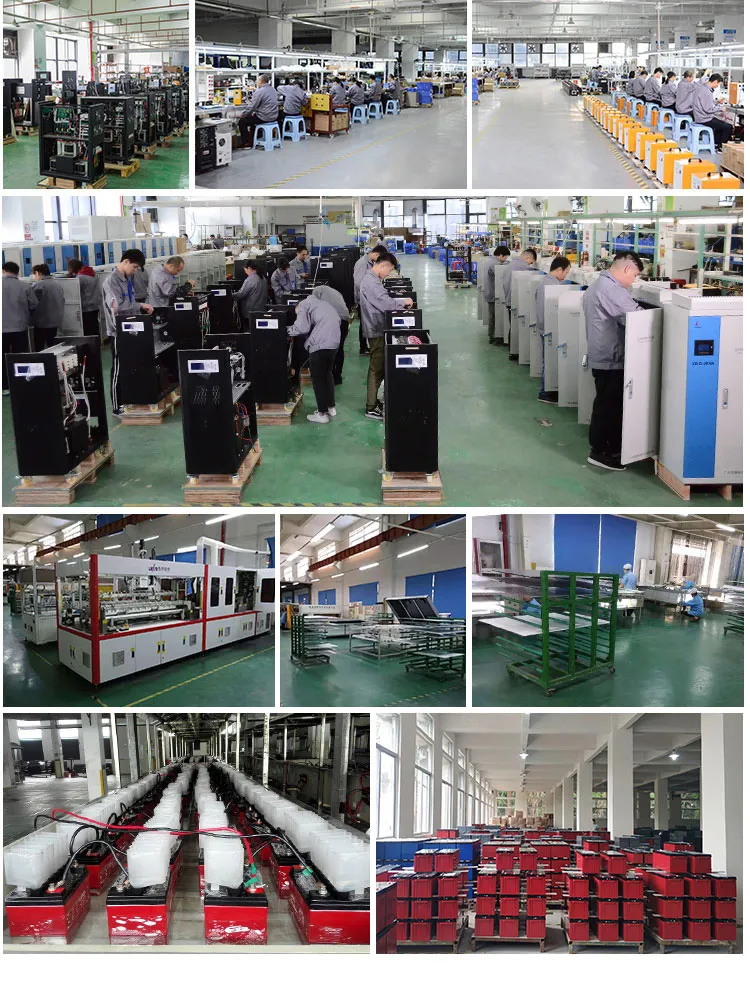

🏭 Workshop & Production
❓ Frequently Asked Questions
What power capacities are available for this portable solar generator?
The XD-ESS series is available in three rated power options: 300W, 500W, and 1000W to suit different energy needs.
Does it support both Lithium and Lead Acid batteries?
Yes, the system features adjustable LVD/HVD and charging voltages, making it compatible with various battery types including Lithium and Lead Acid.
What is the transfer time between AC mains and battery mode?
The inbuilt automatic AC charger and switcher provide a very fast transfer time of ≤ 4ms, ensuring continuous power for your devices.
Can I charge my DC devices directly from this generator?
Absolutely. The generator provides multiple DC outputs, including 4*DC 12V ports and 2*USB ports (5V) for phones and other small electronics.
What kind of protection does the generator offer?
It includes comprehensive protection features such as over-voltage, low-voltage, overload, short circuit, and high-temperature protections to ensure safety.
Is the output wave safe for sensitive electronics?
Yes, it produces a continuous stable pure sine wave output with an inbuilt AVR stabilizer, which is safe for all sensitive home and office equipment.
