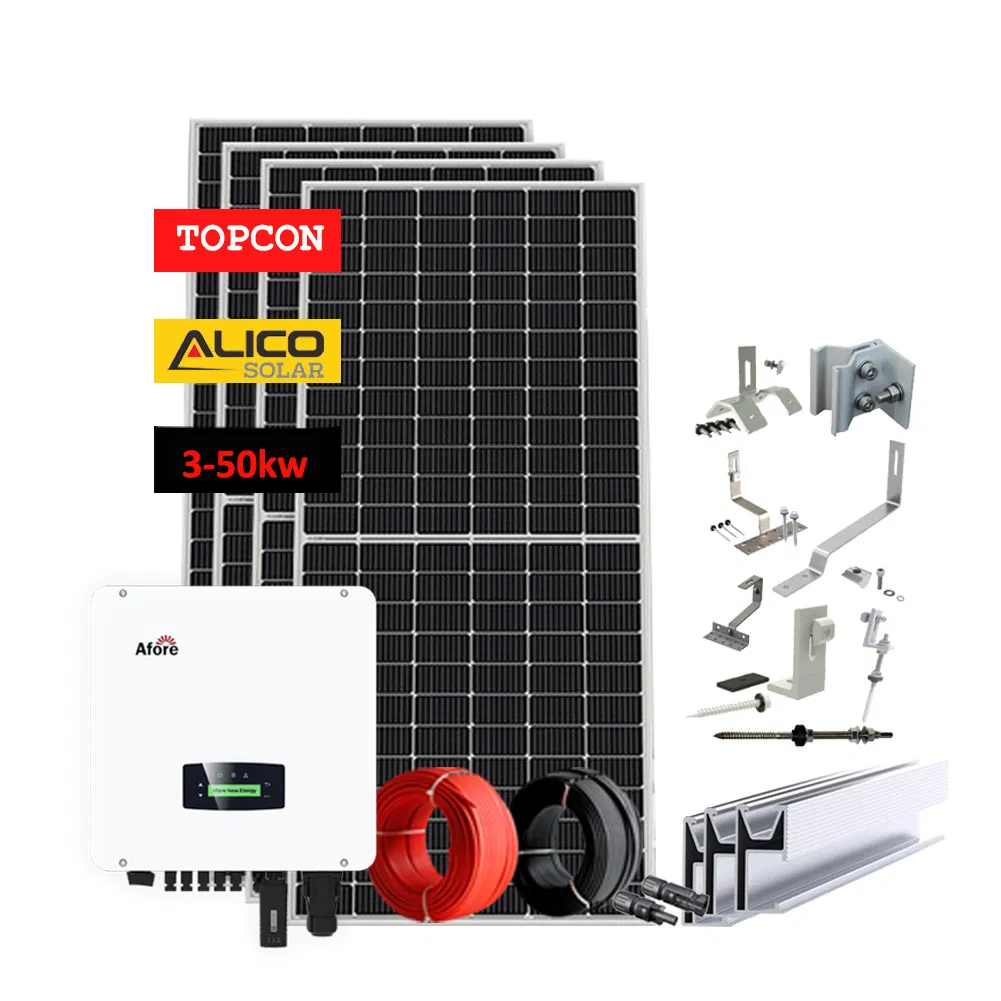

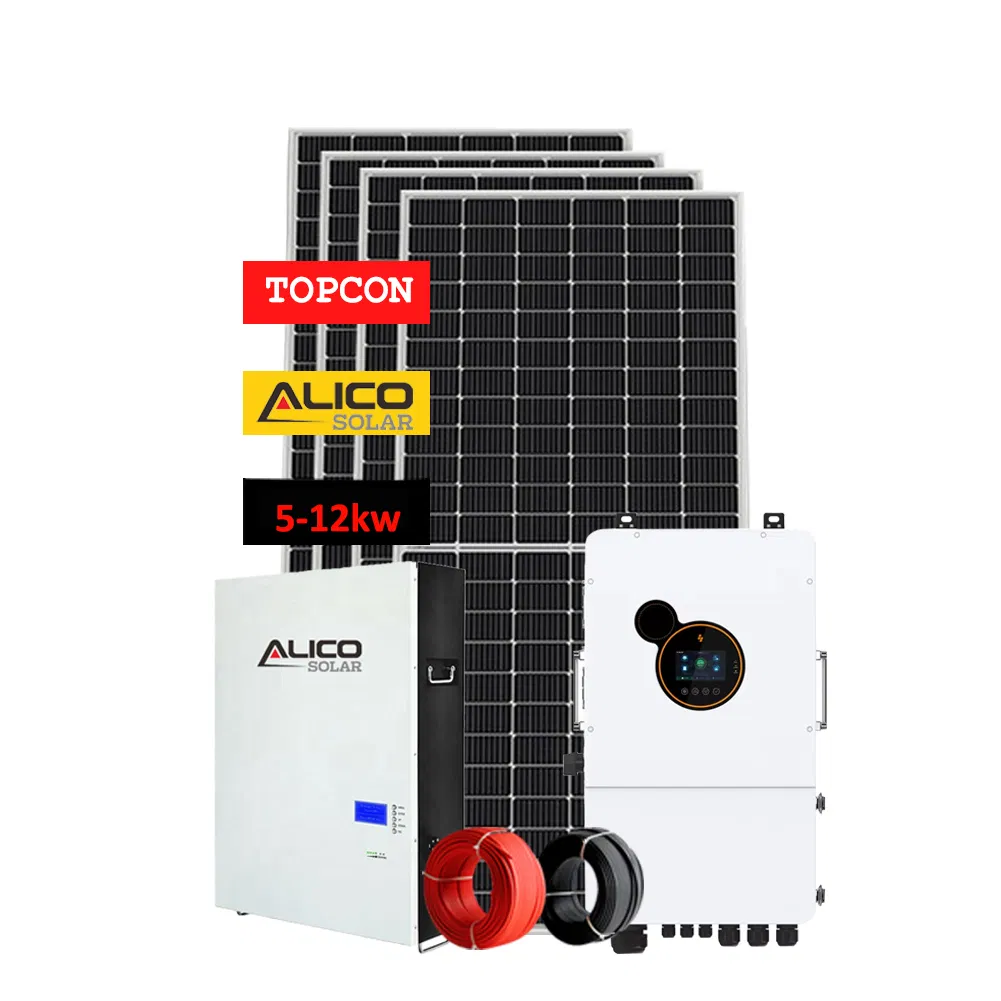

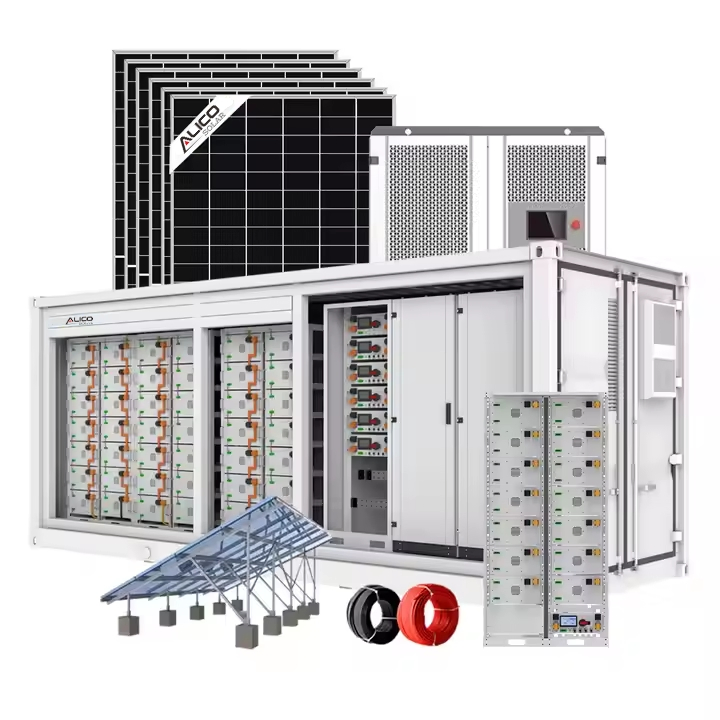

10kw Hybrid on Grid Home Potovoltaic Solar System 10kVA with PV Solar Panel Module LiFePO4 Lithium-Ion Battery Energy Storage Solar Grid Til Inverter

1 / 5

10kw Hybrid on Grid Home Potovoltaic Solar System 10kVA with PV Solar Panel Module LiFePO4 Lithium-Ion Battery Energy Storage Solar Grid Til Inverter

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

AS-ON-10K

Condition

New

Certification

ISO, CE

Application

Home, Industrial, Commercial

Mounting Support

Roof or Ground Solar Mount Bracket

Solar Inverter

Grid-Tied Inverter

System Type

Home Energy Storage System

Solar Panel

Mono N-Type Hjt

Production Capacity

2 Gw/Year

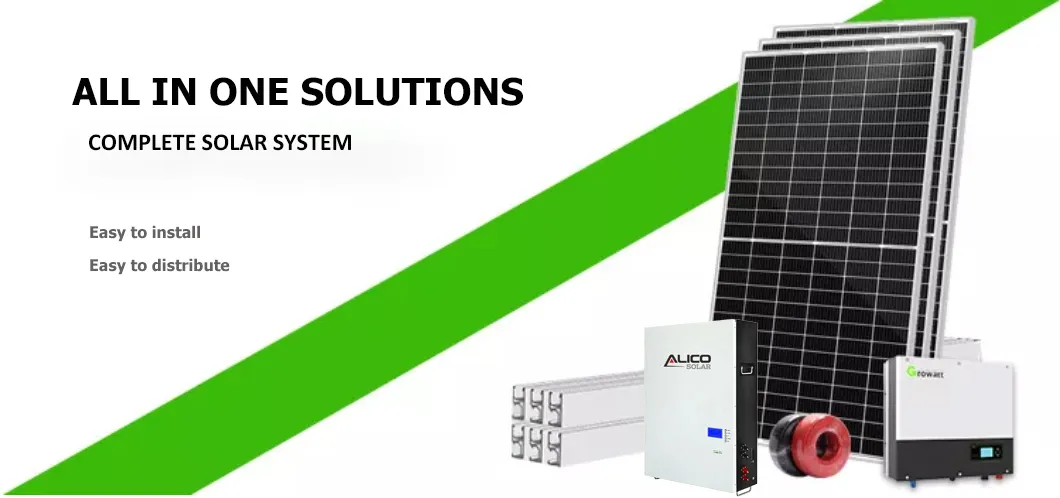

On Grid System Configuration

Component Name	Description	Quantity Range
Solar Panel	Mono 550W 72HF Cells PV Module	24-1250 Pieces
DC Disconnect Switch	IP66 1000VDC 16A	2 Set
On Grid Inverter	10KW to 500kw	1 Set
AC Disconnect Switch	IP 66 1000VDC 32A	1 Set
DC Cable	4mm2	200 - 2000Meters
MC4 Connector	4mm2 1000VDC	10-1000 Pairs
Mounting System	Standards Pitched Roof (Customized)	1 Set
PV Tools	Wire Cable Cutter & Stripper, Disassembly Tool	1 Set

Product Specifications

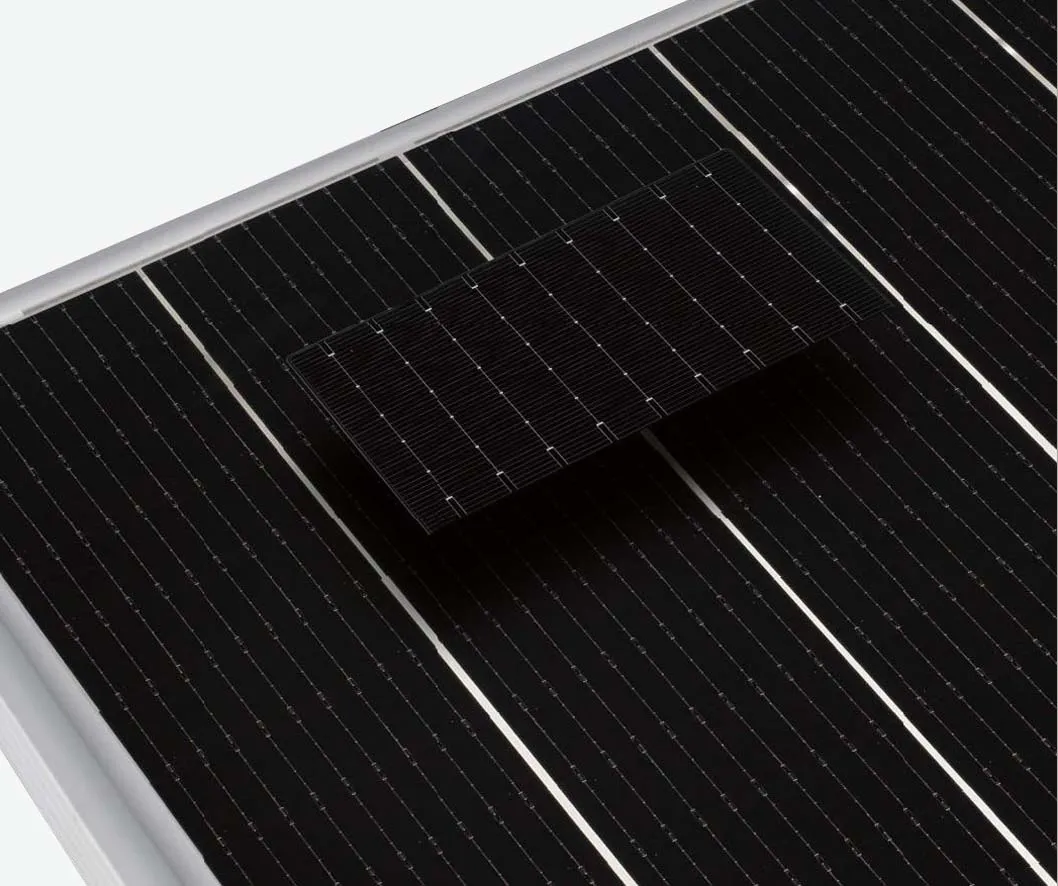

Mono Solar Panels

Peak Power Watts: 480W
Maximum Power Voltage: 49.2V
Maximum Power Current: 9.02A
Open Circuit Voltage: 42.8V
Short Circuit Current: 11.2A

5-125KW On-Grid Inverter

Rated Grid Voltage: 208/240V(US); 230V(EU)
Warranty: 5 Years (EU) 10 Years (US)
Wifi Stick For STD, Lan & GPRS Optional.

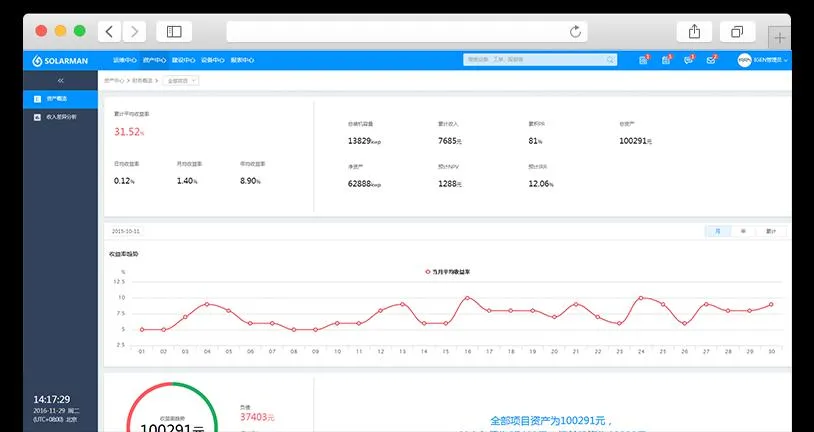

Remote Monitoring System

Data Logging Stick allows you to receive information from your solar power system in real-time. Stay informed via our web server accessible via Wi-Fi, Lan, or GPRS. Apps available for PC, iOS, and Android.

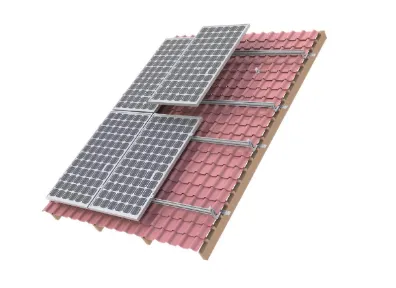

PV Mounting System

Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.
Mid & End Clamps: 35, 40, 45, 50mm
L Foot Asphalt Shingle Mount & Hanger Bolt Optional.

Packaging & Shipping

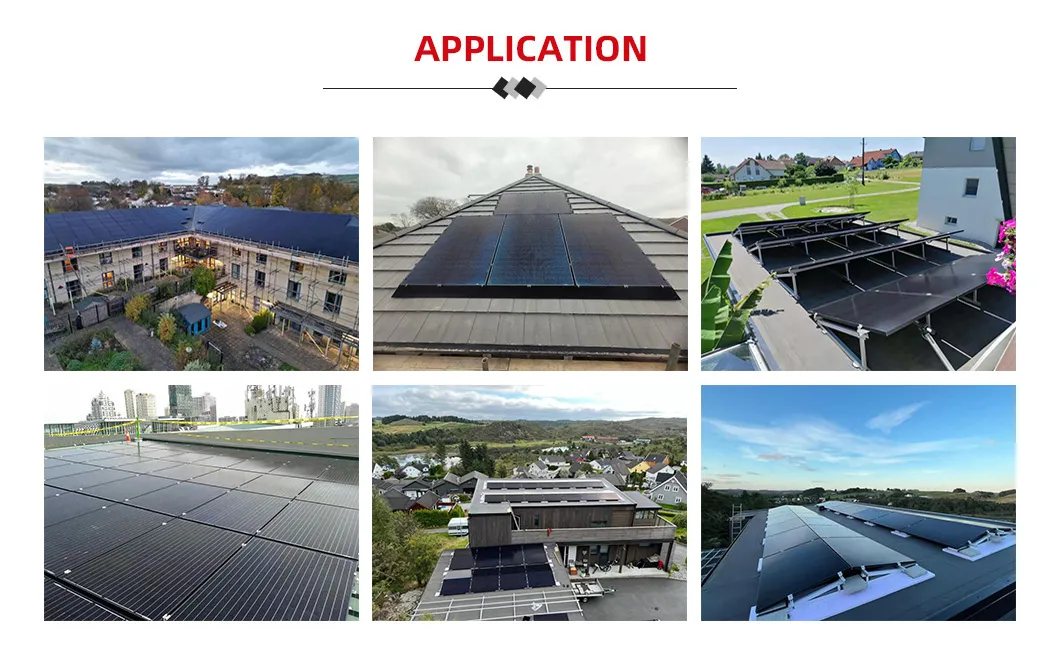

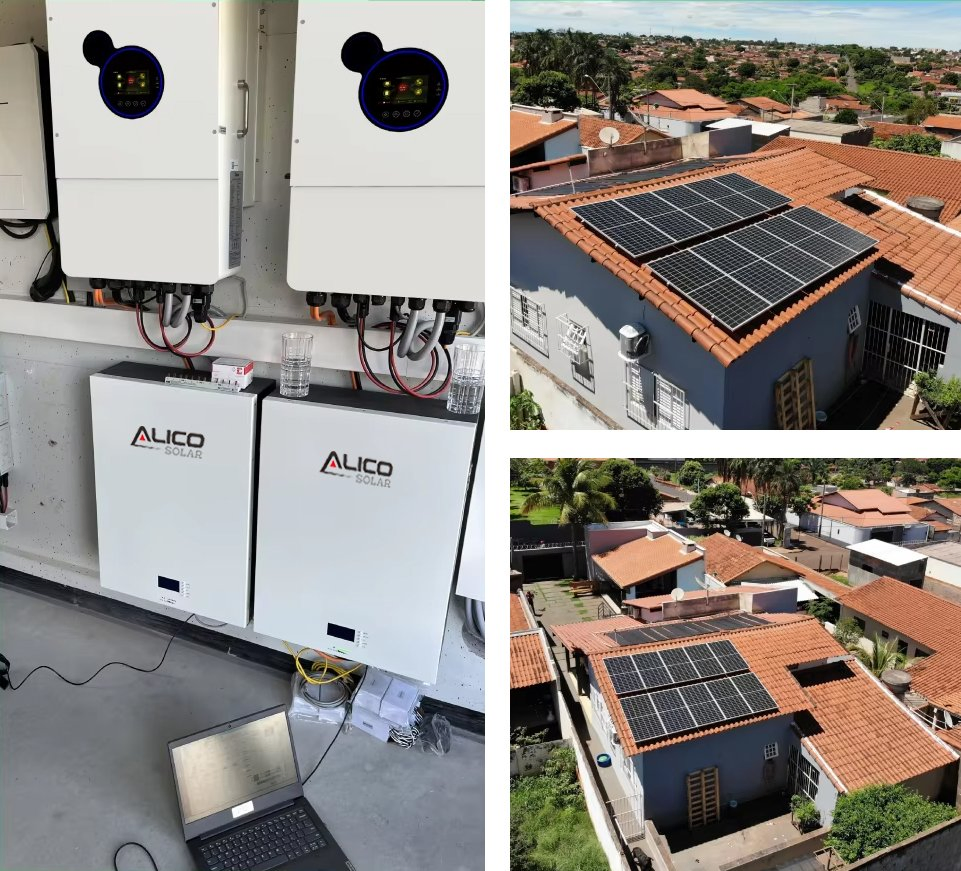

Global Projects Shown

12MW Commercial Metal Roof Solar Plant

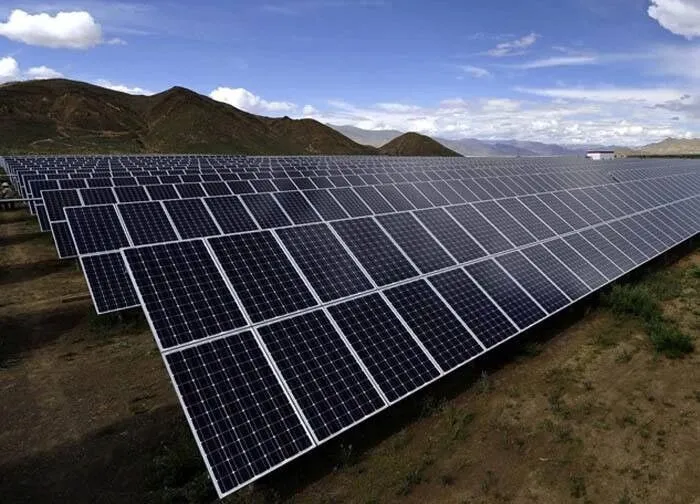

20MW Ground Solar Plant in USA

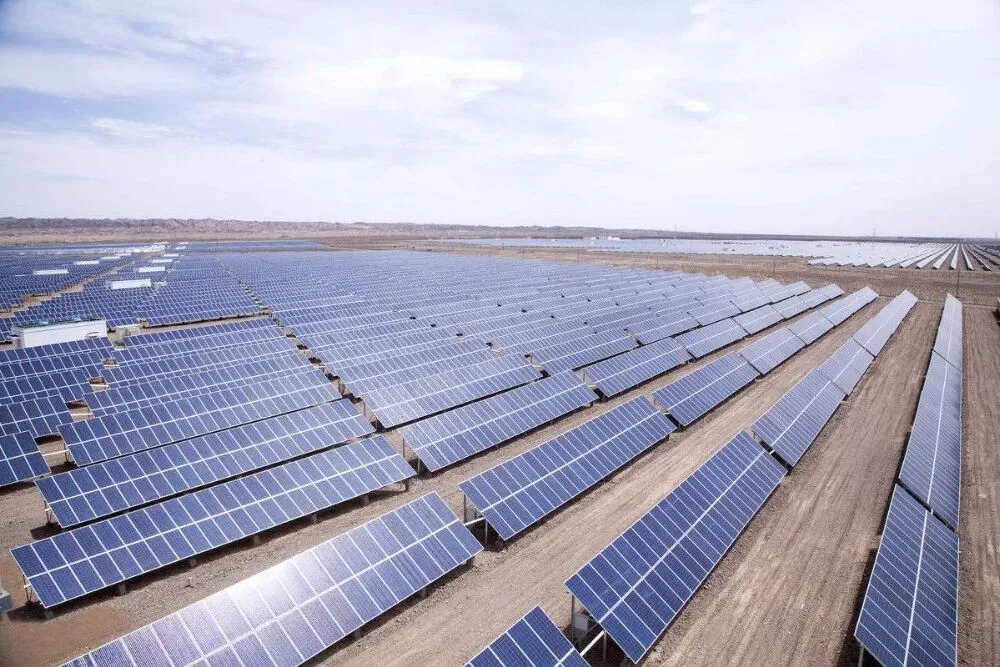

50MW Solar Plant in Brazil

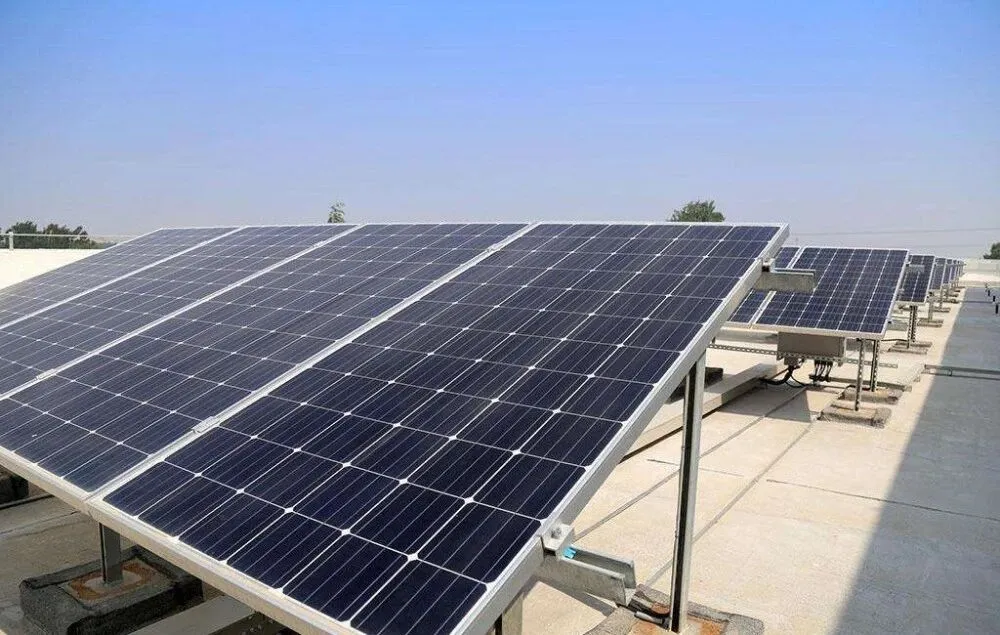

20KW Solar Plant in Mexico

Frequently Asked Questions

What is the advantage of Mono N-Type HJT solar panels?

Mono N-Type HJT (Heterojunction) panels offer higher efficiency, better temperature coefficients, and lower degradation rates compared to standard panels, ensuring better long-term energy yields.

Can this 10kW system be used for commercial buildings?

Yes, the system is highly versatile and suitable for home, industrial, and commercial applications, providing reliable grid-tied energy.

How long is the warranty on the on-grid inverter?

The inverter comes with a standard 5-year warranty for EU markets and a 10-year warranty for US markets.

Does the system support remote performance tracking?

Absolutely. The system includes a remote monitoring logger that connects via Wi-Fi, LAN, or GPRS, with dedicated apps for mobile and desktop.

Are the mounting systems customized for different roof types?

Yes, we provide standard pitched roof mounting, and options for ground mounts or specific roof types like asphalt shingles are available.

What materials are used for the cables and connectors?

We use TUV-certified 4mm2 or 6mm2 DC cables and MC4 connectors rated for 1000VDC, designed for a lifetime of up to 25 years.
