★How It Works:

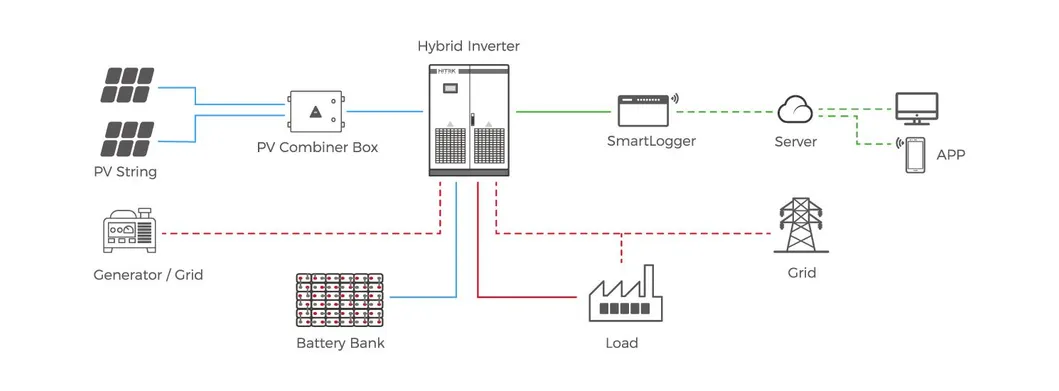

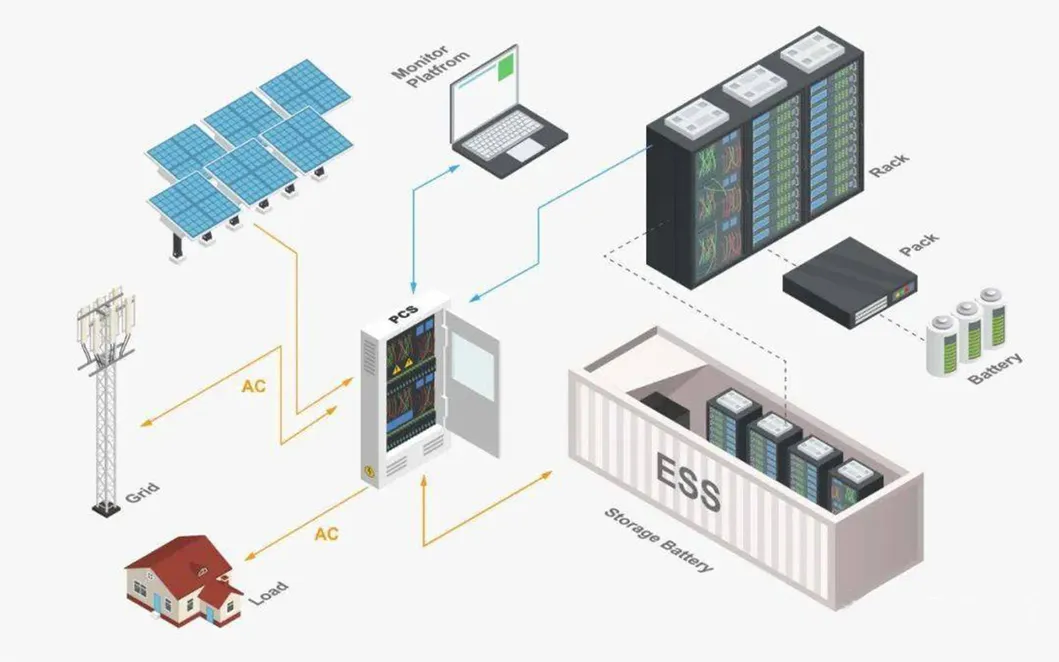

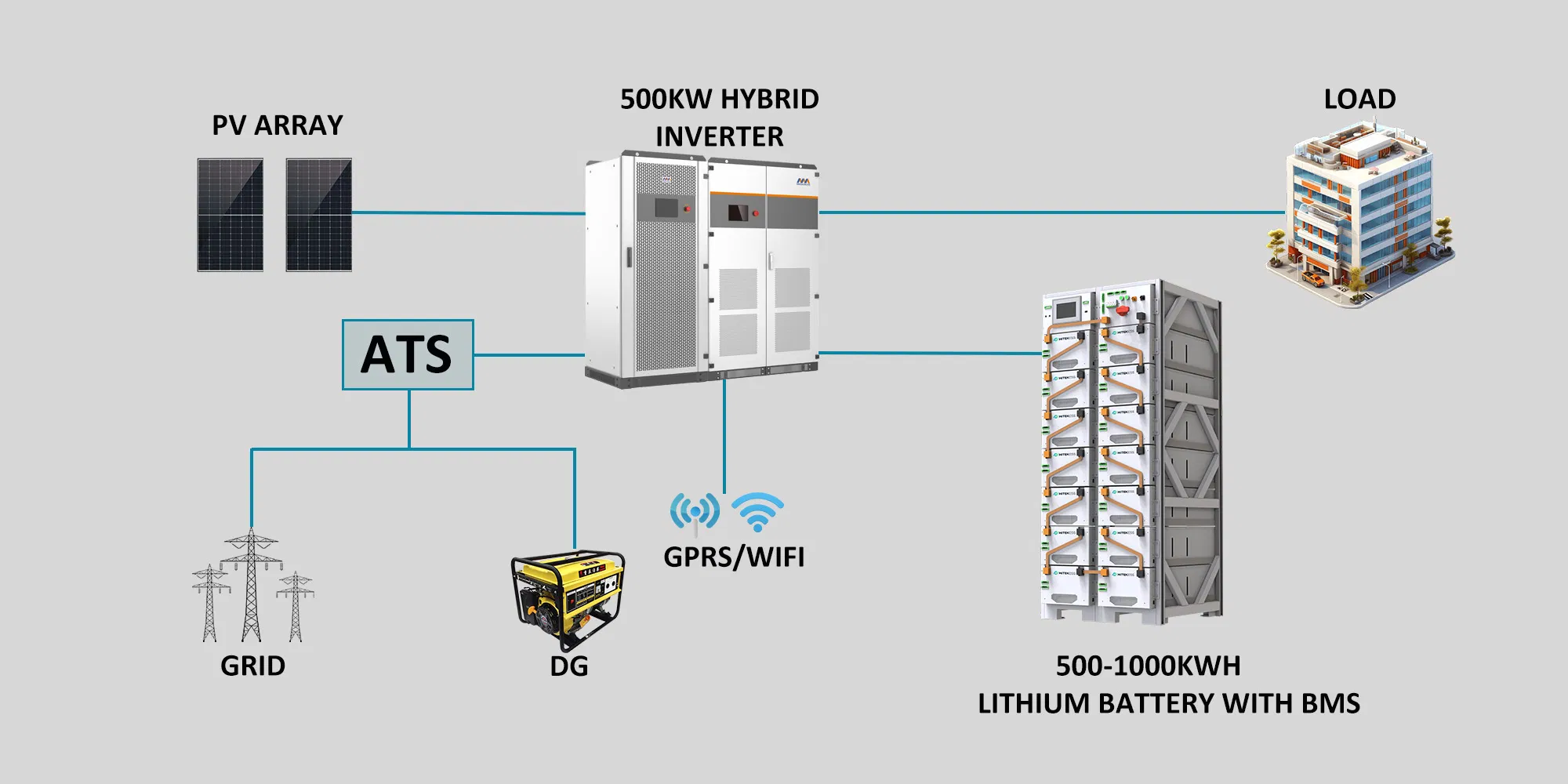

The hybrid solar system is a renewable energy system that is grid-tied and includes battery storage. The system uses solar panels to produce energy during the day, while the batteries store excess energy for use later at night when there is no sunlight. Hybrid solar systems have both on-grid and off-grid capabilities, allowing you to continue running on solar power even if the grid goes dark.
| Parameter | HT30KW-HY | HT50KW-HY | HT100KW-HY | HT250KW-HY | HT500KW-HY |
|---|---|---|---|---|---|
| AC Rated Power | 30KW | 50KW | 100KW | 250KW | 500KW |
| Grid Voltage | 380/400VAC, 50/60HZ | ||||
| Solar Panels | 68 PCS | 102 PCS | 204 PCS | 510 PCS | 1020 PCS |
| Total PV Power | 38.08KW | 57.1KW | 114.24KW | 285.6KW | 571.2KW |
| Battery Capacity | 40.96KWH | 100.35KWH | 200.70KWH | 473.08KWH | 946.17KWH |

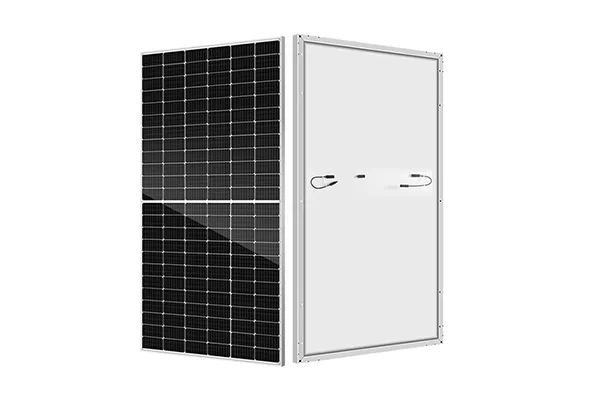

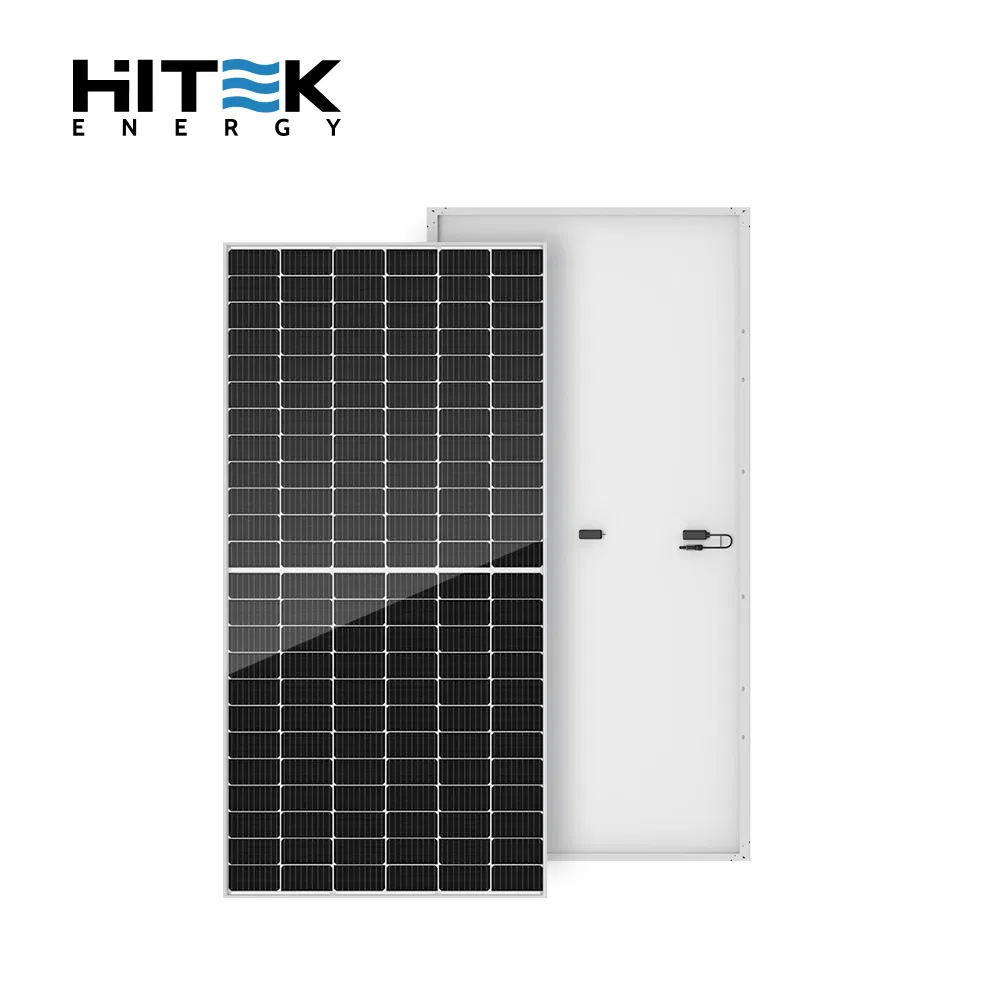

Peak Power: 560Wp | Voc: 49.84V | Isc: 14.14A
Dimensions: 2279*1134*35mm | Weight: 28.0kg

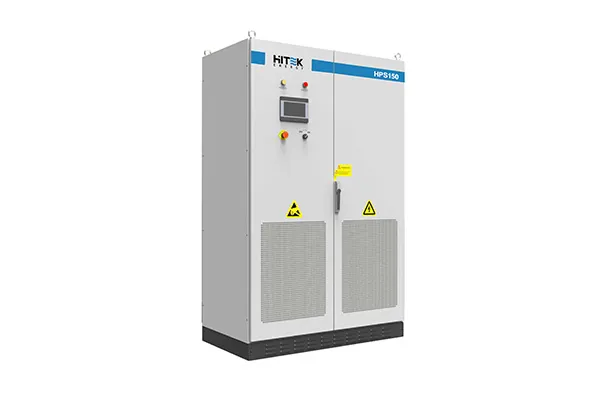

Programmable working modes with touchscreen LCD. Seamless transfer and scalable design (up to 4 units in parallel).

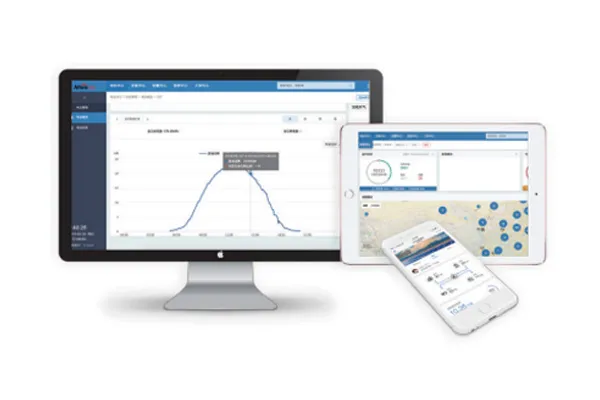

One-click installation. Supports traceable logs, lifecycle data storage, and remote dispatch for security and reliability.

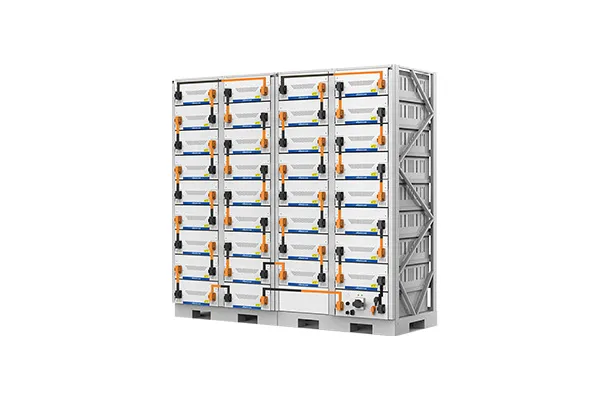

Deep cycle long lifespan (6000+ times). Supports AGM/GEL/LiFePO4 types. Maintenance-free with high discharge performance.

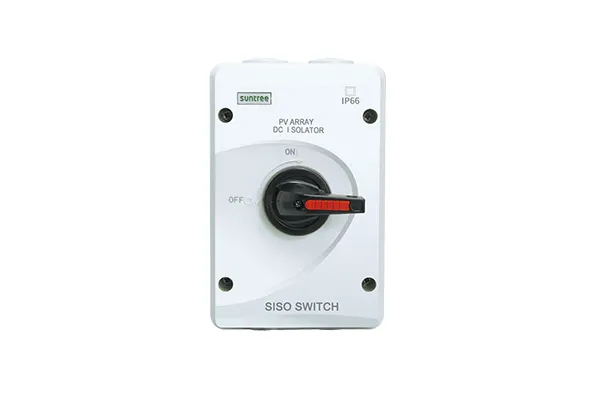

DC & AC Disconnect Switch

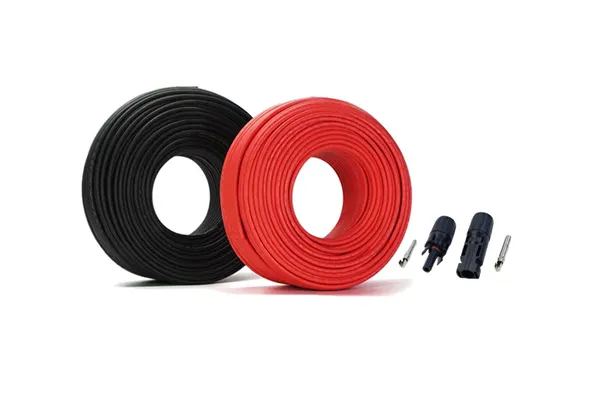

DC Cable & MC4 Connectors

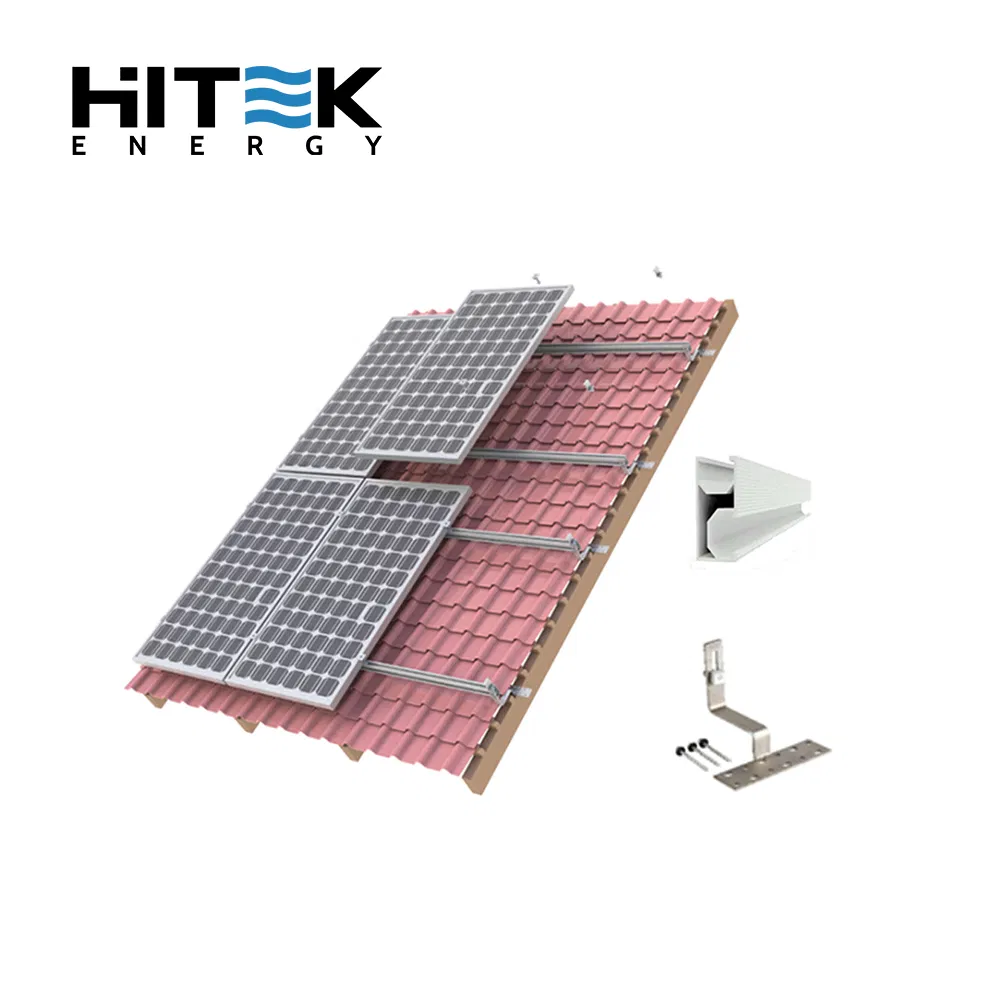

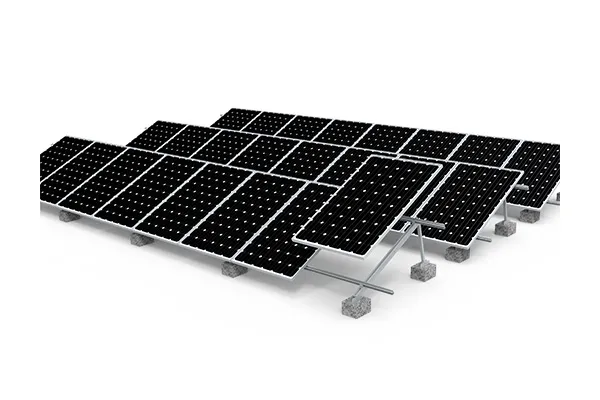

PV Mounting System
Founded in 2018, the manufacturer is a superior photovoltaic provider dedicated to sustainable and renewable energy solutions for homes, businesses, and factories. We provide tailored solar energy solutions for backup, residential, and commercial needs using only reliable, approved equipment.
