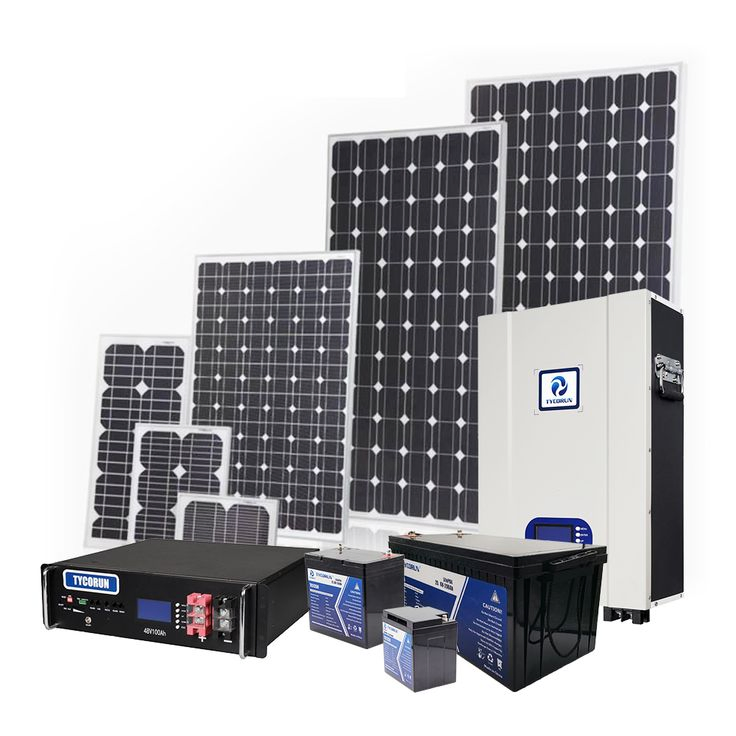

Photovoltaic Complete off Grid 15kw 30kw 50kw 80kw 100kw Battery Storage Panel Set Energy Hybrid PV Solar Power Systems Price for Industry Home

1 / 5

Photovoltaic Complete off Grid 15kw 30kw 50kw 80kw 100kw Battery Storage Panel Set Energy Hybrid PV Solar Power Systems Price for Industry Home

Customization:	Available
Weight:	1300 Kg
Warranty:	10 Years

Send Inquiry

Product Description

Basic Information

Model

Solar Power System

Cycle Life

1000 Cycles

Nominal Capacity

1000W / 3kW / 5kW / 6kW / 10kW / 15kW

Certification

ISO, CE

Solar Panel

Monocrystalline Solar Panel

Inverter Type

Off Grid Inverter

Mounting Support

Roof or Ground Solar Mount Bracket

Production Capacity

4500 Sets/Month

Product Parameters

Parts	Specification	SP5KW	SP6KW	SP8KW	SP10KW	SP12KW
Solar Panel	590W Mono Panel	6 Pieces	10 Pieces	12 Pieces	16 Pieces	20 Pieces
Hybrid Inverter	Single/Three Phase	1 pcs 5KW	1 pcs 6KW	1 pcs 8KW	1 pcs 10KW	1 pcs 12KW
LiFePO4 Battery	48V 5/10KWH	1 Pieces	2 Pieces	2 Pieces	2 Pieces	2 Pieces
Bracket	Ground/Roof	1 set	1 set	1 set	1 set	1 set
PV Cables	4mm²	100 meters	200 meters	200 meters	200 meters	200 meters
MC4 Connector	Male + Female	5 pairs	10 pairs	10 pairs	15 pairs	15 pairs

Note: Product dimensions and physical appearance are nominal. The manufacturer reserves the right to make changes from time to time without prior notification.

System Components & Features

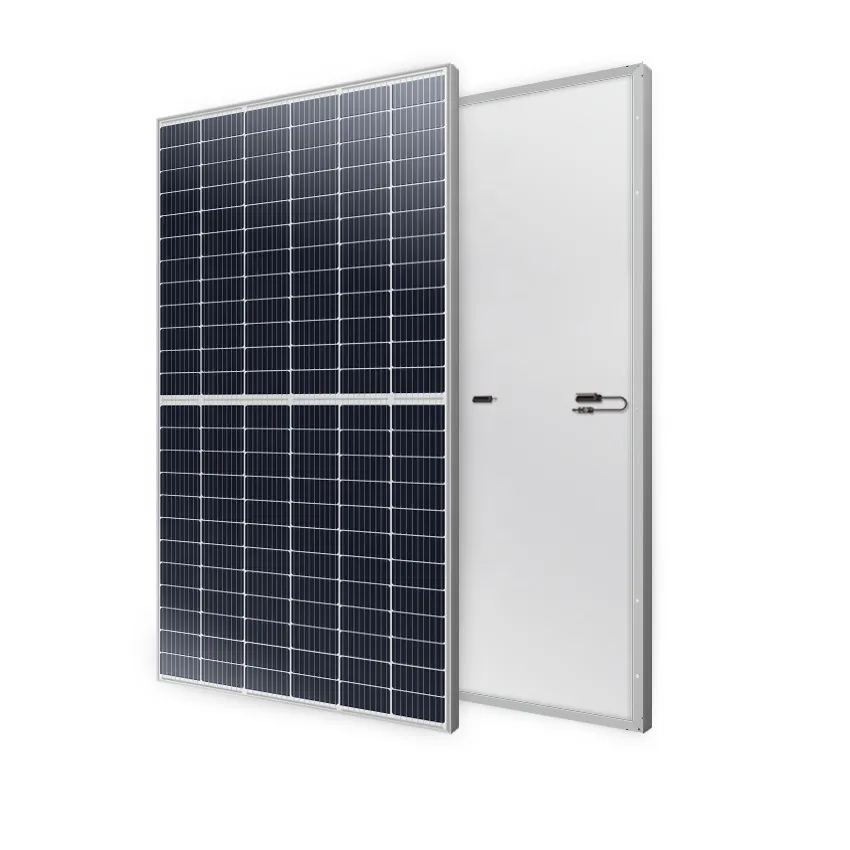

High-Efficiency Mono Solar Panels

Peak Power: 590W
Voltage/Current: 41.5V / 11.3A
Open Circuit: 48.5V / 11.96A
Dimensions: 2094*1038*35 mm
Weight: 25 kg

Inverter with MPPT Controller

AC 220V/230V/50HZ with 5.5KW Capacity. MPPT voltage range 70-450Vdc. Supports maximum photovoltaic connection up to 5.5kwp. Integrated system for optimized energy conversion.

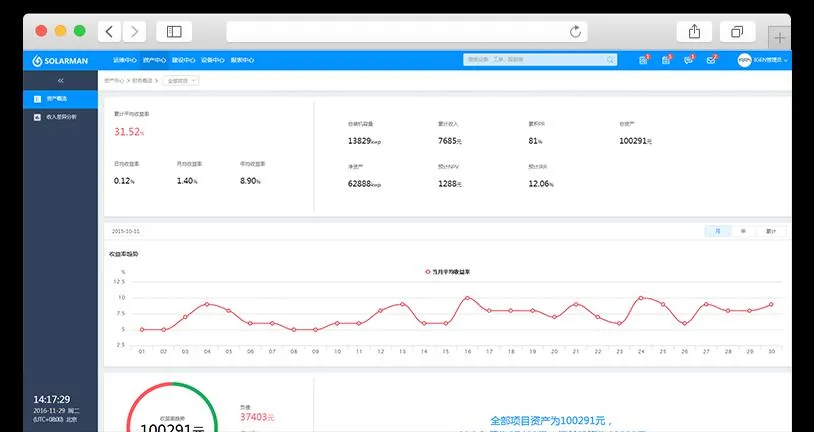

Remote Monitoring System

Data Logging Stick allows real-time system tracking. Access information anywhere via Wi-Fi, Lan, or GPRS. Dedicated App available for PC, IOS, and Android devices.

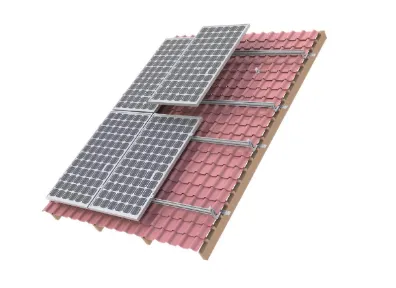

PV Mounting System

High-strength AI6005 Rail & SUS304 Bolts. Includes Mid & End Clamps (35-50mm). Optional L-Foot Asphalt Shingle Mounts, Hanger Bolts, and Grounding Kits for versatile installation.

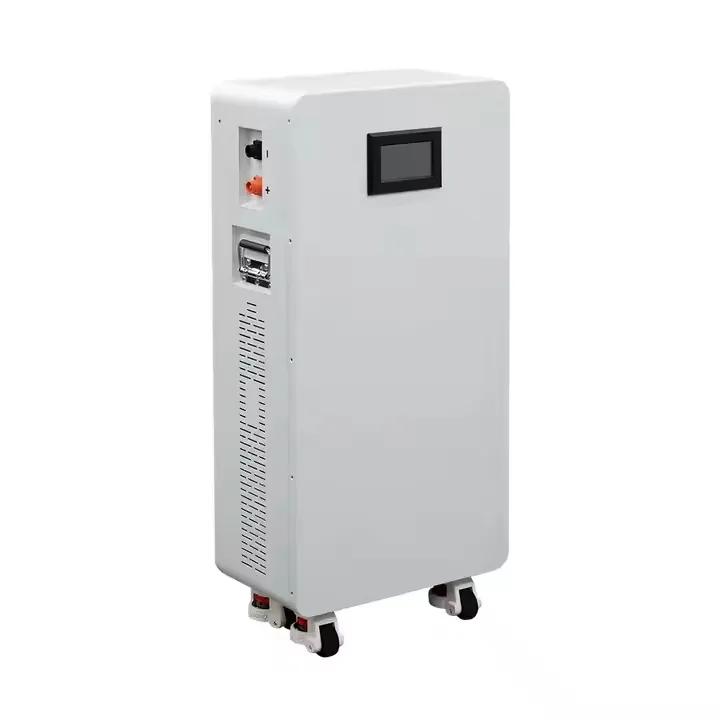

Premium Lithium Battery

Capacity: 4.8KWH LiFePO4 Battery.
Includes all necessary connection and communication cables.
Weight: 103 KG
Package Size: 710*500*310 mm

Frequently Asked Questions

What is the lifespan of the battery system?

The LiFePO4 battery is rated for 1000 cycles, providing long-term reliable energy storage for your off-grid system.

Can I monitor the system when I am not at home?

Yes, the system includes a data logging stick that supports Wi-Fi, Lan, or GPRS, allowing you to monitor status via PC or smartphone App (iOS/Android) anytime.

What kind of solar panels are included in the set?

The system utilizes high-efficiency Monocrystalline solar panels, specifically 590W modules for maximum energy harvest.

Is the mounting hardware compatible with my roof?

The PV mounting system is versatile and can be customized for either ground or roof installation, with optional components for asphalt shingles and other roof types.

What certifications do these solar products have?

The solar systems and components are ISO and CE certified, ensuring they meet international standards for quality and safety.

Are installation tools and cables included?

Yes, the package includes 4mm² PV cables, MC4 connectors, and optional installation tools to facilitate a complete setup.
