ISO/CE/RoHS Installation Customized Complete Approved on/off Grid Renewable Solar Rechargeable Storage Panel PV Power Energy Home Modules System

1 / 5

ISO/CE/RoHS Installation Customized Complete Approved on/off Grid Renewable Solar Rechargeable Storage Panel PV Power Energy Home Modules System

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specifications

Model

8KW-300KW Solar Energy Storage System

Condition

New

Certification

ISO, CE, TUV, RoHS

Application

Home, Industrial, Commercial, School

Capacity Range

5kw to 200kw Options

Output Voltage

DC12V*4 & 220V*2 Terminals

Charging

Mobile & Computer Supported

Appliances

AC, TV, Fridge, Washing Machine

Origin

China

Production

10000 sets/Month

Product Overview

Approved Off-Grid Solar Panel Energy System - Renewable Power Solution

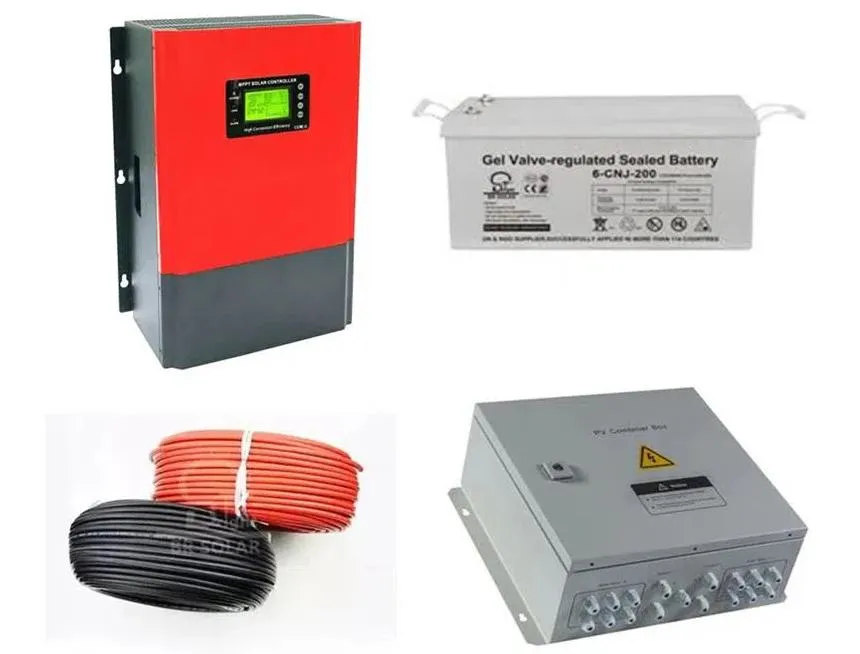

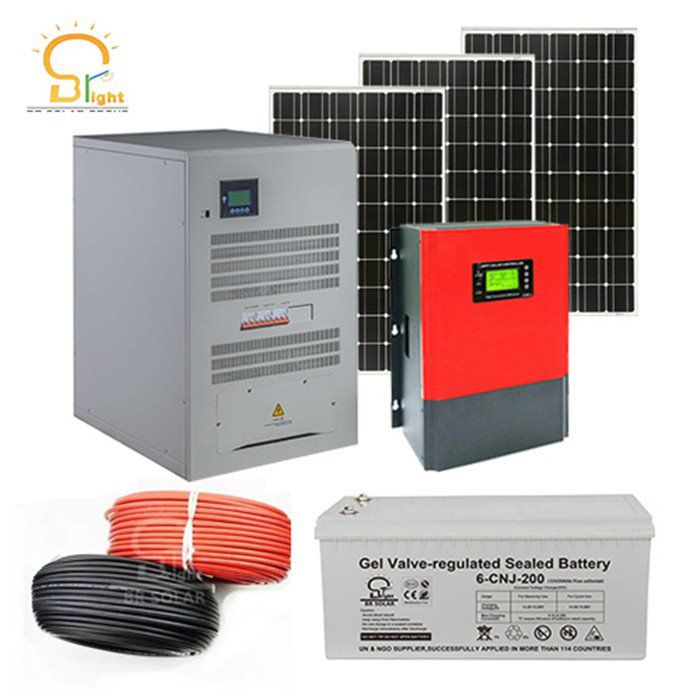

System Components (40KW Example)

No.	Name	Specification	Qty	Remarks
1	Solar panel	Mono 300W	90 Pcs	15 strings x 6 parallels
2	Solar Battery	Gel 12V 200AH	64 Pcs	32 strings x 2 parallels
3	Inverter	40KW DC384V-AC380V	1 Set	Pure sine wave, LCD display
4	Solar Controller	384V-70A	1 Set	Overcharge/Over-discharge protection
5	PV Combiner Box	6-1	1 Pc	6 inputs, 1 output
6	Connector	MC4	6 Pairs	Includes fittings
7	Panel Bracket	Hot-dip Zinc	27000W	C-shaped Steel Bracket

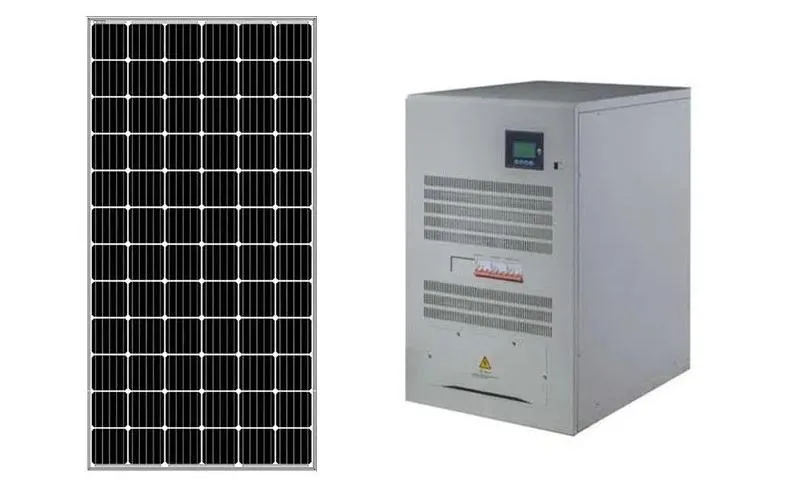

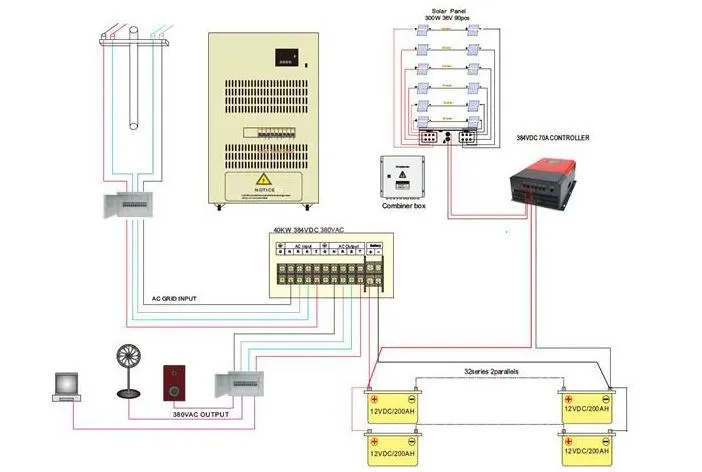

Diagram & Detailed Visuals

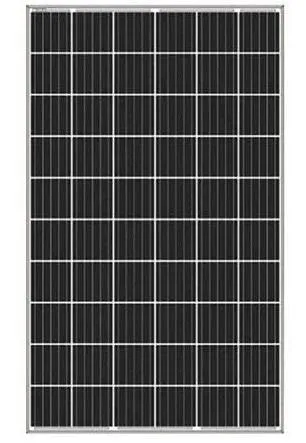

300W Solar Panel Technical Data

Solar Cell Spec	156*156 Mono crystalline silicon solar cells
Max Power	300W
Open Circuit Voltage	42.60V
Short Circuit Current	9.15A
Dimensions	1950mm992mm45mm
Weight	20.90kg
Operating Temp	-40°C to +85°C
Warranty	10 years workmanship, 25 years performance (80%)

User Guidance & Features

Plug & Play Charging: Simply connect the solar panel interface to the machine input; it charges automatically.
Versatile Use: Ideal for TV, fans, computers, lighting, and medium-power appliances.
Customizable: Battery and solar panel configurations can be adjusted based on specific needs.
Advanced Protection: Automatic shutdown for overload, short circuit, low/high pressure, and high temperature.
Dual Mode: Supports both Solar and City Power (Grid) charging.

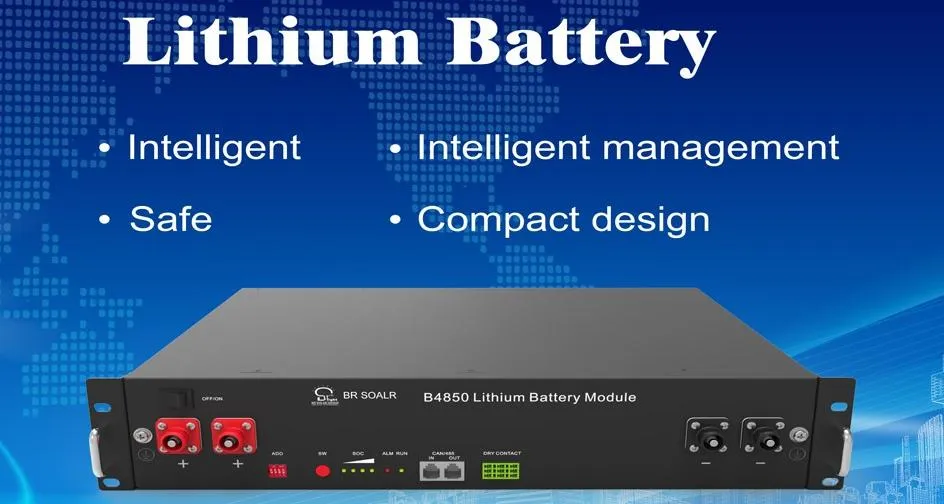

Lithium Compatibility: This system can also be configured with advanced Lithium batteries.

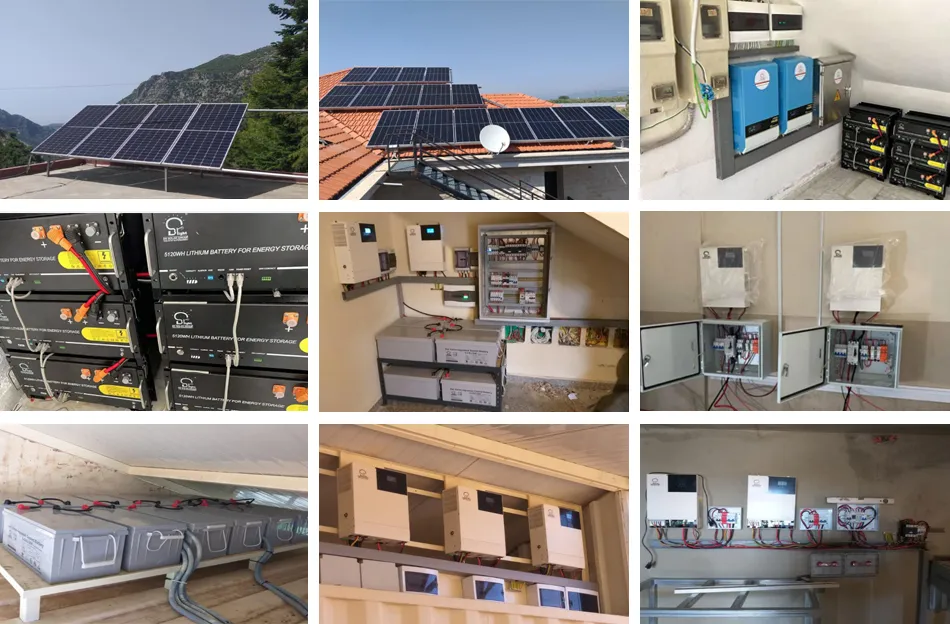

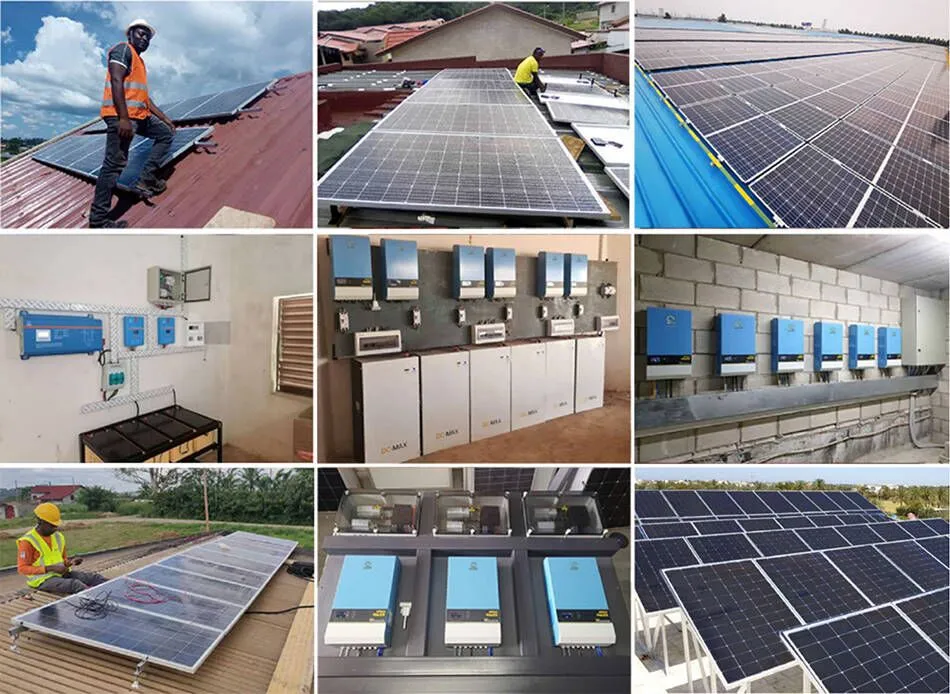

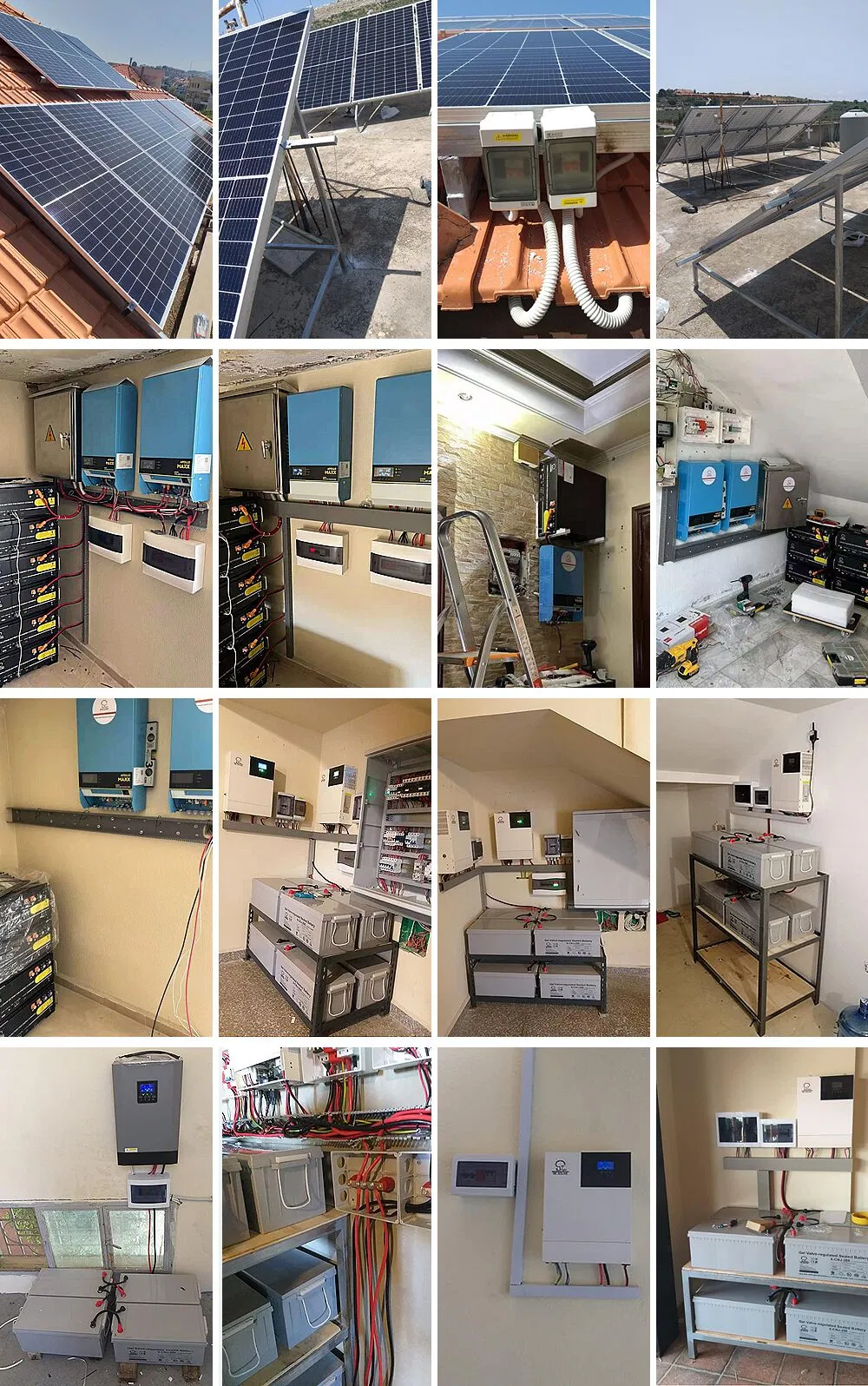

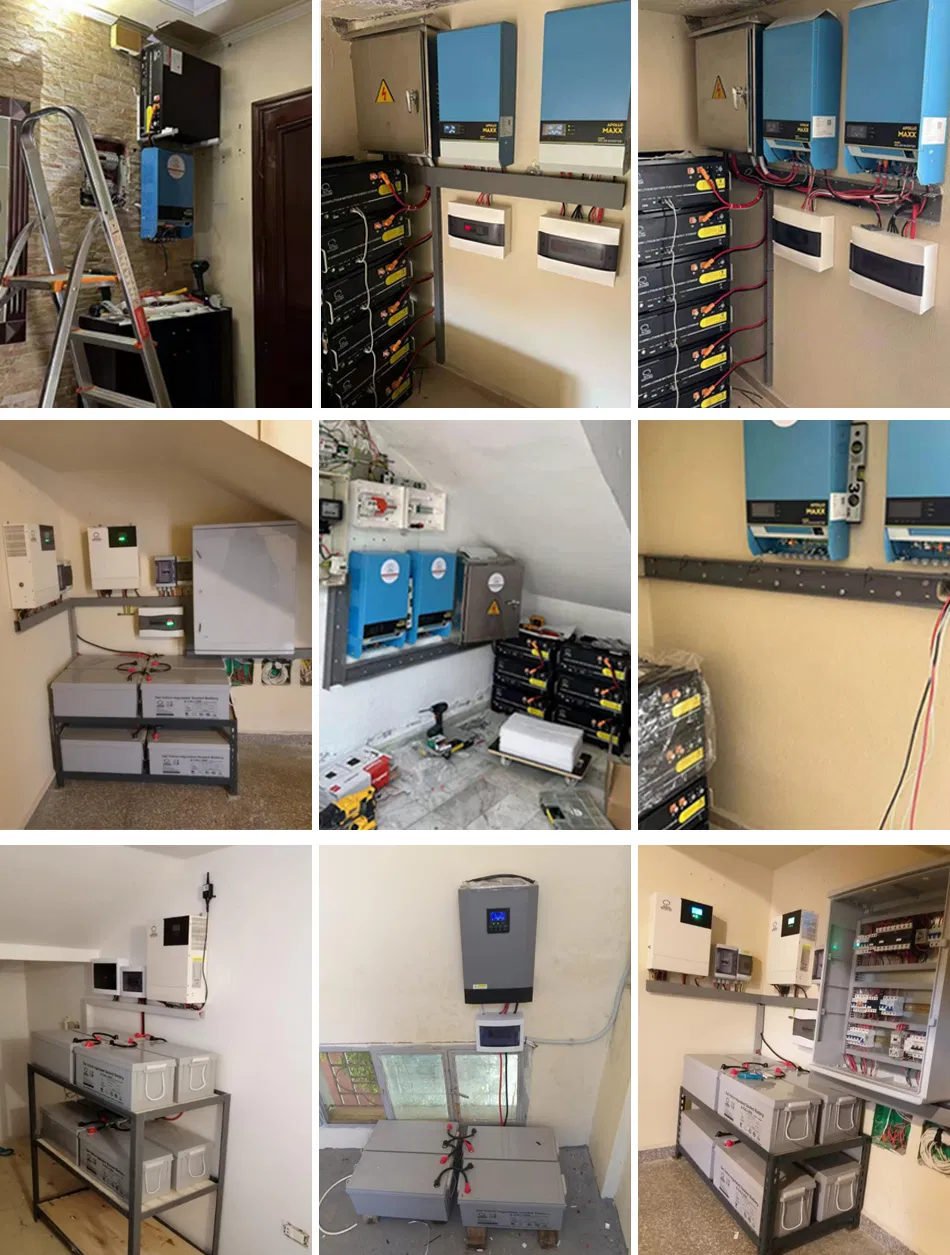

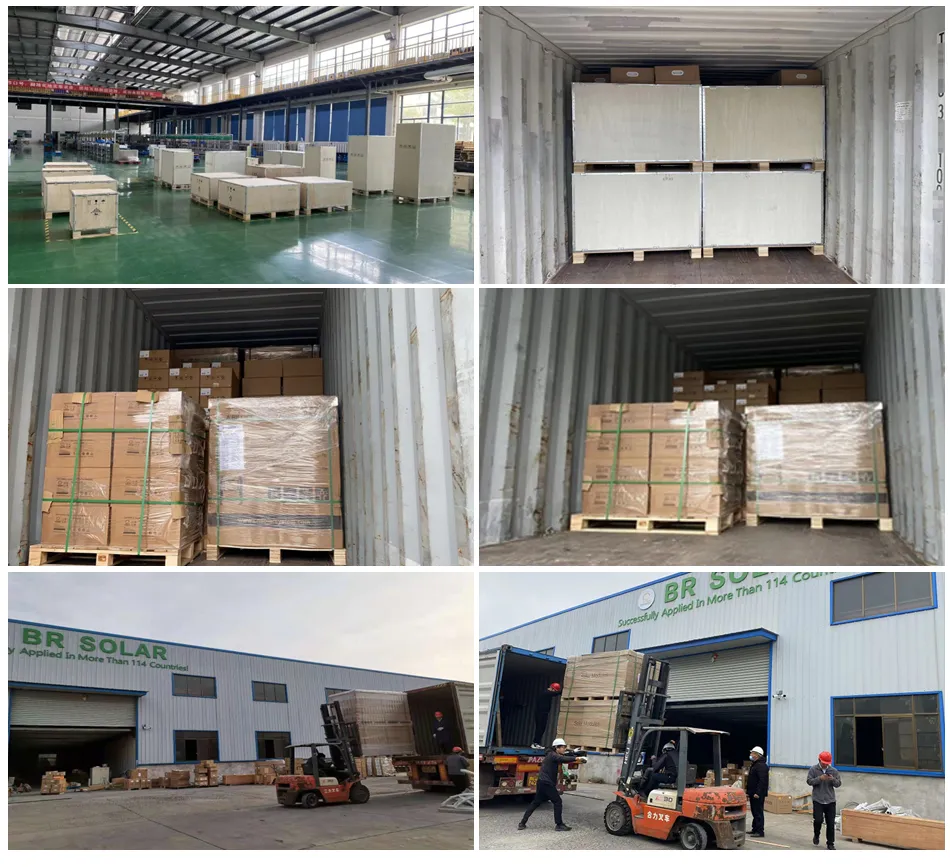

Global Installations & Packing

Frequently Asked Questions

What is the lifespan of the solar panels?

The solar panels are designed for long-term durability with a lifespan of 20-25 years. They come with a 10-year workmanship warranty and guaranteed 80% power output after 25 years.

Can this system handle high-power appliances like air conditioners?

Yes, depending on the system capacity (from 8KW to 300KW), it can support high-power appliances including air conditioners, fridges, and washing machines.

Does the system work during cloudy days or at night?

During the day, the system collects energy and stores it in high-capacity Gel or Lithium batteries. This stored energy allows you to power your home or business at night or during overcast weather.

What safety features are included?

The system features intelligent protection against overcharge, over-discharge, overload, short circuits, and extreme temperatures, ensuring the longevity of the equipment.

How is the system shipped?

All components are packed using safe, industrial-grade cartons and pallets to ensure they arrive in perfect condition, regardless of the global destination.

Can I use city power if the batteries are low?

Yes, the system supports dual charging modes. It can prioritize solar energy but is fully compatible with city power (grid) or diesel generators as a backup input.
