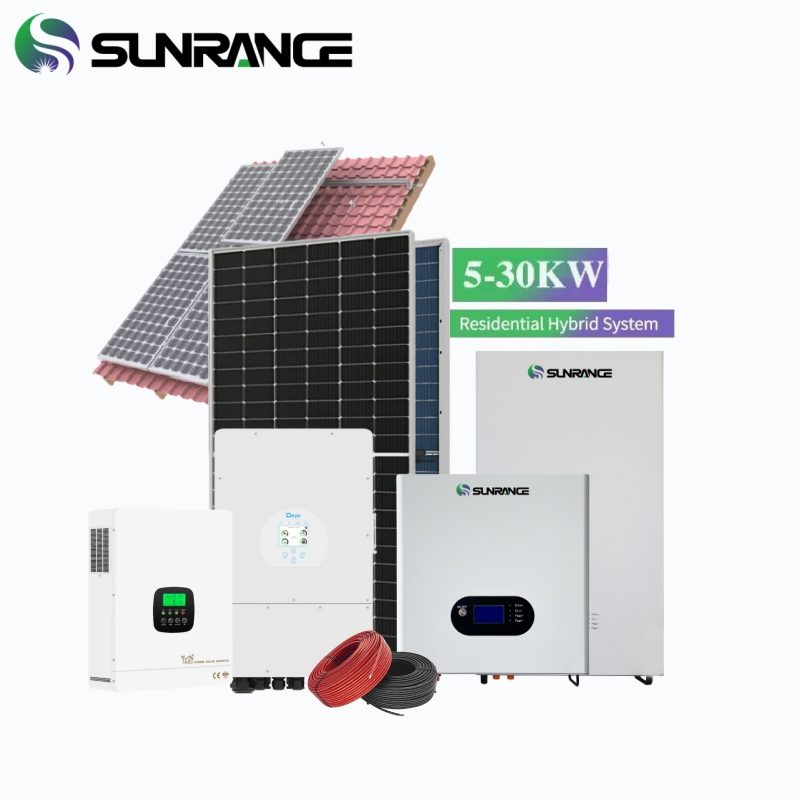

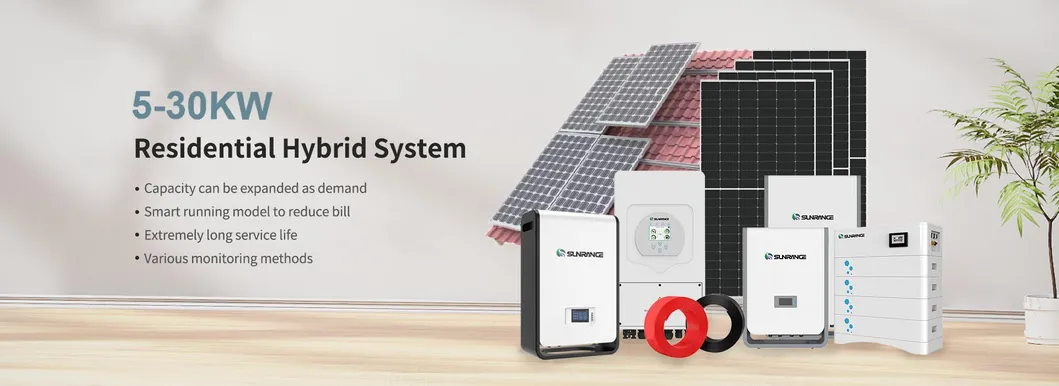

Complete Photovoltaic Kit Hybrid off Grid 1-30kw Home Solar Power Inverter with Battery Solar Energy System

1 / 5

Complete Photovoltaic Kit Hybrid off Grid 1-30kw Home Solar Power Inverter with Battery Solar Energy System

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📊 Basic Information

Model NO.

SR-5/10/15/20/30KW-HY

Cycle Life

6000+

Solar Panel

Monocrystalline 400-700W

Battery Type

Gel / LiFePO4 Lithium Battery

Controller

MPPT Intelligent Controller

Inverter Type

Hybrid Storage Solar Inverter

Origin

Anhui, China

Production

50000 Sets/Year

☀️ Product Description

Model. No.		SR-5KW-HY	SR-10KW-HY	SR-15KW-3HY	SR-20KW-3HY	SR-30KW-3HY
System Parameter	AC Rated Power	5KW	10KW	15KW	20KW	30KW
	Grid Voltage	220/230VAC		380/400VAC
	Rated Frequency	50/60HZ
	Max. Output (KVA)	5.5	11	16.5	22	33
Solar Panel	Quantity	12PCS	21PCS	30PCS	42PCS	56PCS
	Model	SR72P-580N
	Total Power	6.96KW	12.18KW	17.4KW	24.36KW	32.48KW
Hybrid Inverter	Model	SUN-5K-SG03LP1	SUN-10K-SG02LP1	SUN-15K-SG01HP3	SUN-20K-SG01HP3	SUN-30K-SG01HP3
	Rated Power	5KW	10KW	15KW	20KW	30KW
	MPPT Voltage	150-425VDC		250-850VDC
Lithium Battery	Nominal Voltage	51.2V	51.2V	51.2V	51.2V	51.2V
	Capacity (AH)	200	280	100	200	280
	Bank Capacity	10.24KWH	14.336KWH	30.72KWH	40.96KWH	57.344KWH

⚙️ Product Parameters

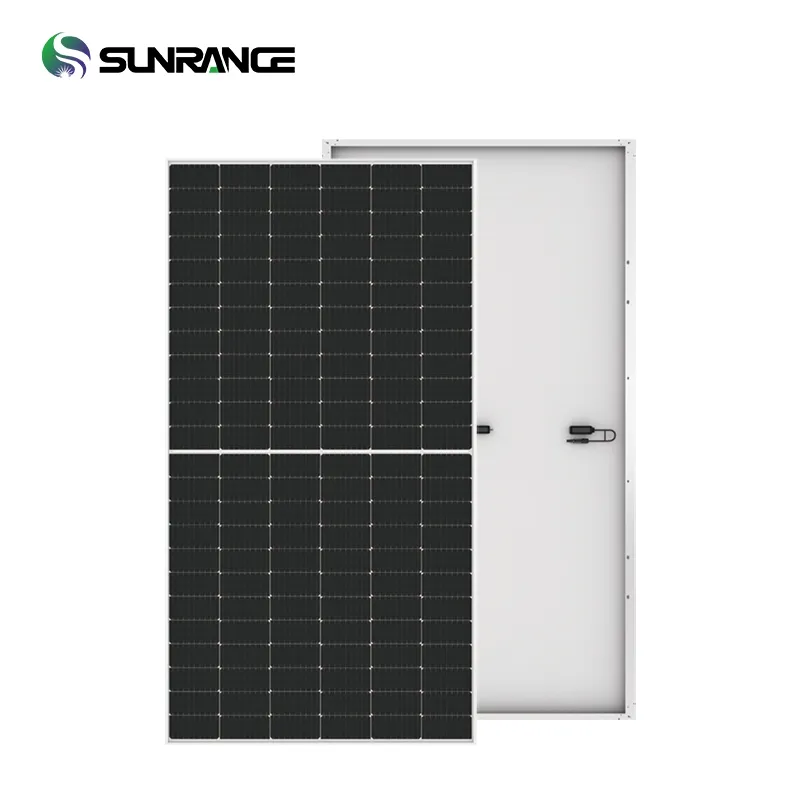

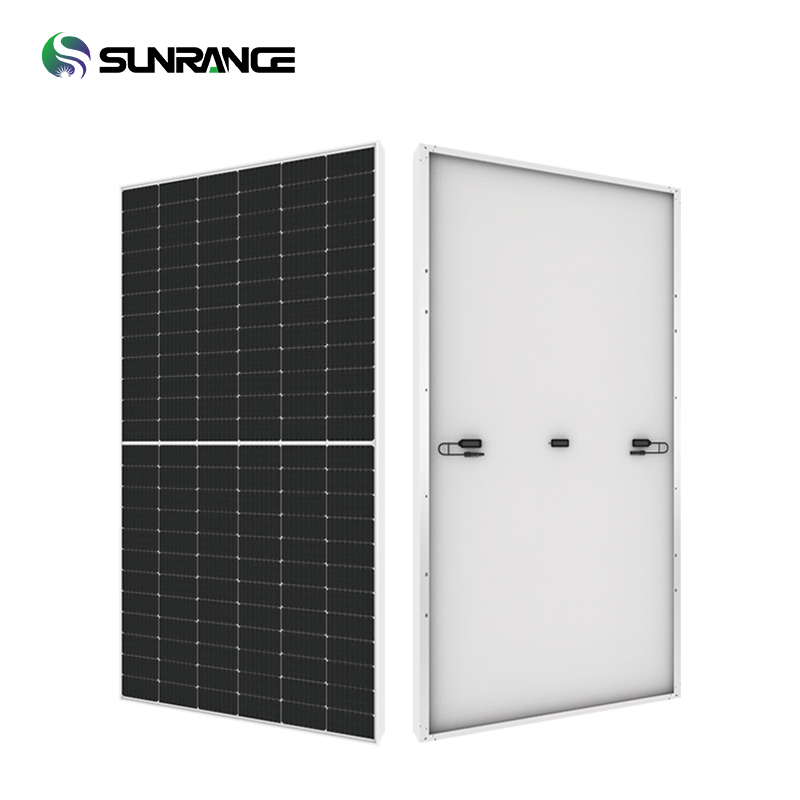

N-Type Topcon Solar Panel

Model: SR72P-580N
Maximum Power (Pmax): 580W
Open Circuit Voltage (Voc): 51.57V
Short Circuit Current (lsc): 14.33A
Module Efficiency: 22.44%

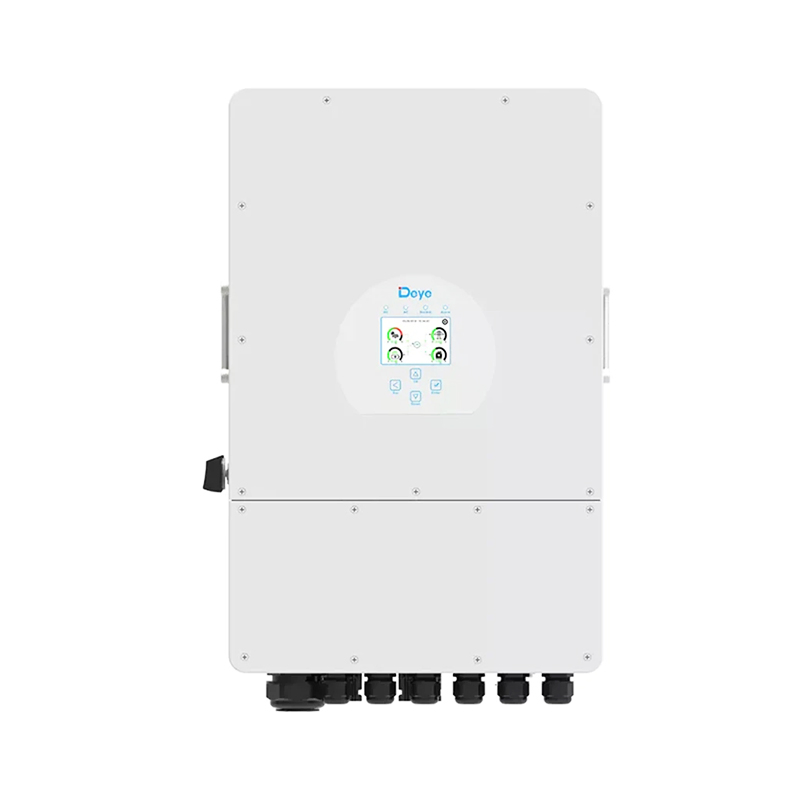

All-In-One Hybrid Inverter

Supports PV, battery, diesel generator, grid, and load
Easy system capacity expansion
Dynamic power distribution for load demand

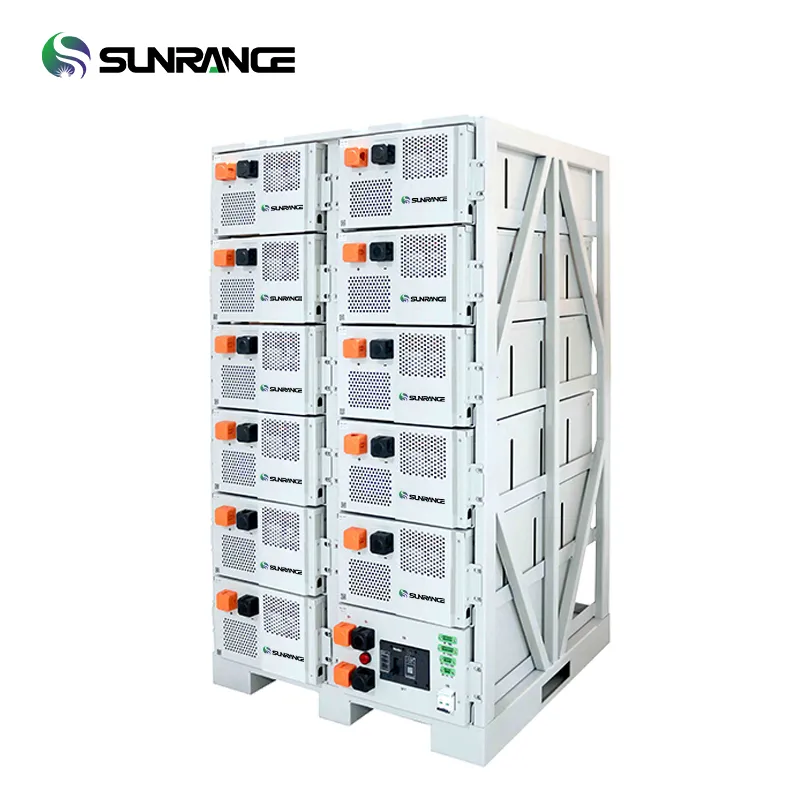

Solar Battery Packs

Rack-mounted design for easy installation
Deep cycle, 6000+ times lifespan
LiFePO4 Lithium Ion technology
Maintenance-free with high discharge performance

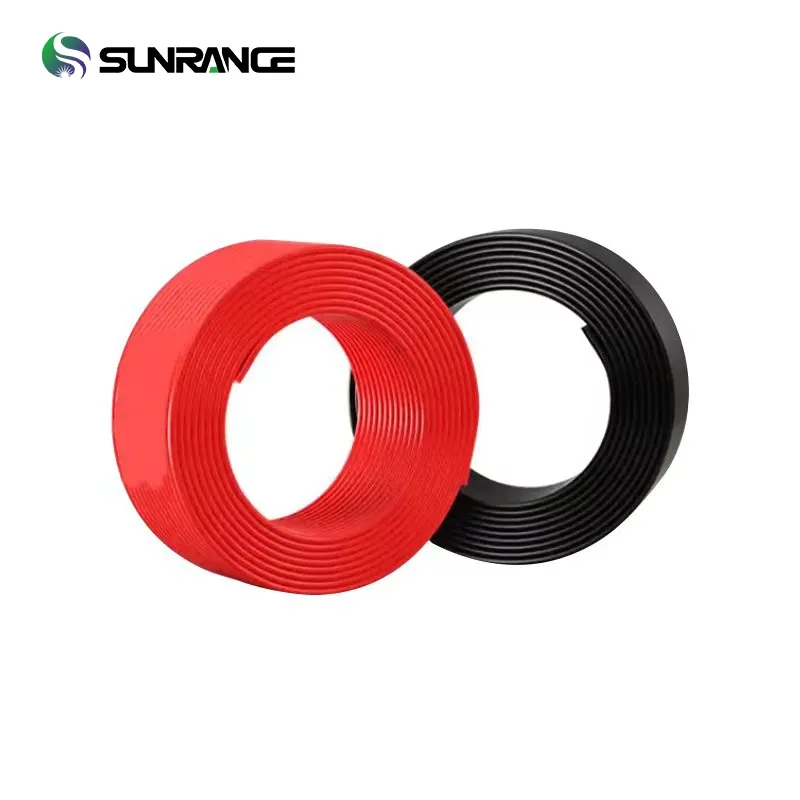

DC Cable & MC4 Connector

Cross Section: 4mm², 6mm², 10mm²
Rated Voltage: 600VDC / 1000VDC
Rated Current: 55A / 70A
Lifetime: up to 25 years

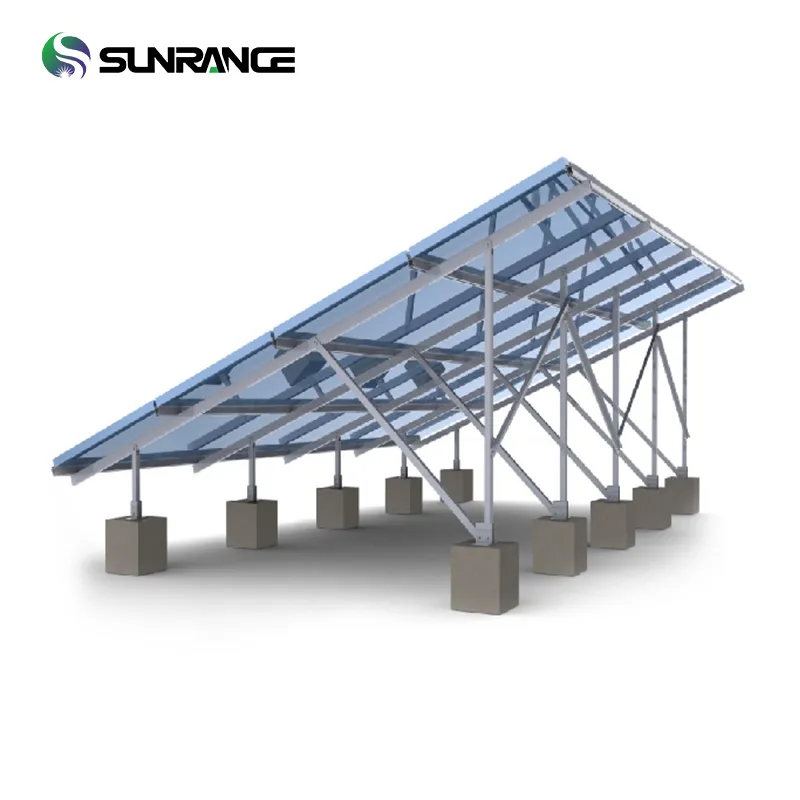

PV Mounting System

Material: Ai6005 & Sus304
Clamps: 30, 35, 40mm options
Suitable for Asphalt Shingle & Hanger Bolt mounts
Includes ground clips, lugs, and cable clips

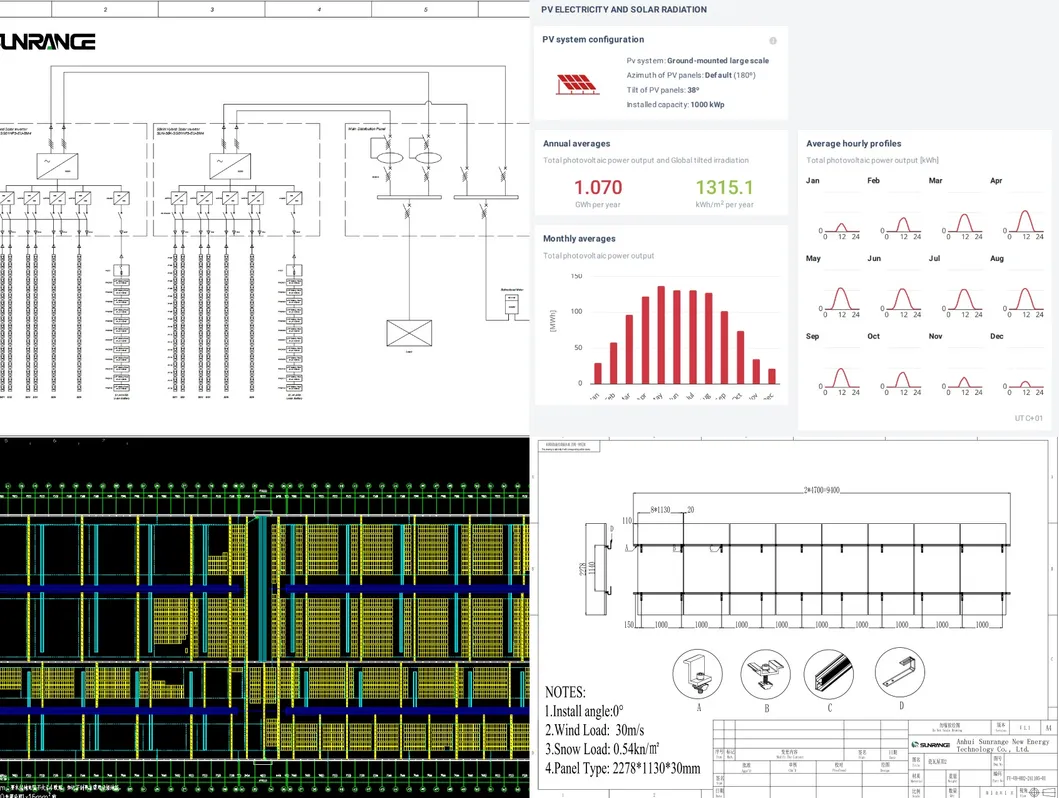

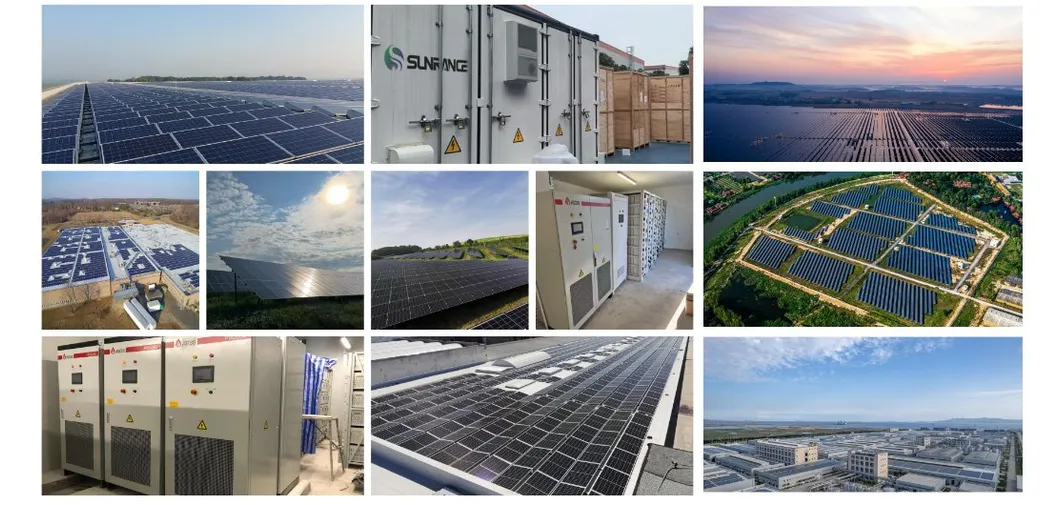

🛠️ Technical Support & Project Cases

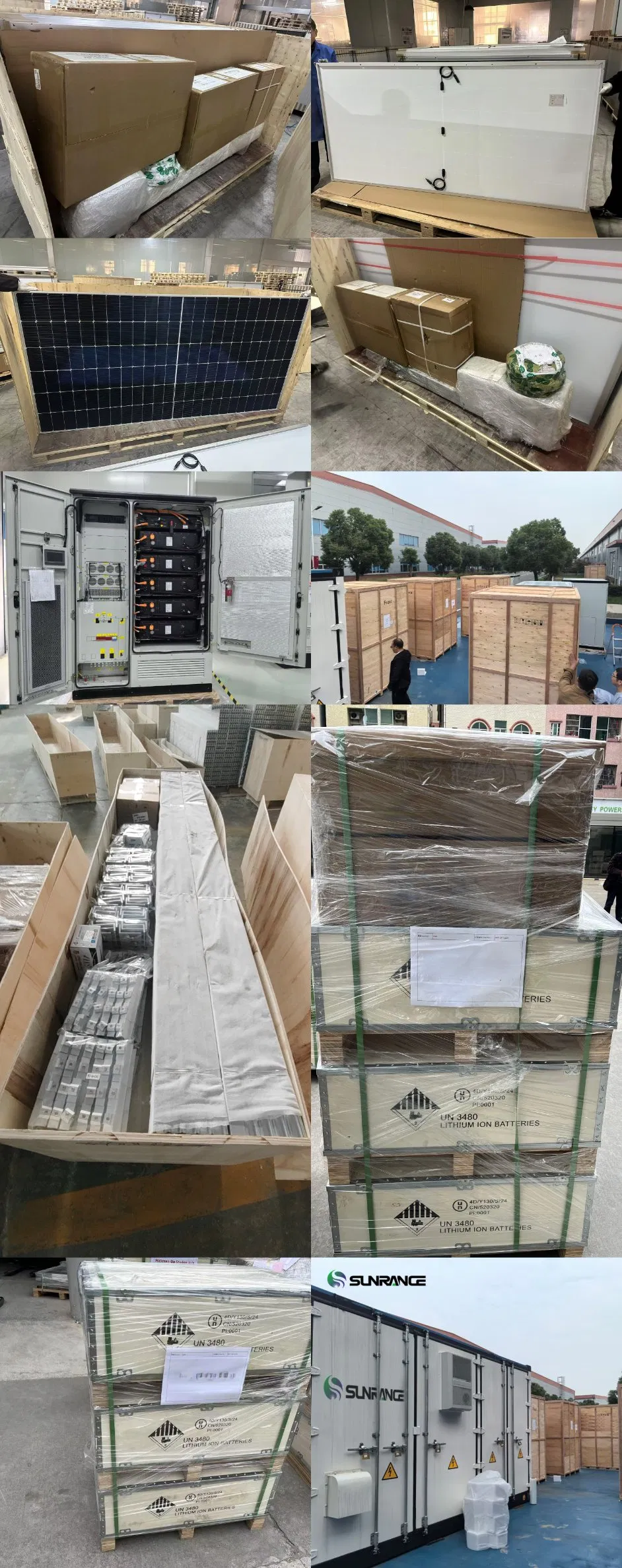

📦 Packaging & Shipping

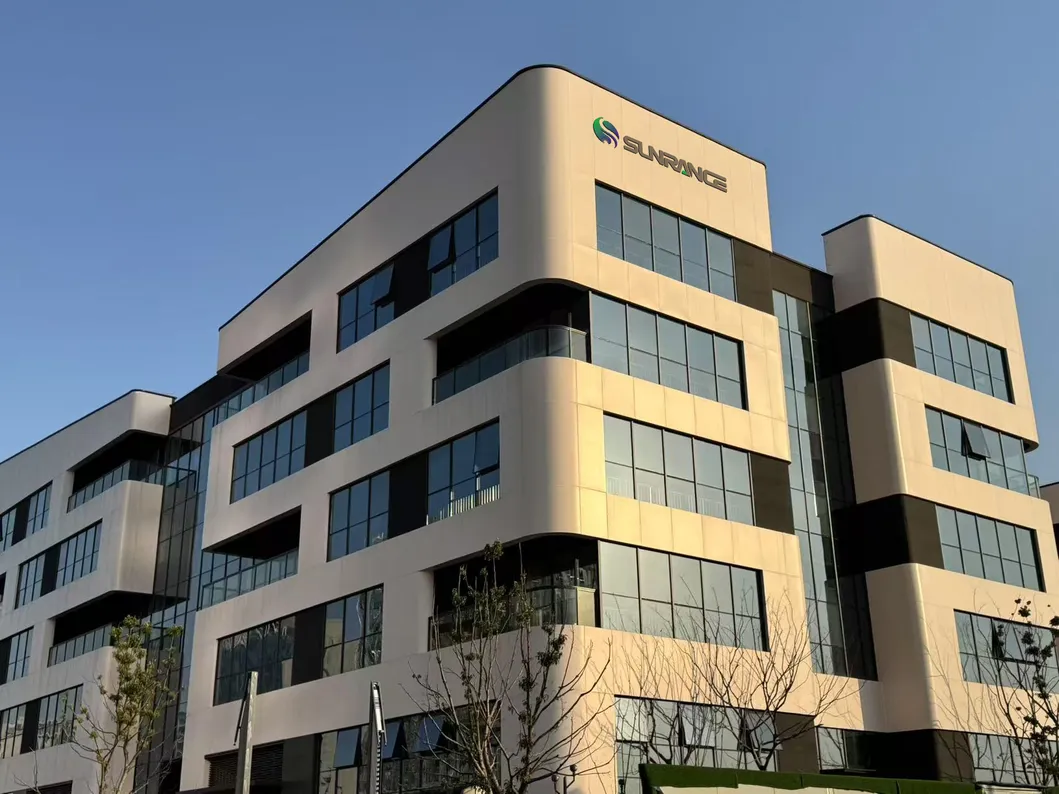

🏢 Profile

We are an emerging brand in the photovoltaic industry with customers located on all continents. We provide high-quality products and professional services, offering diverse design solutions for large, medium, and small-scale requirements. We continuously improve our technology to bring a superior energy experience to our users.

Frequently Asked Questions

What is the lifespan of the solar battery system?

The battery system uses LiFePO4 technology, providing a cycle life of over 6000 times with up to 90% Depth of Discharge (DOD).

Can the hybrid system work without the grid?

Yes, the hybrid storage solar inverter is designed to handle off-grid scenarios, managing power from PV and batteries to supply your loads.

What type of solar panels are included in the kit?

The system features high-efficiency N-Type Topcon Monocrystalline solar panels (SR72P-580N) with an efficiency rating of 22.44%.

Is the system scalable if I need more power later?

Absolutely. The All-in-one hybrid inverter allows for easy expansion of system capacity to meet growing load demands.

What mounting options are available for the solar panels?

The PV mounting system is versatile, supporting both ground mounting and roof mounting (including asphalt shingle roofs).

Is technical support provided for installation?

Yes, we provide complete technical support and customized design solutions to ensure optimal system performance and installation.
