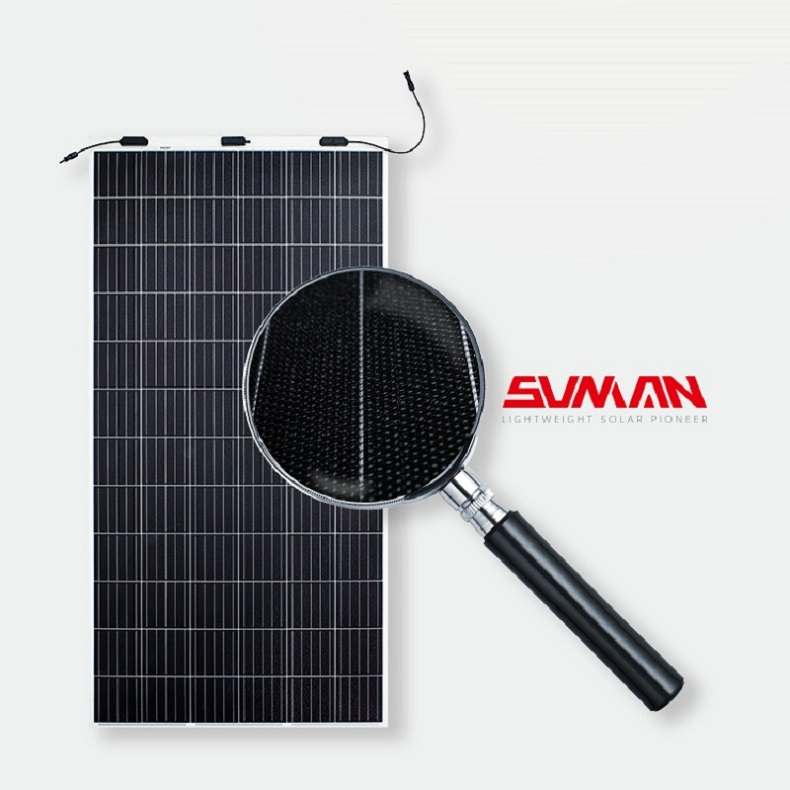

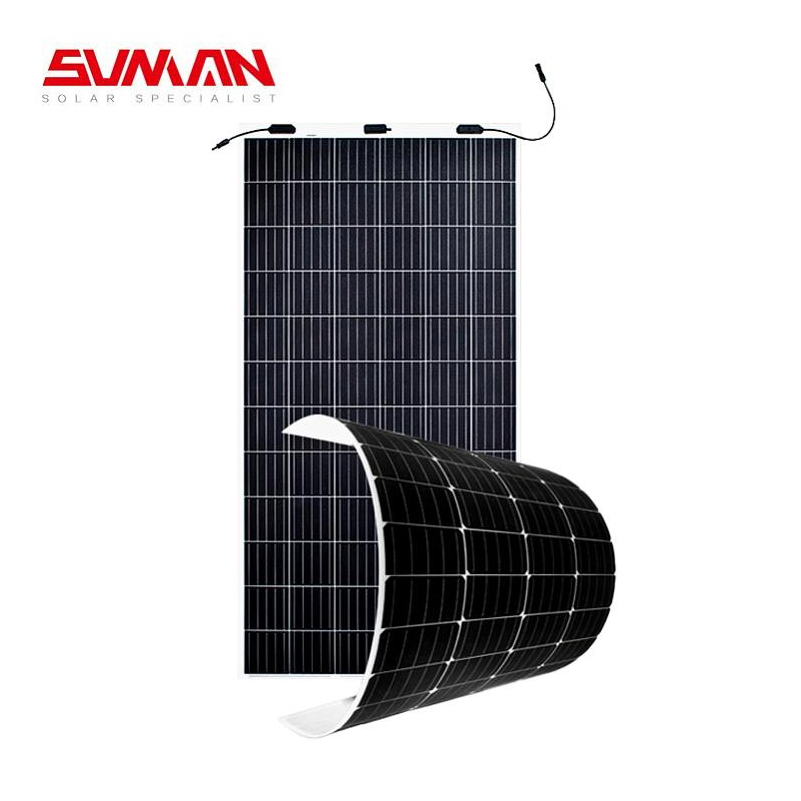

Wholesale Sunman Flexible Solar Panel 400W 500W 520W 550W High Efficiency Monocrystalline Flexible Modules Solar Panel Price for Solar Panel System

Customization: Available
After-sales Service: Yes
Warranty: 10 Years

Product Description

📋 Basic Information
Model NO.SMF520J-12*12UW
Number of Cells144cells
ApplicationLight Industry
ConditionNew
CertificationISO, CE, TUV
MaterialMonocrystalline Silicon
Weight7.8kg
Operating Temp-40~+80°C
Power Tolerance0~+5W
Fuse Rating20A
Specification2246*1197*2mm
HS Code8541430000
Production Capacity20000watt/Week
💡 Product Description

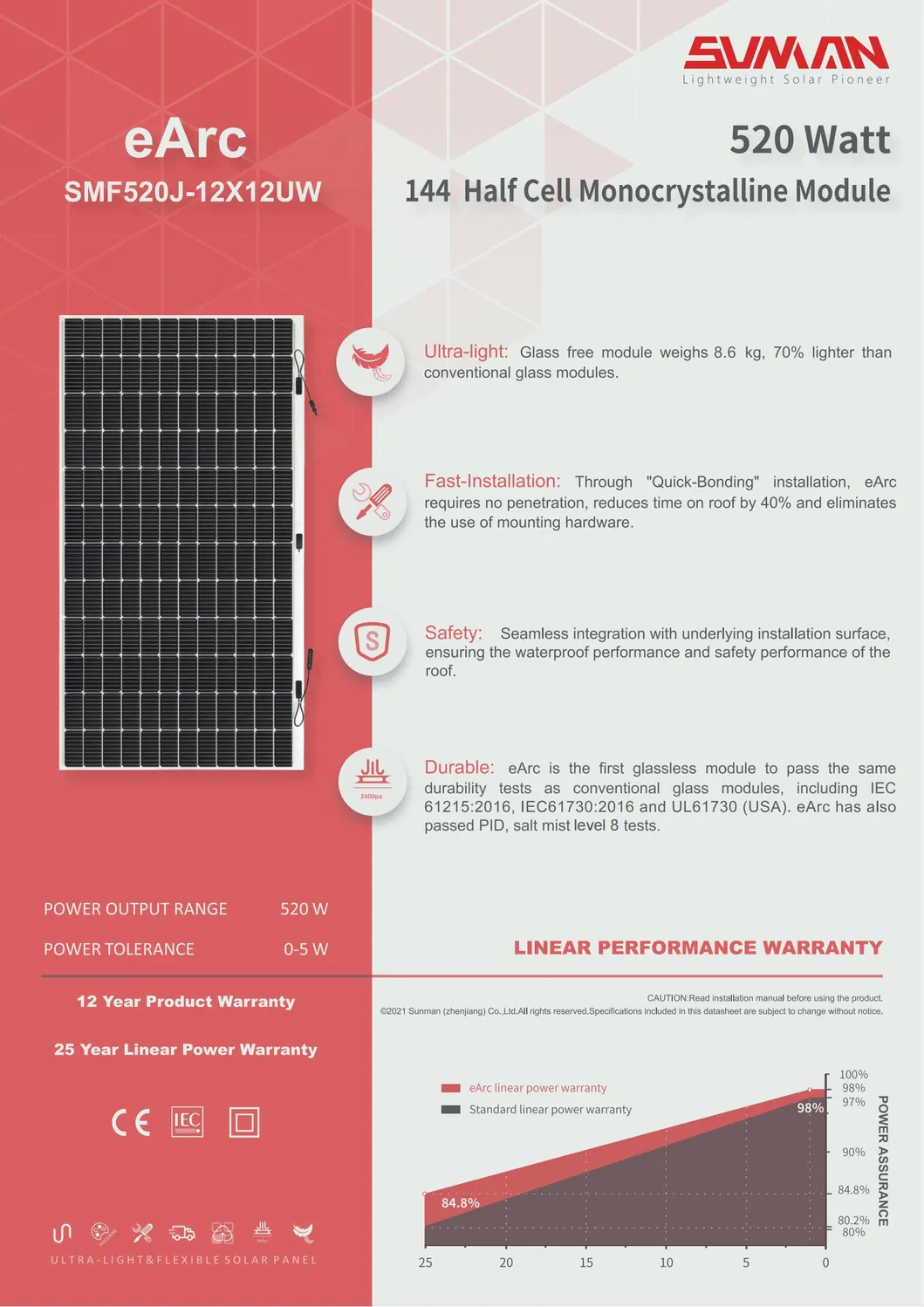

Flexible Solar Panel
Product Parameters
ModelSMF520J-12×12UW
TypeFlexible Monocrystalline Silicon
Rated Power (Pmax)520W
Voltage at Pmax (Vmp)42.6V
Current at Pmax (Imp)12.2A
Open-Circuit Voltage (Voc)50.8V
Short-Circuit Current (Isc)13.1A
Module Efficiency≥22.3%
Surface MaterialETFE UV-resistant coating
Bend RadiusMin. 30cm
Max System Voltage1000V DC
Wind Load Resistance2400Pa
Typical ApplicationsRV roofs, BIPV, marine, off-grid systems
📷 Detailed Photos

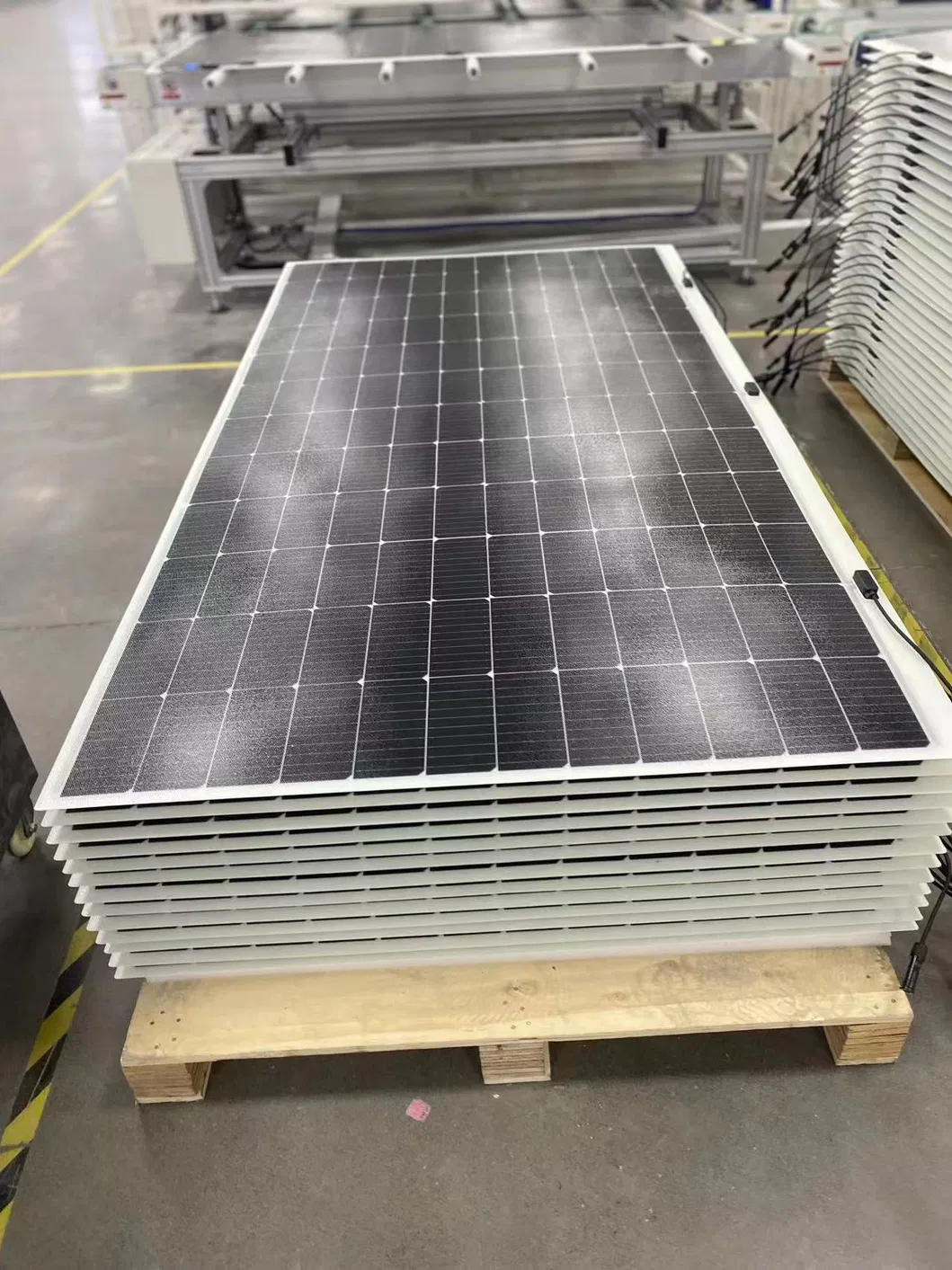

Detail Photo
Certificate
🏗 Project Cases

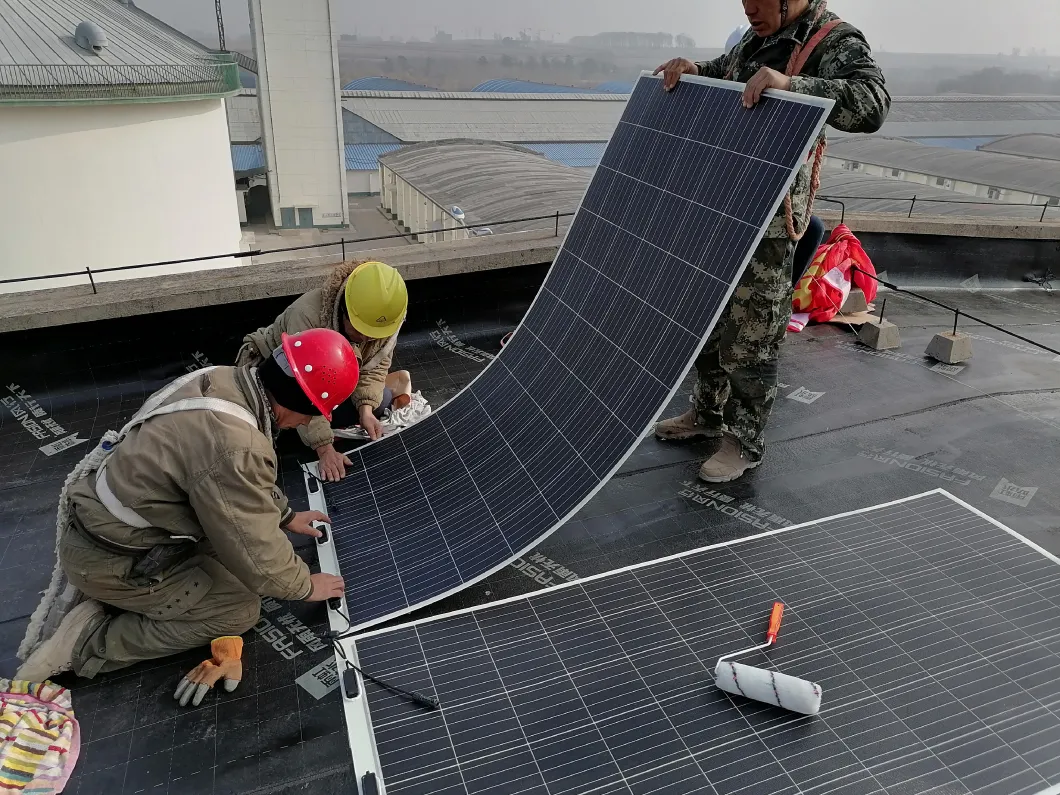

Project Case 1

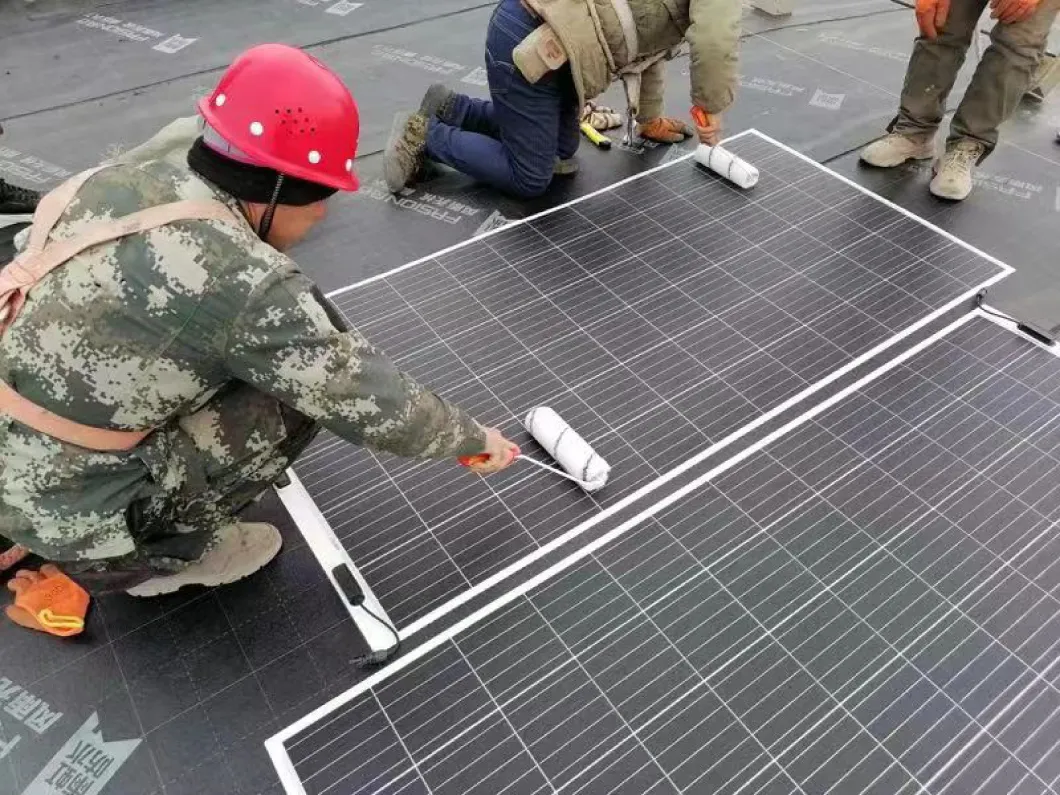

Project Case 2

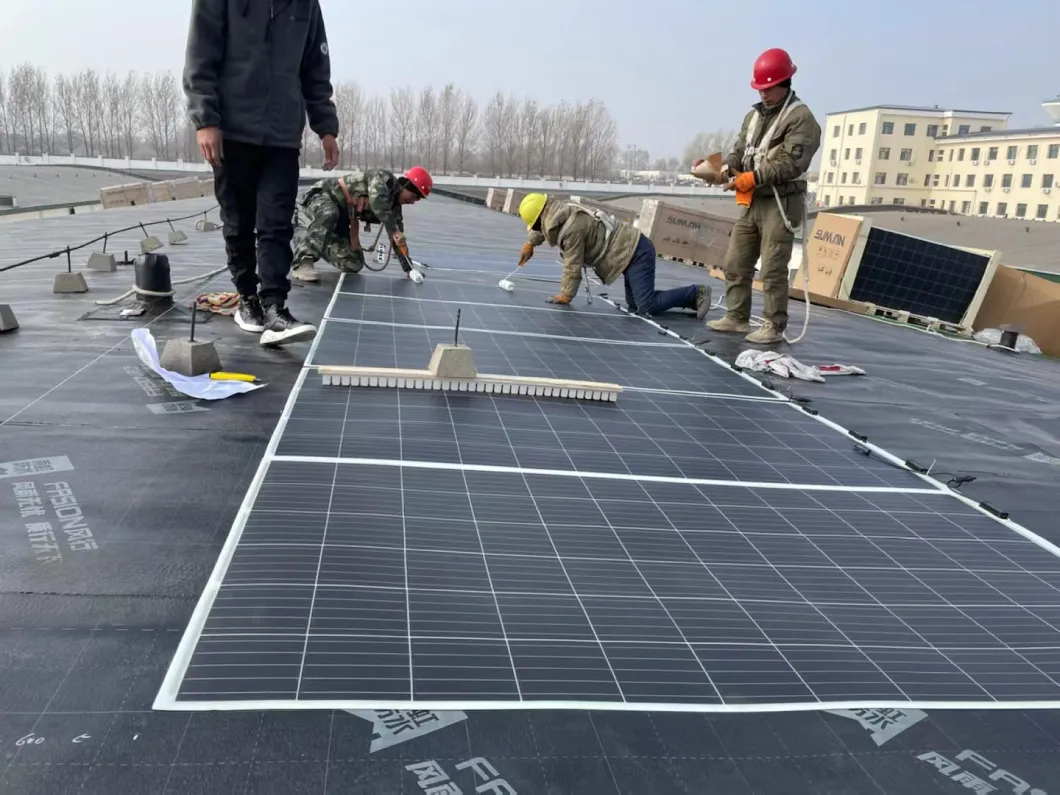

Project Case 3

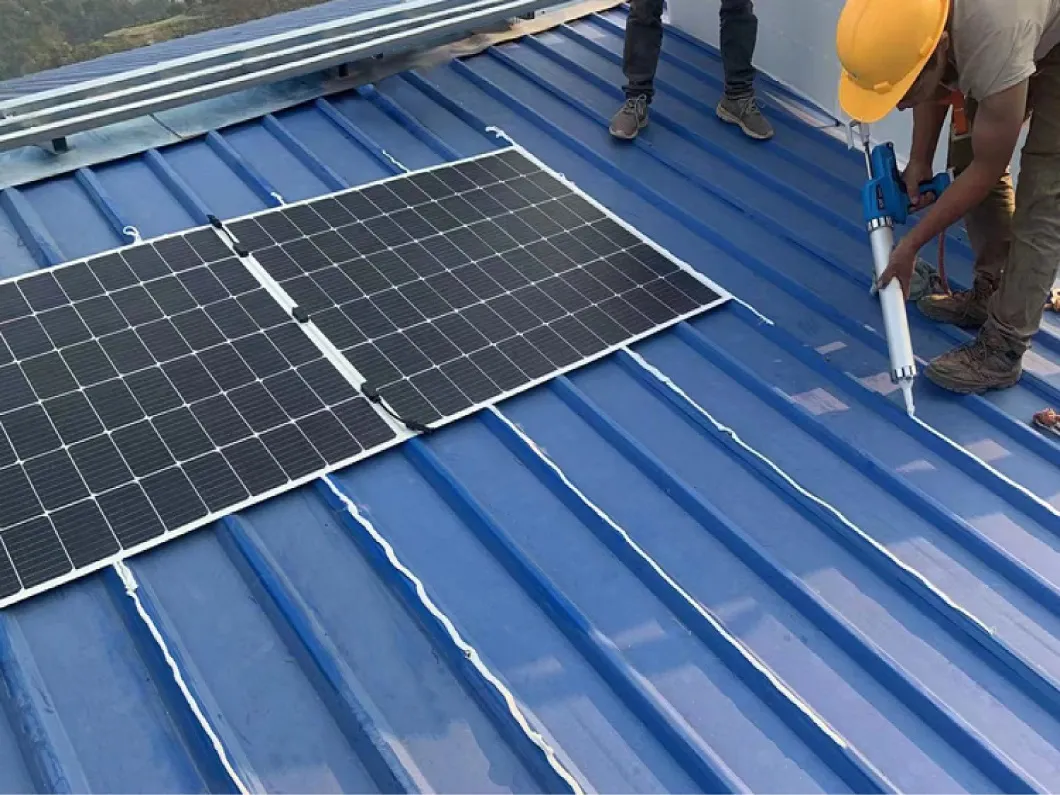

Project Case 4
📦 Packaging & Shipping

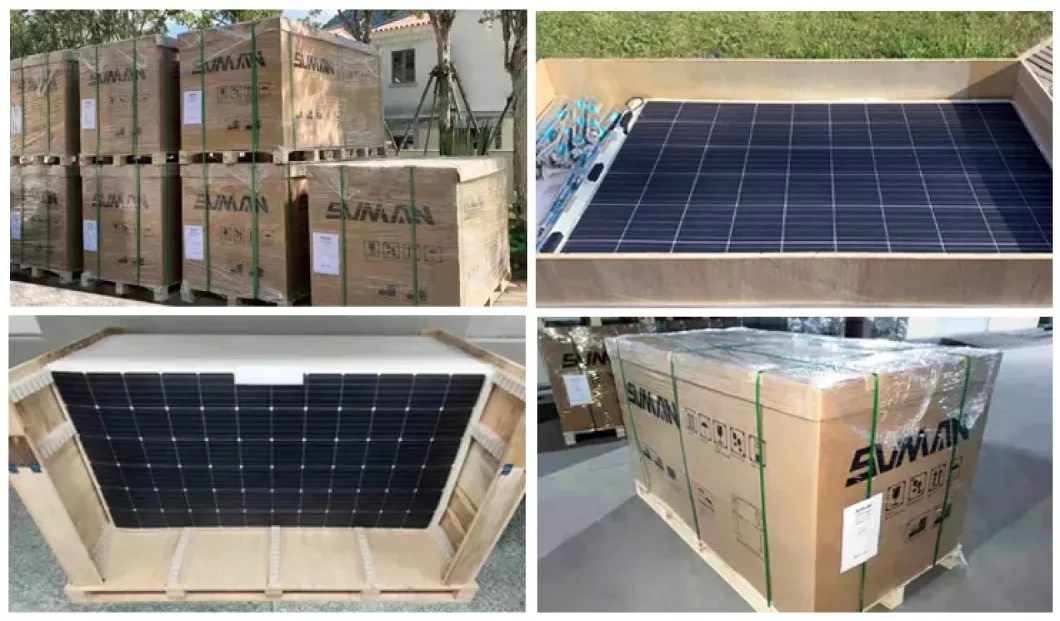

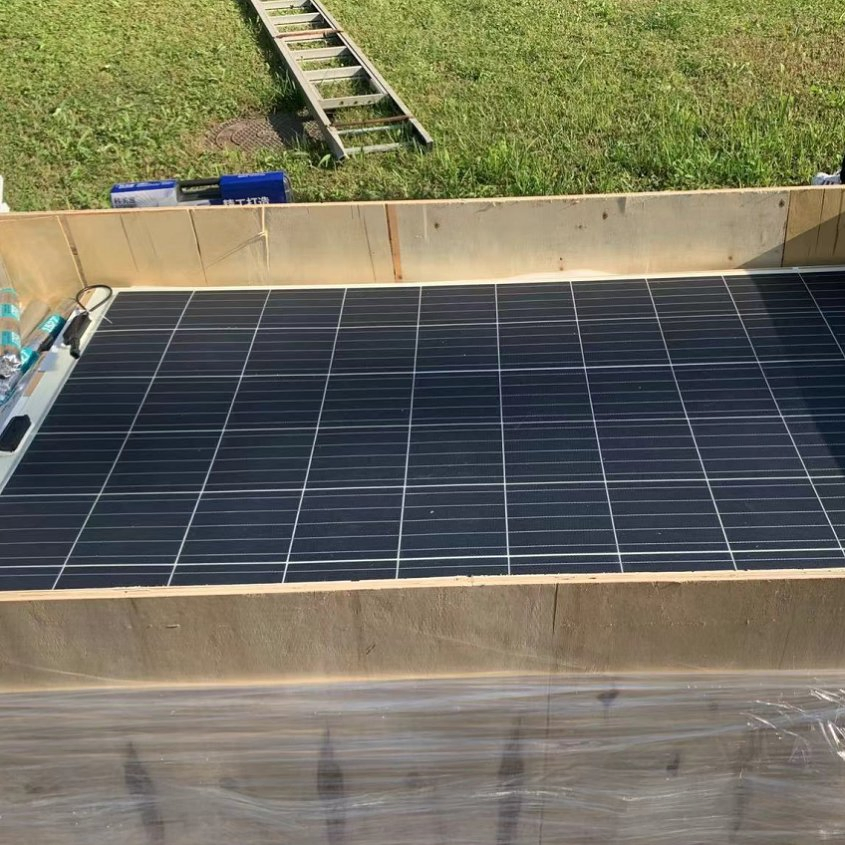

Packaging
Shipping Information
Package Size249.00cm * 114.00cm * 138.00cm
Package Gross Weight590.000kg
Frequently Asked Questions
How to choose the right panel?
Tell us your demand, then our experts will recommend a suitable panel for you based on your energy requirements.
What's the difference between Mono and Poly panel?
Monocrystalline solar panels have the highest efficiency rates since they are made out of the highest-grade silicon. The process used to make polycrystalline silicon is simpler and costs less, with less waste silicon compared to monocrystalline.
How about the delivery time?
Standard delivery time is 7 days for samples and approximately 15 days for bulk orders.
What is the warranty for solar panels?
Generally, the warranty for solar panels is 10 years for materials and workmanship, and we also offer a 25-year linear output power warranty.
How can I get the best technical support?
Our professional engineer team provides comprehensive support based on your requirements. We offer 24-hour online assistance to resolve any issues during usage promptly.
