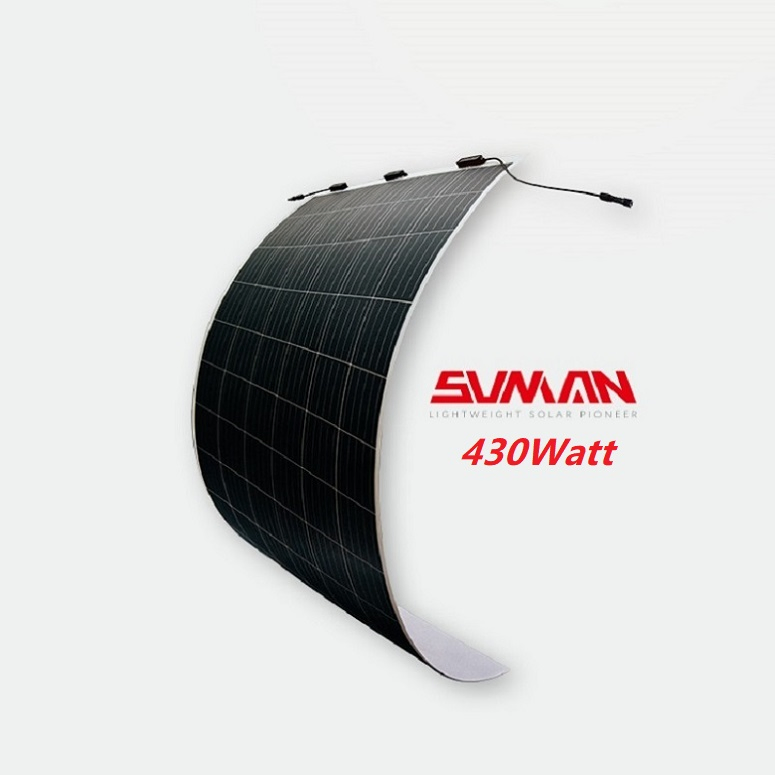

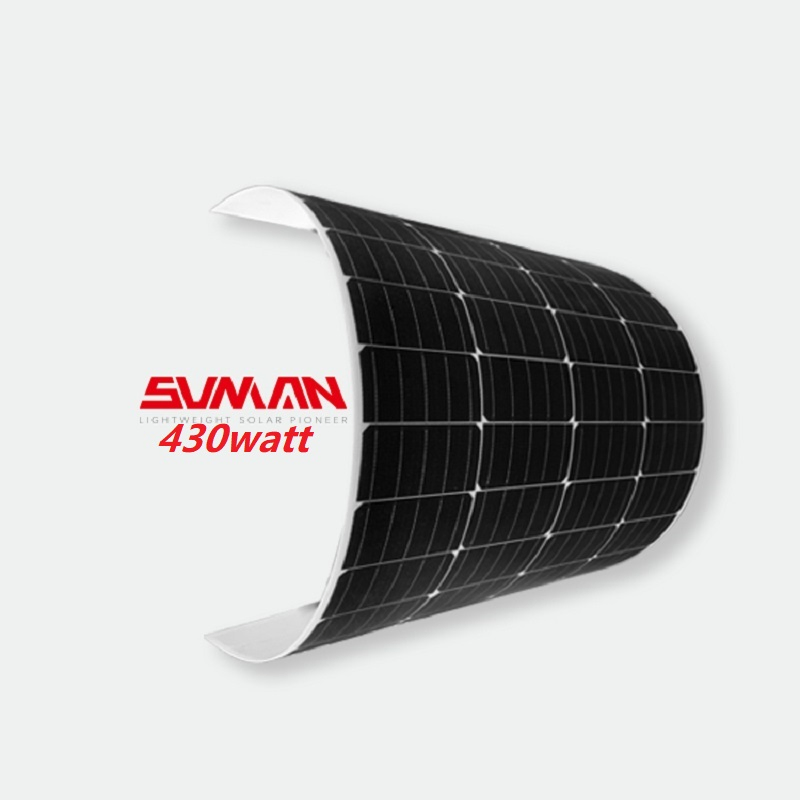

Flexible Lightweight 200W 300W 430W 500W 520W Foldable Flexible Solar Panel for Home Solar System

Customization: Available
After-sales Service: Yes
Warranty: 25 Years

Product Description

Overview
Model NO. FLEXIBLE 420-520W
Number of Cells 144cells
Application Homeuse
Condition New
Certification ISO, CE, TUV
Material Monocrystalline Silicon
Transport Package 35PCS/Pallets, 70PCS/Stack, 770PCS/ 40'hq Container
Specification 2120*1046*2mm
Trademark Flexible solar panel
Origin China
HS Code 8541402000
Product Description

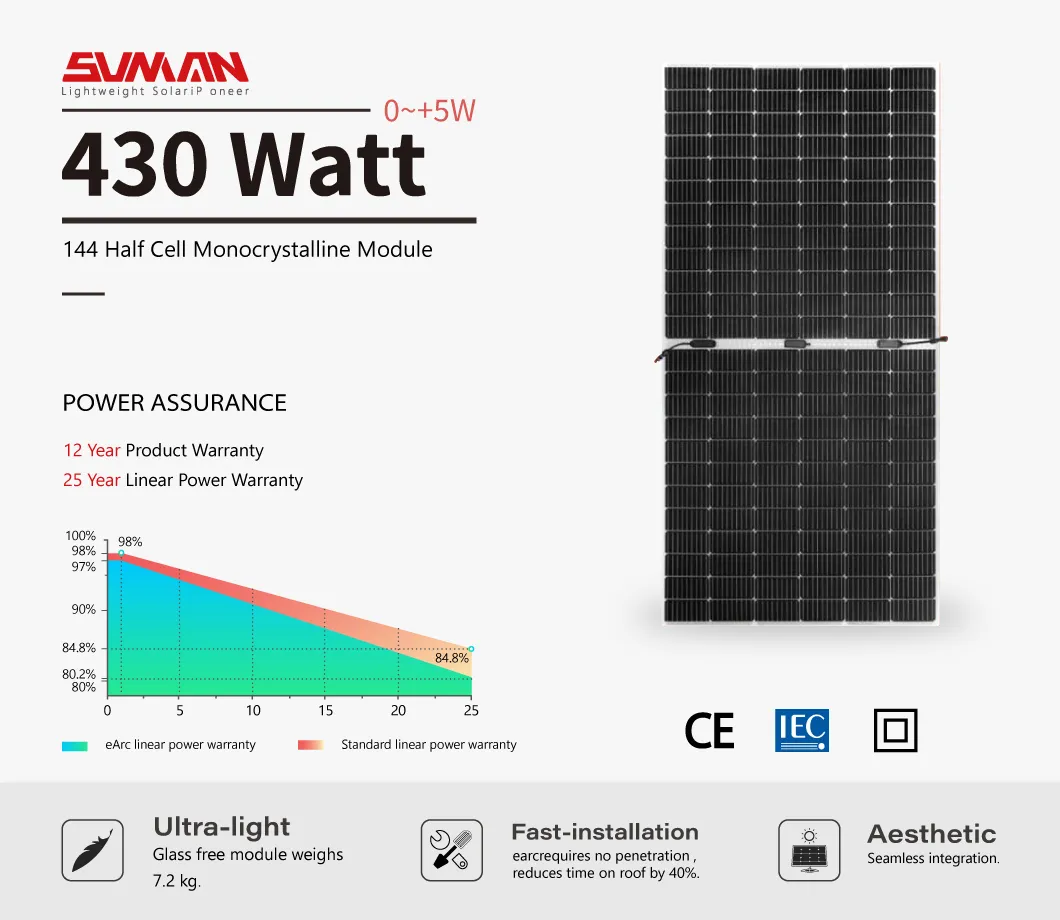

Flexible Solar Panel Description
Product Parameters
STC Item SMF430F-12X12UW
Maximum Power ( Pmax ) 430W
Maximum Power Voltage ( Vmp ) 42.0V
Maximum Power Current ( Imp ) 10.24A
Open-circuit Voltage ( Voc ) 49.8V
Short-circuit Current ( Isc ) 10.74A
Module Efficiency (%) 19.2%
Operating Temperature -40ºC to 85ºC
Maximum System Voltage 1000V DC(IEC)
Weight 7.3KG
Size 2120*1046*2mm

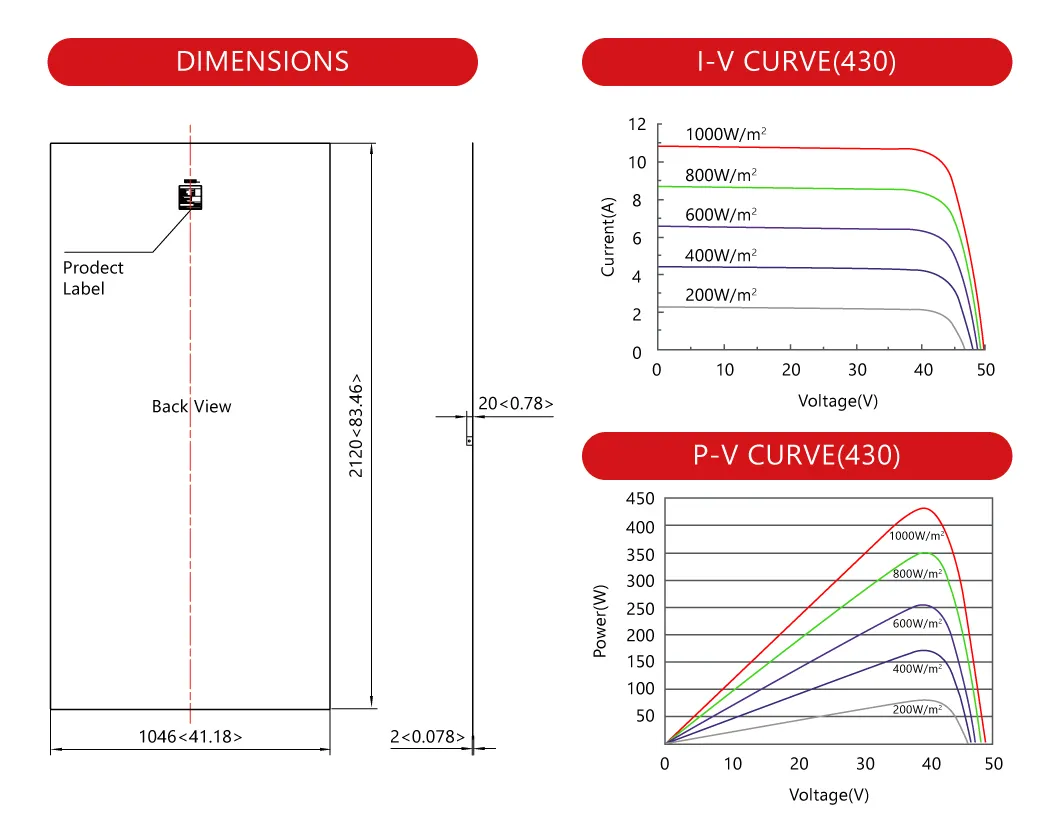

Solar Panel Parameters Diagram
Detailed Photos

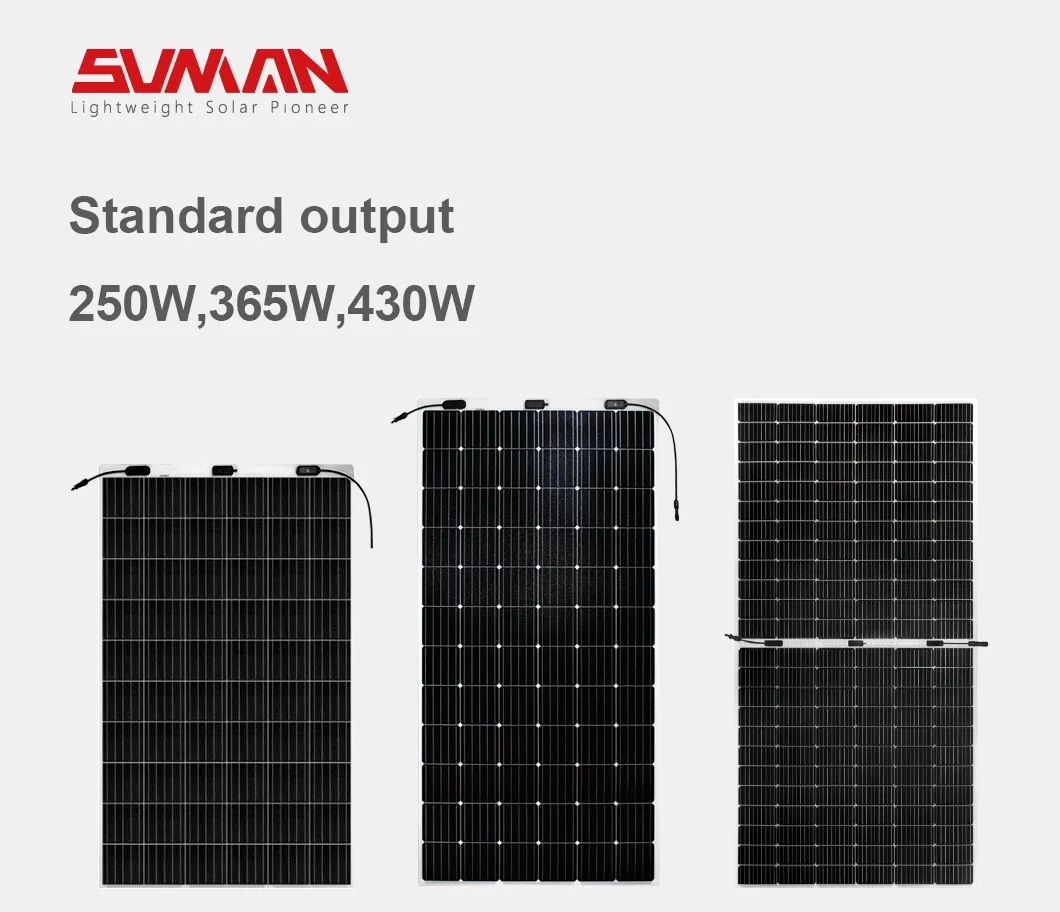

Detailed Photo 1

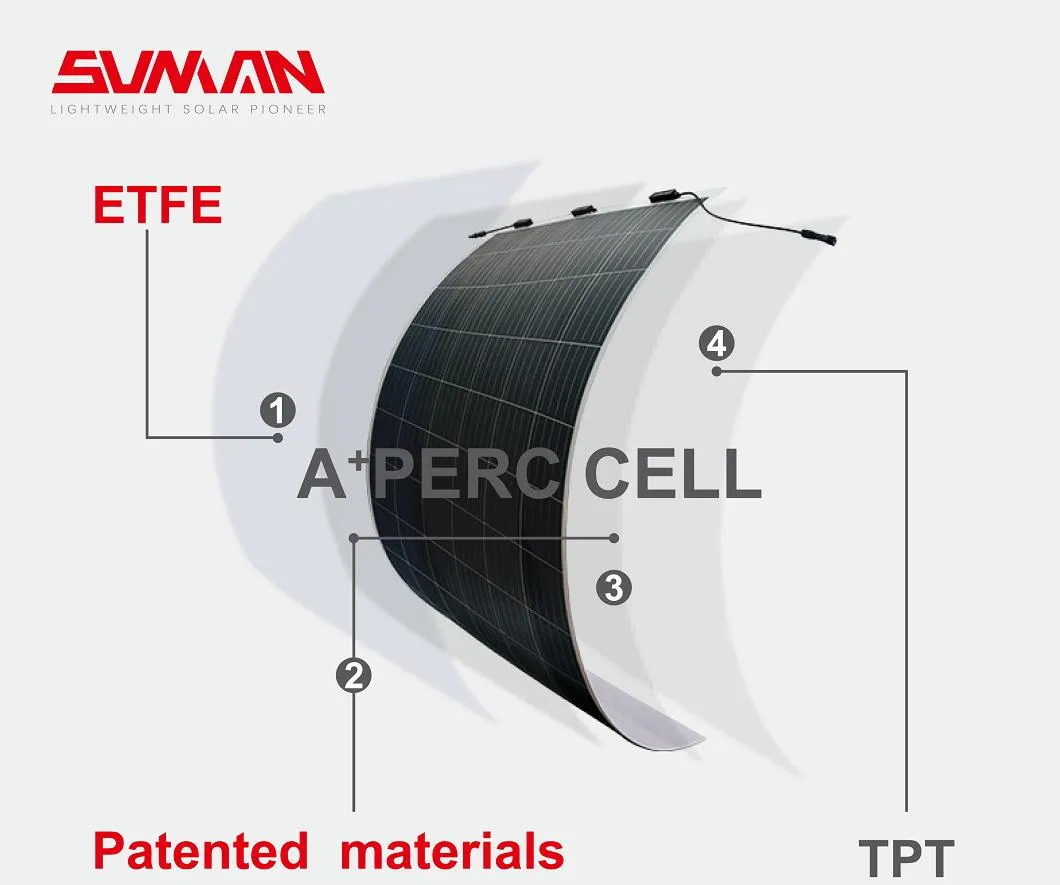

Detailed Photo 2
Project Case

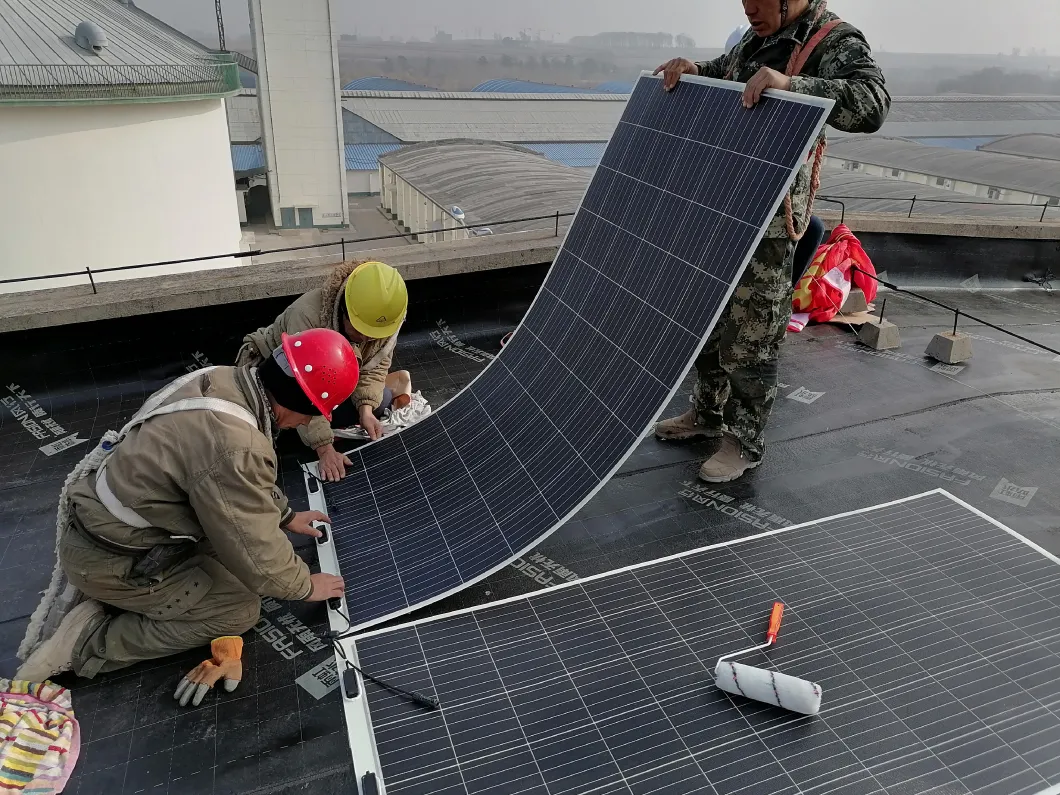

Case 1

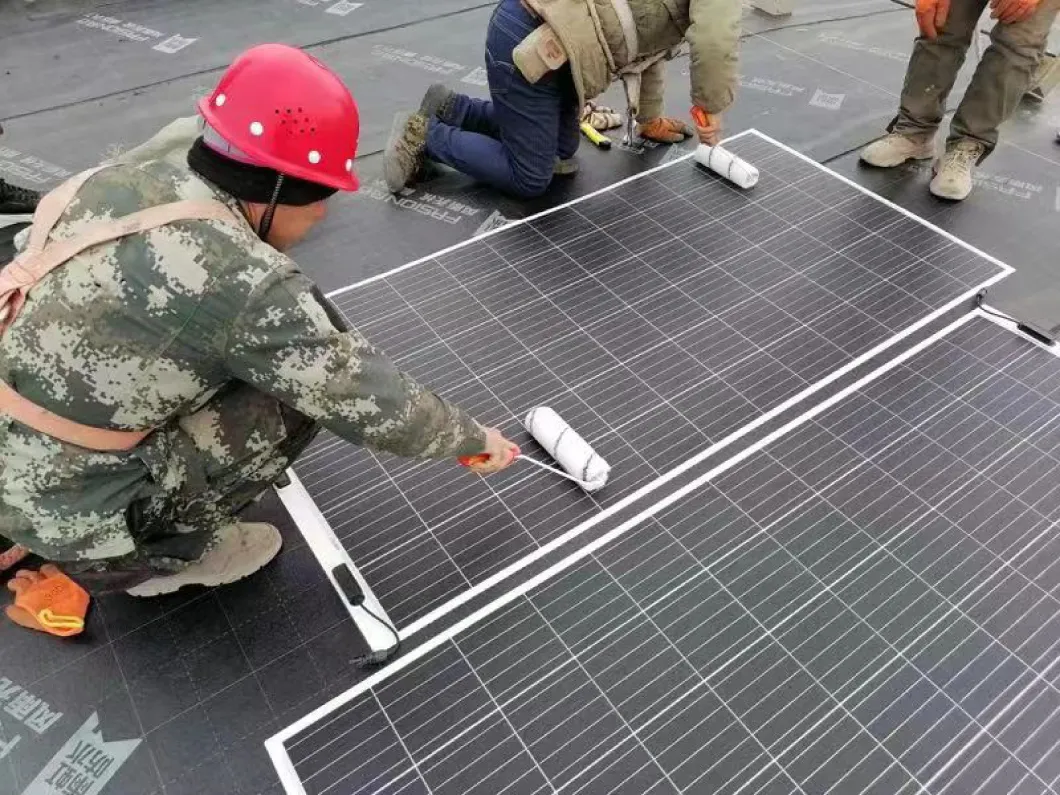

Case 2

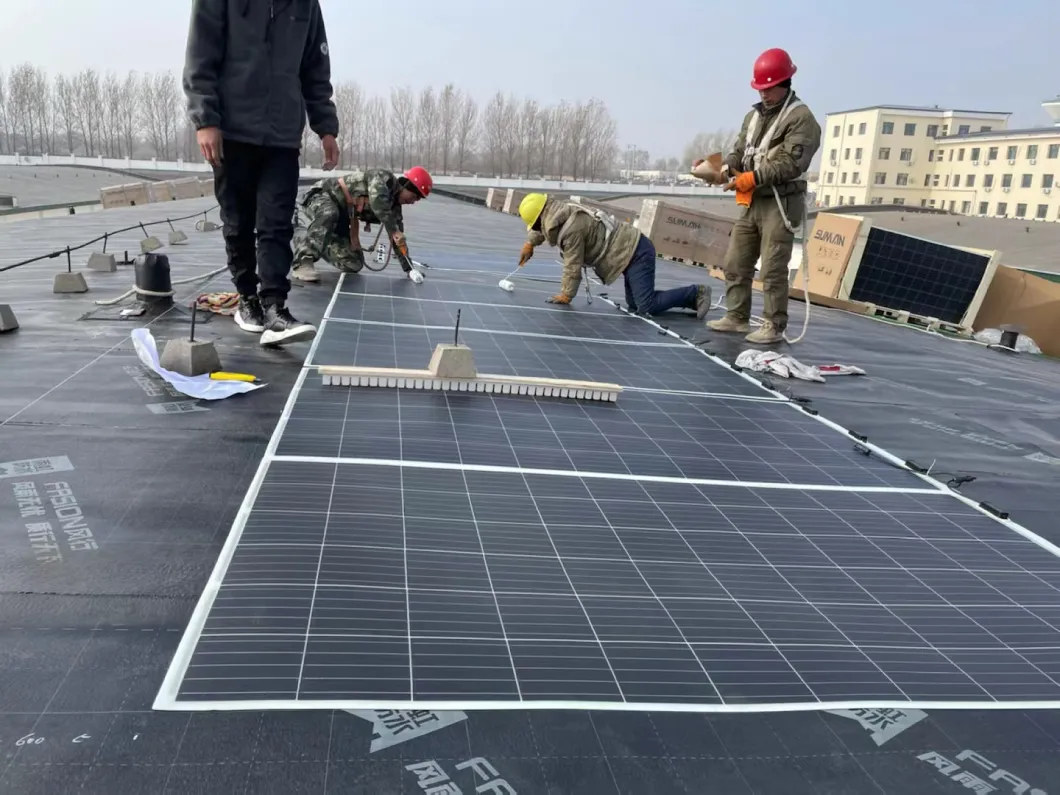

Case 3

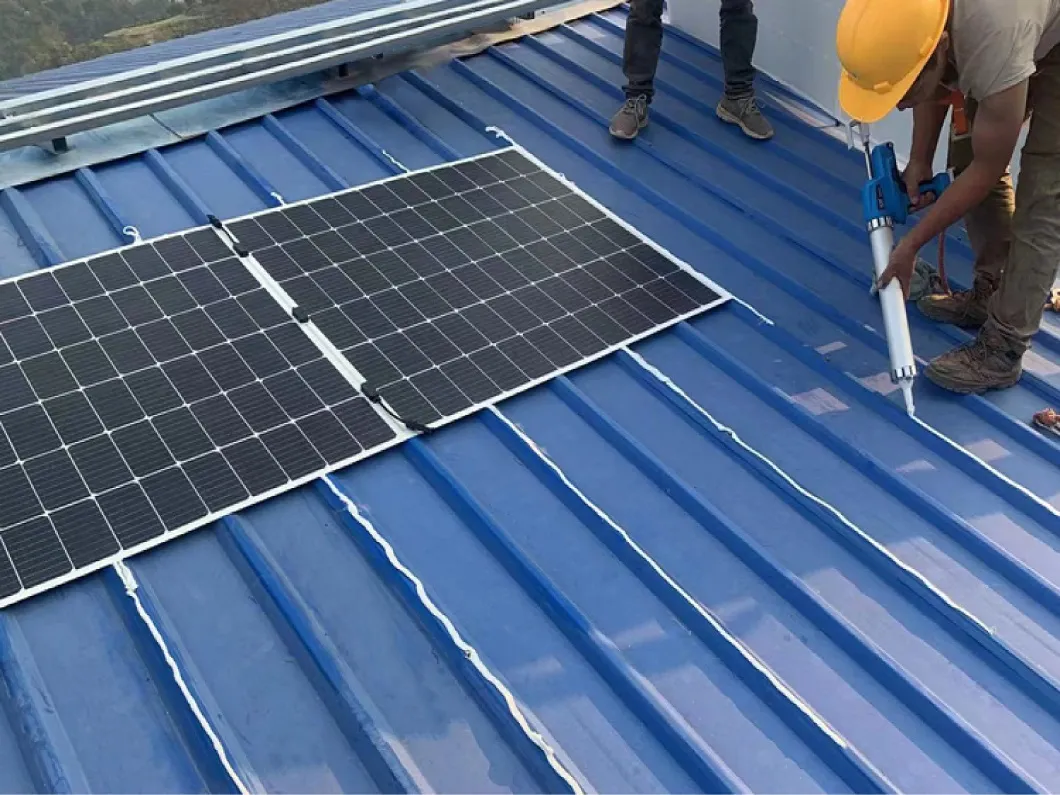

Case 4
Application

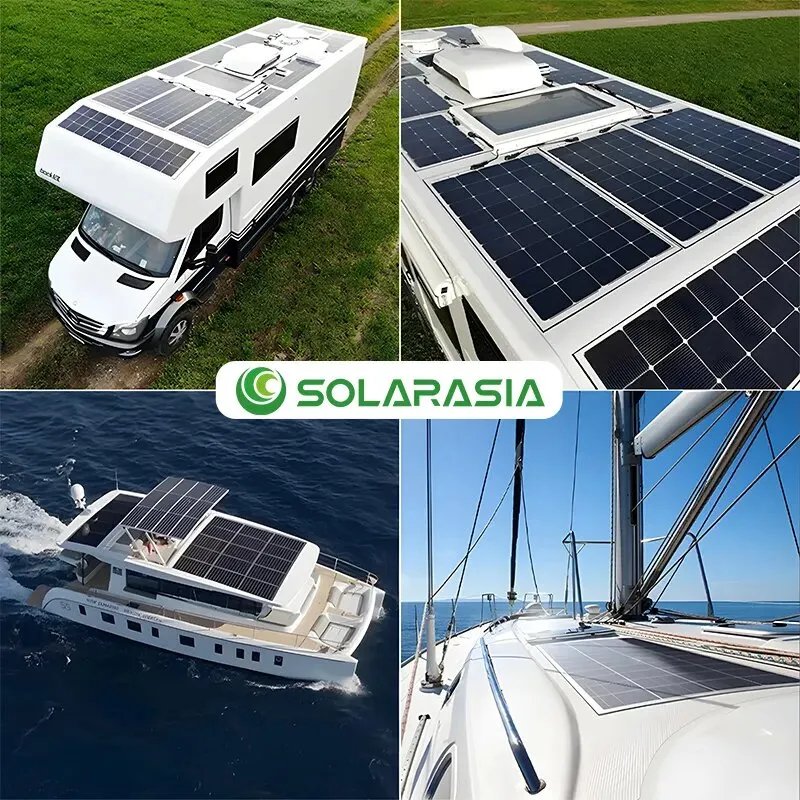

Solar Panel Application
Company Profile
Factory View 1 Factory View 2
Packaging & Shipping

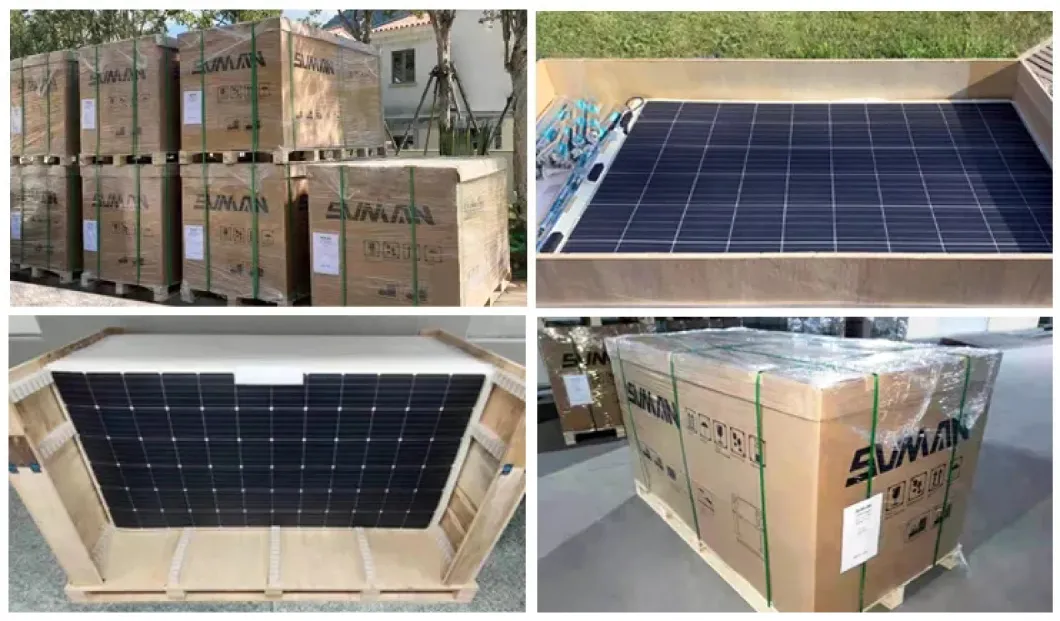

Packaging
Shipping
FAQ
How to choose the right panel?
Tell us your demand, then our sales will recommend a suitable panel for you.
What's the difference between Mono and Poly panel?
Monocrystalline solar panels have the highest efficiency rates since they are made out of the highest-grade silicon. The process used to make polycrystalline silicon is simpler and costs less.
What is the delivery time?
Delivery time is approximately 7 days for samples and 15 days for bulk orders.
What is the warranty for solar panels?
Generally, the warranty for solar panels is 10 years. We also offer a 25-year linear output power warranty.
How can I get better support?
We have a professional engineer team to provide the best support based on your requirements. We offer 24-hour online service for any issues.
What certifications do your panels have?
Our products are certified with ISO, CE, and TUV standards, ensuring high quality and safety for global use.
