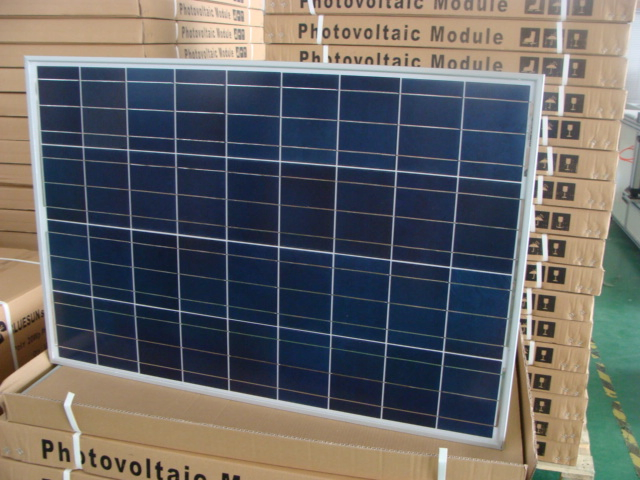

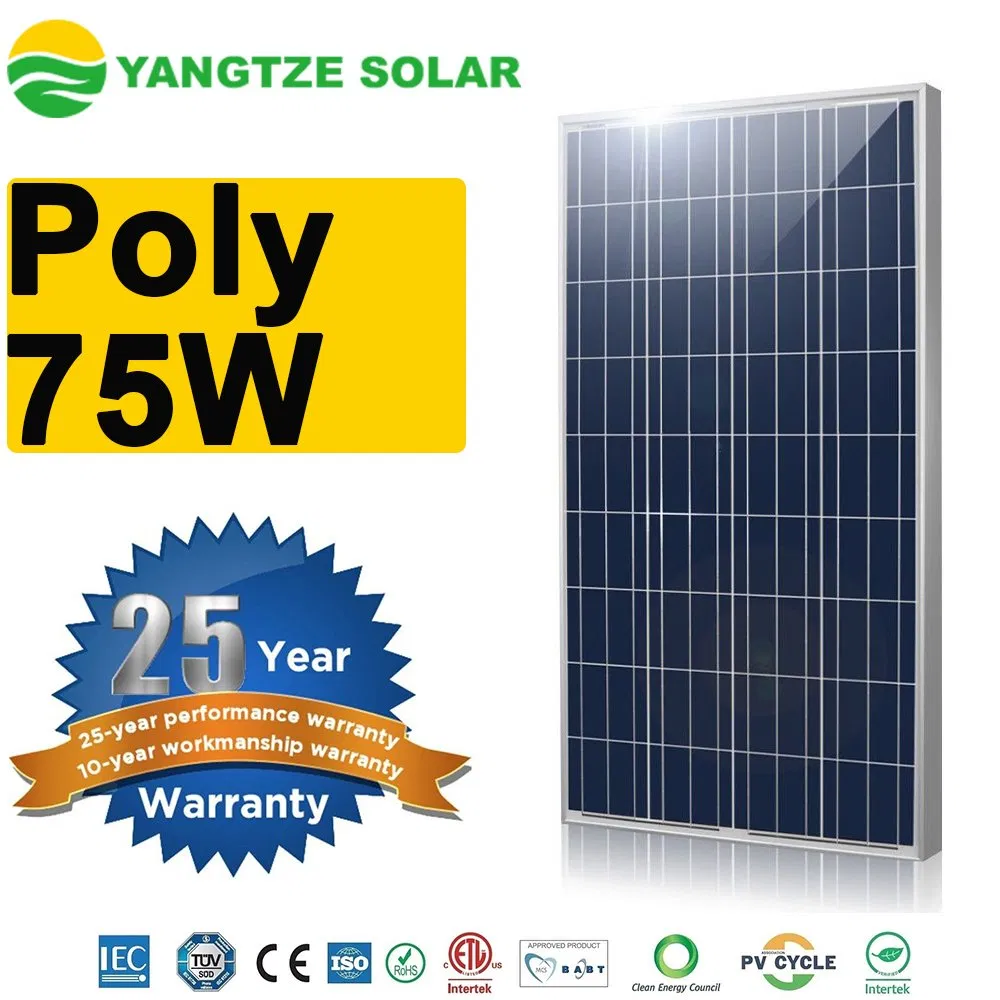

China Factory Best 75W Polycrystalline Solar Panel
China Factory Best 75W Polycrystalline Solar Panel
China Factory Best 75W Polycrystalline Solar Panel
China Factory Best 75W Polycrystalline Solar Panel
China Factory Best 75W Polycrystalline Solar Panel
1 / 5
China Factory Best 75W Polycrystalline Solar Panel
China Factory Best 75W Polycrystalline Solar Panel
China Factory Best 75W Polycrystalline Solar Panel
China Factory Best 75W Polycrystalline Solar Panel
China Factory Best 75W Polycrystalline Solar Panel

China Factory Best 75W Polycrystalline Solar Panel

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications
Model NO.:YS75P-36
Application:Light Industry
Condition:New
Certification:ISO, CE, TUV, Cec, IEC61215, IEC61730
Material:Polycrystalline Silicon
Frame:Anodized Aluminium Alloy
Junction Box:IP67 Waterproof
Solar Cell:Poly 156X156mm Cell
Front Cover:3.2mm High Transmission Low Iron Tempered Glass
Size:840X673X30mm
Connector:Mc4 Compatible Connector
Backsheet Color:White or Black or Transparent
Weight:8 Kg
HS Code:8541402000
Polycrystalline Solar Panel
Performance Parameters
Model YS70P-36 YS80P-36 YS90P-36 YS100P-36 YS110P-36 YS120P-36 YS130P-36
Rated Power (STC) 70W 80W 90W 110W 110W 120W 130W
Voltage (Vmp) 17.4V 17.8V 17.4V 17.8V 17.4V 17.5V 17.8V
Current (Imp) 4.06A 4.55A 5.18A 5.63A 6.32A 6.86A 7.31A
Voc 21.8V 22.4V 21.8V 22.4V 21.8V 22.1V 22.4V
Isc 4.35A 4.86A 5.78A 6.18A 6.82A 7.42A 7.81A
Mechanical & Working Conditions
Mechanical Parameters
Cell TypePoly-crystalline 156x156mm (6inch)
No. of Cells36 (4x9)
Glass3.2mm, High Transmission, Low Iron, Tempered Glass
Junction BoxIP65 & IP67 Rated
Output CableSection Size: 2.5mm²
FrameAnodized Aluminum Alloy
Working Conditions
Maximum System VoltageDC 1000V(IEC) / 1500V(IEC) / 600V
Operating Temperature-40°C ~ +85°C
Maximum Series Fuse15A
Temperature Coefficient
Pmax Coefficient-0.41%/°C
Voc Coefficient-0.31%/°C
Isc Coefficient+0.06%/°C

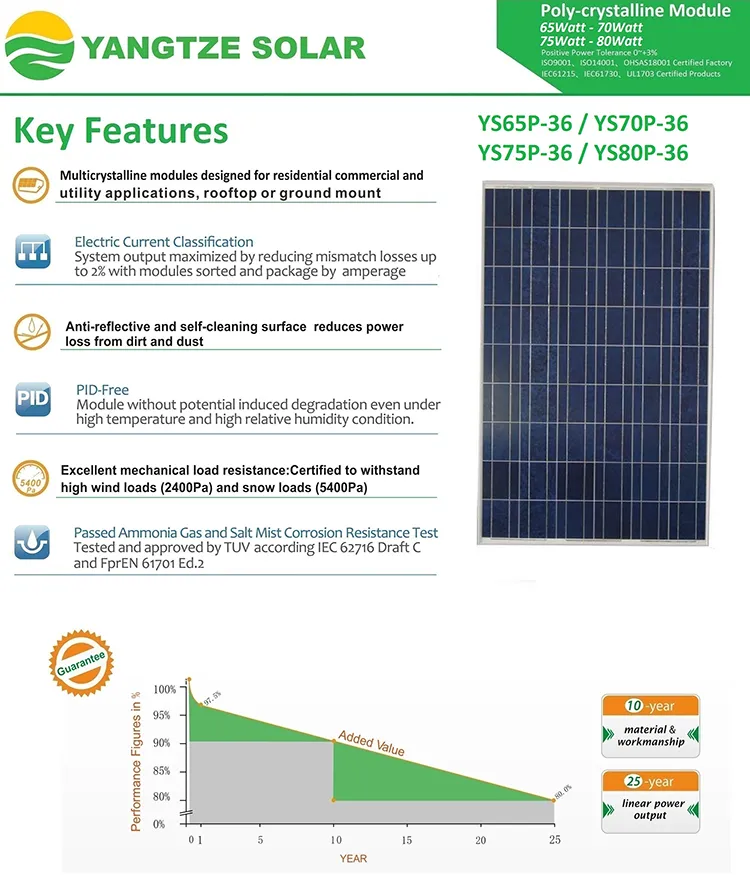

Key Features & Highlights
🛡️
Superior Warranty: 10 years for workmanship and materials; 25 years linear power output warranty.
⚡
High Capacity: 300MW production capacity ranging from 3W to 360W panels.
🔍
Quality Control: 100% EL test performed before packaging and shipping.
🌍
Global Reach: Products exported to more than 150 countries worldwide.
📜
Certified Quality: Fully certified by TUV (Germany) and CE standards.
🏗️
Turn-key Solutions: Complete solar systems offered to save time and costs.
Product Showcase

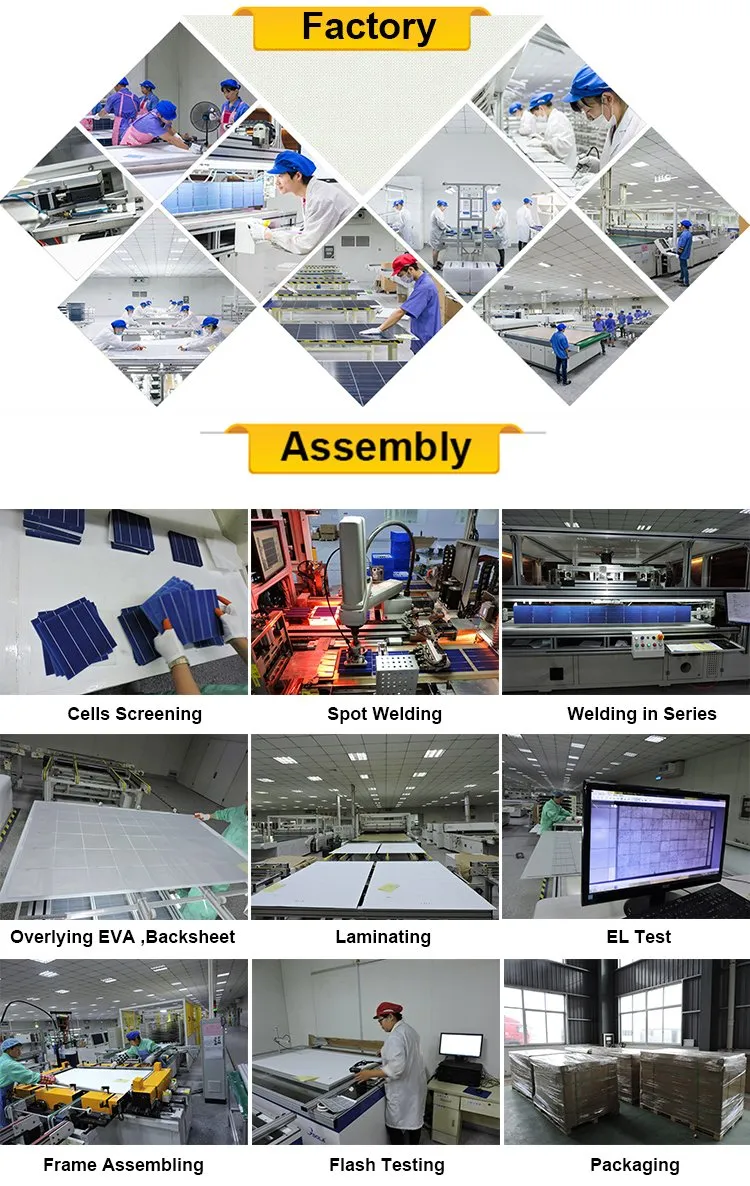

Solar Production

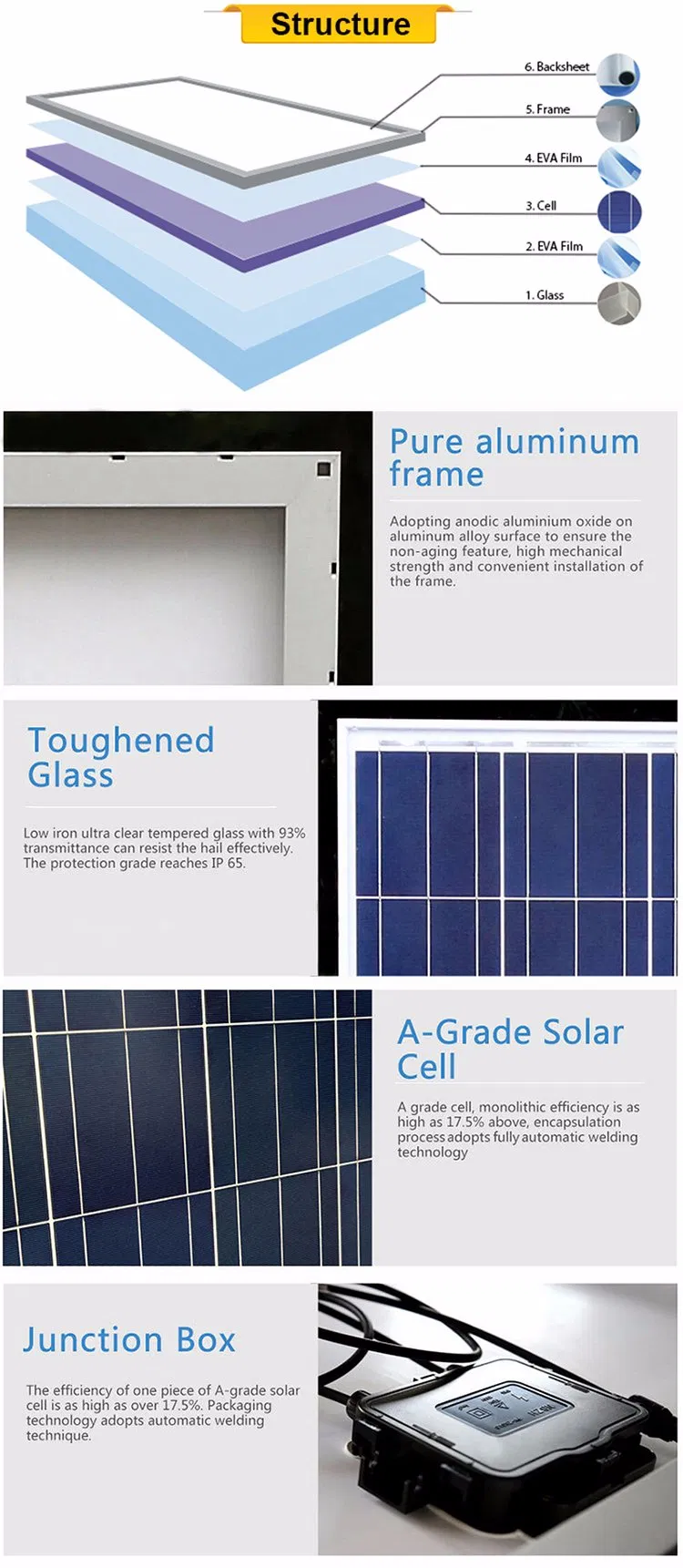

Solar Details

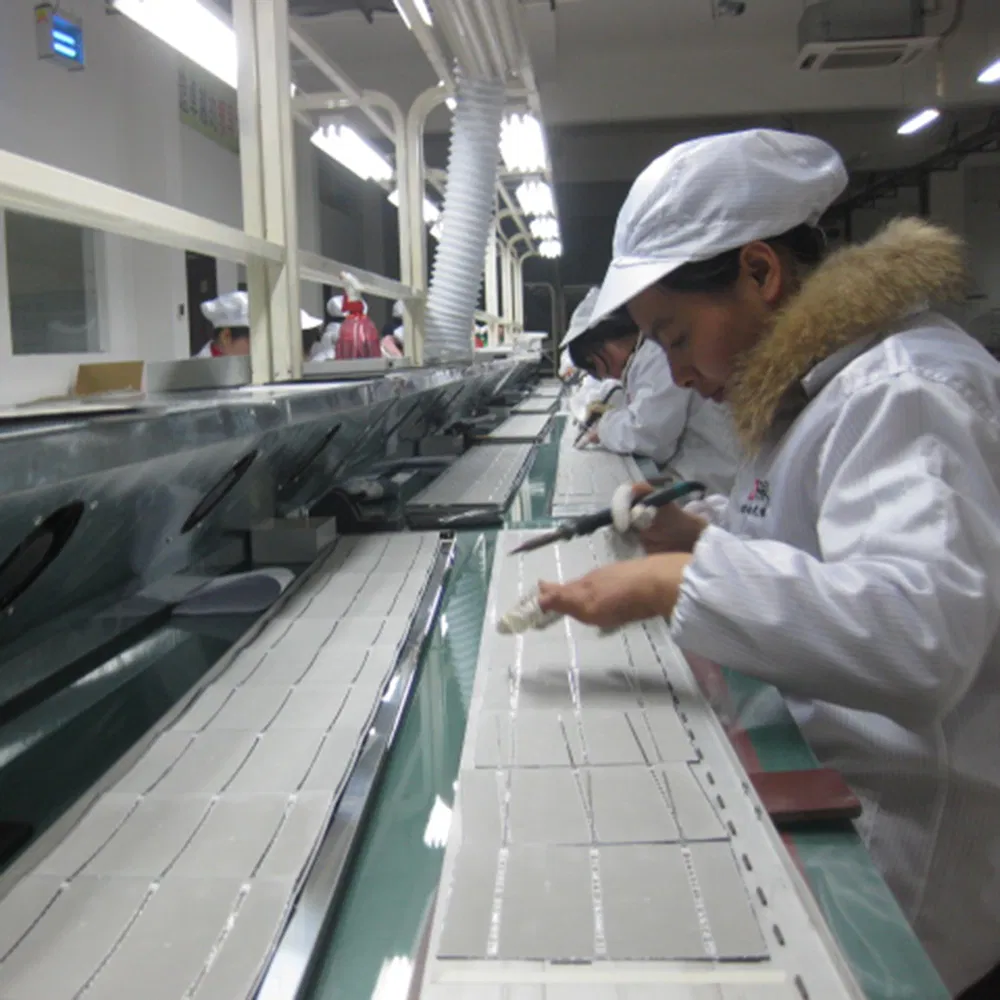

Manufacturing Process

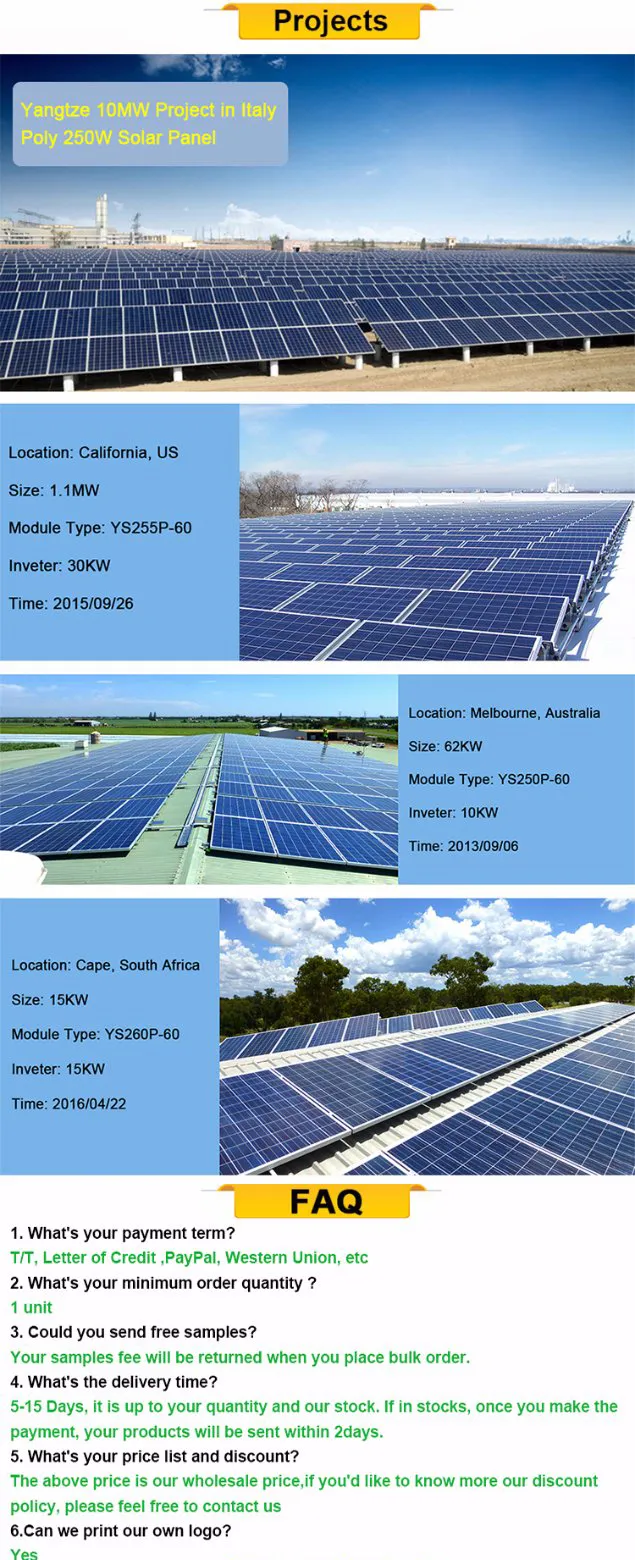

Project Display
Technical Specs
Frequently Asked Questions
What is the warranty period for these polycrystalline solar panels?
We provide a 10-year total workmanship and materials warranty, along with a 25-year linear power output warranty (at least 90% for 10 years and 80% for 25 years).
Are the panels tested before shipping?
Yes, 100% EL (Electroluminescence) testing is conducted on all panels before packaging and shipping to ensure no micro-cracks or defects.
Can these panels withstand harsh outdoor environments?
Absolutely. The panels feature an IP67 waterproof junction box, 3.2mm tempered glass, and an anodized aluminum alloy frame, designed to operate between -40°C and +85°C.
What certifications do your solar products hold?
Our products are certified by international standards including TUV (Germany), CE, ISO, and IEC61215/IEC61730.
What is the advantage of the MC4 compatible connector?
The MC4 compatible connector provides a secure, weather-resistant electrical connection that is the industry standard, ensuring easy integration with most solar inverters and systems.
Do you offer OEM orders?
Yes, OEM orders are acceptable. We can customize aspects such as frame color (silvery or black) and backsheet color (white, black, or transparent).
